IP67 HANDHELD PLASTIC ENCLOSURE - WH series


WH Series -PDF

CATEGORY:IP67 handheld enclosure, Waterproof plastic case, IP67 mobile enclosure, Remote controller enclosures, Plastic enclosure with battery compartment

IP67 HANDHELD PLASTIC ENCLOSURE - WH series
IP67 HANDHELD PLASTIC ENCLOSURE - WH series
IP67 HANDHELD PLASTIC ENCLOSURE - WH series
IP67 HANDHELD PLASTIC ENCLOSURE - WH series
IP67 HANDHELD PLASTIC ENCLOSURE - WH series
IP67 HANDHELD PLASTIC ENCLOSURE - WH series
IP67 HANDHELD PLASTIC ENCLOSURE - WH series
IP67 HANDHELD PLASTIC ENCLOSURE - WH series
IP67 HANDHELD PLASTIC ENCLOSURE - WH series
IP67 HANDHELD PLASTIC ENCLOSURE - WH series
IP67 HANDHELD PLASTIC ENCLOSURE - WH series
IP67 HANDHELD PLASTIC ENCLOSURE - WH series
IP67 HANDHELD PLASTIC ENCLOSURE - WH series
IP67 HANDHELD PLASTIC ENCLOSURE - WH series
IP67 HANDHELD PLASTIC ENCLOSURE - WH series
IP67 HANDHELD PLASTIC ENCLOSURE - WH series
IP67 HANDHELD PLASTIC ENCLOSURE - WH series
IP67 HANDHELD PLASTIC ENCLOSURE - WH series
IP67 HANDHELD PLASTIC ENCLOSURE - WH series
IP67 HANDHELD PLASTIC ENCLOSURE - WH series
IP67 HANDHELD PLASTIC ENCLOSURE - WH series
IP67 HANDHELD PLASTIC ENCLOSURE - WH series
IP67 HANDHELD PLASTIC ENCLOSURE - WH series
IP67 HANDHELD PLASTIC ENCLOSURE - WH series
IP67 HANDHELD PLASTIC ENCLOSURE - WH series
IP67 HANDHELD PLASTIC ENCLOSURE - WH series
IP67 HANDHELD PLASTIC ENCLOSURE - WH series
IP67 HANDHELD PLASTIC ENCLOSURE - WH series
IP67 HANDHELD PLASTIC ENCLOSURE - WH series
IP67 HANDHELD PLASTIC ENCLOSURE - WH series
IP67 HANDHELD PLASTIC ENCLOSURE - WH series
IP67 HANDHELD PLASTIC ENCLOSURE - WH series
IP67 HANDHELD PLASTIC ENCLOSURE - WH series1
IP67 HANDHELD PLASTIC ENCLOSURE - WH series2
IP67 HANDHELD PLASTIC ENCLOSURE - WH series3
IP67 HANDHELD PLASTIC ENCLOSURE - WH series4
IP67 HANDHELD PLASTIC ENCLOSURE - WH series5
IP67 HANDHELD PLASTIC ENCLOSURE - WH series6
IP67 HANDHELD PLASTIC ENCLOSURE - WH series7
IP67 HANDHELD PLASTIC ENCLOSURE - WH series8
IP67 HANDHELD PLASTIC ENCLOSURE - WH series9
IP67 HANDHELD PLASTIC ENCLOSURE - WH series10
IP67 HANDHELD PLASTIC ENCLOSURE - WH series11
IP67 HANDHELD PLASTIC ENCLOSURE - WH series12
IP67 HANDHELD PLASTIC ENCLOSURE - WH series13
IP67 HANDHELD PLASTIC ENCLOSURE - WH series14
IP67 HANDHELD PLASTIC ENCLOSURE - WH series15
IP67 HANDHELD PLASTIC ENCLOSURE - WH series16
IP67 HANDHELD PLASTIC ENCLOSURE - WH series17
IP67 HANDHELD PLASTIC ENCLOSURE - WH series18
IP67 HANDHELD PLASTIC ENCLOSURE - WH series19
IP67 HANDHELD PLASTIC ENCLOSURE - WH series20
IP67 HANDHELD PLASTIC ENCLOSURE - WH series21
IP67 HANDHELD PLASTIC ENCLOSURE - WH series22
IP67 HANDHELD PLASTIC ENCLOSURE - WH series23
IP67 HANDHELD PLASTIC ENCLOSURE - WH series24
IP67 HANDHELD PLASTIC ENCLOSURE - WH series25
IP67 HANDHELD PLASTIC ENCLOSURE - WH series26
IP67 HANDHELD PLASTIC ENCLOSURE - WH series27
IP67 HANDHELD PLASTIC ENCLOSURE - WH series28
IP67 HANDHELD PLASTIC ENCLOSURE - WH series29
IP67 HANDHELD PLASTIC ENCLOSURE - WH series30
IP67 HANDHELD PLASTIC ENCLOSURE - WH series31
IP67 HANDHELD PLASTIC ENCLOSURE - WH series32

COLOR TYPE

BBBlack/Black

IP67 HANDHELD PLASTIC ENCLOSURE - WH series:Black/Black

BLBlack/Light gray

IP67 HANDHELD PLASTIC ENCLOSURE - WH series:Black/Light gray

BNBlack/Navy

IP67 HANDHELD PLASTIC ENCLOSURE - WH series:Black/Navy

BRBlack/Red

IP67 HANDHELD PLASTIC ENCLOSURE - WH series:Black/Red

BYBlack/Yellow

IP67 HANDHELD PLASTIC ENCLOSURE - WH series:Black/Yellow

WBOff-white/Black

IP67 HANDHELD PLASTIC ENCLOSURE - WH series:Off-white/Black

WLOff-white/Light gray

IP67 HANDHELD PLASTIC ENCLOSURE - WH series:Off-white/Light gray

WNOff-white/Navy

IP67 HANDHELD PLASTIC ENCLOSURE - WH series:Off-white/Navy

WROff-white/Red

IP67 HANDHELD PLASTIC ENCLOSURE - WH series:Off-white/Red

WYOff-white/Yellow

IP67 HANDHELD PLASTIC ENCLOSURE - WH series:Off-white/Yellow
IP67 HANDHELD PLASTIC ENCLOSURE - WH series:Black/Black
IP67 HANDHELD PLASTIC ENCLOSURE - WH series:Black/Light gray
IP67 HANDHELD PLASTIC ENCLOSURE - WH series:Black/Navy
IP67 HANDHELD PLASTIC ENCLOSURE - WH series:Black/Red
IP67 HANDHELD PLASTIC ENCLOSURE - WH series:Black/Yellow
IP67 HANDHELD PLASTIC ENCLOSURE - WH series:Off-white/Black
IP67 HANDHELD PLASTIC ENCLOSURE - WH series:Off-white/Light gray
IP67 HANDHELD PLASTIC ENCLOSURE - WH series:Off-white/Navy
IP67 HANDHELD PLASTIC ENCLOSURE - WH series:Off-white/Red
IP67 HANDHELD PLASTIC ENCLOSURE - WH series:Off-white/Yellow

PRODUCT NO. / DIMENSIONS

Product No. External dimensions Internal dimensions Battery compartment Weight (g) PDF 3D PDF DXF DWG STP
W H D w h d
WH125-20-N-□ 79 20 126 39 9 107.7 None 101 PDF 3D PDF DXF DWG
WH125-20-F2-□ 79 20 126 60 9 46.4 AAA x 2 102 PDF 3D PDF DXF DWG
WH125-20-F3-□ 79 20 126 60 9 35.9 AAA x 3 109 PDF 3D PDF DXF DWG
WH125-28-N-□ 79 28 126 39 17 106.3 None 119 PDF 3D PDF DXF DWG
WH125-28-F2-□ 79 28 126 60 17 46.4 AAA x 2 121 PDF 3D PDF DXF DWG
WH125-28-F3-□ 79 28 126 60 17 35.9 AAA x 3 127 PDF 3D PDF DXF DWG
WH145-20-N-□ 88 20 146 45 8 129.6 None 125.5 PDF 3D PDF DXF DWG
WH145-20-F4-□ 88 20 146 69.4 8 36.5 AAA x 4 129.5 PDF 3D PDF DXF DWG
WH145-25-N-□ 88 25 146 45 13 129.6 None 137.5 PDF 3D PDF DXF DWG
WH145-25-M2-□ 88 25 146 69.2 13 51.5 AA x 2 161.5 PDF 3D PDF DXF DWG
WH145-25-M3-□ 88 25 146 69.2 13 36.5 AA x 3 159.5 PDF 3D PDF DXF DWG
WH145-33-N-□ 88 33 146 45 21 129.6 None 162 PDF 3D PDF DXF DWG
WH145-33-M2-□ 88 33 146 69.2 21 51.5 AA x 2 180.5 PDF 3D PDF DXF DWG
WH145-33-M3-□ 88 33 146 69.2 21 36.5 AA x 3 181.5 PDF 3D PDF DXF DWG
WH170-25-N-□ 95 25 171 51 13 154.4 None 169 PDF 3D PDF DXF DWG
WH170-25-M4-□ 95 25 171 73.2 13 54.8 AA x 4 195 PDF 3D PDF DXF DWG
WH170-33-N-□ 95 33 171 50.9 21 150.7 None 191 PDF 3D PDF DXF DWG
WH170-33-M4-□ 95 33 171 73.2 21 54.8 AA x 4 220 PDF 3D PDF DXF DWG
WH190-25-N-□ 126 25 191 81 13 170.3 None 226 PDF 3D PDF DXF DWG
WH190-25-M6-□ 126 25 191 107.6 13 72.6 AA x 6 276 PDF 3D PDF DXF DWG
WH190-33-N-□ 126 33 191 81 21 170.3 None 252 PDF 3D PDF DXF DWG
WH190-33-M6-□ 126 33 191 107 21 72.3 AA x 6 307 PDF 3D PDF DXF DWG
SAMPLE REQUEST FORM

This product series is available as a free sample.

OPTIONAL PARTS

1
PCB MOUNTING SCREW - EM series
DETAILS
1
TAPPING STANDOFF - TPS series
DETAILS
1
IP68 WATER PROTECTION CABLE GLAND - AG series
DETAILS
1
STRAIN RELIEF CABLE GLAND - RSP series
DETAILS
1
WALL SUSPENSION BRACKET - WM series
DETAILS
1
NEODYMIUM MAGNET - NMG
DETAILS

SIMILAR PRODUCT

1
IP67 KEY-FOB PLASTIC ENCLOSURE - WC series
DETAILS
1
HANDHELD CASE with SHOCKPROOF COVER - LCT series
DETAILS
1
HANDHELD CASE with SILICONE COVER - LCS series
DETAILS
1
HANDHELD PLASTIC ENCLOSURE - LC series
DETAILS
1
IP68 ALUMINUM ENCLOSURE with SILICONE PROTECTOR - AWP series
DETAILS
1
IP65 EXTRUDED ALUMINUM ENCLOSURE - EXW series
DETAILS
1
IP68 / IP67 NETWORK PLASTIC BOX - WP series
DETAILS
1
IP67 SLOPED PLASTIC ENCLOSURE - WSC series
DETAILS

CUSTOMIZATION VIDEO / PRODUCT INTRODUCTION VIDEO

High speed CNC milling

DETAILS

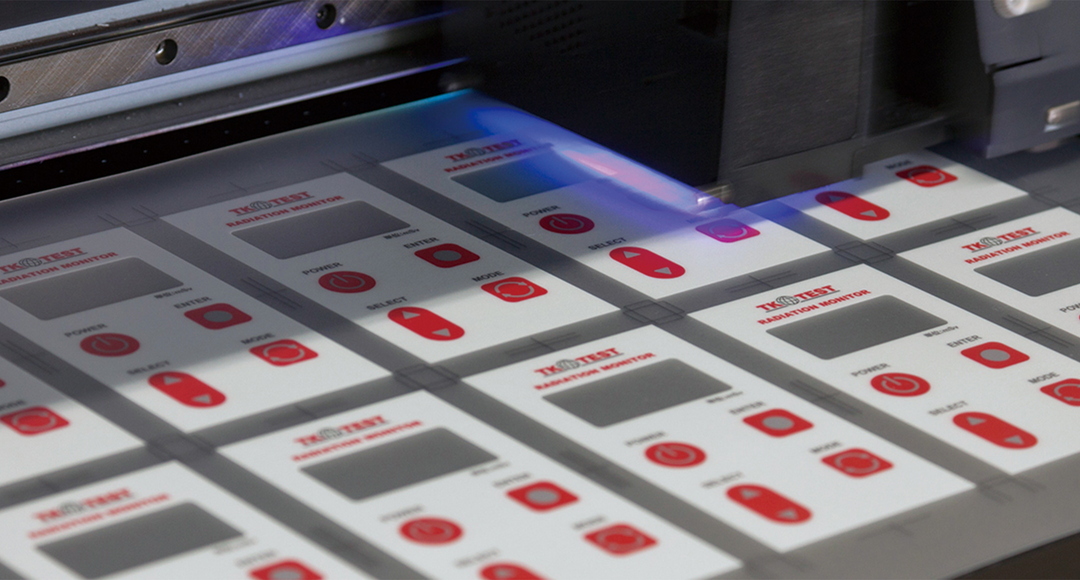

Digital inkjet printing
