CATEGORY：Small handheld enclosure, Remote controller enclosure, Key fob enclosure, Plastic enclosure with CR2032 Battery compartment

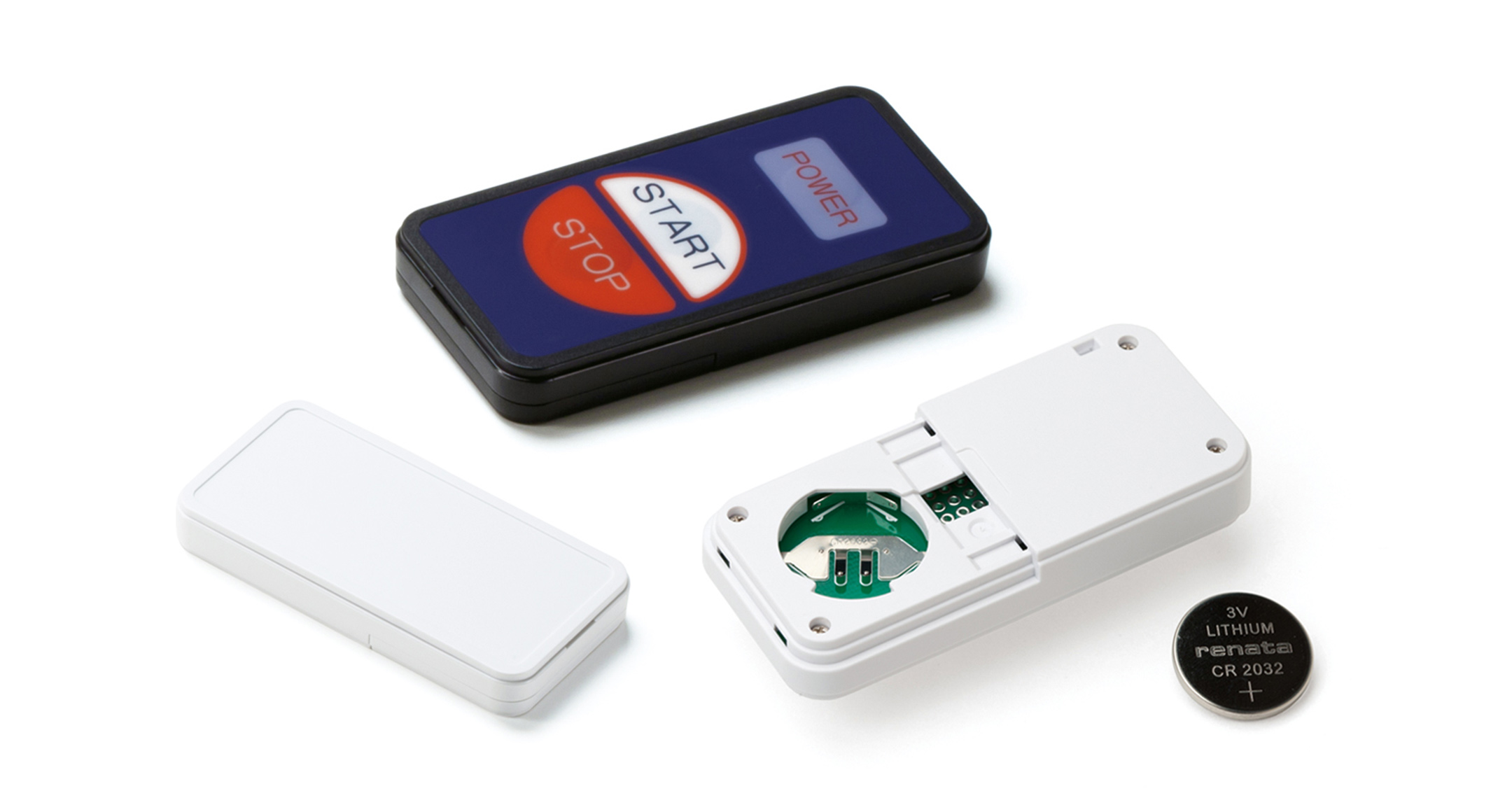

Slim design small handheld enclosure.
Selectable in battery compartment types or without battery compartment types.

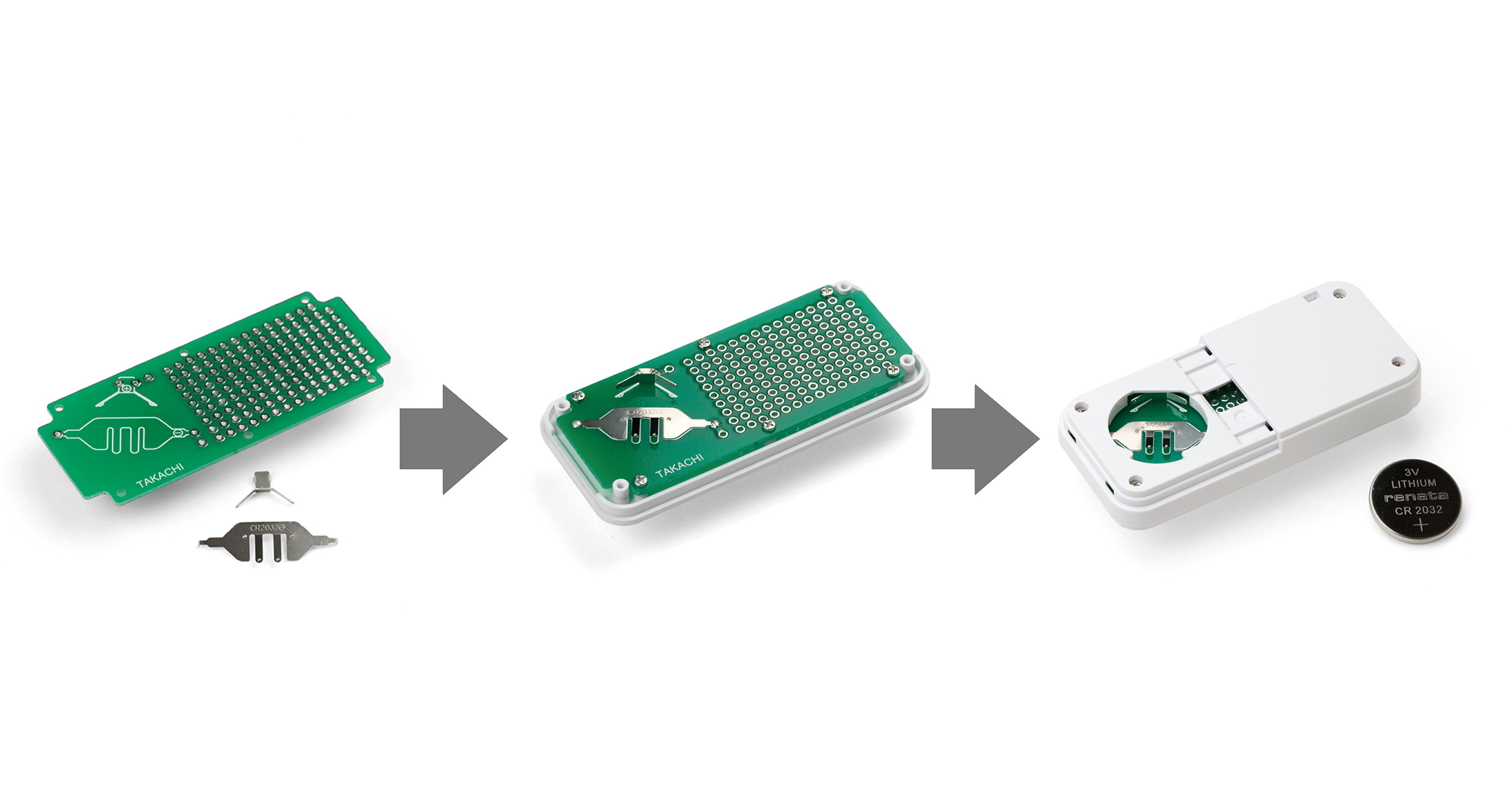

CR2032 (for CS75, 90, and 115 models) and CR2450/CR2477 (for CS100 models) batteries can be easily attached and detached.
Select proper models by enclosure dimensions and capacity of the batteries.
Typical Capacity
CR2032 : 225mAh
CR2450 : 620mAh
CR2477 : 1000mAh

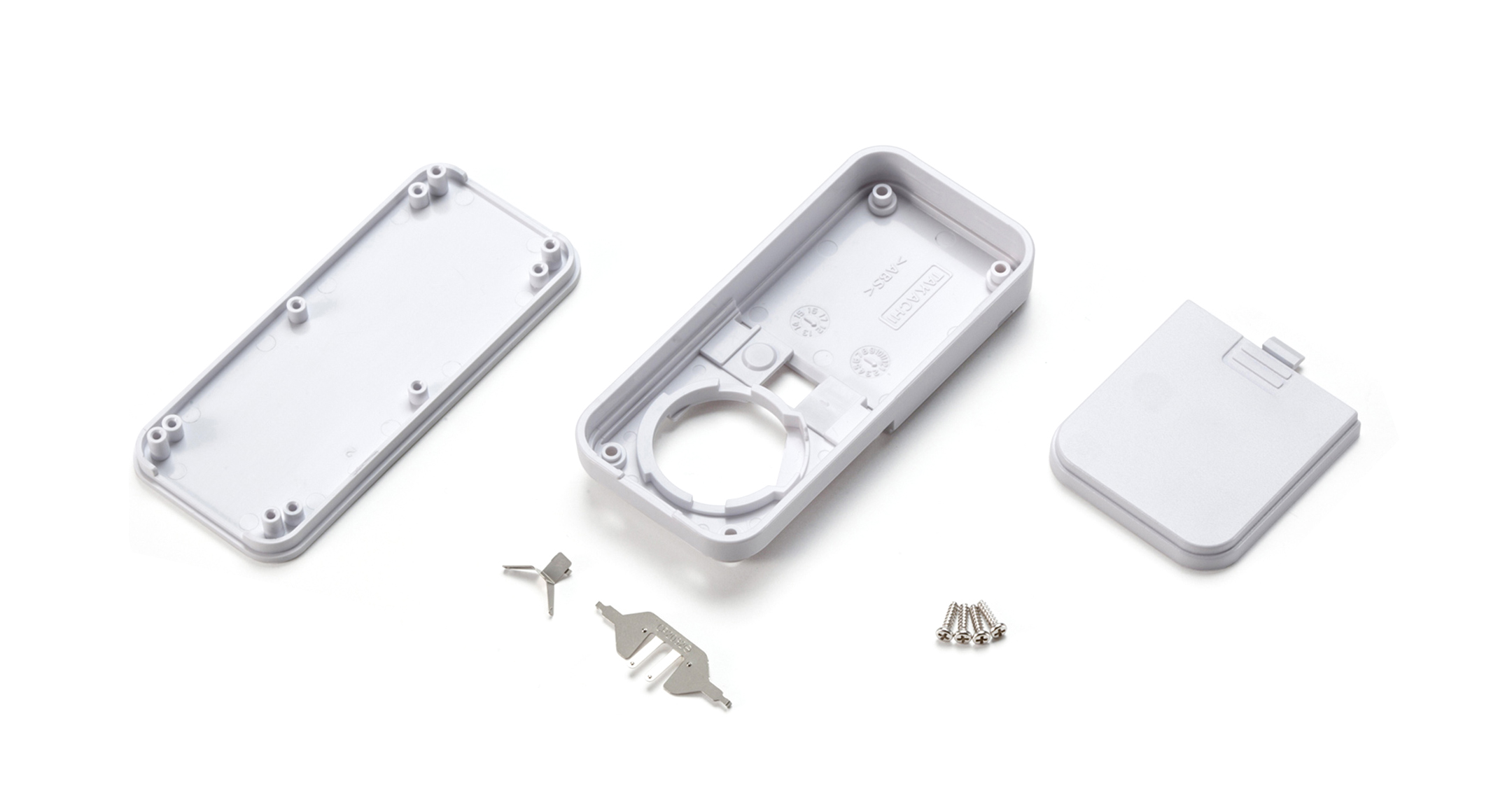

Battery contact included in each case. (With battery compartment types only.)

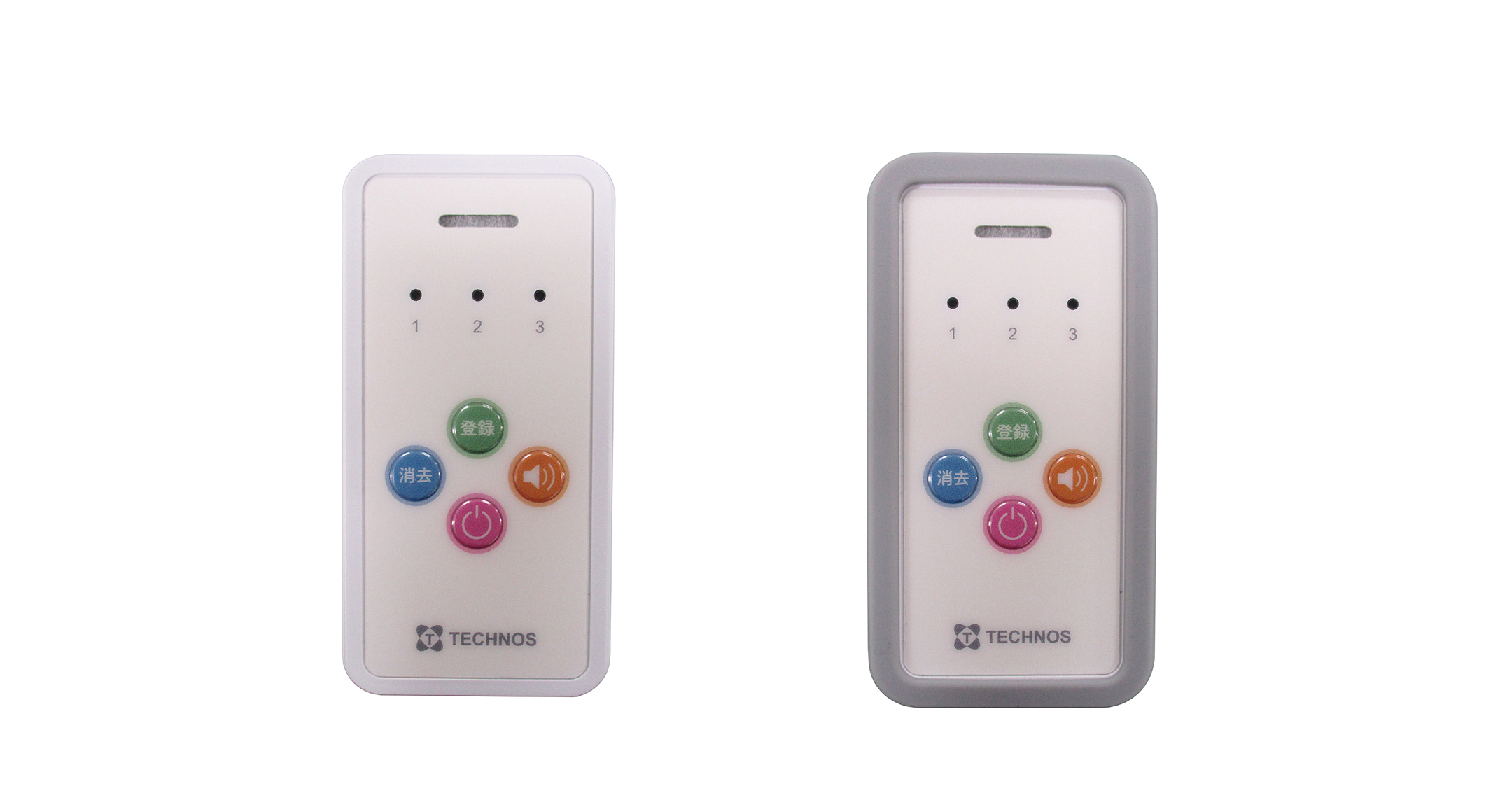

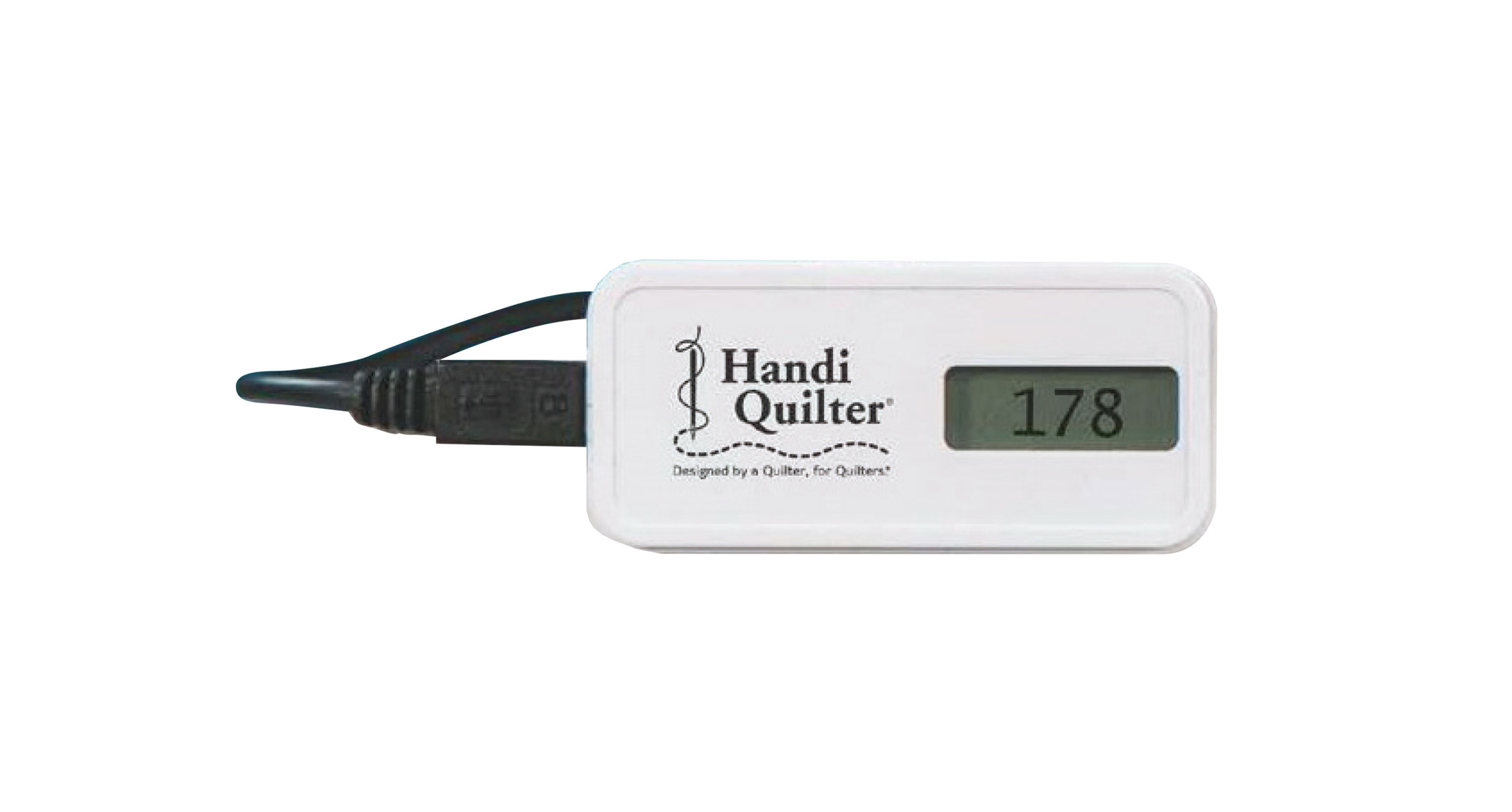

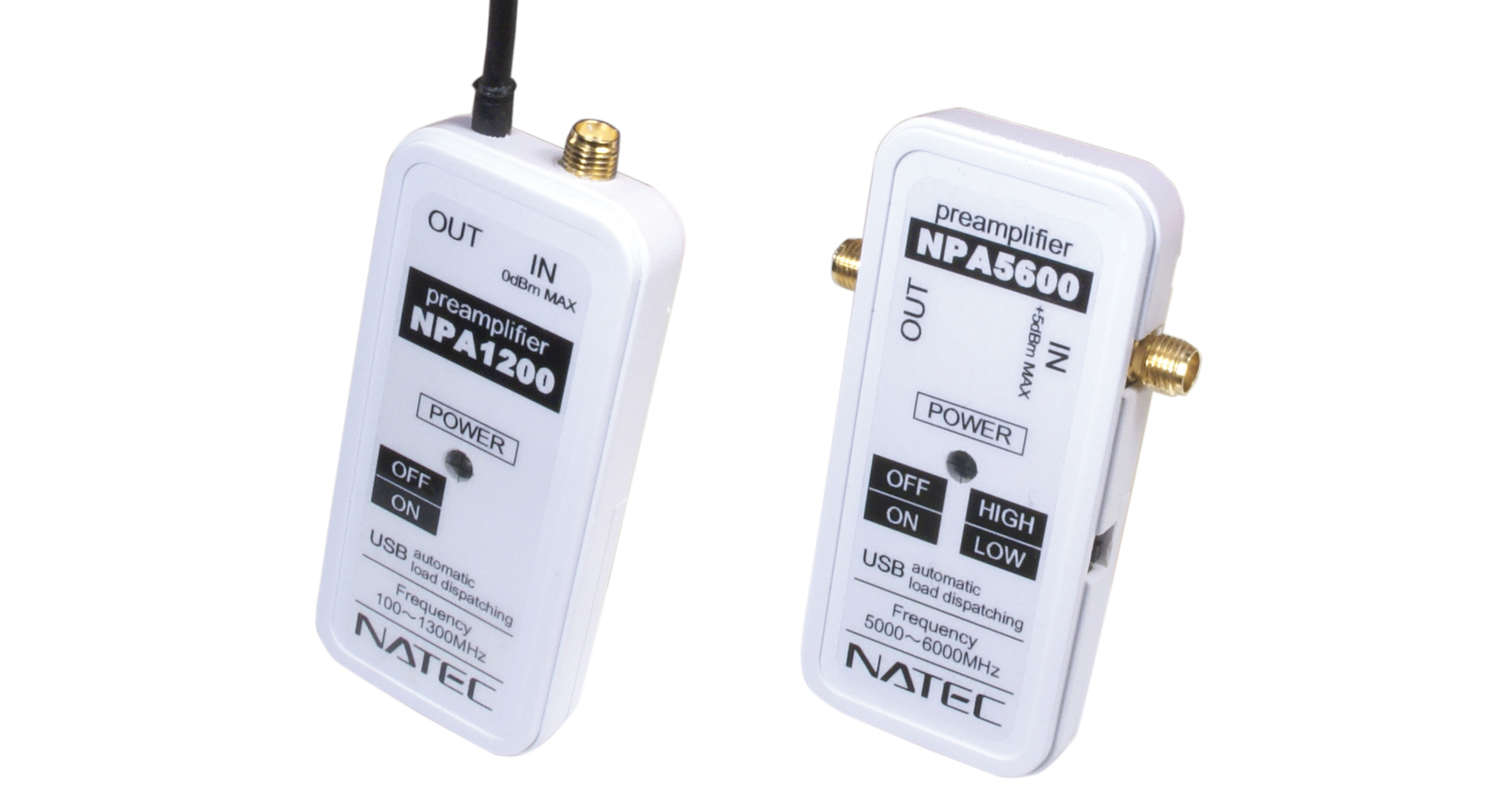

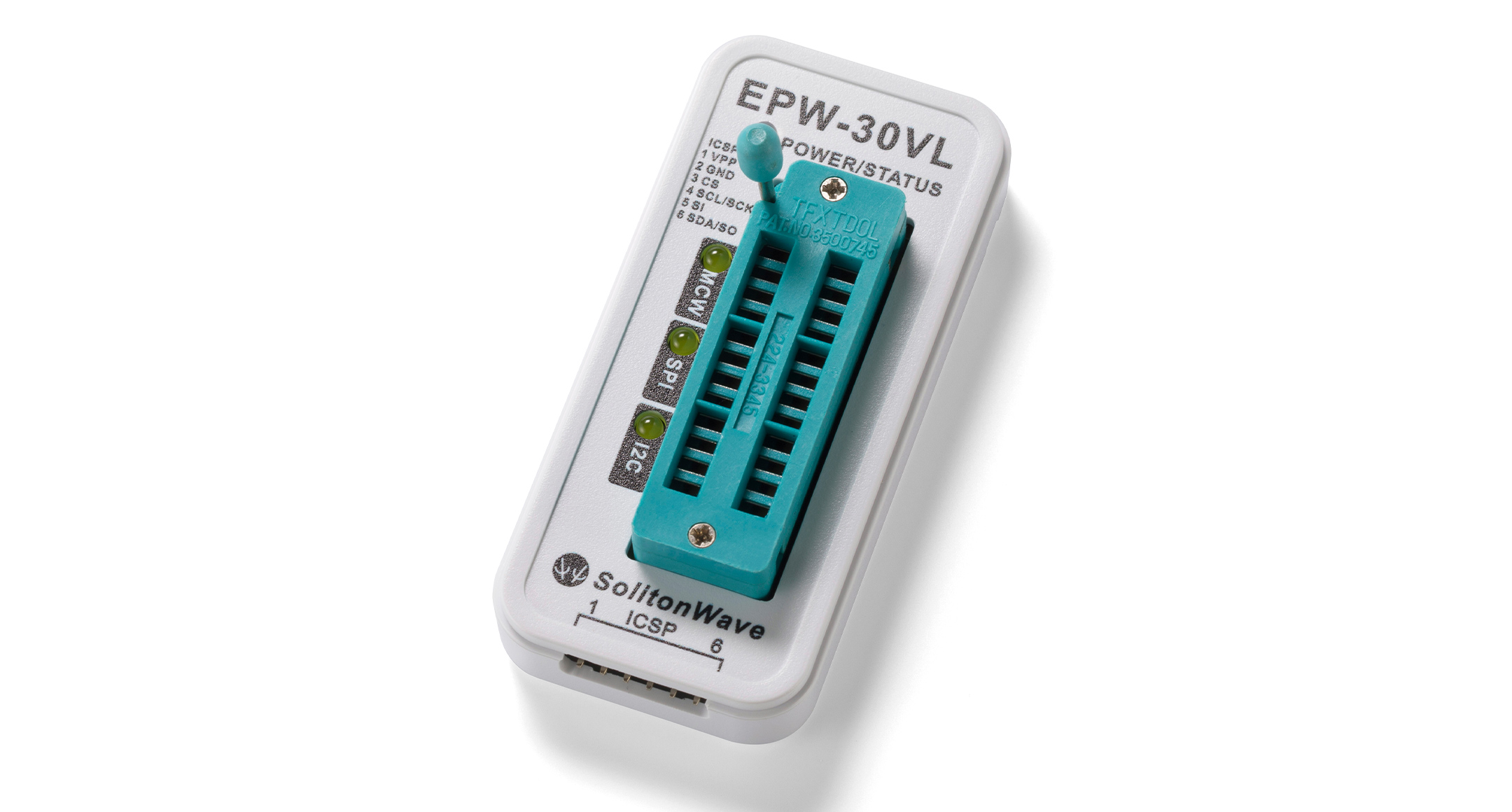

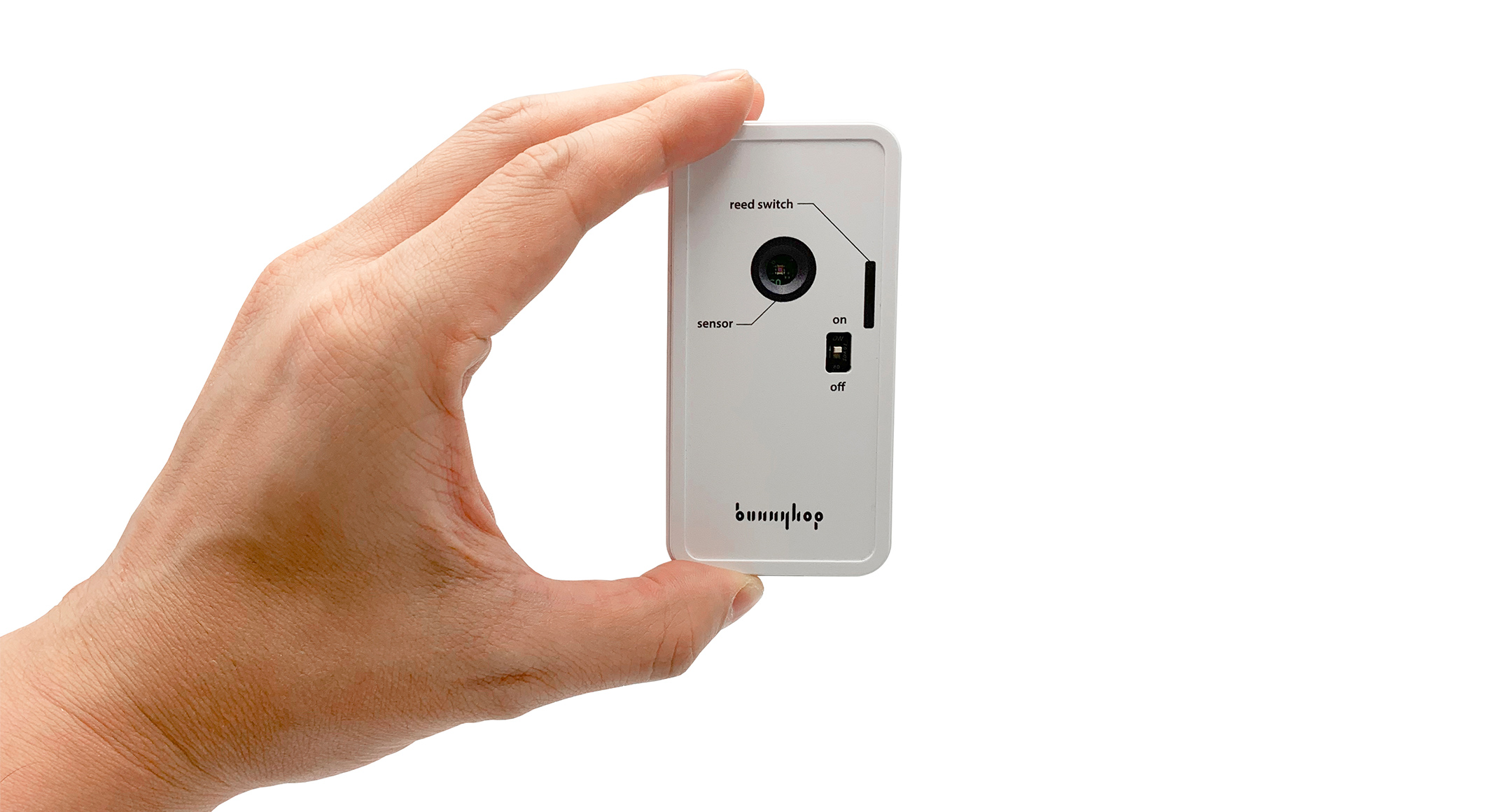

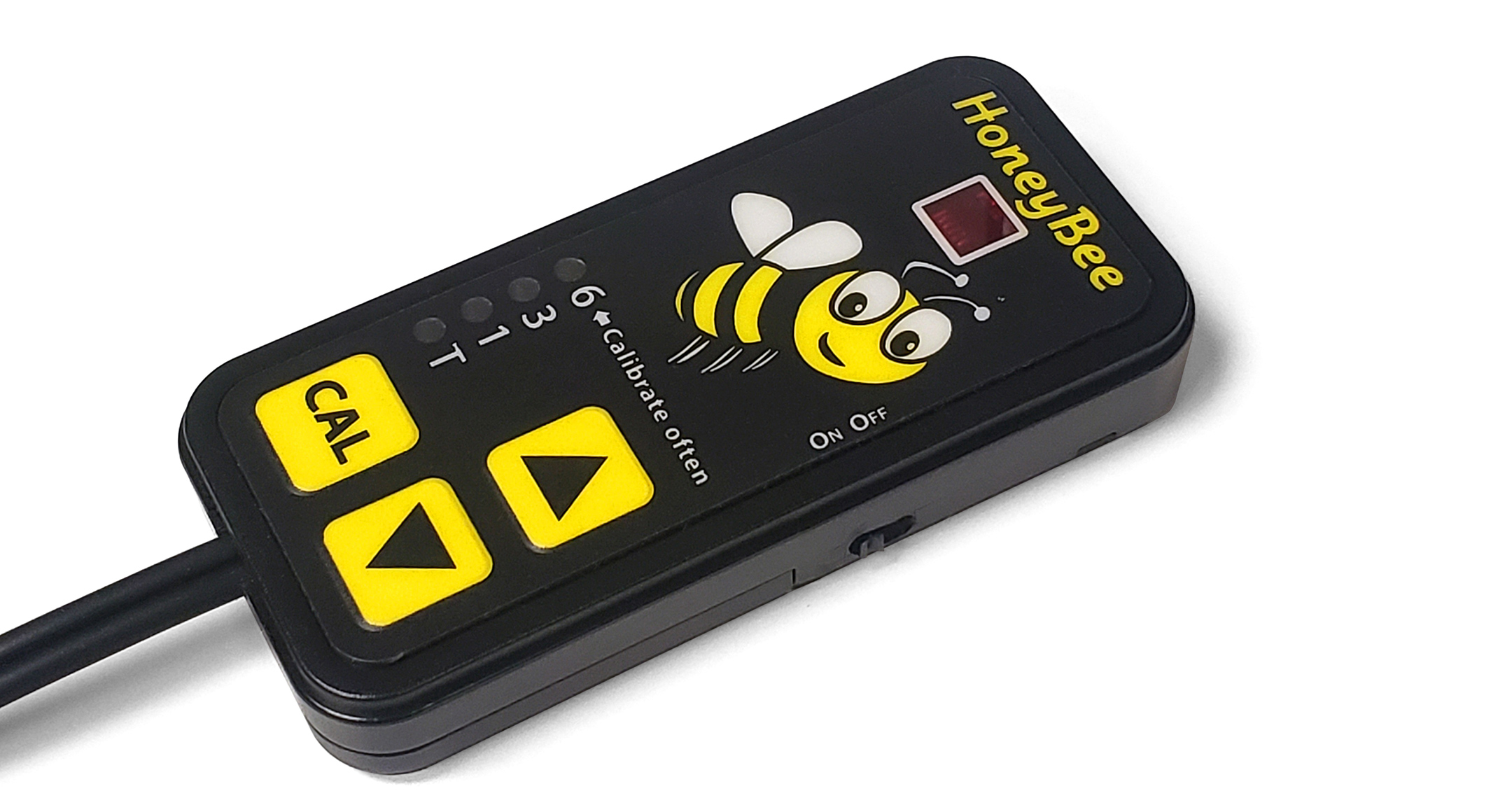

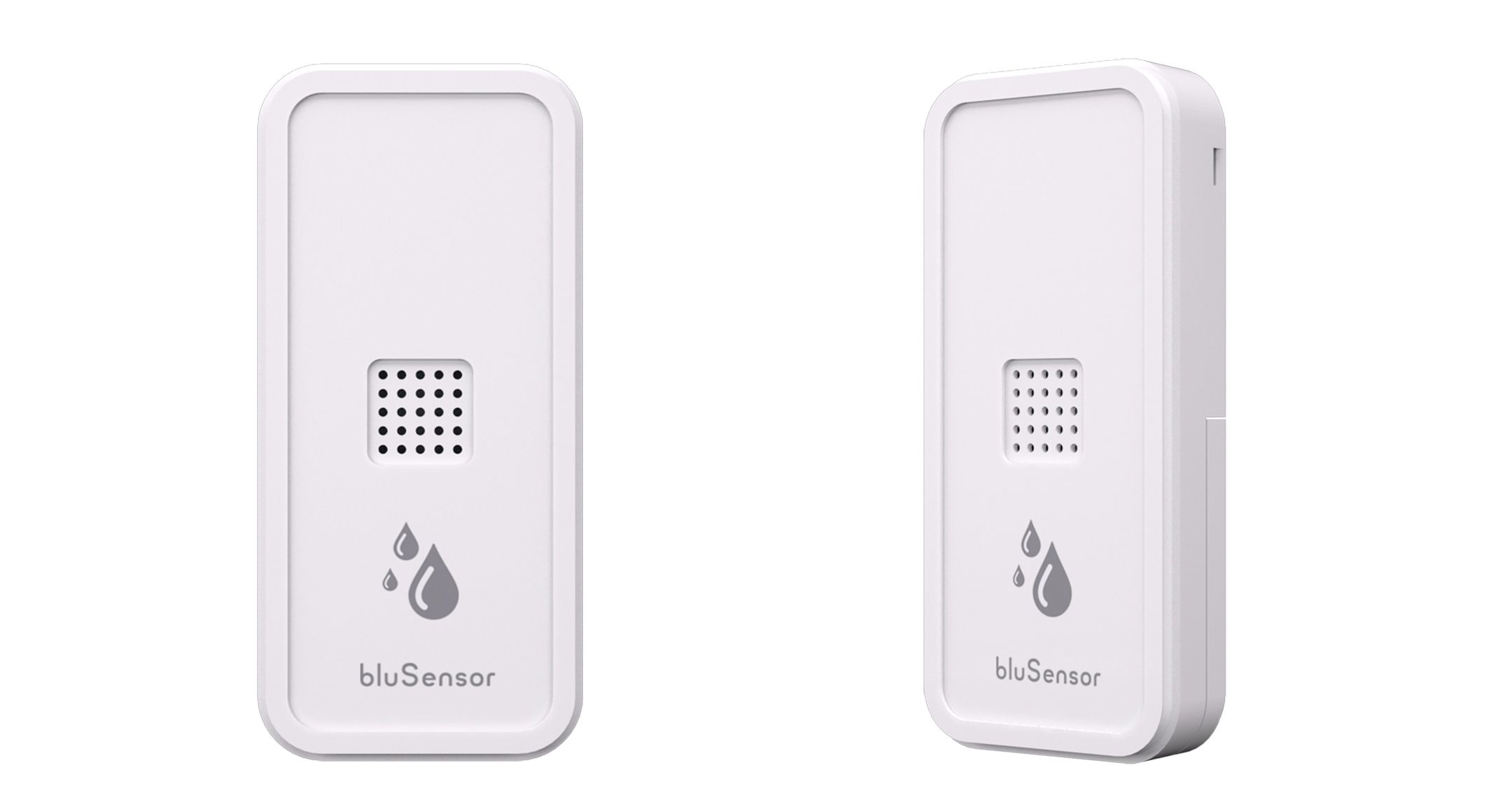

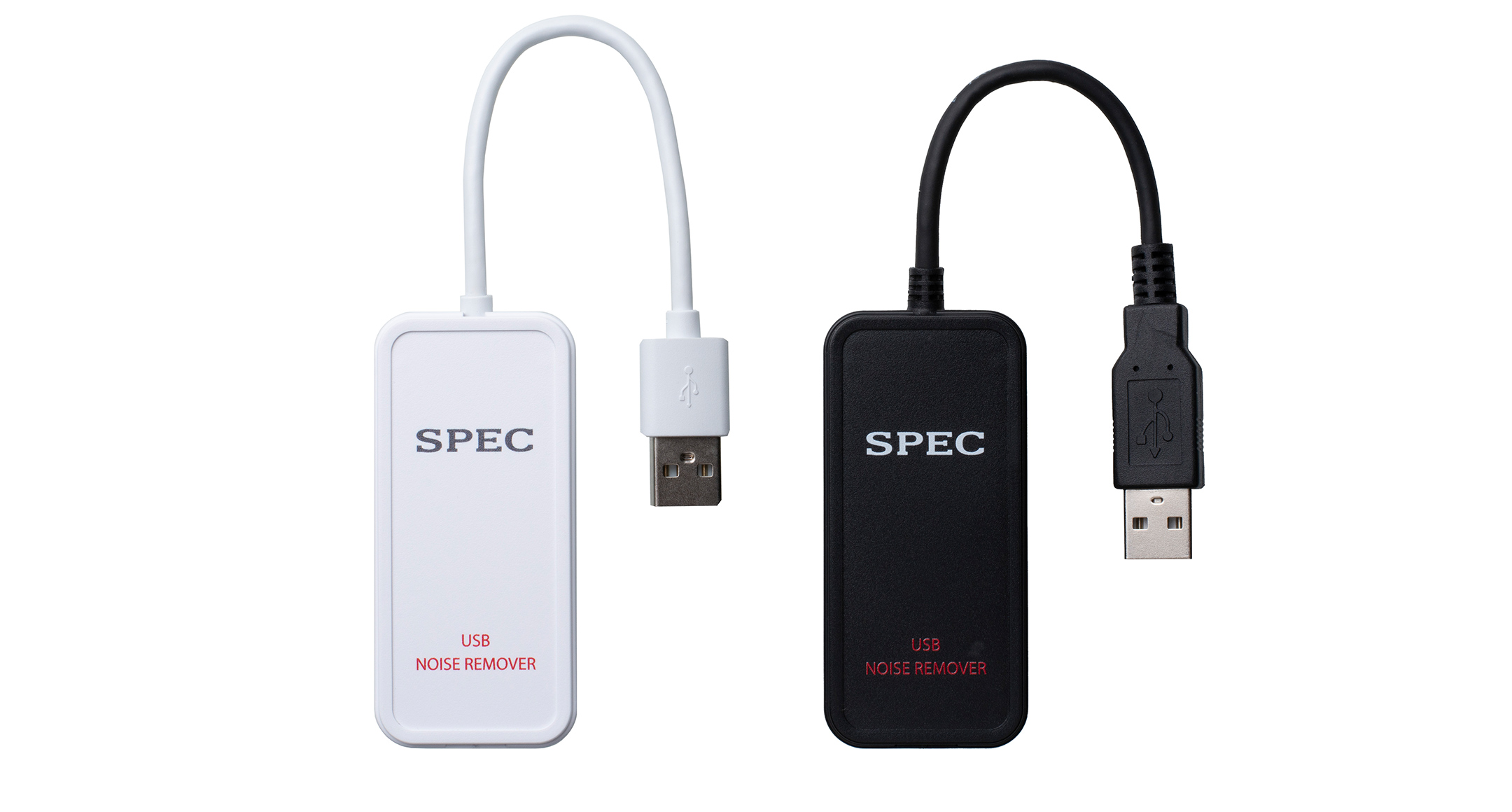

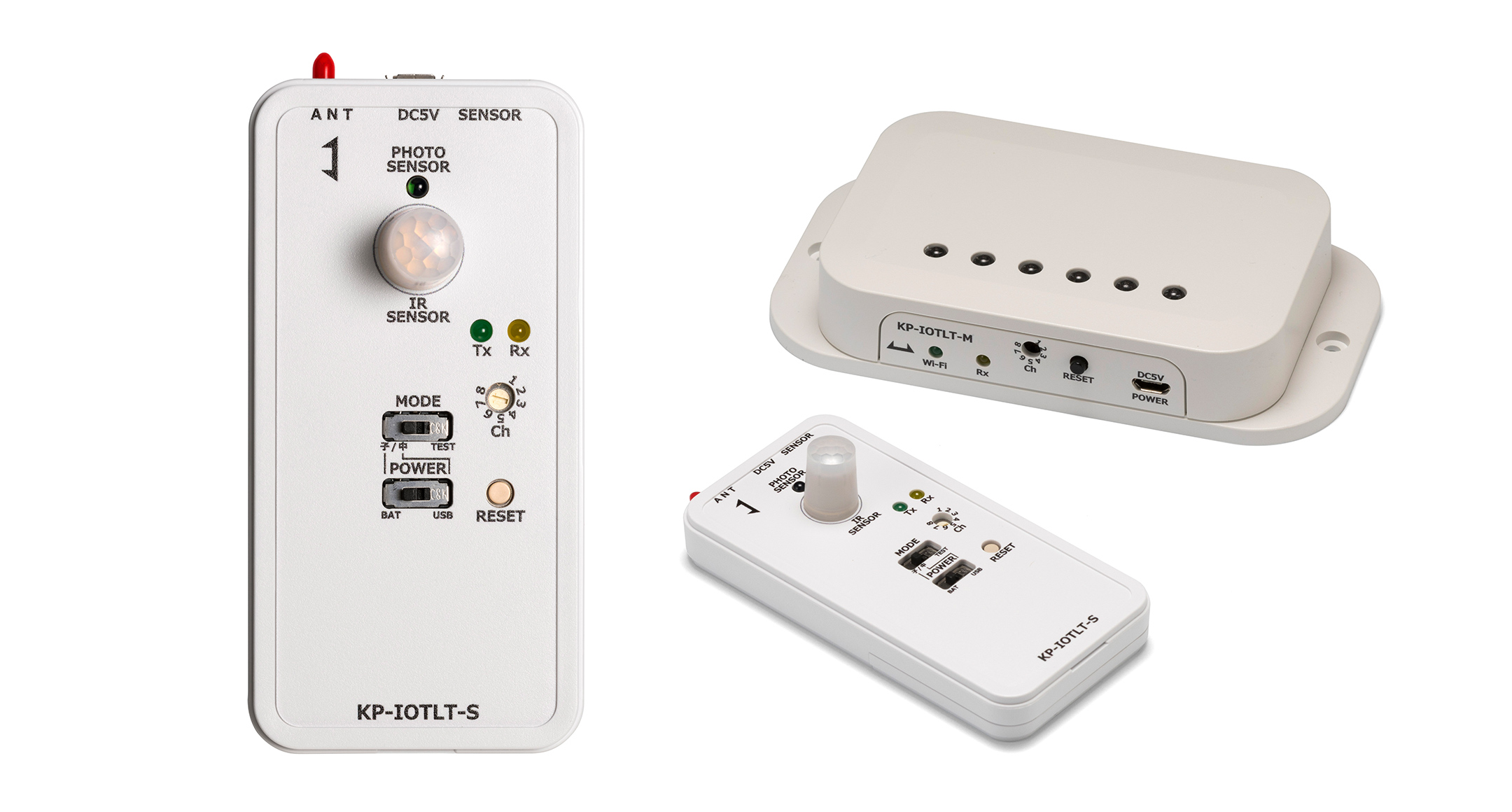

Suitable for remote controller, handheld GPS, wireless key fob, RFID tag, or small tester/device, and so on.

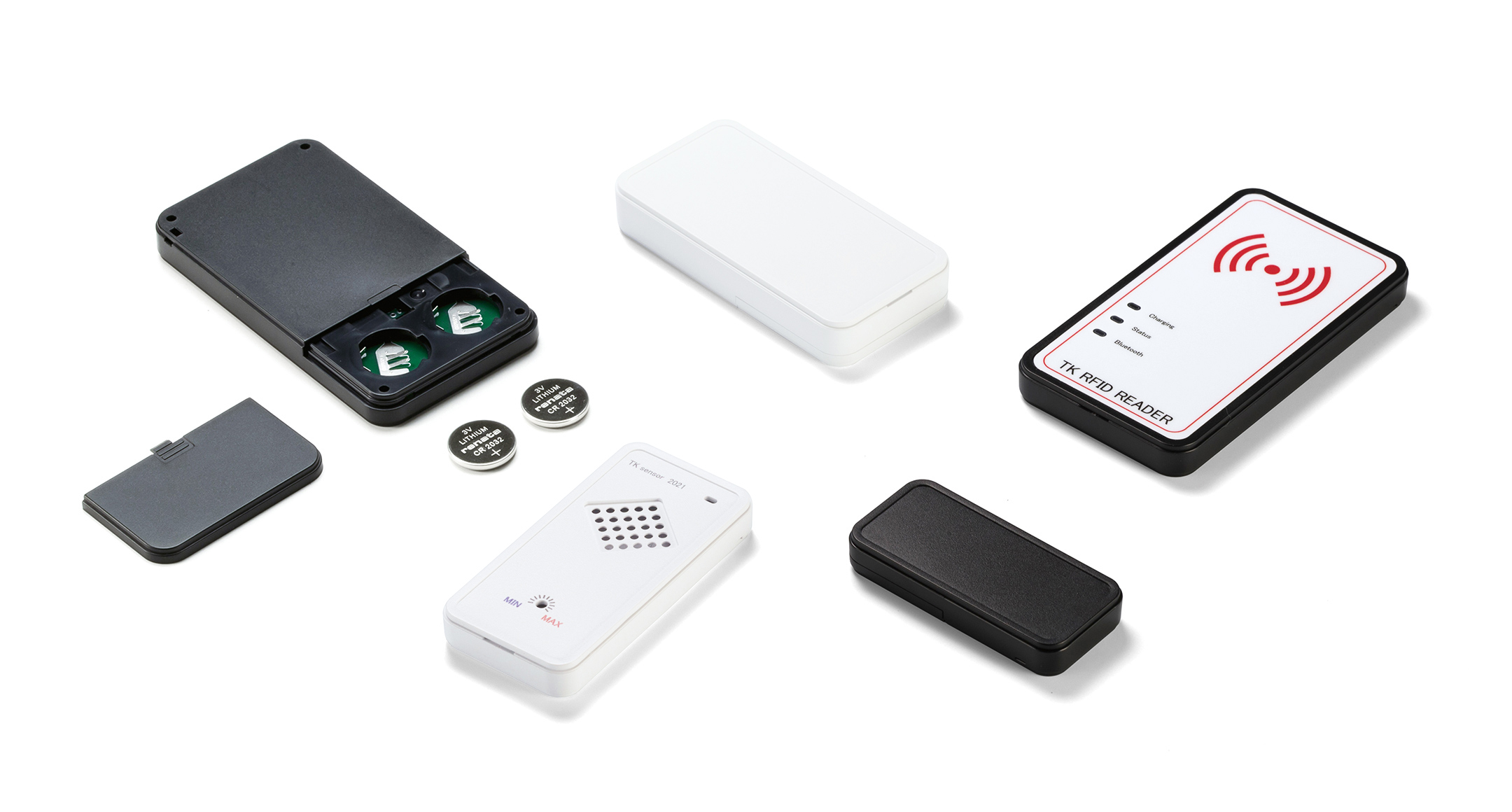

4 sizes with 2 different color types available.
Protection class: IP40
Operating temperature: -10℃ ~ +60℃
Selectable in battery compartment types or without battery compartment types.
CR2032 (for CS75, 90, and 115 models) and CR2450/CR2477 (for CS100 models) batteries can be easily attached and detached.
Select proper models by enclosure dimensions and capacity of the batteries.
Typical Capacity
CR2032 : 225mAh
CR2450 : 620mAh
CR2477 : 1000mAh
Battery contact included in each case. (With battery compartment types only.)
Suitable for remote controller, handheld GPS, wireless key fob, RFID tag, or small tester/device, and so on.
4 sizes with 2 different color types available.
Protection class: IP40
Operating temperature: -10℃ ~ +60℃
PRODUCT NO. / DIMENSIONS
| Product No. | External dimensions | Internal dimensions | Battery compartment | Weight (g) | Color / Similar matching | DXF | DWG | STP | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| W | H | D | w | h | d | ||||||||
| CS75N-B | 35 | 12 | 75 | 26.6 | 5.3 | 59 | None | 12 | Black / Munsell N1 | DXF | DWG | ||
| CS75N-W | 35 | 12 | 75 | 26.6 | 5.3 | 59 | None | 12 | White / Munsell N9.5 | DXF | DWG | ||
| CS75-B | 35 | 12 | 75 | 26.6 | 5.3 | 25.4 | CR2032×1 | 13 | Black / Munsell N1 | DXF | DWG | ||
| CS75-W | 35 | 12 | 75 | 26.6 | 5.3 | 25.4 | CR2032×1 | 13 | White / Munsell N9.5 | DXF | DWG | ||
| CS90N-B | 45 | 12 | 90 | 36.6 | 5.3 | 74 | None | 18 | Black / Munsell N1 | DXF | DWG | ||
| CS90N-W | 45 | 12 | 90 | 36.6 | 5.3 | 74 | None | 18 | White / Munsell N9.5 | DXF | DWG | ||
| CS90-B | 45 | 12 | 90 | 36.6 | 5.3 | 40.4 | CR2032×1 | 20 | Black / Munsell N1 | DXF | DWG | ||
| CS90-W | 45 | 12 | 90 | 36.6 | 5.3 | 40.4 | CR2032×1 | 20 | White / Munsell N9.5 | DXF | DWG | ||
| CS100N-B | 50 | 16.8 | 100 | 41.6 | 10.1 | 82 | None | 24 | Black / Munsell N1 | DXF | DWG | ||
| CS100N-W | 50 | 16.8 | 100 | 41.6 | 10.1 | 82 | None | 24 | White / Munsell N9.5 | DXF | DWG | ||
| CS100-B | 50 | 16.8 | 100 | 44.1 | 6.8 | 46 | CR2450×1 / CR2477×1 | 26 | Black / Munsell N1 | DXF | DWG | ||
| CS100-W | 50 | 16.8 | 100 | 44.1 | 6.8 | 46 | CR2450×1 / CR2477×1 | 26 | White / Munsell N9.5 | DXF | DWG | ||
| CS115N-B | 63 | 12 | 115 | 54.6 | 5.3 | 98 | None | 30 | Black / Munsell N1 | DXF | DWG | ||
| CS115N-W | 63 | 12 | 115 | 54.6 | 5.3 | 98 | None | 30 | White / Munsell N9.5 | DXF | DWG | ||
| CS115-B | 63 | 12 | 115 | 54.6 | 5.3 | 64.9 | CR2032×2 | 33 | Black / Munsell N1 | DXF | DWG | ||
| CS115-W | 63 | 12 | 115 | 54.6 | 5.3 | 64.9 | CR2032×2 | 33 | White / Munsell N9.5 | DXF | DWG | ||

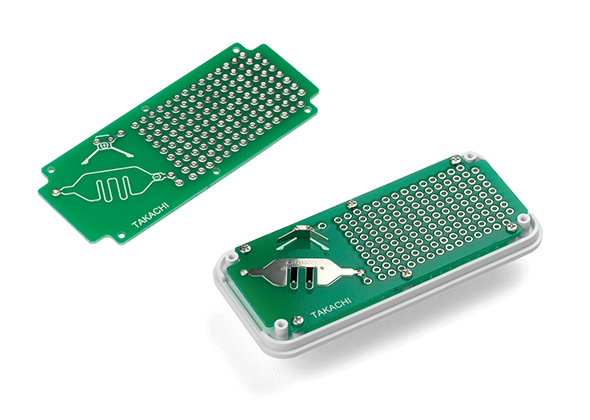

| Suitable pcb (Option) | DXF | DWG | STP | |
|---|---|---|---|---|
| CSPB-75 | DXF | DWG | ||
| CSPB-75 | DXF | DWG | ||
| CSPB-90 | DXF | DWG | ||
| CSPB-90 | DXF | DWG | ||
| CSPB-100 | DXF | DWG | ||
| CSPB-100 | DXF | DWG | ||
| CSPB-115 | DXF | DWG | ||
| CSPB-115 | DXF | DWG |
