CATEGORY：Switch box, Push button box, Control box, IP65 waterproof box, Waterproof box
IP65 switch box with 1 ~ 4 Φ22 hole(s) on the top cover.
Made from flame retardant UL94V-0 high heat resistant polycarbonate material.
Φ22 knock-outs on 2 opposite ends for easy wiring access if required.

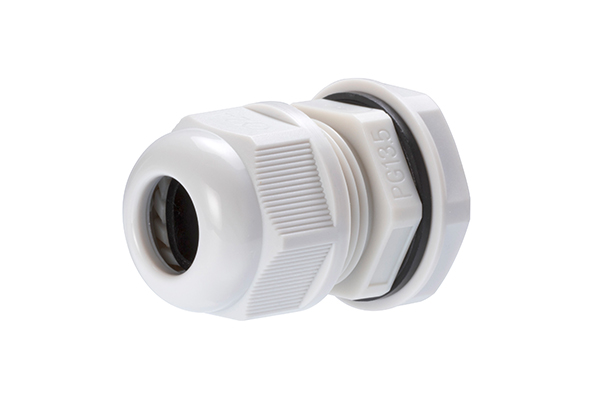

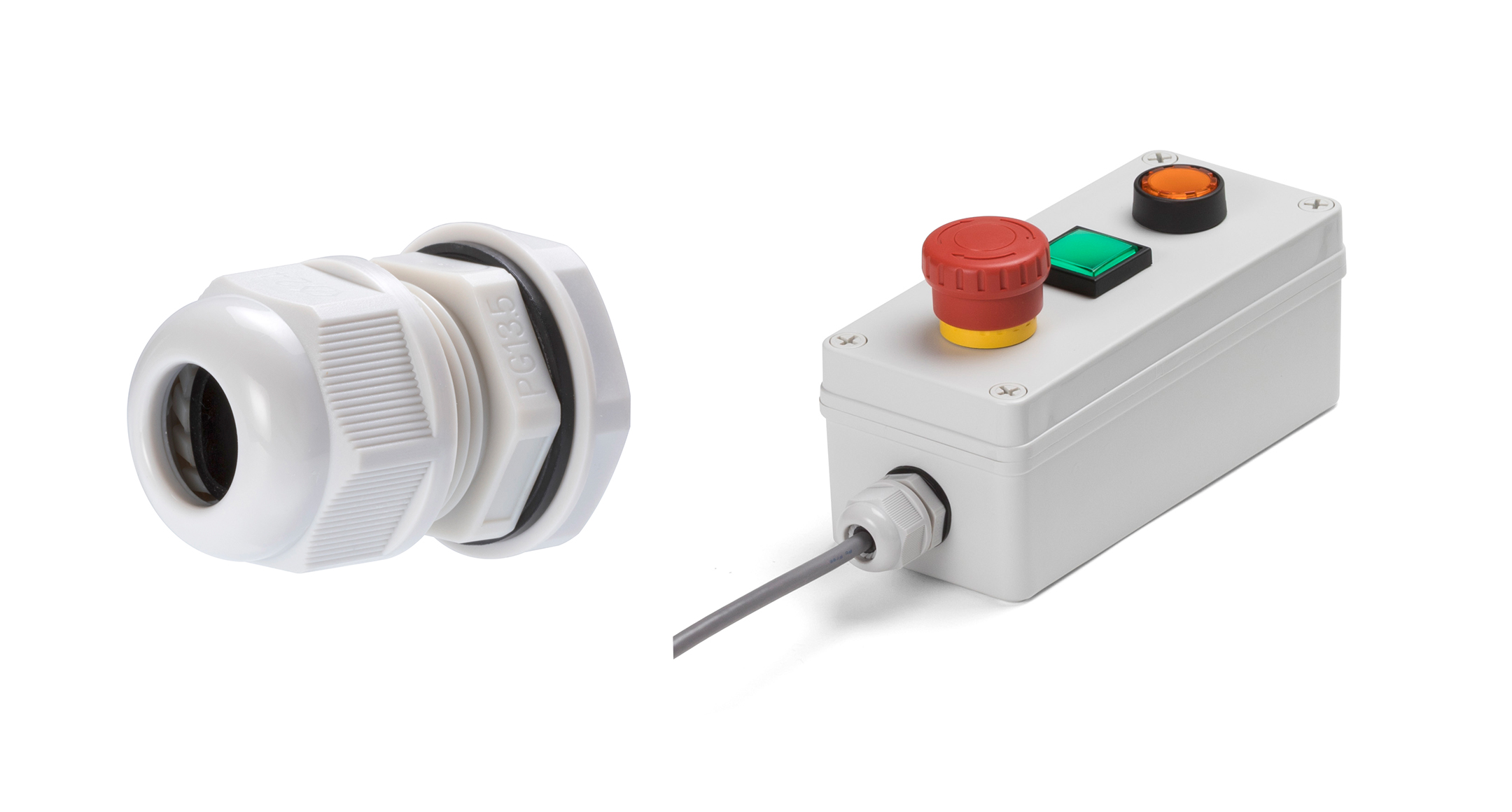

Exclusive cable gland, B131210G for Φ22 knock-outs is available as optional parts.
IP65 protection class is maintained with waterproof switches and the exclusive cable glands installed.

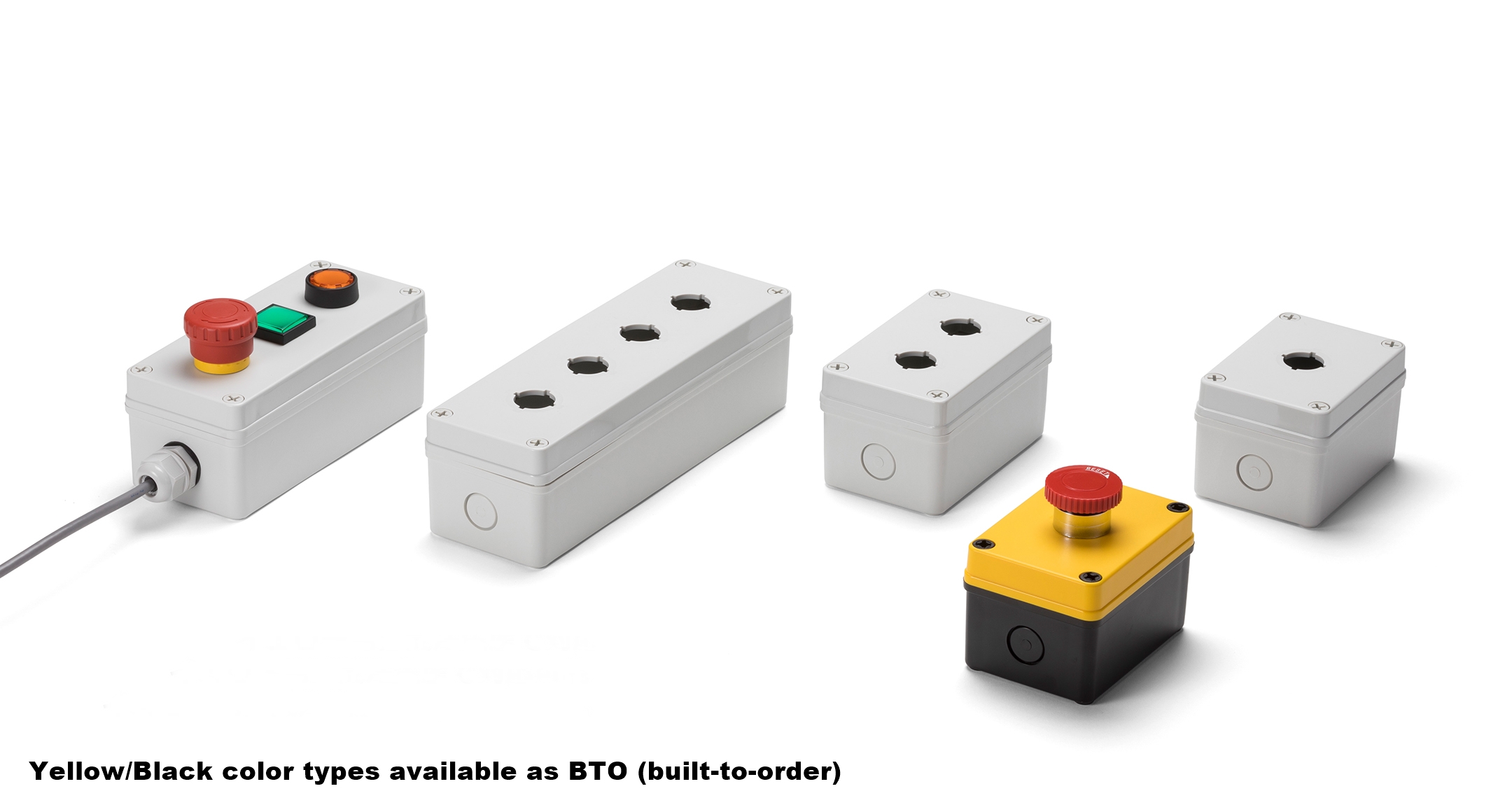

Yellow/Black color types available as BTO (built-to-order) at a MOQ of 500 pcs.
For custom color order, the material would be changed to ABS UL94HB, with an operating temperature of -10°C ~ +60°C.
4 different sizes available.
Protection class : IP65 (waterproof switch & exclusive cable gland required)
【Material】
Box：Polycarbonate (flame retardant UL94V-0)
Color / Similar matching : Light gray / Munsell 5GY8.5/0.5
Gasket：Polyurethane
Made from flame retardant UL94V-0 high heat resistant polycarbonate material.
Φ22 knock-outs on 2 opposite ends for easy wiring access if required.
Exclusive cable gland, B131210G for Φ22 knock-outs is available as optional parts.
IP65 protection class is maintained with waterproof switches and the exclusive cable glands installed.
Yellow/Black color types available as BTO (built-to-order) at a MOQ of 500 pcs.
For custom color order, the material would be changed to ABS UL94HB, with an operating temperature of -10°C ~ +60°C.
4 different sizes available.
Protection class : IP65 (waterproof switch & exclusive cable gland required)
【Material】
Box：Polycarbonate (flame retardant UL94V-0)
Color / Similar matching : Light gray / Munsell 5GY8.5/0.5
Gasket：Polyurethane
PRODUCT NO. / DIMENSIONS
| Product No. | External dimensions | Internal dimensions | Switch hole(s) | Knock-outs | Weight（g） | DXF | DWG | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| W | D | H | w | d | h | |||||||
| BCSB081107-2201G | 80 | 110.5 | 70.3 | 67 | 67 | 55.8 | φ22 x 1 | φ22 x 2 | 204 | DXF | DWG | |
| BCSB081307-2202G | 80.5 | 130.5 | 70 | 67 | 87 | 55.6 | φ22 x 2 | φ22 x 2 | 222 | DXF | DWG | |
| BCSB081807-2203G | 80 | 180 | 70.5 | 67 | 137 | 56.3 | φ22 x 3 | φ22 x 2 | 278 | DXF | DWG | |
| BCSB082507-2204G | 80 | 250 | 71 | 67 | 207 | 56.3 | φ22 x 4 | φ22 x 2 | 364 | DXF | DWG | |
