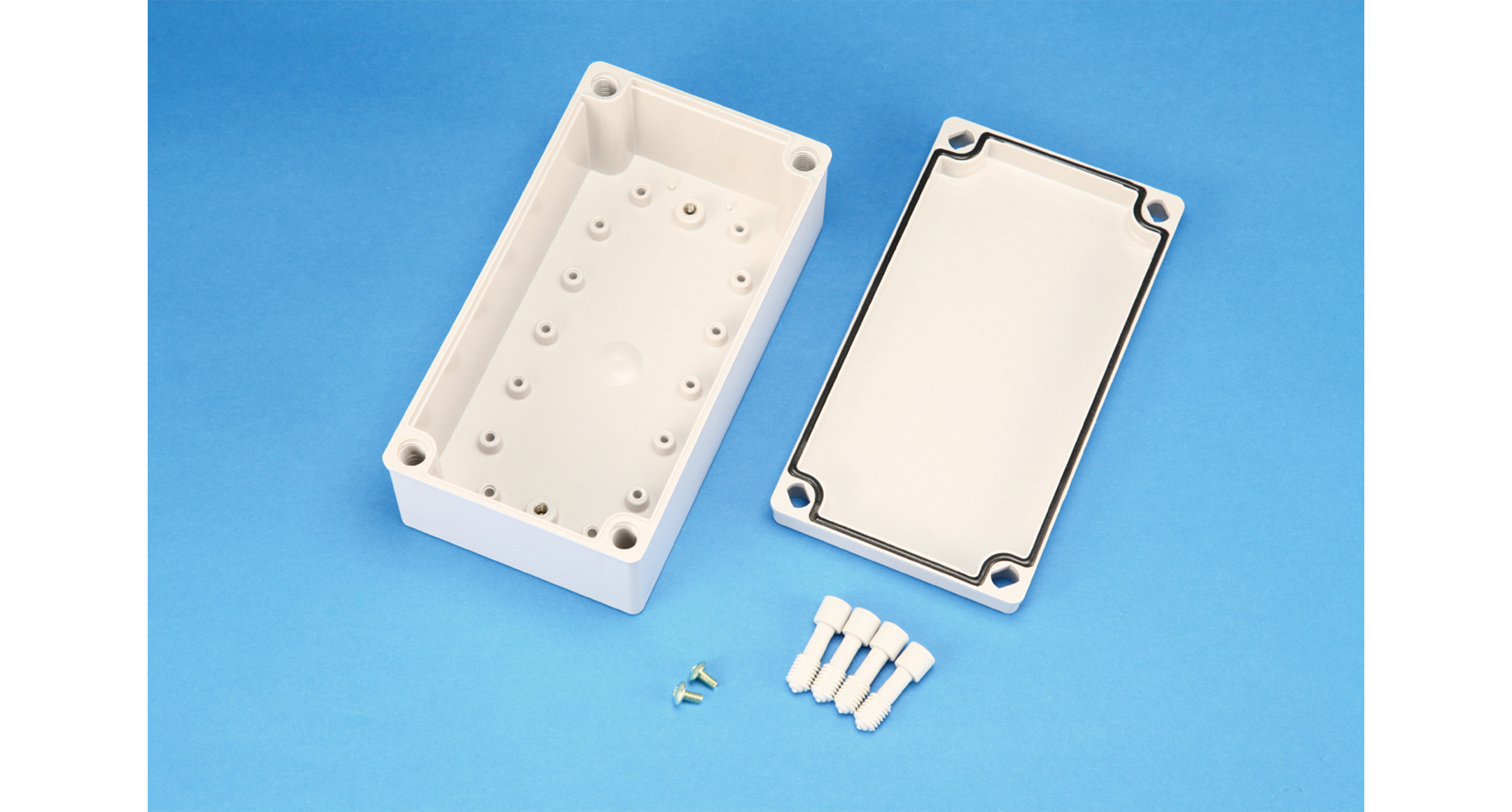

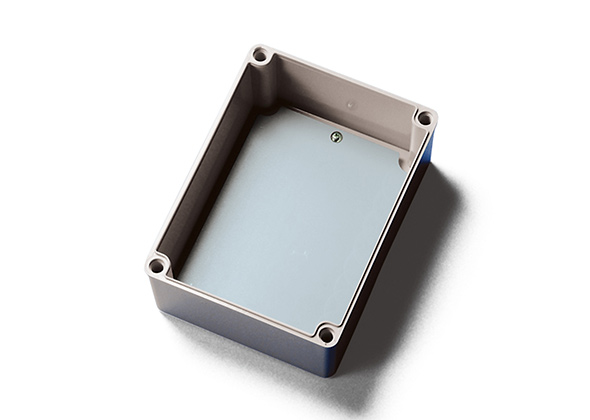

Low-cost and small-sized screw fastening type waterproof ABS plastic enclosure.

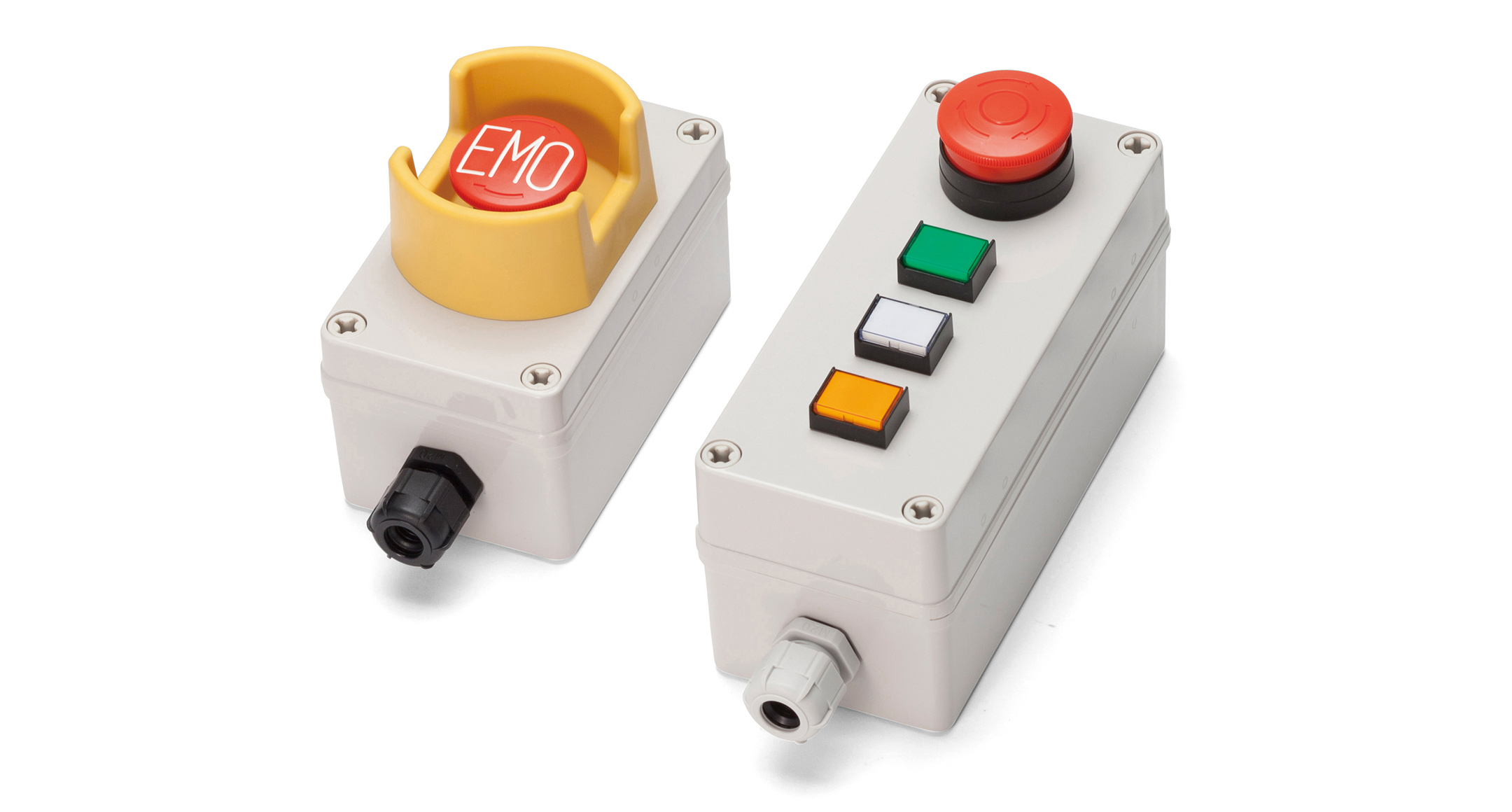

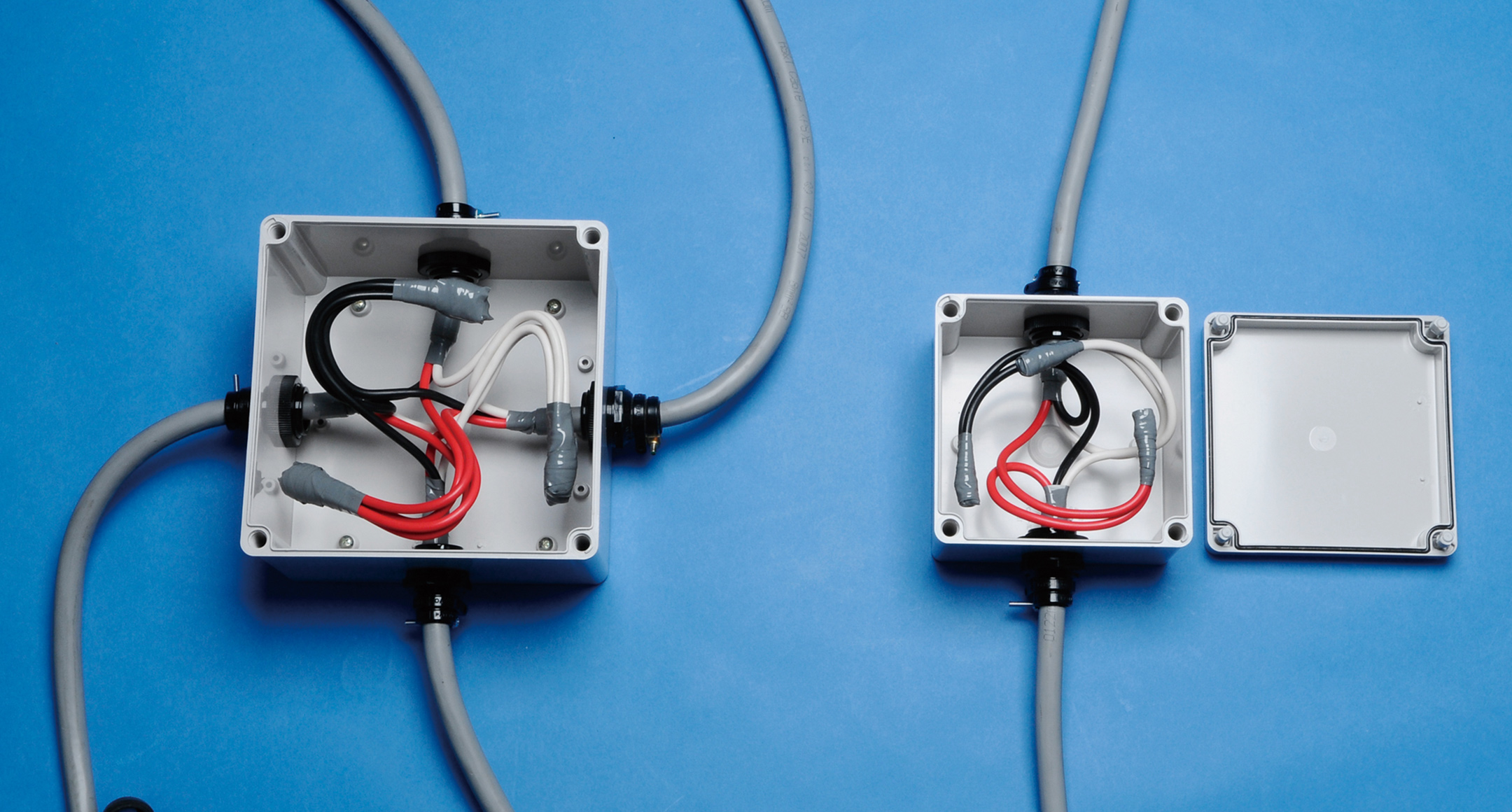

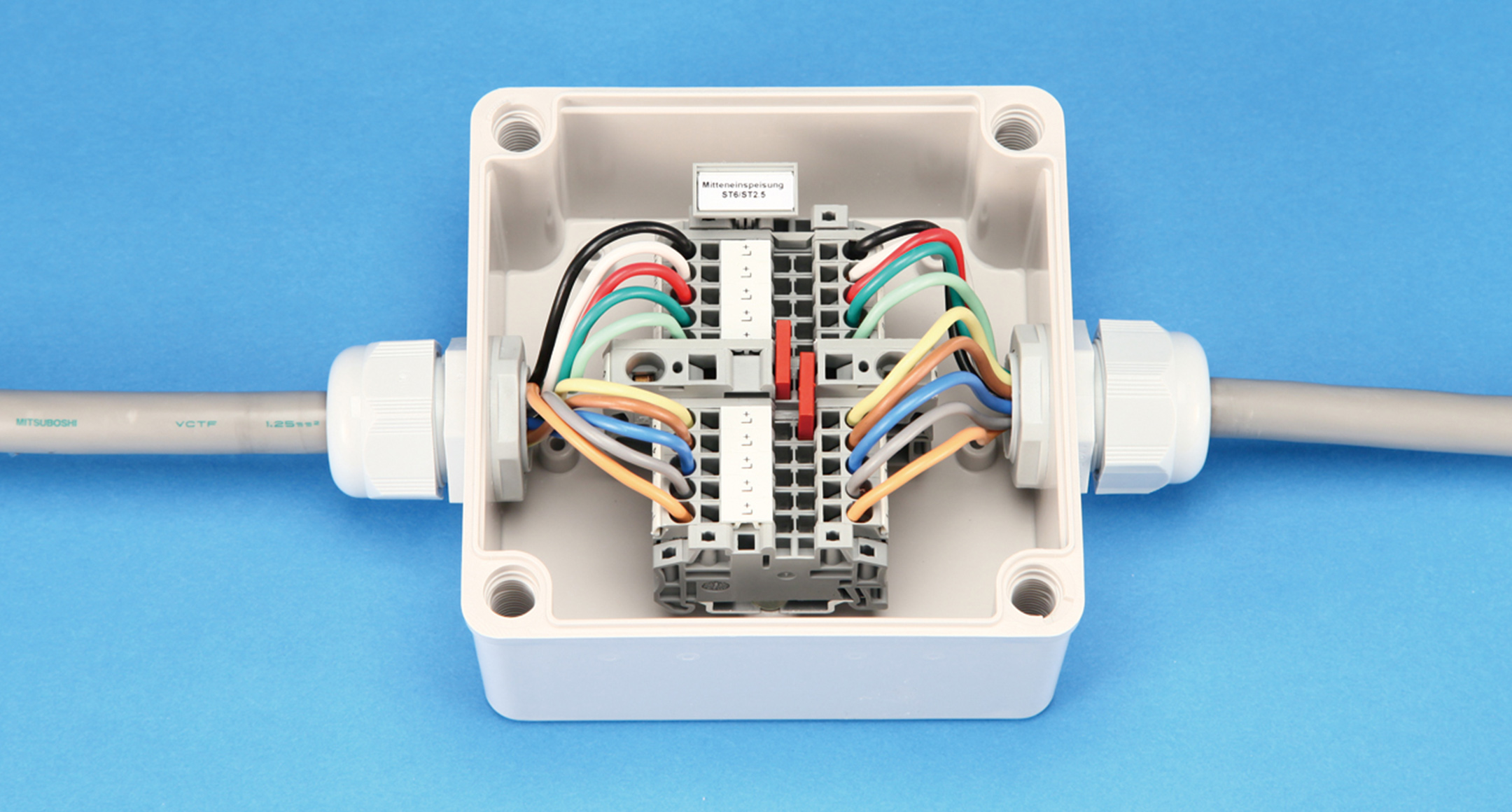

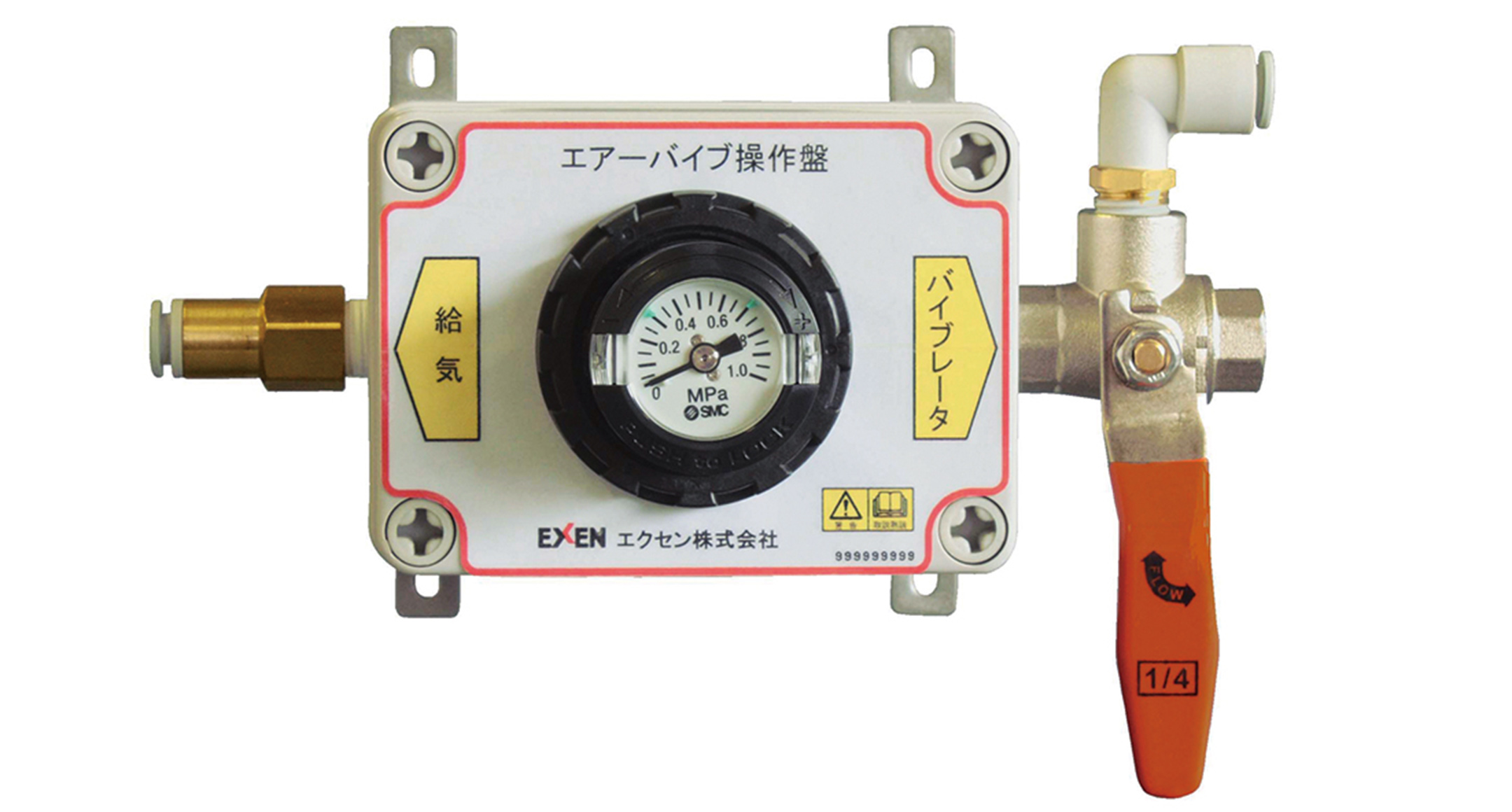

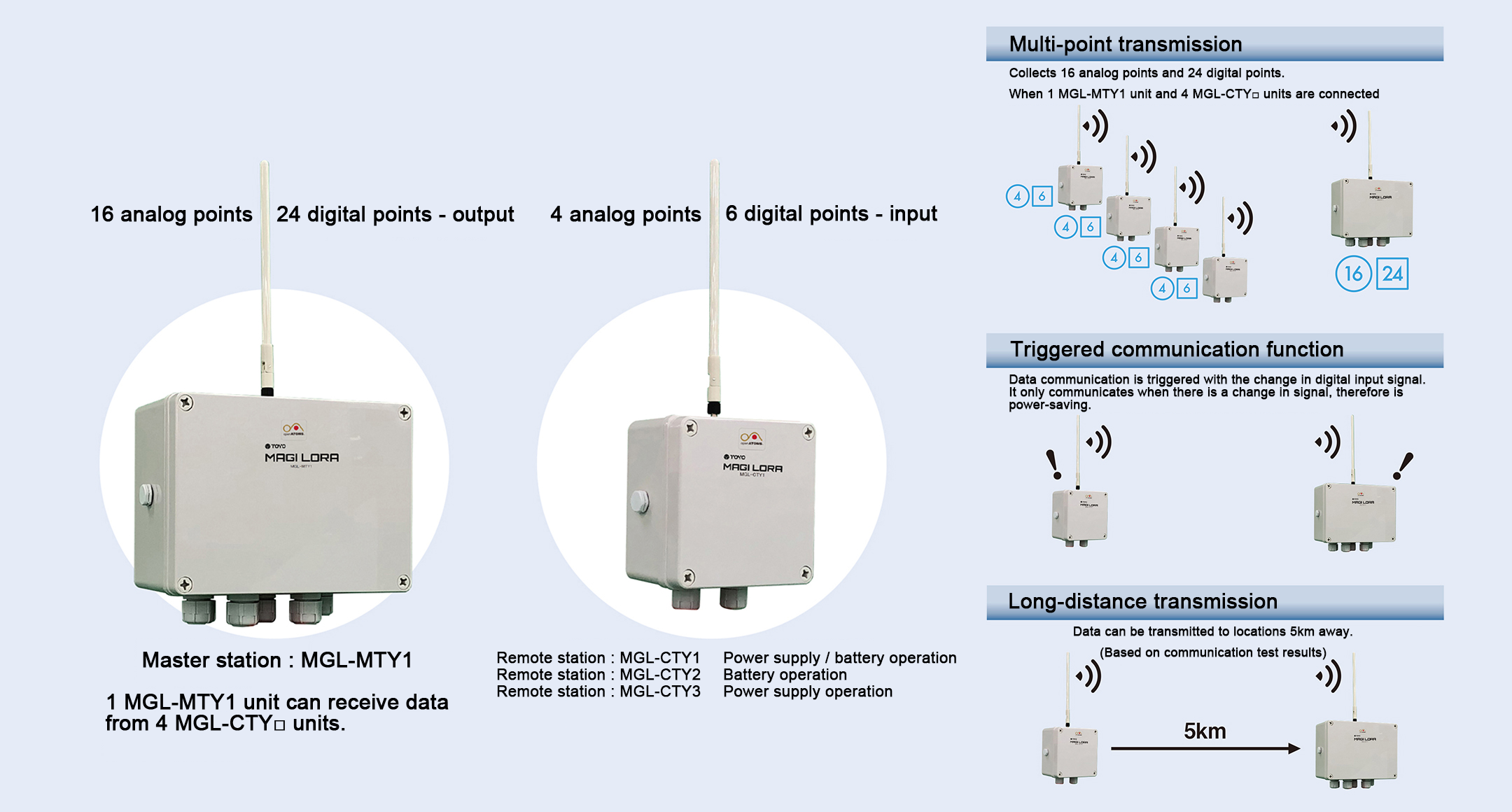

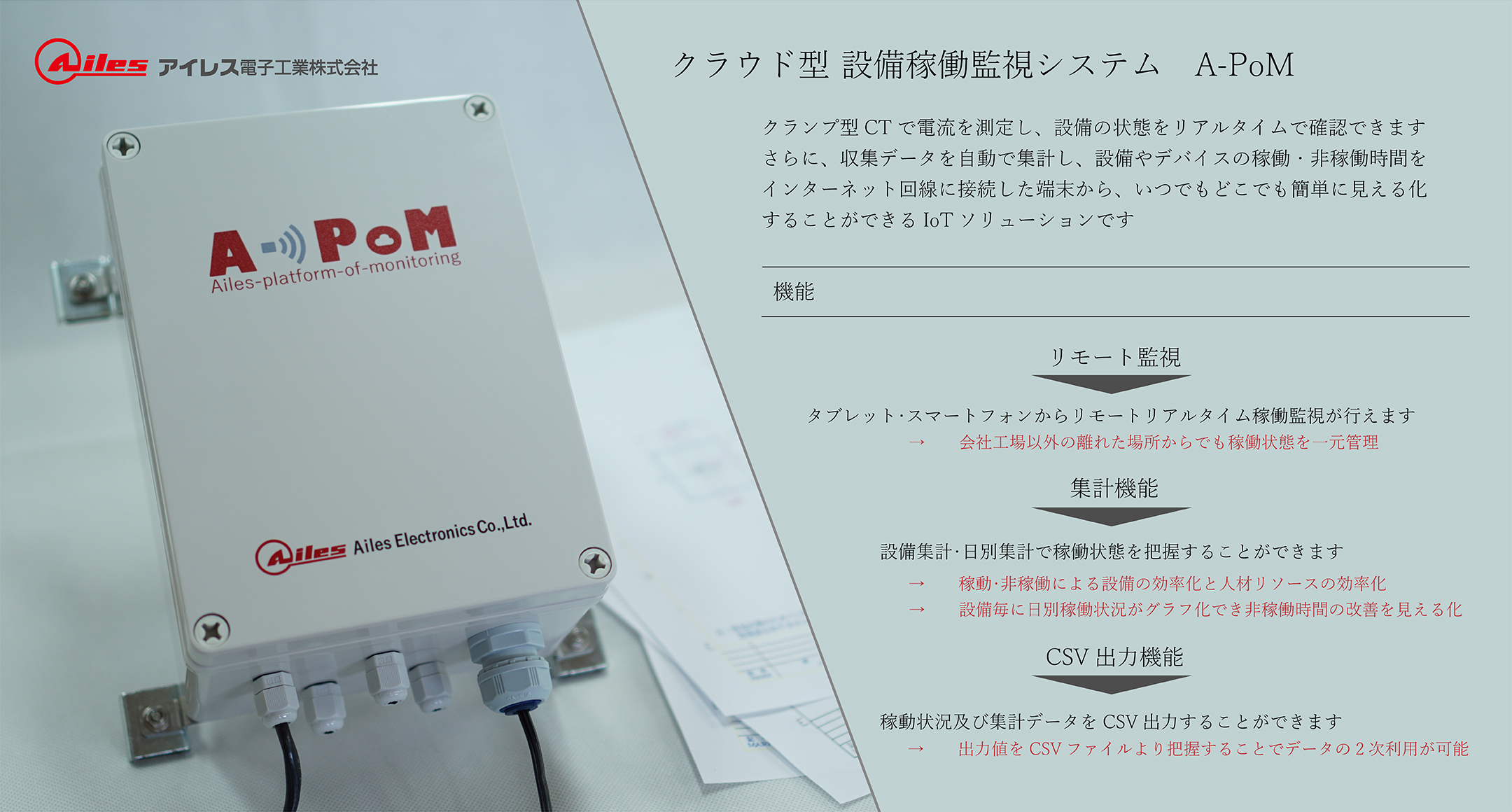

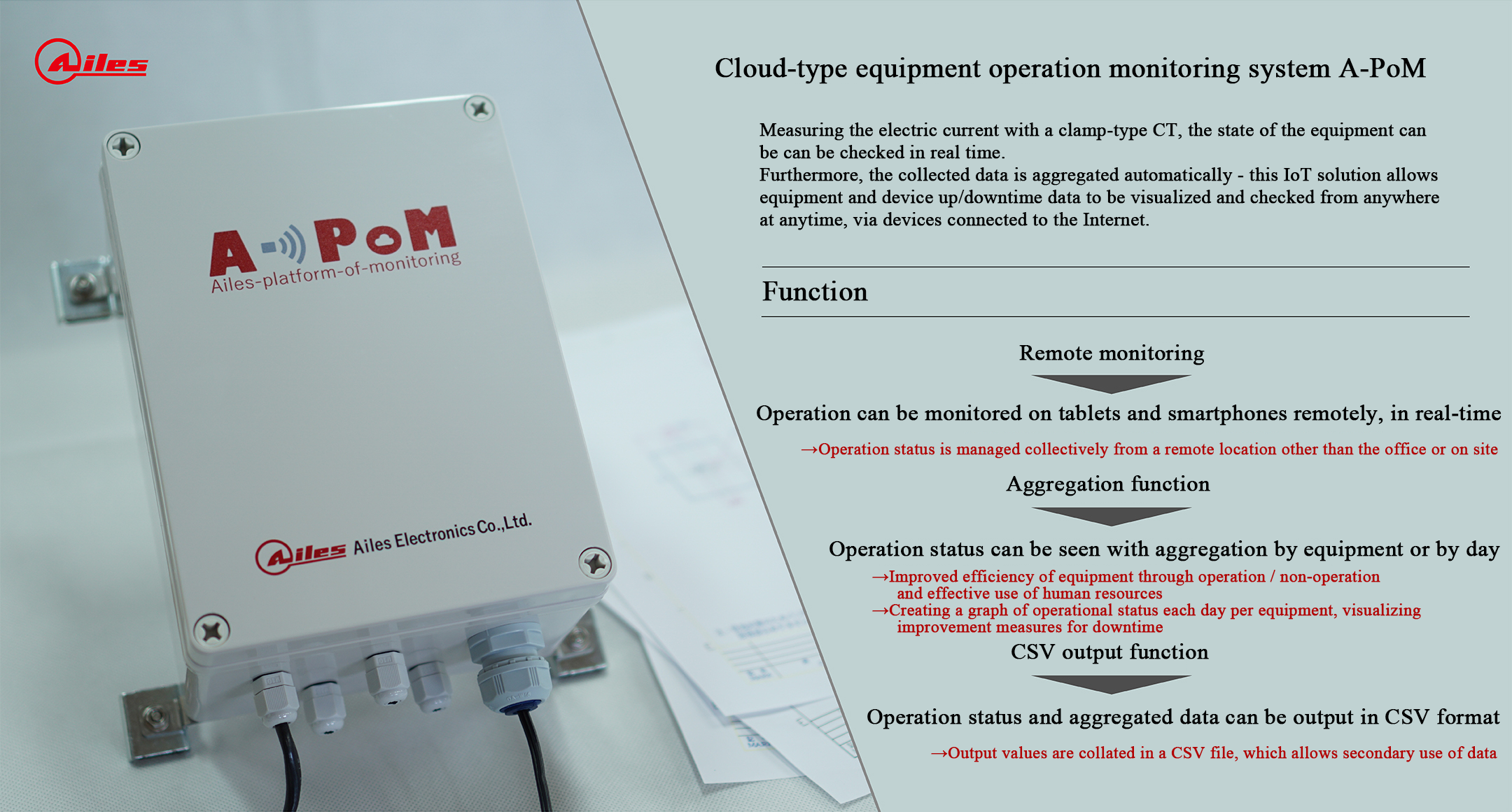

Applicable for various uses as Junction box, Wiring pull box, Switch box, Controller and so on.

39 different sizes available.

Protection class: IP65 (equivalent to NEMA6 rating)
Operating temperature: -10°C ~ +60°C
Recommended torque: 1N・m ~ 1.5N・m (1N・m for BCAS050604G, BCAS050605G)

【Material】
Top cover (G color type)・Body : ABS UL94HB
Color / Similar matching：White gray / Munsell 5R8/0.5
Top cover (T color type) ：Polycarbonate / Transparent
Gasket ：Polyurethane
Cover screw：Nylon

PRODUCT NO. / DIMENSIONS

Product No. External dimensions Internal dimensions Weight (g) PDF DXF DWG
W D H w d h
BCAS050604G 50 65 45 42.5 40 33 69 PDF DXF DWG
BCAS050605G 50 65 55 42.5 40 43 76 PDF DXF DWG
BCAS060905G 65 95 55 54.5 58 41.5 124 PDF DXF DWG
BCAS071005G 75 105 55 65 68 41.3 148 PDF DXF DWG
BCAS080806G 80 80 60 69.5 43 46.4 133 PDF DXF DWG
BCAS081104G 80 110 45 70 73 31.6 138 PDF DXF DWG
BCAS081107G 80 110 70 68.5 73 56.7 165 PDF DXF DWG
BCAS081108G 80 110 85 68 74 71.4 191 PDF DXF DWG
BCAS081110G 80 110 100 68 74 86.2 227 PDF DXF DWG
BCAS081307G 80.5 130 70 69.5 93 56.5 188 PDF DXF DWG
BCAS081308G 80 130 85 68.5 93 71.5 222 PDF DXF DWG
BCAS081807G 80 180 70 69.5 142.5 57 233 PDF DXF DWG
BCAS081808G 80 180 85 69.5 142.5 71.5 275 PDF DXF DWG
BCAS082507G 80 250 70 69 212.5 56.5 294 PDF DXF DWG
BCAS082508G 80 250 85 69 212.5 71.5 348 PDF DXF DWG
BCAS101007G 100 100 75 89.7 61.3 61.5 212 PDF DXF DWG
BCAS101010G 100 100 100 88.7 60.3 86.5 253 PDF DXF DWG
BCAS101807G 100 185 70 88 146.5 56.7 298 PDF DXF DWG
BCAS102007G 100 200 70 87 159 56.5 282 PDF DXF DWG
BCAS102307G 100 230 70 87 188 56.4 336 PDF DXF DWG
BCAS121207G 125 125 75 112 86.5 61.5 252 PDF DXF DWG
BCAS121210G 125 125 100 113 86.5 86.5 311 PDF DXF DWG
BCAS141709G 140 170 95 132 133 81.3 416 PDF DXF DWG
BCAS142309G 140 230 95 127 191 81.5 485 PDF DXF DWG
BCAS151507G 150 150 75 138.5 112 61.6 322 PDF DXF DWG
BCAS151510G 150 150 100 137.5 112 86.6 398 PDF DXF DWG
BCAS152004G 150 200 46 136.1 156.1 32.4 335 PDF DXF DWG
BCAS152007G 150 200 75.5 136.1 156.1 61.5 423 PDF DXF DWG
BCAS152010G 150 200 100 136.1 156.1 86.5 473 PDF DXF DWG
BCAS152013G 150 200 130 136.1 156.1 116.5 582 PDF DXF DWG
BCAS152016G 150 200 160 137.5 157.5 146.5 631 PDF DXF DWG
BCAS152510G 150 250 100 138.5 213 86.1 565 PDF DXF DWG
BCAS152513G 150 250 130 138.5 213 116.4 687 PDF DXF DWG
BCAS161607G 160 160 70 148 121.5 56.5 334 PDF DXF DWG
BCAS202010G 201 201 100 188 163 85.7 604 PDF DXF DWG
BCAS202013G 201 201 130 188 161 116.5 685 PDF DXF DWG
BCAS202016G 201 201 160 187 162.5 146 801 PDF DXF DWG
BCAS202019G 201 201 190 187 162.5 176.3 907.5 PDF DXF DWG
BCAS212310G 210 230 100.3 197.8 193.2 87.1 644.5 PDF DXF DWG

OPTIONAL PARTS

１
MOUNTING PLATE for BCAS - BMP series
DETAILS
１

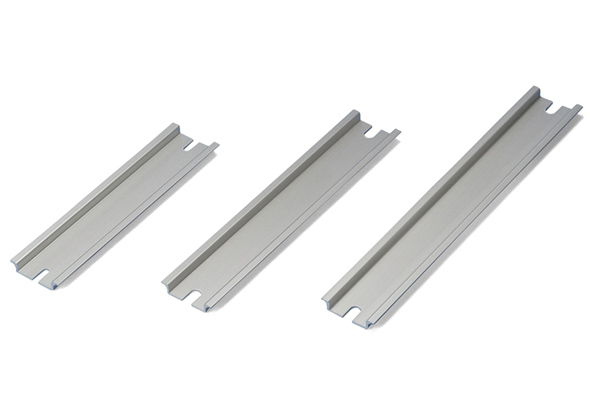

DIN RAIL for BCAS series
DETAILS
１
MOUNTING BRACKET for BCAS・BCAL - CK series
DETAILS
１

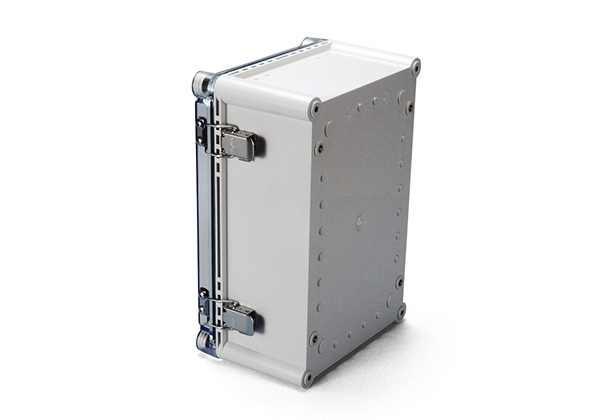

LATCH / HINGE for BCAS・BCAL series
DETAILS
１

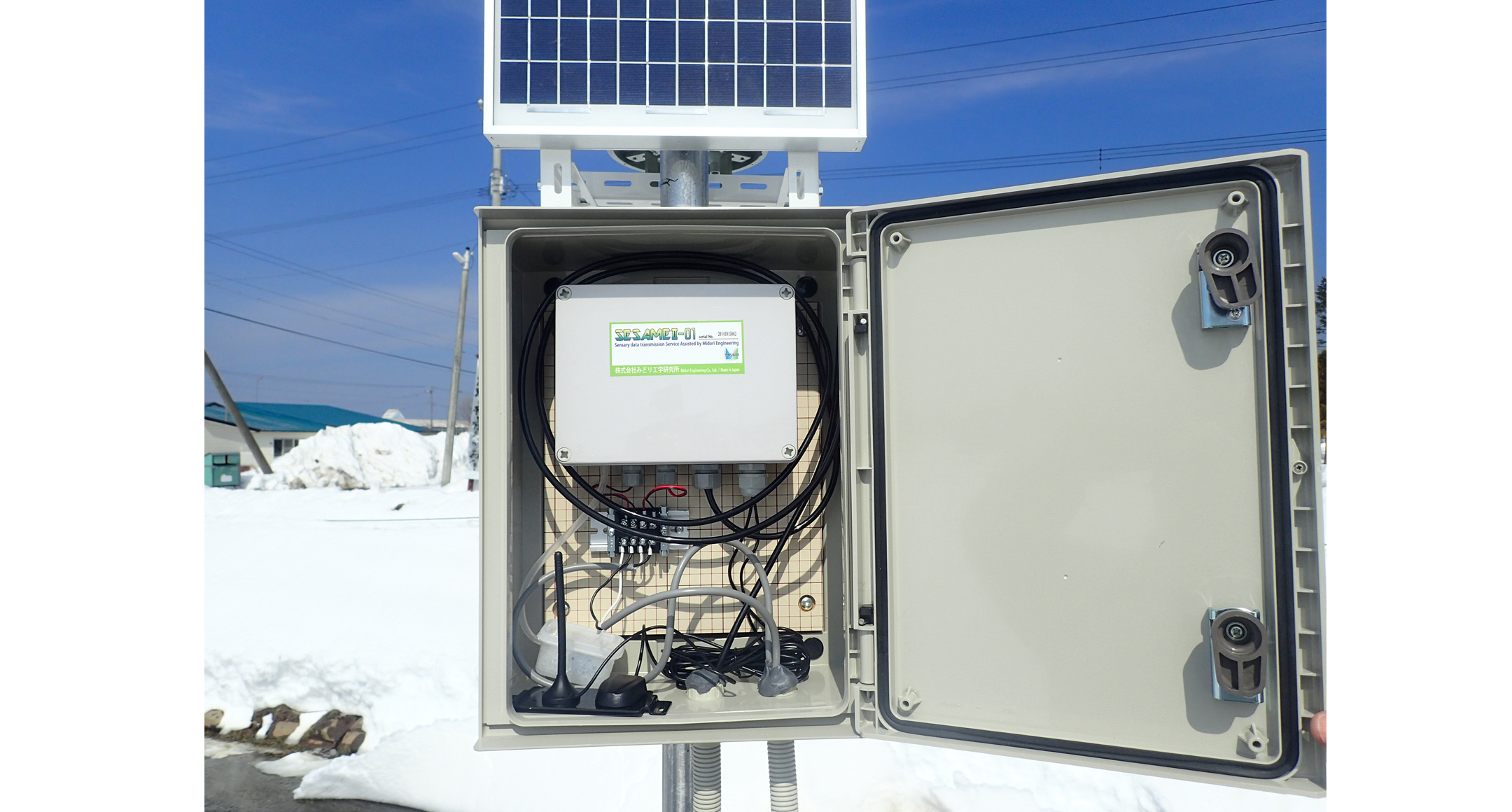

POLE MOUNTING BRACKET - WGMB-2SW
DETAILS
１
POLE MOUNTING BRACKET for BCAS series
DETAILS
１
LOW-COST VENTILATION PLUG - CVP series
DETAILS
１
GORETEX PROTECTIVE VENT - PMF series
DETAILS
１

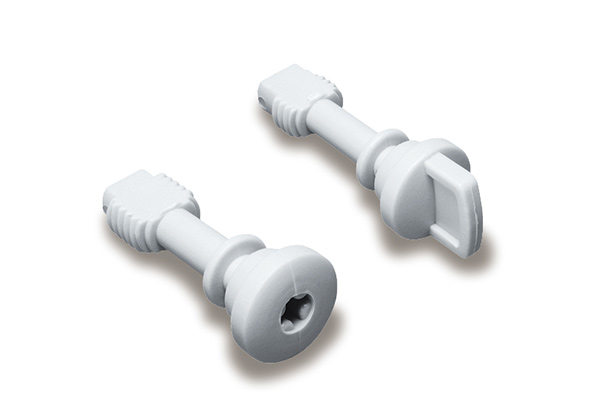

SPARE COVER SCREW for BCAS・BCAL - CB series
