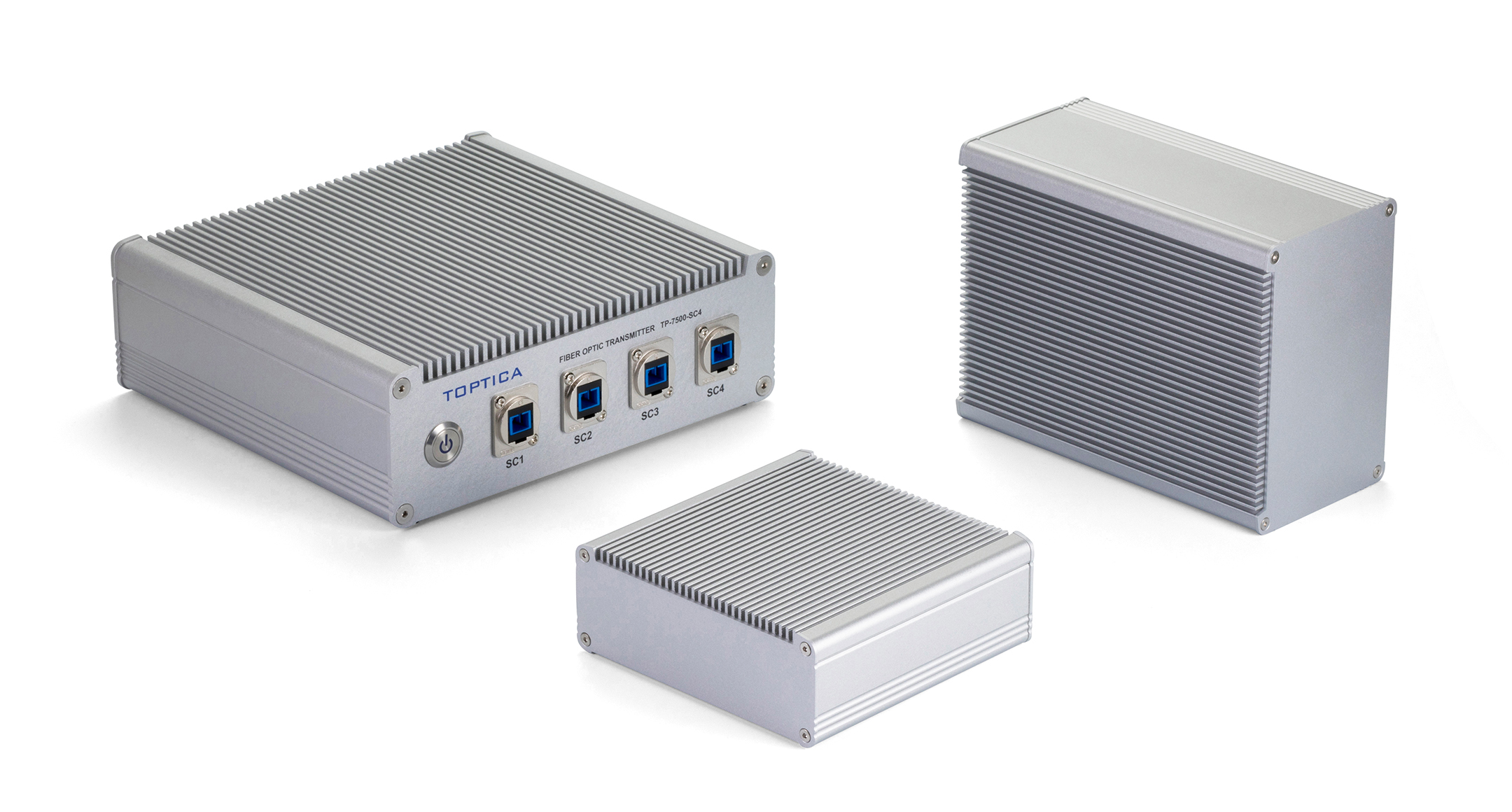

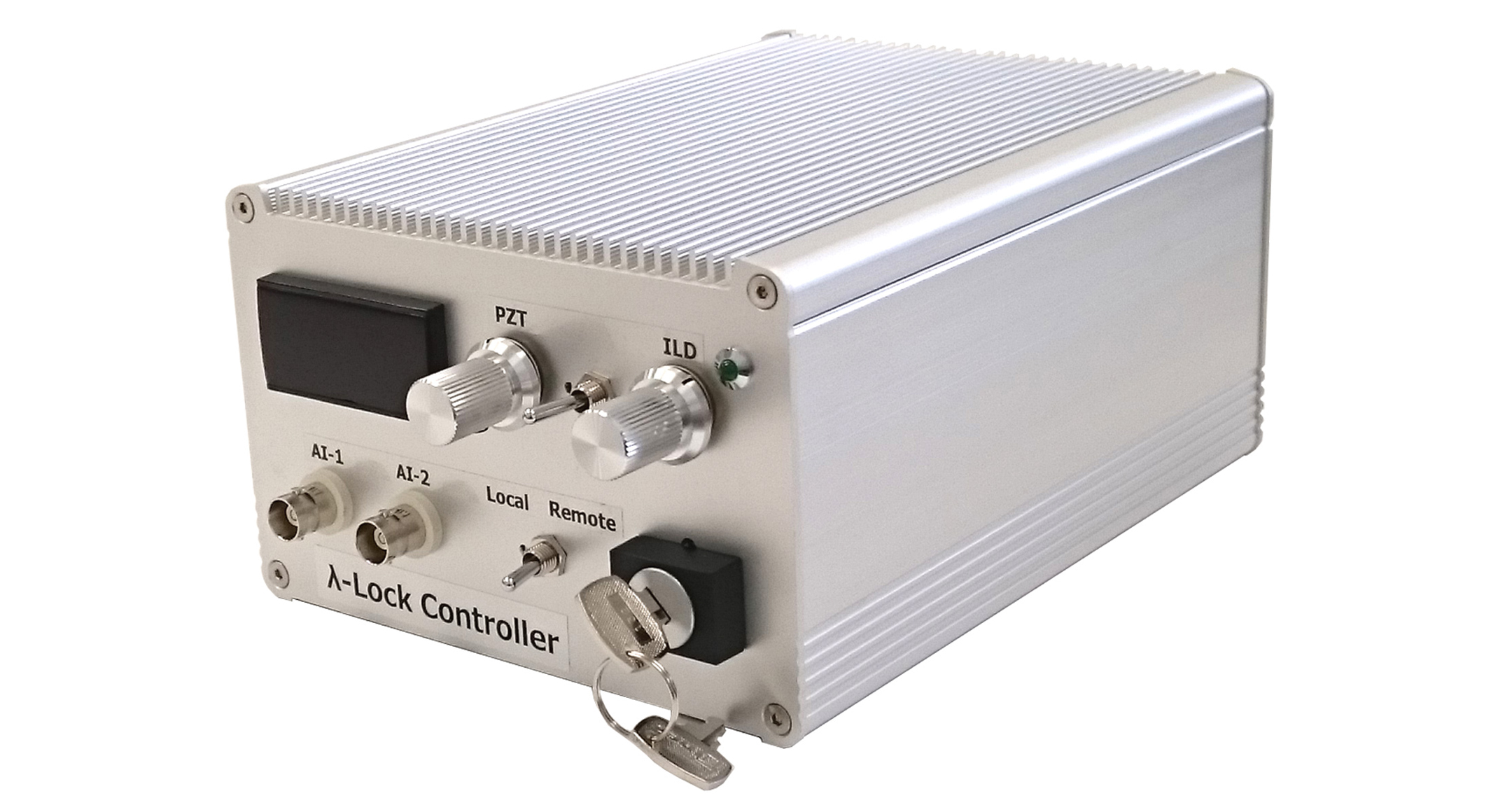

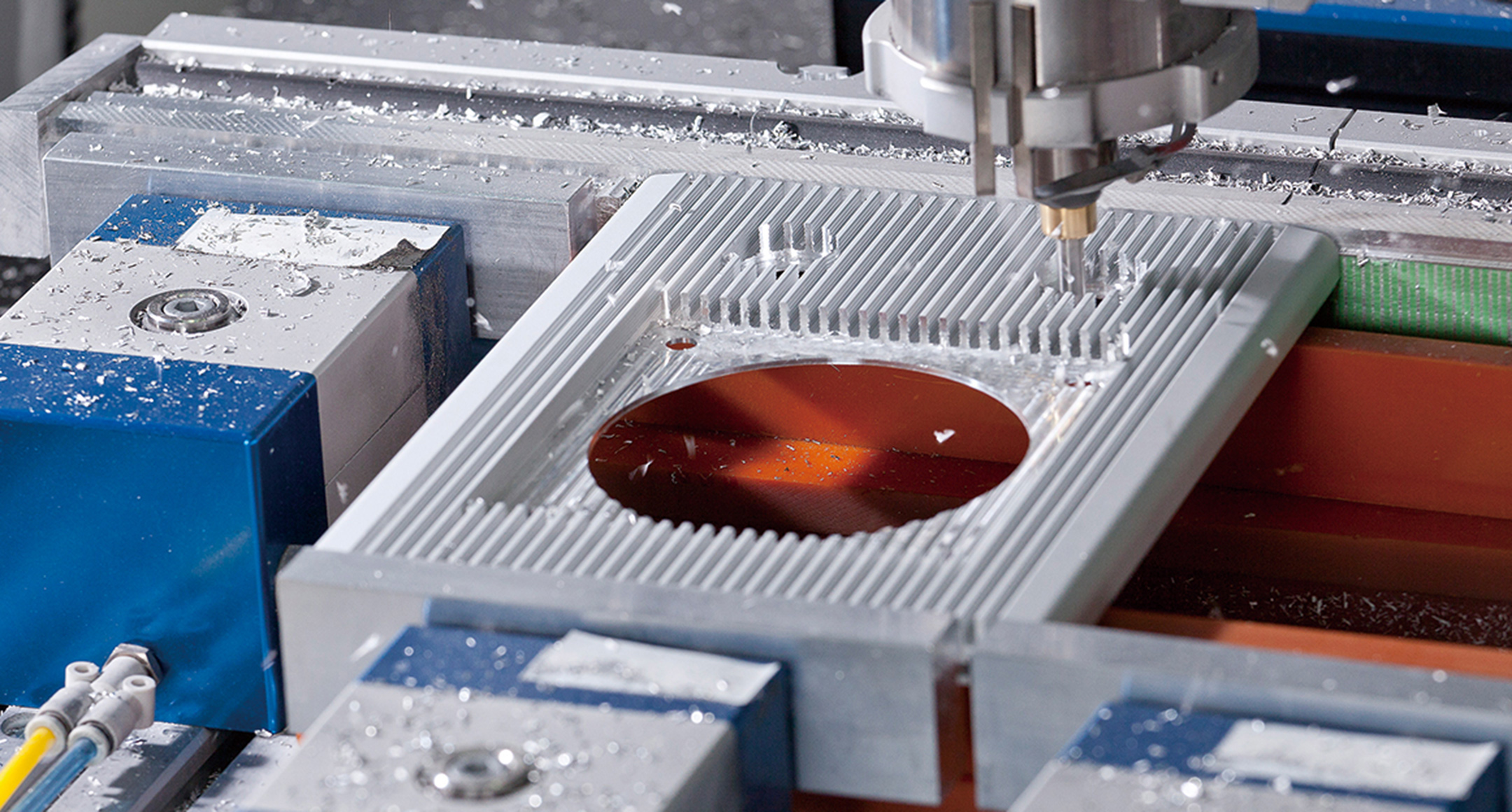

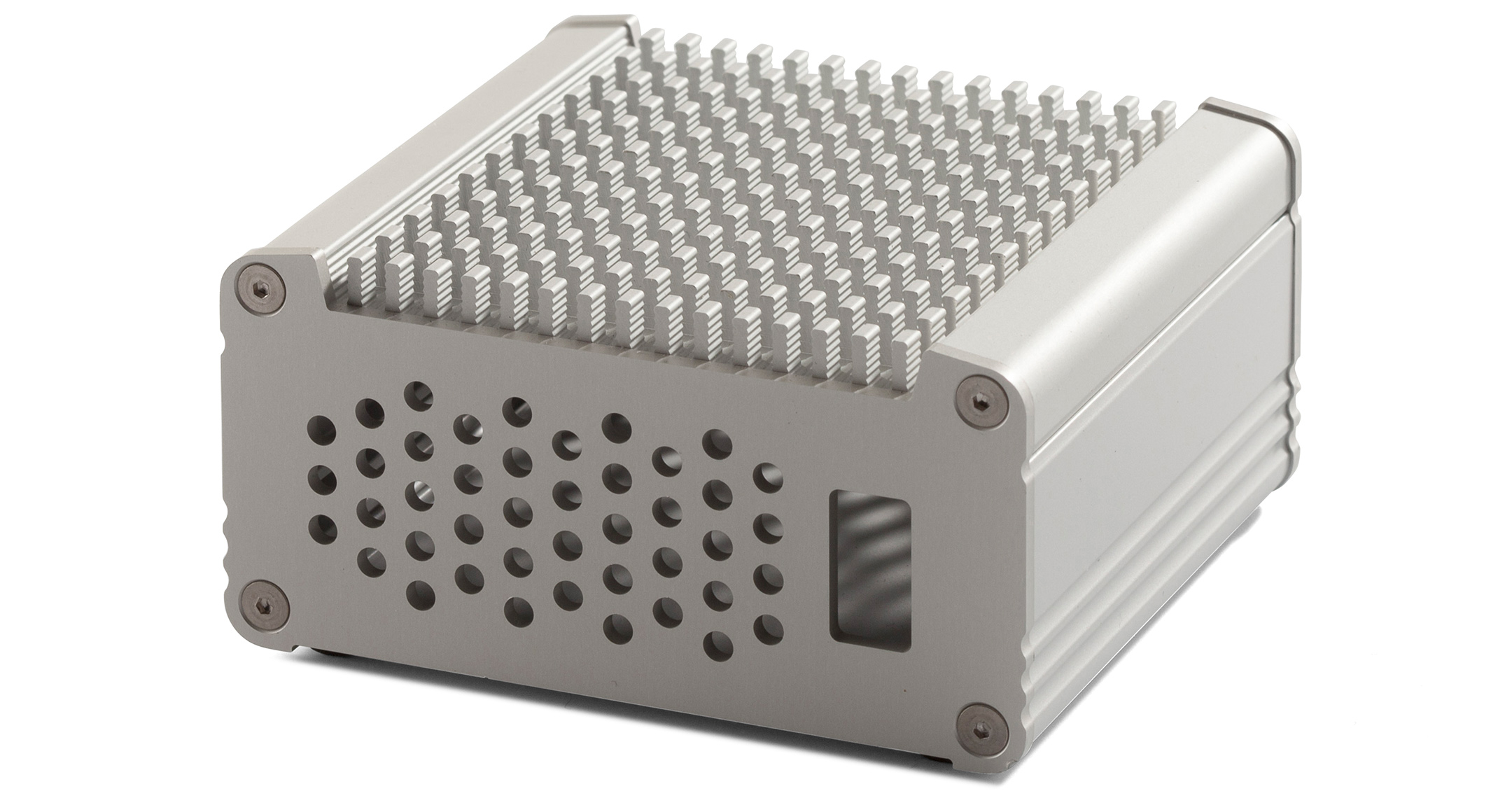

Aluminum enclosure equipped with a highly efficient heat-sink top cover.
EMC shielding is achieved by having the unfinished inner sides of the heat-sink top cover, bottom frame and panels, as well as the shielding gasket in contact with one another.

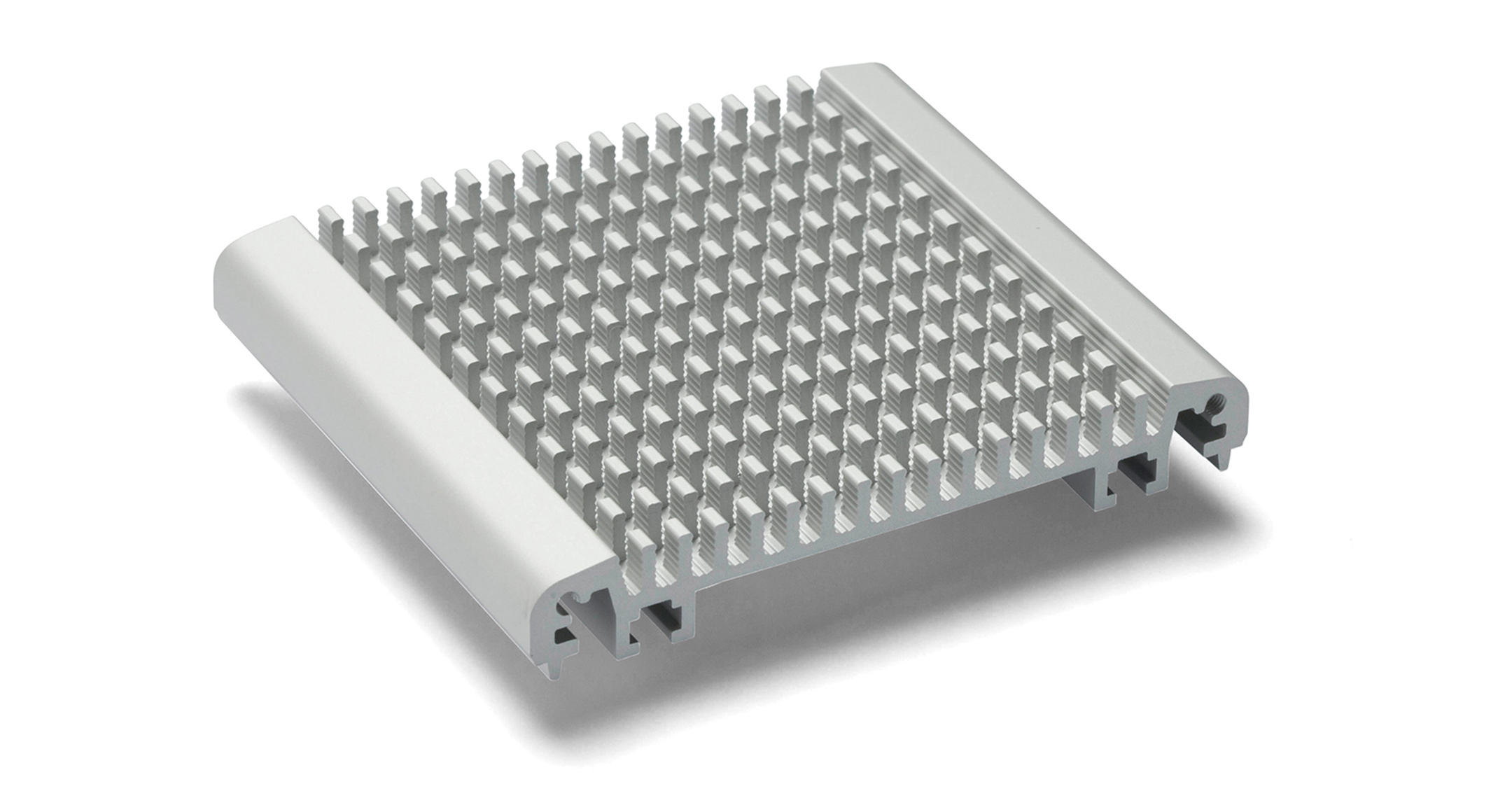

Grooves for M3 sliding nut are built into the heat-sink top cover and bottom frame (140mm or wider).
Optional nut is available.

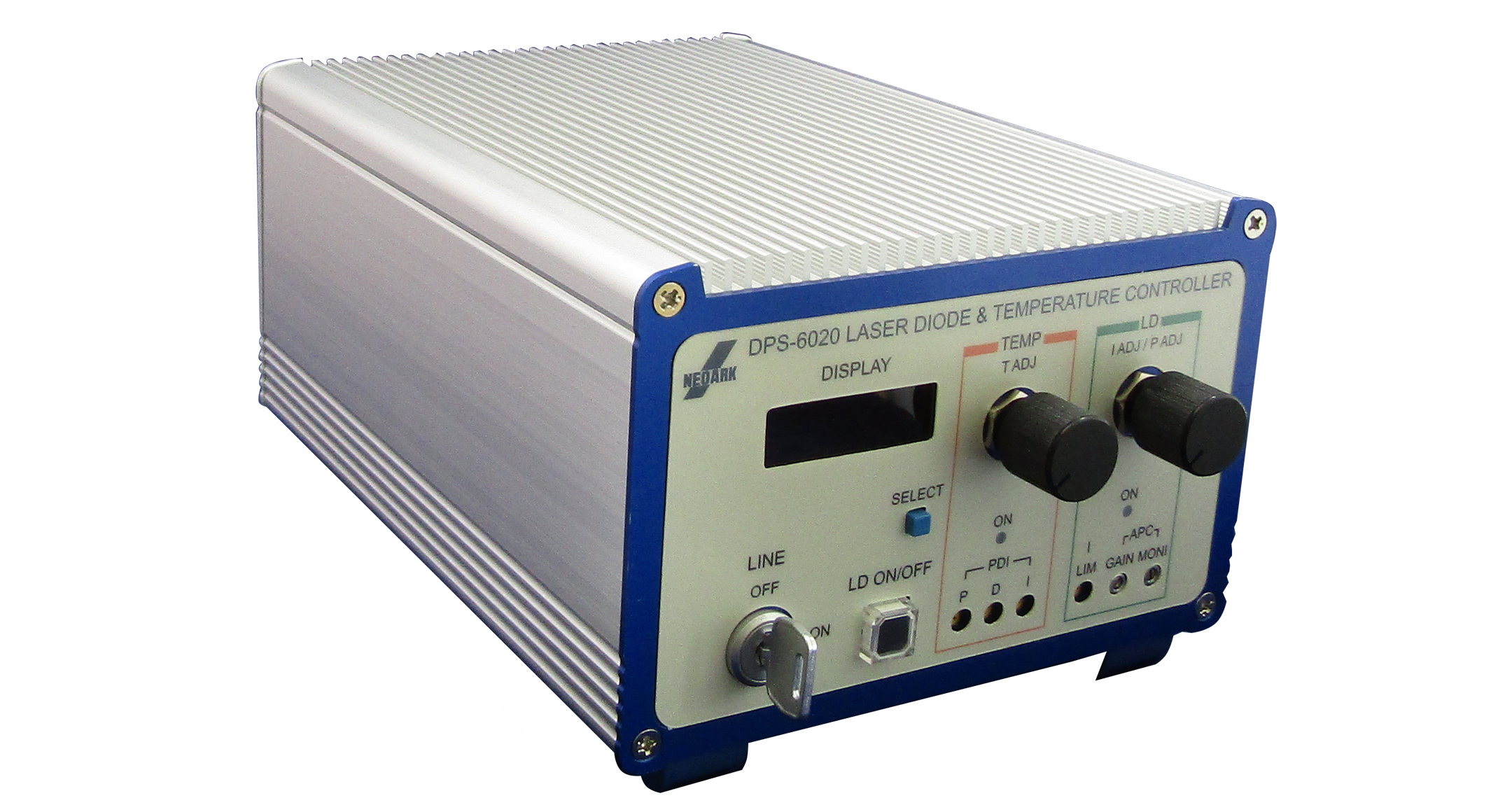

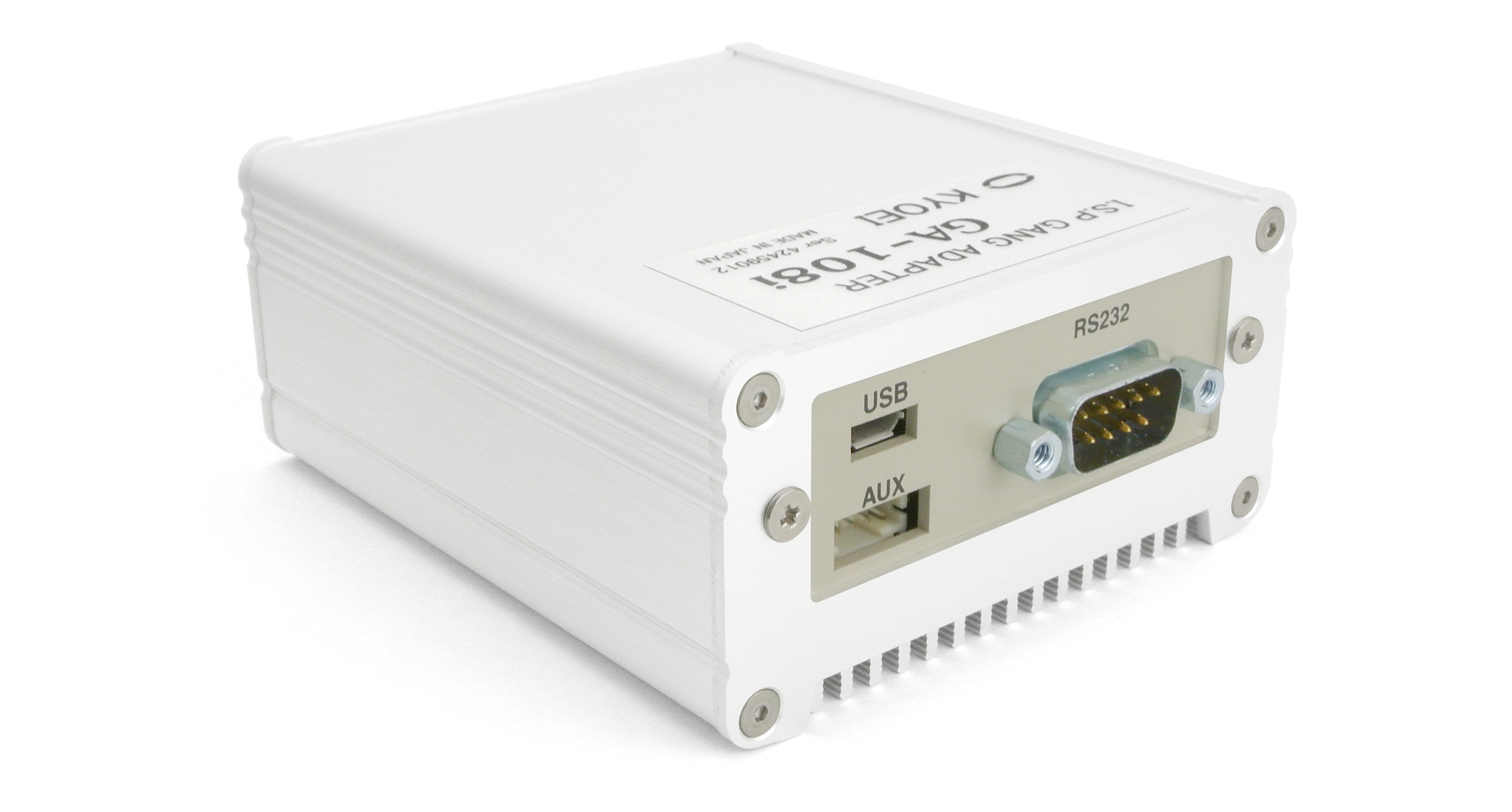

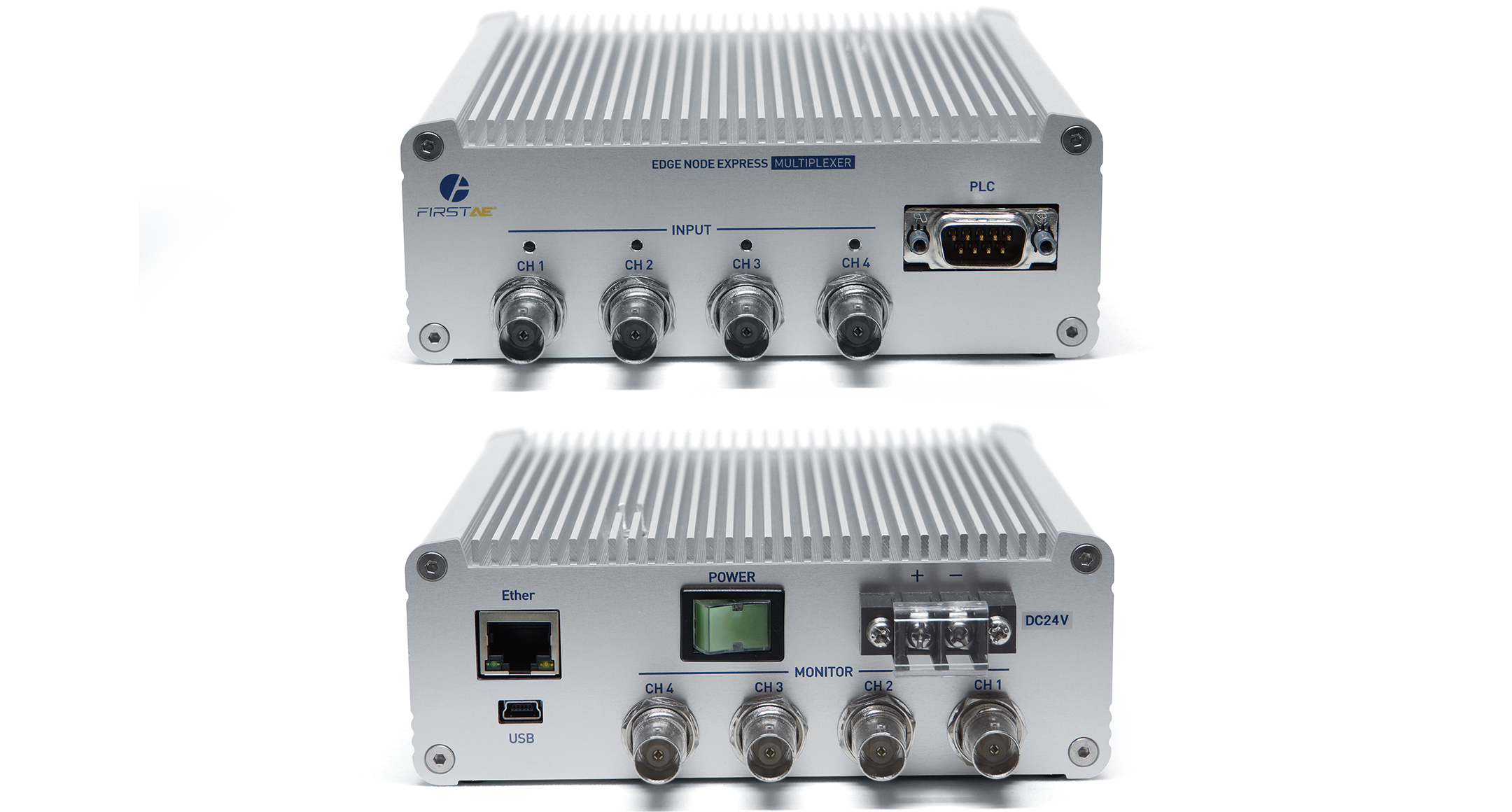

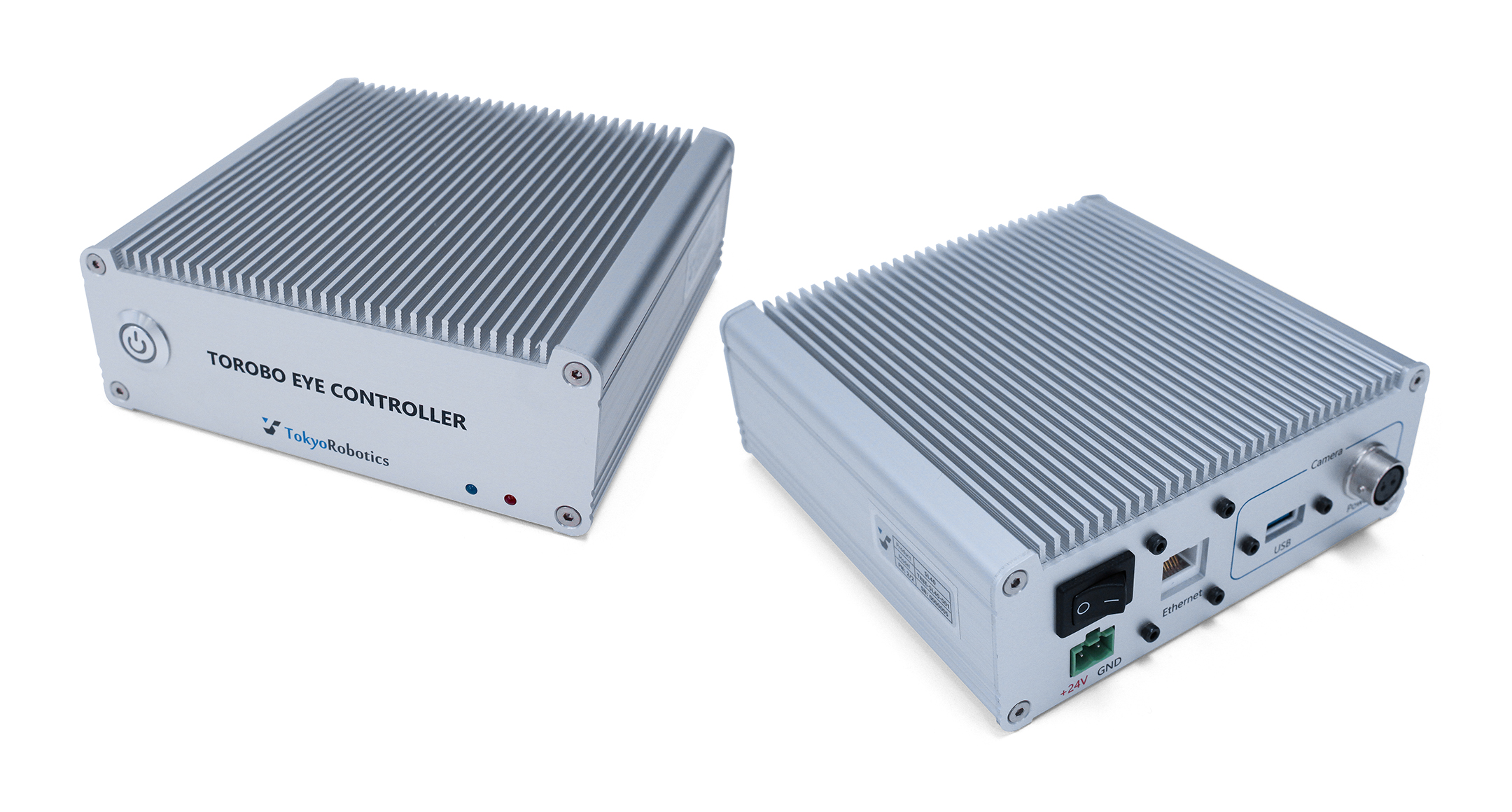

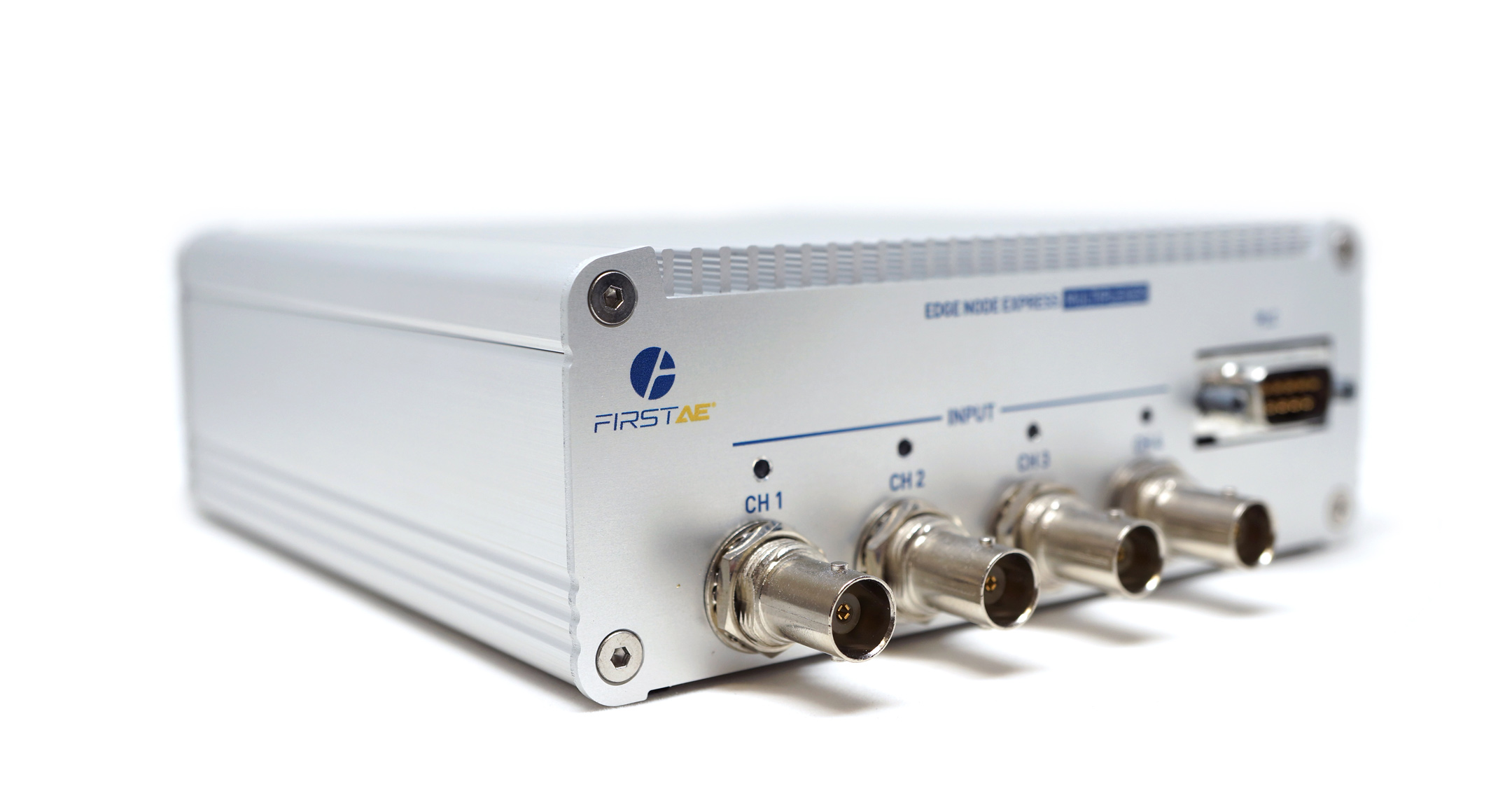

Suitable to be used as a fanless PC, power amplifier, power supply etc. where heat dissipation and EMC shielded are required.
64 different sizes available in metallic silver painted finish (Unfinished inside for EMC shielding).
EMC shielding is achieved by having the unfinished inner sides of the heat-sink top cover, bottom frame and panels, as well as the shielding gasket in contact with one another.
Grooves for M3 sliding nut are built into the heat-sink top cover and bottom frame (140mm or wider).
Optional nut is available.
Suitable to be used as a fanless PC, power amplifier, power supply etc. where heat dissipation and EMC shielded are required.
64 different sizes available in metallic silver painted finish (Unfinished inside for EMC shielding).
PRODUCT NO. / DIMENSIONS
| Product No. | External dimensions | Internal dimensions | Thermal resistance value（℃/W） | Weight (g) | DXF | DWG | STP | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| W | H | D | w | h | d | |||||||
| EXHE8-3-6SS | 80.6 | 30.7 | 60 | 66 | 15 | 56 | 7.32 | 120.5 | DXF | DWG | ||
| EXHE8-3-9SS | 80.6 | 30.7 | 90 | 66 | 15 | 86 | 5.65 | 171.5 | DXF | DWG | ||
| EXHE8-3-12SS | 80.6 | 30.7 | 120 | 66 | 15 | 116 | 4.72 | 222 | DXF | DWG | ||
| EXHE8-4-6SS | 80.6 | 40.7 | 60 | 66 | 25 | 56 | 7.32 | 136 | DXF | DWG | ||
| EXHE8-4-9SS | 80.6 | 40.7 | 90 | 66 | 25 | 86 | 5.65 | 191 | DXF | DWG | ||
| EXHE8-4-12SS | 80.6 | 40.7 | 120 | 66 | 25 | 116 | 4.72 | 245 | DXF | DWG | ||
| EXHE8-6-6SS | 80.6 | 55.7 | 60 | 66 | 40 | 56 | 7.32 | 158 | DXF | DWG | ||
| EXHE8-6-9SS | 80.6 | 55.7 | 90 | 66 | 40 | 86 | 5.65 | 217 | DXF | DWG | ||
| EXHE8-6-12SS | 80.6 | 55.7 | 120 | 66 | 40 | 116 | 4.72 | 275 | DXF | DWG | ||
| EXHE11-3-8SS | 106 | 31.1 | 78 | 88.5 | 14 | 74 | 4.82 | 203 | DXF | DWG | ||
| EXHE11-3-12SS | 106 | 31.1 | 118 | 88.5 | 14 | 114 | 3.72 | 294 | DXF | DWG | ||
| EXHE11-3-16SS | 106 | 31.1 | 164 | 88.5 | 14 | 160 | 3.03 | 401 | DXF | DWG | ||
| EXHE11-5-8SS | 106 | 46.1 | 78 | 88.5 | 29 | 74 | 4.82 | 231.5 | DXF | DWG | ||
| EXHE11-5-12SS | 106 | 46.1 | 118 | 88.5 | 29 | 114 | 3.72 | 329 | DXF | DWG | ||
| EXHE11-5-16SS | 106 | 46.1 | 164 | 88.5 | 29 | 160 | 3.03 | 444 | DXF | DWG | ||
| EXHE11-6-8SS | 106 | 61.1 | 78 | 88.5 | 44 | 74 | 3.4 | 263 | DXF | DWG | ||
| EXHE11-6-12SS | 106 | 61.1 | 118 | 88.5 | 44 | 114 | 2.75 | 368 | DXF | DWG | ||
| EXHE11-6-16SS | 106 | 61.1 | 164 | 88.5 | 44 | 160 | 2.27 | 492 | DXF | DWG | ||
| EXHE14-4-10SS | 141 | 36.1 | 97 | 101.8 | 24.3 | 93 | 3.4 | 330.5 | DXF | DWG | ||
| EXHE14-4-14SS | 141 | 36.1 | 137 | 101.8 | 24.3 | 133 | 2.75 | 451.5 | DXF | DWG | ||
| EXHE14-4-19SS | 141 | 36.1 | 187 | 101.8 | 24.3 | 183 | 2.27 | 603 | DXF | DWG | ||
| EXHE14-5-10SS | 141 | 51.1 | 97 | 101.8 | 39.3 | 93 | 3.4 | 369.5 | DXF | DWG | ||
| EXHE14-5-14SS | 141 | 51.1 | 137 | 101.8 | 39.3 | 133 | 2.75 | 497 | DXF | DWG | ||
| EXHE14-5-19SS | 141 | 51.1 | 187 | 101.8 | 39.3 | 183 | 2.27 | 657.5 | DXF | DWG | ||
| EXHE14-7-10SS | 141 | 71.1 | 97 | 101.8 | 59.3 | 93 | 3.4 | 415.5 | DXF | DWG | ||
| EXHE14-7-14SS | 141 | 71.1 | 137 | 101.8 | 59.3 | 133 | 2.75 | 550 | DXF | DWG | ||
| EXHE14-7-19SS | 141 | 71.1 | 187 | 101.8 | 59.3 | 183 | 2.27 | 719.5 | DXF | DWG | ||
| EXHE14-9-10SS | 141 | 91.1 | 97 | 101.8 | 79.3 | 93 | 3.4 | 468.5 | DXF | DWG | ||
| EXHE14-9-14SS | 141 | 91.1 | 137 | 101.8 | 79.3 | 133 | 2.75 | 613 | DXF | DWG | ||
| EXHE14-9-19SS | 141 | 91.1 | 187 | 101.8 | 79.3 | 183 | 2.27 | 794.5 | DXF | DWG | ||
| EXHE19-4-13SS | 186.5 | 43.5 | 125 | 131 | 26.8 | 120 | 1.92 | 764 | DXF | DWG | ||
| EXHE19-4-18SS | 186.5 | 43.5 | 177 | 131 | 26.8 | 172 | 1.56 | 1049 | DXF | DWG | ||
| EXHE19-4-23SS | 186.5 | 43.5 | 230 | 131 | 26.8 | 225 | 1.32 | 1338 | DXF | DWG | ||
| EXHE19-4-29SS | 186.5 | 43.5 | 285 | 131 | 26.8 | 280 | 1.15 | 1632 | DXF | DWG | ||
| EXHE19-6-13SS | 186.5 | 61.5 | 125 | 131 | 44.8 | 120 | 1.92 | 835 | DXF | DWG | ||
| EXHE19-6-18SS | 186.5 | 61.5 | 177 | 131 | 44.8 | 172 | 1.56 | 1134 | DXF | DWG | ||
| EXHE19-6-23SS | 186.5 | 61.5 | 230 | 131 | 44.8 | 225 | 1.32 | 1433 | DXF | DWG | ||
| EXHE19-6-29SS | 186.5 | 61.5 | 285 | 131 | 44.8 | 280 | 1.15 | 1744 | DXF | DWG | ||
| EXHE19-8-13SS | 186.5 | 81.5 | 125 | 131 | 64.8 | 120 | 1.92 | 914 | DXF | DWG | ||
| EXHE19-8-18SS | 186.5 | 81.5 | 177 | 131 | 64.8 | 172 | 1.56 | 1233 | DXF | DWG | ||
| EXHE19-8-23SS | 186.5 | 81.5 | 230 | 131 | 64.8 | 225 | 1.32 | 1548 | DXF | DWG | ||
| EXHE19-8-29SS | 186.5 | 81.5 | 285 | 131 | 64.8 | 280 | 1.15 | 1875 | DXF | DWG | ||
| EXHE19-11-13SS | 186.5 | 106.5 | 125 | 131 | 89.8 | 120 | 1.92 | 1036 | DXF | DWG | ||
| EXHE19-11-18SS | 186.5 | 106.5 | 177 | 131 | 89.8 | 172 | 1.56 | 1356 | DXF | DWG | ||
| EXHE19-11-23SS | 186.5 | 106.5 | 230 | 131 | 89.8 | 225 | 1.32 | 1698 | DXF | DWG | ||
| EXHE19-11-29SS | 186.5 | 106.5 | 285 | 131 | 89.8 | 280 | 1.15 | 2036 | DXF | DWG | ||
| EXHE23-5-15SS | 232 | 52 | 153 | 176 | 34.8 | 147 | 1.47 | 1229.5 | DXF | DWG | ||
| EXHE23-5-21SS | 232 | 52 | 213 | 176 | 34.8 | 207 | 1.2 | 1652.5 | DXF | DWG | ||
| EXHE23-5-27SS | 232 | 52 | 273 | 176 | 34.8 | 267 | 1.03 | 2093.5 | DXF | DWG | ||
| EXHE23-5-33SS | 232 | 52 | 333 | 176 | 34.8 | 327 | 0.91 | 2507.5 | DXF | DWG | ||
| EXHE23-8-15SS | 232 | 77 | 153 | 176 | 59.8 | 147 | 1.47 | 1371.5 | DXF | DWG | ||
| EXHE23-8-21SS | 232 | 77 | 213 | 176 | 59.8 | 207 | 1.2 | 1813.5 | DXF | DWG | ||
| EXHE23-8-27SS | 232 | 77 | 273 | 176 | 59.8 | 267 | 1.03 | 2267.5 | DXF | DWG | ||
| EXHE23-8-33SS | 232 | 77 | 333 | 176 | 59.8 | 327 | 0.91 | 2722.5 | DXF | DWG | ||
| EXHE23-10-15SS | 232 | 102 | 153 | 176 | 84.8 | 147 | 1.47 | 1510.5 | DXF | DWG | ||
| EXHE23-10-21SS | 232 | 102 | 213 | 176 | 84.8 | 207 | 1.2 | 1986.5 | DXF | DWG | ||
| EXHE23-10-27SS | 232 | 102 | 273 | 176 | 84.8 | 267 | 1.03 | 2473.5 | DXF | DWG | ||
| EXHE23-10-33SS | 232 | 102 | 333 | 176 | 84.8 | 327 | 0.91 | 2952.5 | DXF | DWG | ||
| EXHE29-8-23SS | 287.5 | 77.5 | 234 | 230 | 59.5 | 228 | 0.9 | 2297.5 | DXF | DWG | ||
| EXHE29-8-30SS | 287.5 | 77.5 | 304 | 230 | 59.5 | 298 | 0.82 | 2903.5 | DXF | DWG | ||
| EXHE29-8-38SS | 287.5 | 77.5 | 384 | 230 | 59.5 | 378 | 0.71 | 3597 | DXF | DWG | ||
| EXHE29-13-23SS | 287.5 | 127.5 | 234 | 230 | 109.5 | 228 | 0.9 | 2717 | DXF | DWG | ||
| EXHE29-13-30SS | 287.5 | 127.5 | 304 | 230 | 109.5 | 298 | 0.82 | 3382 | DXF | DWG | ||
| EXHE29-13-38SS | 287.5 | 127.5 | 384 | 230 | 109.5 | 378 | 0.71 | 4141.5 | DXF | DWG | ||
