FLANGED HEAT SINK ALUMINIUM EMC SHIELDED ENCLOSURE - EXHFE series

CATEGORY：Heatsink enclosure, Heat dissipating enclosure, Cooling case, Flanged enclosure, Enclosure with flanged lid, Fanless pc case, Embedded pc chassis, Shielded case, EMC shielded enclosure, Shielded box

FLANGED HEAT SINK ALUMINIUM EMC SHIELDED ENCLOSURE - EXHFE series1

FLANGED HEAT SINK ALUMINIUM EMC SHIELDED ENCLOSURE - EXHFE series2

FLANGED HEAT SINK ALUMINIUM EMC SHIELDED ENCLOSURE - EXHFE series3

FLANGED HEAT SINK ALUMINIUM EMC SHIELDED ENCLOSURE - EXHFE series4

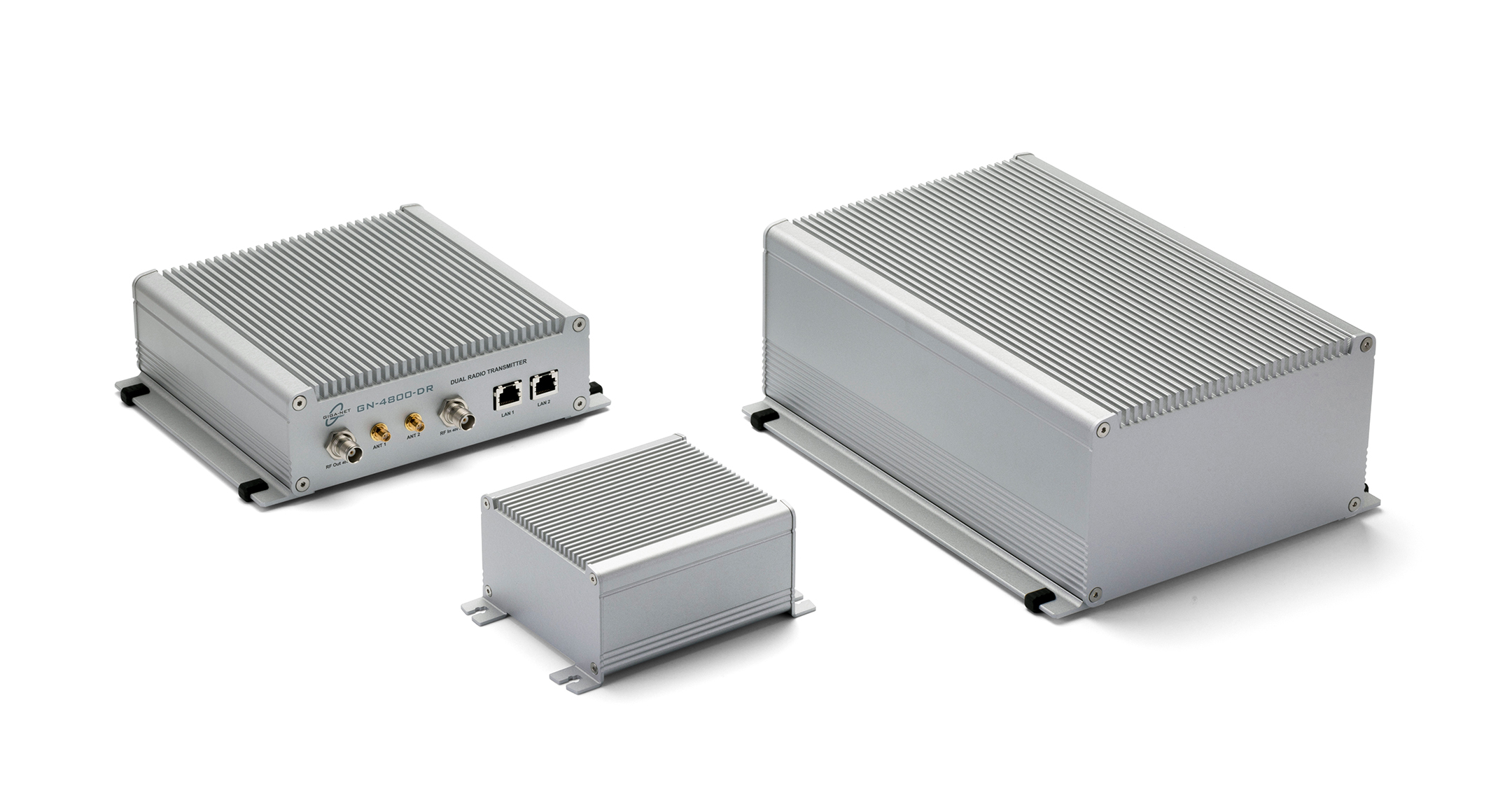

Aluminum enclosure equipped with a highly efficient heat-sink top cover.

EMC shielding is achieved by having the unfinished internal parts of the enclosure, as well as the fabric-over-foam gasket, in contact with one another.

Equipped with flanged bracket for easy wall mounting.　

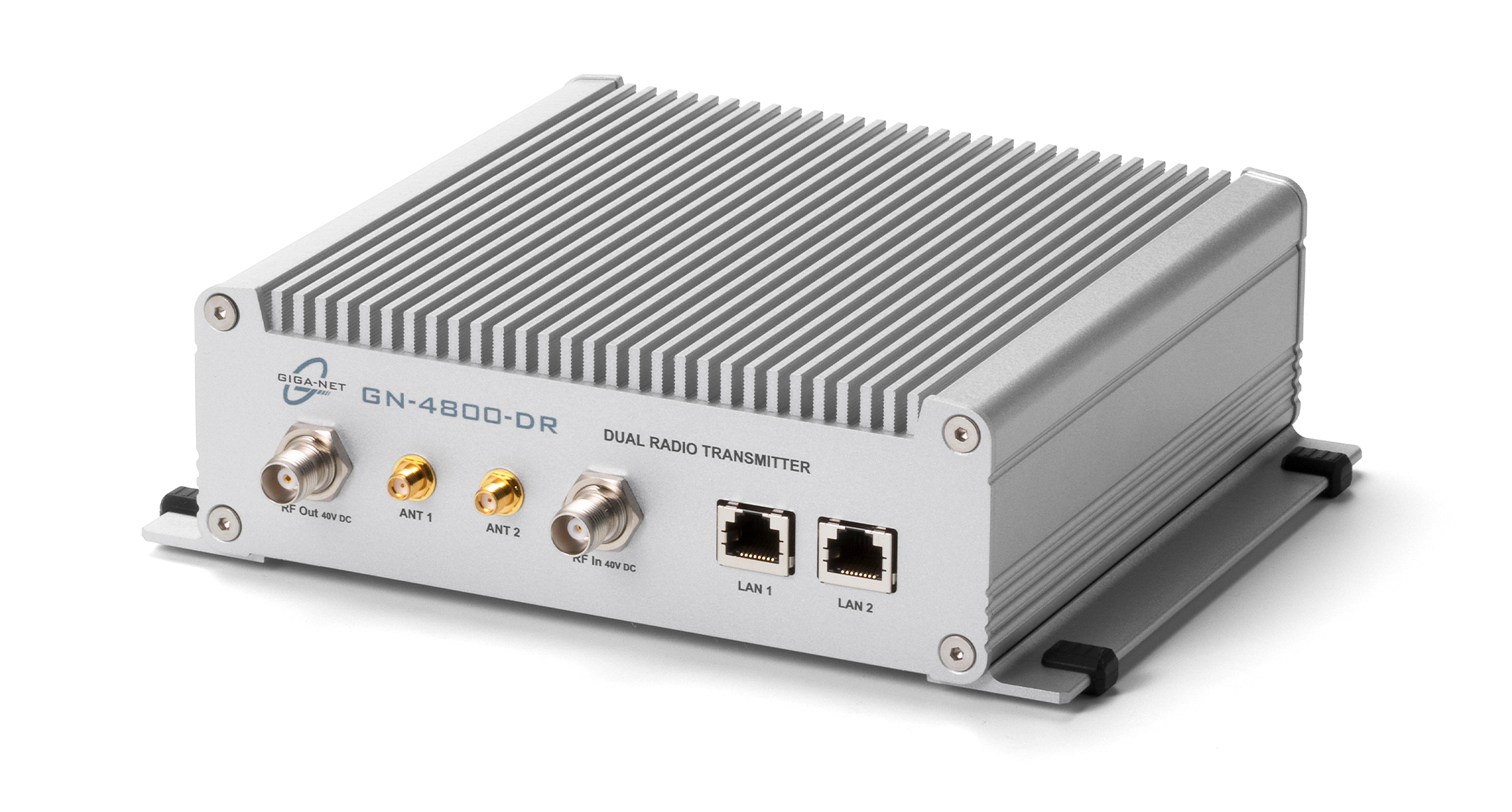

Suitable to be used as a fanless PC, power amplifier, power supply etc. where heat dissipation and EMC shielded are required.

64 different sizes available in metallic silver painted finish (Unfinished inside for EMC shielding).

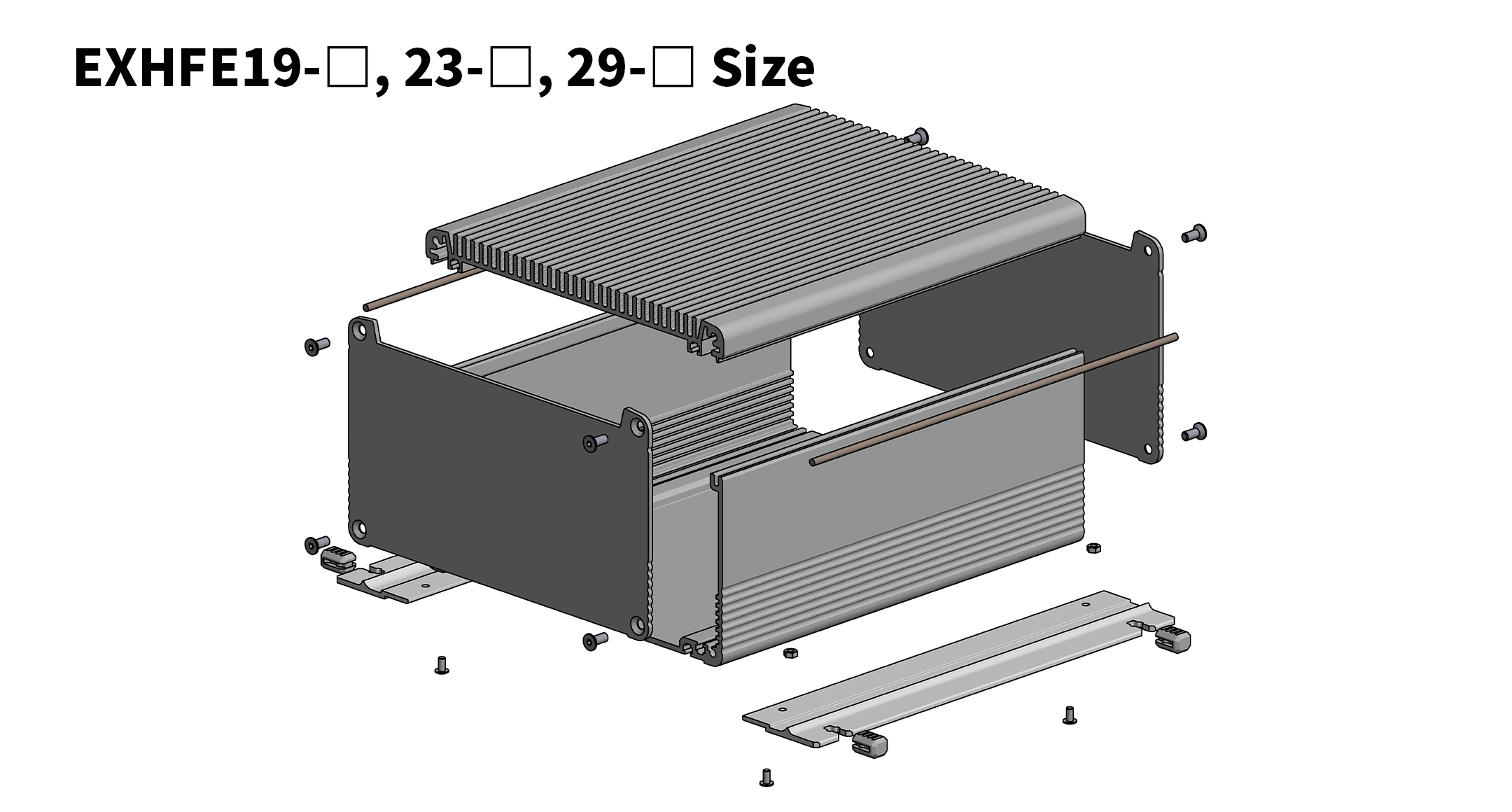

3D View - Small size 3D View - Large size Exploded view - Width 80.6 to 141mm Exploded view - Width 186.5mm or more

PRODUCT NO. / DIMENSIONS

Product No.	External dimensions			Internal dimensions			Thermal resistance value（℃/W）	Weight (g)	PDF	DXF	DWG	STP
Product No.	W	H	D	w	h	d	Thermal resistance value（℃/W）	Weight (g)	PDF	DXF	DWG	STP
EXHFE8-3-6SS	80.6	32.8	60	66	15	56	7.32	129.5	PDF	DXF	DWG
EXHFE8-3-9SS	80.6	32.8	90	66	15	86	5.65	180.5	PDF	DXF	DWG
EXHFE8-3-12SS	80.6	32.8	120	66	15	116	4.72	230.5	PDF	DXF	DWG
EXHFE8-4-6SS	80.6	42.8	60	66	25	56	7.32	145.5	PDF	DXF	DWG
EXHFE8-4-9SS	80.6	42.8	90	66	25	86	5.65	200.5	PDF	DXF	DWG
EXHFE8-4-12SS	80.6	42.8	120	66	25	116	4.72	254.5	PDF	DXF	DWG
EXHFE8-6-6SS	80.6	57.8	60	66	40	56	7.32	167.5	PDF	DXF	DWG
EXHFE8-6-9SS	80.6	57.8	90	66	40	86	5.65	226.5	PDF	DXF	DWG
EXHFE8-6-12SS	80.6	57.8	120	66	40	116	4.72	285	PDF	DXF	DWG
EXHFE11-3-8SS	106	33.1	78	88.5	14	74	4.82	214	PDF	DXF	DWG
EXHFE11-3-12SS	106	33.1	118	88.5	14	114	3.72	305	PDF	DXF	DWG
EXHFE11-3-16SS	106	33.1	164	88.5	14	160	3.03	412.5	PDF	DXF	DWG
EXHFE11-5-8SS	106	48.1	78	88.5	29	74	4.82	243.5	PDF	DXF	DWG
EXHFE11-5-12SS	106	46.1	118	88.5	29	114	3.72	341	PDF	DXF	DWG
EXHFE11-5-16SS	106	46.1	164	88.5	29	160	3.03	456	PDF	DXF	DWG
EXHFE11-6-8SS	106	63.1	78	88.5	44	74	3.4	273.5	PDF	DXF	DWG
EXHFE11-6-12SS	106	63.1	118	88.5	44	114	2.75	378.5	PDF	DXF	DWG
EXHFE11-6-16SS	106	63.1	164	88.5	44	160	2.27	502.5	PDF	DXF	DWG
EXHFE14-4-10SS	141	38.1	97	101.8	24.3	93	3.4	342	PDF	DXF	DWG
EXHFE14-4-14SS	141	38.1	137	101.8	24.3	133	2.75	463	PDF	DXF	DWG
EXHFE14-4-19SS	141	38.1	187	101.8	24.3	183	2.27	614.5	PDF	DXF	DWG
EXHFE14-5-10SS	141	53.1	97	101.8	39.3	93	3.4	381.5	PDF	DXF	DWG
EXHFE14-5-14SS	141	53.1	137	101.8	39.3	133	2.75	509	PDF	DXF	DWG
EXHFE14-5-19SS	141	53.1	187	101.8	39.3	183	2.27	669.5	PDF	DXF	DWG
EXHFE14-7-10SS	141	73.1	97	101.8	59.3	93	3.4	427.5	PDF	DXF	DWG
EXHFE14-7-14SS	141	73.1	137	101.8	59.3	133	2.75	562	PDF	DXF	DWG
EXHFE14-7-19SS	141	73.1	187	101.8	59.3	183	2.27	731.5	PDF	DXF	DWG
EXHFE14-9-10SS	141	93.1	97	101.8	79.3	93	3.4	480.5	PDF	DXF	DWG
EXHFE14-9-14SS	141	93.1	137	101.8	79.3	133	2.75	625	PDF	DXF	DWG
EXHFE14-9-19SS	141	93.1	187	101.8	79.3	183	2.27	806.5	PDF	DXF	DWG
EXHFE19-4-13SS	186.5	45.25	125	131	26.8	120	1.92	846	PDF	DXF	DWG
EXHFE19-4-18SS	186.5	45.25	177	131	26.8	172	1.56	1162	PDF	DXF	DWG
EXHFE19-4-23SS	186.5	45.25	230	131	26.8	225	1.32	1484	PDF	DXF	DWG
EXHFE19-4-29SS	186.5	45.25	285	131	26.8	280	1.15	1813	PDF	DXF	DWG
EXHFE19-6-13SS	186.5	63.25	125	131	44.8	120	1.92	917	PDF	DXF	DWG
EXHFE19-6-18SS	186.5	63.25	177	131	44.8	172	1.56	1247	PDF	DXF	DWG
EXHFE19-6-23SS	186.5	63.25	230	131	44.8	225	1.32	1579	PDF	DXF	DWG
EXHFE19-6-29SS	186.5	63.25	285	131	44.8	280	1.15	1925	PDF	DXF	DWG
EXHFE19-8-13SS	186.5	83.25	125	131	64.8	120	1.92	996	PDF	DXF	DWG
EXHFE19-8-18SS	186.5	83.25	177	131	64.8	172	1.56	1346	PDF	DXF	DWG
EXHFE19-8-23SS	186.5	83.25	230	131	64.8	225	1.32	1693	PDF	DXF	DWG
EXHFE19-8-29SS	186.5	83.25	285	131	64.8	280	1.15	2056	PDF	DXF	DWG
EXHFE19-11-13SS	186.5	108.25	125	131	89.8	120	1.92	1118	PDF	DXF	DWG
EXHFE19-11-18SS	186.5	108.25	177	131	89.8	172	1.56	1469	PDF	DXF	DWG
EXHFE19-11-23SS	186.5	108.25	230	131	89.8	225	1.32	1844	PDF	DXF	DWG
EXHFE19-11-29SS	186.5	108.25	285	131	89.8	280	1.15	2217	PDF	DXF	DWG
EXHFE23-5-15SS	232	53.5	153	176	34.8	147	1.47	1327.5	PDF	DXF	DWG
EXHFE23-5-21SS	232	53.5	213	176	34.8	207	1.2	1786.5	PDF	DXF	DWG
EXHFE23-5-27SS	232	53.5	273	176	34.8	267	1.03	2265.5	PDF	DXF	DWG
EXHFE23-5-33SS	232	53.5	333	176	34.8	327	0.91	2714.5	PDF	DXF	DWG
EXHFE23-8-15SS	232	78.5	153	176	59.8	147	1.47	1469.5	PDF	DXF	DWG
EXHFE23-8-21SS	232	78.5	213	176	59.8	207	1.2	1947.5	PDF	DXF	DWG
EXHFE23-8-27SS	232	78.5	273	176	59.8	267	1.03	2439.5	PDF	DXF	DWG
EXHFE23-8-33SS	232	78.5	333	176	59.8	327	0.91	2929.5	PDF	DXF	DWG
EXHFE23-10-15SS	232	103.5	153	176	84.8	147	1.47	1608.5	PDF	DXF	DWG
EXHFE23-10-21SS	232	103.5	213	176	84.8	207	1.2	2120.5	PDF	DXF	DWG
EXHFE23-10-27SS	232	103.5	273	176	84.8	267	1.03	2645.5	PDF	DXF	DWG
EXHFE23-10-33SS	232	103.5	333	176	84.8	327	0.91	3159.5	PDF	DXF	DWG
EXHFE29-8-23SS	287.5	78.75	234	230	59.5	228	0.9	2445	PDF	DXF	DWG
EXHFE29-8-30SS	287.5	78.75	304	230	59.5	298	0.82	3095	PDF	DXF	DWG
EXHFE29-8-38SS	287.5	78.75	384	230	59.5	378	0.71	3838	PDF	DXF	DWG
EXHFE29-13-23SS	287.5	128.75	234	230	109.5	228	0.9	2865	PDF	DXF	DWG
EXHFE29-13-30SS	287.5	128.75	304	230	109.5	298	0.82	3574	PDF	DXF	DWG
EXHFE29-13-38SS	287.5	128.75	384	230	109.5	378	0.71	4383	PDF	DXF	DWG
