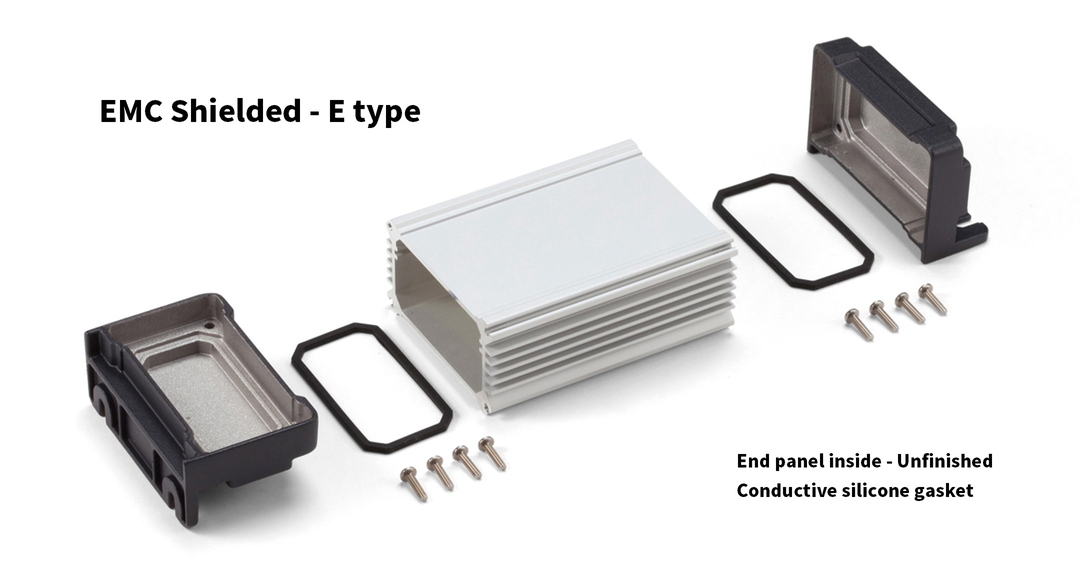

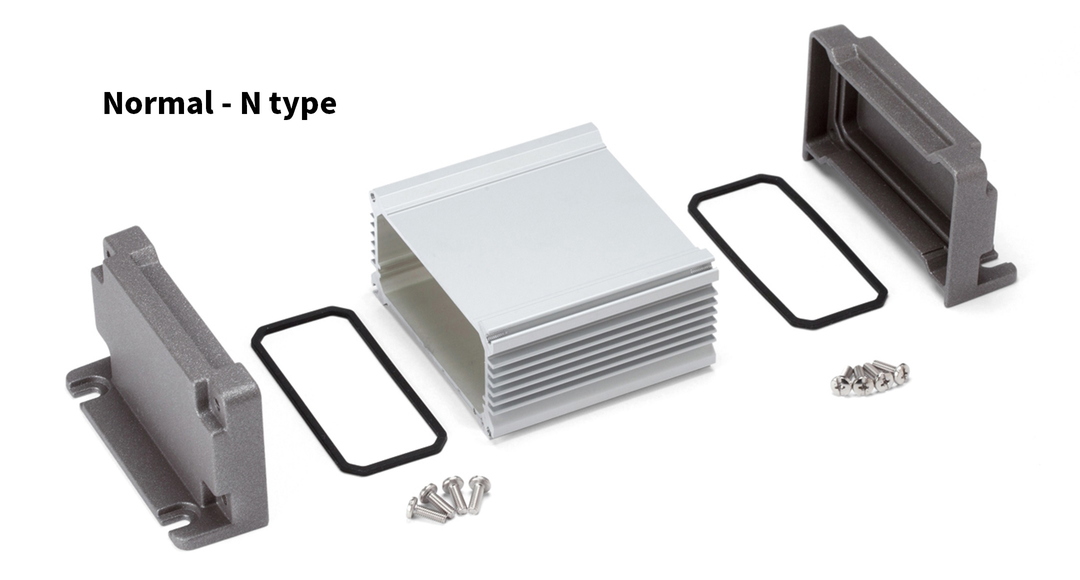

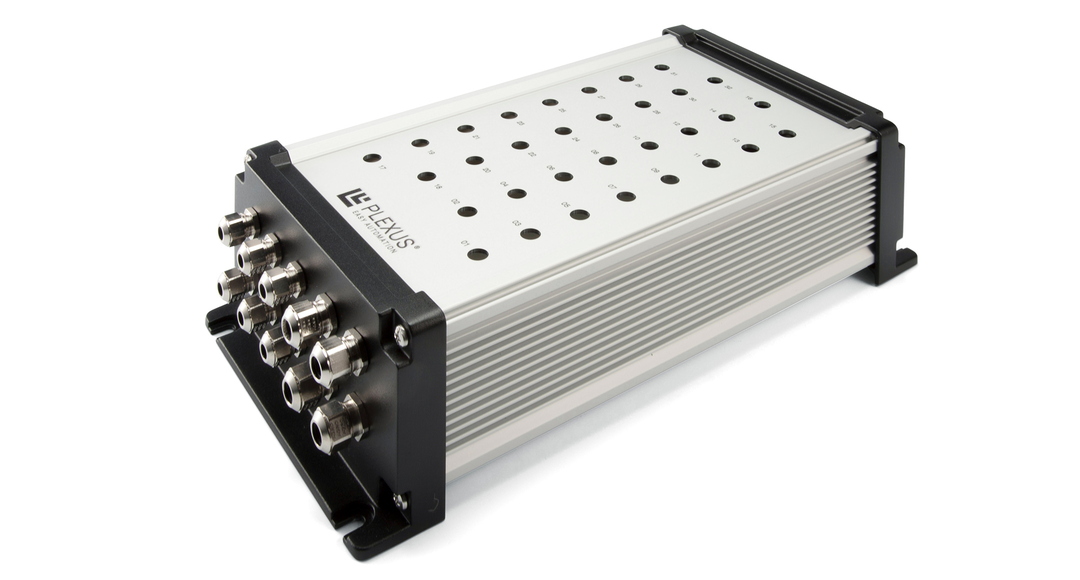

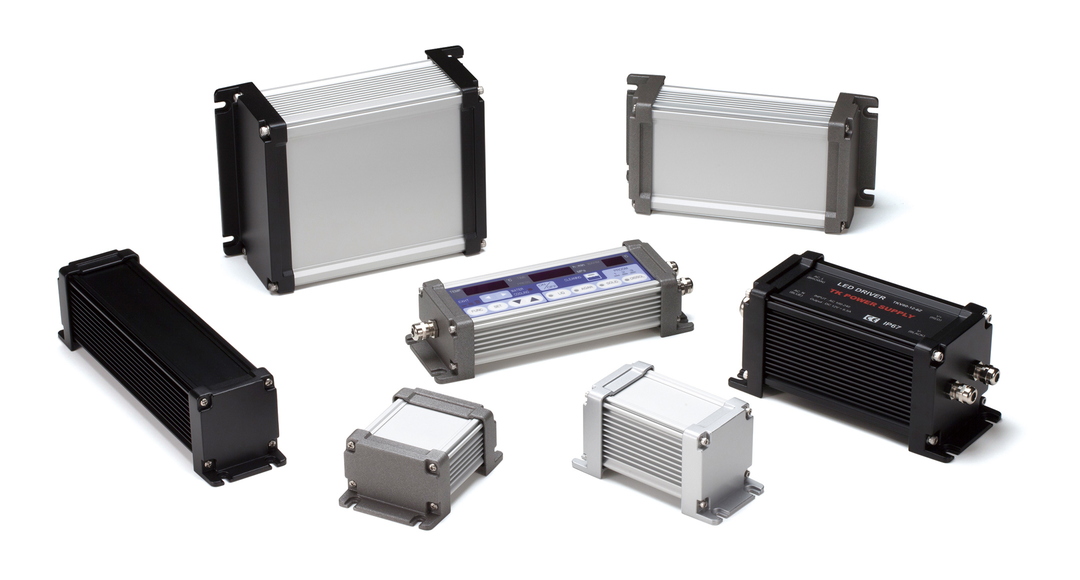

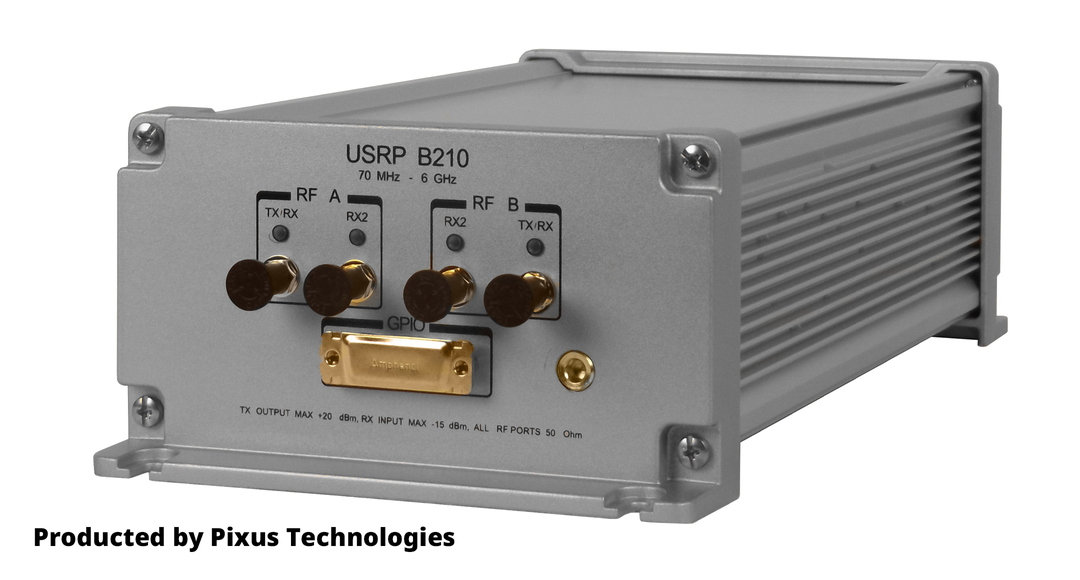

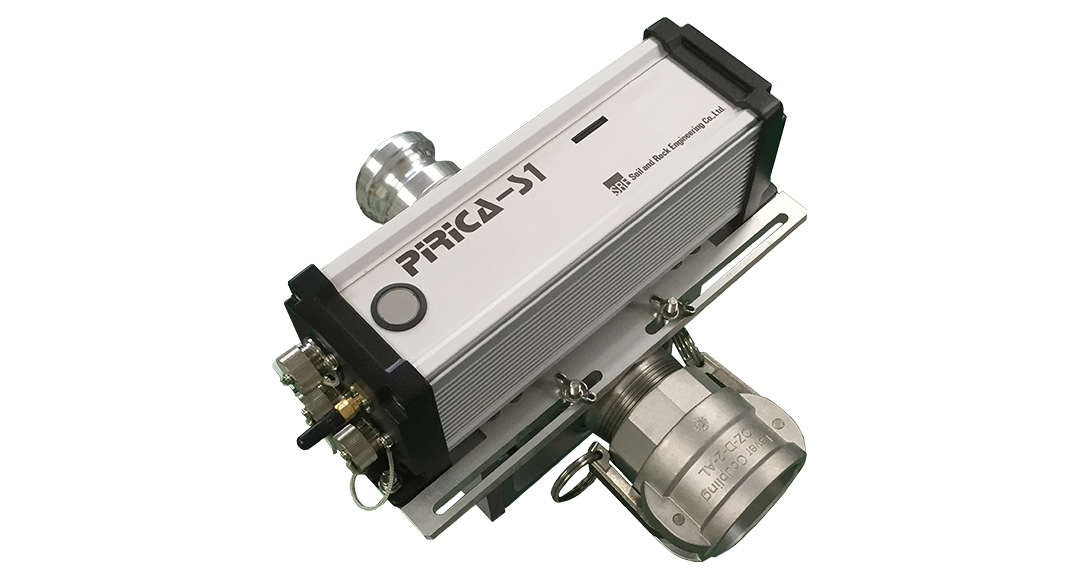

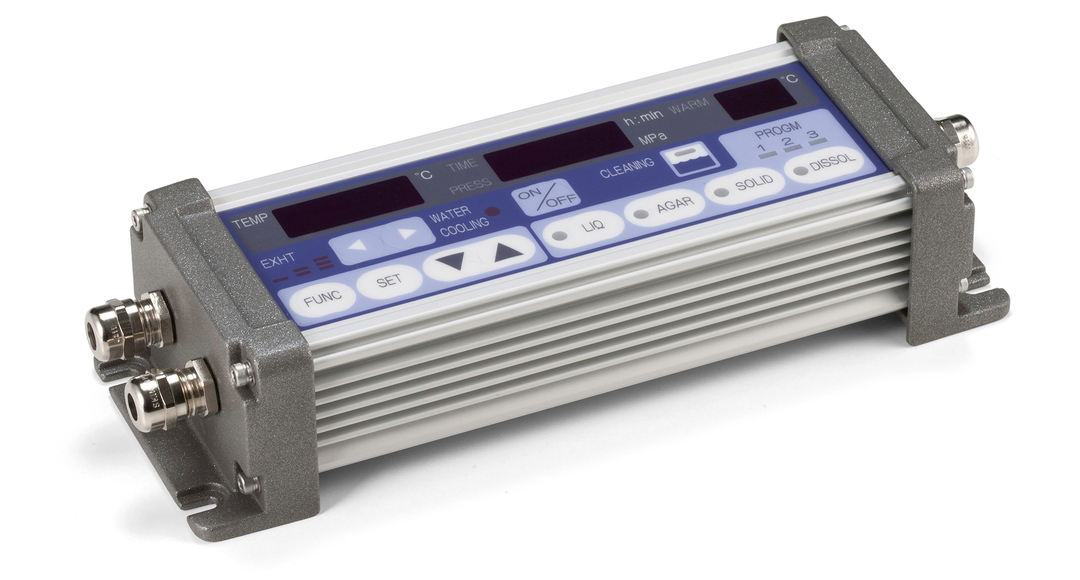

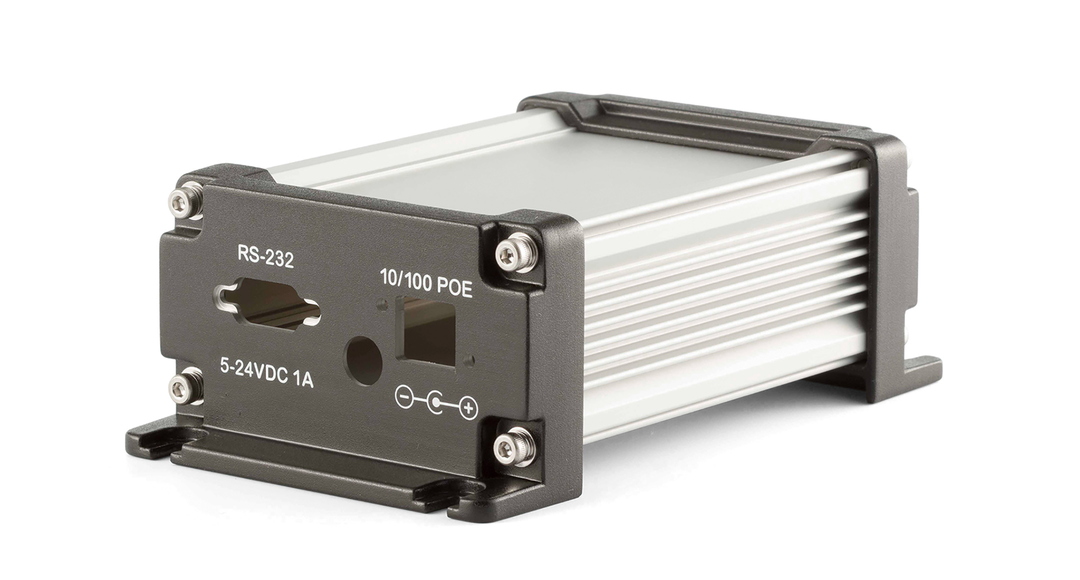

IP68 waterproof and heat dissipation extruded aluminum enclosure.
Designed with wallmount flanged end panels. Tough and robust construction.

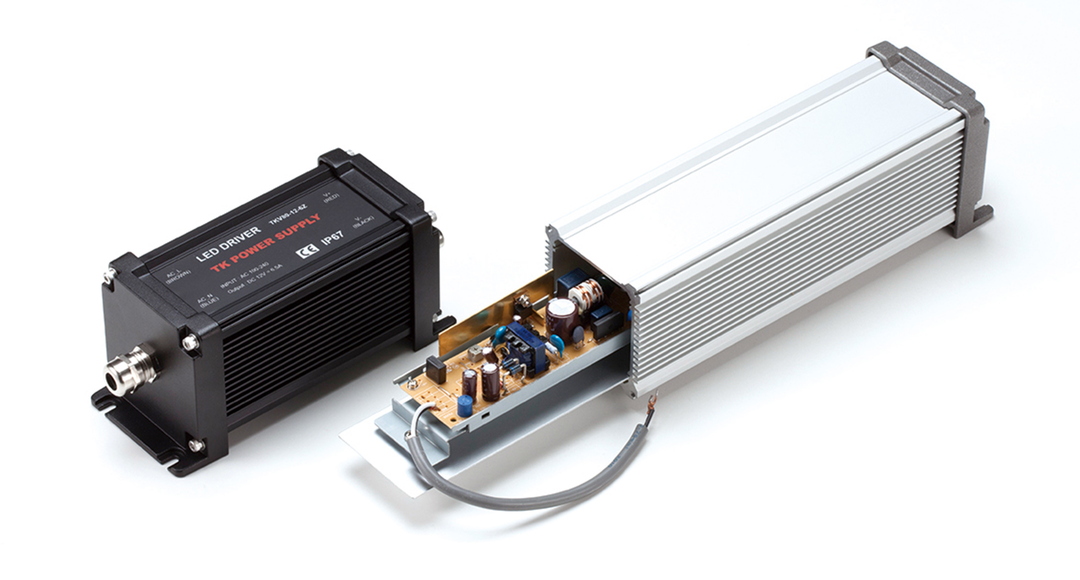

PCB or mounting plate is mounted by sliding it horizontally into an inner-grooved body frame.
Designed for a tough environment where waterproof and heat countermeasures are required.

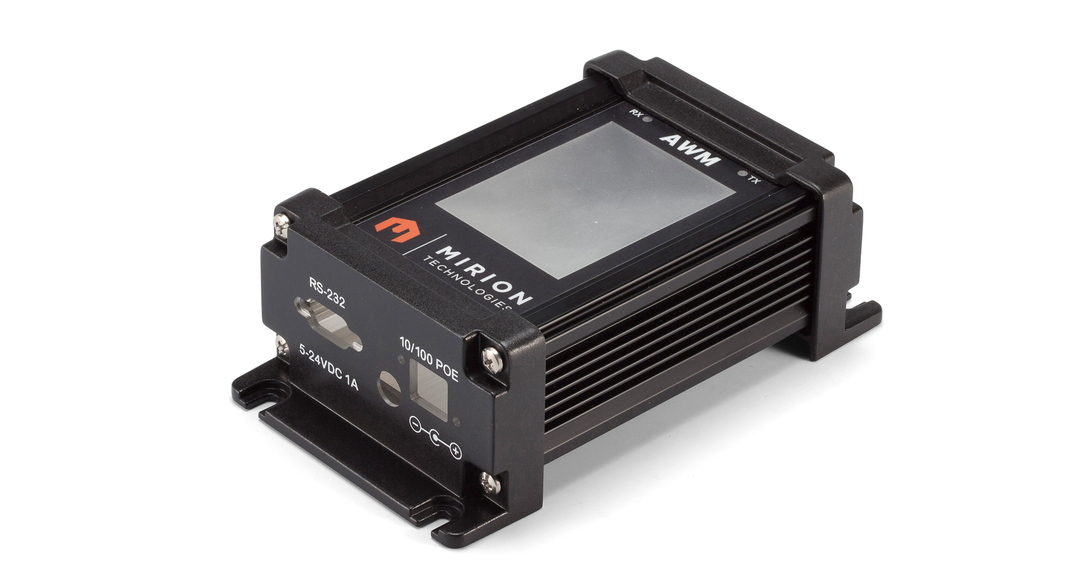

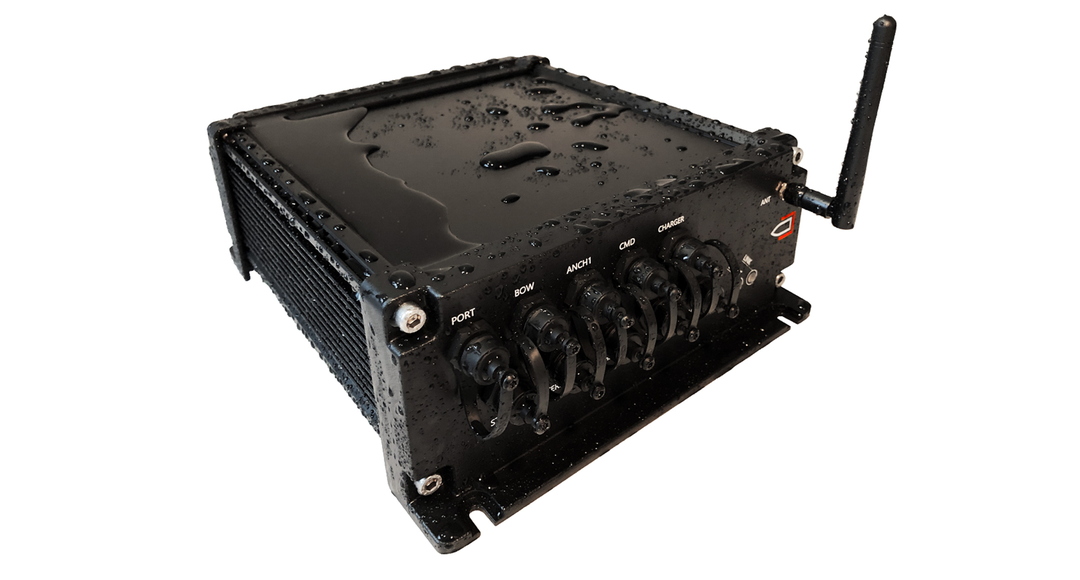

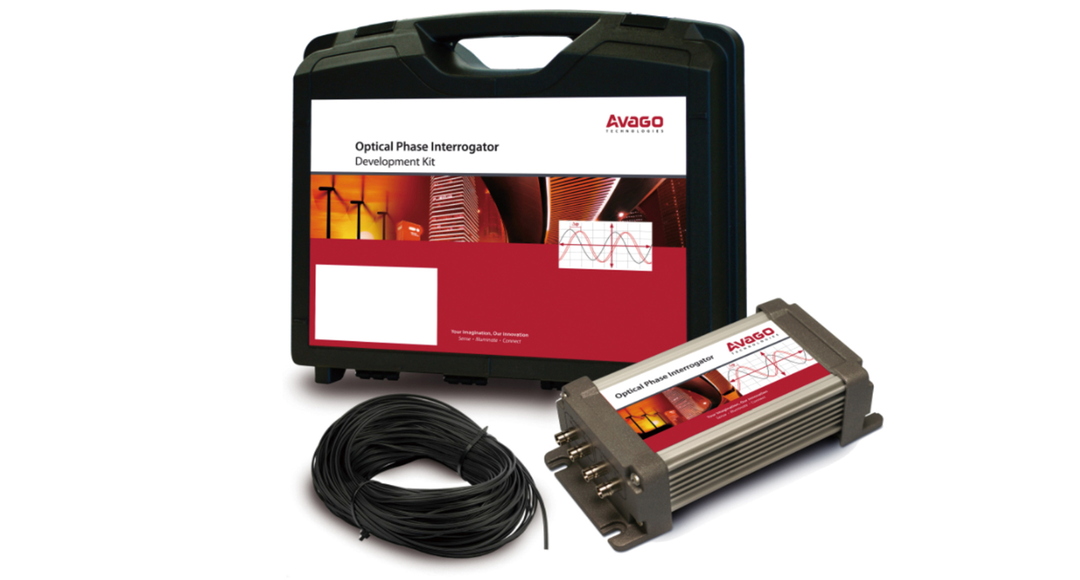

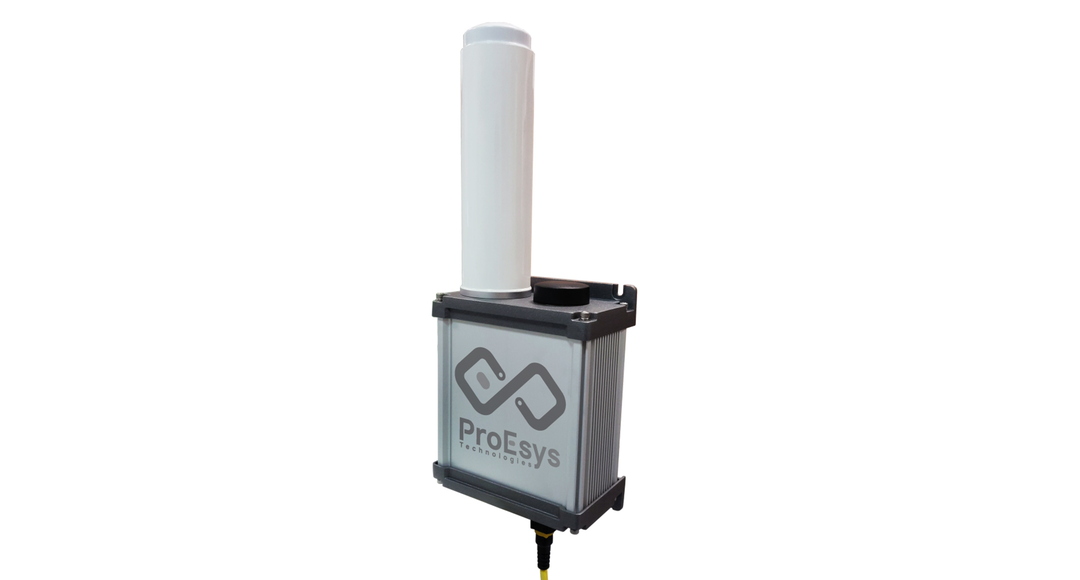

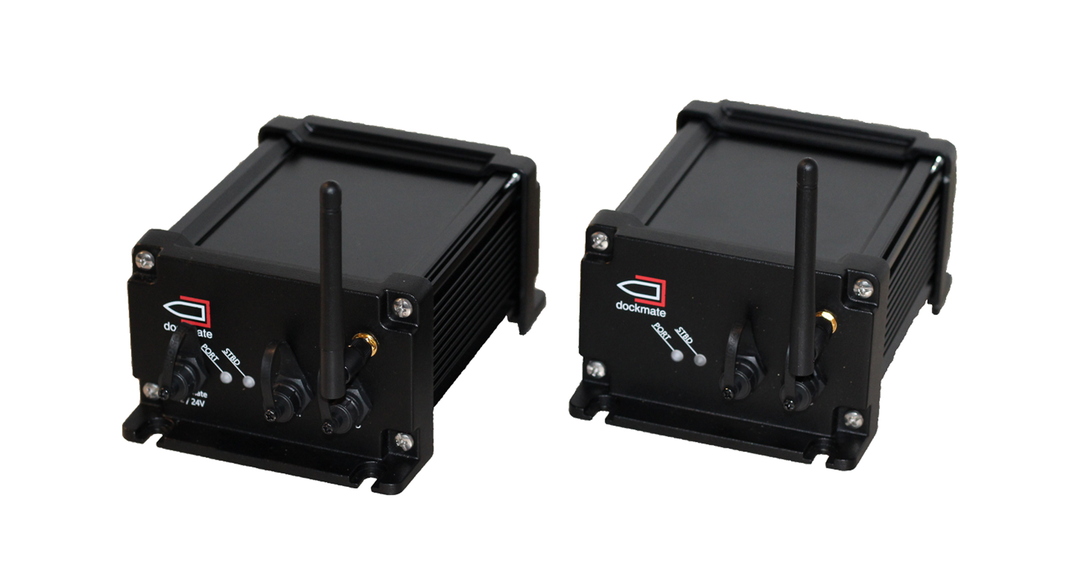

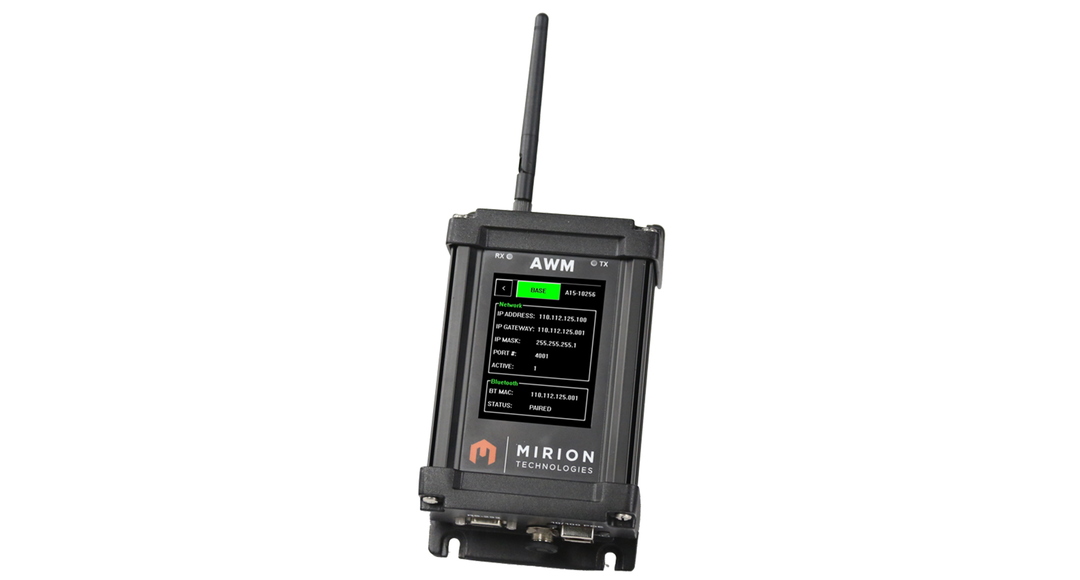

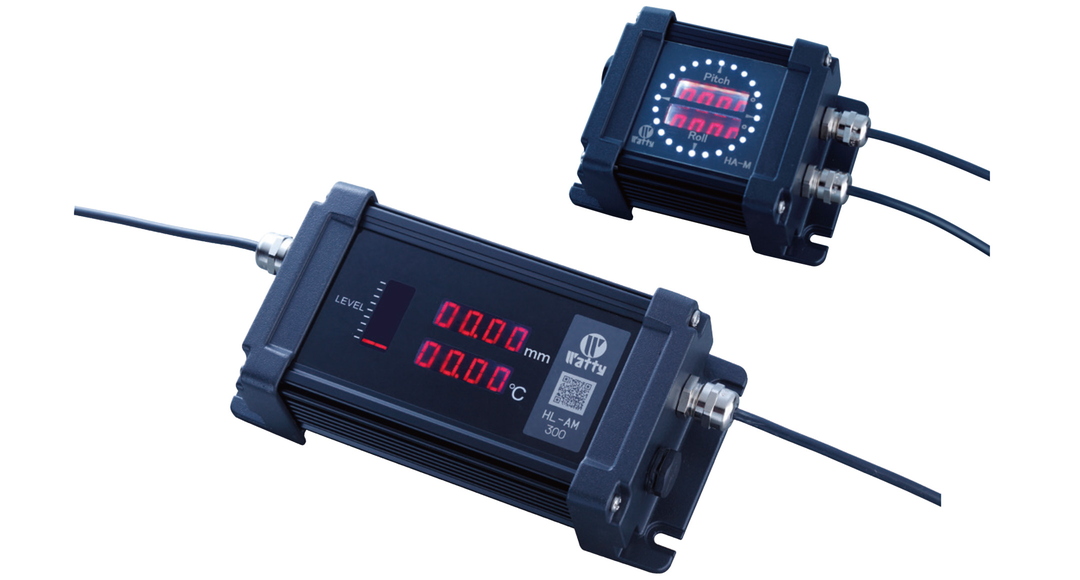

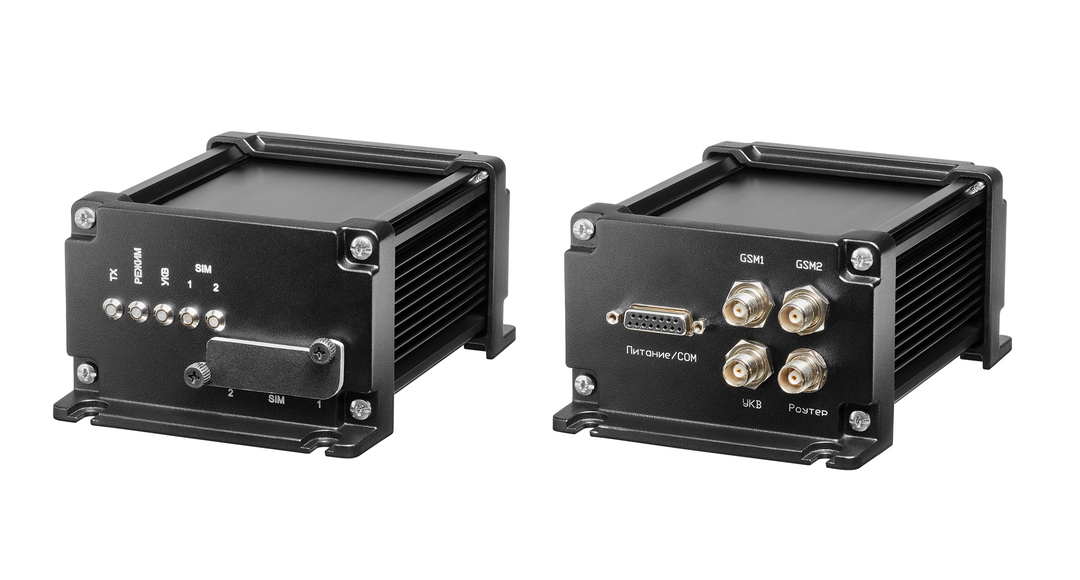

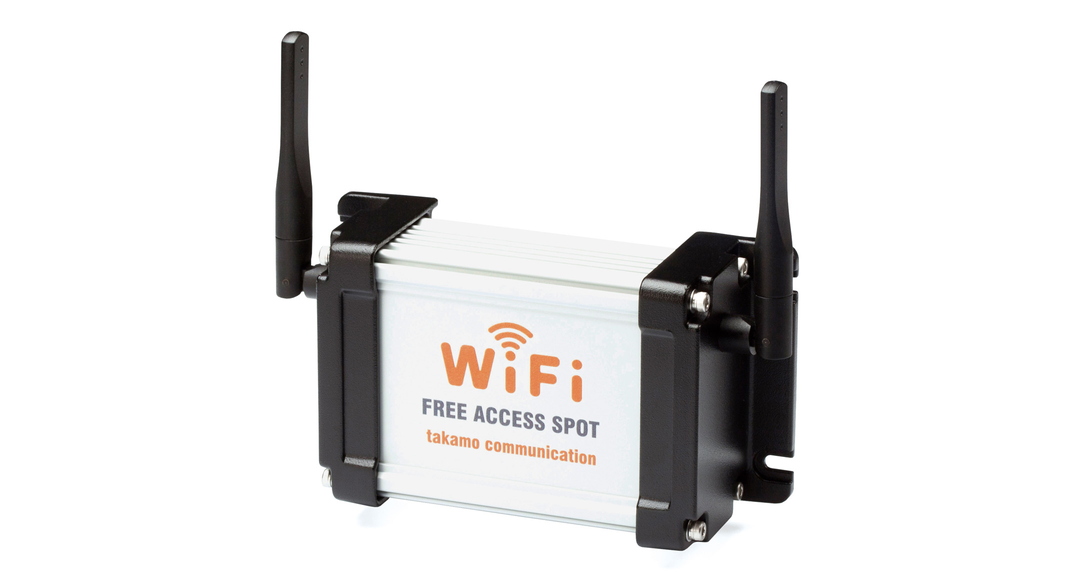

Suitable for outdoor LED power supply, Outdoor network devices, plant controller and junction boxes.
Available in 34 sizes.
Protection class: IP68 (24 hours/1m depth - equivalent to NEMA6P rating)
Operating temperature: -40℃ ~ +105℃
Recommended torque: 1.0N・m (10kgf・cm)

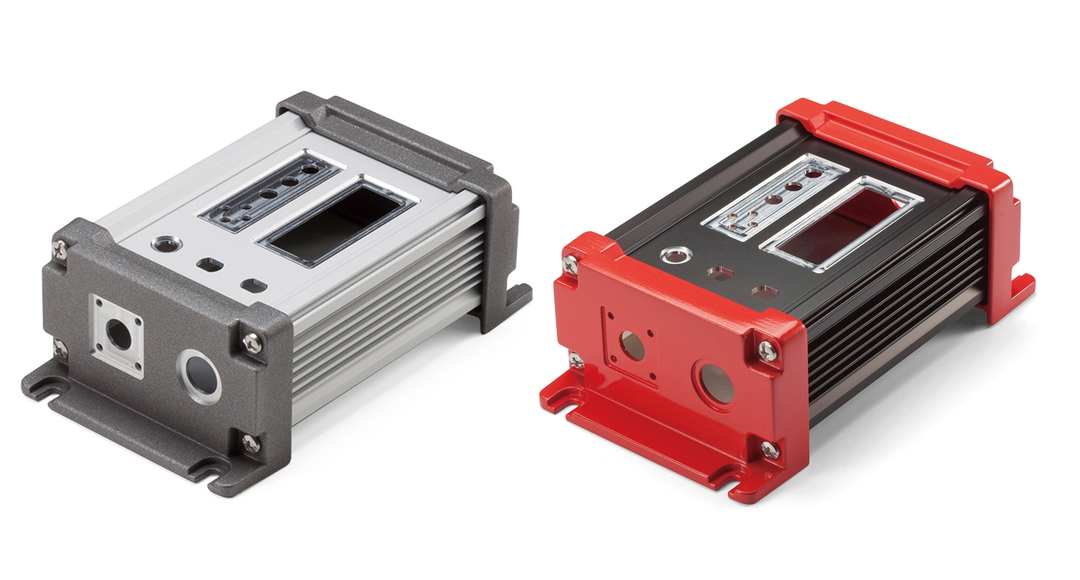

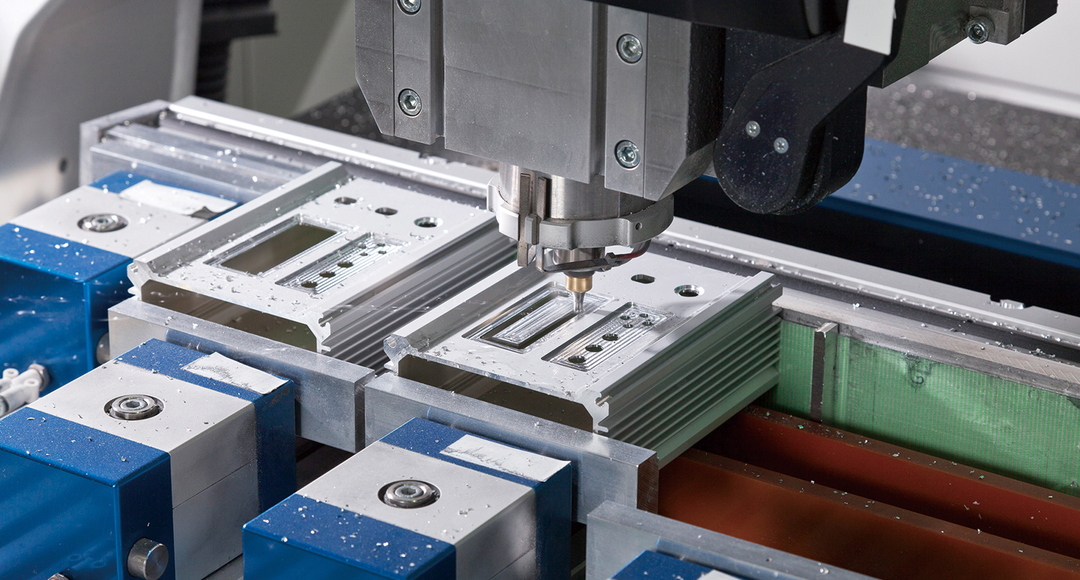

Custom length is available.
↓Go AWS series page for the custom length (depth) order from 50～700mm by 1mm intervals.
Designed with wallmount flanged end panels. Tough and robust construction.
PCB or mounting plate is mounted by sliding it horizontally into an inner-grooved body frame.
Designed for a tough environment where waterproof and heat countermeasures are required.
Suitable for outdoor LED power supply, Outdoor network devices, plant controller and junction boxes.
Available in 34 sizes.
Protection class: IP68 (24 hours/1m depth - equivalent to NEMA6P rating)
Operating temperature: -40℃ ~ +105℃
Recommended torque: 1.0N・m (10kgf・cm)
Custom length is available.
↓Go AWS series page for the custom length (depth) order from 50～700mm by 1mm intervals.
COLOR TYPE
GSMetallic gray/Silver
SSSilver/Silver

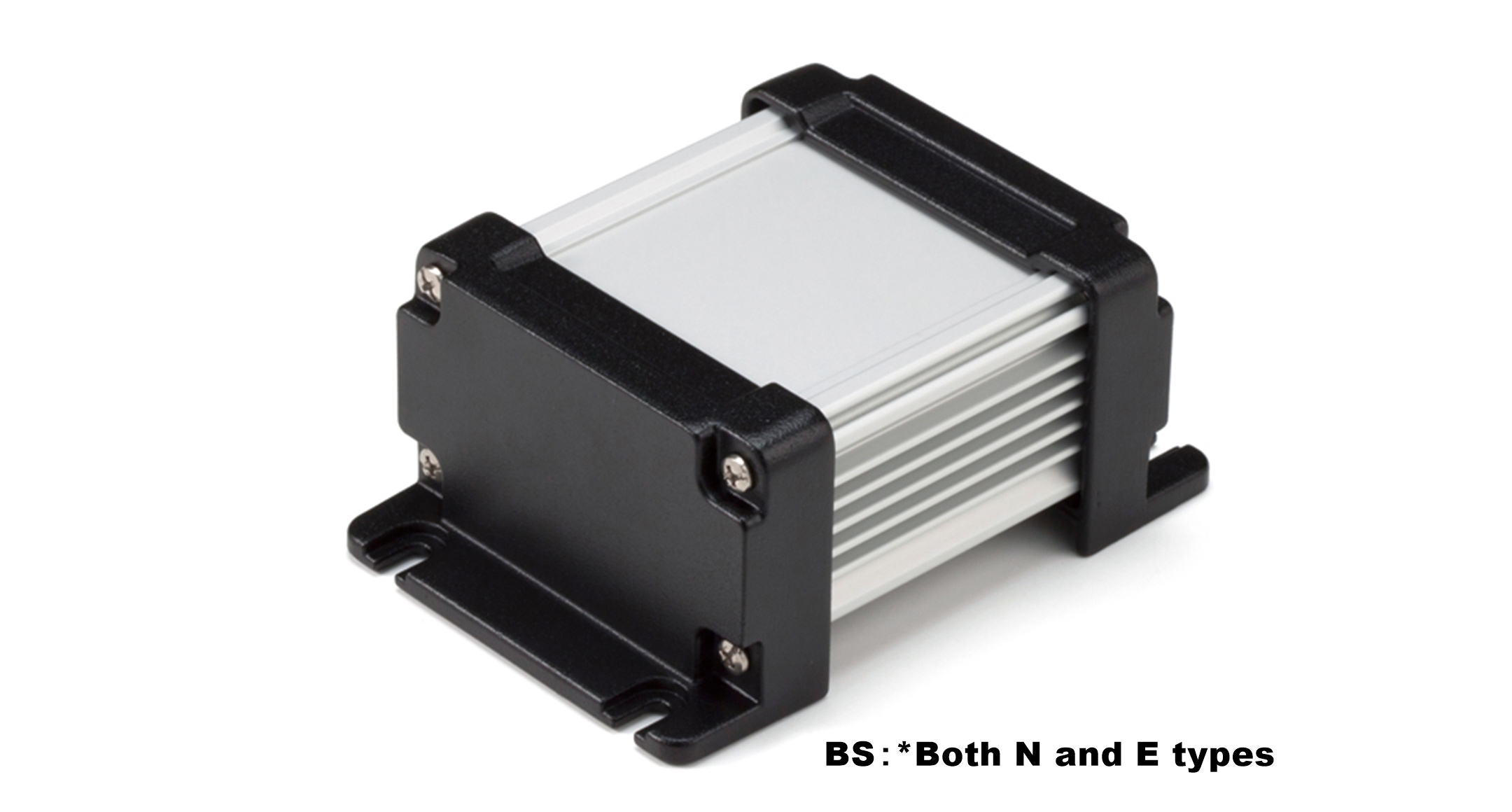

BSBlack/Silver

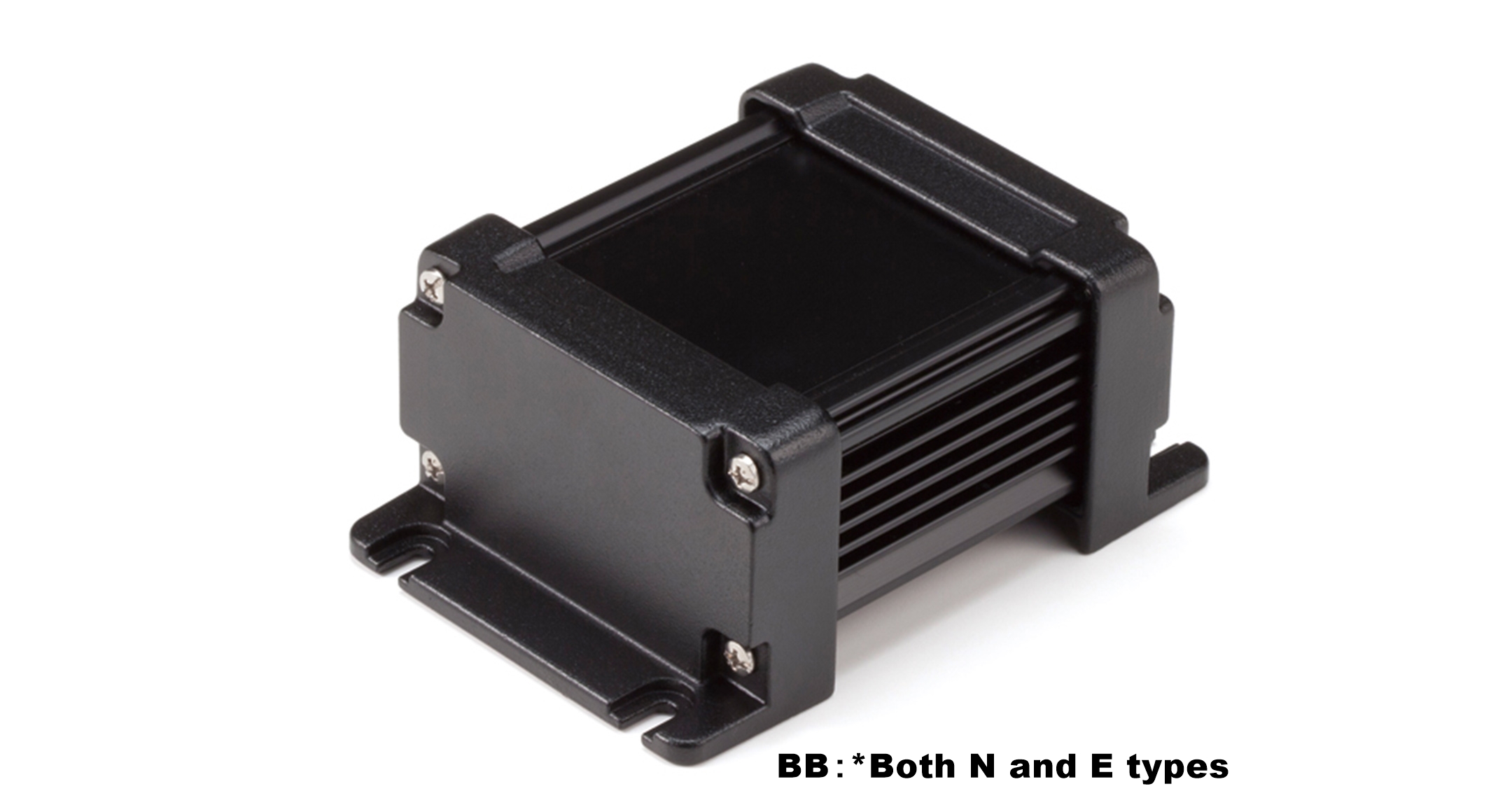

BBBlack/Black
PRODUCT NO. / DIMENSIONS
| Product No. | External dimensions | Internal dimensions | Type | Weight (g) | DXF | DWG | STP | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| W | H | D | w | h | d | |||||||
| AW5-4-7N□ | 54.6 | 38.6 | 65 | 36 | 15.4 | 60.4 | Normal | 128.5 | DXF | DWG | ||
| AW5-4-9N□ | 54.6 | 38.6 | 85 | 36 | 15.4 | 80.4 | Normal | 149 | DXF | DWG | ||
| AW5-4-11N□ | 54.6 | 38.6 | 110 | 36 | 15.4 | 105.4 | Normal | 175 | DXF | DWG | ||
| AW5-4-14N□ | 54.6 | 38.6 | 135 | 36 | 15.4 | 130.4 | Normal | 201.5 | DXF | DWG | ||
| AW7-7-8N□ | 65.8 | 70.8 | 80 | 37.1 | 42.1 | 75 | Normal | 294.5 | DXF | DWG | ||
| AW7-7-11N□ | 65.8 | 70.8 | 110 | 37.1 | 42.1 | 105 | Normal | 350 | DXF | DWG | ||
| AW7-7-15N□ | 65.8 | 70.8 | 150 | 37.1 | 42.1 | 145 | Normal | 424.5 | DXF | DWG | ||
| AW7-7-20N□ | 65.8 | 70.8 | 200 | 37.1 | 42.1 | 195 | Normal | 517 | DXF | DWG | ||
| AW7-7-25N□ | 65.8 | 70.8 | 250 | 37.1 | 42.1 | 245 | Normal | 610 | DXF | DWG | ||
| AW8-5-9N□ | 80.8 | 50.8 | 90 | 52.1 | 22.1 | 85 | Normal | 289.5 | DXF | DWG | ||
| AW8-5-12N□ | 80.8 | 50.8 | 115 | 52.1 | 22.1 | 110 | Normal | 330.5 | DXF | DWG | ||
| AW8-5-14N□ | 80.8 | 50.8 | 140 | 52.1 | 22.1 | 135 | Normal | 372 | DXF | DWG | ||
| AW8-5-18N□ | 80.8 | 50.8 | 175 | 52.1 | 22.1 | 170 | Normal | 429.5 | DXF | DWG | ||
| AW9-9-10N□ | 86.3 | 92 | 100 | 56.6 | 58.6 | 94 | Normal | 560.5 | DXF | DWG | ||
| AW9-9-13N□ | 86.3 | 92 | 125 | 56.6 | 58.6 | 119 | Normal | 633.5 | DXF | DWG | ||
| AW9-9-17N□ | 86.3 | 92 | 170 | 56.6 | 58.6 | 164 | Normal | 764.5 | DXF | DWG | ||
| AW9-9-22N□ | 86.3 | 92 | 220 | 56.6 | 58.6 | 214 | Normal | 910.5 | DXF | DWG | ||
| AW9-9-28N□ | 86.3 | 92 | 275 | 56.6 | 58.6 | 269 | Normal | 1071 | DXF | DWG | ||
| AW11-6-11N□ | 106.3 | 62 | 110 | 76.6 | 27.6 | 104 | Normal | 526.5 | DXF | DWG | ||
| AW11-6-15N□ | 106.3 | 62 | 150 | 76.6 | 27.6 | 144 | Normal | 625 | DXF | DWG | ||
| AW11-6-19N□ | 106.3 | 62 | 190 | 76.6 | 27.6 | 184 | Normal | 723.5 | DXF | DWG | ||
| AW11-6-24N□ | 106.3 | 62 | 240 | 76.6 | 27.6 | 234 | Normal | 847 | DXF | DWG | ||
| AW12-8-11N□ | 120 | 77 | 105 | 90.3 | 43.4 | 99 | Normal | 614.5 | DXF | DWG | ||
| AW12-8-14N□ | 120 | 77 | 140 | 90.3 | 43.4 | 134 | Normal | 720.5 | DXF | DWG | ||
| AW12-8-17N□ | 120 | 77 | 179.5 | 90.3 | 43.4 | 173.5 | Normal | 840 | DXF | DWG | ||
| AW12-8-22N□ | 120 | 77 | 215 | 90.3 | 43.4 | 209 | Normal | 947.5 | DXF | DWG | ||
| AW16-9-14N□ | 156.3 | 87 | 135 | 126.6 | 52.6 | 129 | Normal | 945.5 | DXF | DWG | ||
| AW16-9-18N□ | 156.3 | 87 | 175 | 126.6 | 52.6 | 169 | Normal | 1092.5 | DXF | DWG | ||
| AW16-9-23N□ | 156.3 | 87 | 225 | 126.6 | 52.6 | 219 | Normal | 1275.5 | DXF | DWG | ||
| AW16-9-28N□ | 156.3 | 87 | 275 | 126.6 | 52.6 | 269 | Normal | 1459 | DXF | DWG | ||
| AW21-9-17N□ | 206.3 | 87 | 170 | 174.1 | 52.6 | 164 | Normal | 1303 | DXF | DWG | ||
| AW21-9-21N□ | 206.3 | 87 | 210 | 174.1 | 52.6 | 204 | Normal | 1473.5 | DXF | DWG | ||
| AW21-9-26N□ | 206.3 | 87 | 260 | 174.1 | 52.6 | 254 | Normal | 1686.5 | DXF | DWG | ||
| AW21-9-31N□ | 206.3 | 87 | 310 | 174.1 | 52.6 | 304 | Normal | 1889.5 | DXF | DWG | ||
| AW5-4-7E□ | 54.6 | 38.6 | 65 | 36 | 15.4 | 60.4 | EMC Shielded | 128.5 | DXF | DWG | ||
| AW5-4-9E□ | 54.6 | 38.6 | 85 | 36 | 15.4 | 80.4 | EMC Shielded | 149 | DXF | DWG | ||
| AW5-4-11E□ | 54.6 | 38.6 | 110 | 36 | 15.4 | 105.4 | EMC Shielded | 175 | DXF | DWG | ||
| AW5-4-14E□ | 54.6 | 38.6 | 135 | 36 | 15.4 | 130.4 | EMC Shielded | 201.5 | DXF | DWG | ||
| AW7-7-8E□ | 65.8 | 70.8 | 80 | 37.1 | 42.1 | 75 | EMC Shielded | 294.5 | DXF | DWG | ||
| AW7-7-11E□ | 65.8 | 70.8 | 110 | 37.1 | 42.1 | 105 | EMC Shielded | 350 | DXF | DWG | ||
| AW7-7-15E□ | 65.8 | 70.8 | 150 | 37.1 | 42.1 | 145 | EMC Shielded | 424.5 | DXF | DWG | ||
| AW7-7-20E□ | 65.8 | 70.8 | 200 | 37.1 | 42.1 | 195 | EMC Shielded | 517 | DXF | DWG | ||
| AW7-7-25E□ | 65.8 | 70.8 | 250 | 37.1 | 42.1 | 245 | EMC Shielded | 610 | DXF | DWG | ||
| AW8-5-9E□ | 80.8 | 50.8 | 90 | 52.1 | 22.1 | 85 | EMC Shielded | 289.5 | DXF | DWG | ||
| AW8-5-12E□ | 80.8 | 50.8 | 115 | 52.1 | 22.1 | 110 | EMC Shielded | 330.5 | DXF | DWG | ||
| AW8-5-14E□ | 80.8 | 50.8 | 140 | 52.1 | 22.1 | 135 | EMC Shielded | 372 | DXF | DWG | ||
| AW8-5-18E□ | 80.8 | 50.8 | 175 | 52.1 | 22.1 | 170 | EMC Shielded | 429.5 | DXF | DWG | ||
| AW9-9-10E□ | 86.3 | 92 | 100 | 56.6 | 58.6 | 94 | EMC Shielded | 560.5 | DXF | DWG | ||
| AW9-9-13E□ | 86.3 | 92 | 125 | 56.6 | 58.6 | 119 | EMC Shielded | 633.5 | DXF | DWG | ||
| AW9-9-17E□ | 86.3 | 92 | 170 | 56.6 | 58.6 | 164 | EMC Shielded | 764.5 | DXF | DWG | ||
| AW9-9-22E□ | 86.3 | 92 | 220 | 56.6 | 58.6 | 214 | EMC Shielded | 910.5 | DXF | DWG | ||
| AW9-9-28E□ | 86.3 | 92 | 275 | 56.6 | 58.6 | 269 | EMC Shielded | 1071 | DXF | DWG | ||
| AW11-6-11E□ | 106.3 | 62 | 110 | 76.6 | 27.6 | 104 | EMC Shielded | 526.5 | DXF | DWG | ||
| AW11-6-15E□ | 106.3 | 62 | 150 | 76.6 | 27.6 | 144 | EMC Shielded | 625 | DXF | DWG | ||
| AW11-6-19E□ | 106.3 | 62 | 190 | 76.6 | 27.6 | 184 | EMC Shielded | 723.5 | DXF | DWG | ||
| AW11-6-24E□ | 106.3 | 62 | 240 | 76.6 | 27.6 | 234 | EMC Shielded | 847 | DXF | DWG | ||
| AW12-8-11E□ | 120 | 77 | 105 | 90.3 | 43.4 | 99 | EMC Shielded | 614.5 | DXF | DWG | ||
| AW12-8-14E□ | 120 | 77 | 140 | 90.3 | 43.4 | 134 | EMC Shielded | 720.5 | DXF | DWG | ||
| AW12-8-17E□ | 120 | 77 | 179.5 | 90.3 | 43.4 | 173.5 | EMC Shielded | 840 | DXF | DWG | ||
| AW12-8-22E□ | 120 | 77 | 215 | 90.3 | 43.4 | 209 | EMC Shielded | 947.5 | DXF | DWG | ||
| AW16-9-14E□ | 156.3 | 87 | 135 | 126.6 | 52.6 | 129 | EMC Shielded | 945.5 | DXF | DWG | ||
| AW16-9-18E□ | 156.3 | 87 | 175 | 126.6 | 52.6 | 169 | EMC Shielded | 1092.5 | DXF | DWG | ||
| AW16-9-23E□ | 156.3 | 87 | 225 | 126.6 | 52.6 | 219 | EMC Shielded | 1275.5 | DXF | DWG | ||
| AW16-9-28E□ | 156.3 | 87 | 275 | 126.6 | 52.6 | 269 | EMC Shielded | 1459 | DXF | DWG | ||
| AW21-9-17E□ | 206.3 | 87 | 170 | 174.1 | 52.6 | 164 | EMC Shielded | 1303 | DXF | DWG | ||
| AW21-9-21E□ | 206.3 | 87 | 210 | 174.1 | 52.6 | 204 | EMC Shielded | 1473.5 | DXF | DWG | ||
| AW21-9-26E□ | 206.3 | 87 | 260 | 174.1 | 52.6 | 254 | EMC Shielded | 1686.5 | DXF | DWG | ||
| AW21-9-31E□ | 206.3 | 87 | 310 | 174.1 | 52.6 | 304 | EMC Shielded | 1889.5 | DXF | DWG | ||
| Mounting plate (Option) | DXF | DWG | |
|---|---|---|---|
| AWC5-7 | DXF | DWG | |
| AWC5-9 | DXF | DWG | |
| AWC5-11 | DXF | DWG | |
| AWC5-14 | DXF | DWG | |
| AWC7-8 | DXF | DWG | |
| AWC7-11 | DXF | DWG | |
| AWC7-15 | DXF | DWG | |
| AWC7-20 | DXF | DWG | |
| AWC7-25 | DXF | DWG | |
| AWC8-9 | DXF | DWG | |
| AWC8-12 | DXF | DWG | |
| AWC8-14 | DXF | DWG | |
| AWC8-18 | DXF | DWG | |
| AWC9-10 | DXF | DWG | |
| AWC9-13 | DXF | DWG | |
| AWC9-17 | DXF | DWG | |
| AWC9-22 | DXF | DWG | |
| AWC9-28 | DXF | DWG | |
| AWC11-11 | DXF | DWG | |
| AWC11-15 | DXF | DWG | |
| AWC11-19 | DXF | DWG | |
| AWC11-24 | DXF | DWG | |
| AWC12-11 | DXF | DWG | |
| AWC12-14 | DXF | DWG | |
| AWC12-17 | DXF | DWG | |
| AWC12-22 | DXF | DWG | |
| AWC16-14 | DXF | DWG | |
| AWC16-18 | DXF | DWG | |
| AWC16-23 | DXF | DWG | |
| AWC16-28 | DXF | DWG | |
| AWC21-17 | DXF | DWG | |
| AWC21-21 | DXF | DWG | |
| AWC21-26 | DXF | DWG | |
| AWC21-31 | DXF | DWG | |
| AWC5-7 | DXF | DWG | |
| AWC5-9 | DXF | DWG | |
| AWC5-11 | DXF | DWG | |
| AWC5-14 | DXF | DWG | |
| AWC7-8 | DXF | DWG | |
| AWC7-11 | DXF | DWG | |
| AWC7-15 | DXF | DWG | |
| AWC7-20 | DXF | DWG | |
| AWC7-25 | DXF | DWG | |
| AWC8-9 | DXF | DWG | |
| AWC8-12 | DXF | DWG | |
| AWC8-14 | DXF | DWG | |
| AWC8-18 | DXF | DWG | |
| AWC9-10 | DXF | DWG | |
| AWC9-13 | DXF | DWG | |
| AWC9-17 | DXF | DWG | |
| AWC9-22 | DXF | DWG | |
| AWC9-28 | DXF | DWG | |
| AWC11-11 | DXF | DWG | |
| AWC11-15 | DXF | DWG | |
| AWC11-19 | DXF | DWG | |
| AWC11-24 | DXF | DWG | |
| AWC12-11 | DXF | DWG | |
| AWC12-14 | DXF | DWG | |
| AWC12-17 | DXF | DWG | |
| AWC12-22 | DXF | DWG | |
| AWC16-14 | DXF | DWG | |
| AWC16-18 | DXF | DWG | |
| AWC16-23 | DXF | DWG | |
| AWC16-28 | DXF | DWG | |
| AWC21-17 | DXF | DWG | |
| AWC21-21 | DXF | DWG | |
| AWC21-26 | DXF | DWG | |
| AWC21-31 | DXF | DWG |
