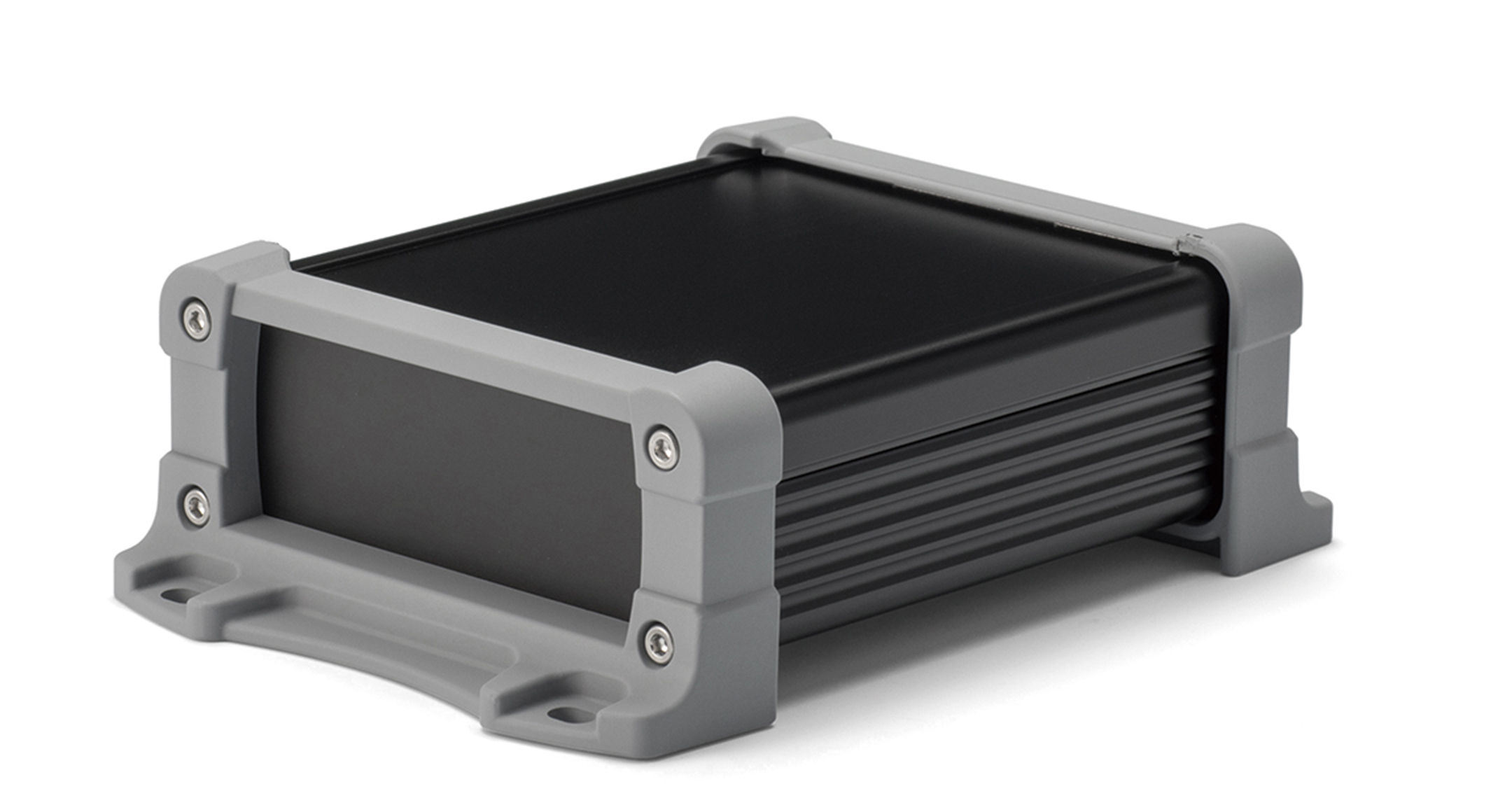

FLANGED EXTRUDED ALUMINUM ENCLOSURE - EXPF series


EXPF Series -PDF

CATEGORY:Extruded aluminum enclosure, Aluminium profile enclosure, Wall mount enclosure, Aluminum enclosure with flanged lid

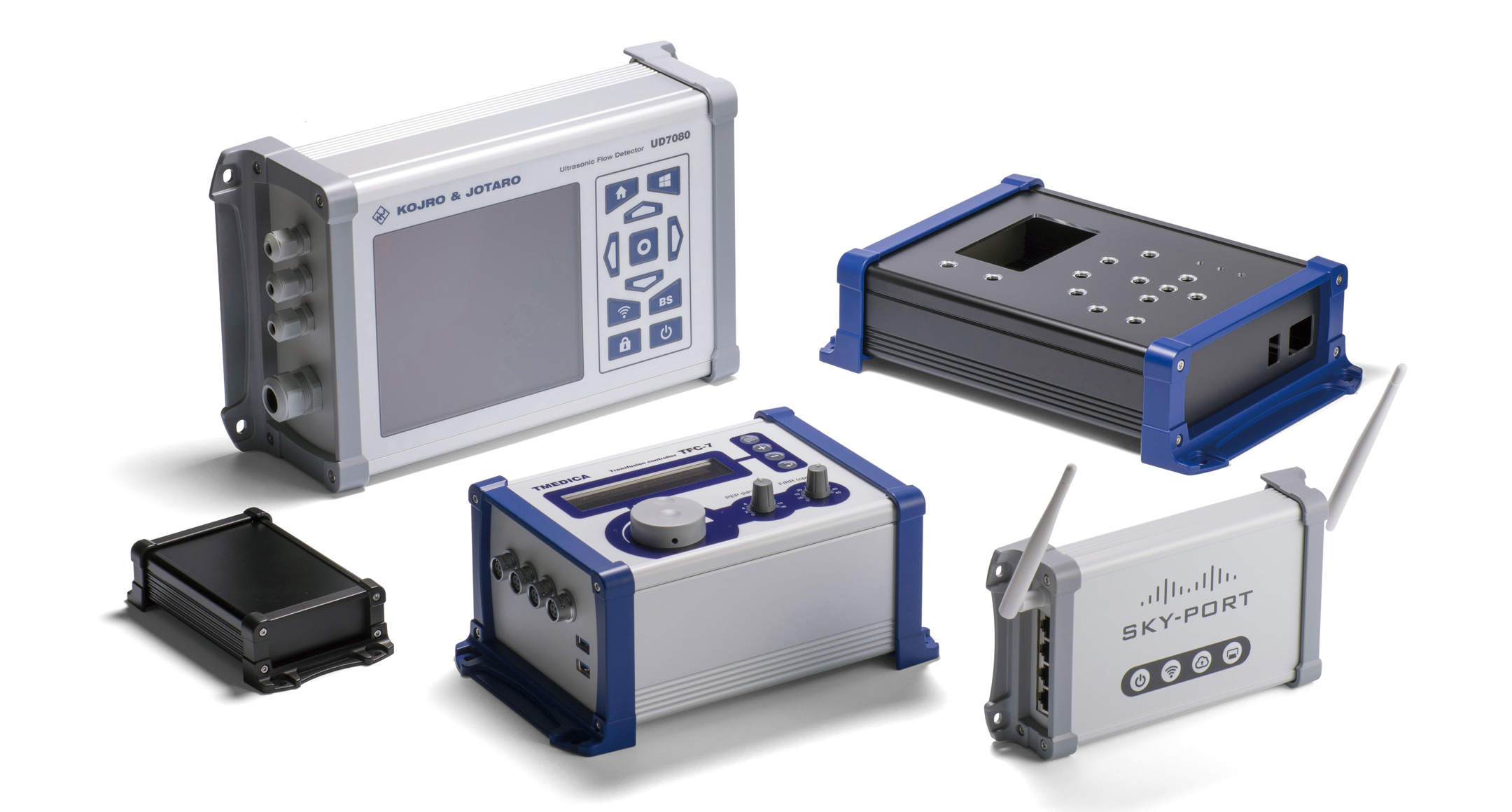

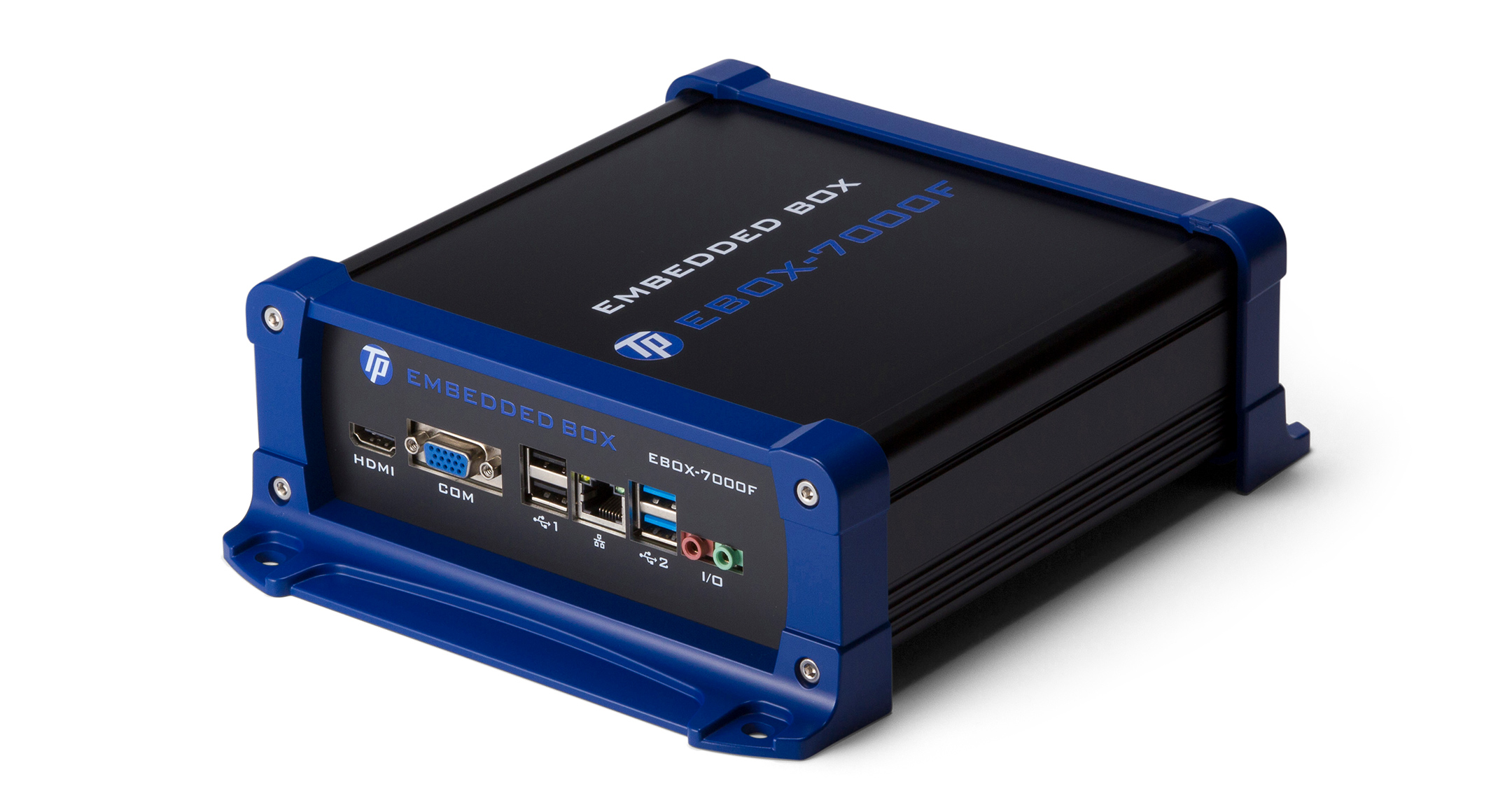

FLANGED EXTRUDED ALUMINUM ENCLOSURE - EXPF series
FLANGED EXTRUDED ALUMINUM ENCLOSURE - EXPF series
FLANGED EXTRUDED ALUMINUM ENCLOSURE - EXPF series

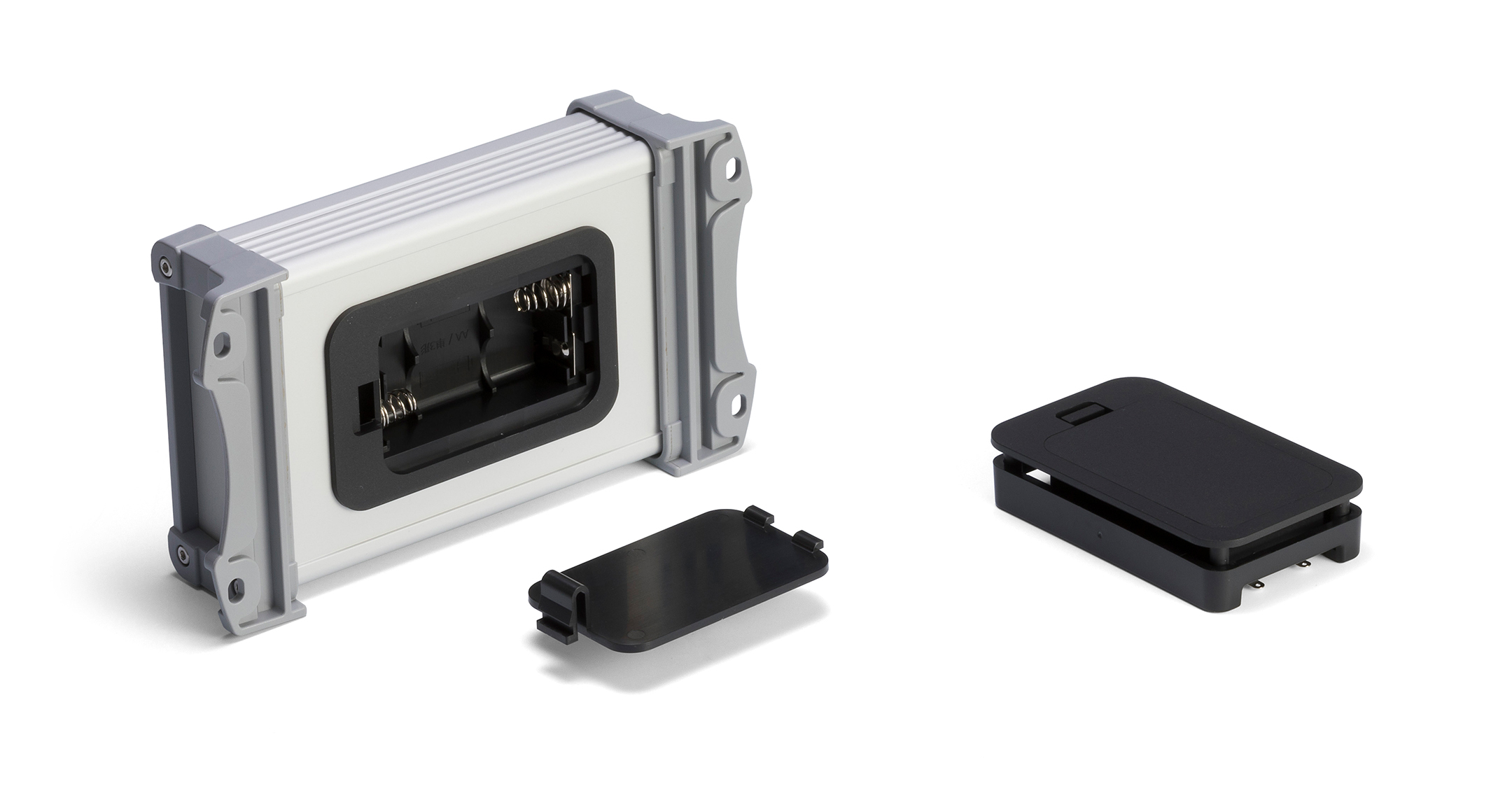

FLANGED EXTRUDED ALUMINUM ENCLOSURE - EXPF series

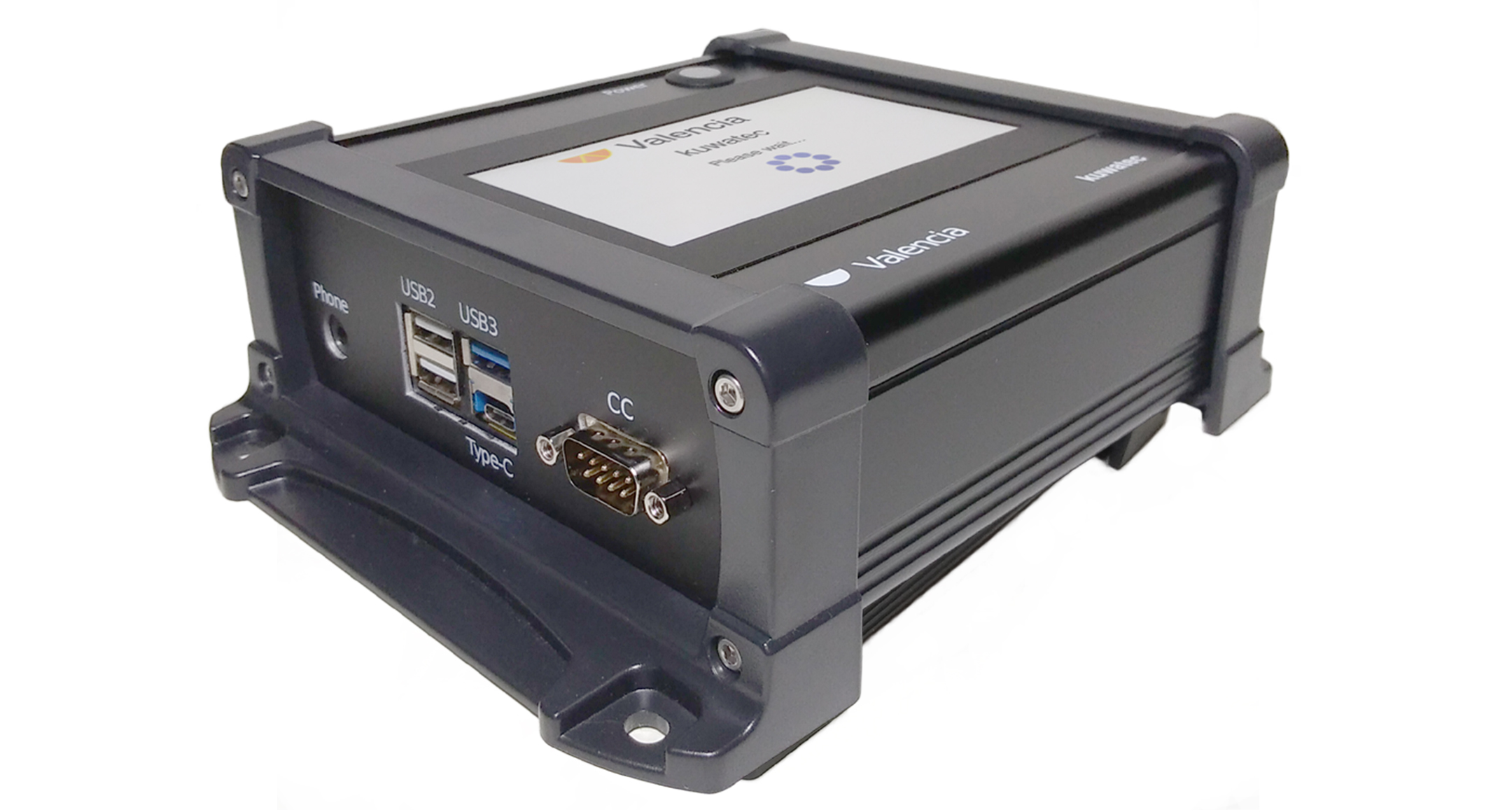

FLANGED EXTRUDED ALUMINUM ENCLOSURE - EXPF series

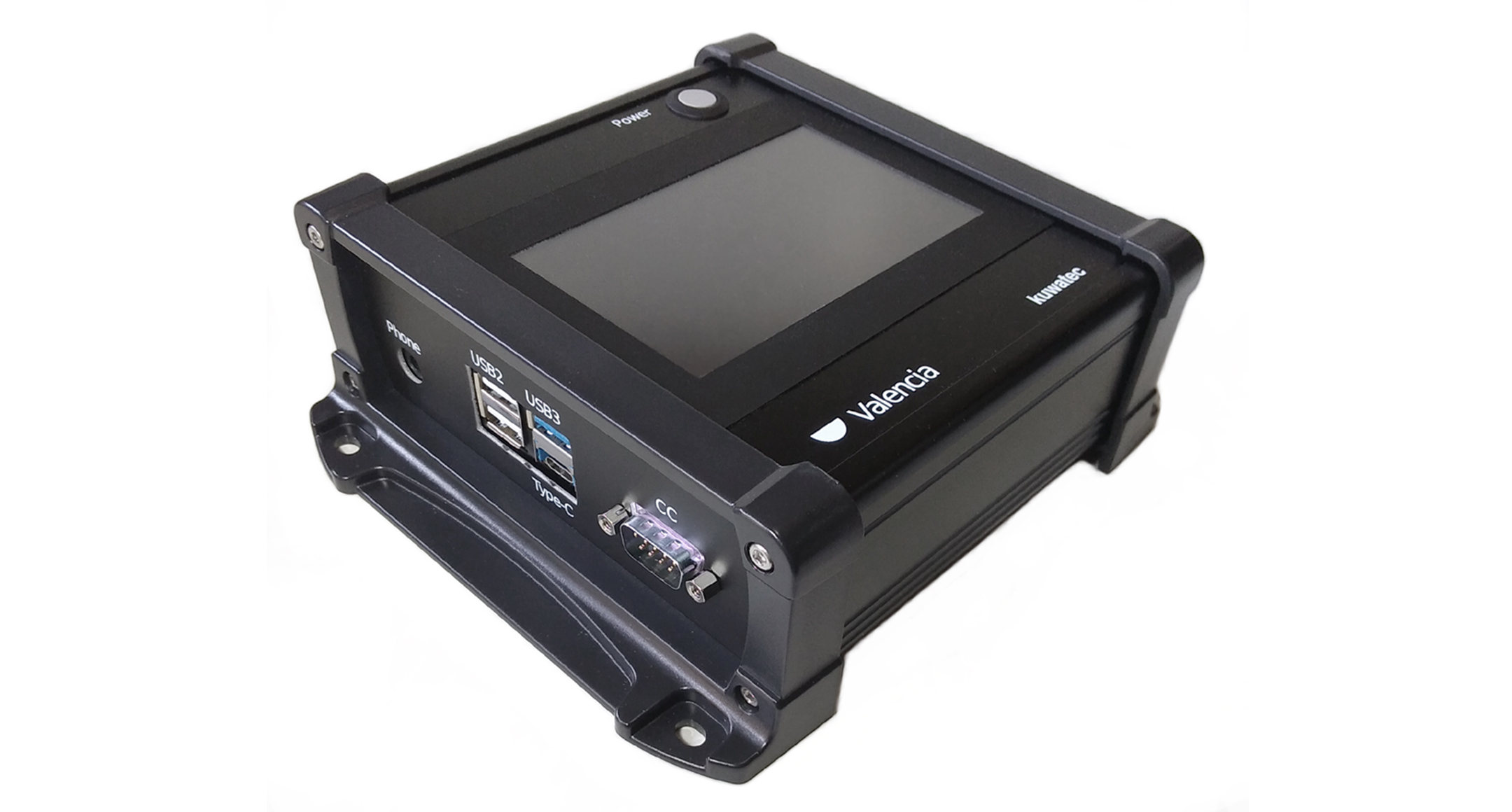

FLANGED EXTRUDED ALUMINUM ENCLOSURE - EXPF series

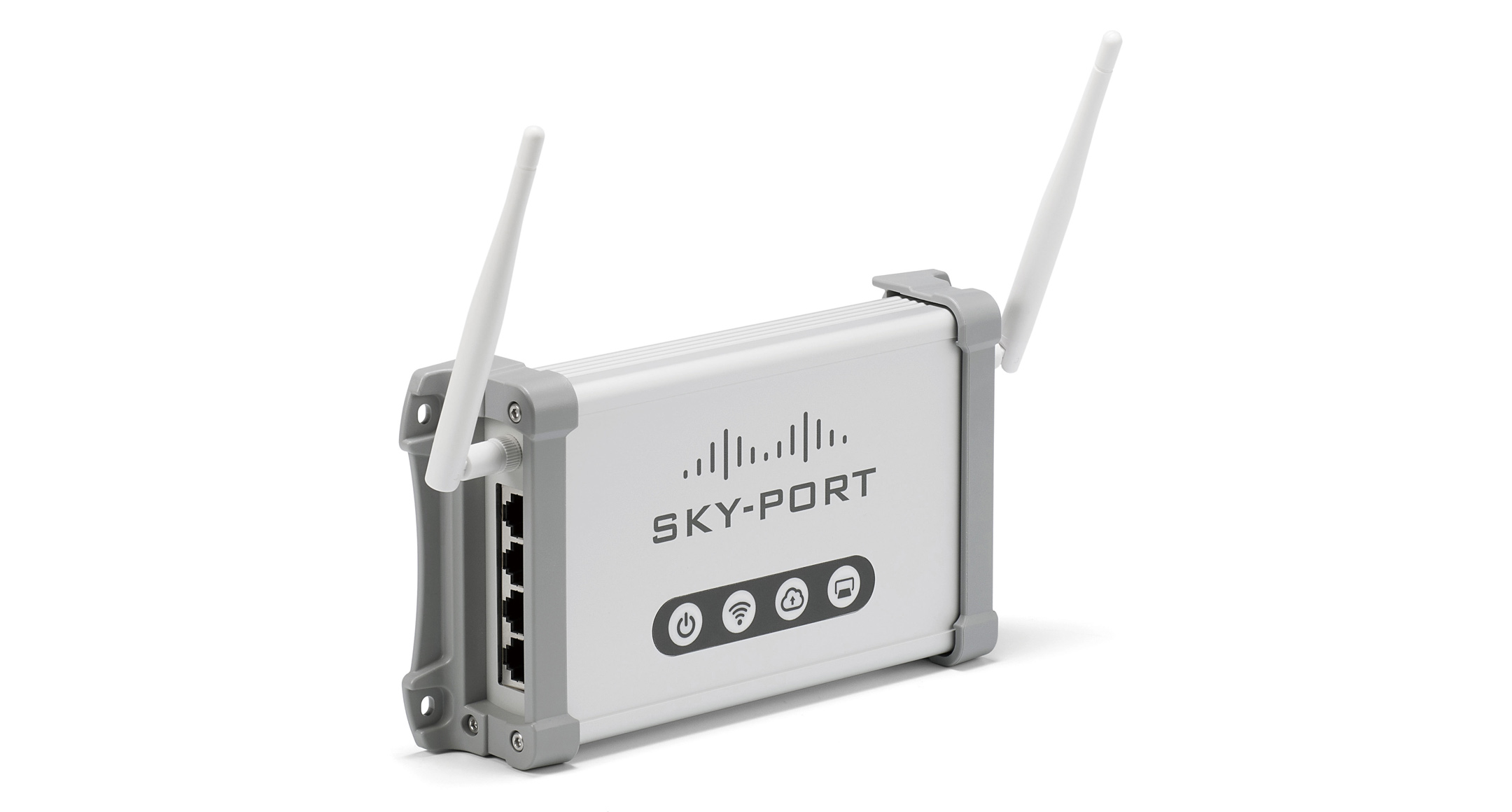

FLANGED EXTRUDED ALUMINUM ENCLOSURE - EXPF series
FLANGED EXTRUDED ALUMINUM ENCLOSURE - EXPF series

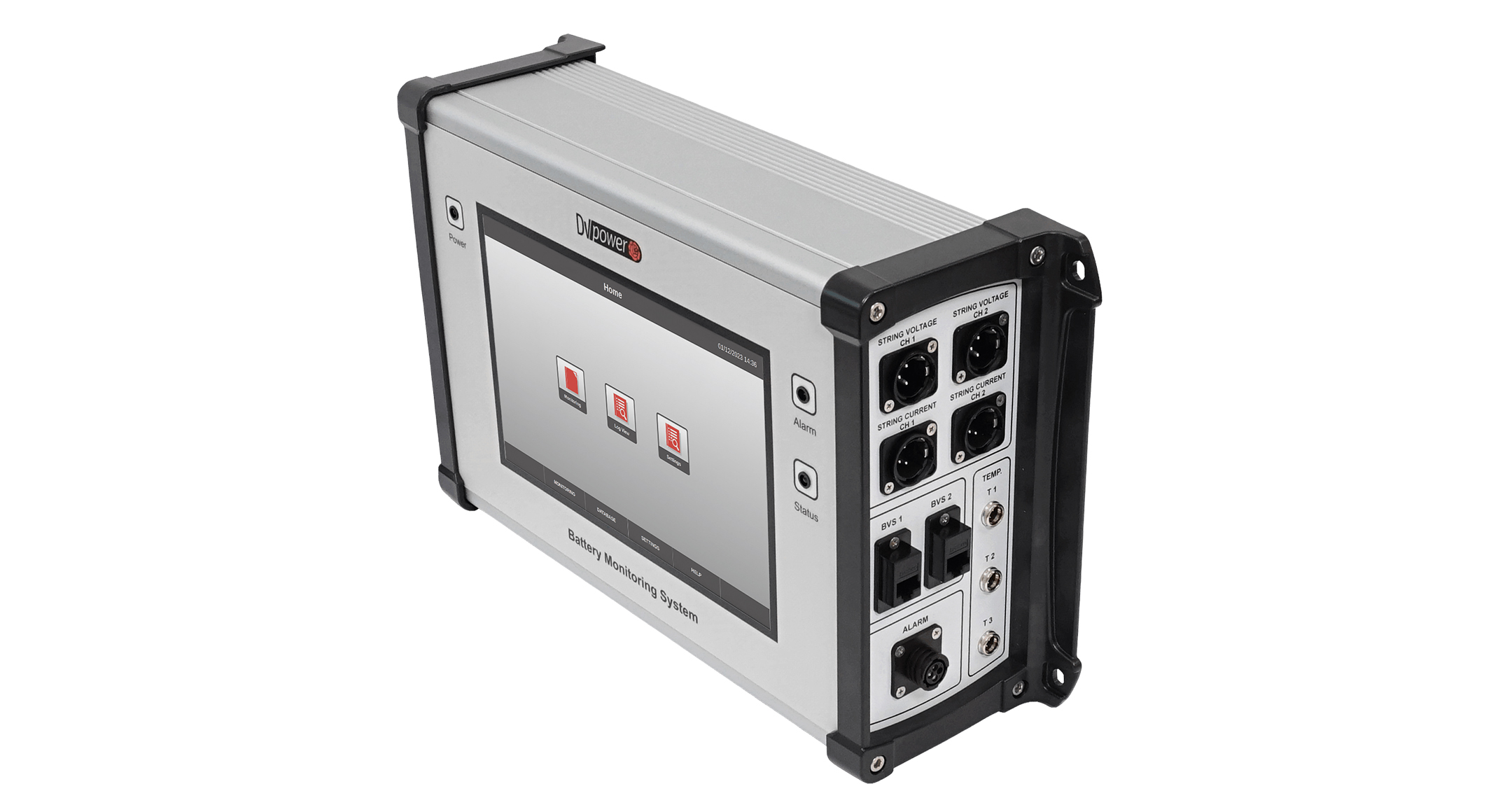

FLANGED EXTRUDED ALUMINUM ENCLOSURE - EXPF series

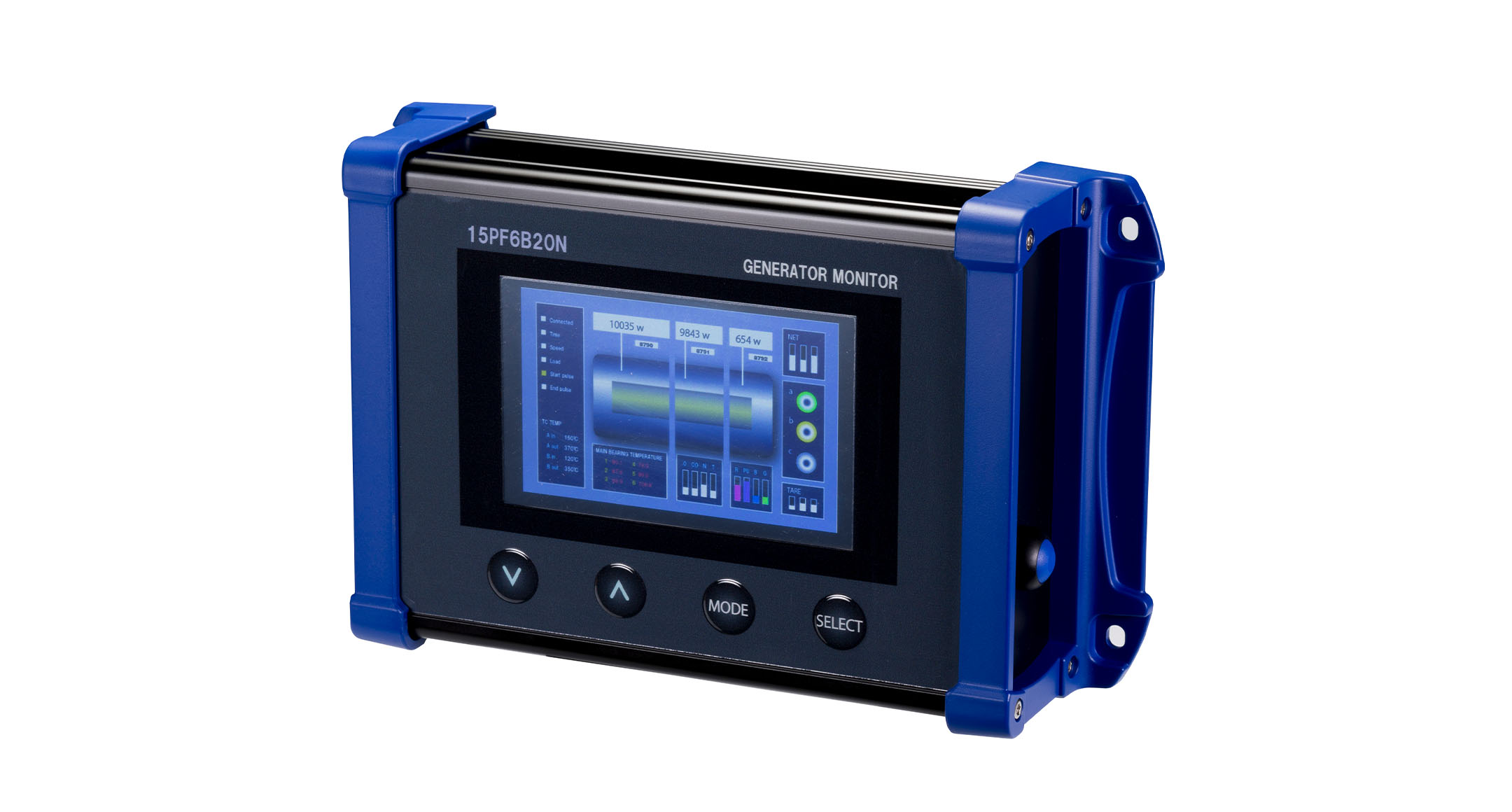

FLANGED EXTRUDED ALUMINUM ENCLOSURE - EXPF series

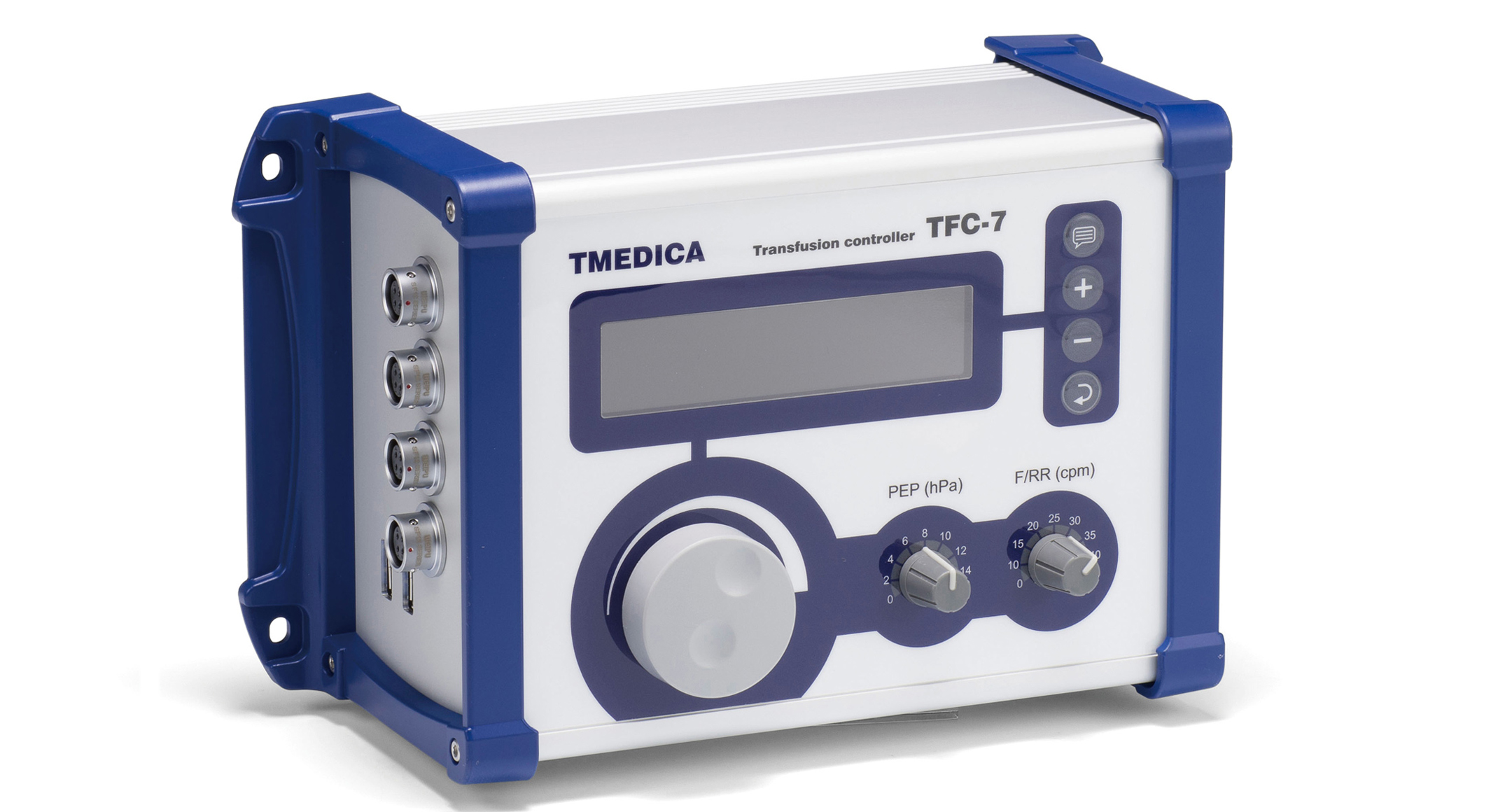

FLANGED EXTRUDED ALUMINUM ENCLOSURE - EXPF series

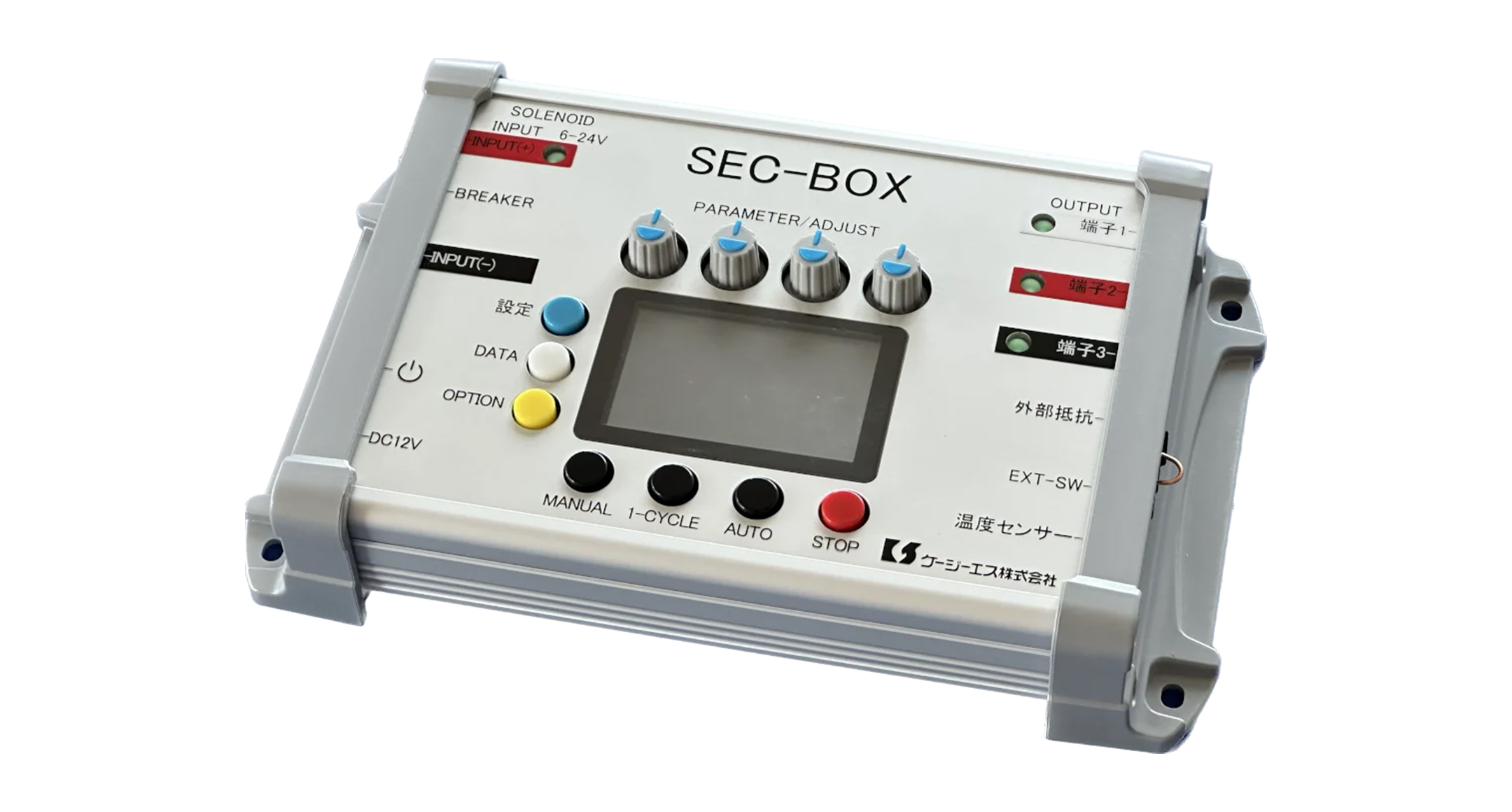

FLANGED EXTRUDED ALUMINUM ENCLOSURE - EXPF series

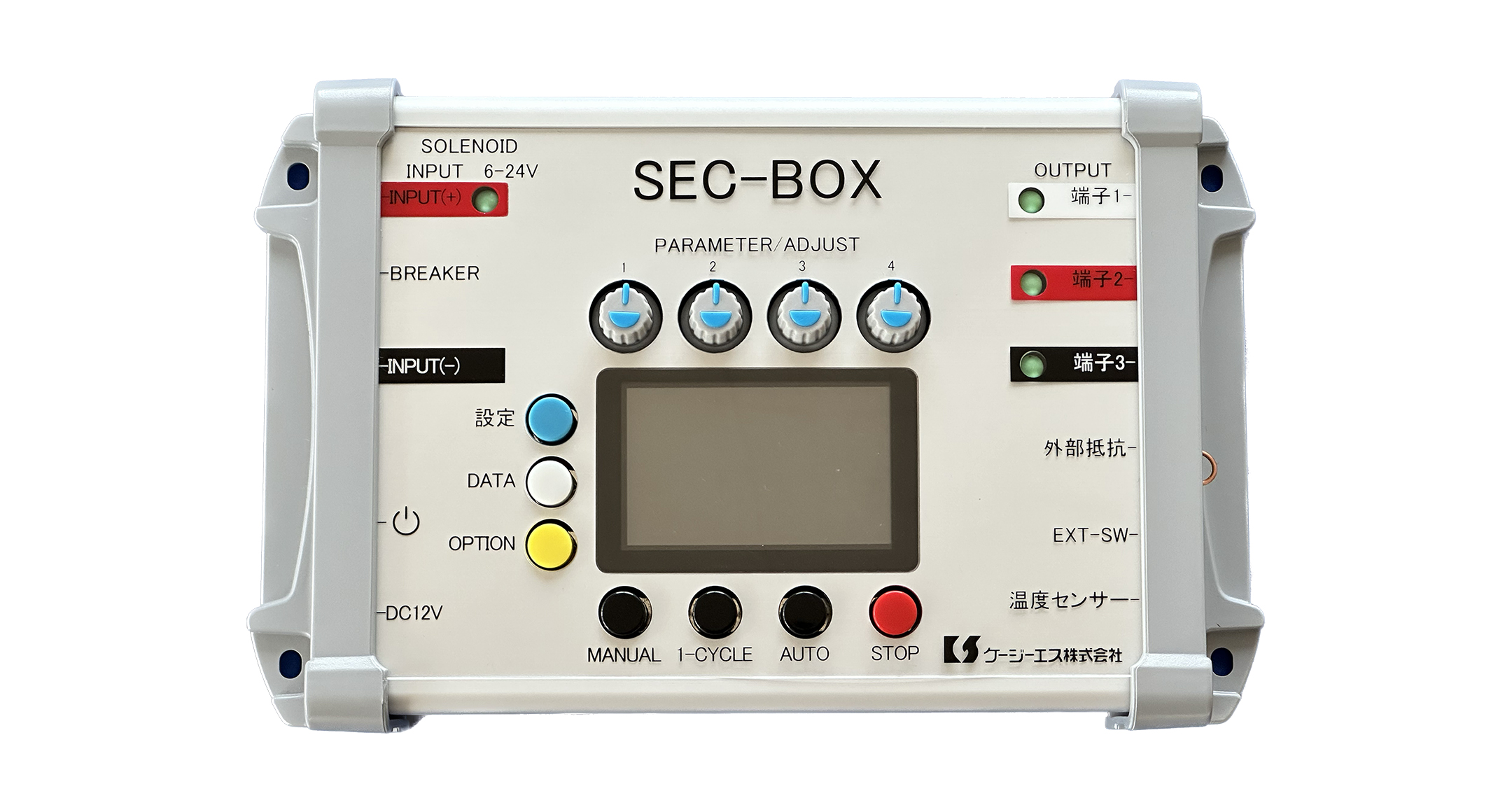

FLANGED EXTRUDED ALUMINUM ENCLOSURE - EXPF series

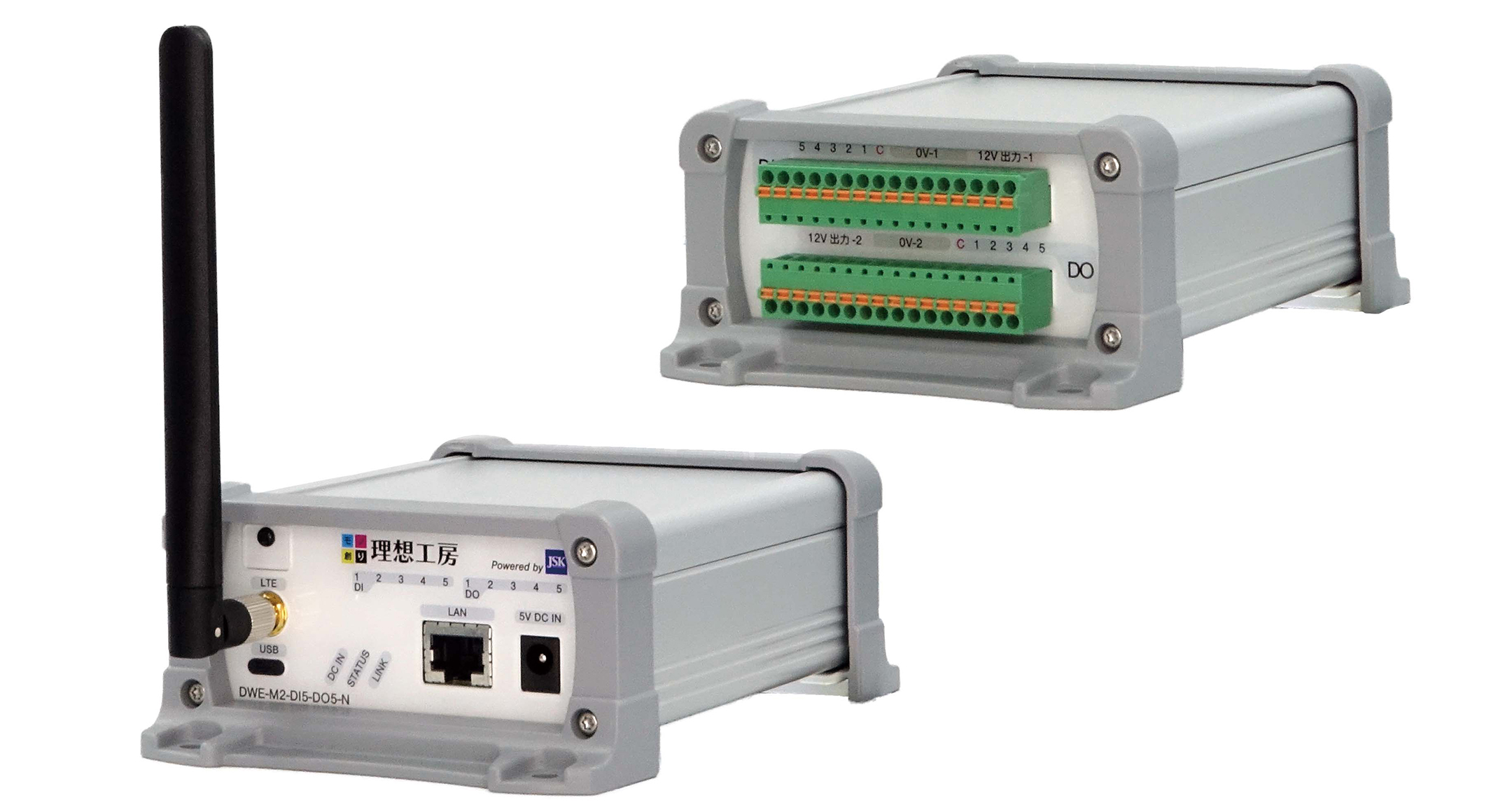

FLANGED EXTRUDED ALUMINUM ENCLOSURE - EXPF series1
FLANGED EXTRUDED ALUMINUM ENCLOSURE - EXPF series2

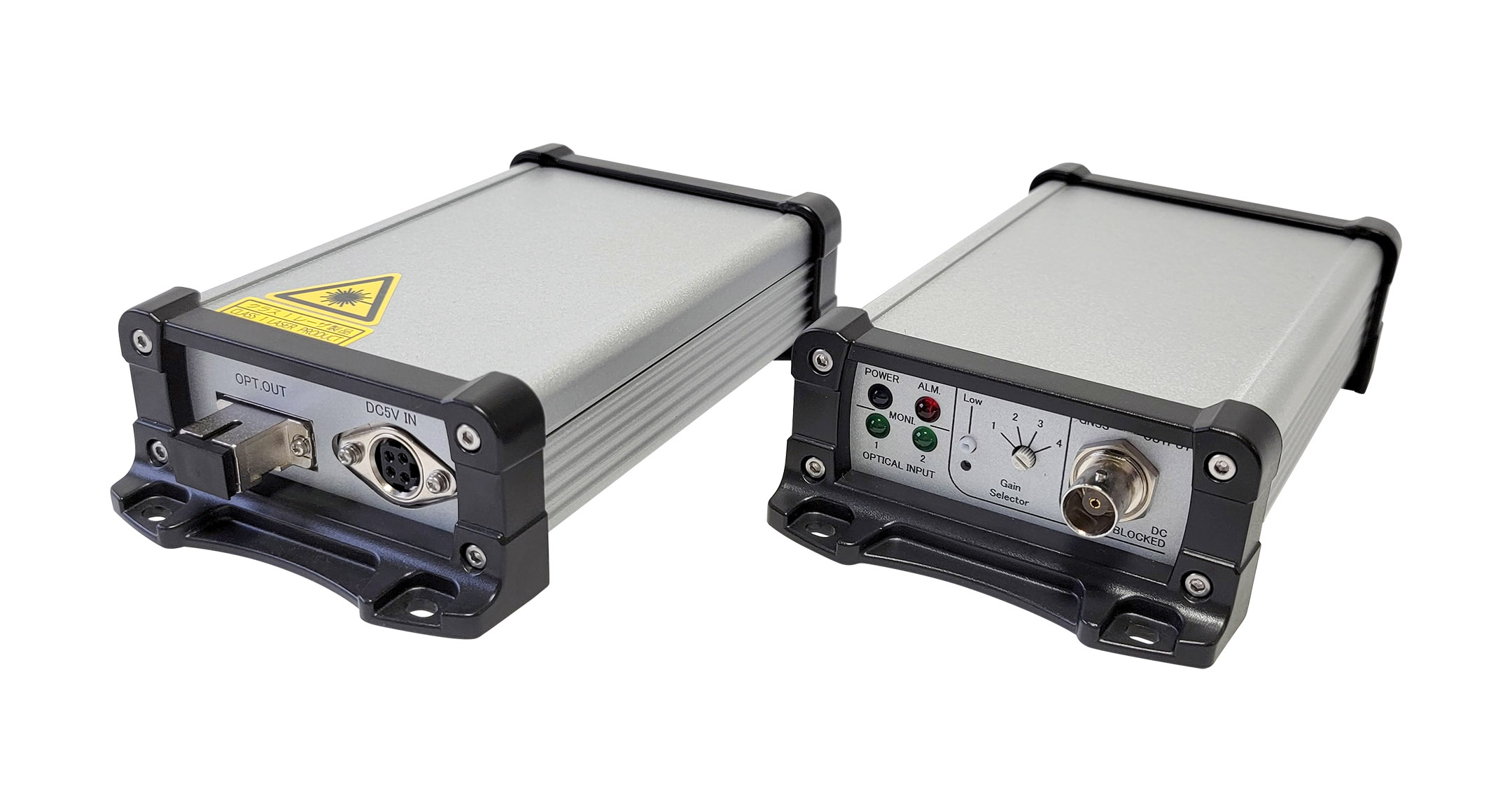

FLANGED EXTRUDED ALUMINUM ENCLOSURE - EXPF series3
FLANGED EXTRUDED ALUMINUM ENCLOSURE - EXPF series4

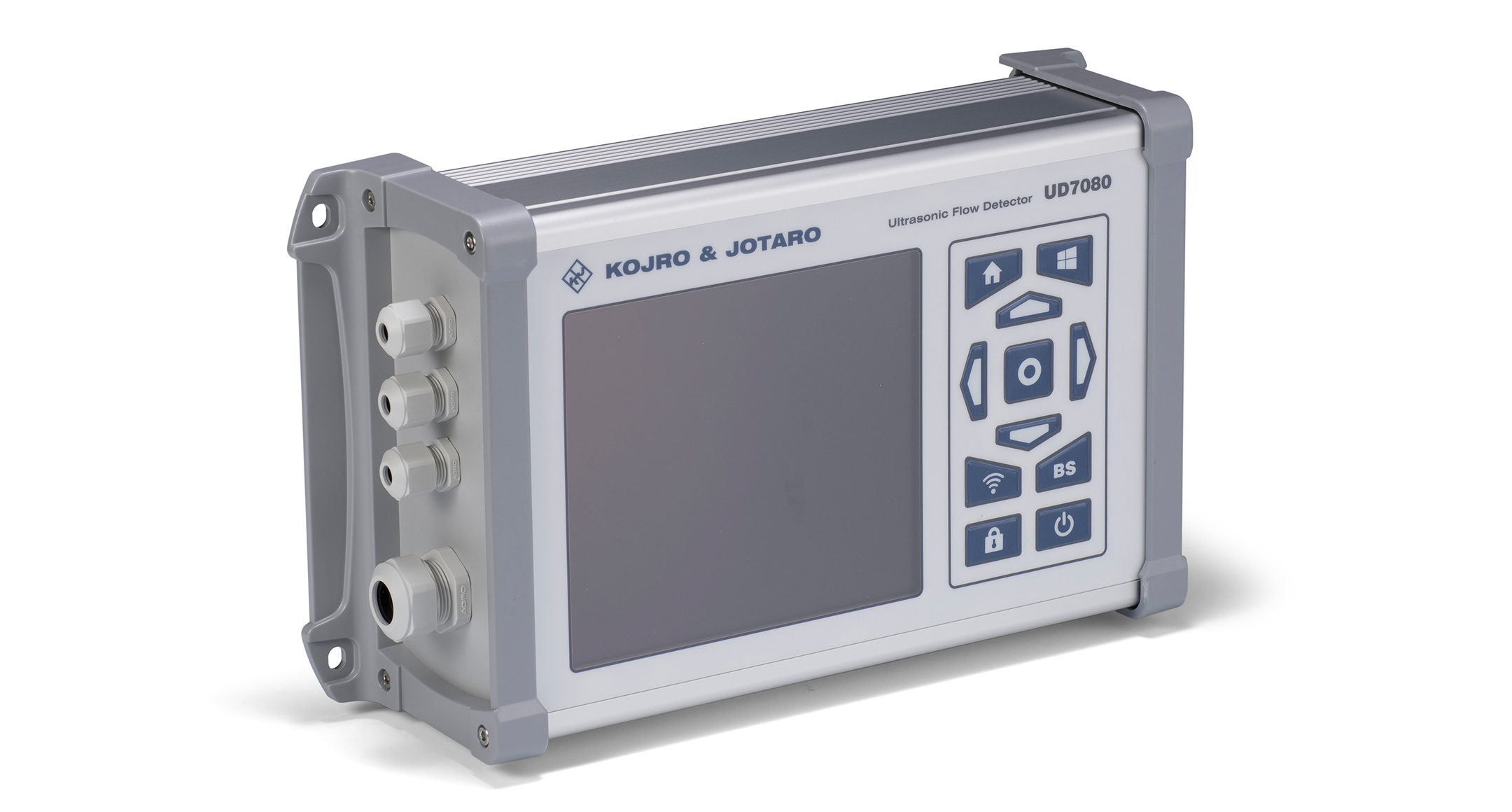

FLANGED EXTRUDED ALUMINUM ENCLOSURE - EXPF series5
FLANGED EXTRUDED ALUMINUM ENCLOSURE - EXPF series6
FLANGED EXTRUDED ALUMINUM ENCLOSURE - EXPF series7
FLANGED EXTRUDED ALUMINUM ENCLOSURE - EXPF series8
FLANGED EXTRUDED ALUMINUM ENCLOSURE - EXPF series9
FLANGED EXTRUDED ALUMINUM ENCLOSURE - EXPF series10
FLANGED EXTRUDED ALUMINUM ENCLOSURE - EXPF series11
FLANGED EXTRUDED ALUMINUM ENCLOSURE - EXPF series12
FLANGED EXTRUDED ALUMINUM ENCLOSURE - EXPF series13

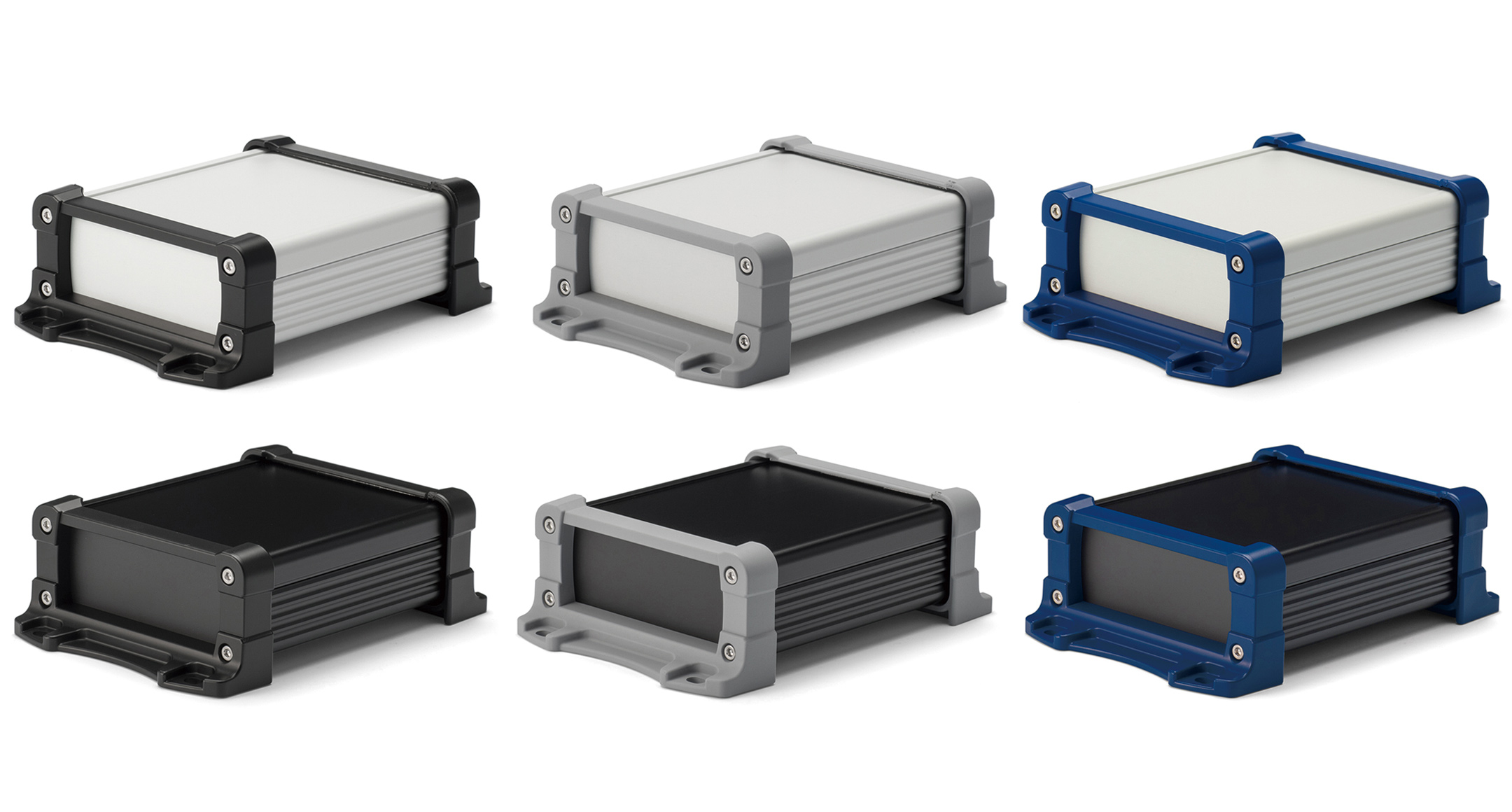

COLOR TYPE

SBSilver/Black

FLANGED EXTRUDED ALUMINUM ENCLOSURE - EXPF series:Silver/Black

SGSilver/Gray

FLANGED EXTRUDED ALUMINUM ENCLOSURE - EXPF series:Silver/Gray

SNSilver/Navy

FLANGED EXTRUDED ALUMINUM ENCLOSURE - EXPF series:Silver/Navy

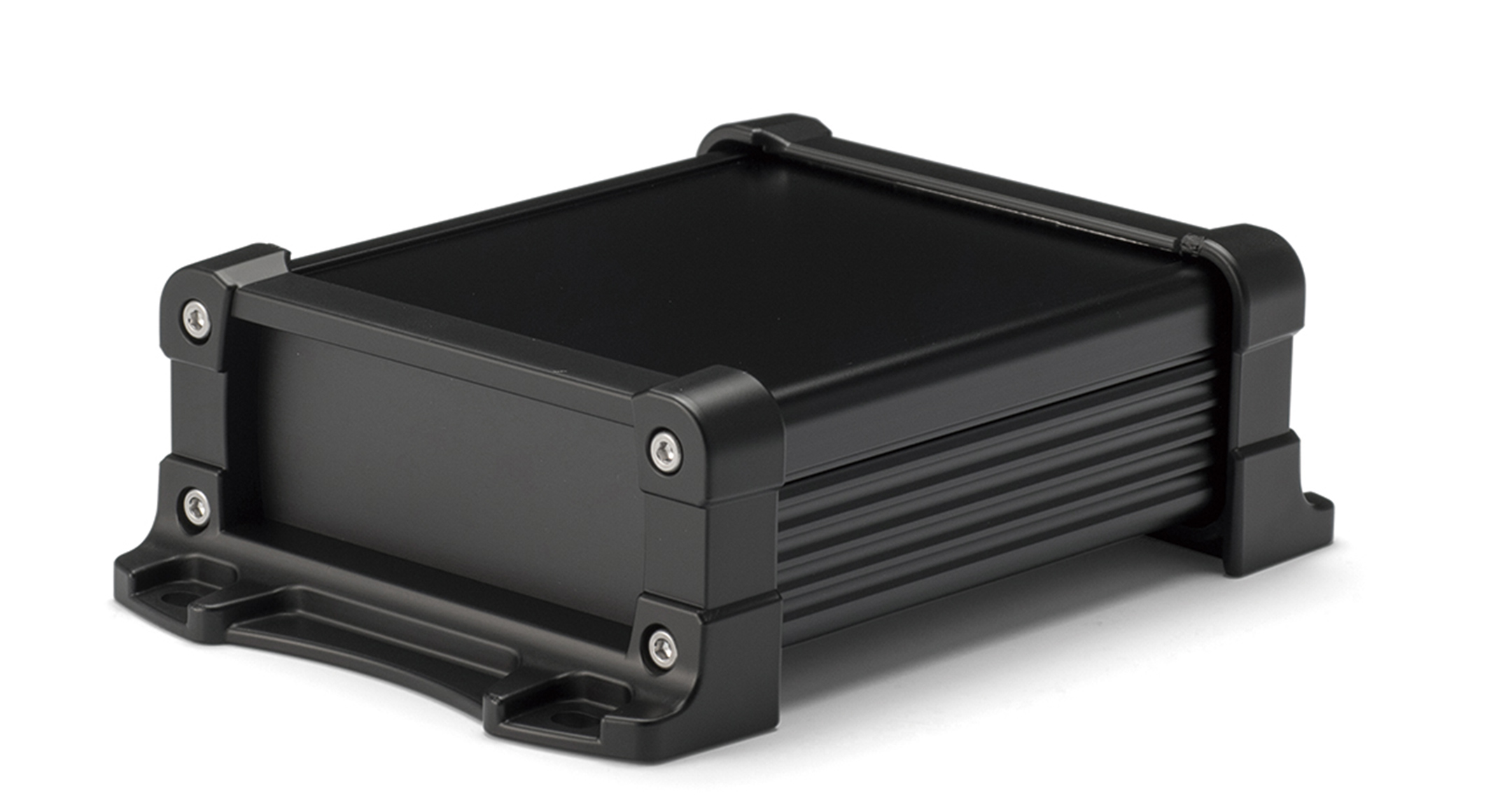

BBBlack/Black

FLANGED EXTRUDED ALUMINUM ENCLOSURE - EXPF series:Black/Black

BGBlack/Gray

FLANGED EXTRUDED ALUMINUM ENCLOSURE - EXPF series:Black/Gray

BNBlack/Navy

FLANGED EXTRUDED ALUMINUM ENCLOSURE - EXPF series:Black/Navy
FLANGED EXTRUDED ALUMINUM ENCLOSURE - EXPF series:Silver/Black
FLANGED EXTRUDED ALUMINUM ENCLOSURE - EXPF series:Silver/Gray
FLANGED EXTRUDED ALUMINUM ENCLOSURE - EXPF series:Silver/Navy
FLANGED EXTRUDED ALUMINUM ENCLOSURE - EXPF series:Black/Black
FLANGED EXTRUDED ALUMINUM ENCLOSURE - EXPF series:Black/Gray
FLANGED EXTRUDED ALUMINUM ENCLOSURE - EXPF series:Black/Navy

PRODUCT NO. / DIMENSIONS

Product No. External dimensions Internal dimensions Weight (g) PDF DXF DWG STP
W H D w h d
EXPF7-3-6□ 66 34 60 46 19.6 46 77.5 PDF DXF DWG
EXPF7-3-9□ 66 34 87 46 19.6 73 100.5 PDF DXF DWG
EXPF7-3-11□ 66 34 110 46 19.6 96 120 PDF DXF DWG
EXPF7-4-6□ 66 44 60 46 29.6 46 91 PDF DXF DWG
EXPF7-4-9□ 66 44 87 46 29.6 73 117.5 PDF DXF DWG
EXPF7-4-11□ 66 44 110 46 29.6 96 139.5 PDF DXF DWG
EXPF7-6-6□ 66 59 60 46 44.6 46 106.5 PDF DXF DWG
EXPF7-6-9□ 66 59 87 46 44.6 73 136.5 PDF DXF DWG
EXPF7-6-11□ 66 59 110 46 44.6 96 162.5 PDF DXF DWG
EXPF9-4-7□ 86 39 70 66 24.6 56 120.5 PDF DXF DWG
EXPF9-4-10□ 86 39 100 66 24.6 86 157 PDF DXF DWG
EXPF9-4-13□ 86 39 130 66 24.6 116 193.5 PDF DXF DWG
EXPF9-5-7□ 86 49 70 66 34.6 56 136 PDF DXF DWG
EXPF9-5-10□ 86 49 100 66 34.6 86 176.5 PDF DXF DWG
EXPF9-5-13□ 86 49 130 66 34.6 116 216.5 PDF DXF DWG
EXPF9-6-7□ 86 64 70 66 49.6 56 157.5 PDF DXF DWG
EXPF9-6-10□ 86 64 100 66 49.6 86 202 PDF DXF DWG
EXPF9-6-13□ 86 64 130 66 49.6 116 247 PDF DXF DWG
EXPF11-4-9□ 113 41.5 90 88 24 74 211 PDF DXF DWG
EXPF11-4-13□ 113 41.5 130 88 24 114 278 PDF DXF DWG
EXPF11-4-18□ 113 41.5 176 88 24 160 355.5 PDF DXF DWG
EXPF11-6-9□ 113 56.5 90 88 39 74 240.5 PDF DXF DWG
EXPF11-6-13□ 113 56.5 130 88 39 114 314 PDF DXF DWG
EXPF11-6-18□ 113 56.5 176 88 39 160 399 PDF DXF DWG
EXPF11-7-9□ 113 71.5 90 88 54 74 269.5 PDF DXF DWG
EXPF11-7-13□ 113 71.5 130 88 54 114 350.5 PDF DXF DWG
EXPF11-7-18□ 113 71.5 176 88 54 160 444.5 PDF DXF DWG
EXPF15-5-11□ 148 47 110 106.8 29 93 336.5 PDF DXF DWG
EXPF15-5-15□ 148 47 150 106.8 29 133 427.5 PDF DXF DWG
EXPF15-5-20□ 148 47 200 106.8 29 183 540.5 PDF DXF DWG
EXPF15-6-11□ 148 62 110 106.8 44 93 373 PDF DXF DWG
EXPF15-6-15□ 148 62 150 106.8 44 133 470.5 PDF DXF DWG
EXPF15-6-20□ 148 62 200 106.8 44 183 592.5 PDF DXF DWG
EXPF15-8-11□ 148 82 110 106.8 64 93 422 PDF DXF DWG
EXPF15-8-15□ 148 82 150 106.8 64 133 526.5 PDF DXF DWG
EXPF15-8-20□ 148 82 200 106.8 64 183 657.5 PDF DXF DWG
EXPF15-10-11□ 148 102 110 106.8 84 93 473 PDF DXF DWG
EXPF15-10-15□ 148 102 150 106.8 84 133 587.5 PDF DXF DWG
EXPF15-10-20□ 148 102 200 106.8 84 183 730.5 PDF DXF DWG
EXPF20-6-14□ 195 57 140 131 35 120 673.5 PDF DXF DWG
EXPF20-6-19□ 195 57 192 131 35 172 863.5 PDF DXF DWG
EXPF20-6-25□ 195 57 245 131 35 225 1057.5 PDF DXF DWG
EXPF20-6-30□ 195 57 300 131 35 280 1255.5 PDF DXF DWG
EXPF20-8-14□ 195 75 140 131 53 120 733.5 PDF DXF DWG
EXPF20-8-19□ 195 75 192 131 53 172 937.5 PDF DXF DWG
EXPF20-8-25□ 195 75 245 131 53 225 1141.5 PDF DXF DWG
EXPF20-8-30□ 195 75 300 131 53 280 1356.5 PDF DXF DWG
EXPF20-10-14□ 195 95 140 131 73 120 808 PDF DXF DWG
EXPF20-10-19□ 195 95 192 131 73 172 1032 PDF DXF DWG
EXPF20-10-25□ 195 95 245 131 73 225 1252 PDF DXF DWG
EXPF20-10-30□ 195 95 300 131 73 280 1483 PDF DXF DWG
EXPF20-12-14□ 195 120 140 131 98 120 916 PDF DXF DWG
EXPF20-12-19□ 195 120 192 131 98 172 1141 PDF DXF DWG
EXPF20-12-25□ 195 120 245 131 98 225 1388 PDF DXF DWG
EXPF20-12-30□ 195 120 300 131 98 280 1630 PDF DXF DWG
EXPF24-7-17□ 240 65 170 176 43 147 1006.5 PDF DXF DWG
EXPF24-7-23□ 240 65 230 176 43 207 1296.5 PDF DXF DWG
EXPF24-7-29□ 240 65 290 176 43 267 1591.5 PDF DXF DWG
EXPF24-7-35□ 240 65 350 176 43 327 1885.5 PDF DXF DWG
EXPF24-9-17□ 240 90 170 176 68 147 1113 PDF DXF DWG
EXPF24-9-23□ 240 90 230 176 68 207 1422 PDF DXF DWG
EXPF24-9-29□ 240 90 290 176 68 267 1730 PDF DXF DWG
EXPF24-9-35□ 240 90 350 176 68 327 2065 PDF DXF DWG
EXPF24-12-17□ 240 115 170 176 93 147 1218 PDF DXF DWG
EXPF24-12-23□ 240 115 230 176 93 207 1561 PDF DXF DWG
EXPF24-12-29□ 240 115 290 176 93 267 1902 PDF DXF DWG
EXPF24-12-35□ 240 115 350 176 93 327 2261 PDF DXF DWG
