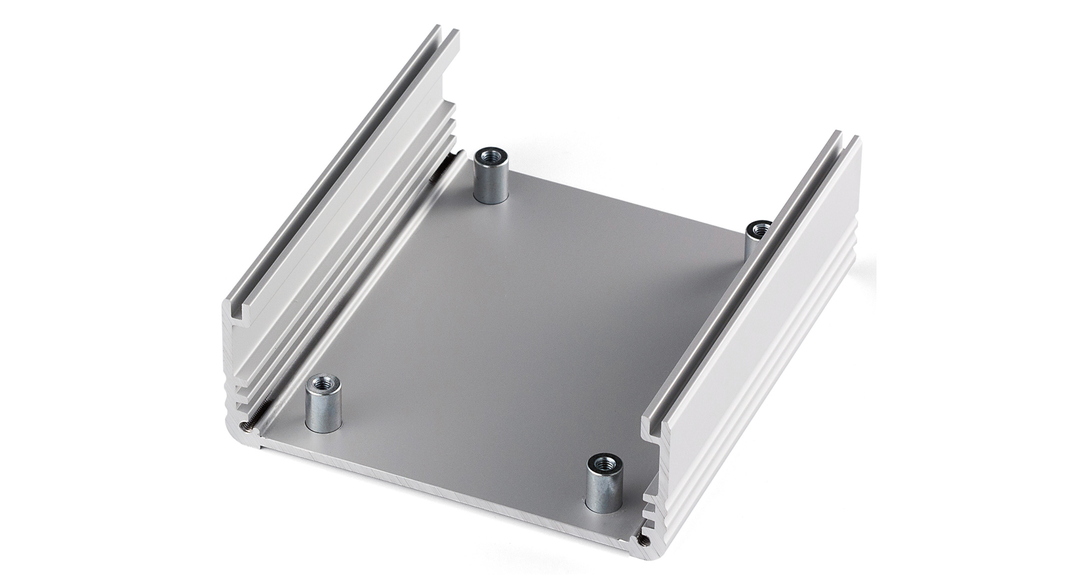

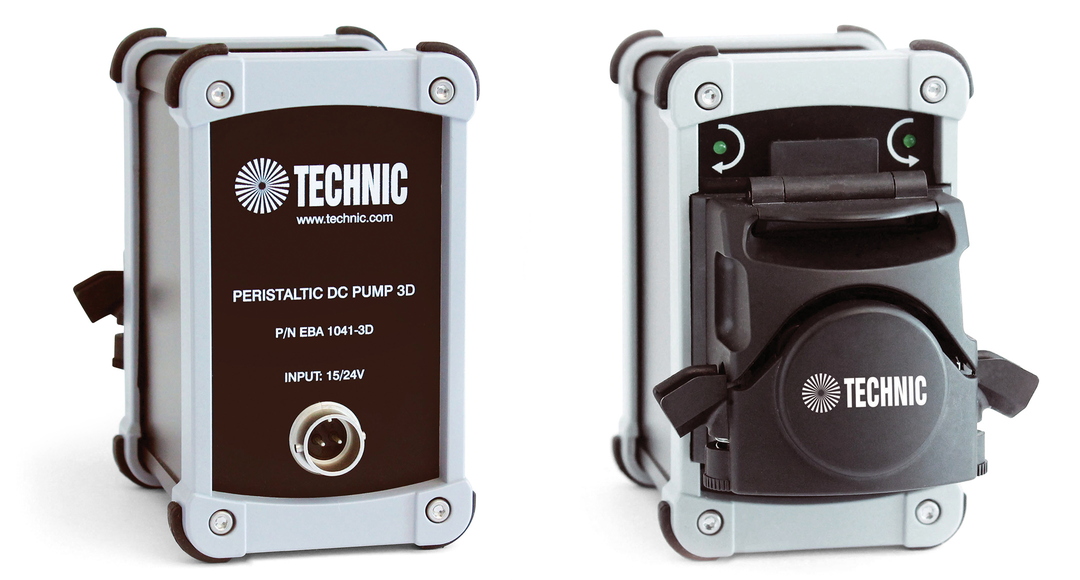

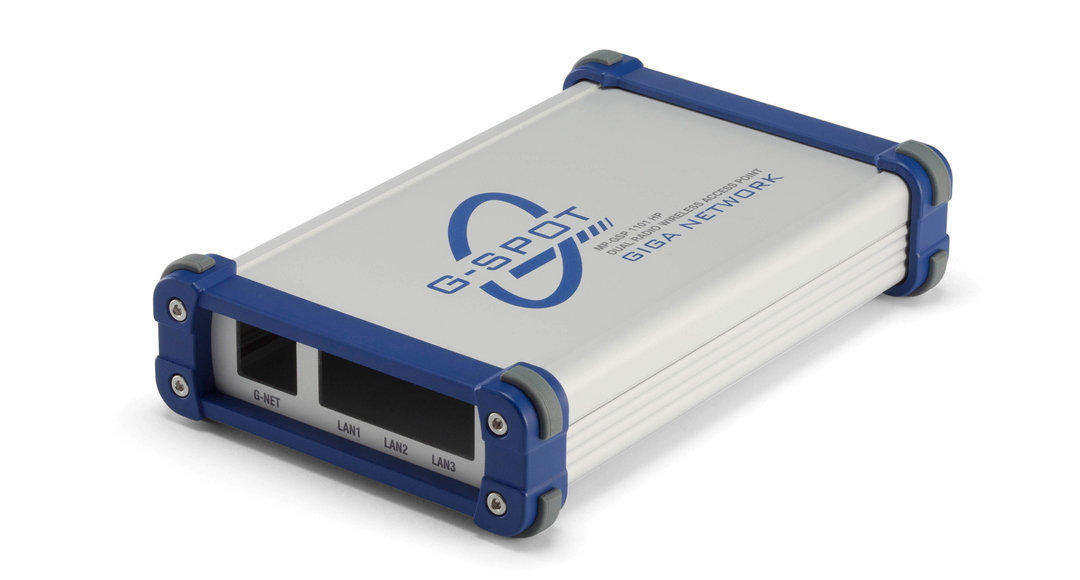

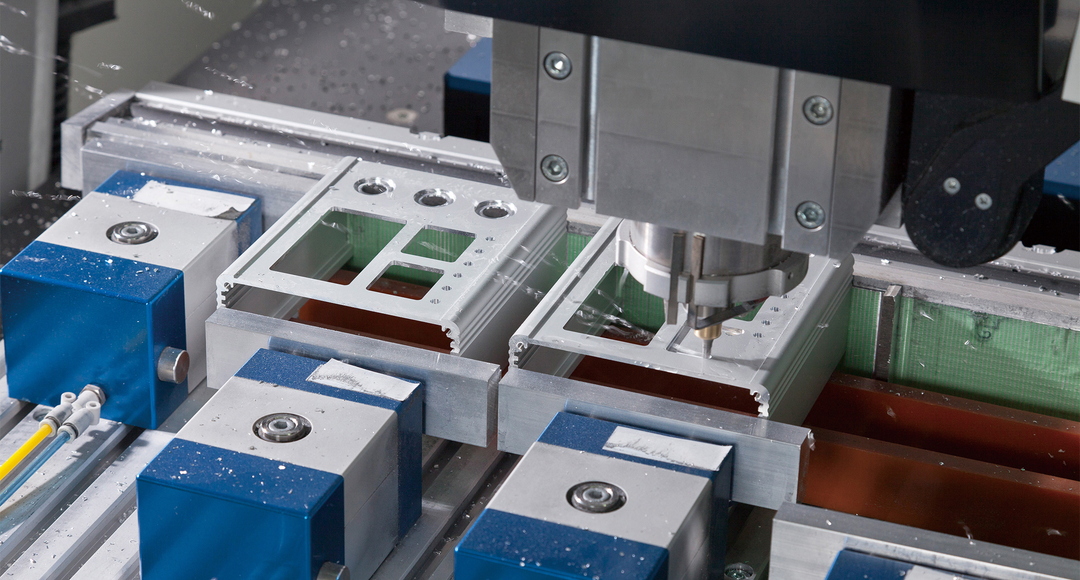

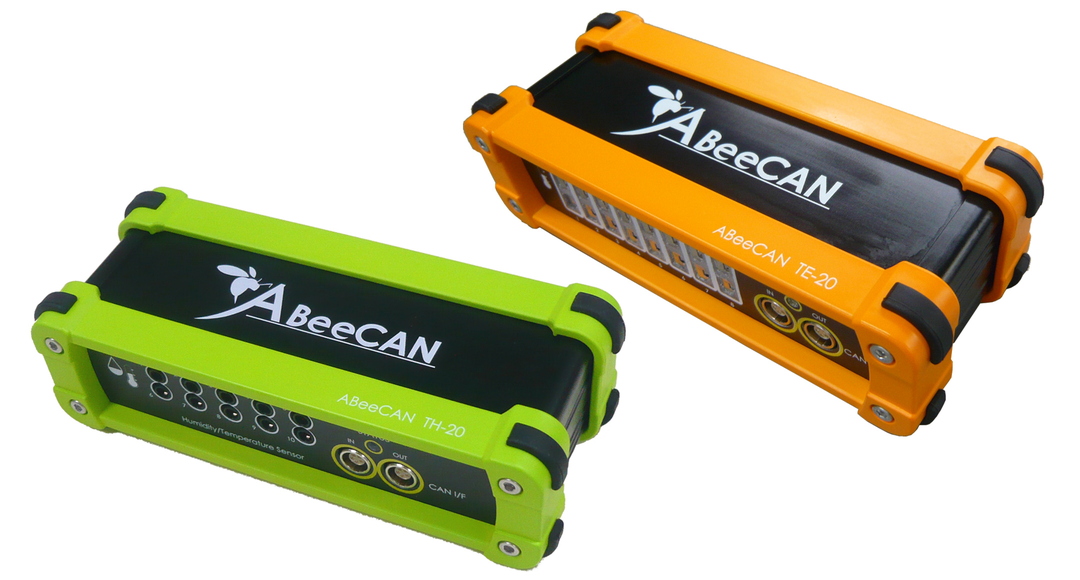

Custom sized shock-proof design instrument enclosure.
Corner guards are designed to be both aesthetically pleasing, and impact resistant.

Selectable 22 different Width/Height profiles and specified length (depth) from 40 to 500mm in 1mm intervals.
16 different color combinations can be specified.

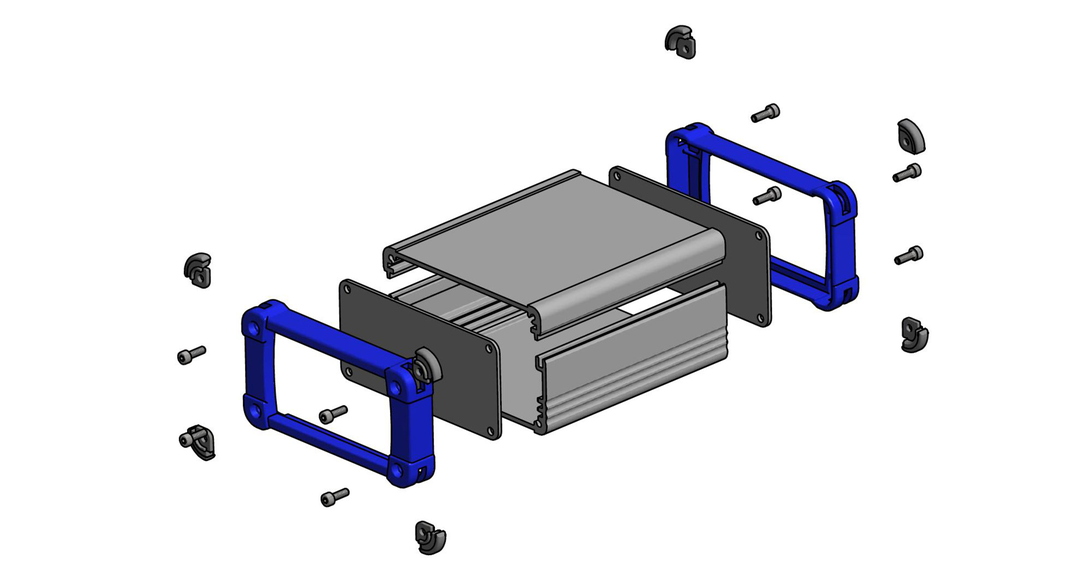

CUSTOM SIZE WEB QUOTATION  3D View - Silver/Navy  3D View - 16 color types  3D View - With tilt legs  Exploded view  Color code 

COLOR TYPE

SBSilver/Black

CUSTOM SIZED ENCLOSURE with CORNER GUARD - EXPS series:Silver/Black

SGSilver/Gray

CUSTOM SIZED ENCLOSURE with CORNER GUARD - EXPS series:Silver/Gray

SISilver/Indigo

CUSTOM SIZED ENCLOSURE with CORNER GUARD - EXPS series:Silver/Indigo

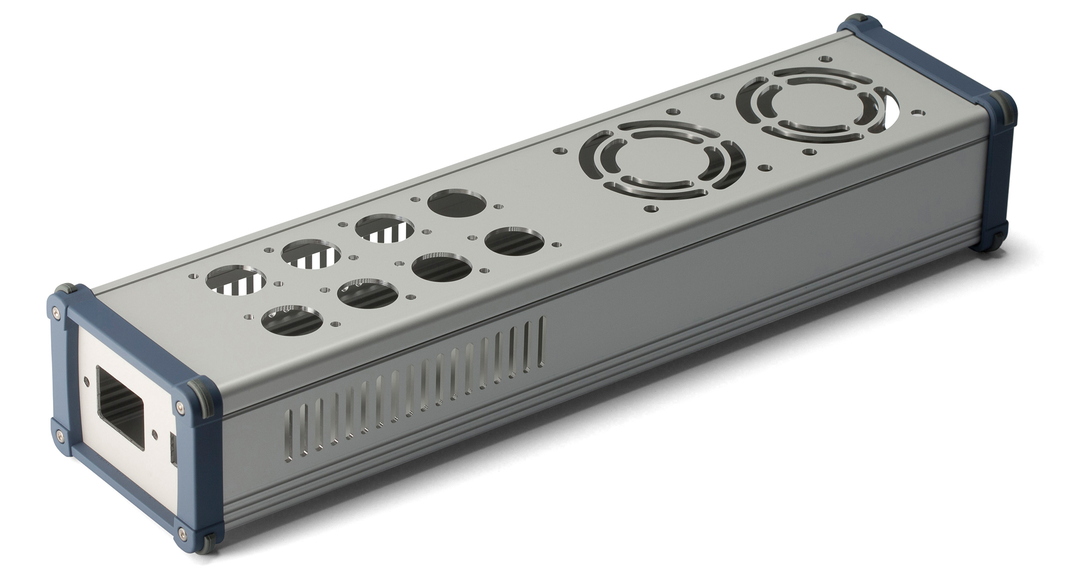

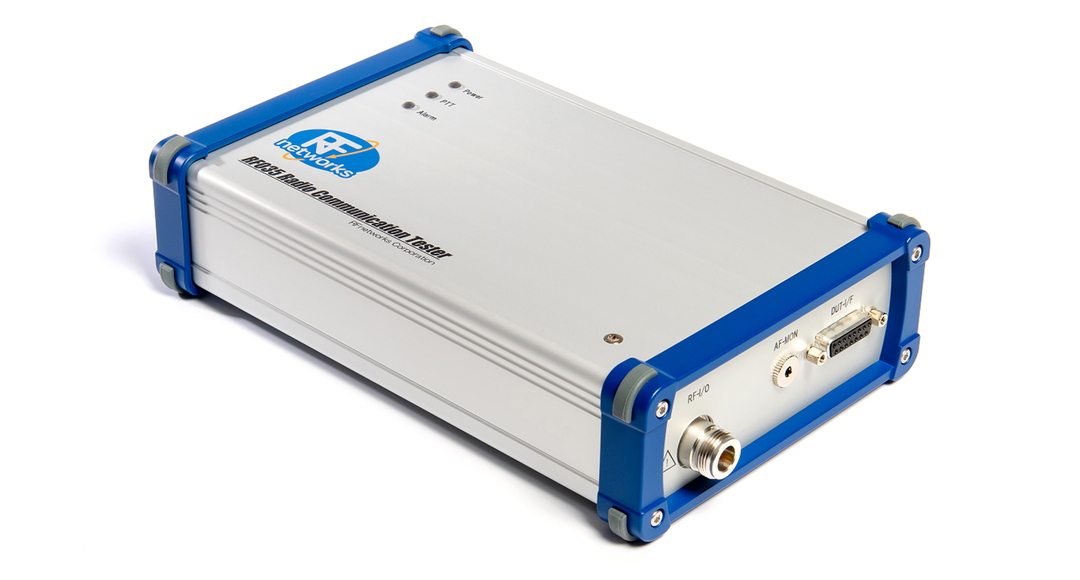

SNSilver/Navy

CUSTOM SIZED ENCLOSURE with CORNER GUARD - EXPS series:Silver/Navy

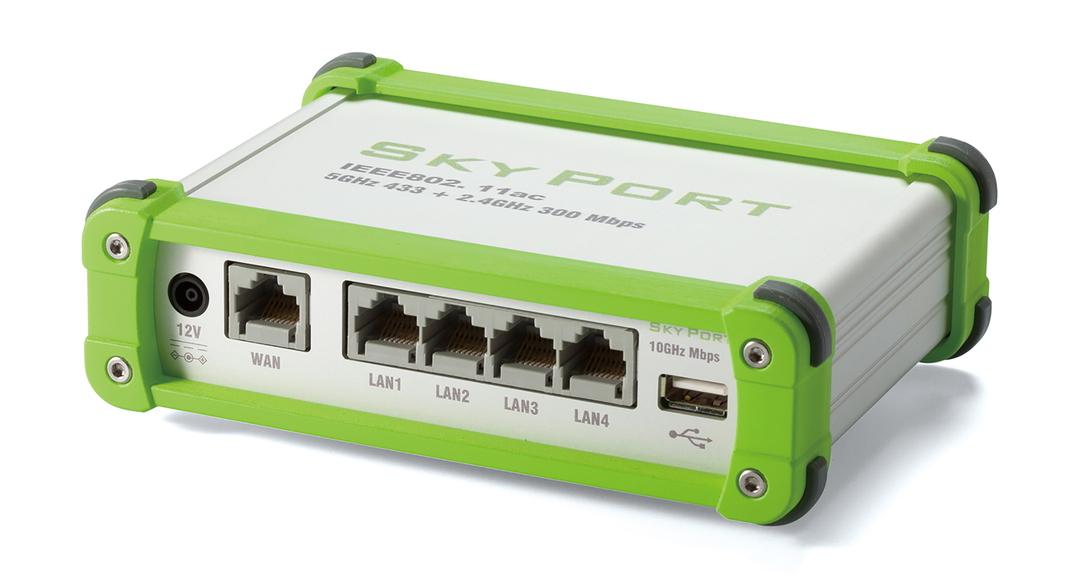

SLSilver/Lime

CUSTOM SIZED ENCLOSURE with CORNER GUARD - EXPS series:Silver/Lime

SYSilver/Yellow

CUSTOM SIZED ENCLOSURE with CORNER GUARD - EXPS series:Silver/Yellow

SOSilver/Orange

CUSTOM SIZED ENCLOSURE with CORNER GUARD - EXPS series:Silver/Orange

SRSilver/Red

CUSTOM SIZED ENCLOSURE with CORNER GUARD - EXPS series:Silver/Red

BBBlack/Black

CUSTOM SIZED ENCLOSURE with CORNER GUARD - EXPS series:Black/Black

BGBlack/Gray

CUSTOM SIZED ENCLOSURE with CORNER GUARD - EXPS series:Black/Gray

BIBlack/Indigo

CUSTOM SIZED ENCLOSURE with CORNER GUARD - EXPS series:Black/Indigo

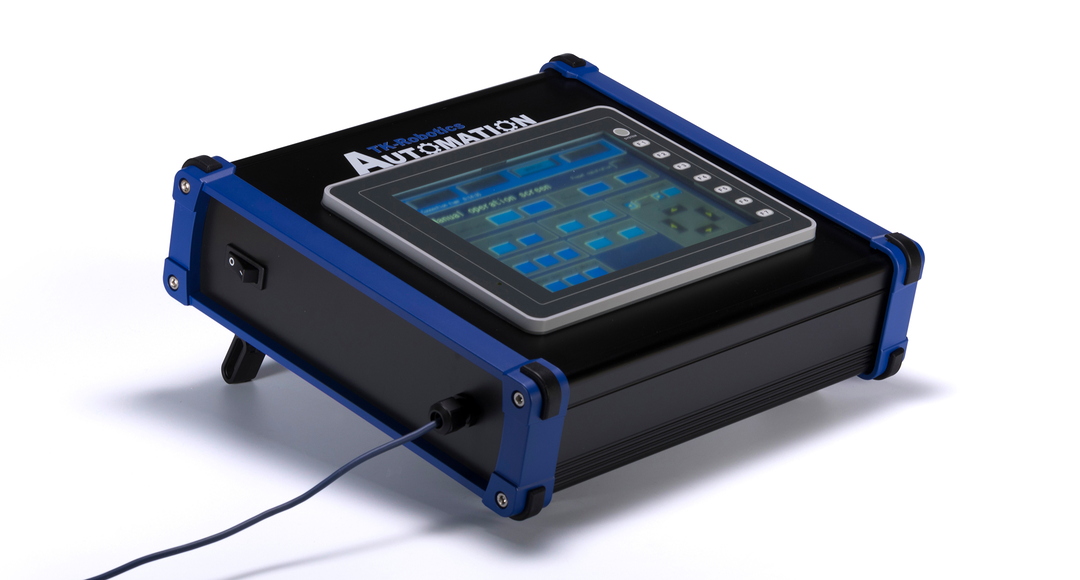

BNBlack/Navy

CUSTOM SIZED ENCLOSURE with CORNER GUARD - EXPS series:Black/Navy

BLBlack/Lime

CUSTOM SIZED ENCLOSURE with CORNER GUARD - EXPS series:Black/Lime

BYBlack/Yellow

CUSTOM SIZED ENCLOSURE with CORNER GUARD - EXPS series:Black/Yellow

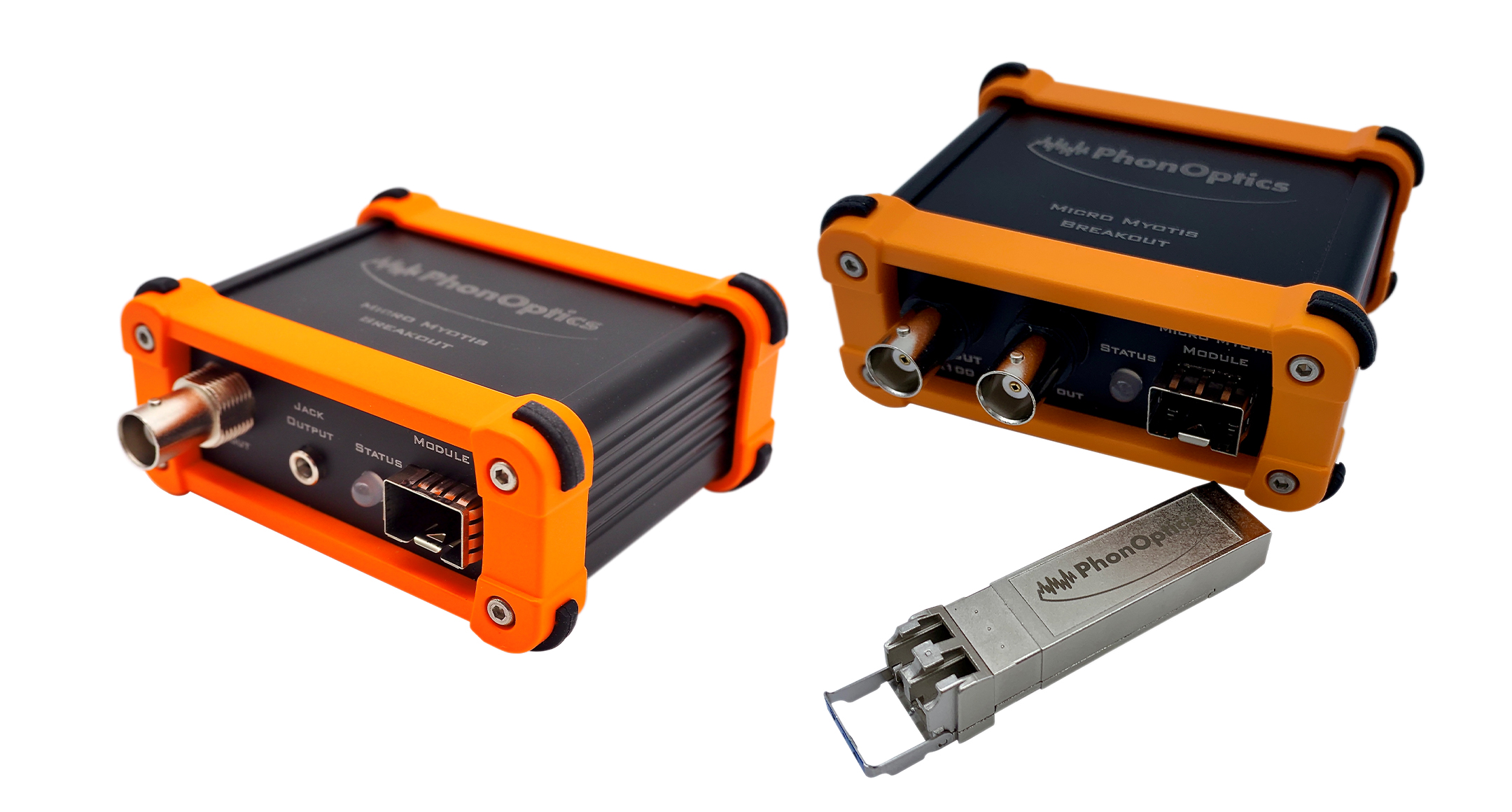

BOBlack/Orange

CUSTOM SIZED ENCLOSURE with CORNER GUARD - EXPS series:Black/Orange

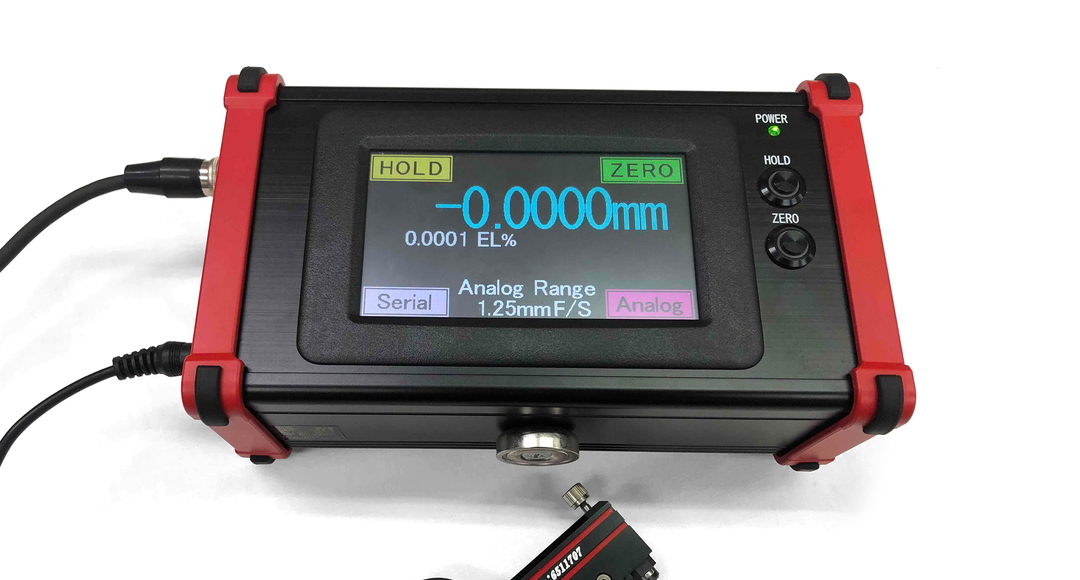

BRBlack/Red

CUSTOM SIZED ENCLOSURE with CORNER GUARD - EXPS series:Black/Red
CUSTOM SIZED ENCLOSURE with CORNER GUARD - EXPS series:Silver/Black
CUSTOM SIZED ENCLOSURE with CORNER GUARD - EXPS series:Silver/Gray
CUSTOM SIZED ENCLOSURE with CORNER GUARD - EXPS series:Silver/Indigo
CUSTOM SIZED ENCLOSURE with CORNER GUARD - EXPS series:Silver/Navy
CUSTOM SIZED ENCLOSURE with CORNER GUARD - EXPS series:Silver/Lime
CUSTOM SIZED ENCLOSURE with CORNER GUARD - EXPS series:Silver/Yellow
CUSTOM SIZED ENCLOSURE with CORNER GUARD - EXPS series:Silver/Orange
CUSTOM SIZED ENCLOSURE with CORNER GUARD - EXPS series:Silver/Red
CUSTOM SIZED ENCLOSURE with CORNER GUARD - EXPS series:Black/Black
CUSTOM SIZED ENCLOSURE with CORNER GUARD - EXPS series:Black/Gray
CUSTOM SIZED ENCLOSURE with CORNER GUARD - EXPS series:Black/Indigo
CUSTOM SIZED ENCLOSURE with CORNER GUARD - EXPS series:Black/Navy
CUSTOM SIZED ENCLOSURE with CORNER GUARD - EXPS series:Black/Lime
CUSTOM SIZED ENCLOSURE with CORNER GUARD - EXPS series:Black/Yellow
CUSTOM SIZED ENCLOSURE with CORNER GUARD - EXPS series:Black/Orange
CUSTOM SIZED ENCLOSURE with CORNER GUARD - EXPS series:Black/Red

PRODUCT NO. / DIMENSIONS

Product No. External dimensions Internal dimensions PDF DXF DWG
W H D w h d
EXPS69-34-〇 □ 69 34 Can be specified from 40 to 500mm by 1mm intervals 47 19.6 D dimension－14mm PDF DXF DWG
EXPS69-44-〇 □ 69 44 Can be specified from 40 to 500mm by 1mm intervals 47 29.6 D dimension－14mm PDF DXF DWG
EXPS69-59-〇 □ 69 59 Can be specified from 40 to 500mm by 1mm intervals 47 44.6 D dimension－14mm PDF DXF DWG
EXPS89-39-〇 □ 89 39 Can be specified from 40 to 500mm by 1mm intervals 67 24.6 D dimension－14mm PDF DXF DWG
EXPS89-49-〇 □ 89 49 Can be specified from 40 to 500mm by 1mm intervals 67 34.6 D dimension－14mm PDF DXF DWG
EXPS89-64-〇 □ 89 64 Can be specified from 40 to 500mm by 1mm intervals 67 49.6 D dimension－14mm PDF DXF DWG
EXPS116-41-〇 □ 116 41 Can be specified from 40 to 500mm by 1mm intervals 89 24 D dimension－16mm PDF DXF DWG
EXPS116-56-〇 □ 116 56 Can be specified from 40 to 500mm by 1mm intervals 89 39 D dimension－16mm PDF DXF DWG
EXPS116-71-〇 □ 116 71 Can be specified from 40 to 500mm by 1mm intervals 89 54 D dimension－16mm PDF DXF DWG
EXPS151-46-〇 □ 151 46 Can be specified from 40 to 500mm by 1mm intervals 107 29 D dimension－17mm PDF DXF DWG
EXPS151-61-〇 □ 151 61 Can be specified from 40 to 500mm by 1mm intervals 107 44 D dimension－17mm PDF DXF DWG
EXPS151-81-〇 □ 151 81 Can be specified from 40 to 500mm by 1mm intervals 107 64 D dimension－17mm PDF DXF DWG
EXPS151-101-〇 □ 151 101 Can be specified from 40 to 500mm by 1mm intervals 107 84 D dimension－17mm PDF DXF DWG
EXPS199-56-〇 □ 199 56 Can be specified from 40 to 500mm by 1mm intervals 132 35 D dimension－20mm PDF DXF DWG
EXPS199-74-〇 □ 199 74 Can be specified from 40 to 500mm by 1mm intervals 132 53 D dimension－20mm PDF DXF DWG
EXPS199-94-〇 □ 199 94 Can be specified from 40 to 500mm by 1mm intervals 132 73 D dimension－20mm PDF DXF DWG
EXPS199-119-〇 □ 199 119 Can be specified from 40 to 500mm by 1mm intervals 132 98 D dimension－20mm PDF DXF DWG
EXPS244-64-〇 □ 244 64 Can be specified from 40 to 500mm by 1mm intervals 177 43 D dimension－23mm PDF DXF DWG
EXPS244-89-〇 □ 244 89 Can be specified from 40 to 500mm by 1mm intervals 177 68 D dimension－23mm PDF DXF DWG
EXPS244-114-〇 □ 244 114 Can be specified from 40 to 500mm by 1mm intervals 177 93 D dimension－23mm PDF DXF DWG
EXPS300-90-〇 □ 300 90 Can be specified from 40 to 500mm by 1mm intervals 230 66 D dimension－22mm PDF DXF DWG
EXPS300-140-〇 □ 300 140 Can be specified from 40 to 500mm by 1mm intervals 230 116 D dimension－22mm PDF DXF DWG
