CUSTOM SIZED ALUMINIUM BOX WITH HINGED DOOR - FCWS series

FCWS Series -PDF

CATEGORY：Enclosure with hinged door, Hinged aluminium box, Control panel box, Aluminium cabinet

CUSTOM SIZED ALUMINIUM BOX WITH HINGED DOOR - FCWS series

CUSTOM SIZED ALUMINIUM BOX WITH HINGED DOOR - FCWS series1

CUSTOM SIZED ALUMINIUM BOX WITH HINGED DOOR - FCWS series2

CUSTOM SIZED ALUMINIUM BOX WITH HINGED DOOR - FCWS series3

CUSTOM SIZED ALUMINIUM BOX WITH HINGED DOOR - FCWS series4

CUSTOM SIZED ALUMINIUM BOX WITH HINGED DOOR - FCWS series5

CUSTOM SIZED ALUMINIUM BOX WITH HINGED DOOR - FCWS series6

CUSTOM SIZED ALUMINIUM BOX WITH HINGED DOOR - FCWS series7

CUSTOM SIZED ALUMINIUM BOX WITH HINGED DOOR - FCWS series8

CUSTOM SIZED ALUMINIUM BOX WITH HINGED DOOR - FCWS series9

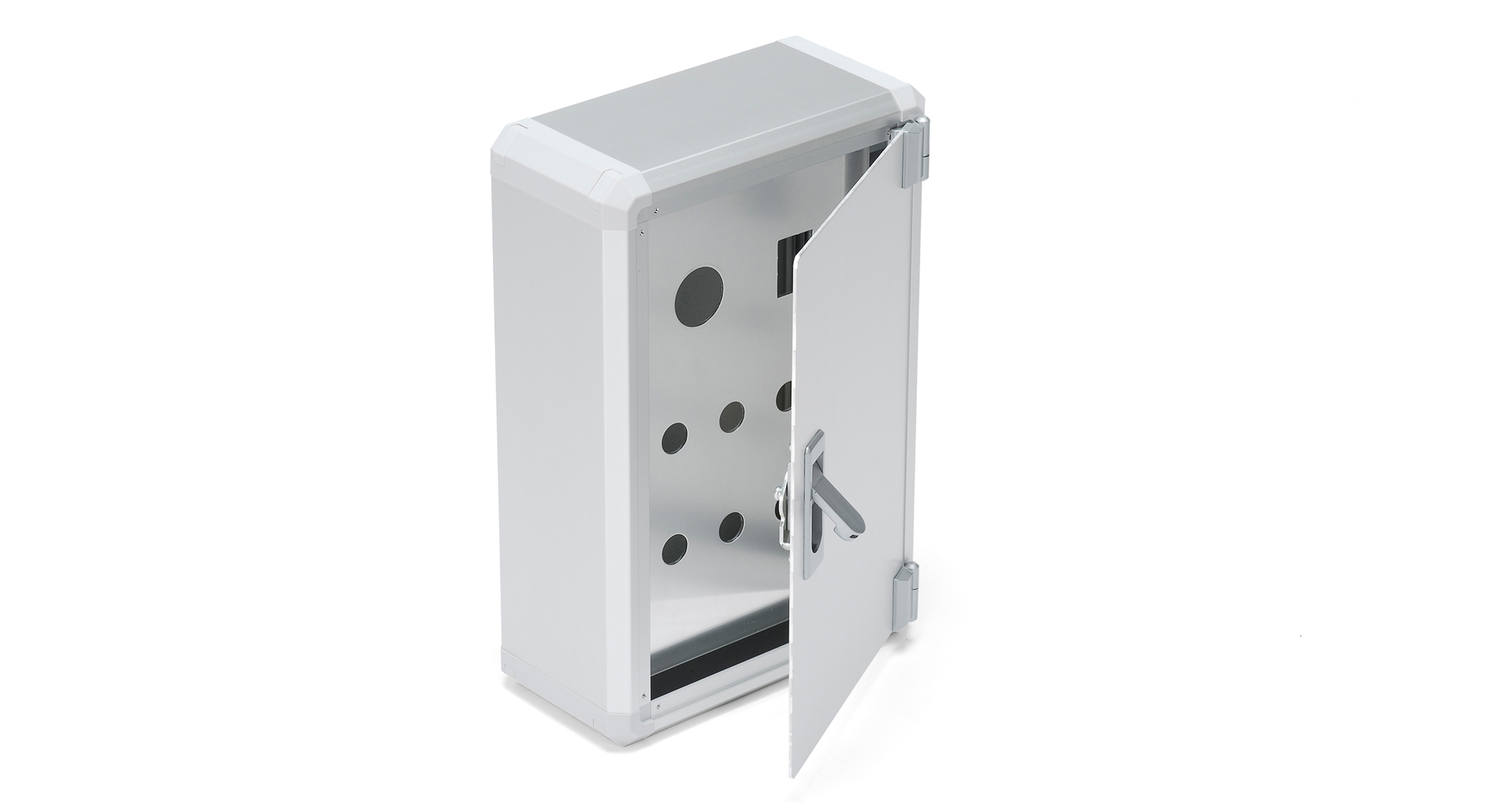

Easy access to the inside of the case with open/closing cover in custom width / length.

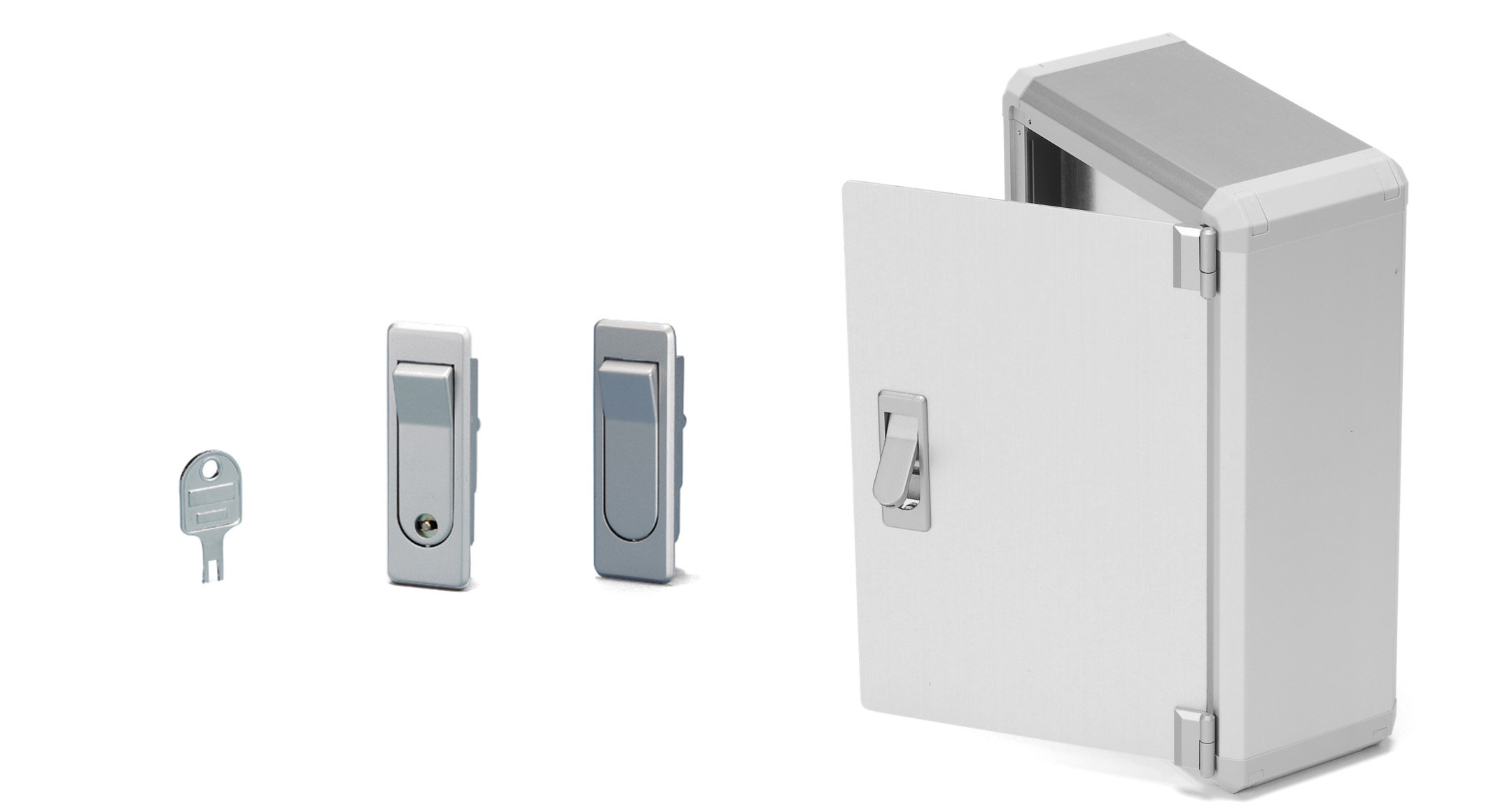

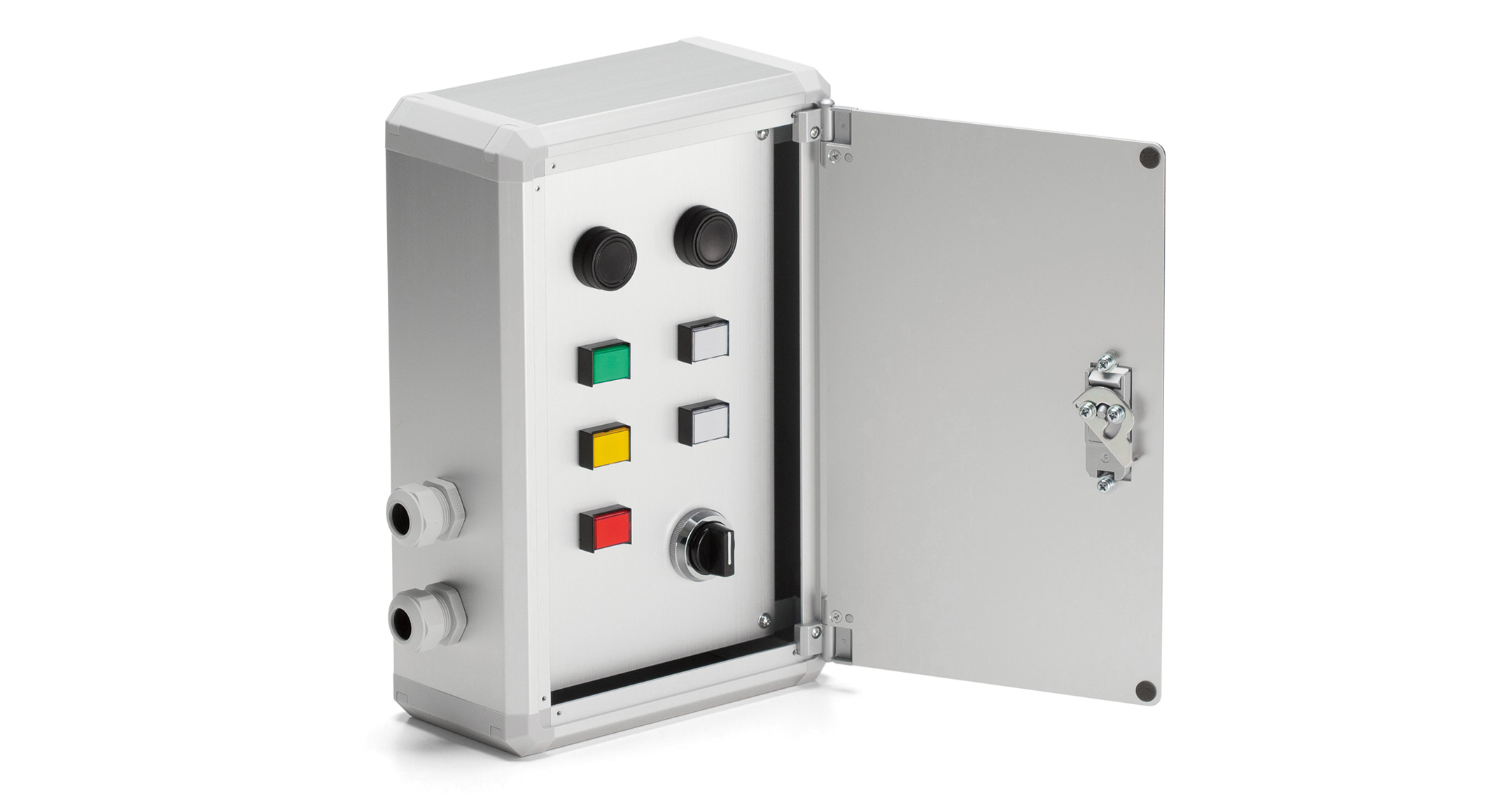

Both with and without key lock types are available. Suitable for touch panel display, industrial control equipment and many others.
Aluminium utility box stylishly designed with the beveled edges, composed of extruded aluminium frames, aluminium panels and ABS corner joints.

Corner block material: ABS UL94HB (UL94HB)
Corner block color: Black / similar to Munsell N1・Light gray / similar to Munsell N7.5

Blind plug material: TPE
Blind plug color: Black / similar to Munsell N1・Light gray / similar to Munsell N7.5

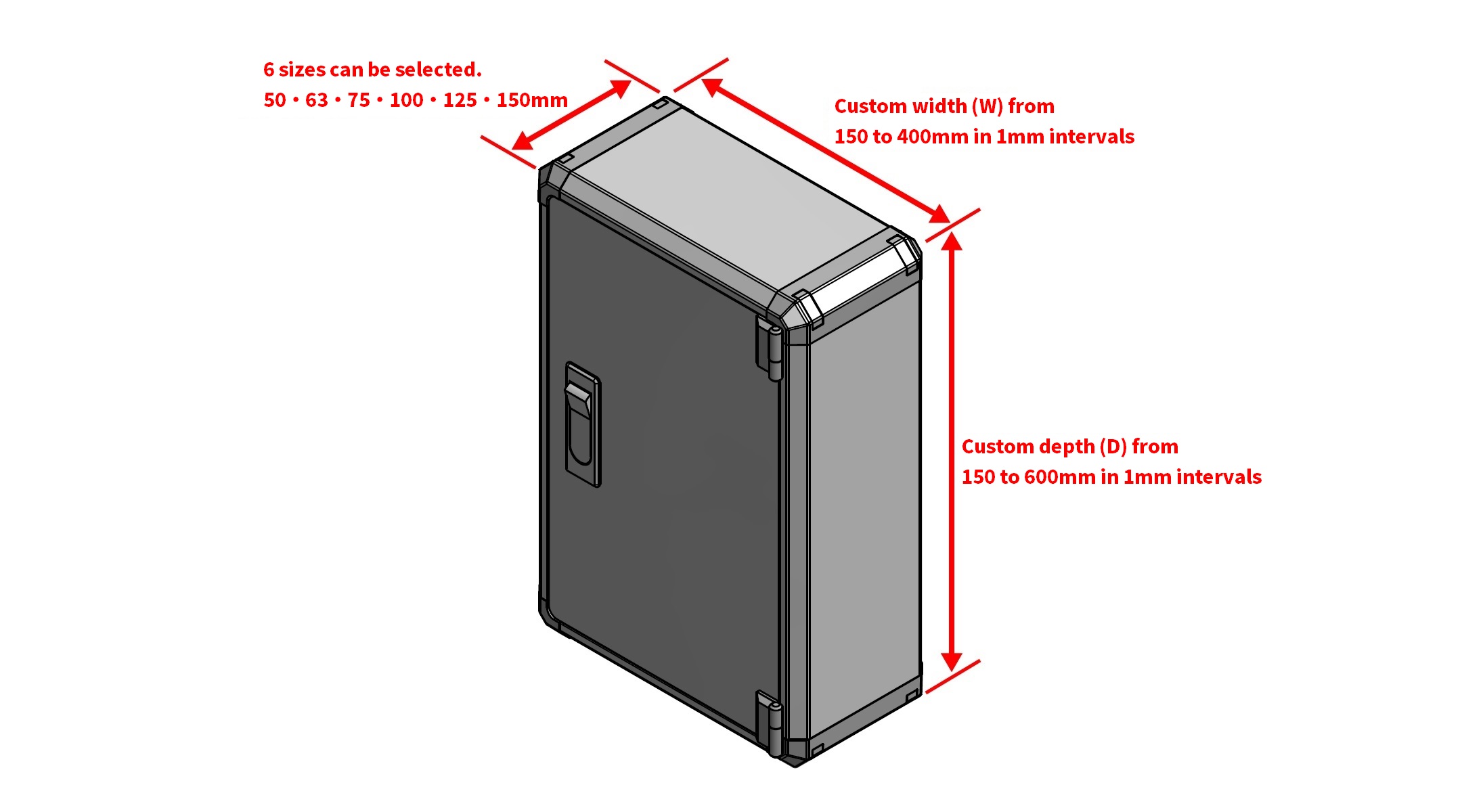

Custom Width from 150 to 400mm and custom Depth from 150mm to 600mm in 1mm intervals and choice of Height from 6 available heights.
2 different color combinations and both with and without key lock types can be specified.

3D View Exploded view

COLOR TYPE

GSSilver/Gray

CUSTOM SIZED ALUMINIUM BOX WITH HINGED DOOR - FCWS series:Silver/Gray

BSSilver/Black

CUSTOM SIZED ALUMINIUM BOX WITH HINGED DOOR - FCWS series:Silver/Black

PRODUCT NO. / DIMENSIONS

Product No.	External dimensions			Flat handle type	PDF	DXF	DWG
Product No.	W	D	H	Flat handle type	PDF	DXF	DWG
FCWS□-□-50N□□ ・ W150-400mm, D150-499mm	150～400	150～499	50	Normal type	PDF	DXF	DWG
FCWS□-□-50N□□ ・ W150-400mm, D500-600mm	150～400	500～600	50	Normal type	PDF	DXF	DWG
FCWS□-□-63N□□ ・ W150-400mm, D150-499mm	150～400	150～499	63	Normal type	PDF	DXF	DWG
FCWS□-□-63N□□ ・ W150-400mm, D500-600mm	150～400	500～600	63	Normal type	PDF	DXF	DWG
FCWS□-□-75N□□ ・ W150-400mm, D150-499mm	150～400	150～499	75	Normal type	PDF	DXF	DWG
FCWS□-□-75N□□ ・ W150-400mm, D500-600mm	150～400	500～600	75	Normal type	PDF	DXF	DWG
FCWS□-□-100N□□ ・ W150-400mm, D150-499mm	150～400	150～499	100	Normal type	PDF	DXF	DWG
FCWS□-□-100N□□ ・ W150-400mm, D500-600mm	150～400	500～600	100	Normal type	PDF	DXF	DWG
FCWS□-□-125N□□ ・ W150-400mm, D150-499mm	150～400	150～499	125	Normal type	PDF	DXF	DWG
FCWS□-□-125N□□ ・ W150-400mm, D500-600mm	150～400	500～600	125	Normal type	PDF	DXF	DWG
FCWS□-□-150N□□ ・ W150-400mm, D150-499mm	150～400	150～499	150	Normal type	PDF	DXF	DWG
FCWS□-□-150N□□ ・ W150-400mm, D500-600mm	150～400	500～600	150	Normal type	PDF	DXF	DWG
FCWS□-□-50K□□ ・ W150-400mm, D150-499mm	150～400	150～499	50	Key lock type	PDF	DXF	DWG
FCWS□-□-50K□□ ・ W150-400mm, D500-600mm	150～400	500～600	50	Key lock type	PDF	DXF	DWG
FCWS□-□-63K□□ ・ W150-400mm, D150-499mm	150～400	150～499	63	Key lock type	PDF	DXF	DWG
FCWS□-□-63K□□ ・ W150-400mm, D500-600mm	150～400	500～600	63	Key lock type	PDF	DXF	DWG
FCWS□-□-75K□□ ・ W150-400mm, D150-499mm	150～400	150～499	75	Key lock type	PDF	DXF	DWG
FCWS□-□-75K□□ ・ W150-400mm, D500-600mm	150～400	500～600	75	Key lock type	PDF	DXF	DWG
FCWS□-□-100K□□ ・ W150-400mm, D150-499mm	150～400	150～499	100	Key lock type	PDF	DXF	DWG
FCWS□-□-100K□□ ・ W150-400mm, D500-600mm	150～400	500～600	100	Key lock type	PDF	DXF	DWG
FCWS□-□-125K□□ ・ W150-400mm, D150-499mm	150～400	150～499	125	Key lock type	PDF	DXF	DWG
FCWS□-□-125K□□ ・ W150-400mm, D500-600mm	150～400	500～600	125	Key lock type	PDF	DXF	DWG
FCWS□-□-150K□□ ・ W150-400mm, D150-499mm	150～400	150～499	150	Key lock type	PDF	DXF	DWG
FCWS□-□-150K□□ ・ W150-400mm, D500-600mm	150～400	500～600	150	Key lock type	PDF	DXF	DWG
