ALUMINIUM PROFILE ENCLOSURE - CUSTOM LENGTH - KCF series


KCF Series -PDF

CATEGORY:Extruded aluminum enclosure, Aluminium profile enclosure, Anodized enclosure, Aluminum project box, Flanged aluminum box

ALUMINIUM PROFILE ENCLOSURE - CUSTOM LENGTH - KCF series
ALUMINIUM PROFILE ENCLOSURE - CUSTOM LENGTH - KCF series
ALUMINIUM PROFILE ENCLOSURE - CUSTOM LENGTH - KCF series
ALUMINIUM PROFILE ENCLOSURE - CUSTOM LENGTH - KCF series
ALUMINIUM PROFILE ENCLOSURE - CUSTOM LENGTH - KCF series
ALUMINIUM PROFILE ENCLOSURE - CUSTOM LENGTH - KCF series1
ALUMINIUM PROFILE ENCLOSURE - CUSTOM LENGTH - KCF series2
ALUMINIUM PROFILE ENCLOSURE - CUSTOM LENGTH - KCF series3
ALUMINIUM PROFILE ENCLOSURE - CUSTOM LENGTH - KCF series4
ALUMINIUM PROFILE ENCLOSURE - CUSTOM LENGTH - KCF series5

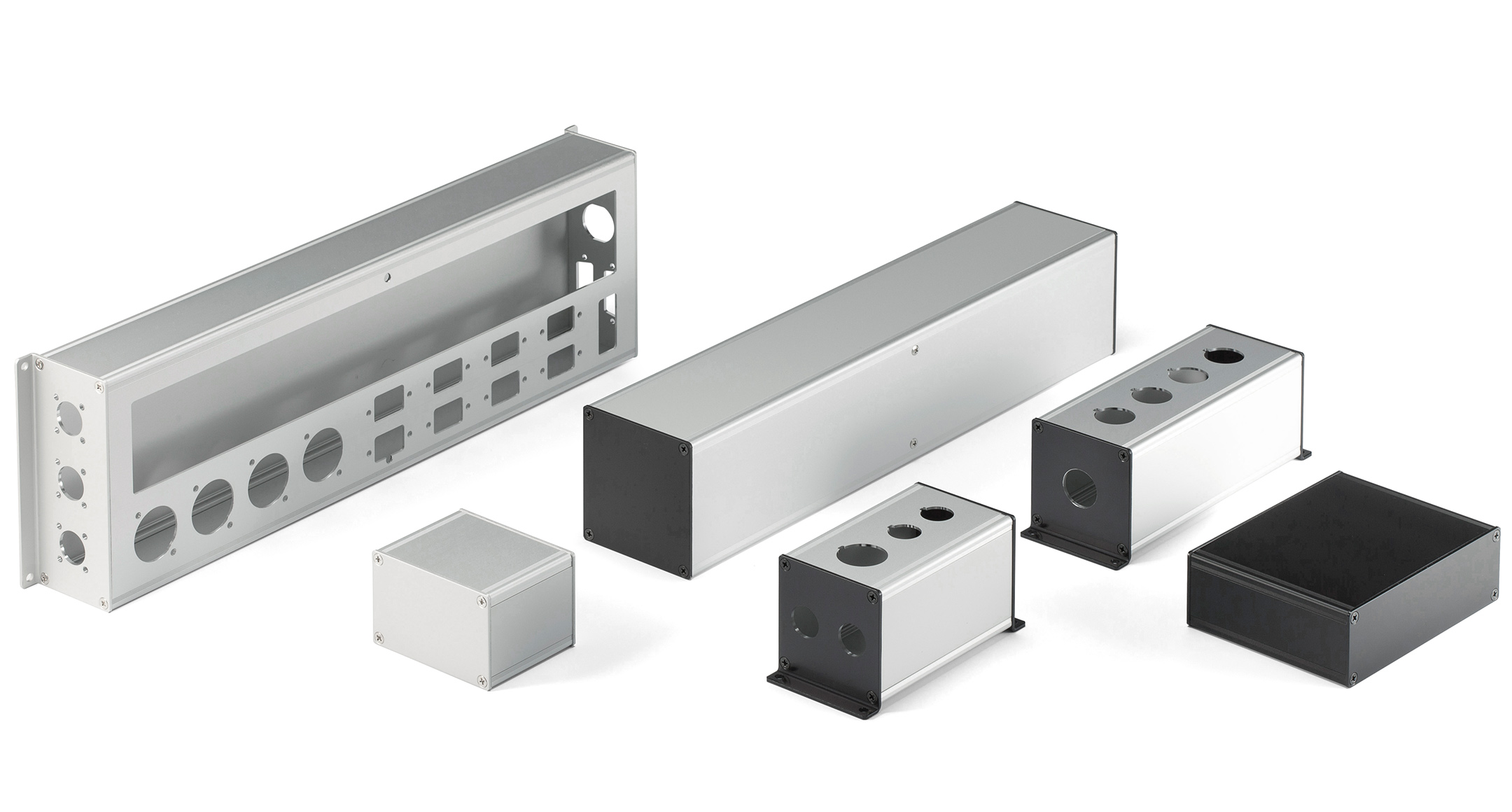

Custom length small aluminium profile enclosure.
Selectable 42 different width/height profiles and specified length from 30 to 1,000mm by 1mm intervals.

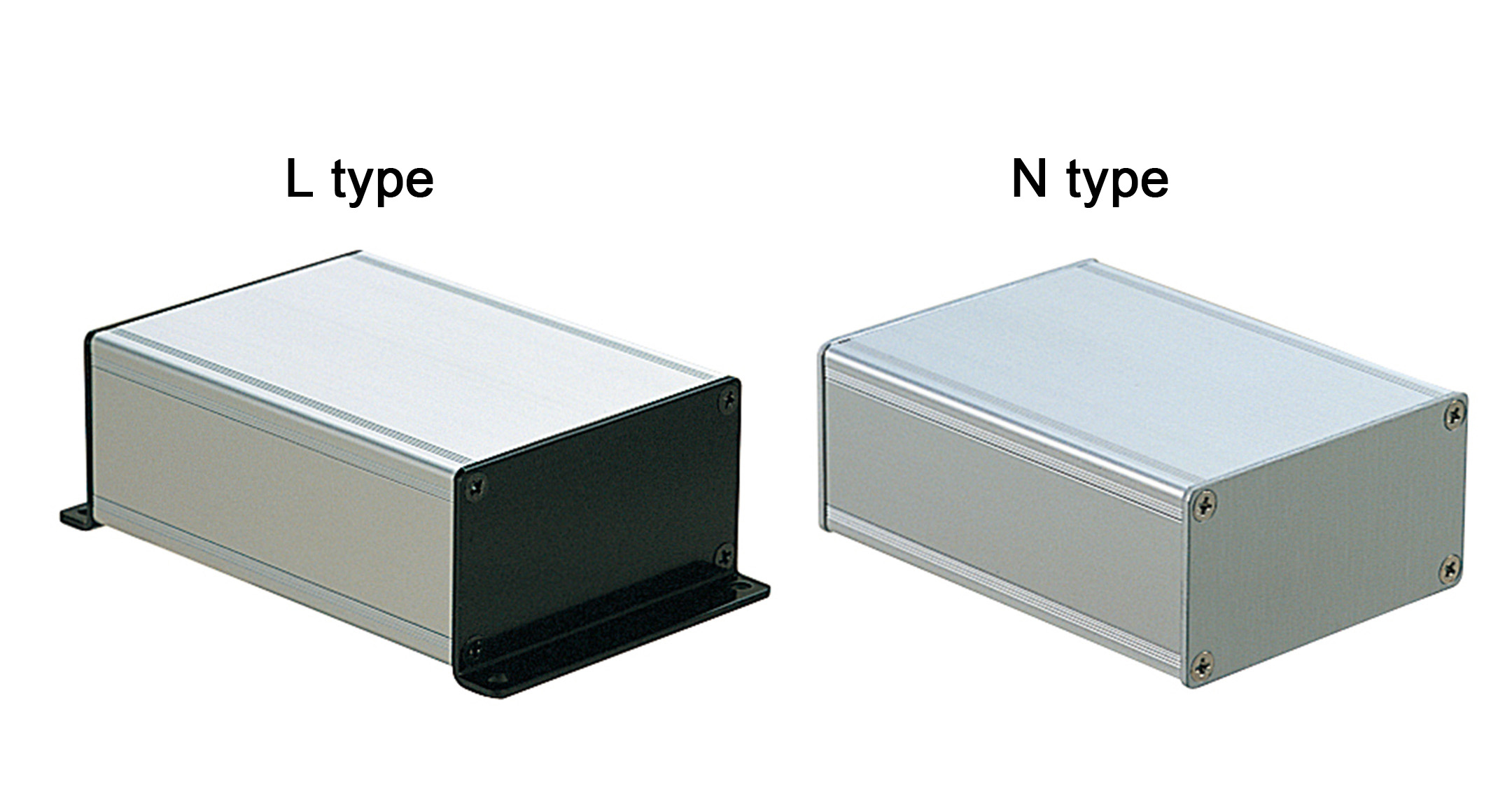

Flat panel type and flanged type in 4 color types are available.

COLOR TYPE

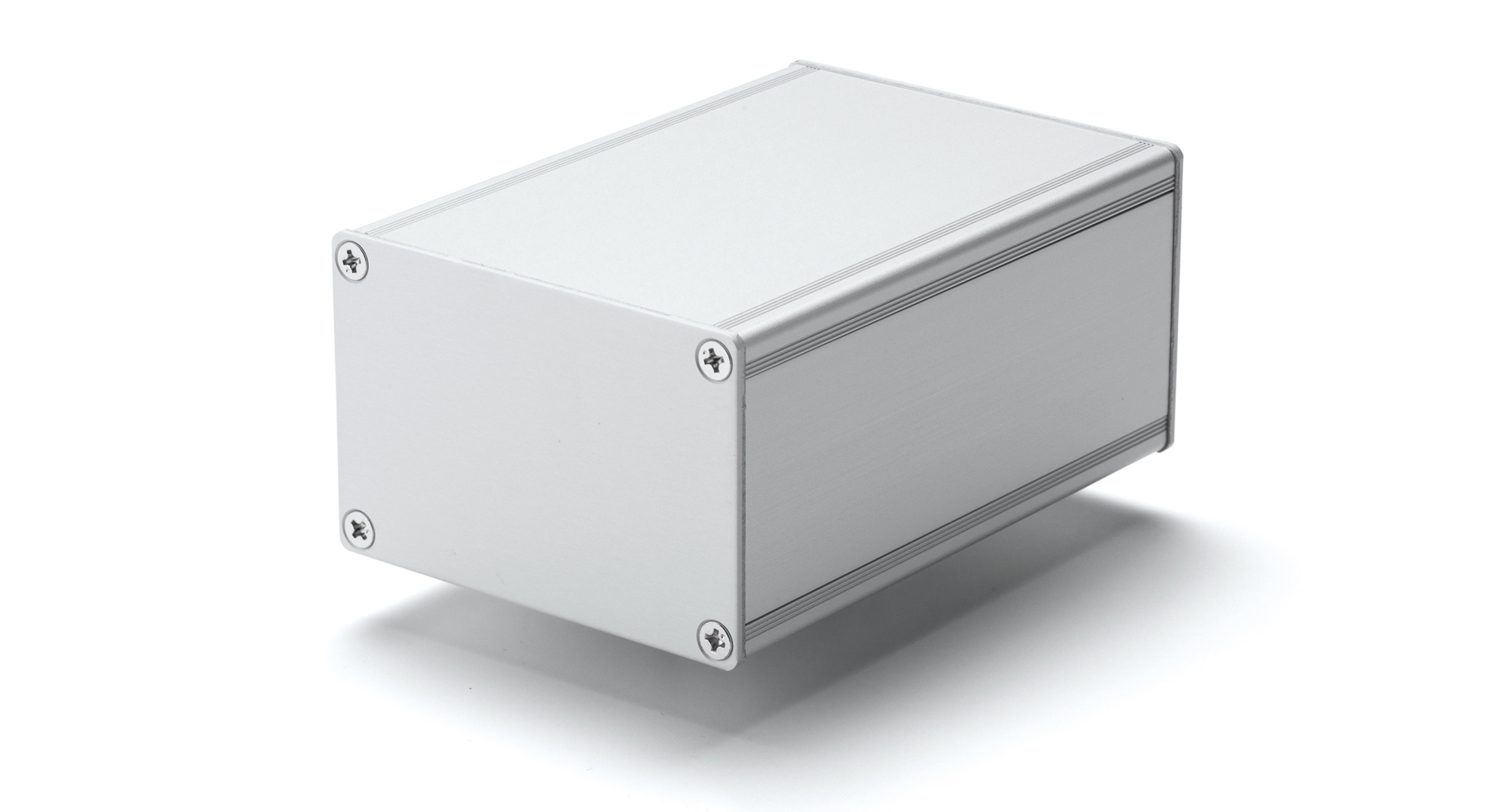

SSSilver/Silver

ALUMINIUM PROFILE ENCLOSURE - CUSTOM LENGTH - KCF series:Silver/Silver

SBSilver/Black

ALUMINIUM PROFILE ENCLOSURE - CUSTOM LENGTH - KCF series:Silver/Black

BSBlack/Silver

ALUMINIUM PROFILE ENCLOSURE - CUSTOM LENGTH - KCF series:Black/Silver

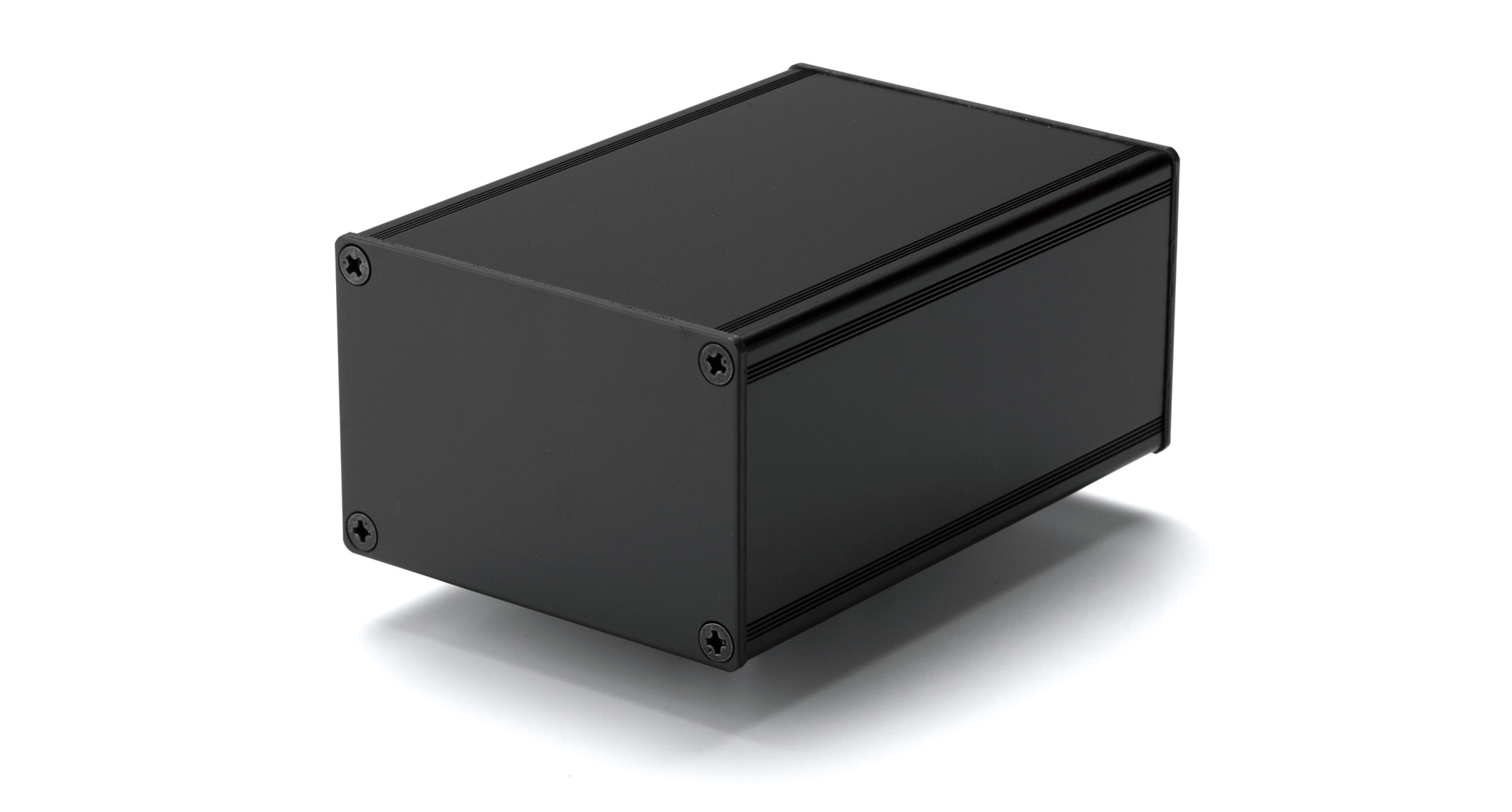

BBBlack/Black

ALUMINIUM PROFILE ENCLOSURE - CUSTOM LENGTH - KCF series:Black/Black
ALUMINIUM PROFILE ENCLOSURE - CUSTOM LENGTH - KCF series:Silver/Silver
ALUMINIUM PROFILE ENCLOSURE - CUSTOM LENGTH - KCF series:Silver/Black
ALUMINIUM PROFILE ENCLOSURE - CUSTOM LENGTH - KCF series:Black/Silver
ALUMINIUM PROFILE ENCLOSURE - CUSTOM LENGTH - KCF series:Black/Black

PRODUCT NO. / DIMENSIONS

Product No. External dimensions Internal dimensions End panel PDF DXF DWG
W H D w h d
KCF20-30-〇N□ 20 30 Can be specified from 30 to 1000mm by 1mm intervals 7.8 16.7 D dimension - 4mm Flat PDF DXF DWG
KCF20-40-〇N□ 20 40 Can be specified from 30 to 1000mm by 1mm intervals 7.8 26.7 D dimension - 4mm Flat PDF DXF DWG
KCF20-50-〇N□ 20 50 Can be specified from 30 to 1000mm by 1mm intervals 7.8 36.7 D dimension - 4mm Flat PDF DXF DWG
KCF20-60-〇N□ 20 60 Can be specified from 30 to 1000mm by 1mm intervals 7.8 46.7 D dimension - 4mm Flat PDF DXF DWG
KCF20-70-〇N□ 20 70 Can be specified from 30 to 1000mm by 1mm intervals 7.8 56.7 D dimension - 4mm Flat PDF DXF DWG
KCF20-90-〇N□ 20 90 Can be specified from 30 to 1000mm by 1mm intervals 7.8 76.7 D dimension - 4mm Flat PDF DXF DWG
KCF50-30-〇N□ 50 30 Can be specified from 30 to 1000mm by 1mm intervals 16.7 16.7 D dimension - 4mm Flat PDF DXF DWG
KCF50-40-〇N□ 50 40 Can be specified from 30 to 1000mm by 1mm intervals 16.7 26.7 D dimension - 4mm Flat PDF DXF DWG
KCF50-50-〇N□ 50 50 Can be specified from 30 to 1000mm by 1mm intervals 16.7 36.7 D dimension - 4mm Flat PDF DXF DWG
KCF50-60-〇N□ 50 60 Can be specified from 30 to 1000mm by 1mm intervals 16.7 46.7 D dimension - 4mm Flat PDF DXF DWG
KCF50-70-〇N□ 50 70 Can be specified from 30 to 1000mm by 1mm intervals 16.7 56.7 D dimension - 4mm Flat PDF DXF DWG
KCF50-90-〇N□ 50 90 Can be specified from 30 to 1000mm by 1mm intervals 16.7 76.7 D dimension - 4mm Flat PDF DXF DWG
KCF60-30-〇N□ 60 30 Can be specified from 30 to 1000mm by 1mm intervals 36.7 16.7 D dimension - 4mm Flat PDF DXF DWG
KCF60-40-〇N□ 60 40 Can be specified from 30 to 1000mm by 1mm intervals 36.7 26.7 D dimension - 4mm Flat PDF DXF DWG
KCF60-50-〇N□ 60 50 Can be specified from 30 to 1000mm by 1mm intervals 36.7 36.7 D dimension - 4mm Flat PDF DXF DWG
KCF60-60-〇N□ 60 60 Can be specified from 30 to 1000mm by 1mm intervals 36.7 46.7 D dimension - 4mm Flat PDF DXF DWG
KCF60-70-〇N□ 60 70 Can be specified from 30 to 1000mm by 1mm intervals 36.7 56.7 D dimension - 4mm Flat PDF DXF DWG
KCF60-90-〇N□ 60 90 Can be specified from 30 to 1000mm by 1mm intervals 36.7 76.7 D dimension - 4mm Flat PDF DXF DWG
KCF75-30-〇N□ 75 30 Can be specified from 30 to 1000mm by 1mm intervals 61.7 16.7 D dimension - 4mm Flat PDF DXF DWG
KCF75-40-〇N□ 75 40 Can be specified from 30 to 1000mm by 1mm intervals 61.7 26.7 D dimension - 4mm Flat PDF DXF DWG
KCF75-50-〇N□ 75 50 Can be specified from 30 to 1000mm by 1mm intervals 61.7 36.7 D dimension - 4mm Flat PDF DXF DWG
KCF75-60-〇N□ 75 60 Can be specified from 30 to 1000mm by 1mm intervals 61.7 46.7 D dimension - 4mm Flat PDF DXF DWG
KCF75-70-〇N□ 75 70 Can be specified from 30 to 1000mm by 1mm intervals 61.7 56.7 D dimension - 4mm Flat PDF DXF DWG
KCF75-90-〇N□ 75 90 Can be specified from 30 to 1000mm by 1mm intervals 61.7 76.7 D dimension - 4mm Flat PDF DXF DWG
KCF100-30-〇N□ 100 30 Can be specified from 30 to 1000mm by 1mm intervals 86.7 16.7 D dimension - 4mm Flat PDF DXF DWG
KCF100-40-〇N□ 100 40 Can be specified from 30 to 1000mm by 1mm intervals 86.7 26.7 D dimension - 4mm Flat PDF DXF DWG
KCF100-50-〇N□ 100 50 Can be specified from 30 to 1000mm by 1mm intervals 86.7 36.7 D dimension - 4mm Flat PDF DXF DWG
KCF100-60-〇N□ 100 60 Can be specified from 30 to 1000mm by 1mm intervals 86.7 46.7 D dimension - 4mm Flat PDF DXF DWG
KCF100-70-〇N□ 100 70 Can be specified from 30 to 1000mm by 1mm intervals 86.7 56.7 D dimension - 4mm Flat PDF DXF DWG
KCF100-90-〇N□ 100 90 Can be specified from 30 to 1000mm by 1mm intervals 86.7 76.7 D dimension - 4mm Flat PDF DXF DWG
KCF125-30-〇N□ 125 30 Can be specified from 30 to 1000mm by 1mm intervals 111.7 16.7 D dimension - 4mm Flat PDF DXF DWG
KCF125-40-〇N□ 125 40 Can be specified from 30 to 1000mm by 1mm intervals 111.7 26.7 D dimension - 4mm Flat PDF DXF DWG
KCF125-50-〇N□ 125 50 Can be specified from 30 to 1000mm by 1mm intervals 111.7 36.7 D dimension - 4mm Flat PDF DXF DWG
KCF125-60-〇N□ 125 60 Can be specified from 30 to 1000mm by 1mm intervals 111.7 46.7 D dimension - 4mm Flat PDF DXF DWG
KCF125-70-〇N□ 125 70 Can be specified from 30 to 1000mm by 1mm intervals 111.7 56.7 D dimension - 4mm Flat PDF DXF DWG
KCF125-90-〇N□ 125 90 Can be specified from 30 to 1000mm by 1mm intervals 111.7 76.7 D dimension - 4mm Flat PDF DXF DWG
KCF150-30-〇N□ 150 30 Can be specified from 30 to 1000mm by 1mm intervals 136.7 16.7 D dimension - 4mm Flat PDF DXF DWG
KCF150-40-〇N□ 150 40 Can be specified from 30 to 1000mm by 1mm intervals 136.7 26.7 D dimension - 4mm Flat PDF DXF DWG
KCF150-50-〇N□ 150 50 Can be specified from 30 to 1000mm by 1mm intervals 136.7 36.7 D dimension - 4mm Flat PDF DXF DWG
KCF150-60-〇N□ 150 60 Can be specified from 30 to 1000mm by 1mm intervals 136.7 46.7 D dimension - 4mm Flat PDF DXF DWG
KCF150-70-〇N□ 150 70 Can be specified from 30 to 1000mm by 1mm intervals 136.7 56.7 D dimension - 4mm Flat PDF DXF DWG
KCF150-90-〇N□ 150 90 Can be specified from 30 to 1000mm by 1mm intervals 136.7 76.7 D dimension - 4mm Flat PDF DXF DWG
KCF20-30-〇L□ 20 30 Can be specified from 30 to 1000mm by 1mm intervals 7.8 16.7 D dimension - 4mm Flanged PDF DXF DWG
KCF20-40-〇L□ 20 40 Can be specified from 30 to 1000mm by 1mm intervals 7.8 26.7 D dimension - 4mm Flanged PDF DXF DWG
KCF20-50-〇L□ 20 50 Can be specified from 30 to 1000mm by 1mm intervals 7.8 36.7 D dimension - 4mm Flanged PDF DXF DWG
KCF20-60-〇L□ 20 60 Can be specified from 30 to 1000mm by 1mm intervals 7.8 46.7 D dimension - 4mm Flanged PDF DXF DWG
KCF20-70-〇L□ 20 70 Can be specified from 30 to 1000mm by 1mm intervals 7.8 56.7 D dimension - 4mm Flanged PDF DXF DWG
KCF20-90-〇L□ 20 90 Can be specified from 30 to 1000mm by 1mm intervals 7.8 76.7 D dimension - 4mm Flanged PDF DXF DWG
KCF50-30-〇L□ 50 30 Can be specified from 30 to 1000mm by 1mm intervals 16.7 16.7 D dimension - 4mm Flanged PDF DXF DWG
KCF50-40-〇L□ 50 40 Can be specified from 30 to 1000mm by 1mm intervals 16.7 26.7 D dimension - 4mm Flanged PDF DXF DWG
KCF50-50-〇L□ 50 50 Can be specified from 30 to 1000mm by 1mm intervals 16.7 36.7 D dimension - 4mm Flanged PDF DXF DWG
KCF50-60-〇L□ 50 60 Can be specified from 30 to 1000mm by 1mm intervals 16.7 46.7 D dimension - 4mm Flanged PDF DXF DWG
KCF50-70-〇L□ 50 70 Can be specified from 30 to 1000mm by 1mm intervals 16.7 56.7 D dimension - 4mm Flanged PDF DXF DWG
KCF50-90-〇L□ 50 90 Can be specified from 30 to 1000mm by 1mm intervals 16.7 76.7 D dimension - 4mm Flanged PDF DXF DWG
KCF60-30-〇L□ 60 30 Can be specified from 30 to 1000mm by 1mm intervals 36.7 16.7 D dimension - 4mm Flanged PDF DXF DWG
KCF60-40-〇L□ 60 40 Can be specified from 30 to 1000mm by 1mm intervals 36.7 26.7 D dimension - 4mm Flanged PDF DXF DWG
KCF60-50-〇L□ 60 50 Can be specified from 30 to 1000mm by 1mm intervals 36.7 36.7 D dimension - 4mm Flanged PDF DXF DWG
KCF60-60-〇L□ 60 60 Can be specified from 30 to 1000mm by 1mm intervals 36.7 46.7 D dimension - 4mm Flanged PDF DXF DWG
KCF60-70-〇L□ 60 70 Can be specified from 30 to 1000mm by 1mm intervals 36.7 56.7 D dimension - 4mm Flanged PDF DXF DWG
KCF60-90-〇L□ 60 90 Can be specified from 30 to 1000mm by 1mm intervals 36.7 76.7 D dimension - 4mm Flanged PDF DXF DWG
KCF75-30-〇L□ 75 30 Can be specified from 30 to 1000mm by 1mm intervals 61.7 16.7 D dimension - 4mm Flanged PDF DXF DWG
KCF75-40-〇L□ 75 40 Can be specified from 30 to 1000mm by 1mm intervals 61.7 26.7 D dimension - 4mm Flanged PDF DXF DWG
KCF75-50-〇L□ 75 50 Can be specified from 30 to 1000mm by 1mm intervals 61.7 36.7 D dimension - 4mm Flanged PDF DXF DWG
KCF75-60-〇L□ 75 60 Can be specified from 30 to 1000mm by 1mm intervals 61.7 46.7 D dimension - 4mm Flanged PDF DXF DWG
KCF75-70-〇L□ 75 70 Can be specified from 30 to 1000mm by 1mm intervals 61.7 56.7 D dimension - 4mm Flanged PDF DXF DWG
KCF75-90-〇L□ 75 90 Can be specified from 30 to 1000mm by 1mm intervals 61.7 76.7 D dimension - 4mm Flanged PDF DXF DWG
KCF100-30-〇L□ 100 30 Can be specified from 30 to 1000mm by 1mm intervals 86.7 16.7 D dimension - 4mm Flanged PDF DXF DWG
KCF100-40-〇L□ 100 40 Can be specified from 30 to 1000mm by 1mm intervals 86.7 26.7 D dimension - 4mm Flanged PDF DXF DWG
KCF100-50-〇L□ 100 50 Can be specified from 30 to 1000mm by 1mm intervals 86.7 36.7 D dimension - 4mm Flanged PDF DXF DWG
KCF100-60-〇L□ 100 60 Can be specified from 30 to 1000mm by 1mm intervals 86.7 46.7 D dimension - 4mm Flanged PDF DXF DWG
KCF100-70-〇L□ 100 70 Can be specified from 30 to 1000mm by 1mm intervals 86.7 56.7 D dimension - 4mm Flanged PDF DXF DWG
KCF100-90-〇L□ 100 90 Can be specified from 30 to 1000mm by 1mm intervals 86.7 76.7 D dimension - 4mm Flanged PDF DXF DWG
KCF125-30-〇L□ 125 30 Can be specified from 30 to 1000mm by 1mm intervals 111.7 16.7 D dimension - 4mm Flanged PDF DXF DWG
KCF125-40-〇L□ 125 40 Can be specified from 30 to 1000mm by 1mm intervals 111.7 26.7 D dimension - 4mm Flanged PDF DXF DWG
KCF125-50-〇L□ 125 50 Can be specified from 30 to 1000mm by 1mm intervals 111.7 36.7 D dimension - 4mm Flanged PDF DXF DWG
KCF125-60-〇L□ 125 60 Can be specified from 30 to 1000mm by 1mm intervals 111.7 46.7 D dimension - 4mm Flanged PDF DXF DWG
KCF125-70-〇L□ 125 70 Can be specified from 30 to 1000mm by 1mm intervals 111.7 56.7 D dimension - 4mm Flanged PDF DXF DWG
KCF125-90-〇L□ 125 90 Can be specified from 30 to 1000mm by 1mm intervals 111.7 76.7 D dimension - 4mm Flanged PDF DXF DWG
KCF150-30-〇L□ 150 30 Can be specified from 30 to 1000mm by 1mm intervals 136.7 16.7 D dimension - 4mm Flanged PDF DXF DWG
KCF150-40-〇L□ 150 40 Can be specified from 30 to 1000mm by 1mm intervals 136.7 26.7 D dimension - 4mm Flanged PDF DXF DWG
KCF150-50-〇L□ 150 50 Can be specified from 30 to 1000mm by 1mm intervals 136.7 36.7 D dimension - 4mm Flanged PDF DXF DWG
KCF150-60-〇L□ 150 60 Can be specified from 30 to 1000mm by 1mm intervals 136.7 46.7 D dimension - 4mm Flanged PDF DXF DWG
KCF150-70-〇L□ 150 70 Can be specified from 30 to 1000mm by 1mm intervals 136.7 56.7 D dimension - 4mm Flanged PDF DXF DWG
KCF150-90-〇L□ 150 90 Can be specified from 30 to 1000mm by 1mm intervals 136.7 76.7 D dimension - 4mm Flanged PDF DXF DWG

OPTIONAL PARTS

1
LOW COST ADHESIVE RUBBER FEET - B series
DETAILS
1
EMBEDDED BATTERY BOX - BC series
DETAILS
1
ADHESIVE STANDOFF - AST series
DETAILS
1
ADHESIVE PCB STANDOFF - ASR series
DETAILS
1
RUBBER STRAIN RELIEF CORD PROTECTOR CBS series
DETAILS
1
CUBE STANDOFF - CUBE series
DETAILS
1
LOW COST UNIVERSAL PCB
DETAILS

SIMILAR PRODUCT

1
CUSTOM SIZED EXTRUDED ALUMINUM ENCLOSURE - EXS series
DETAILS
1
CUSTOM SIZED ROUNDED EDGE ALUMINUM ENCLOSURE - MXAC series
DETAILS
1
CUSTOM SIZED ALUMINIUM CONTROL BOX - FCS series
DETAILS
1
CUSTOM SIZED FLANGED ALUMINUM ENCLOSURE - MBCF series
DETAILS
1
CUSTOM SIZED FLANGED ENCLOSURE - EXPFS series
DETAILS

CUSTOMIZATION VIDEO / PRODUCT INTRODUCTION VIDEO

Fiber laser cutting

DETAILS

CNC punch pressing

DETAILS

High speed CNC milling

DETAILS

Clinching standoff pressing

DETAILS

Digital inkjet printing

DETAILS
