RACK MOUNT METAL ENCLOSURE - MSR series

RACK MOUNT METAL ENCLOSURE - MSR series

MSR Series -PDF

CATEGORY：19” rack mount enclosure, 19 inch rack case, Rack mounting enclosure, Rack mount metal chassis

RACK MOUNT METAL ENCLOSURE - MSR series1

RACK MOUNT METAL ENCLOSURE - MSR series2

RACK MOUNT METAL ENCLOSURE - MSR series3

RACK MOUNT METAL ENCLOSURE - MSR series4

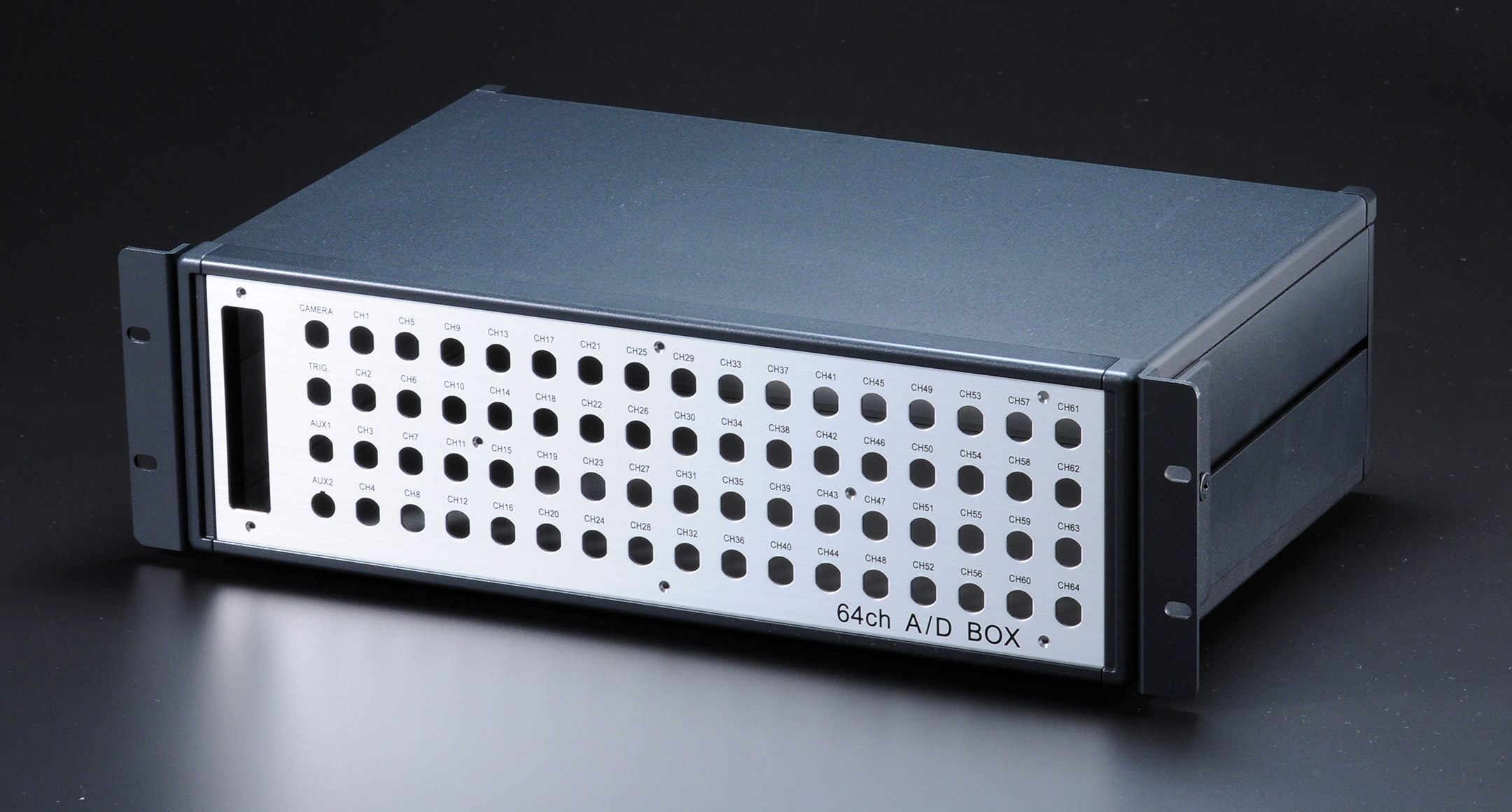

19” rack mount metal enclosure.
Screws are hidden out of view for a sophisticated and elegant look.

Available in 3 different colors and 28 different sizes for 2U, 3U, 4U, 5U, 2H, 3H, and 4H rack system.

3D View - Gray/Silver 3D View - Back/Silver Exploded View Color Change Notice Color code

COLOR TYPE

GSGray/Silver

RACK MOUNT METAL ENCLOSURE - MSR series:Gray/Silver

BSBlack/Silver

RACK MOUNT METAL ENCLOSURE - MSR series:Black/Silver

BBlack/Black

RACK MOUNT METAL ENCLOSURE - MSR series:Black/Black

PRODUCT NO. / DIMENSIONS

Product No.	External dimensions			Internal dimensions			Weight (g)	PDF	DXF	DWG	STP
Product No.	W	H	D	w	h	d	Weight (g)	PDF	DXF	DWG	STP
MSR88-43-23□	430	88	230	400	71.5	205	3100	PDF	DXF	DWG
MSR88-43-28□	430	88	280	400	71.5	255	3500	PDF	DXF	DWG
MSR88-43-35□	430	88	350	400	71.5	325	4200	PDF	DXF	DWG
MSR88-43-45□	430	88	450	400	71.5	425	5100	PDF	DXF	DWG
MSR133-43-23□	430	132.5	230	400	116	205	3600	PDF	DXF	DWG
MSR133-43-28□	430	132.5	280	400	116	255	4100	PDF	DXF	DWG
MSR133-43-35□	430	132.5	350	400	116	325	4800	PDF	DXF	DWG
MSR133-43-45□	430	132.5	450	400	116	425	5800	PDF	DXF	DWG
MSR177-43-23□	430	177	230	400	160.5	205	4300	PDF	DXF	DWG
MSR177-43-28□	430	177	280	400	160.5	255	4900	PDF	DXF	DWG
MSR177-43-35□	430	177	350	400	160.5	325	5700	PDF	DXF	DWG
MSR177-43-45□	430	177	450	400	160.5	425	6900	PDF	DXF	DWG
MSR222-43-23□	430	221.5	230	400	205	205	4700	PDF	DXF	DWG
MSR222-43-28□	430	221.5	280	400	205	255	5300	PDF	DXF	DWG
MSR222-43-35□	430	221.5	350	400	205	325	6200	PDF	DXF	DWG
MSR222-43-45□	430	221.5	450	400	205	425	7500	PDF	DXF	DWG
MSR99-43-23□	430	99	230	400	82.5	205	3100	PDF	DXF	DWG
MSR99-43-28□	430	99	280	400	82.5	255	3600	PDF	DXF	DWG
MSR99-43-35□	430	99	350	400	82.5	325	4200	PDF	DXF	DWG
MSR99-43-45□	430	99	450	400	82.5	425	5200	PDF	DXF	DWG
MSR149-43-23□	430	149	230	400	132.5	205	3600	PDF	DXF	DWG
MSR149-43-28□	430	149	280	400	132.5	255	4100	PDF	DXF	DWG
MSR149-43-35□	430	149	350	400	132.5	325	4900	PDF	DXF	DWG
MSR149-43-45□	430	149	450	400	132.5	425	5900	PDF	DXF	DWG
MSR199-43-23□	430	199	230	400	182.5	205	4500	PDF	DXF	DWG
MSR199-43-28□	430	199	280	400	182.5	255	5100	PDF	DXF	DWG
MSR199-43-35□	430	199	350	400	182.5	325	5900	PDF	DXF	DWG
MSR199-43-45□	430	199	450	400	182.5	425	7200	PDF	DXF	DWG

Mounting plate (Option)	PDF	DXF	DWG	STP
Mounting plate (Option)	PDF	DXF	DWG	STP
MSC43-23	PDF	DXF	DWG
MSC43-28	PDF	DXF	DWG
MSC43-35	PDF	DXF	DWG
MSC43-45	PDF	DXF	DWG
MSC43-23	PDF	DXF	DWG
MSC43-28	PDF	DXF	DWG
MSC43-35	PDF	DXF	DWG
MSC43-45	PDF	DXF	DWG
MSC43-23	PDF	DXF	DWG
MSC43-28	PDF	DXF	DWG
MSC43-35	PDF	DXF	DWG
MSC43-45	PDF	DXF	DWG
MSC43-23	PDF	DXF	DWG
MSC43-28	PDF	DXF	DWG
MSC43-35	PDF	DXF	DWG
MSC43-45	PDF	DXF	DWG
MSC43-23	PDF	DXF	DWG
MSC43-28	PDF	DXF	DWG
MSC43-35	PDF	DXF	DWG
MSC43-45	PDF	DXF	DWG
MSC43-23	PDF	DXF	DWG
MSC43-28	PDF	DXF	DWG
MSC43-35	PDF	DXF	DWG
MSC43-45	PDF	DXF	DWG
MSC43-23	PDF	DXF	DWG
MSC43-28	PDF	DXF	DWG
MSC43-35	PDF	DXF	DWG
MSC43-45	PDF	DXF	DWG
