CATEGORY：Low cost cable gland, IP67 cable gland, PG thread cable gland, Nylon cable gland, Cable clamp, CAPCON, Seal connector, Box connector
General-purpose cable gland with PG threads.
IP67 class waterproofing capabilities, yet affordable.
Lineup of PG7～PG29 thread size, compatible with φ3mm～φ25mm cable exterior diameter.
Rubber bush uses NBR rubber with high oil resistance.
Equipped with O-ring on the seating surface, realizing waterproofing to some extent on walls with a certain level of unevenness.
Sold in packs of 1 pc.

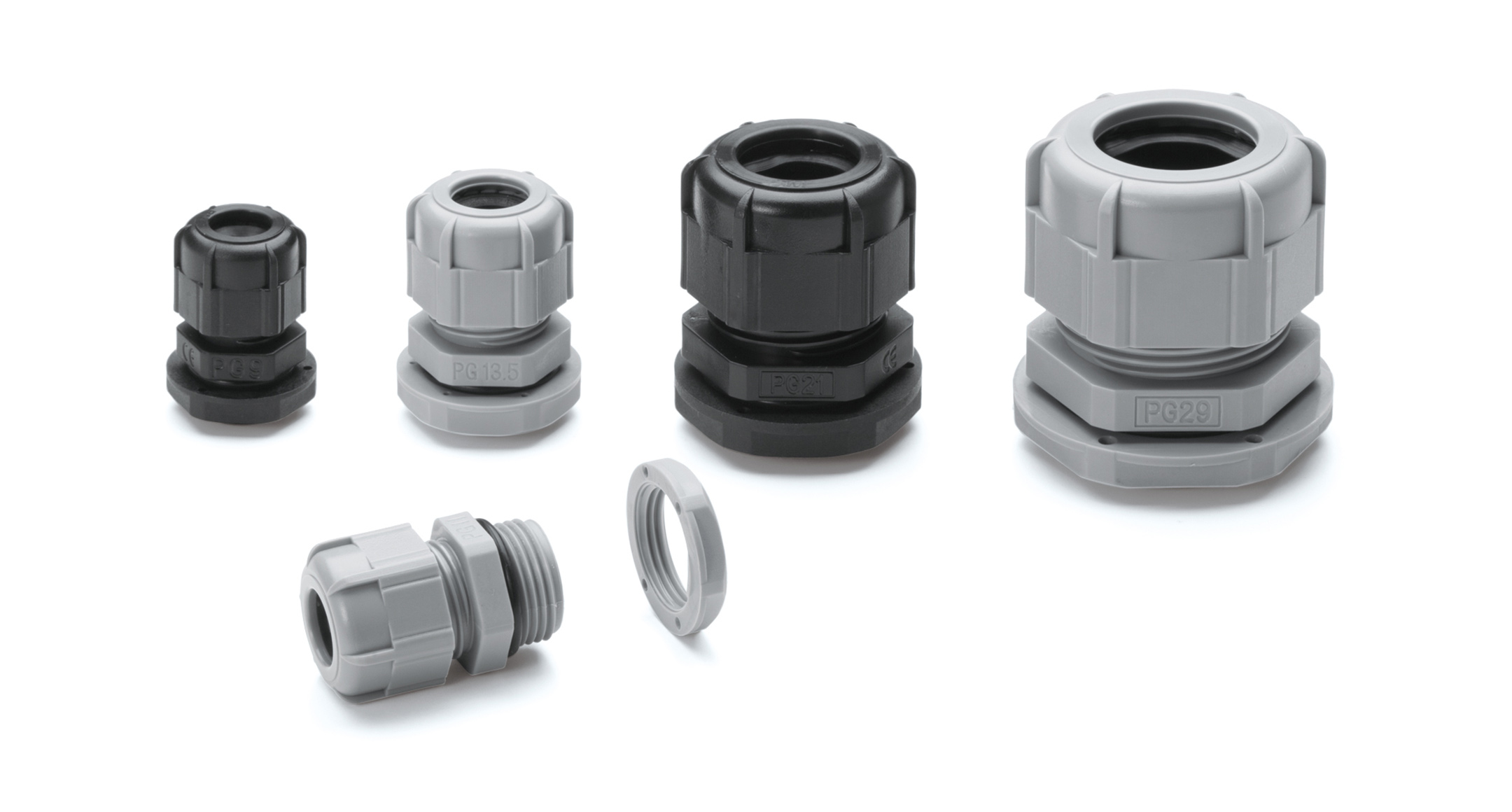

Lineup : Thread size PG7～PG29, Compatible cable diameter φ3.0mm～φ25mm; total 7 sizes

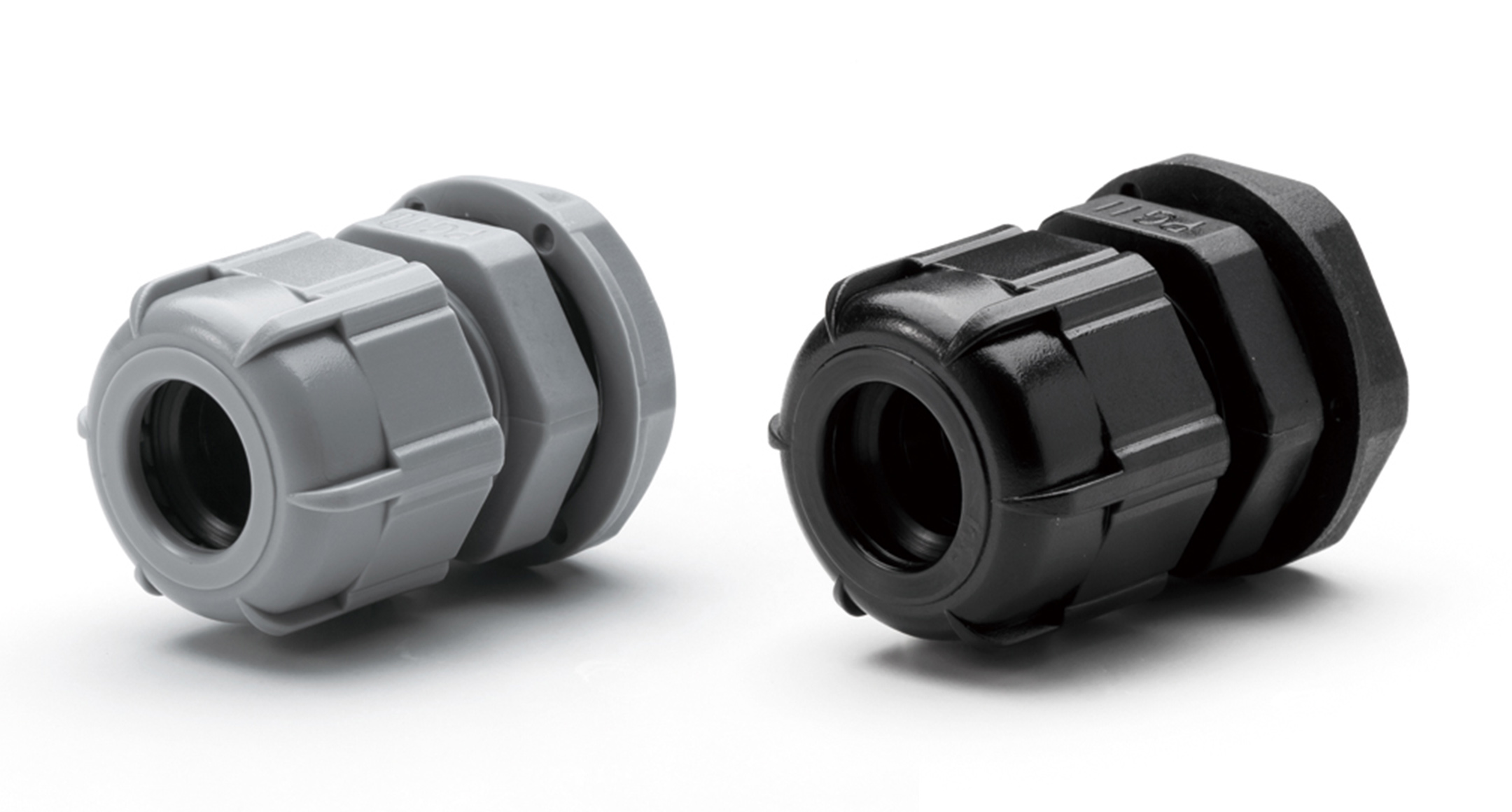

Colors : Gray and Black
Protection class : IP67 (1m depth for 30 mins)
Operating temperature : -20℃～＋80℃

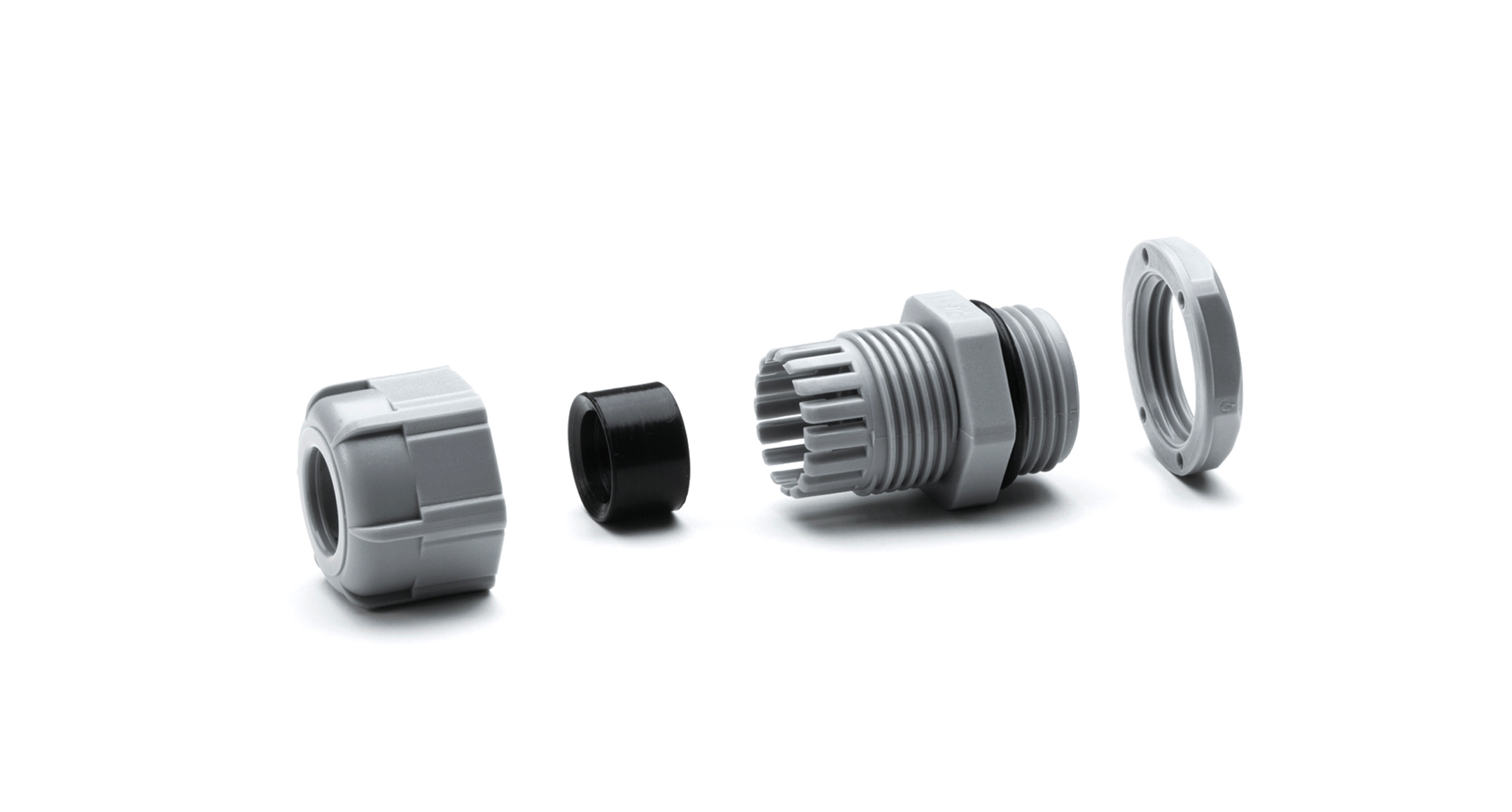

Materials : Cap / Connector / Nut = PA66 (UL94V-2), Rubber bush / O-ring = NBR
IP67 class waterproofing capabilities, yet affordable.
Lineup of PG7～PG29 thread size, compatible with φ3mm～φ25mm cable exterior diameter.
Rubber bush uses NBR rubber with high oil resistance.
Equipped with O-ring on the seating surface, realizing waterproofing to some extent on walls with a certain level of unevenness.
Sold in packs of 1 pc.
Lineup : Thread size PG7～PG29, Compatible cable diameter φ3.0mm～φ25mm; total 7 sizes
Colors : Gray and Black
Protection class : IP67 (1m depth for 30 mins)
Operating temperature : -20℃～＋80℃
Materials : Cap / Connector / Nut = PA66 (UL94V-2), Rubber bush / O-ring = NBR
PRODUCT NO. / DIMENSIONS
| Product No. | Thread size | Mounting hole | Suitable cable (mm) | Color / Similar matching | Weight (g) | Pack of | DXF | DWG | |
|---|---|---|---|---|---|---|---|---|---|
| RPG7-7B | PG7 | φ12.7 | 3～7 | Black / RAL9005 | 4.4 | 1 pc | DXF | DWG | |
| RPG7-7G | PG7 | φ12.7 | 3～7 | Gray / RAL7001 | 4.4 | 1 pc | DXF | DWG | |
| RPG9-8B | PG9 | φ15.4 | 4～8 | Black / RAL9006 | 6.9 | 1 pc | DXF | DWG | |
| RPG9-8G | PG9 | φ15.4 | 4～8 | Gray / RAL7002 | 6.9 | 1 pc | DXF | DWG | |
| RPG11-10B | PG11 | φ18.8 | 5～10 | Black / RAL9007 | 9 | 1 pc | DXF | DWG | |
| RPG11-10G | PG11 | φ18.8 | 5～10 | Gray / RAL7003 | 9 | 1 pc | DXF | DWG | |
| RPG13.5-11B | PG13.5 | φ20.6 | 6～11 | Black / RAL9008 | 11.1 | 1 pc | DXF | DWG | |
| RPG13.5-11G | PG13.5 | φ20.6 | 6～11 | Gray / RAL7004 | 11.1 | 1 pc | DXF | DWG | |
| RPG16-14B | PG16 | φ22.7 | 8～14 | Black / RAL9009 | 15.5 | 1 pc | DXF | DWG | |
| RPG16-14G | PG16 | φ22.7 | 8～14 | Gray / RAL7005 | 15.5 | 1 pc | DXF | DWG | |
| RPG21-18B | PG21 | φ28.5 | 13～18 | Black / RAL9010 | 25.1 | 1 pc | DXF | DWG | |
| RPG21-18G | PG21 | φ28.5 | 13～18 | Gray / RAL7006 | 25.1 | 1 pc | DXF | DWG | |
| RPG29-25B | PG29 | φ37.2 | 18～24 | Black / RAL9011 | 43.7 | 1 pc | DXF | DWG | |
| RPG29-25G | PG29 | φ37.2 | 18～24 | Gray / RAL7007 | 43.7 | 1 pc | DXF | DWG |
