CATEGORY：Custom sized enclosure, Sheet metal enclosure, Project box, Aluminium chassis, Control box, Switch box

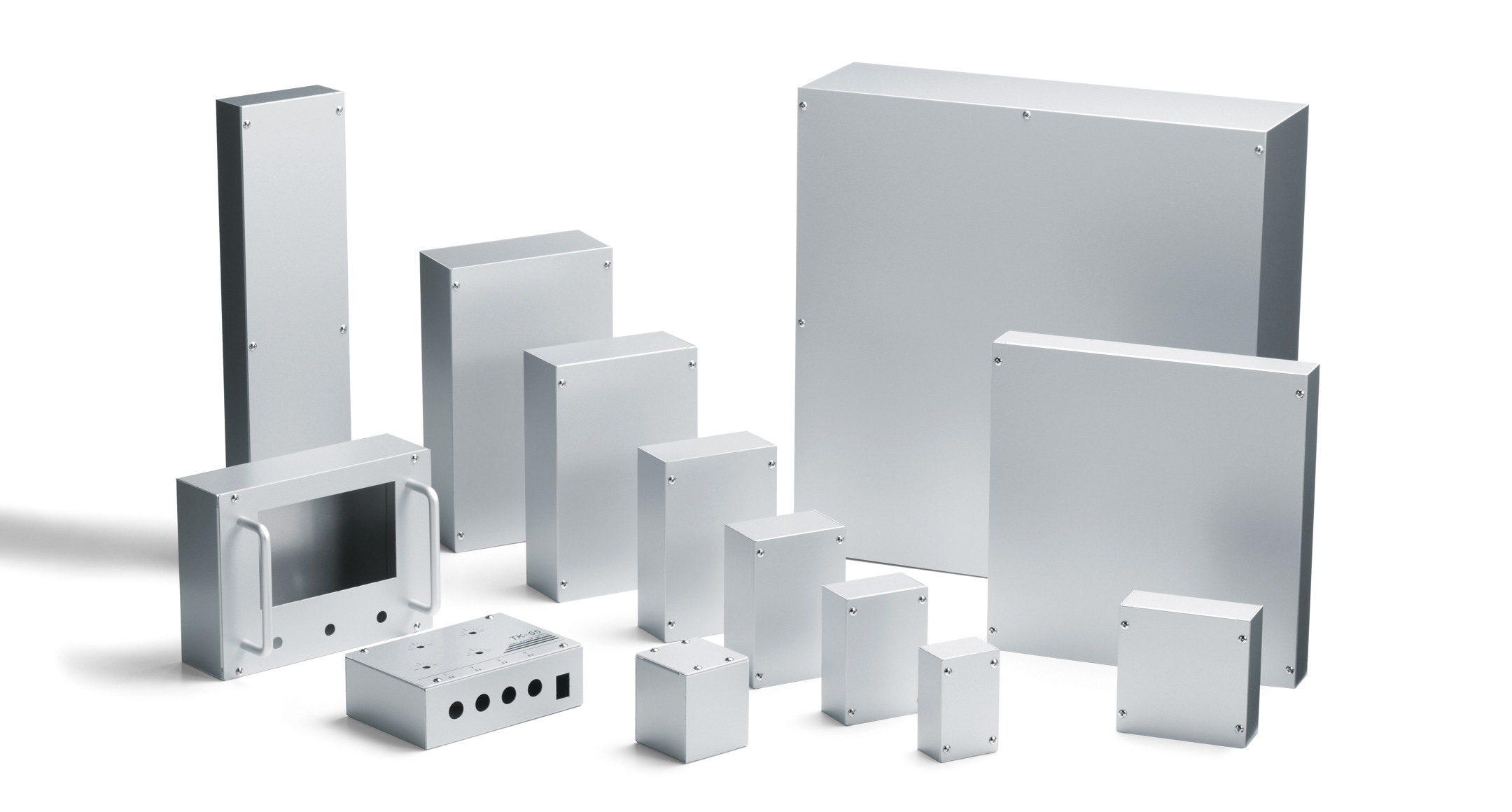

Custom sized aluminium sheet metal box with an aluminium sheet cover.

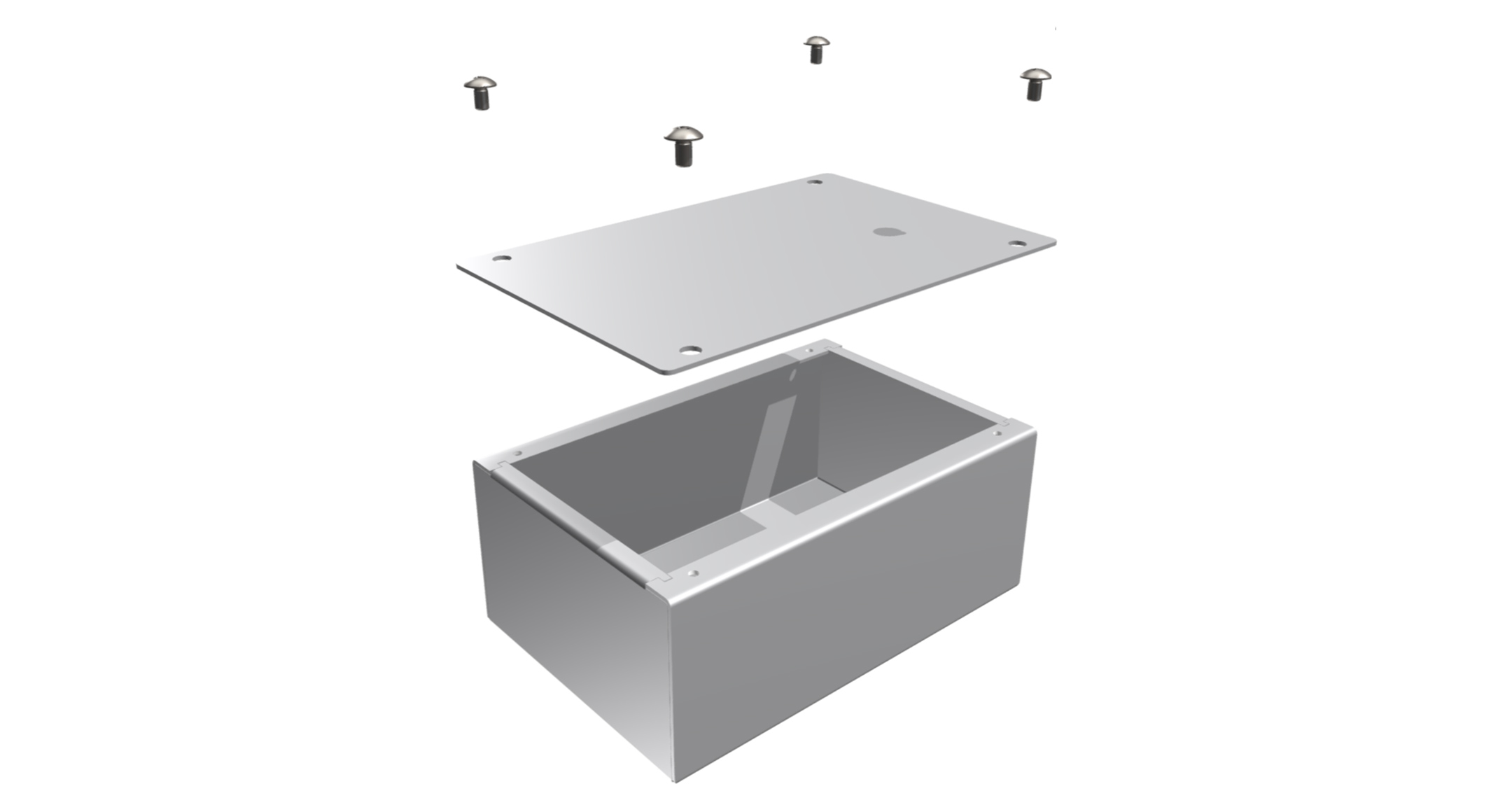

Detachable top cover allows easy assembly and maintenance access.
Internal surface of the sheet aluminium is unfinished, making conductive and grounding possible.

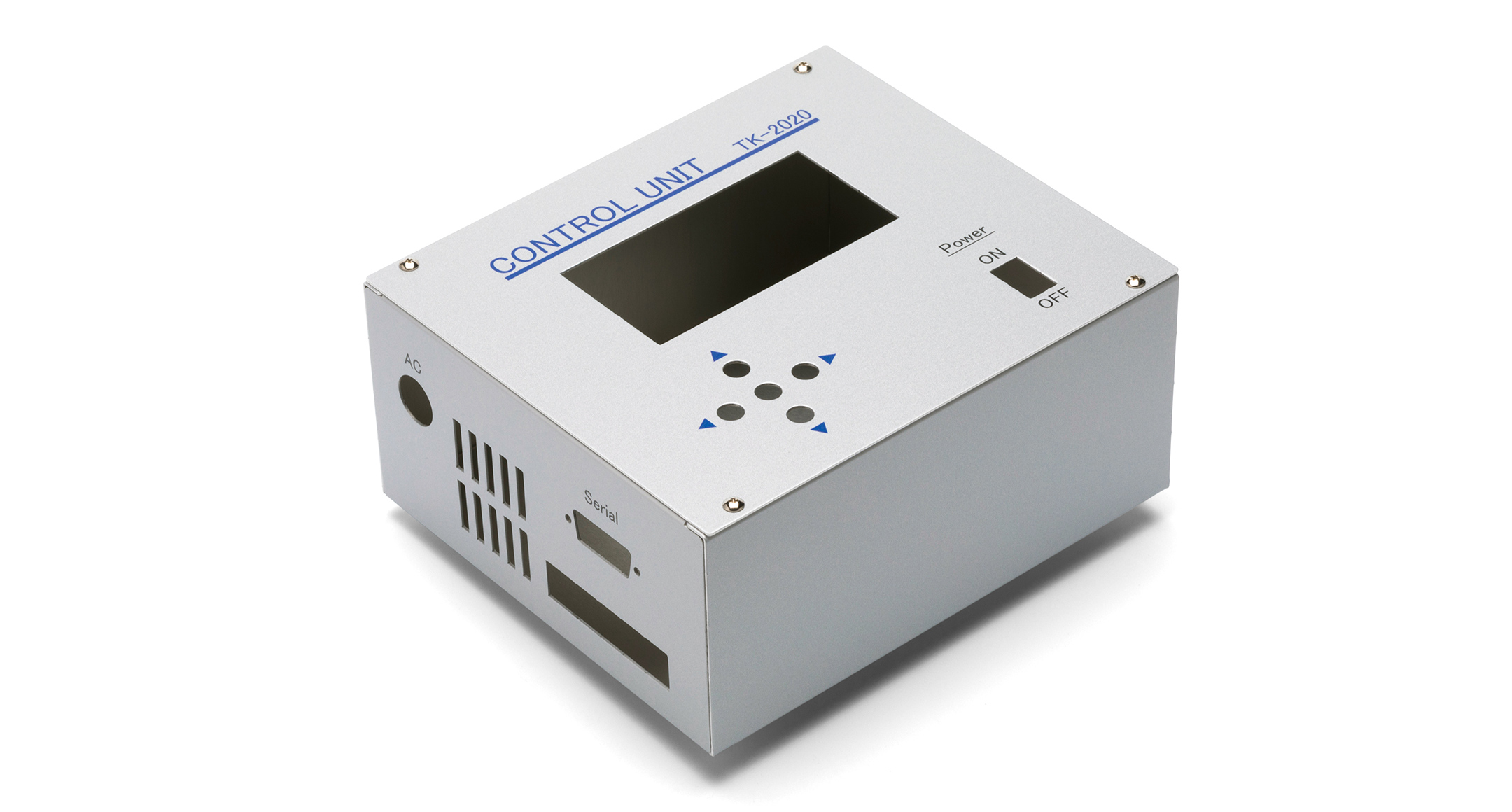

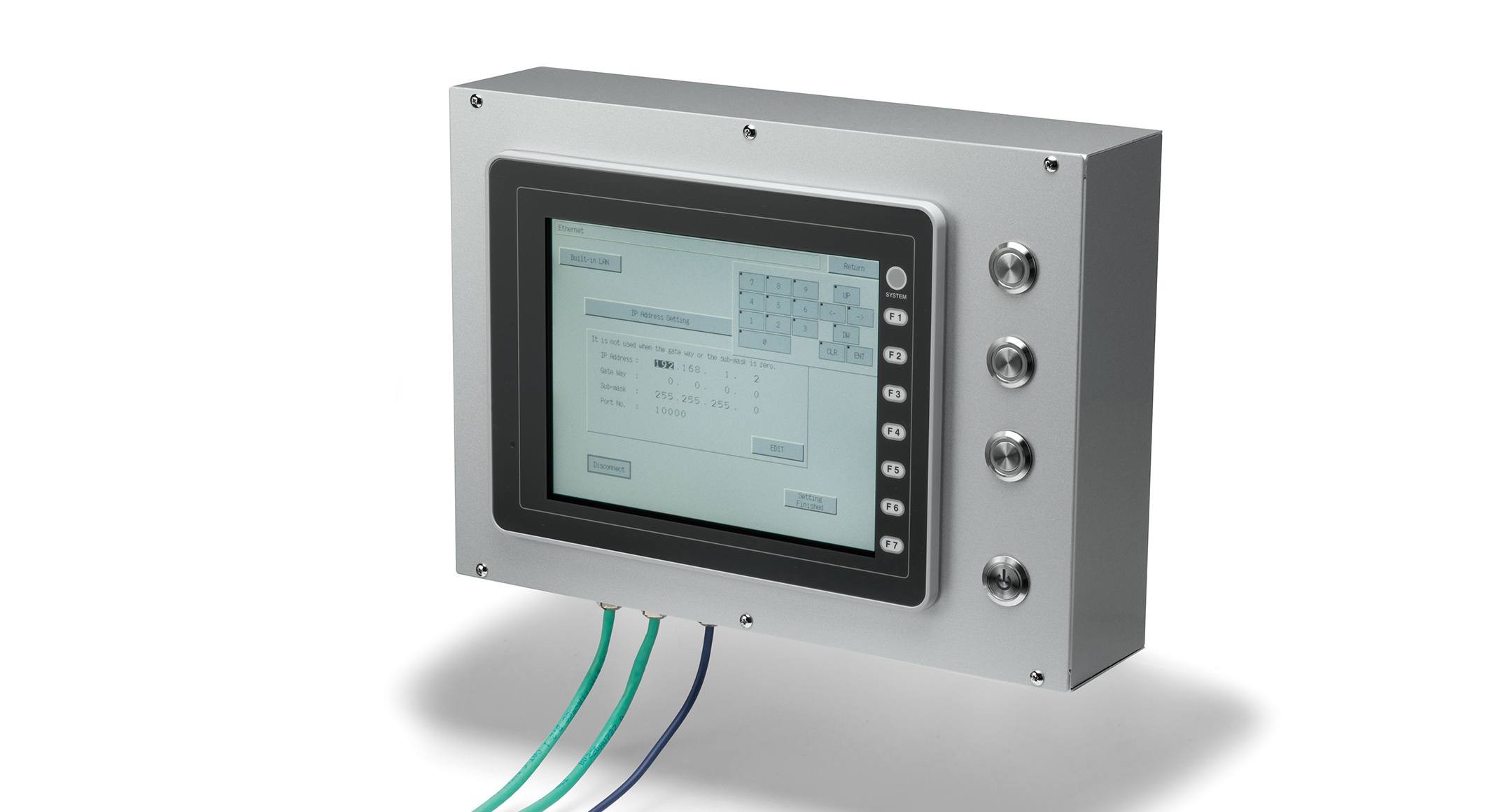

Suitable to be used for various electronics use, such as controllers, switch boxes, touch panel devices, junction boxes or tube amplifiers.
All W, H, and D dimensions can be specified as 60～400mm for W and D dimensions and 40～120mm for H dimension in 1mm intervals.
Detachable top cover allows easy assembly and maintenance access.
Internal surface of the sheet aluminium is unfinished, making conductive and grounding possible.
Suitable to be used for various electronics use, such as controllers, switch boxes, touch panel devices, junction boxes or tube amplifiers.
All W, H, and D dimensions can be specified as 60～400mm for W and D dimensions and 40～120mm for H dimension in 1mm intervals.
PRODUCT NO. / DIMENSIONS
| Product No. | External dimensions | Fixing screws | DXF | DWG | |||
|---|---|---|---|---|---|---|---|
| W | H | D | |||||
| TCF□-□-□ Width shorter than 300mm, Depth shorter than 300mm | Available 60 to 300mm | Available 40 to 120mm | Available 60 to 300mm | 4 pcs | DXF | DWG | |
| TCF□-□-□ Width shorter than 300mm, Depth longer than 301mm | Available 60 to 300mm | Available 40 to 120mm | Available 301 to 400mm | 6 pcs | DXF | DWG | |
| TCF□-□-□ Width longer than 301mm, Depth shorter than 300mm | Available 301 to 400mm | Available 40 to 120mm | Available 60 to 300mm | 6 pcs | DXF | DWG | |
| TCF□-□-□ Width longer than 301mm, Depth longer than 301mm | Available 301 to 400mm | Available 40 to 120mm | Available 301 to 400mm | 8 pcs | DXF | DWG | |
