IP68 UL CERTIFIED SNAP-LOCK SCREWLESS MINI PANEL-MOUNT CONNECTOR - THS389E series
THS389E Series -PDF
CATEGORY：Waterproof connector, Snap-lock connector, IP68 connector, Industrial connector, LED connector, Outdoor connector, Panel-mount connector

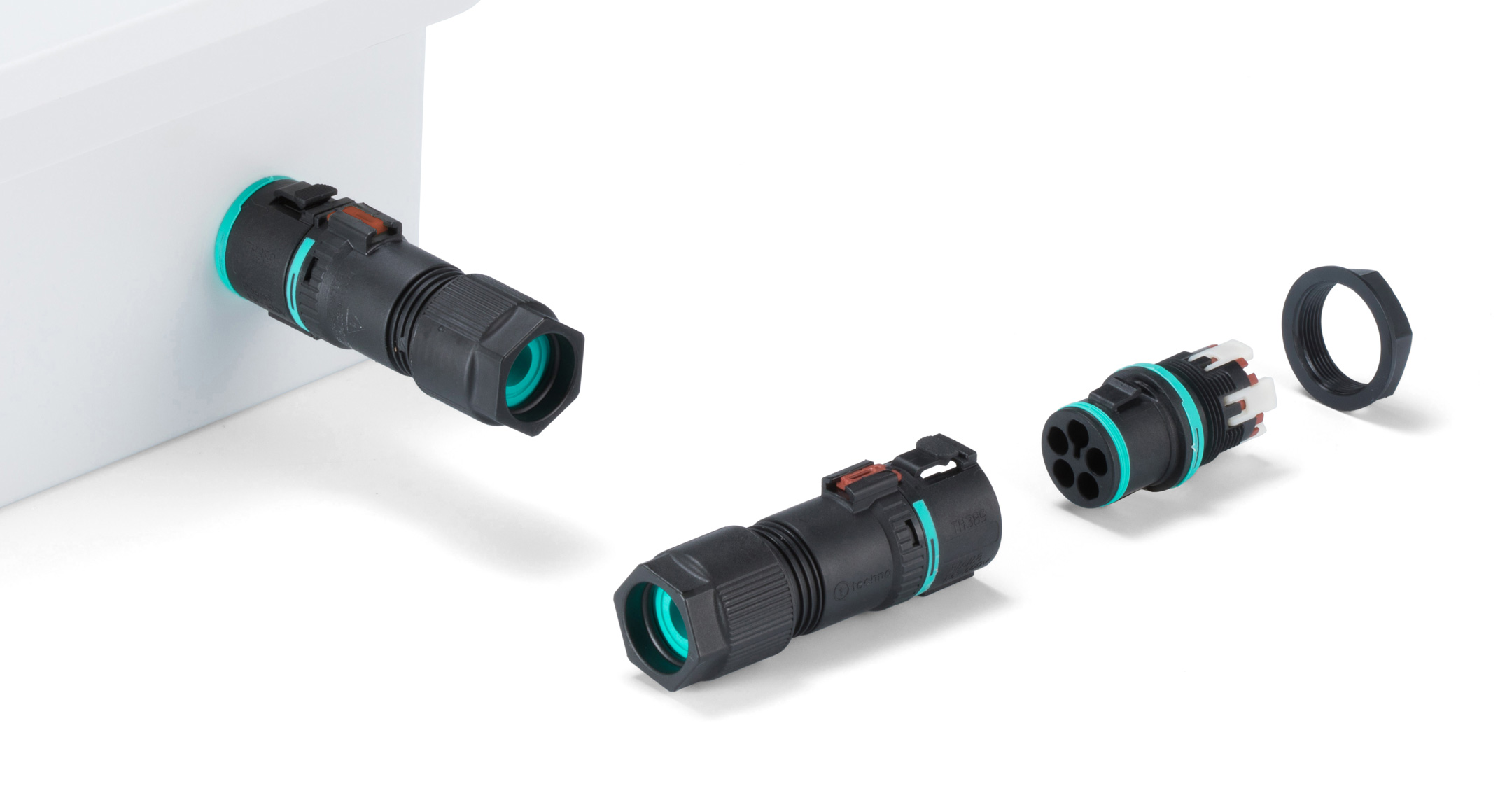

IP68 snap-lock mini panel-mount connector for easy and frequent connection/disconnection.

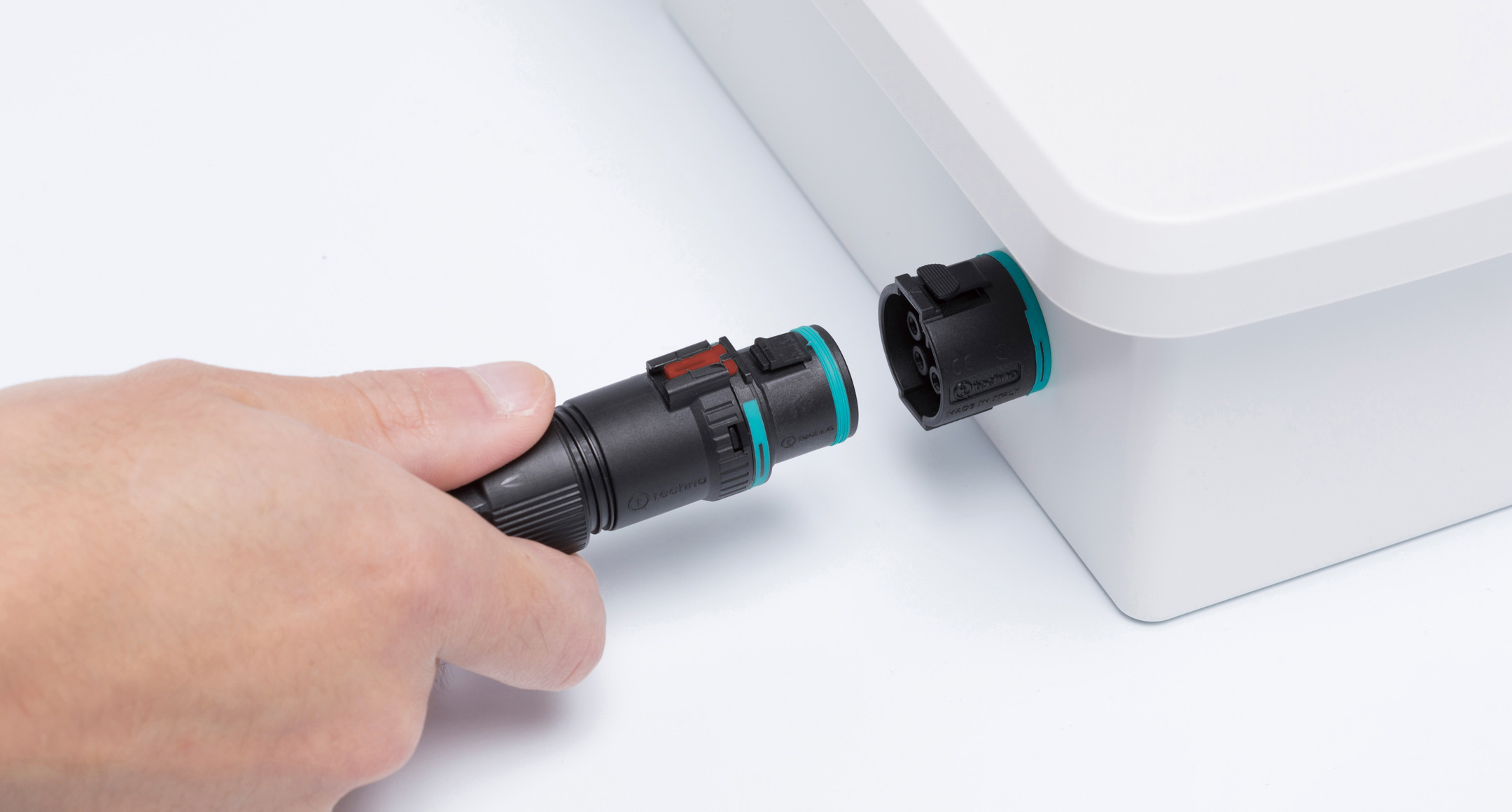

Easy connection/disconnection through the use of the snap-lock mechanism while installed on panels or enclosures.

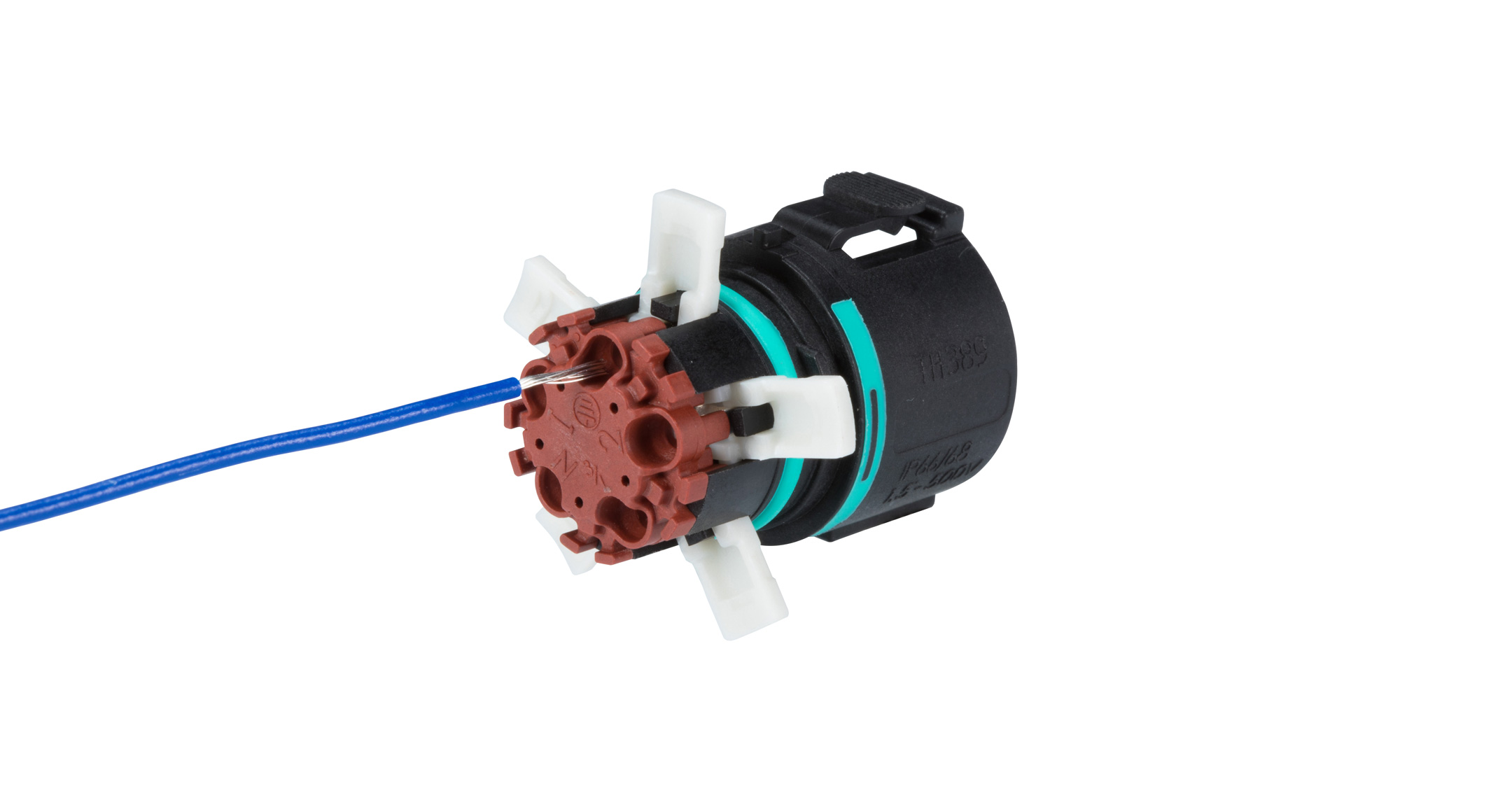

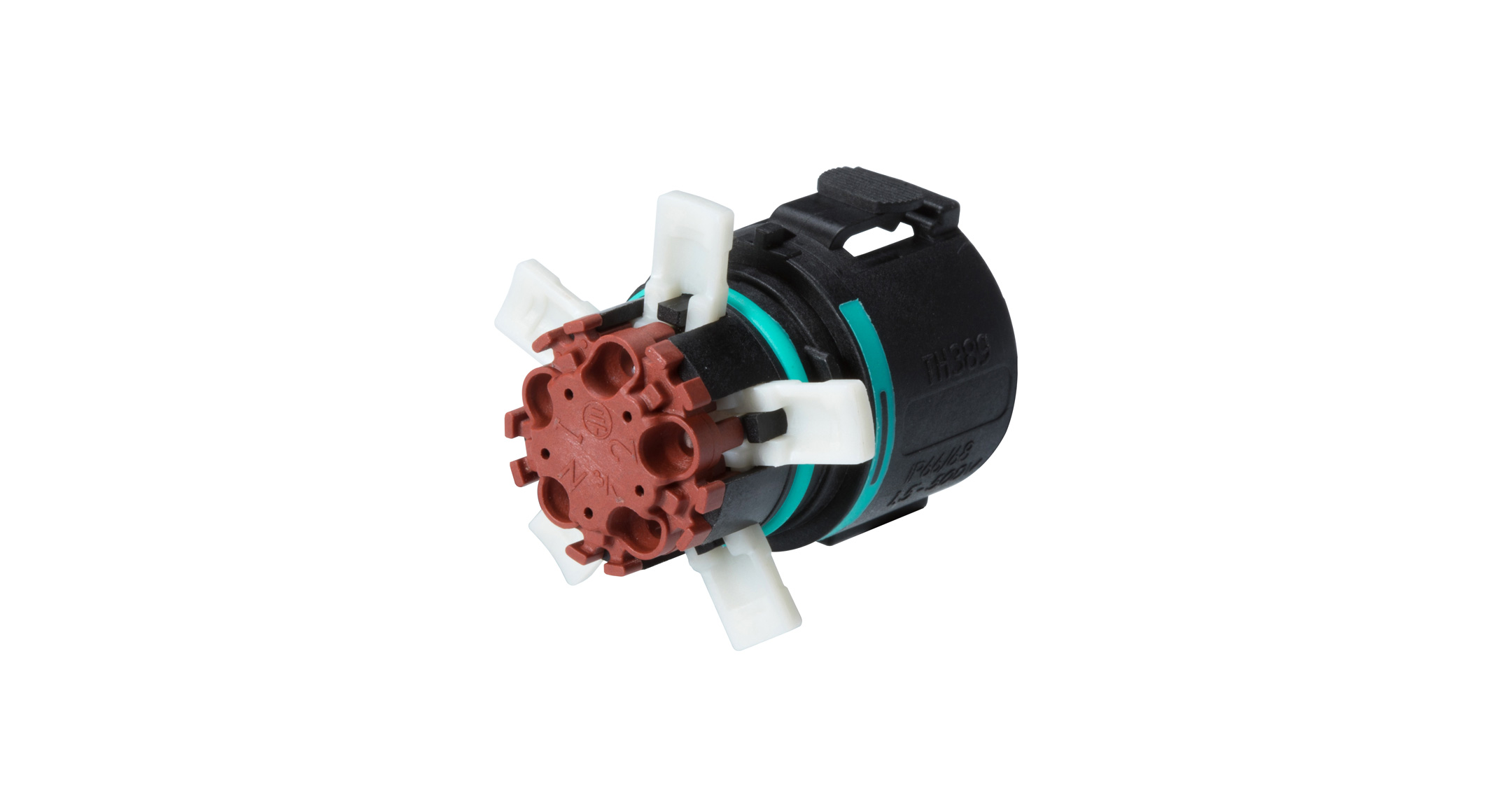

Screwless terminal block for high-speed connection. Can be attached / detached while installed on panels or enclosures.
4P and 5P pole models are available.
UL2238 / C22.2 No. 182.3 certified products.

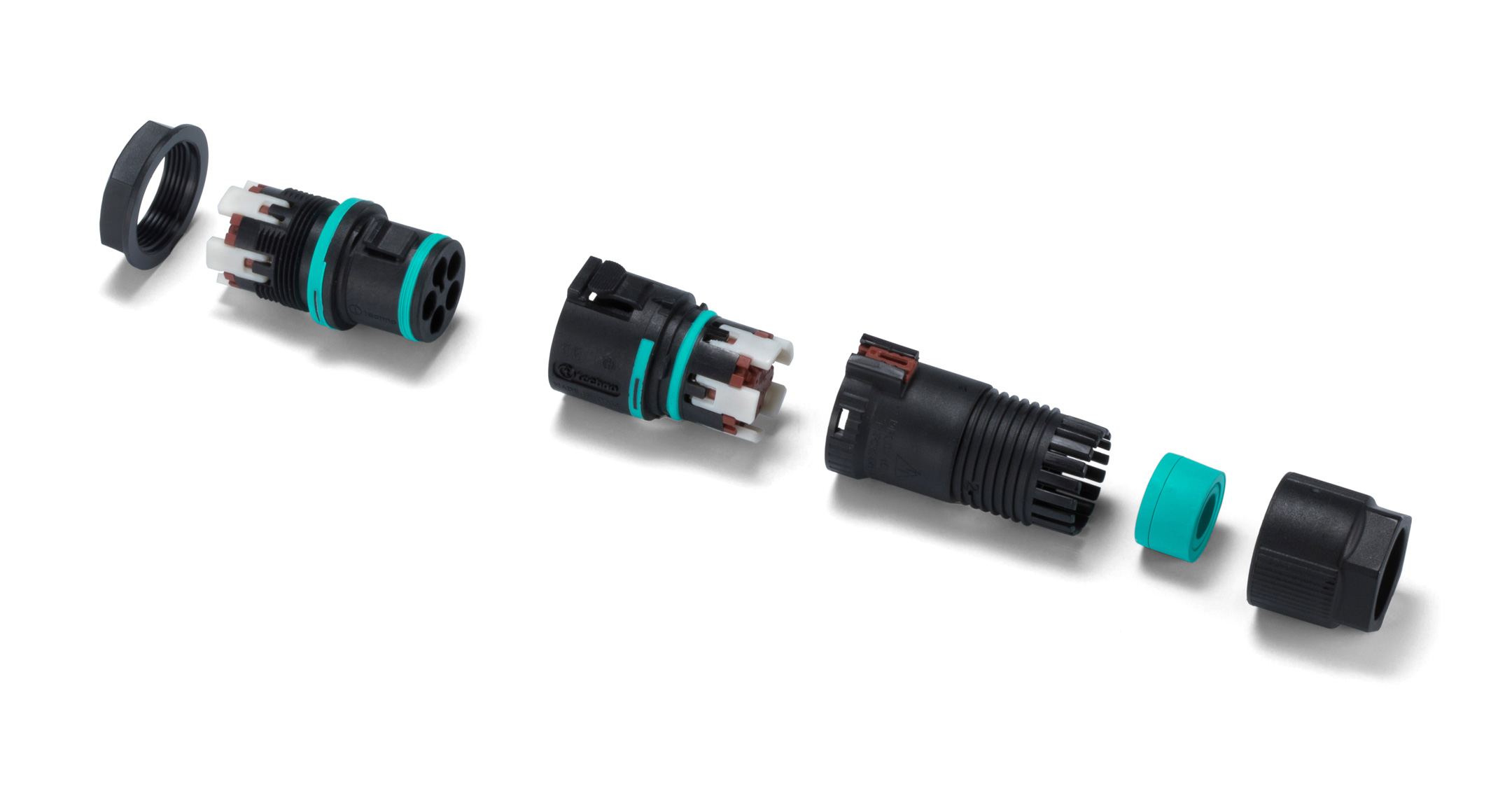

Plug-socket connector type consisting of the plug side (male) and socket side (female).
Screwless connection method; screw, soldering or special tools are not required.
Applicable cable size range can be expanded by removing the inner sealing insert.
Protection class : IP68 0.5/1h (1 hour / 5m depth)
Operating temperature : -40°C ~ +100°C
EN61984 compliant.
Specifications
Rated voltage :
AC500V (EN61984)
AC600V (UL2238/C22.2 No.182.3)
Rated current :
17.5A (EN61984)
10A (UL2238/C22.2 No.182.3)
Applicable wire : Stranded wire 0.25m㎡～1.5ｍ㎡
Impulse withstand voltage : 2.5kV
Number of insertion/extraction : 100 times
Easy connection/disconnection through the use of the snap-lock mechanism while installed on panels or enclosures.
Screwless terminal block for high-speed connection. Can be attached / detached while installed on panels or enclosures.
4P and 5P pole models are available.
UL2238 / C22.2 No. 182.3 certified products.
Plug-socket connector type consisting of the plug side (male) and socket side (female).
Screwless connection method; screw, soldering or special tools are not required.
Applicable cable size range can be expanded by removing the inner sealing insert.
Protection class : IP68 0.5/1h (1 hour / 5m depth)
Operating temperature : -40°C ~ +100°C
EN61984 compliant.
Specifications
Rated voltage :
AC500V (EN61984)
AC600V (UL2238/C22.2 No.182.3)
Rated current :
17.5A (EN61984)
10A (UL2238/C22.2 No.182.3)
Applicable wire : Stranded wire 0.25m㎡～1.5ｍ㎡
Impulse withstand voltage : 2.5kV
Number of insertion/extraction : 100 times
PRODUCT NO. / DIMENSIONS
| Product No. | Cable side / Panel mount side | Cable range | No. of poles | Mounting thickness | Rated voltage | Reted current | Applicable wire | Impulse withstand voltage | Weight (g) | DXF | DWG | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| THS389E-4P-SP | Socket / Plug | φ7～13.5 | 4P | 1～3 | AC500V | 17.5A | 0.25～1.5m㎡ (Stranded・ Single) | 2.5kV | 40 | DXF | DWG | |
| THS389E-4P-PS | Plug / Socket | φ7～13.5 | 4P | 1～3 | AC500V | 17.5A | 0.25～1.5m㎡ (Stranded・ Single) | 2.5kV | 40.5 | DXF | DWG | |
| THS389E-5P-SP | Socket / Plug | φ7～13.5 | 5P | 1～3 | AC500V | 17.5A | 0.25～1.5m㎡ (Stranded・ Single) | 2.5kV | 42 | DXF | DWG | |
| THS389E-5P-PS | Plug / Socket | φ7～13.5 | 5P | 1～3 | AC500V | 17.5A | 0.25～1.5m㎡ (Stranded・ Single) | 2.5kV | 42.5 | DXF | DWG |
