FLANGED ALUMINIUM BOX - MBC series


MBC Series -PDF

CATEGORY：WALL MOUNT CASE@FLANGED CASE, METAL CASE, SHEET METAL CASE, UNIVERSAL CASE, ALUMINUM PROJECT BOX

FLANGED ALUMINIUM BOX - MBC series
FLANGED ALUMINIUM BOX - MBC series
FLANGED ALUMINIUM BOX - MBC series
FLANGED ALUMINIUM BOX - MBC series
FLANGED ALUMINIUM BOX - MBC series
FLANGED ALUMINIUM BOX - MBC series1
FLANGED ALUMINIUM BOX - MBC series2
FLANGED ALUMINIUM BOX - MBC series3
FLANGED ALUMINIUM BOX - MBC series4
FLANGED ALUMINIUM BOX - MBC series5

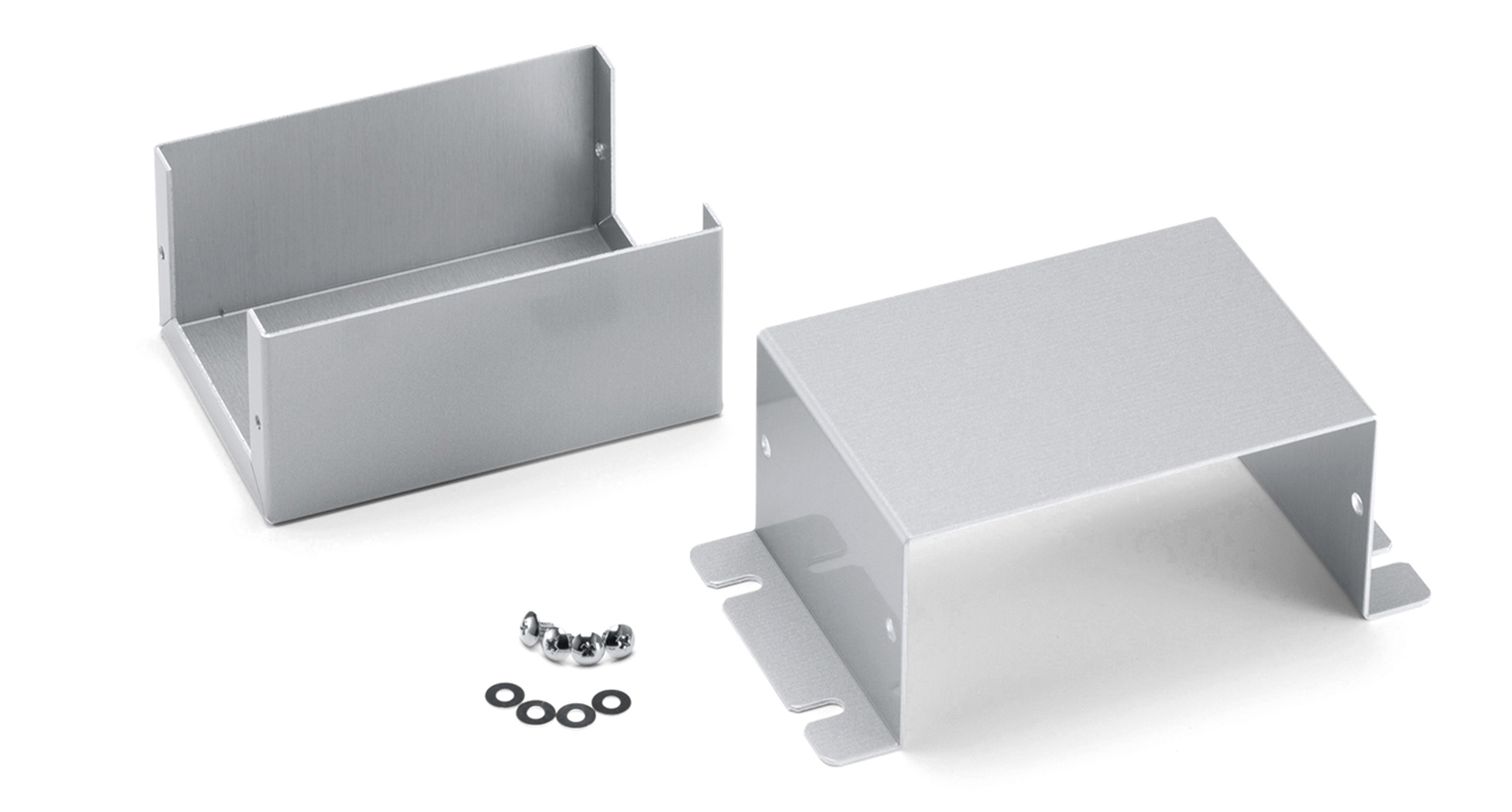

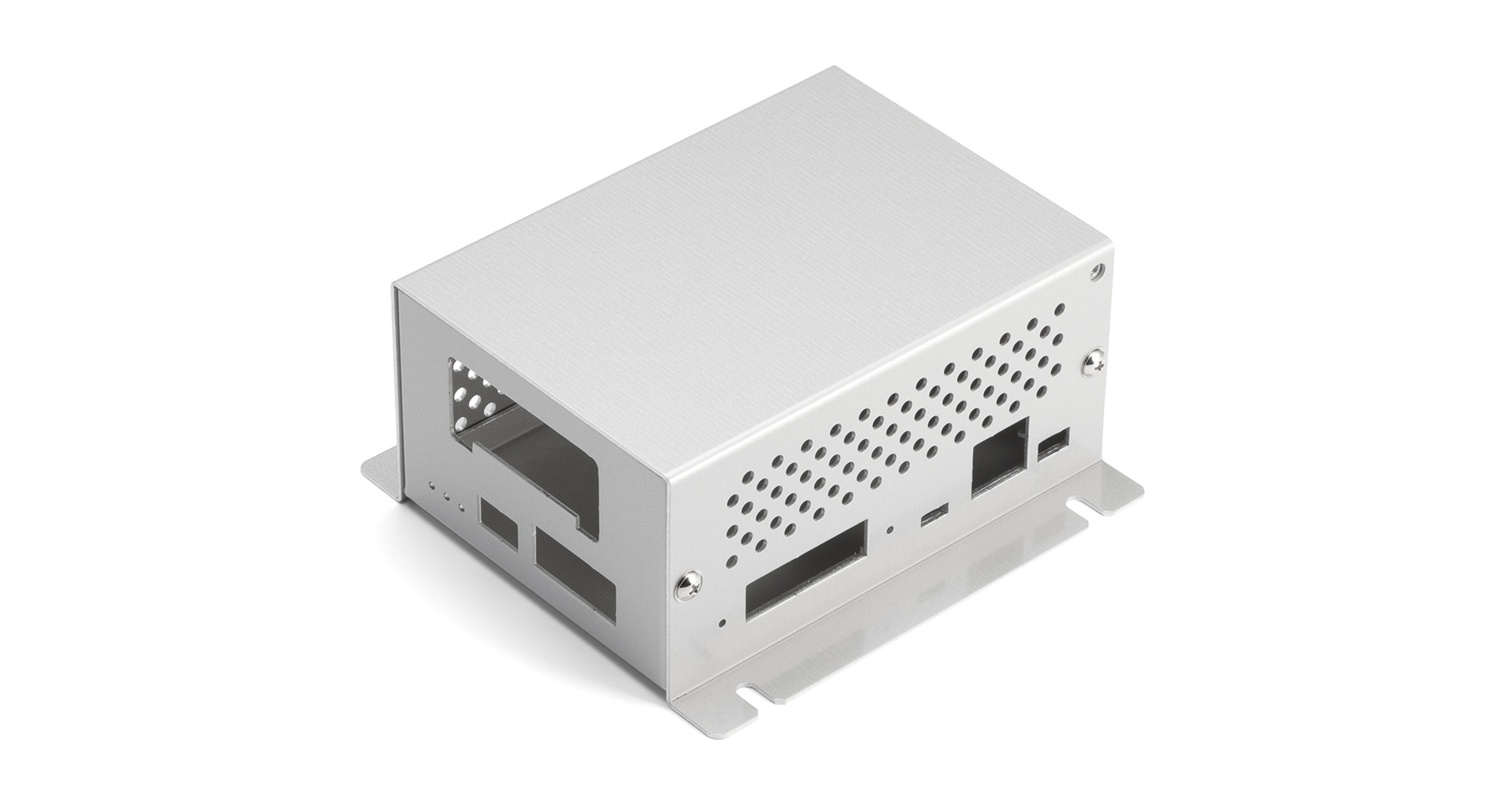

Flanged aluminium box for easy wall mounting.
Suitable for switch box and controller.
Internal surface of the sheet aluminium is unfinished, making conductive and grounding possible.

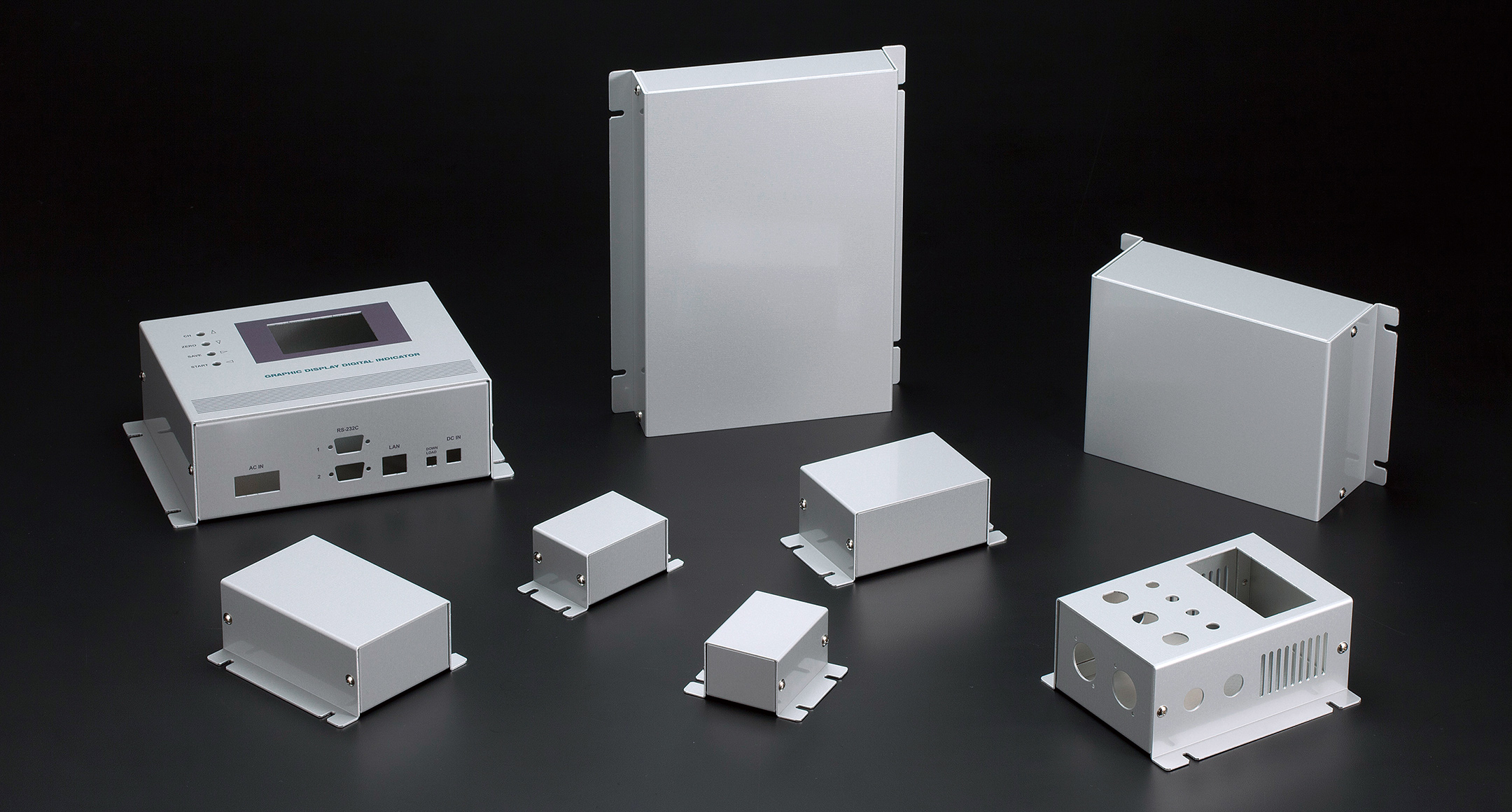

13 different sizes available.

Custom length is available.
↓Go MBCF series page for the custom W, H, and D dimensions can be specified as 50～500mm for W and D dimensions and 20～250mm for H dimension in 1mm intervals.
CUSTOM LENGTH ENCLOSURE - MBCF series  3D View 

PRODUCT NO. / DIMENSIONS

Product No. External dimensions Internal dimensions Weight (g) Old product no. PDF DXF DWG STP
W H D w h d
MBC5-4-7 50 40 70 44.6 35.6 67 64 MBC050407 PDF DXF DWG STP
MBC7-4-5 70 40 50 64.6 35.6 47 62 MBC070405 PDF DXF DWG STP
MBC7-4-10 70 40 100 64.6 35.6 97 102 MBC070410 PDF DXF DWG STP
MBC8-5-12 80 50 120 73.4 45 116.4 180 MBC080512 PDF DXF DWG STP
MBC10-4-15 100 40 150 93.4 35 146.4 224 MBC100415 PDF DXF DWG STP
MBC10-5-7 100 50 70 94.6 45.6 67 112 MBC100507 PDF DXF DWG STP
MBC10-7-15 100 65 150 93.4 60 146.4 280 MBC100615 PDF DXF DWG STP
MBC13-6-9 125 60 90 118.4 55 86.4 210 MBC120609 PDF DXF DWG STP
MBC14-4-20 135 40 200 128.4 33.5 196.4 367 MBC130420 PDF DXF DWG STP
MBC15-7-11 150 65 110 143.4 58.5 106.4 298 MBC150611 PDF DXF DWG STP
MBC17-4-25 170 40 250 163.4 33.5 246.4 527 MBC170425 PDF DXF DWG STP
MBC18-7-13 175 70 130 168.4 63.5 126.4 389 MBC170713 PDF DXF DWG STP
MBC20-8-15 200 75 150 193.4 68.5 146.4 490 MBC200715 PDF DXF DWG STP
