ALUMINUM MOBILE ENCLOSURE MXA series


MXA Series -PDF

CATEGORY:Mobile enclosure, Round edge aluminium case, Extruded aluminum enclosure, Aluminium profile enclosure, Headphone amplifier case

ALUMINUM MOBILE ENCLOSURE MXA series
ALUMINUM MOBILE ENCLOSURE MXA series
ALUMINUM MOBILE ENCLOSURE MXA series
ALUMINUM MOBILE ENCLOSURE MXA series
ALUMINUM MOBILE ENCLOSURE MXA series
ALUMINUM MOBILE ENCLOSURE MXA series
ALUMINUM MOBILE ENCLOSURE MXA series
ALUMINUM MOBILE ENCLOSURE MXA series
ALUMINUM MOBILE ENCLOSURE MXA series
ALUMINUM MOBILE ENCLOSURE MXA series
ALUMINUM MOBILE ENCLOSURE MXA series
ALUMINUM MOBILE ENCLOSURE MXA series
ALUMINUM MOBILE ENCLOSURE MXA series
ALUMINUM MOBILE ENCLOSURE MXA series
ALUMINUM MOBILE ENCLOSURE MXA series
ALUMINUM MOBILE ENCLOSURE MXA series
ALUMINUM MOBILE ENCLOSURE MXA series
ALUMINUM MOBILE ENCLOSURE MXA series
ALUMINUM MOBILE ENCLOSURE MXA series
ALUMINUM MOBILE ENCLOSURE MXA series
ALUMINUM MOBILE ENCLOSURE MXA series
ALUMINUM MOBILE ENCLOSURE MXA series
ALUMINUM MOBILE ENCLOSURE MXA series
ALUMINUM MOBILE ENCLOSURE MXA series
ALUMINUM MOBILE ENCLOSURE MXA series1
ALUMINUM MOBILE ENCLOSURE MXA series2
ALUMINUM MOBILE ENCLOSURE MXA series3
ALUMINUM MOBILE ENCLOSURE MXA series4
ALUMINUM MOBILE ENCLOSURE MXA series5
ALUMINUM MOBILE ENCLOSURE MXA series6
ALUMINUM MOBILE ENCLOSURE MXA series7
ALUMINUM MOBILE ENCLOSURE MXA series8
ALUMINUM MOBILE ENCLOSURE MXA series9
ALUMINUM MOBILE ENCLOSURE MXA series10
ALUMINUM MOBILE ENCLOSURE MXA series11
ALUMINUM MOBILE ENCLOSURE MXA series12
ALUMINUM MOBILE ENCLOSURE MXA series13
ALUMINUM MOBILE ENCLOSURE MXA series14
ALUMINUM MOBILE ENCLOSURE MXA series15
ALUMINUM MOBILE ENCLOSURE MXA series16
ALUMINUM MOBILE ENCLOSURE MXA series17
ALUMINUM MOBILE ENCLOSURE MXA series18
ALUMINUM MOBILE ENCLOSURE MXA series19
ALUMINUM MOBILE ENCLOSURE MXA series20
ALUMINUM MOBILE ENCLOSURE MXA series21
ALUMINUM MOBILE ENCLOSURE MXA series22
ALUMINUM MOBILE ENCLOSURE MXA series23
ALUMINUM MOBILE ENCLOSURE MXA series24

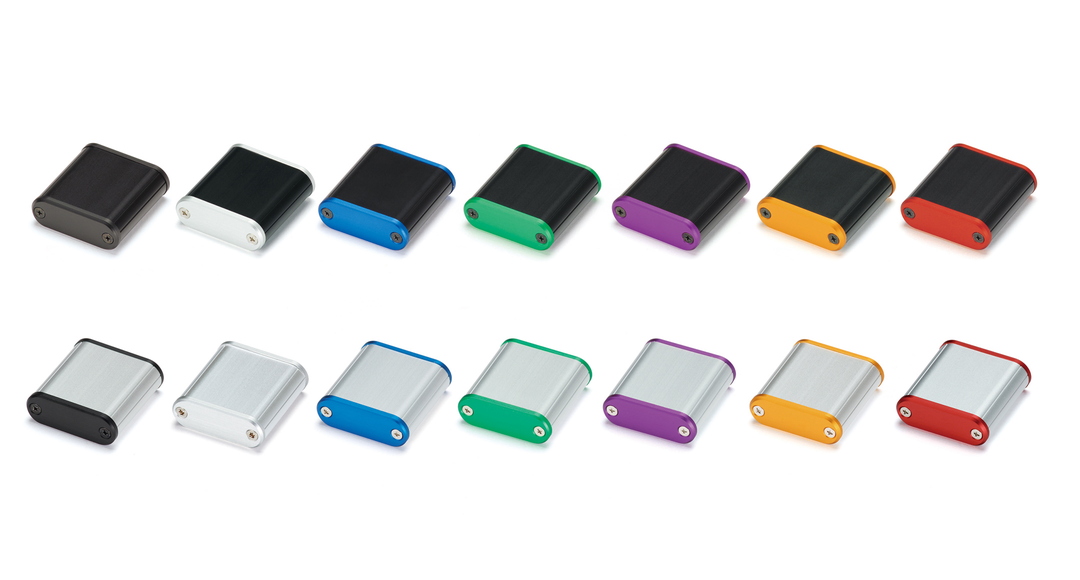

COLOR TYPE

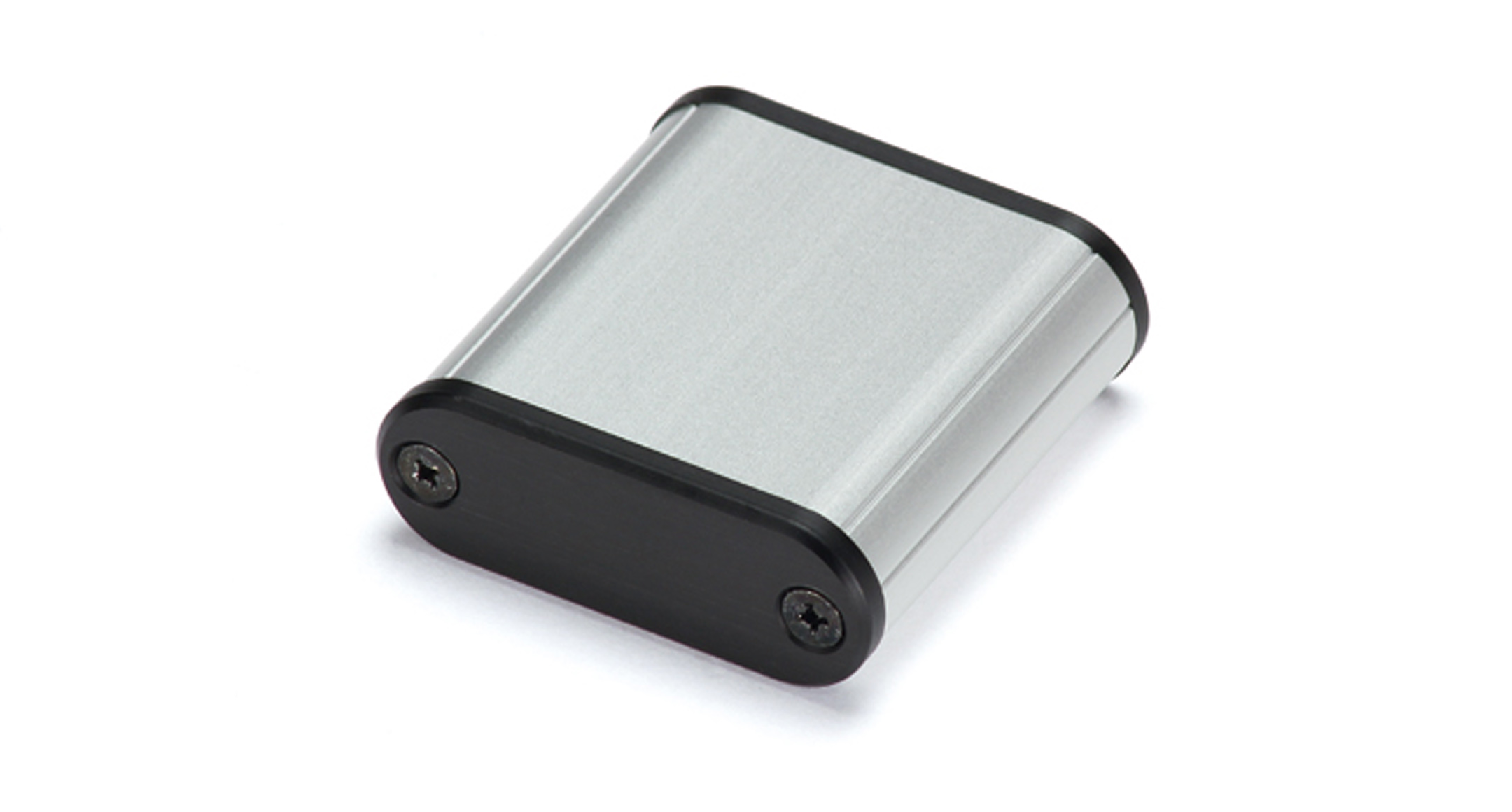

SBSilver/Black

ALUMINUM MOBILE ENCLOSURE MXA series:Silver/Black

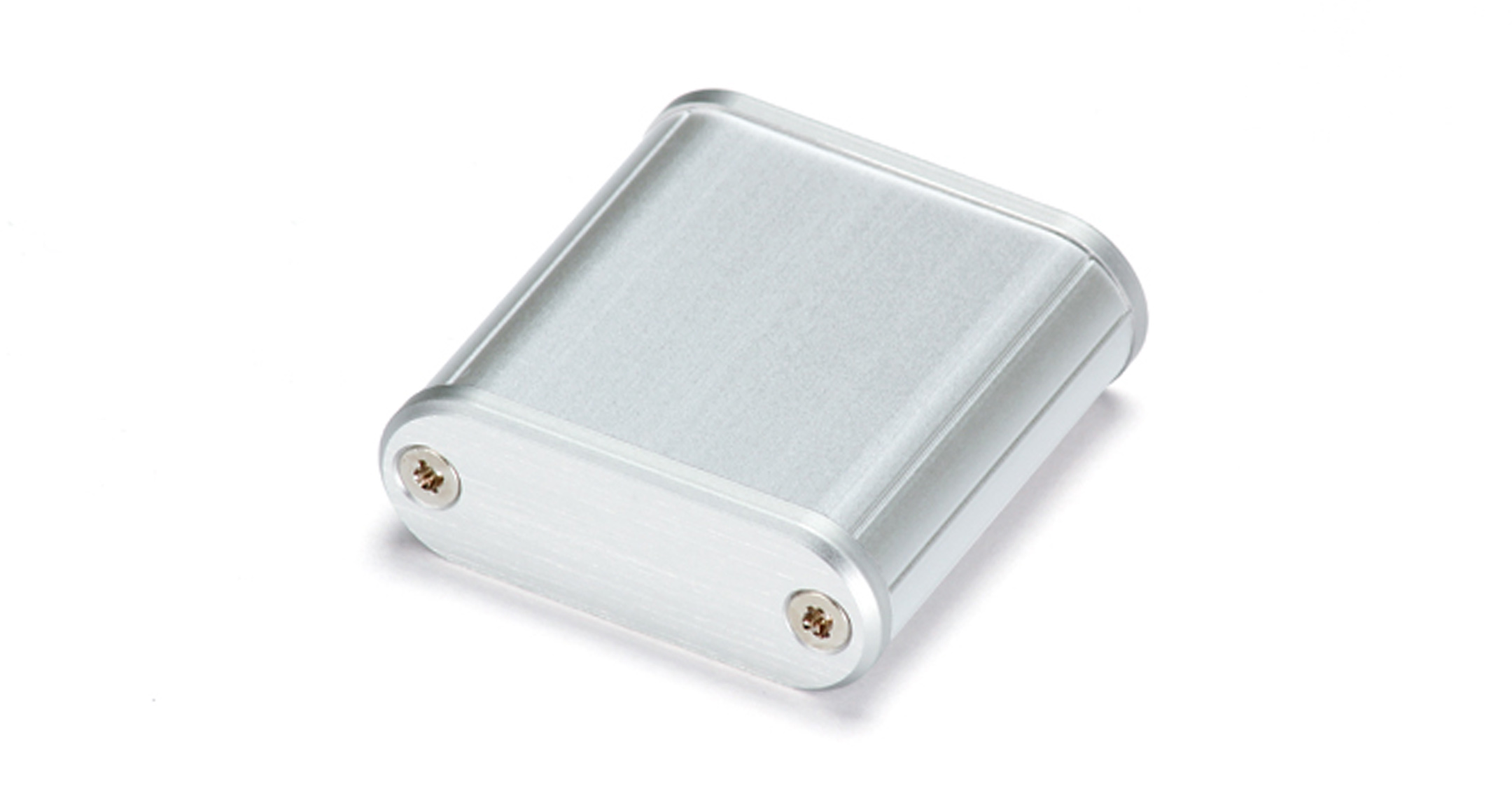

SSSilver/Silver

ALUMINUM MOBILE ENCLOSURE MXA series:Silver/Silver

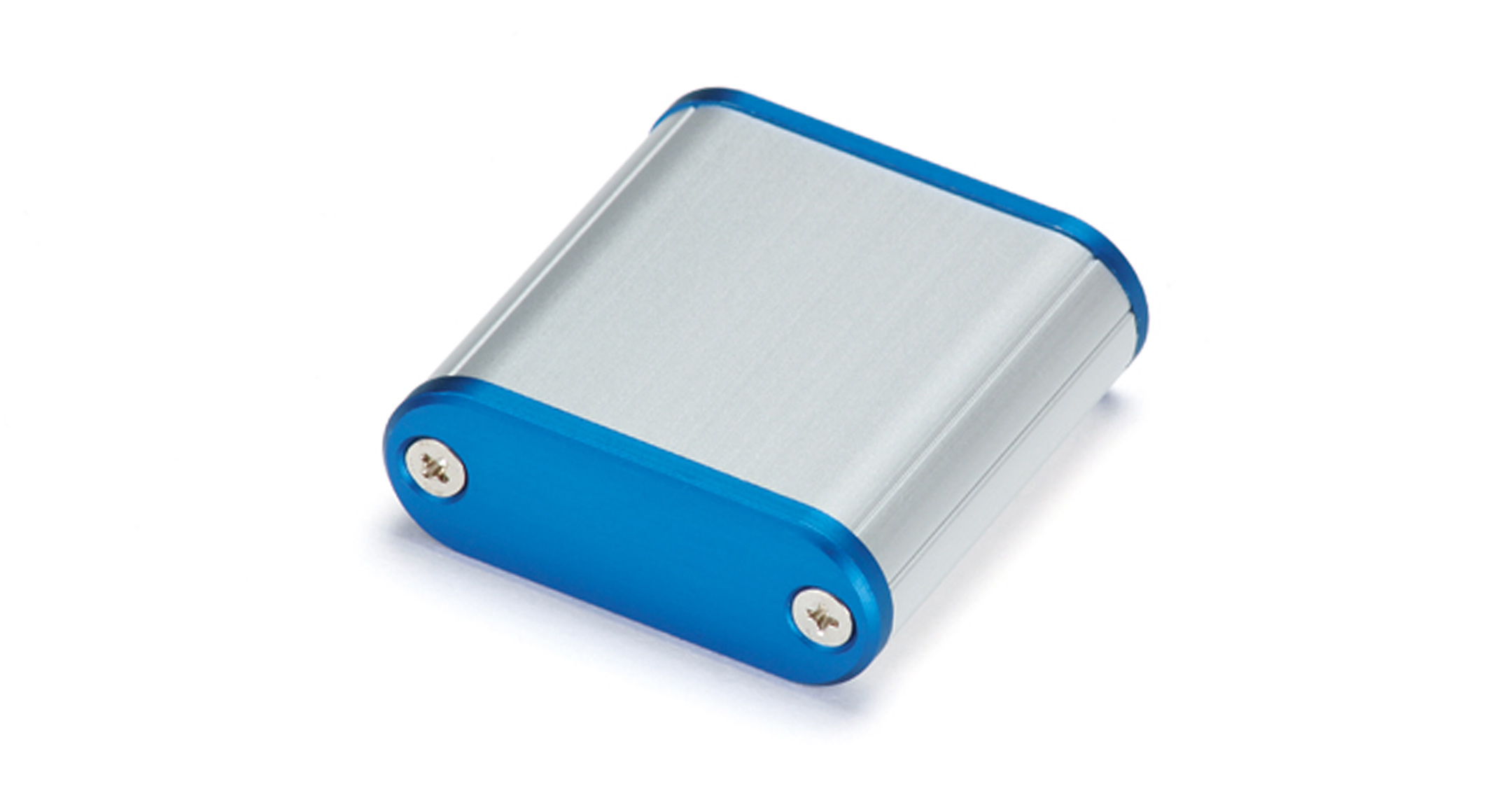

SCSilver/Cobalt

ALUMINUM MOBILE ENCLOSURE MXA series:Silver/Cobalt

SGSilver/Green

ALUMINUM MOBILE ENCLOSURE MXA series:Silver/Green

SPSilver/Purple

ALUMINUM MOBILE ENCLOSURE MXA series:Silver/Purple

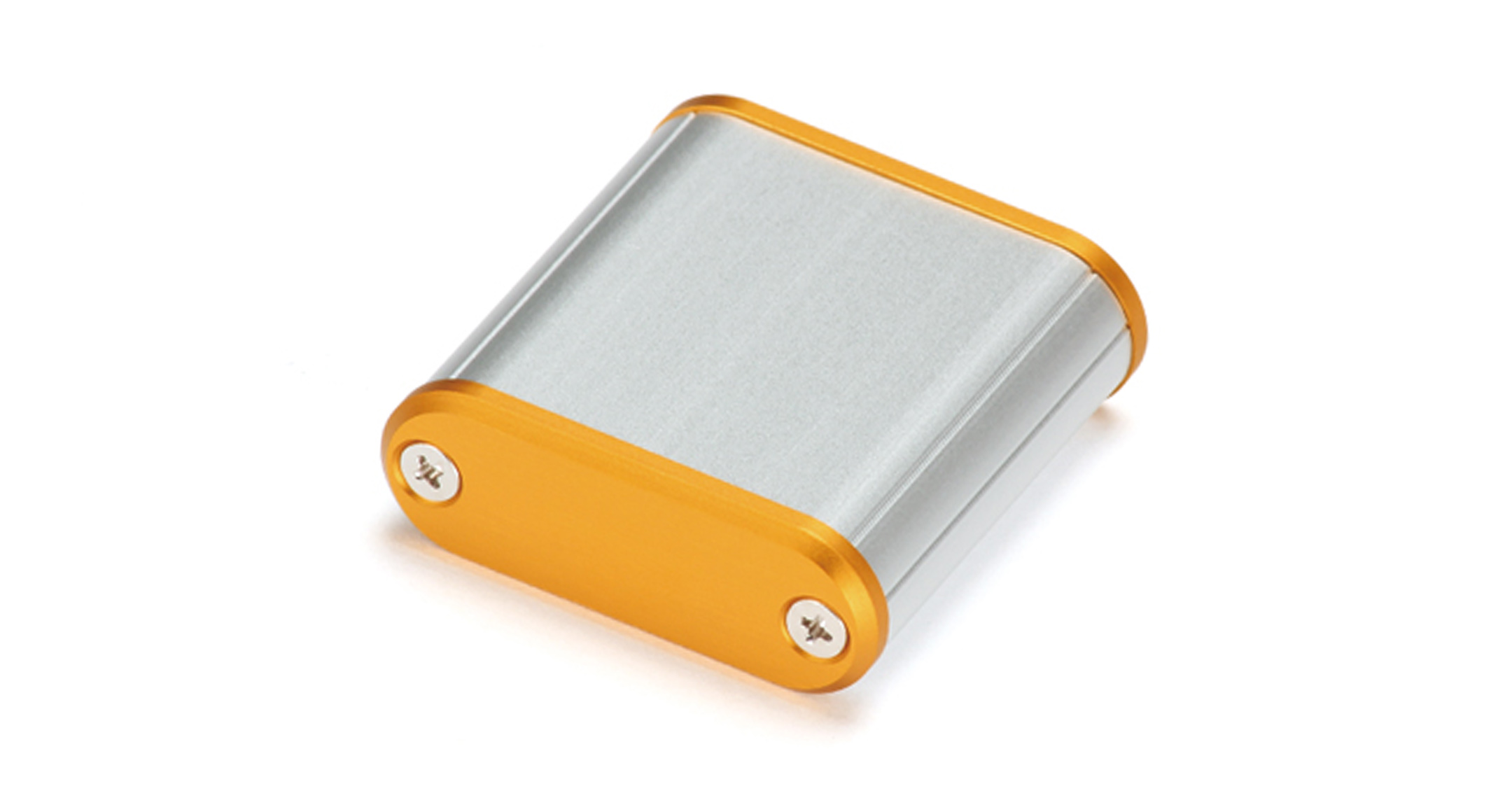

SOSilver/Orange

ALUMINUM MOBILE ENCLOSURE MXA series:Silver/Orange

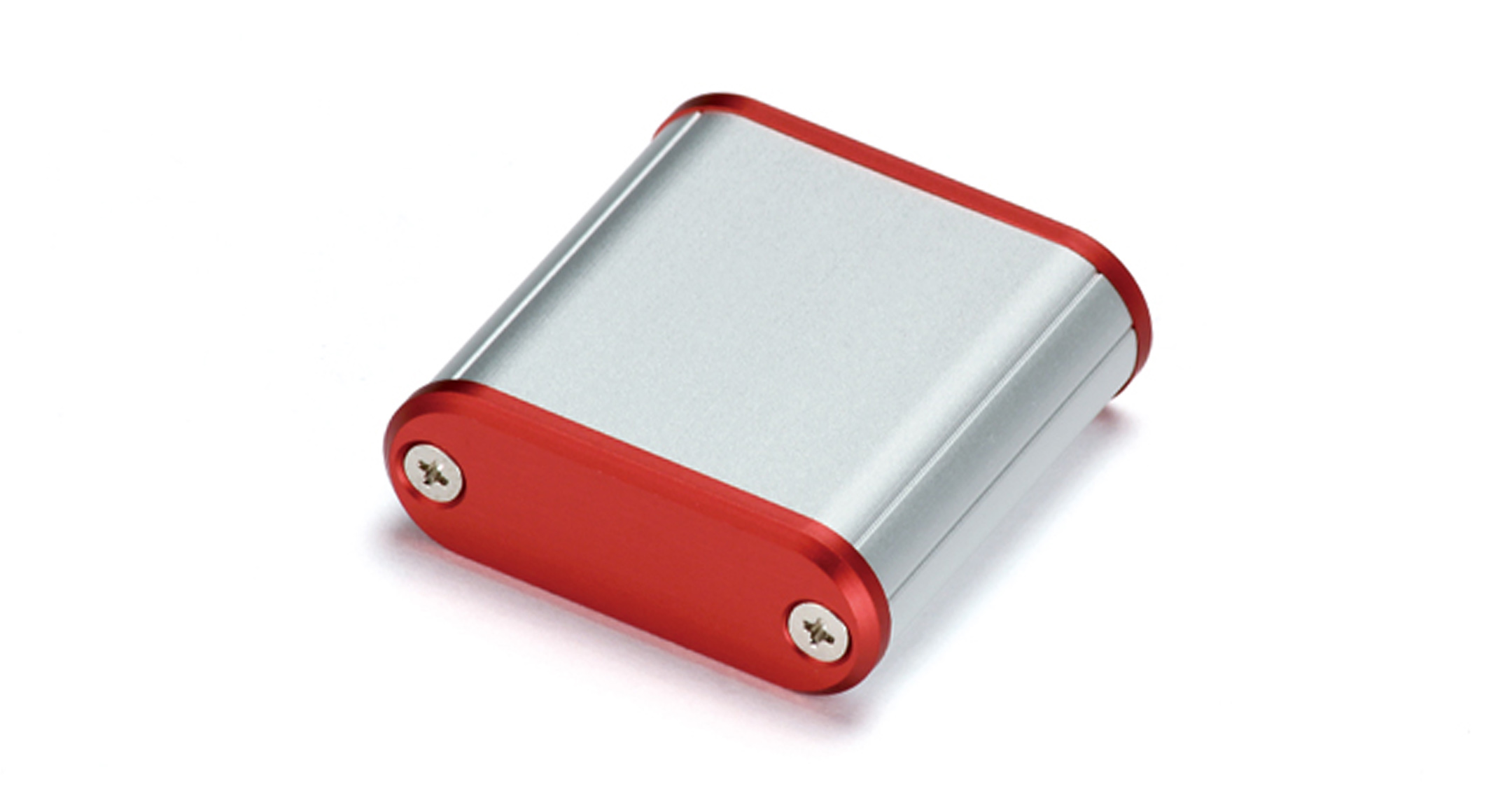

SRSilver/Red

ALUMINUM MOBILE ENCLOSURE MXA series:Silver/Red

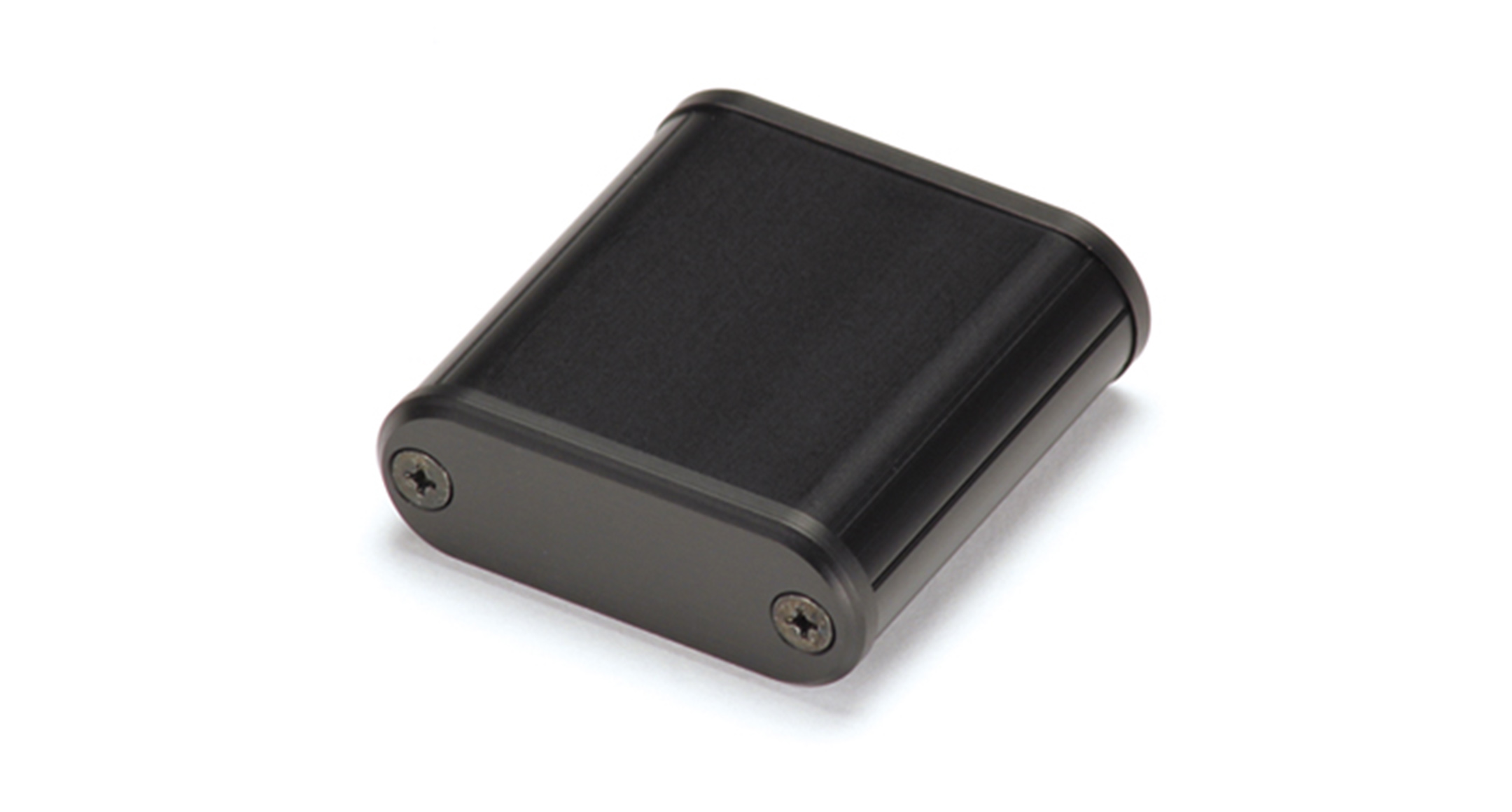

BBBlack/Black

ALUMINUM MOBILE ENCLOSURE MXA series:Black/Black

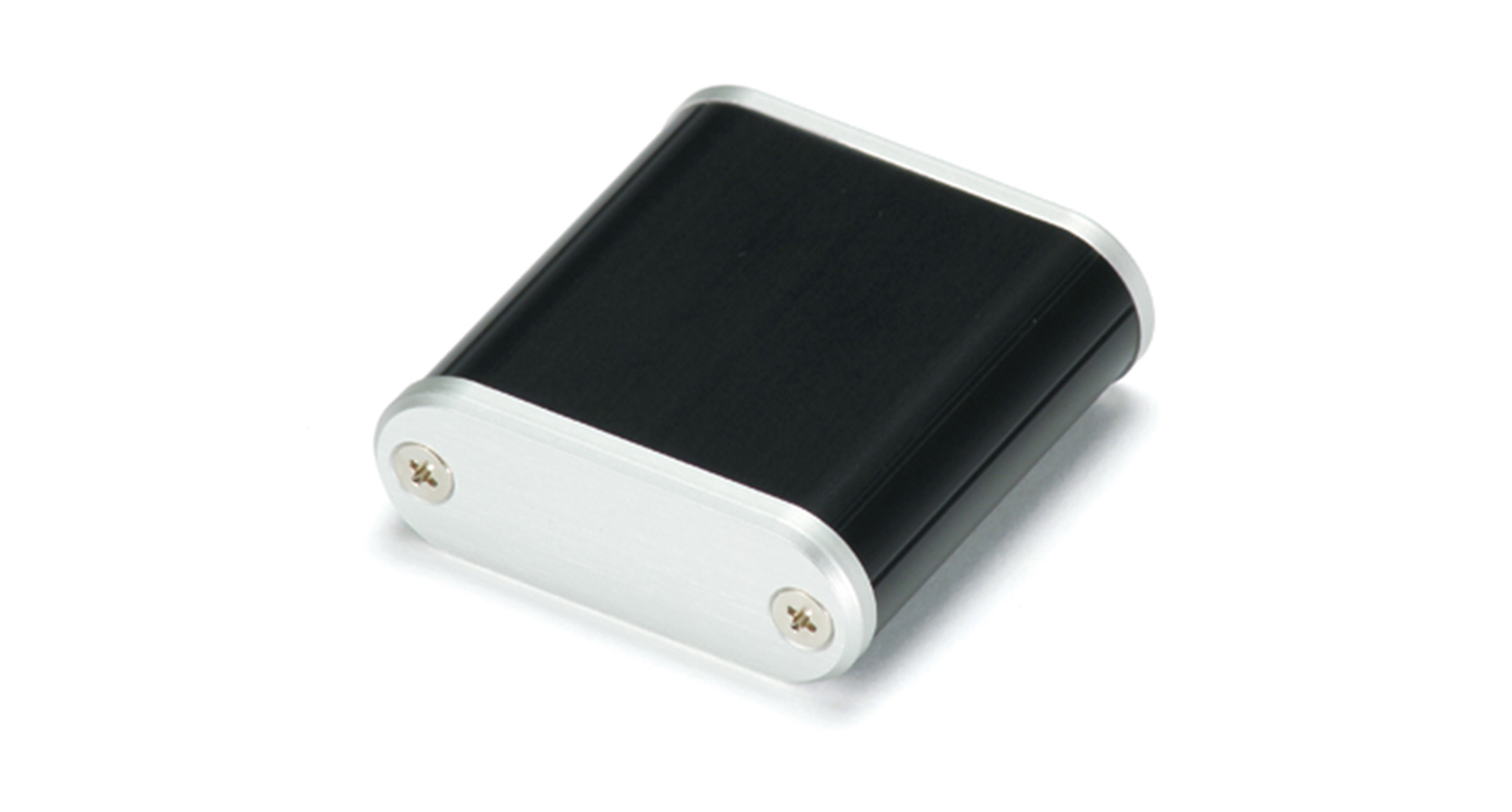

BSBlack/Silver

ALUMINUM MOBILE ENCLOSURE MXA series:Black/Silver

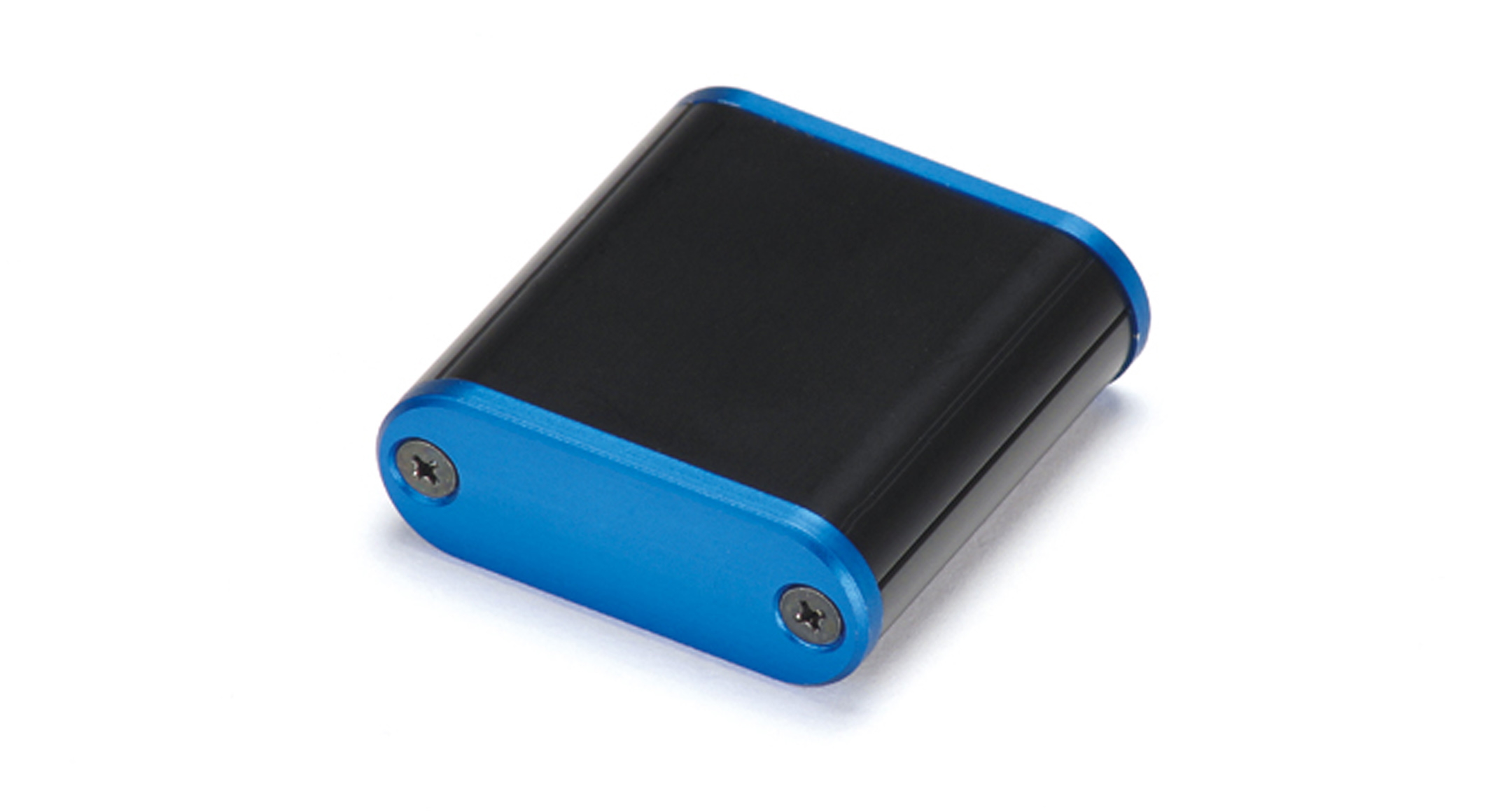

BCBlack/Cobalt

ALUMINUM MOBILE ENCLOSURE MXA series:Black/Cobalt

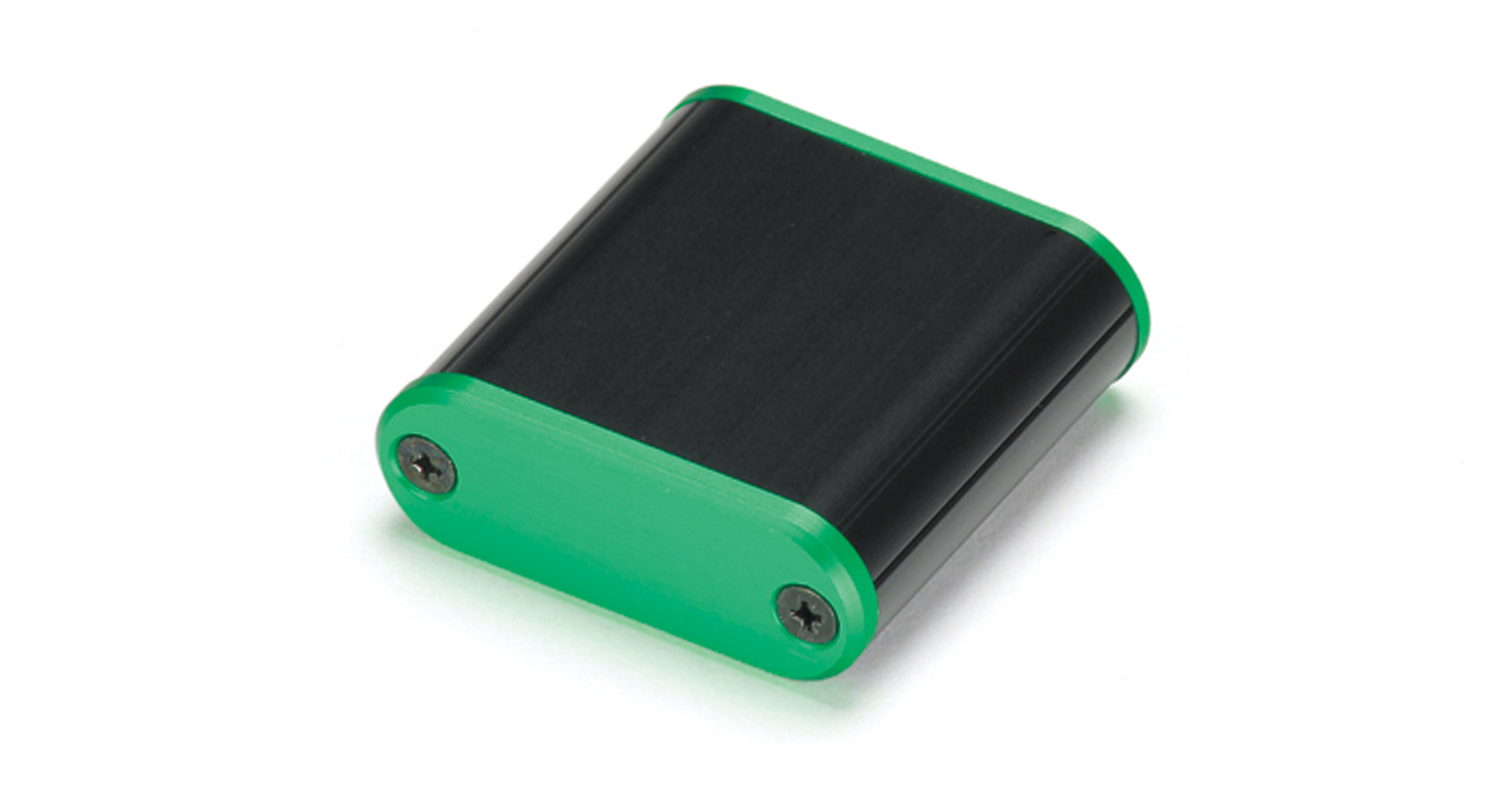

BGBlack/Green

ALUMINUM MOBILE ENCLOSURE MXA series:Black/Green

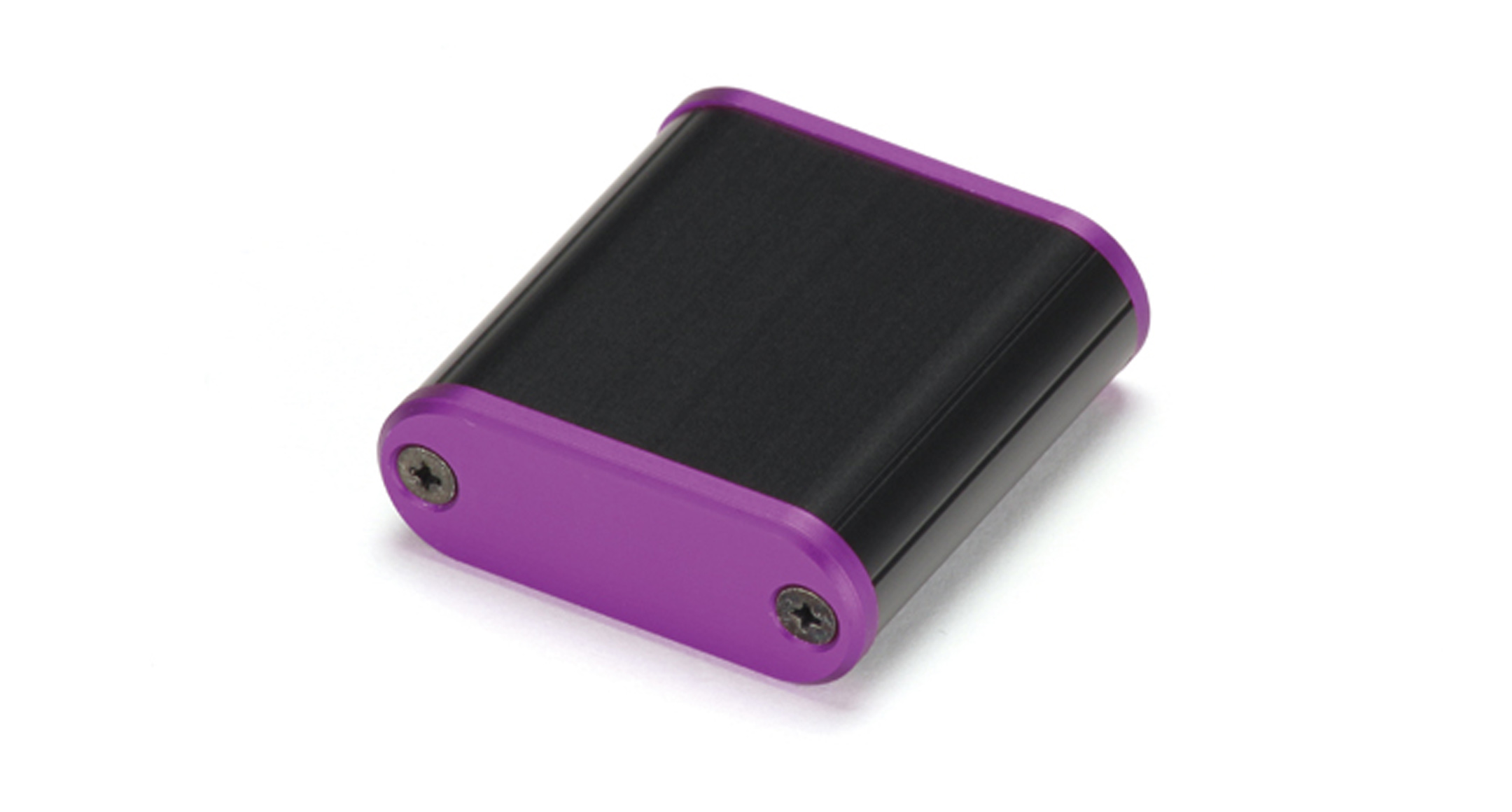

BPBlack/Purple

ALUMINUM MOBILE ENCLOSURE MXA series:Black/Purple

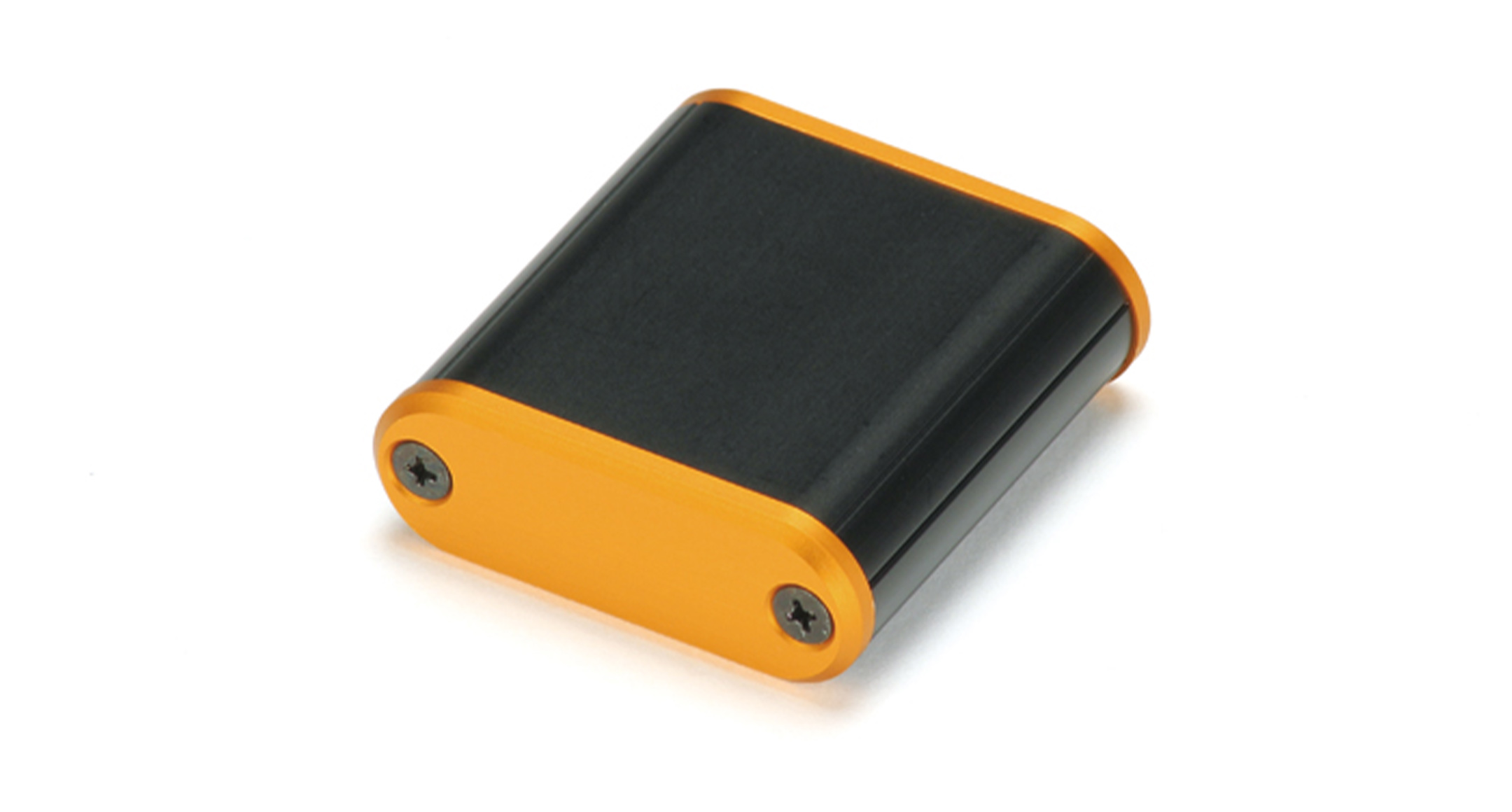

BOBlack/Orange

ALUMINUM MOBILE ENCLOSURE MXA series:Black/Orange

BRBlack/Red

ALUMINUM MOBILE ENCLOSURE MXA series:Black/Red
ALUMINUM MOBILE ENCLOSURE MXA series:Silver/Black
ALUMINUM MOBILE ENCLOSURE MXA series:Silver/Silver
ALUMINUM MOBILE ENCLOSURE MXA series:Silver/Cobalt
ALUMINUM MOBILE ENCLOSURE MXA series:Silver/Green
ALUMINUM MOBILE ENCLOSURE MXA series:Silver/Purple
ALUMINUM MOBILE ENCLOSURE MXA series:Silver/Orange
ALUMINUM MOBILE ENCLOSURE MXA series:Silver/Red
ALUMINUM MOBILE ENCLOSURE MXA series:Black/Black
ALUMINUM MOBILE ENCLOSURE MXA series:Black/Silver
ALUMINUM MOBILE ENCLOSURE MXA series:Black/Cobalt
ALUMINUM MOBILE ENCLOSURE MXA series:Black/Green
ALUMINUM MOBILE ENCLOSURE MXA series:Black/Purple
ALUMINUM MOBILE ENCLOSURE MXA series:Black/Orange
ALUMINUM MOBILE ENCLOSURE MXA series:Black/Red

PRODUCT NO. / DIMENSIONS

Product No. External dimensions Internal dimensions Weight (g) Inventory status PDF DXF DWG STP
W H D w h d
MXA1-5-5□ 48 13 49 33.6 10.2 43 25 Discontinued - Sold out. PDF DXF DWG
MXA1-5-8□ 48 13 79 33.6 10.2 73 40 Discontinued - Sold out. PDF DXF DWG
MXA1-5-11□ 48 13 109 33.6 10.2 103 55 Discontinued - Sold out. PDF DXF DWG
MXA2-4-4□ 41 15 44 26.6 12.1 38 25 PDF DXF DWG
MXA2-4-7□ 41 15 74 26.6 12.1 68 40 PDF DXF DWG
MXA2-4-10□ 41 15 104 26.6 12.1 98 50 PDF DXF DWG
MXA2-6-5□ 57 18 46 42.5 14.6 40 35 PDF DXF DWG
MXA2-6-7□ 57 18 71 42.5 14.6 65 50 PDF DXF DWG
MXA2-6-10□ 57 18 96 42.5 14.6 90 65 PDF DXF DWG
MXA2-7-5□ 70 20 54 53.2 16.1 48 55 PDF DXF DWG
MXA2-7-8□ 70 20 84 53.2 16.1 78 80 PDF DXF DWG
MXA2-7-11□ 70 20 114 53.2 16.1 108 110 PDF DXF DWG
MXA2-8-6□ 82 24 64 65.2 19.1 58 75 PDF DXF DWG
MXA2-8-9□ 82 24 94 65.2 19.1 88 105 PDF DXF DWG
MXA2-8-12□ 82 24 124 65.2 19.1 118 135 PDF DXF DWG
MXA2-10-7□ 100 16 74 85.6 13.1 68 70 Discontinued - Sold out. PDF DXF DWG
MXA2-10-10□ 100 16 104 85.6 13.1 98 100 Discontinued - Sold out. PDF DXF DWG
MXA2-10-14□ 100 16 144 85.6 13.1 138 135 Discontinued - Sold out. PDF DXF DWG
MXA3-11-7□ 110 30 72 93.2 22.9 66 115 PDF DXF DWG
MXA3-11-11□ 110 30 112 93.2 22.9 106 165 PDF DXF DWG
MXA3-11-16□ 110 30 162 93.2 22.9 156 235 PDF DXF DWG
MXA4-7-5□ 70 35 52 53.2 26 46 70 PDF DXF DWG
MXA4-7-8□ 70 35 82 53.2 26 76 100 PDF DXF DWG
MXA4-7-11□ 70 35 112 53.2 26 106 135 PDF DXF DWG
MXA4-10-7□ 95 40 70 78.2 28.5 64 120 PDF DXF DWG
MXA4-10-11□ 95 40 110 78.2 28.5 104 175 PDF DXF DWG
MXA4-10-14□ 95 40 140 78.2 28.5 134 220 PDF DXF DWG
MXA4-13-9□ 130 35 90 113.2 25 84 180 PDF DXF DWG
MXA4-13-14□ 130 35 140 113.2 25 134 265 PDF DXF DWG
MXA4-13-20□ 130 35 200 113.2 25 194 370 PDF DXF DWG
SAMPLE REQUEST FORM

This product series is available as a free sample.

OPTIONAL PARTS

1
SILICONE PROTECT BAND for MX・MXA - SIB series
DETAILS
1
ALUMINIUM ISOLATION FEET - AFM・AFS series
DETAILS
1
WALL SUSPENSION BRACKET - WM series
DETAILS
1

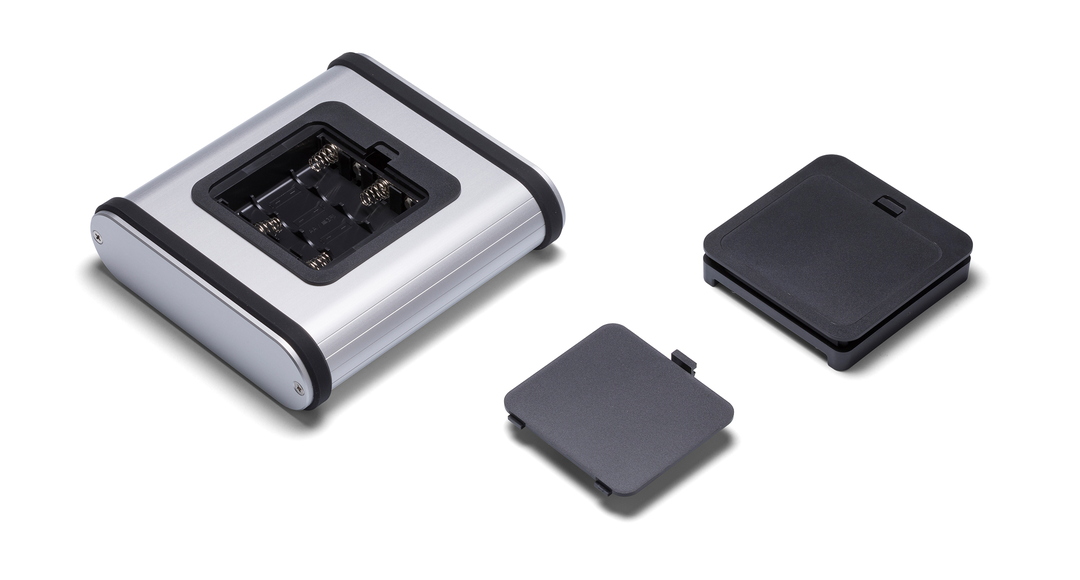

EMBEDDED BATTERY BOX - BC series
DETAILS
1
STEEL BELT CLIP - DK series
DETAILS
1
ADHESIVE STANDOFF - AST series
DETAILS

SIMILAR PRODUCT

1
CUSTOM SIZED ROUNDED EDGE ALUMINUM ENCLOSURE - MXAC series
DETAILS
1
MOBILE ENCLOSURE MX series
DETAILS
1
FLANGED NETWORK ALUMINIUM ENCLOSURE - MXF series
DETAILS
1
HIGH-END DESIGN ALUMINUM CASE - HD series
DETAILS
1
EXTRUDED ALUMINUM ENCLOSURE - EX series
DETAILS
1
ALUMINIUM ENCLOSURE with CORNER GUARD - EXP series
DETAILS
1
HEATSINK ALUMINIUM ENCLOSURE - EXH series
DETAILS
1
HEATSINK ALUMINUM ENCLOSURE - AWA series
DETAILS

CUSTOMIZATION VIDEO / PRODUCT INTRODUCTION VIDEO

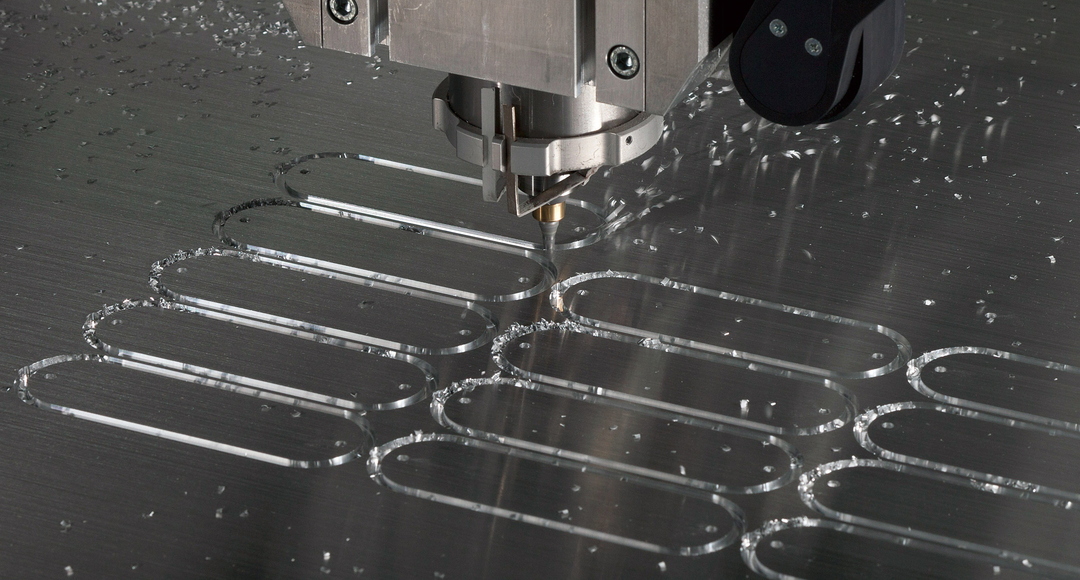

High speed CNC milling
