MOBILE ENCLOSURE MX series

CATEGORY：Mobile enclosure, Round edge aluminium case, Extruded aluminum enclosure, Aluminium profile enclosure, IOT enclosure

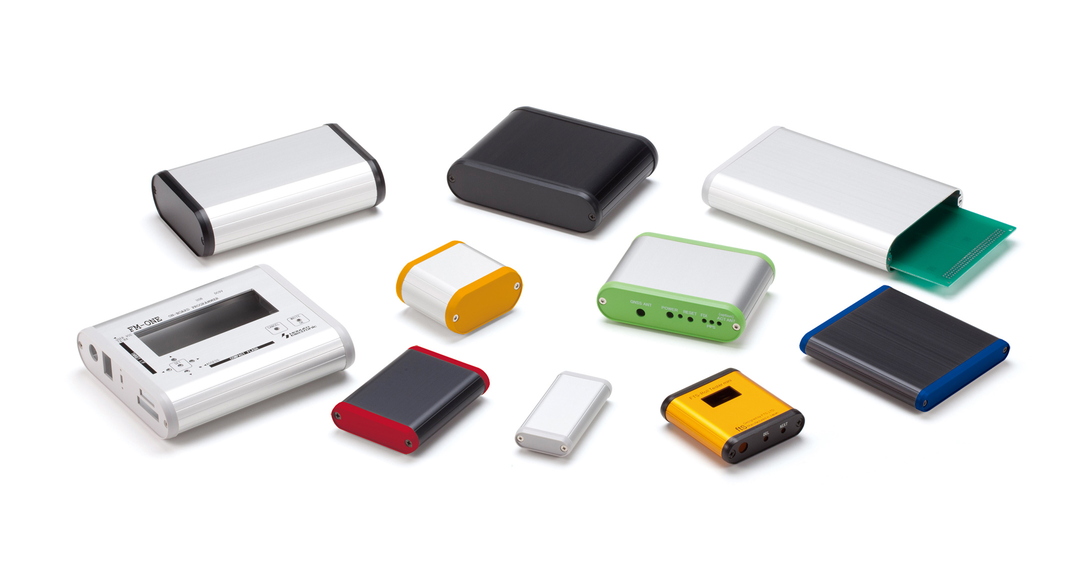

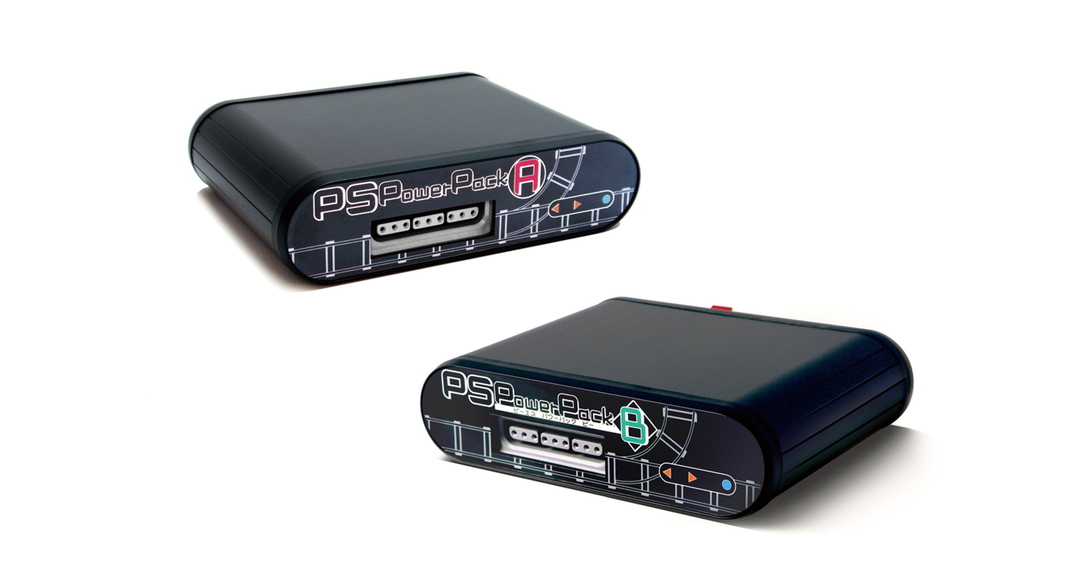

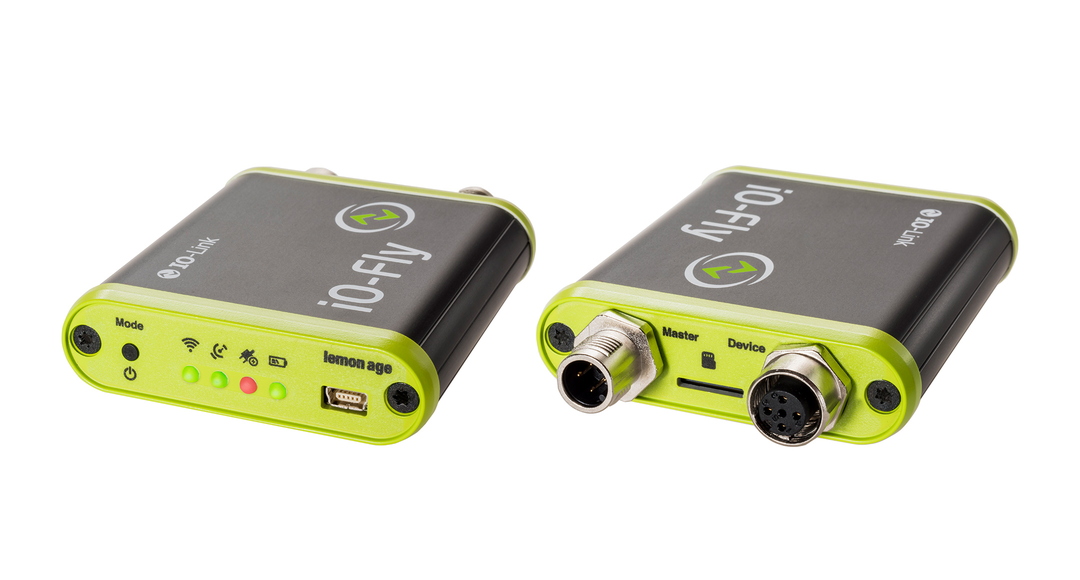

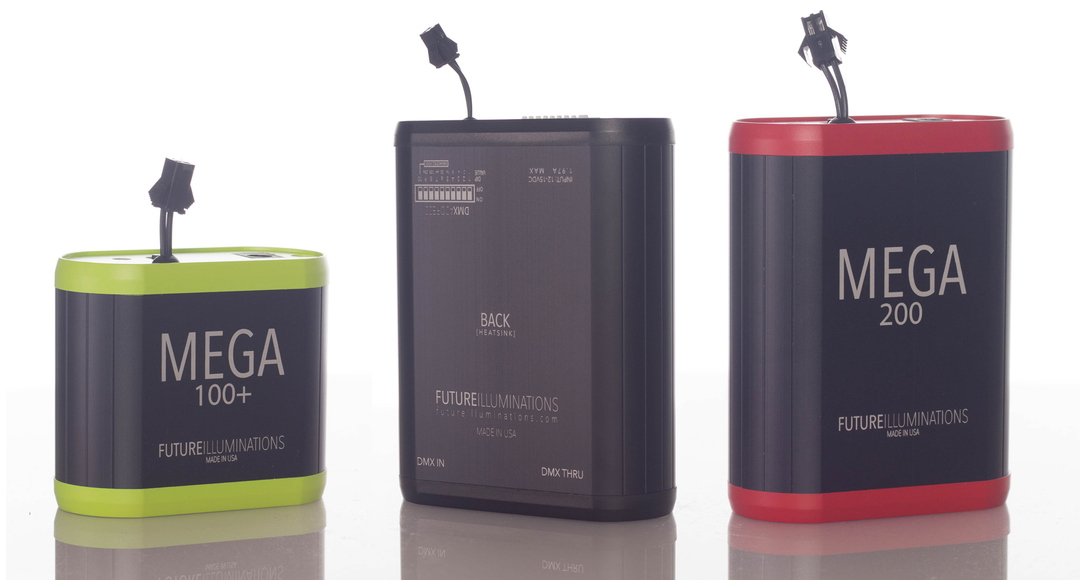

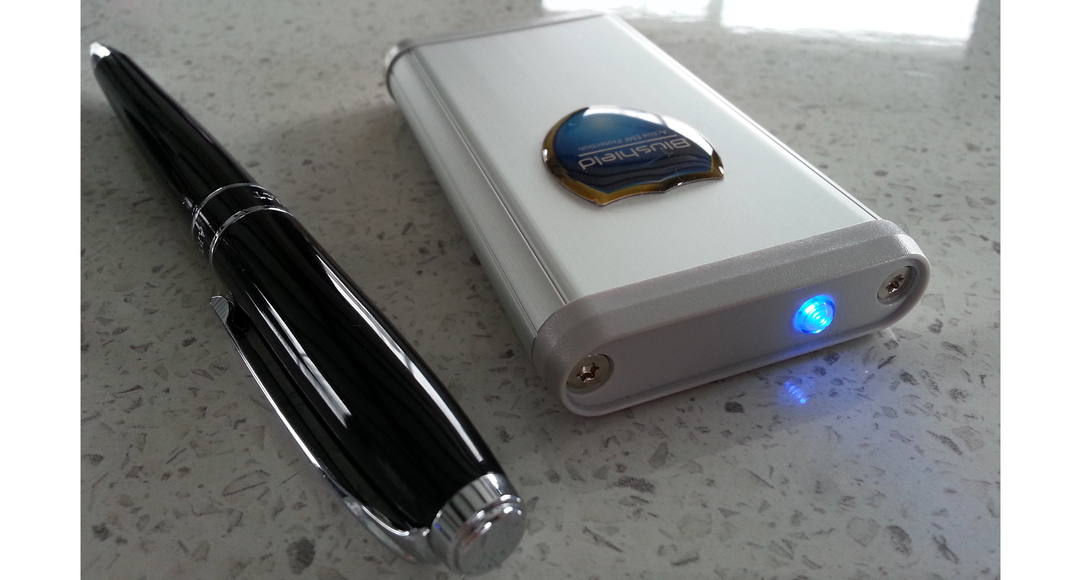

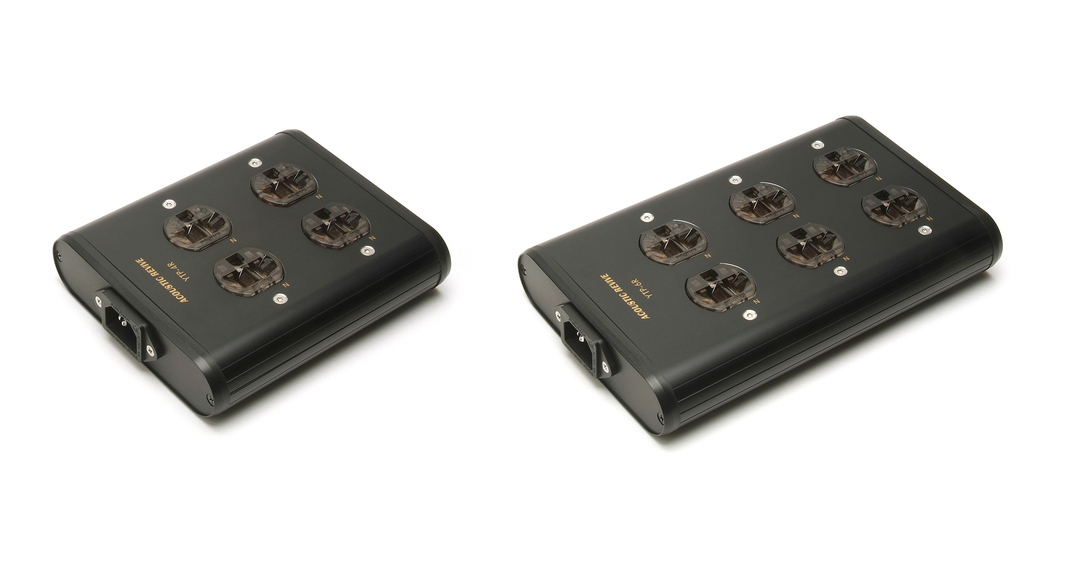

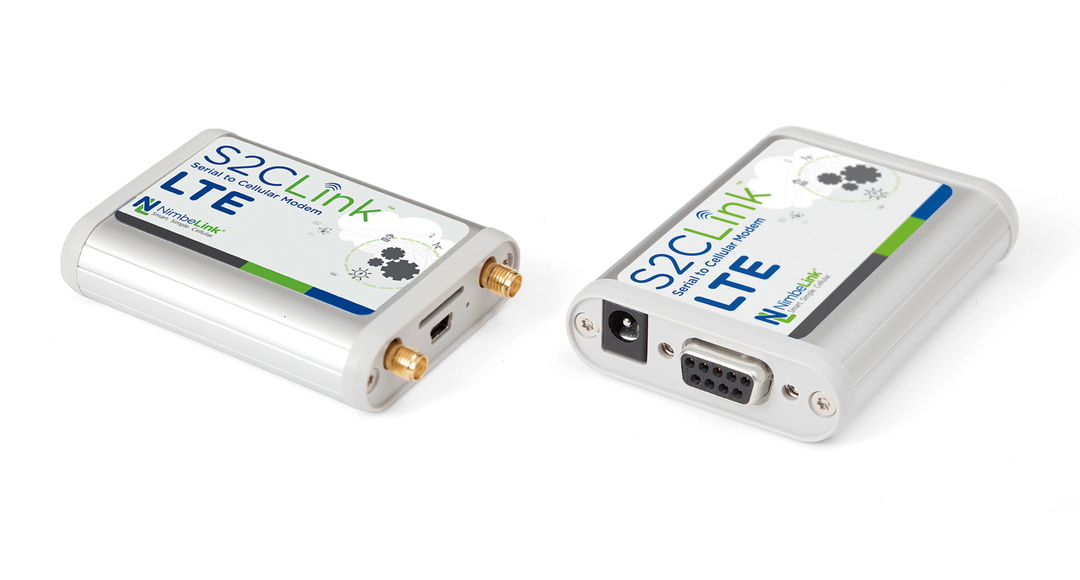

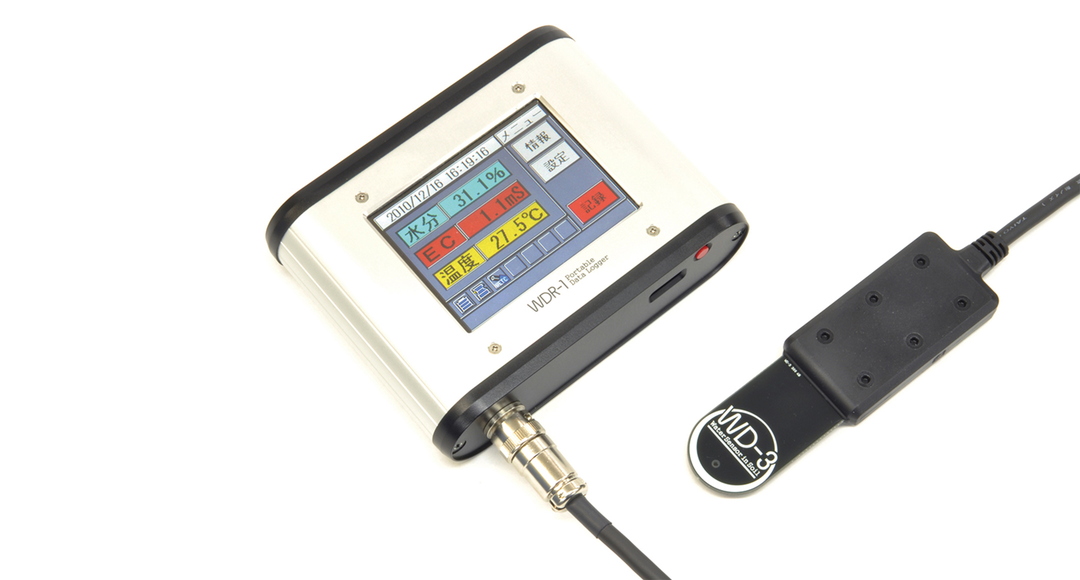

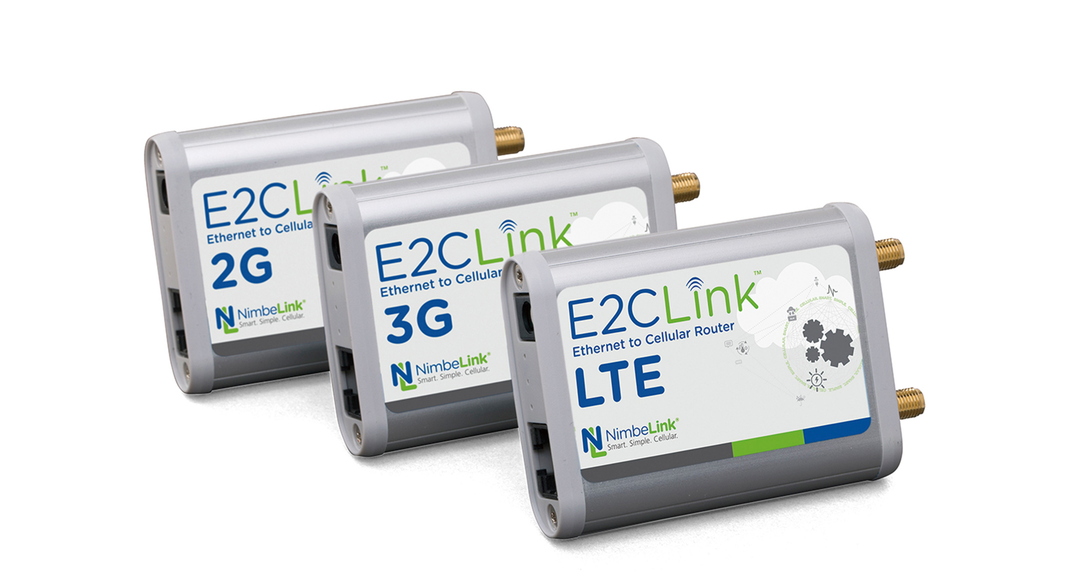

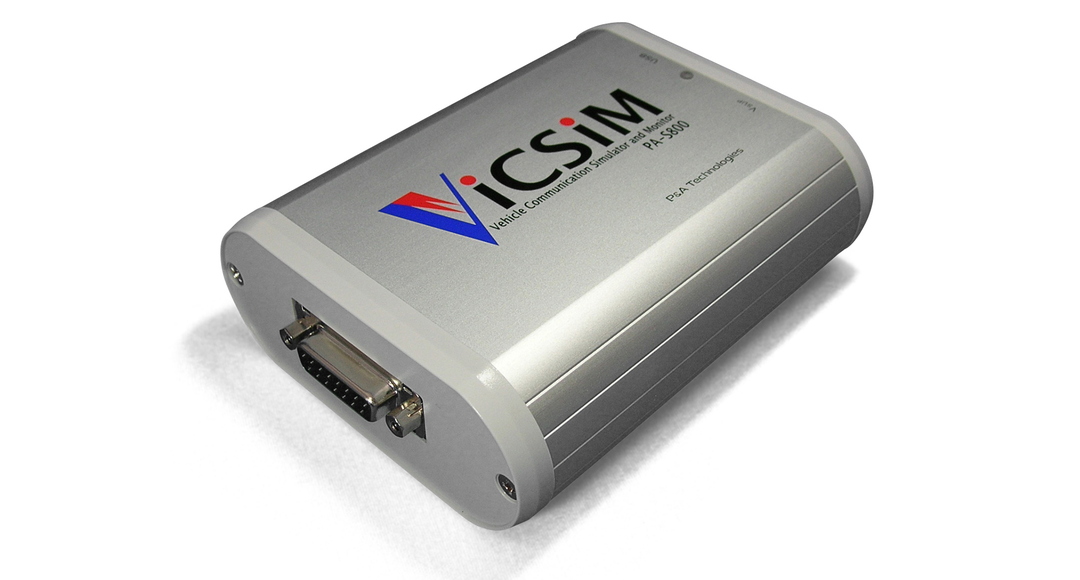

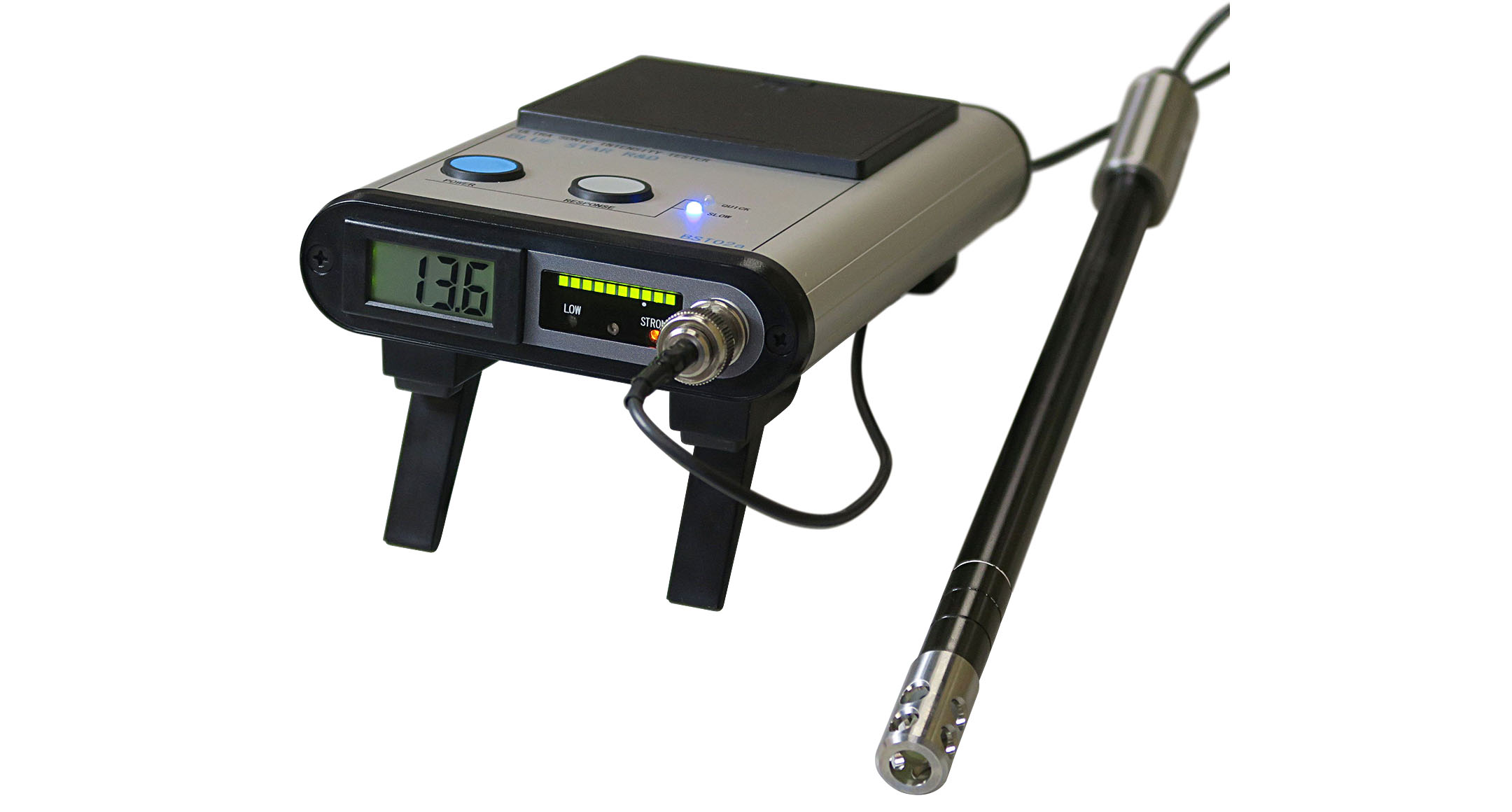

Mobile enclosure with easy to hold rounded design.
Frame is made from extruded aluminum material, while the panel is ABS plastic.

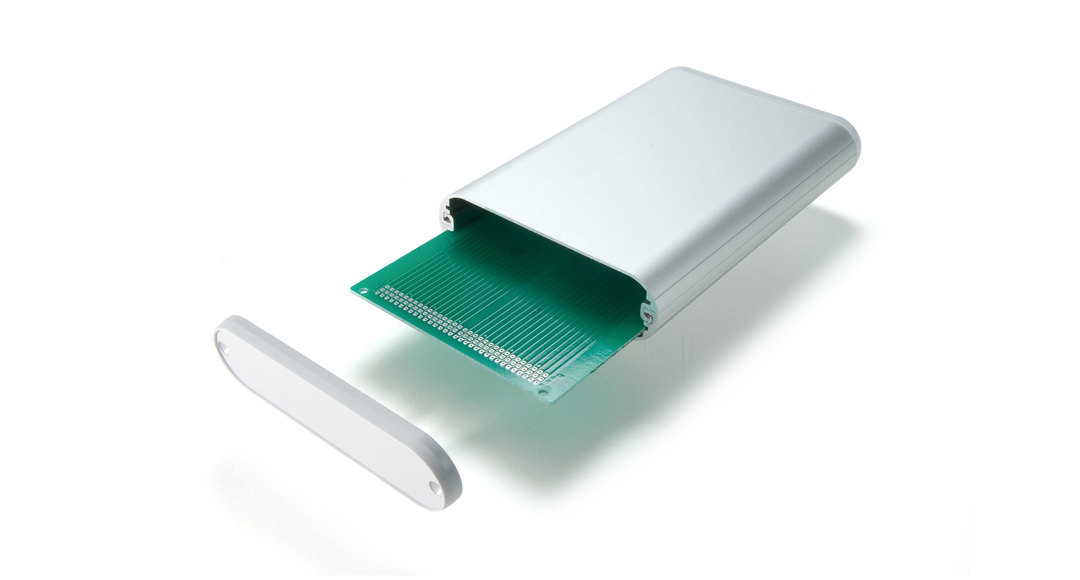

Grooves are built into the internal enclosure, allowing for easy sliding/insertion of pcb boards.

*MX1-5 models do not have internal grooves.

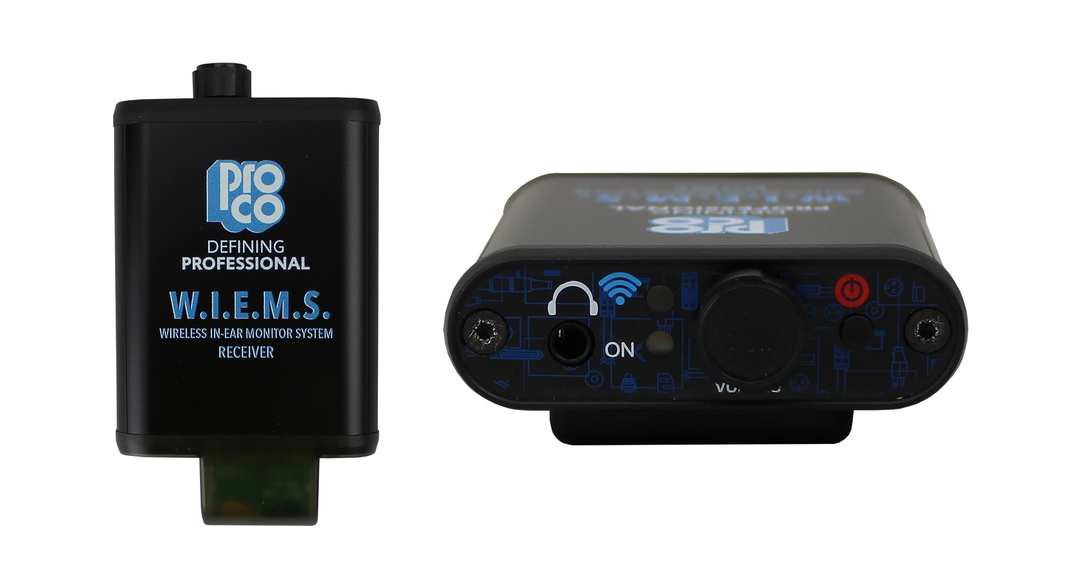

12 different color combinations and 30 different sizes available to choose from.

Custom length is available.
↓Go MXC series page for the custom length (depth) order from 35～500mm by 1mm intervals.

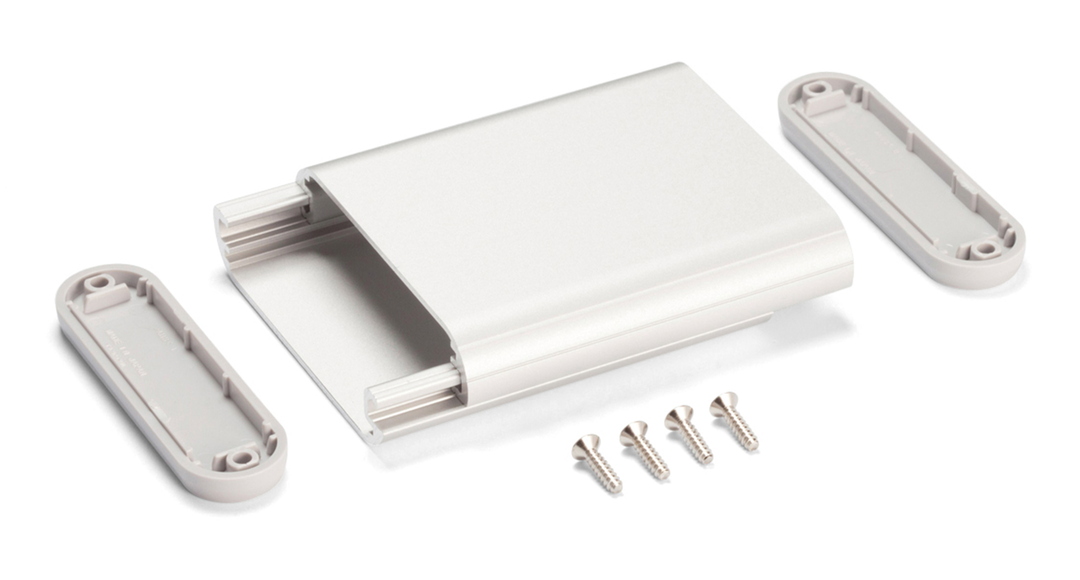

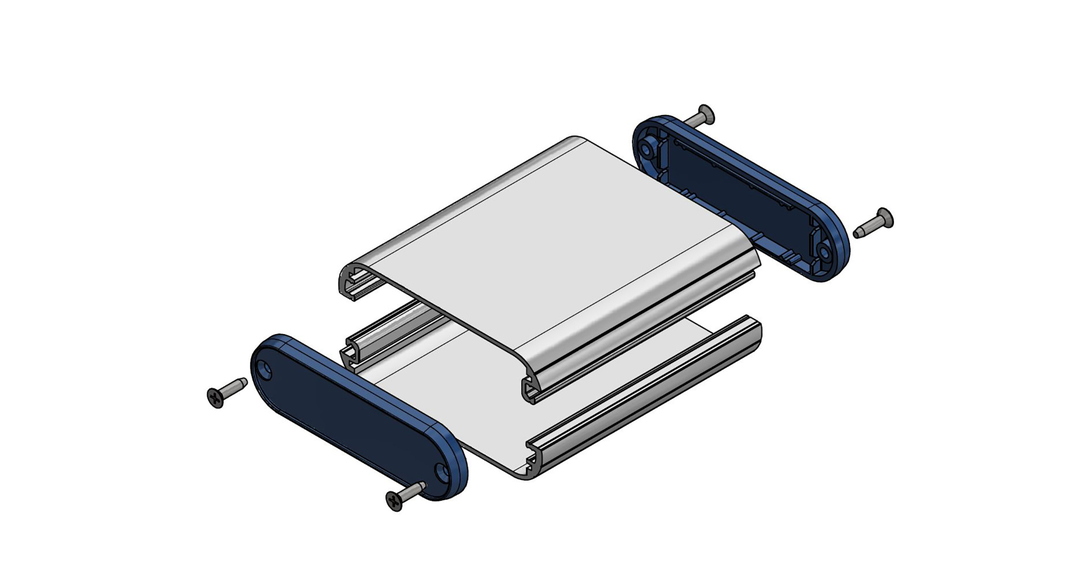

CUSTOM LENGTH ENCLOSURE - MXC series 3D View (Silver/Gray) 3D View (Black) 3D View - 12 color types Exploded View Color code

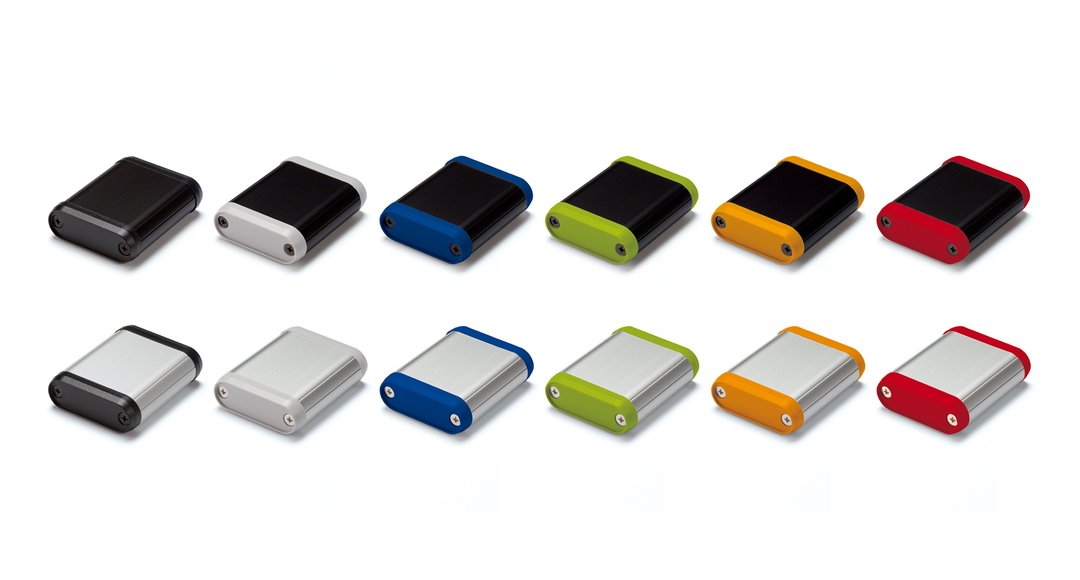

COLOR TYPE

SBSilver/Black

SGSilver/Gray

SNSilver/Navy

SLSilver/Lime

SOSilver/Orange

MOBILE ENCLOSURE MX series:Silver/Orange

SRSilver/Red

BBBlack/Black

BGBlack/Gray

BNBlack/Navy

BLBlack/Lime

BOBlack/Orange

BRBlack/Red

PRODUCT NO. / DIMENSIONS

Product No.	External dimensions			Internal dimensions			Weight (g)	Inventory status	PDF	DXF	DWG	STP
Product No.	W	H	D	w	h	d	Weight (g)	Inventory status	PDF	DXF	DWG	STP
MX1-5-6□	48	13	55	33.6	6.8	49.6	25	Limited inventory.	PDF	DXF	DWG	STP
MX1-5-9□	48	13	85	33.6	6.8	79.6	40	Limited inventory.	PDF	DXF	DWG	STP
MX1-5-12□	48	13	115	33.6	6.8	109.6	55	Limited inventory.	PDF	DXF	DWG	STP
MX2-4-11□	41	15	110	26.6	8.8	104.6	50		PDF	DXF	DWG	STP
MX2-4-5□	41	15	50	26.6	8.8	44.6	20		PDF	DXF	DWG	STP
MX2-4-8□	41	15	80	26.6	8.8	74.6	35		PDF	DXF	DWG	STP
MX2-6-5□	57	18	50	41.1	12.3	45	35		PDF	DXF	DWG	STP
MX2-6-8□	57	18	75	41.1	12.3	70	50		PDF	DXF	DWG	STP
MX2-6-10□	57	18	100	41.1	12.3	95	70		PDF	DXF	DWG	STP
MX2-7-6□	70	20	60	52.4	13.1	54.6	50		PDF	DXF	DWG	STP
MX2-7-9□	70	20	90	52.4	13.1	84.6	80		PDF	DXF	DWG	STP
MX2-7-12□	70	20	120	52.4	13.1	114.6	105		PDF	DXF	DWG	STP
MX2-8-7□	82	24	70	60	17.2	64.6	75		PDF	DXF	DWG	STP
MX2-8-10□	82	24	100	60	17.2	94.6	105		PDF	DXF	DWG	STP
MX2-8-13□	82	24	130	60	17.2	124.6	140		PDF	DXF	DWG	STP
MX2-10-8□	100	16	80	85.6	9.8	74.6	70	Limited inventory.	PDF	DXF	DWG	STP
MX2-10-11□	100	16	110	85.6	9.8	104.6	95	Limited inventory.	PDF	DXF	DWG	STP
MX2-10-15□	100	16	150	85.6	9.8	144.6	130	Limited inventory.	PDF	DXF	DWG	STP
MX3-11-8□	110	30	80	87.3	23.2	74.6	110		PDF	DXF	DWG	STP
MX3-11-12□	110	30	120	87.3	23.2	114.6	165		PDF	DXF	DWG	STP
MX3-11-17□	110	30	170	87.3	23.2	164.6	235		PDF	DXF	DWG	STP
MX4-7-12□	70	35	120	44.9	28.1	113	130		PDF	DXF	DWG	STP
MX4-7-6□	70	35	60	44.9	28.1	53	65		PDF	DXF	DWG	STP
MX4-7-9□	70	35	90	44.9	28.1	83	100		PDF	DXF	DWG	STP
MX4-10-8□	95	40	80	64.8	33.1	73	115		PDF	DXF	DWG	STP
MX4-10-12□	95	40	120	64.8	33.1	113	175		PDF	DXF	DWG	STP
MX4-10-15□	95	40	150	64.8	33.1	143	215		PDF	DXF	DWG	STP
MX4-13-10□	130	35	100	104.1	27.7	94.4	175		PDF	DXF	DWG	STP
MX4-13-15□	130	35	150	104.1	27.7	144.4	265		PDF	DXF	DWG	STP
MX4-13-21□	130	35	210	104.1	27.7	204.4	375		PDF	DXF	DWG	STP
