FLANGED NETWORK ALUMINIUM ENCLOSURE - MXF series


MXF Series -PDF

CATEGORY:Network device enclosure, Wall mount enclosure, Extruded aluminum enclosure, IOT enclosure, Sensor enclosure, Router enclosure

FLANGED NETWORK ALUMINIUM ENCLOSURE - MXF series
FLANGED NETWORK ALUMINIUM ENCLOSURE - MXF series
FLANGED NETWORK ALUMINIUM ENCLOSURE - MXF series
FLANGED NETWORK ALUMINIUM ENCLOSURE - MXF series
FLANGED NETWORK ALUMINIUM ENCLOSURE - MXF series
FLANGED NETWORK ALUMINIUM ENCLOSURE - MXF series
FLANGED NETWORK ALUMINIUM ENCLOSURE - MXF series
FLANGED NETWORK ALUMINIUM ENCLOSURE - MXF series1
FLANGED NETWORK ALUMINIUM ENCLOSURE - MXF series2
FLANGED NETWORK ALUMINIUM ENCLOSURE - MXF series3
FLANGED NETWORK ALUMINIUM ENCLOSURE - MXF series4
FLANGED NETWORK ALUMINIUM ENCLOSURE - MXF series5
FLANGED NETWORK ALUMINIUM ENCLOSURE - MXF series6
FLANGED NETWORK ALUMINIUM ENCLOSURE - MXF series7

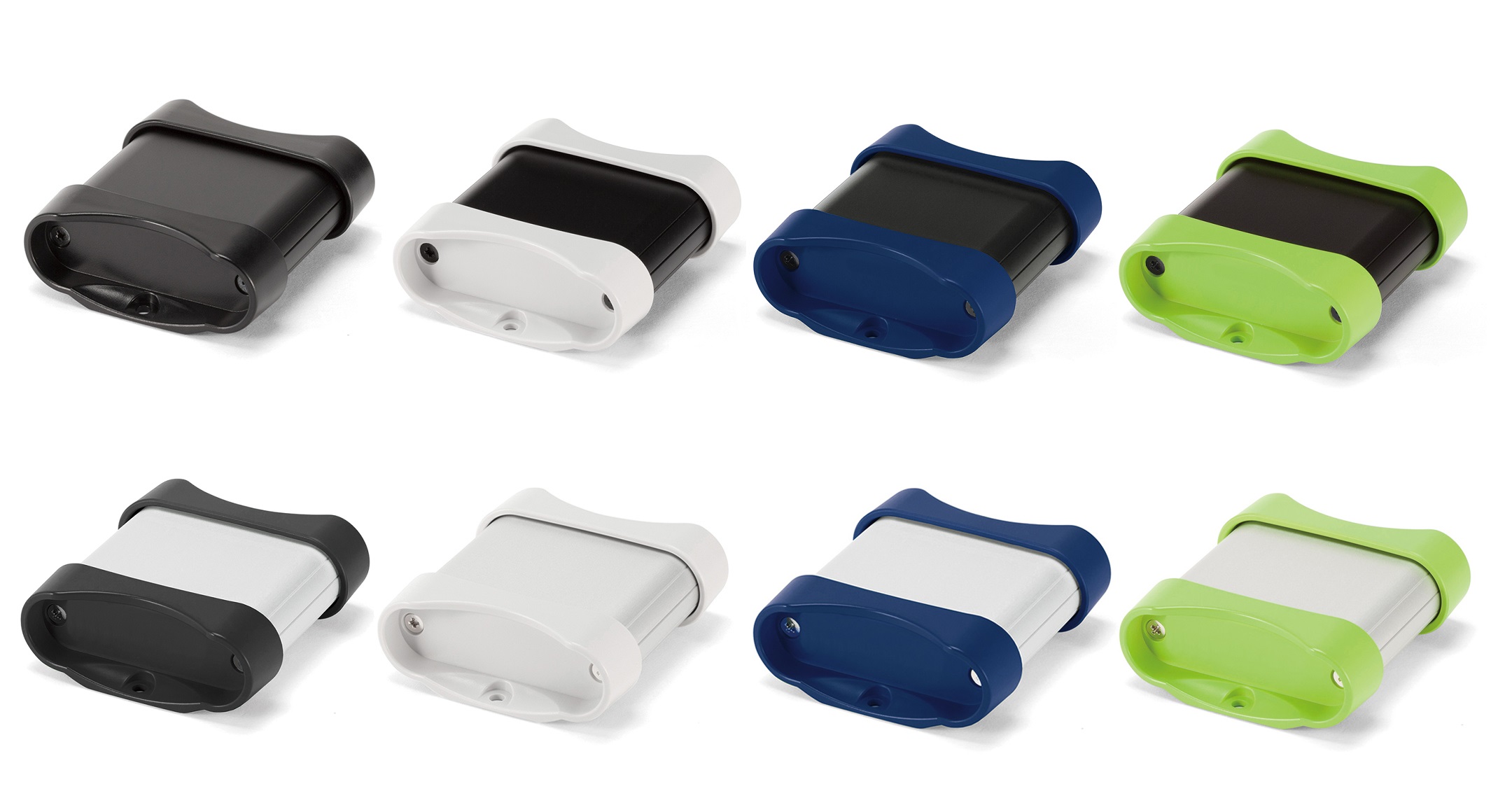

COLOR TYPE

SBSilver/Black

FLANGED NETWORK ALUMINIUM ENCLOSURE - MXF series:Silver/Black

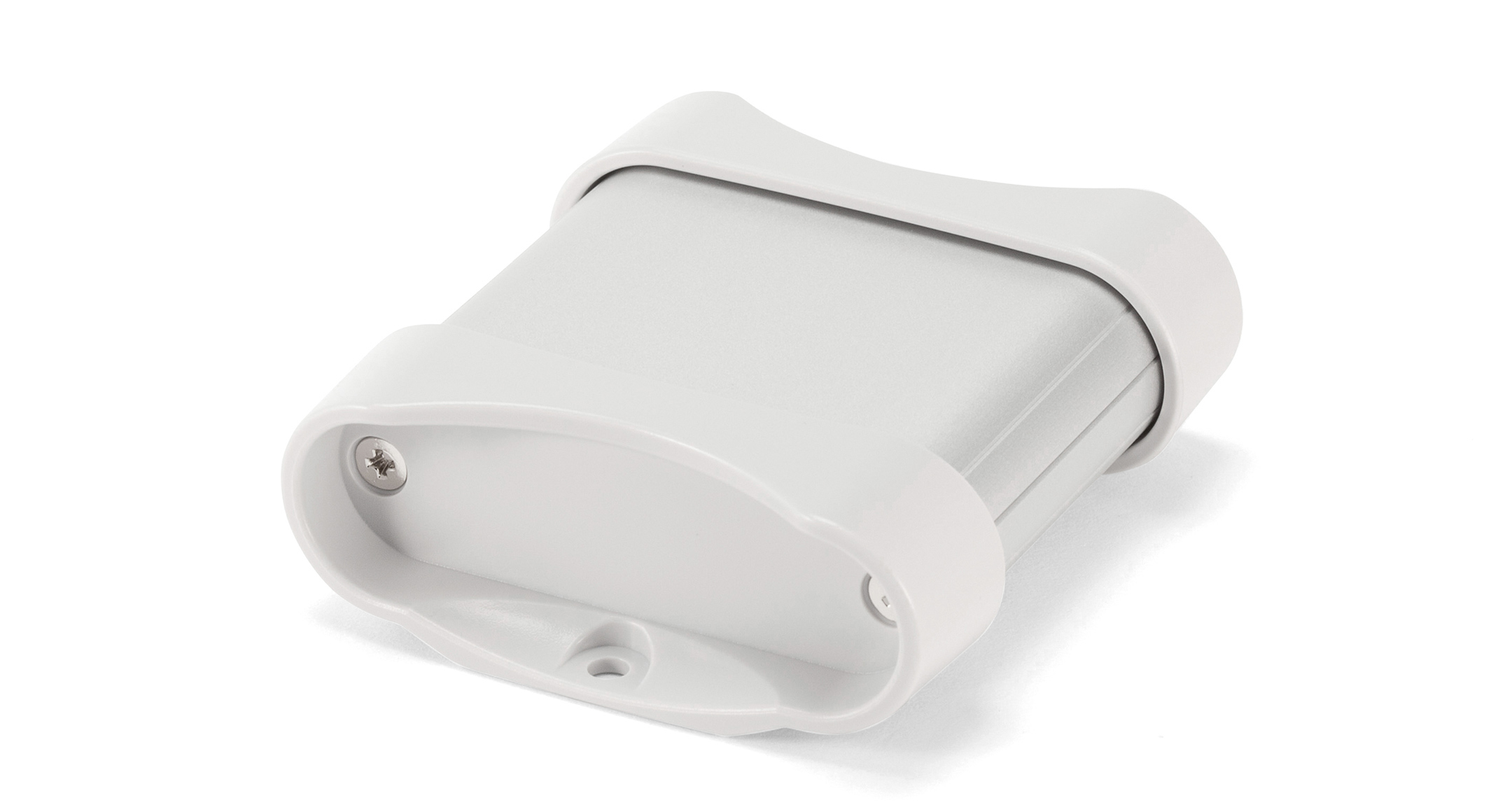

SGSilver/Gray

FLANGED NETWORK ALUMINIUM ENCLOSURE - MXF series:Silver/Gray

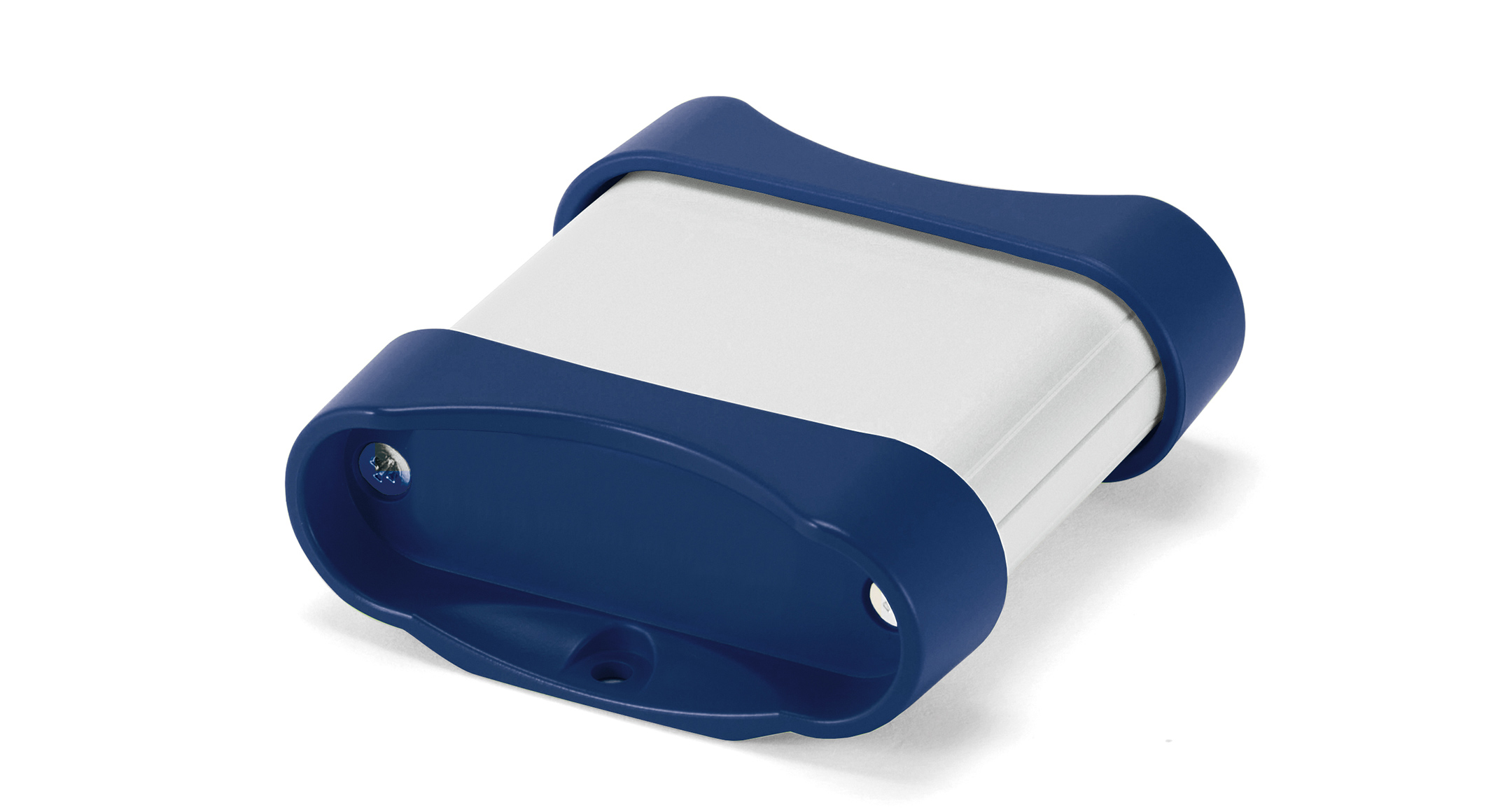

SNSilver/Navy

FLANGED NETWORK ALUMINIUM ENCLOSURE - MXF series:Silver/Navy

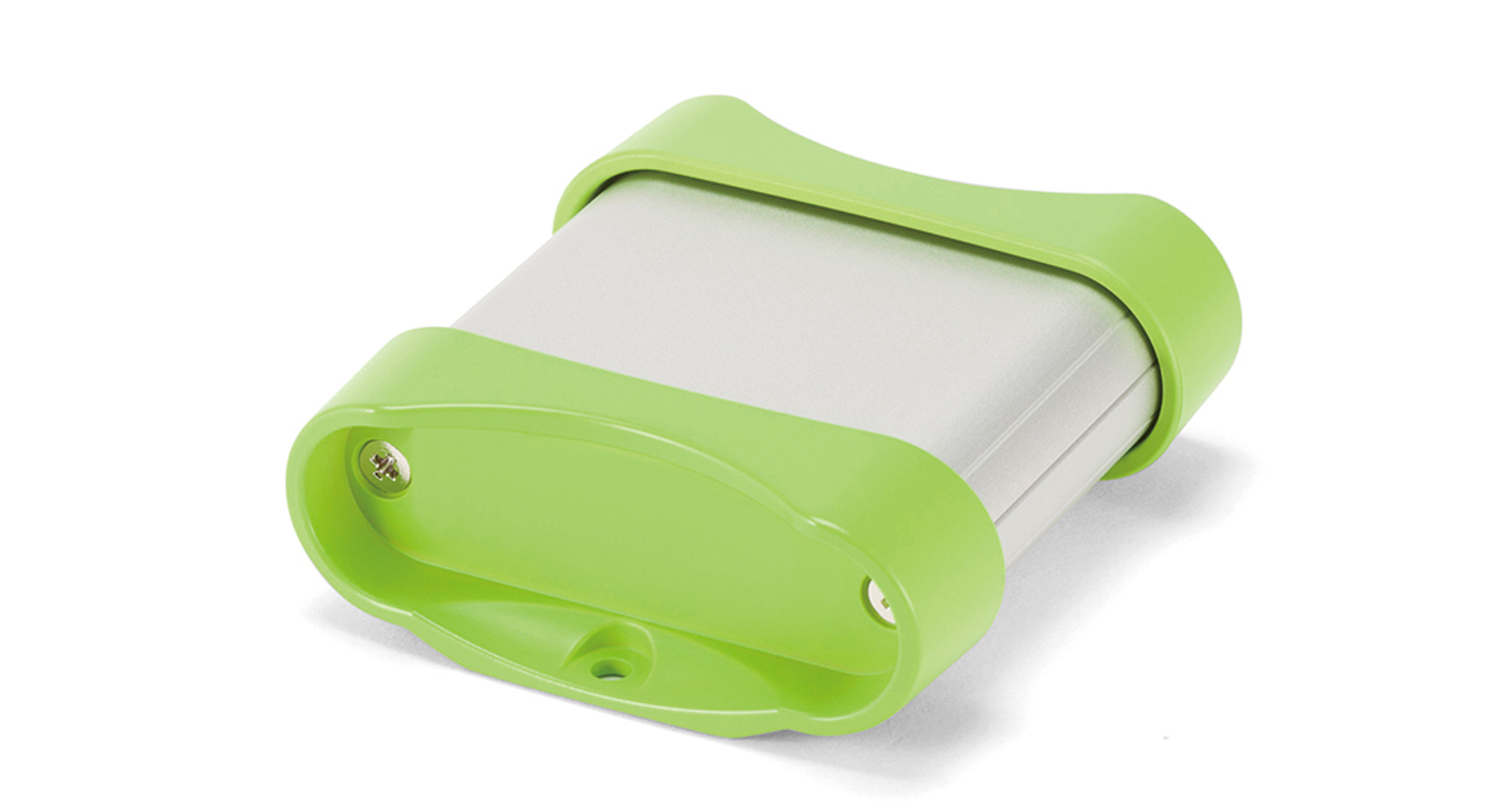

SLSilver/Lime

FLANGED NETWORK ALUMINIUM ENCLOSURE - MXF series:Silver/Lime

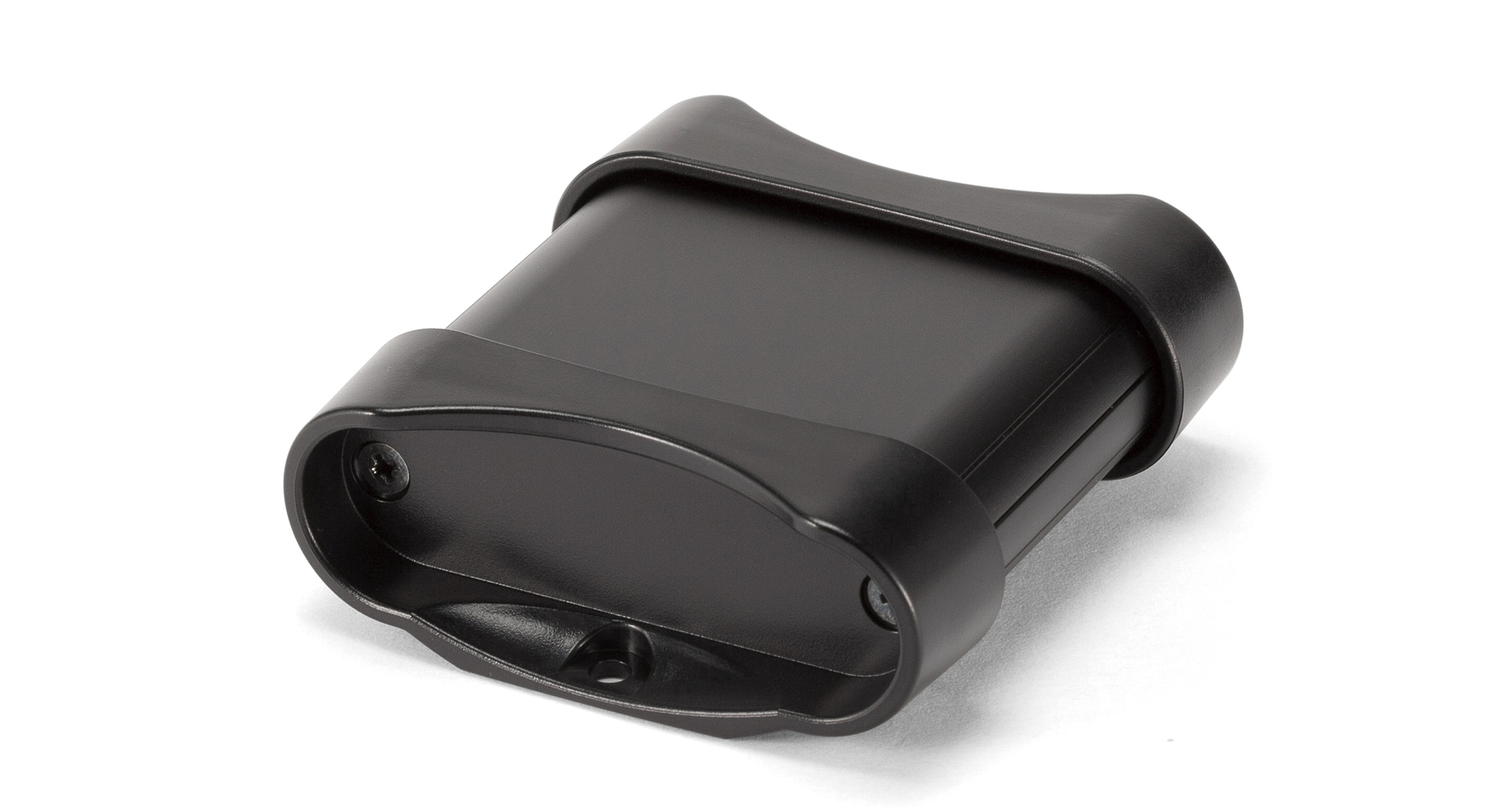

BBBlack/Black

FLANGED NETWORK ALUMINIUM ENCLOSURE - MXF series:Black/Black

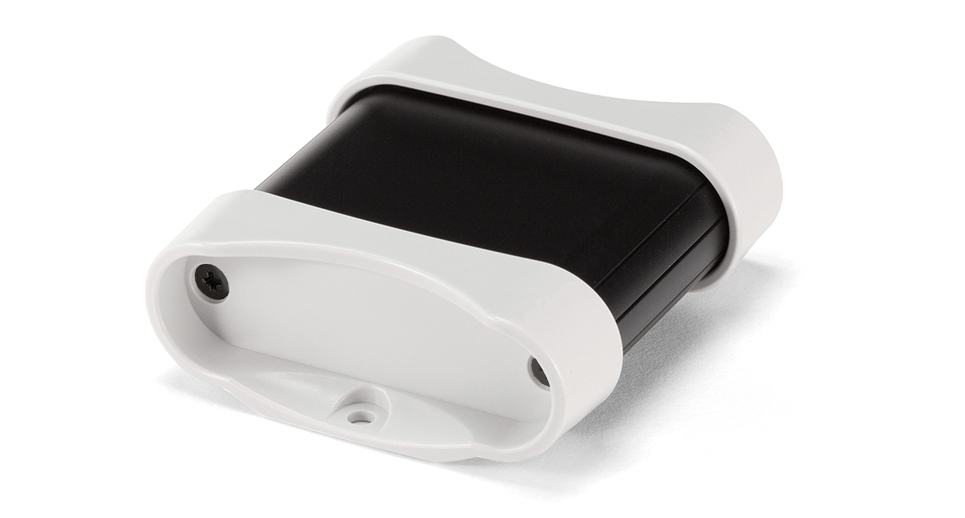

BGBlack/Gray

FLANGED NETWORK ALUMINIUM ENCLOSURE - MXF series:Black/Gray

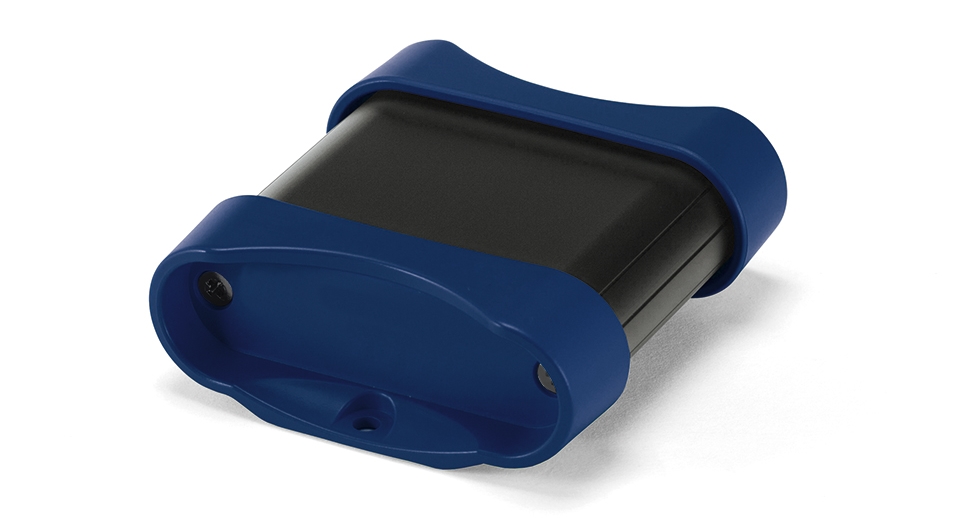

BNBlack/Navy

FLANGED NETWORK ALUMINIUM ENCLOSURE - MXF series:Black/Navy

BLBlack/Lime

FLANGED NETWORK ALUMINIUM ENCLOSURE - MXF series:Black/Lime
FLANGED NETWORK ALUMINIUM ENCLOSURE - MXF series:Silver/Black
FLANGED NETWORK ALUMINIUM ENCLOSURE - MXF series:Silver/Gray
FLANGED NETWORK ALUMINIUM ENCLOSURE - MXF series:Silver/Navy
FLANGED NETWORK ALUMINIUM ENCLOSURE - MXF series:Silver/Lime
FLANGED NETWORK ALUMINIUM ENCLOSURE - MXF series:Black/Black
FLANGED NETWORK ALUMINIUM ENCLOSURE - MXF series:Black/Gray
FLANGED NETWORK ALUMINIUM ENCLOSURE - MXF series:Black/Navy
FLANGED NETWORK ALUMINIUM ENCLOSURE - MXF series:Black/Lime

PRODUCT NO. / DIMENSIONS

Product No. External dimensions Internal dimensions Weight (g) PDF DXF DWG STP
W H D w h d
MXF2-6-7□ 60.9 23.4 65 41.1 15.1 45 44 PDF DXF DWG
MXF2-6-9□ 60.9 23.4 90 41.1 15.1 70 59 PDF DXF DWG
MXF2-6-12□ 60.9 23.4 115 41.1 15.1 95 75 PDF DXF DWG
MXF2-8-9□ 86.1 29.6 94 60.1 20.5 64.6 90 PDF DXF DWG
MXF2-8-12□ 86.1 29.6 124 60.1 20.5 94.6 121 PDF DXF DWG
MXF2-8-15□ 86.1 29.6 154 60.1 20.5 124.6 153 PDF DXF DWG
MXF3-11-10□ 114.2 35.6 104 87.3 26.5 74.6 130 PDF DXF DWG
MXF3-11-14□ 114.2 35.6 144 87.3 26.5 114.6 184 PDF DXF DWG
MXF3-11-19□ 114.2 35.6 194 87.3 26.5 164.6 251 PDF DXF DWG
MXF4-13-12□ 134.2 40.6 124 104.1 31 94.4 197 PDF DXF DWG
MXF4-13-17□ 134.2 40.6 174 104.1 31 144.4 284 PDF DXF DWG
MXF4-13-23□ 134.2 40.6 234 104.1 31 204.4 388 PDF DXF DWG
SAMPLE REQUEST FORM

This product series is available as a free sample.
