IP68 UL CERTIFIED SNAP-LOCK SCREWLESS MINI CONNECTOR - THS389 series


THS389 Series -PDF

CATEGORY:Waterproof connector, Snap-lock connector, IP68 connector, Industrial connector, LED connector, Outdoor connector

IP68 UL CERTIFIED SNAP-LOCK SCREWLESS MINI CONNECTOR - THS389 series
IP68 UL CERTIFIED SNAP-LOCK SCREWLESS MINI CONNECTOR - THS389 series
IP68 UL CERTIFIED SNAP-LOCK SCREWLESS MINI CONNECTOR - THS389 series
IP68 UL CERTIFIED SNAP-LOCK SCREWLESS MINI CONNECTOR - THS389 series
IP68 UL CERTIFIED SNAP-LOCK SCREWLESS MINI CONNECTOR - THS389 series
IP68 UL CERTIFIED SNAP-LOCK SCREWLESS MINI CONNECTOR - THS389 series1
IP68 UL CERTIFIED SNAP-LOCK SCREWLESS MINI CONNECTOR - THS389 series2
IP68 UL CERTIFIED SNAP-LOCK SCREWLESS MINI CONNECTOR - THS389 series3
IP68 UL CERTIFIED SNAP-LOCK SCREWLESS MINI CONNECTOR - THS389 series4
IP68 UL CERTIFIED SNAP-LOCK SCREWLESS MINI CONNECTOR - THS389 series5
IP68 snap-lock mini connector for easy and frequent connection/disconnection.

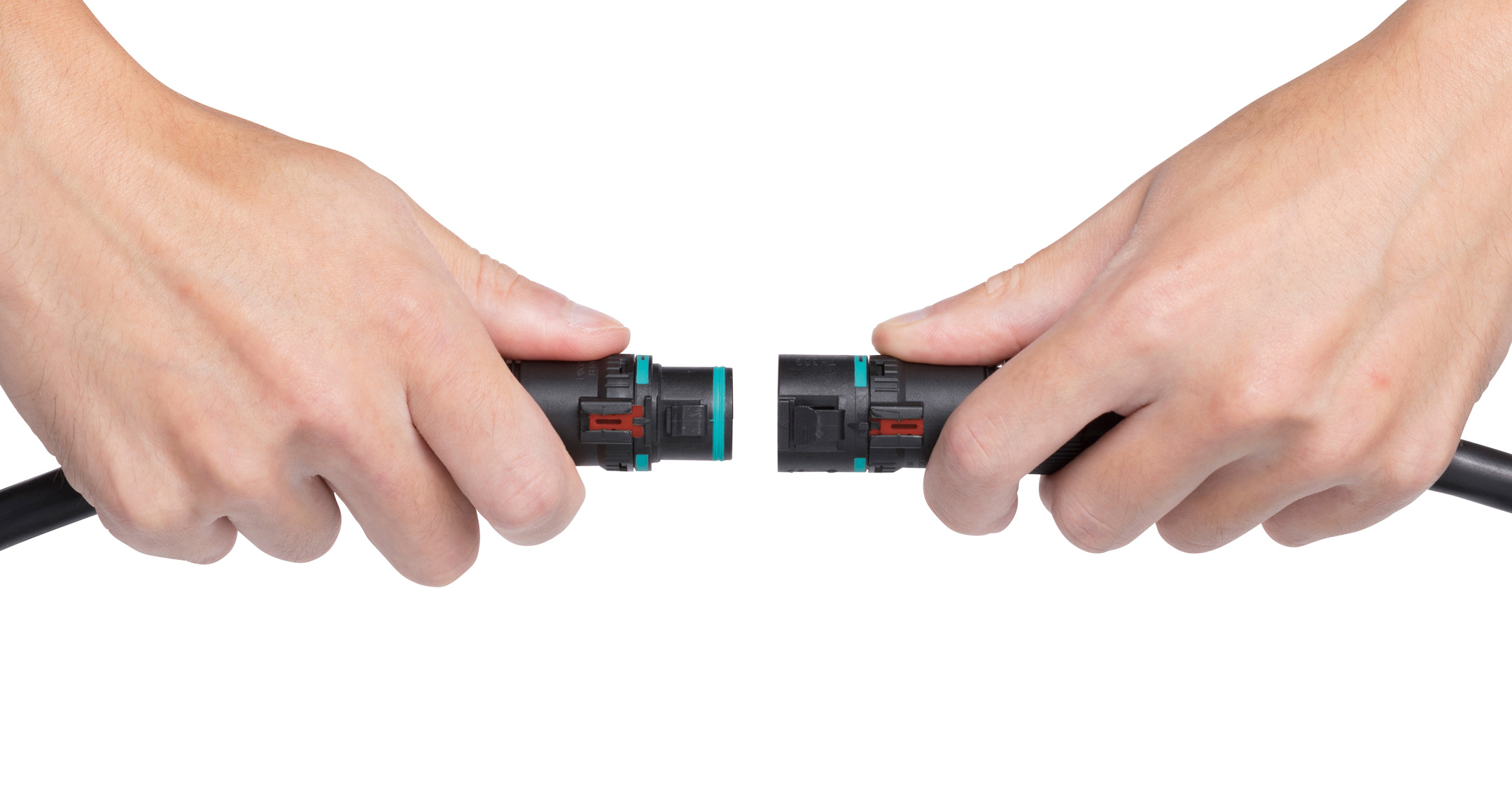

Easy connection/disconnection through the use of the snap-lock mechanism.

4P and 5P pole models are available.

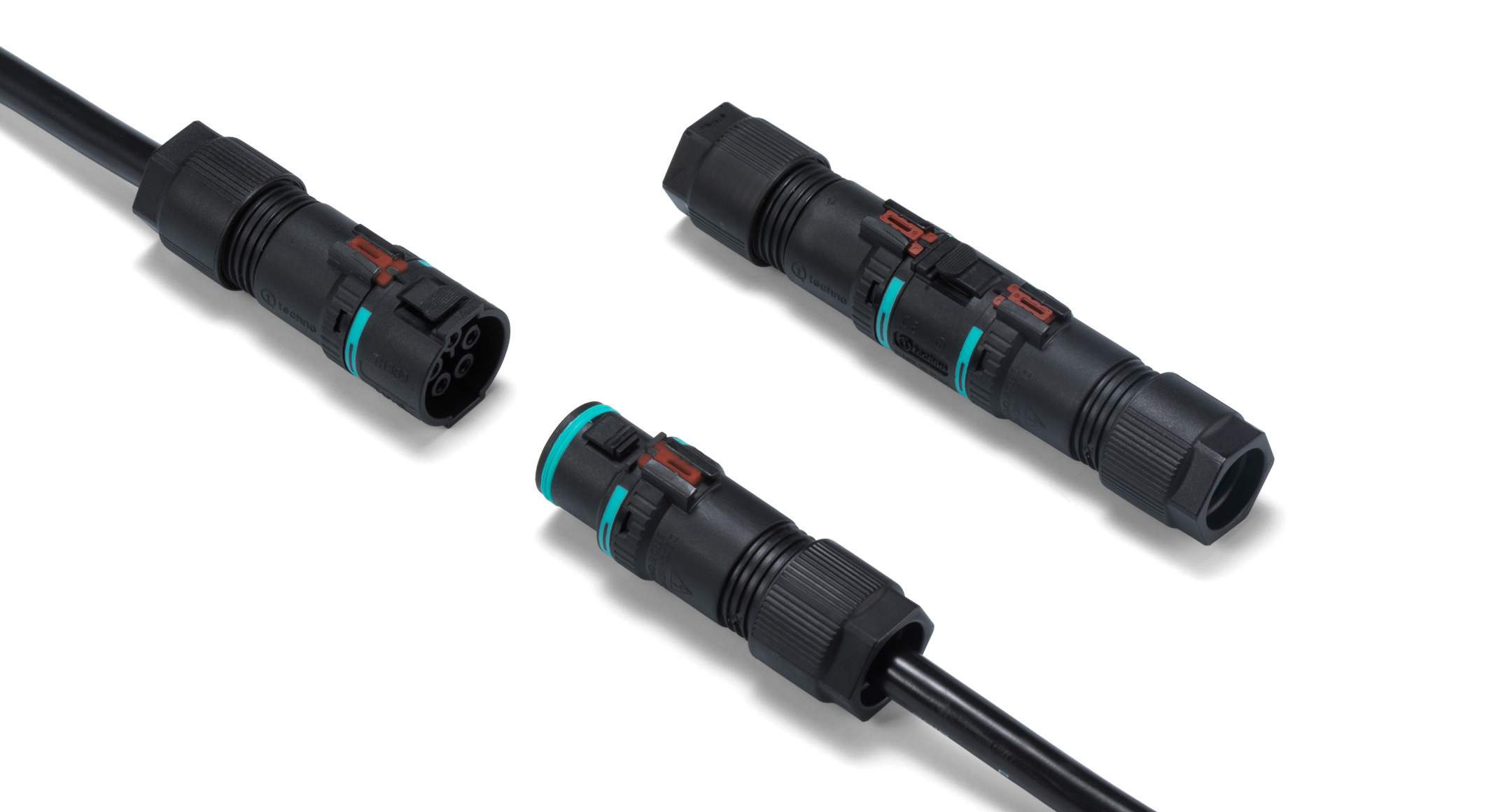

Plug-socket connector type consisting of the plug side (male) and socket side (female).

UL2238 / C22.2 No. 182.3 certified products.

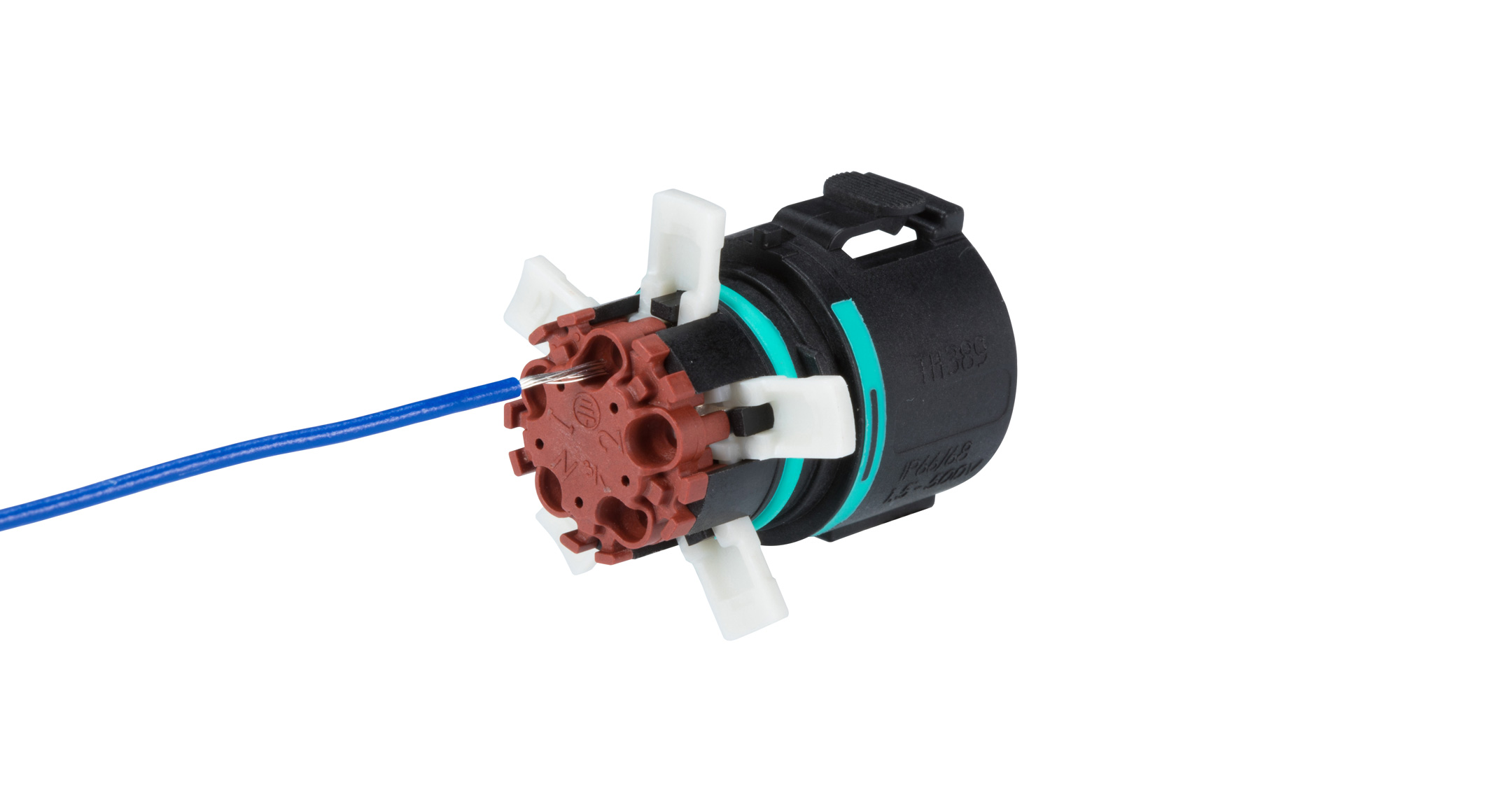

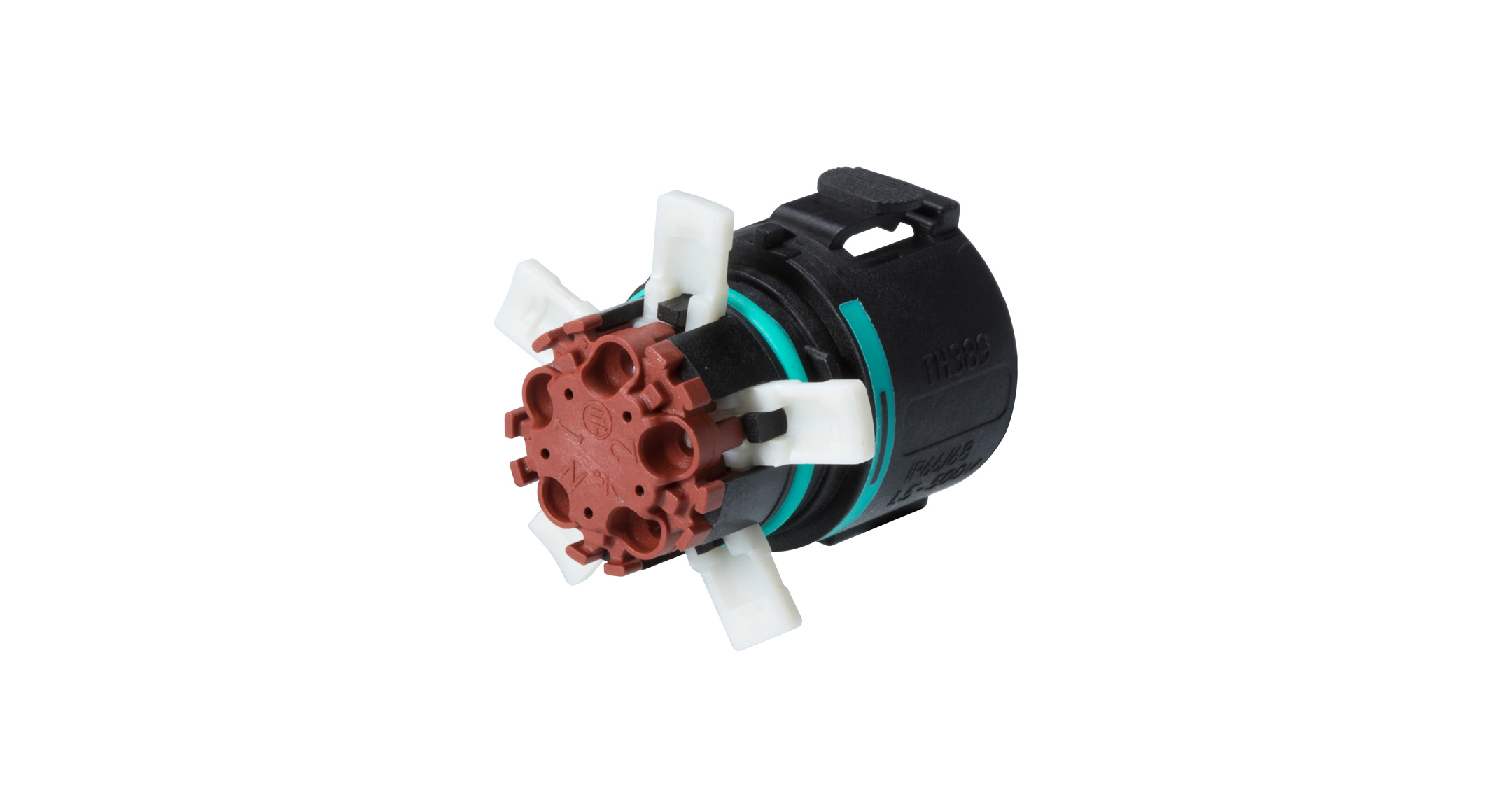

Screwless connection method; screw, soldering or special tools are not required.

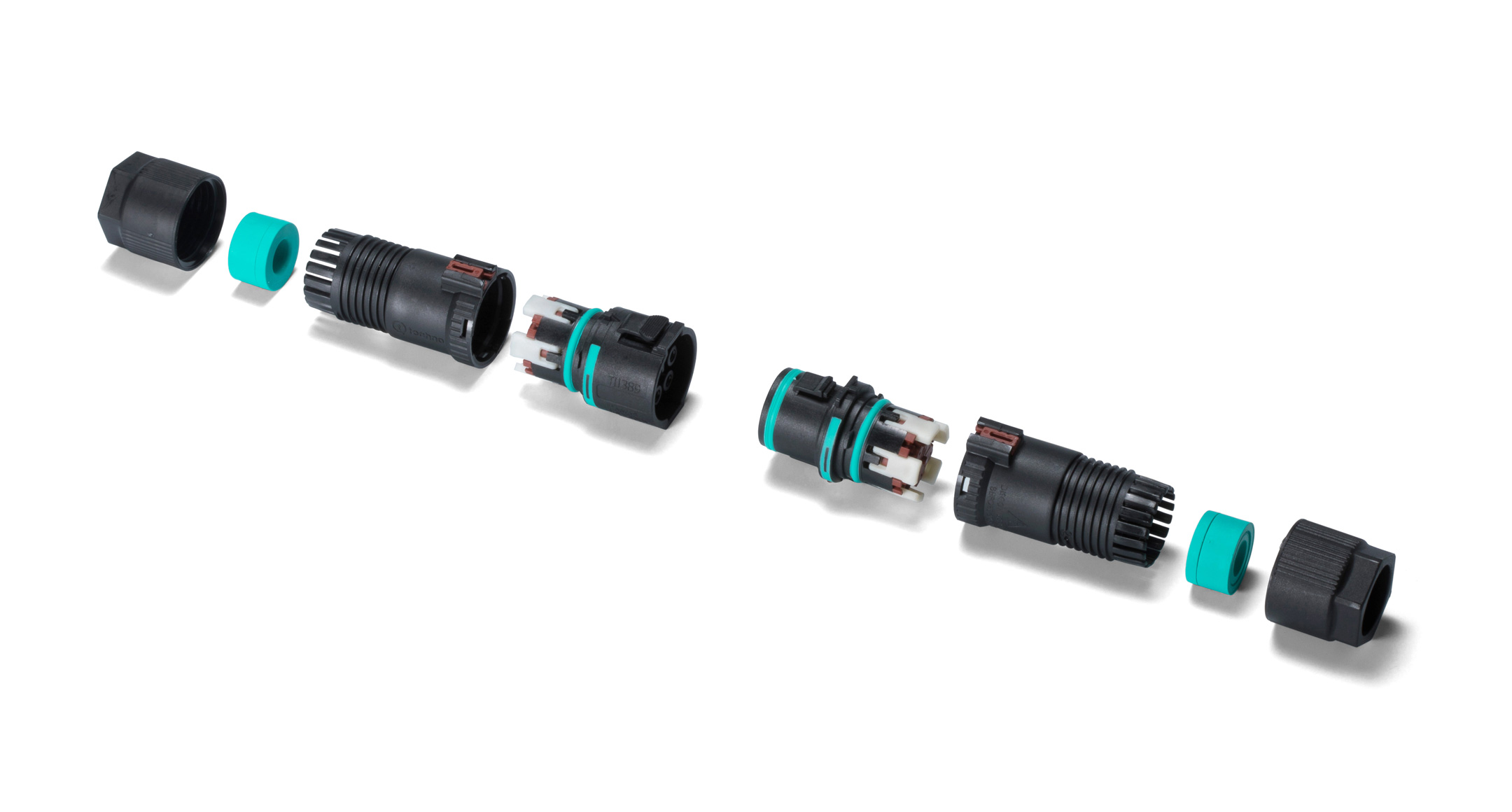

Applicable cable size range can be expanded by removing the inner sealing insert.

Protection class : IP68 0.5/1h (1 hour / 5m depth)
Operating temperature : -40°C ~ +100°C
EN61984 compliant.

Specifications

Rated voltage :
AC500V (EN61984)
AC600V (UL2238/C22.2 No.182.3)

Rated current :
17.5A (EN61984)
10A (UL2238/C22.2 No.182.3)

Applicable wire : Stranded wire 0.25m㎡~1.5m㎡
Impulse withstand voltage : 2.5kV
Number of insertion/extraction : 100 times

PRODUCT NO. / DIMENSIONS

Product No. Cable range No. of poles Rated voltage Reted current Applicable wire Impulse withstand voltage Weight (g) PDF DXF DWG
THS389-4P φ7~13.5 4P AC500V 17.5A 0.25~1.5m㎡ (Stranded・Single) 2.5kV 46 PDF DXF DWG
THS389-5P φ7~13.5 5P AC500V 17.5A 0.25~1.5m㎡ (Stranded・Single) 2.5kV 48 PDF DXF DWG

OPTIONAL PARTS

1
SEALING INSERT for THA・THB ・THS
DETAILS
1

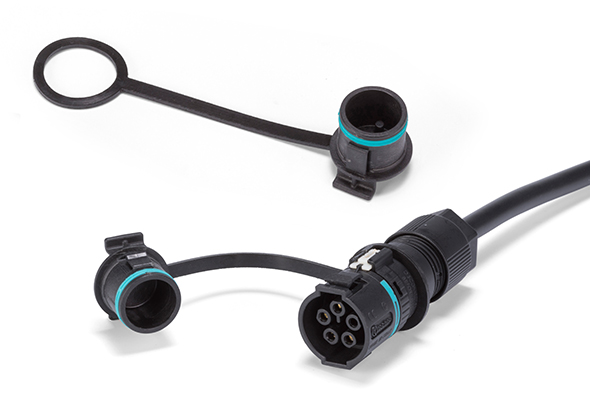

SEALING PLUG/SOCKET CAP for THS389・THS389E・THB389・THB389E
DETAILS
1

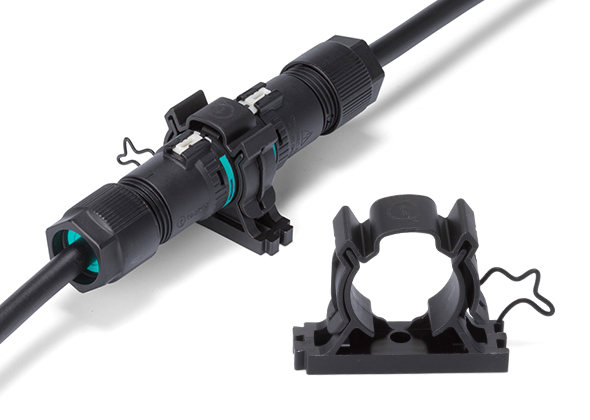

EXCLUSIVE BRACKET for THB389・THS389
DETAILS
1
EXCLUSIVE TIGHTENING TOOL for THB・THS
DETAILS
1
EXCLUSIVE LOCKING TOOL for THB389E・THS389E
DETAILS
