- CUSTOM SIZED ALUMINUM ENCLOSURE - UCS series
CATEGORY:Aluminum enclosure, Metal enclosure, Universal enclosure, Multi purpose enclosure, Extruded aluminum enclosure, Instrument enclosure

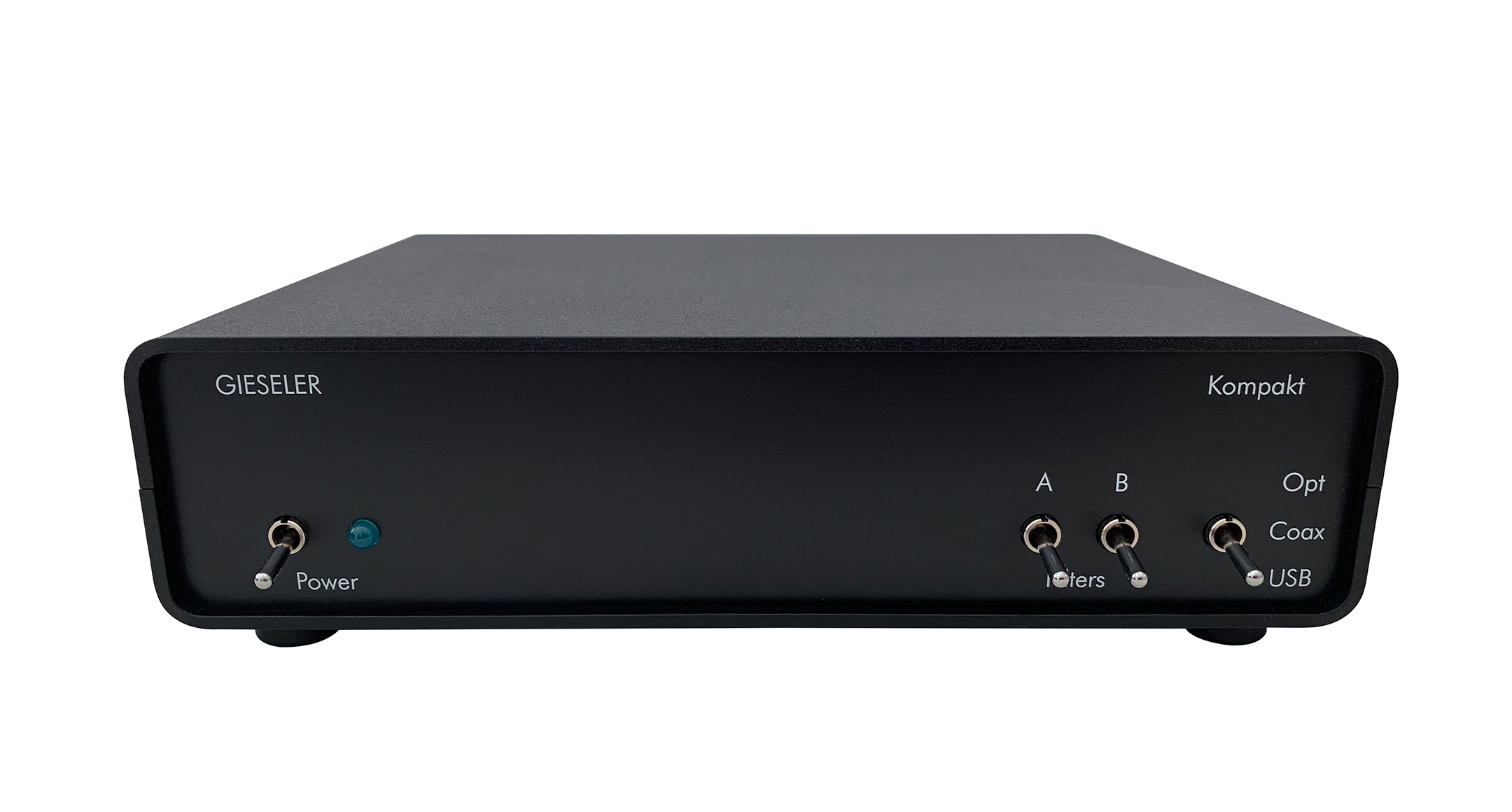

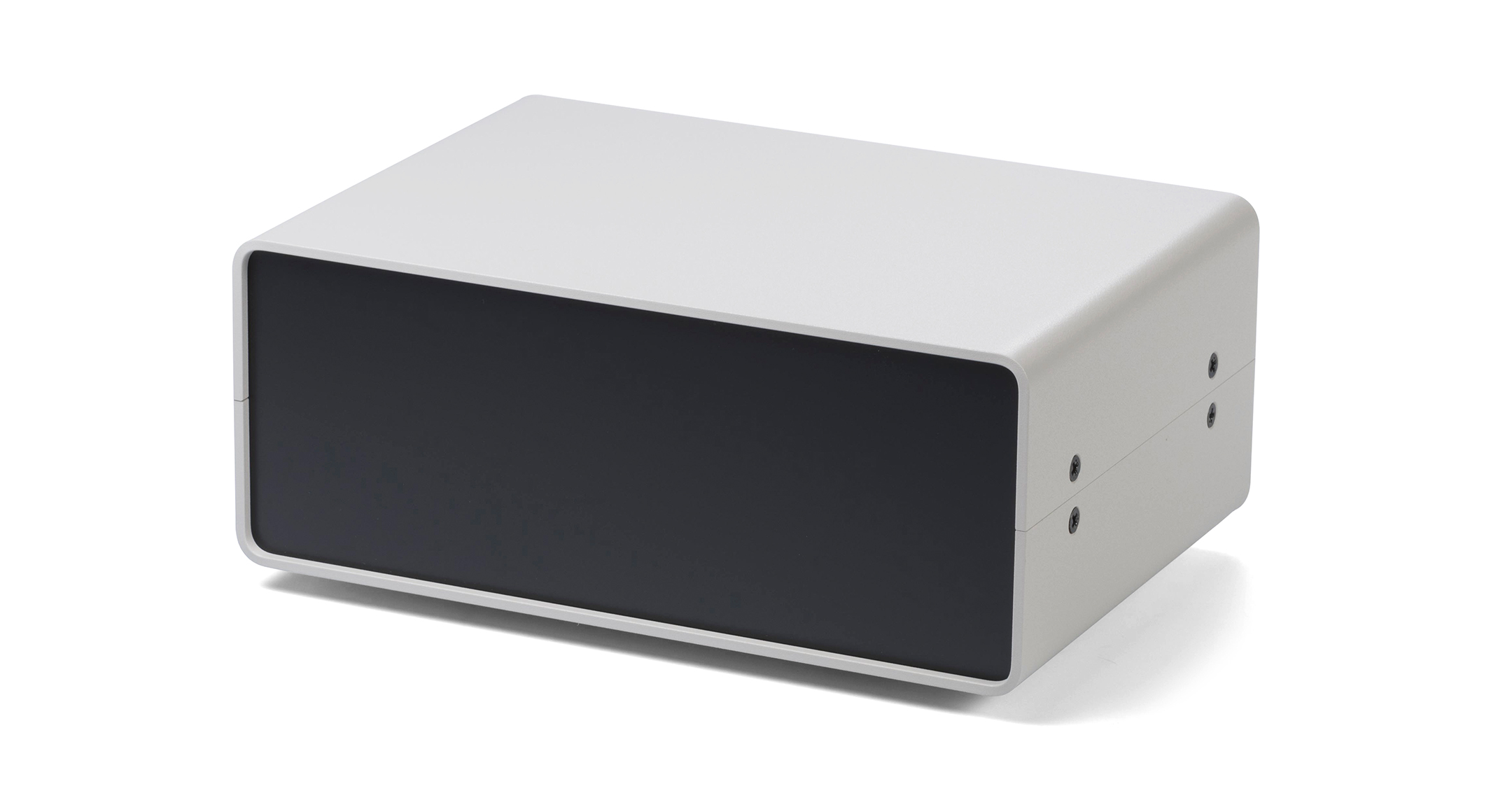

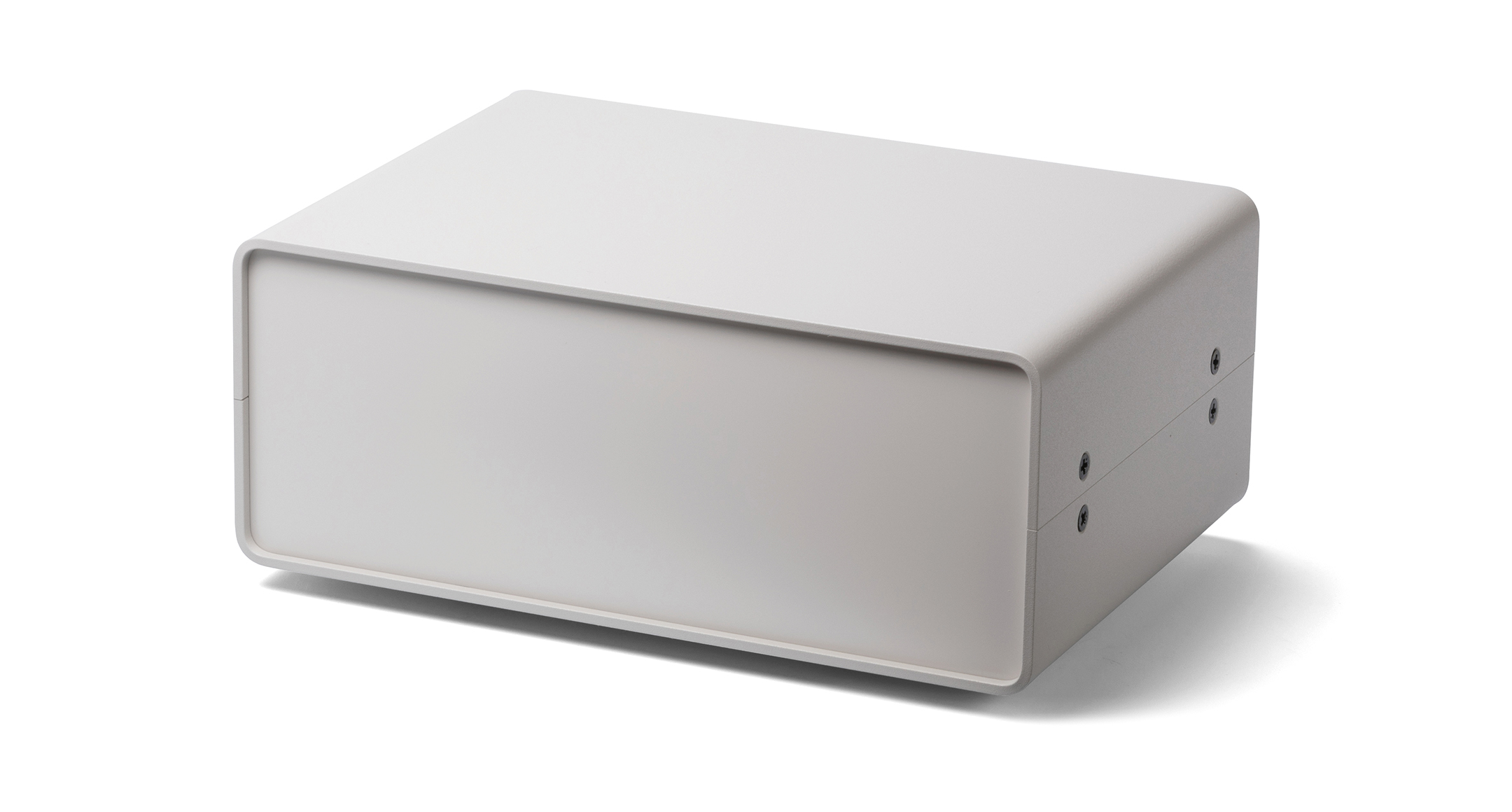

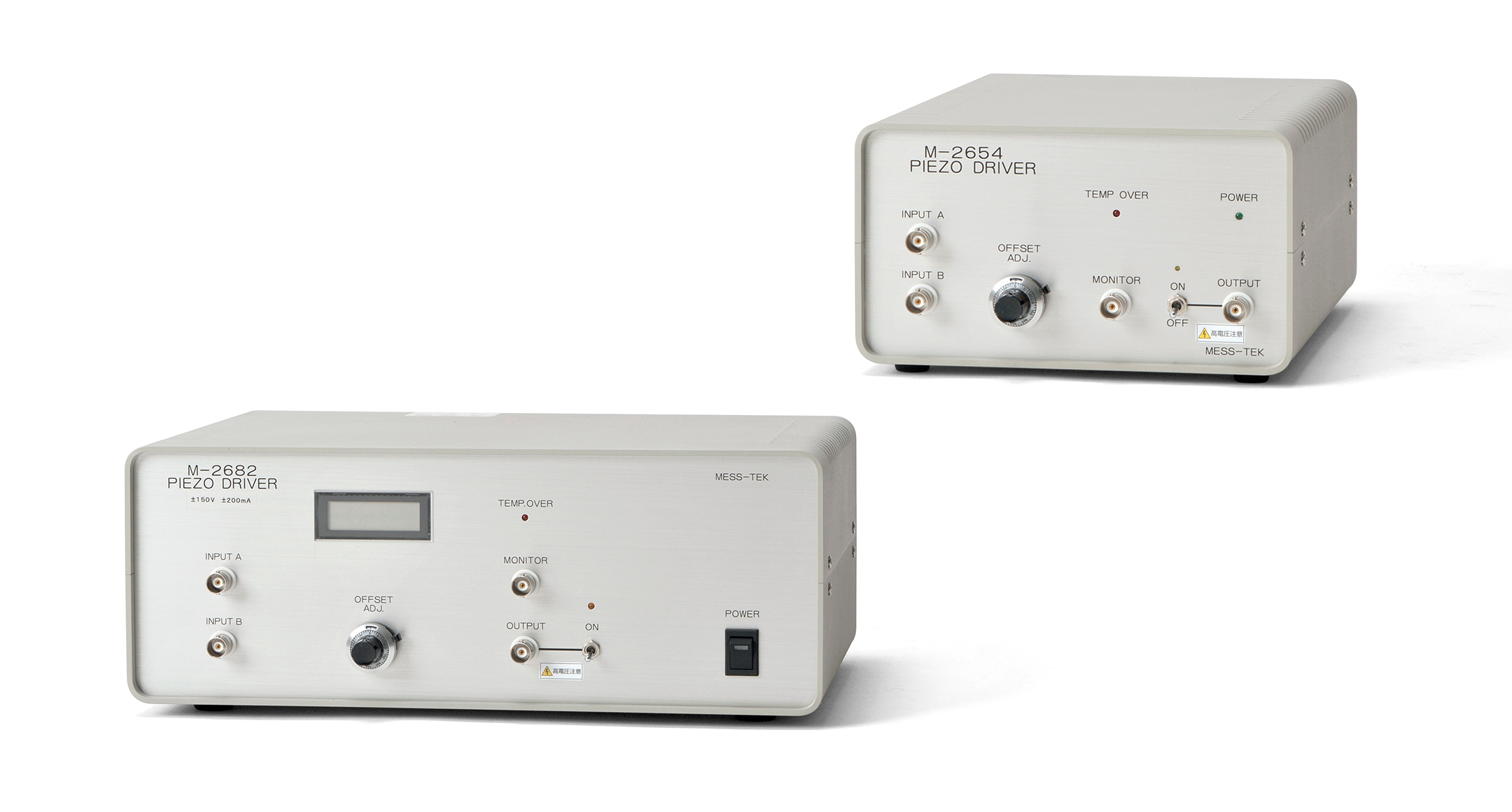

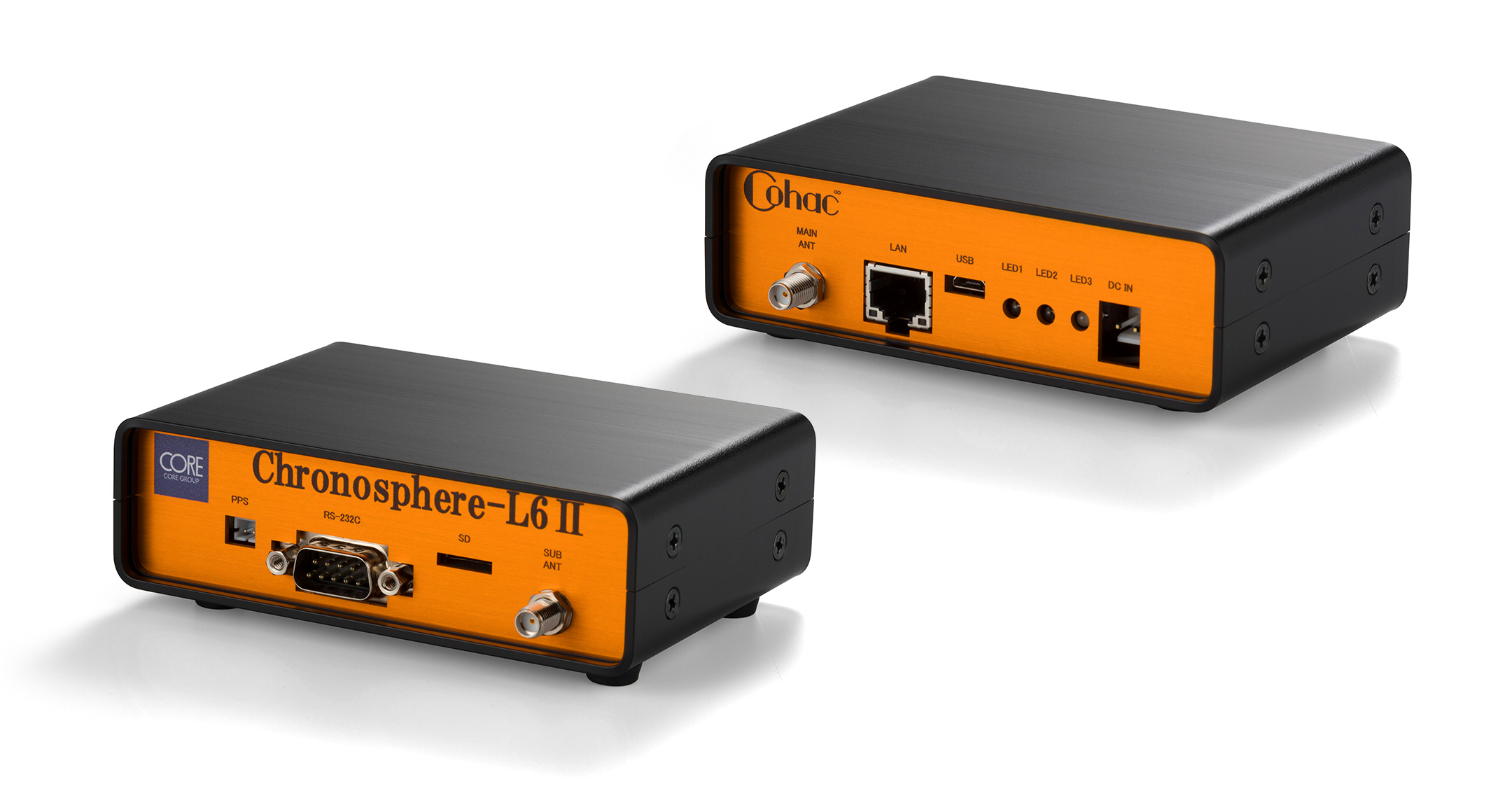

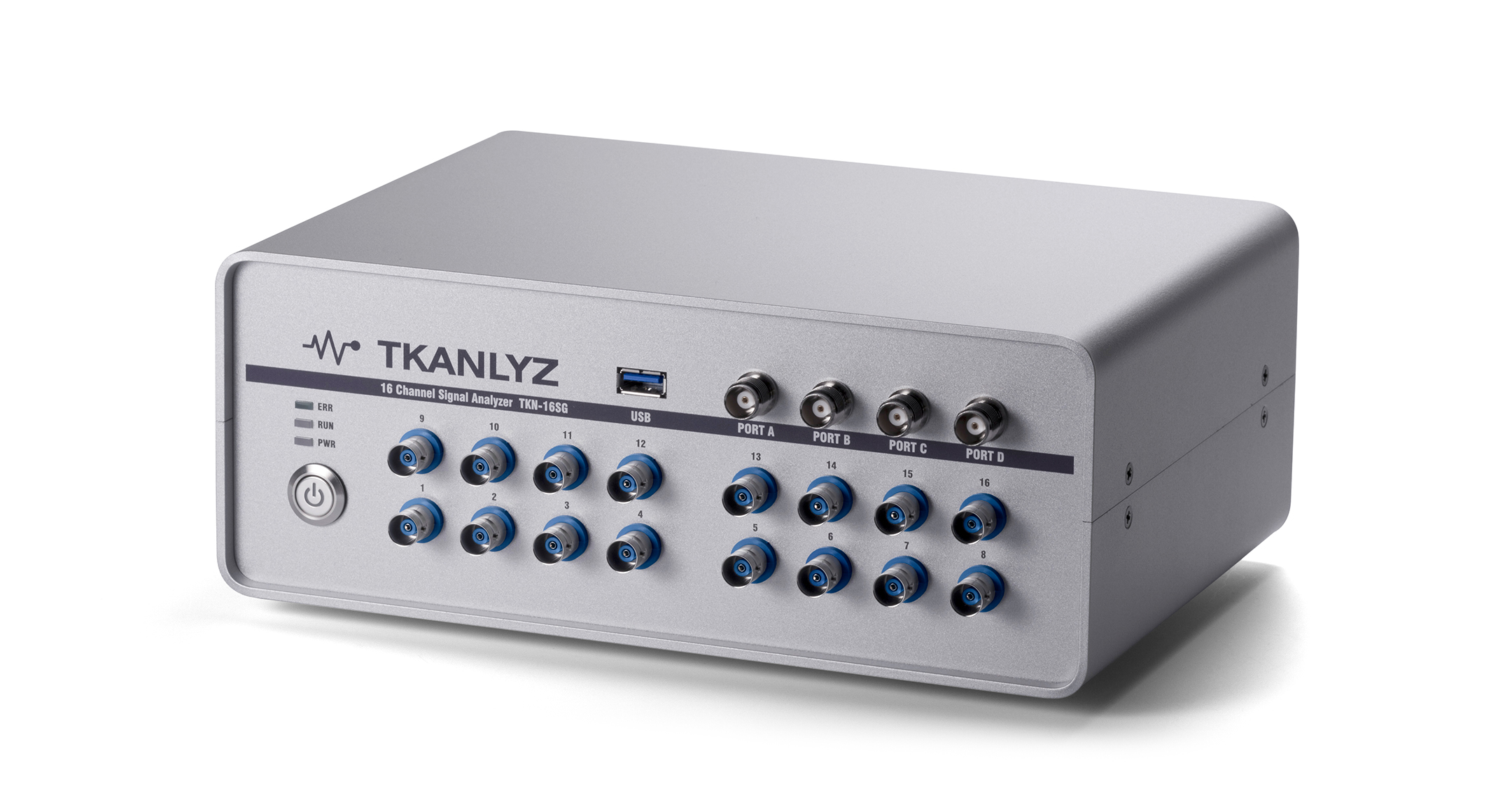

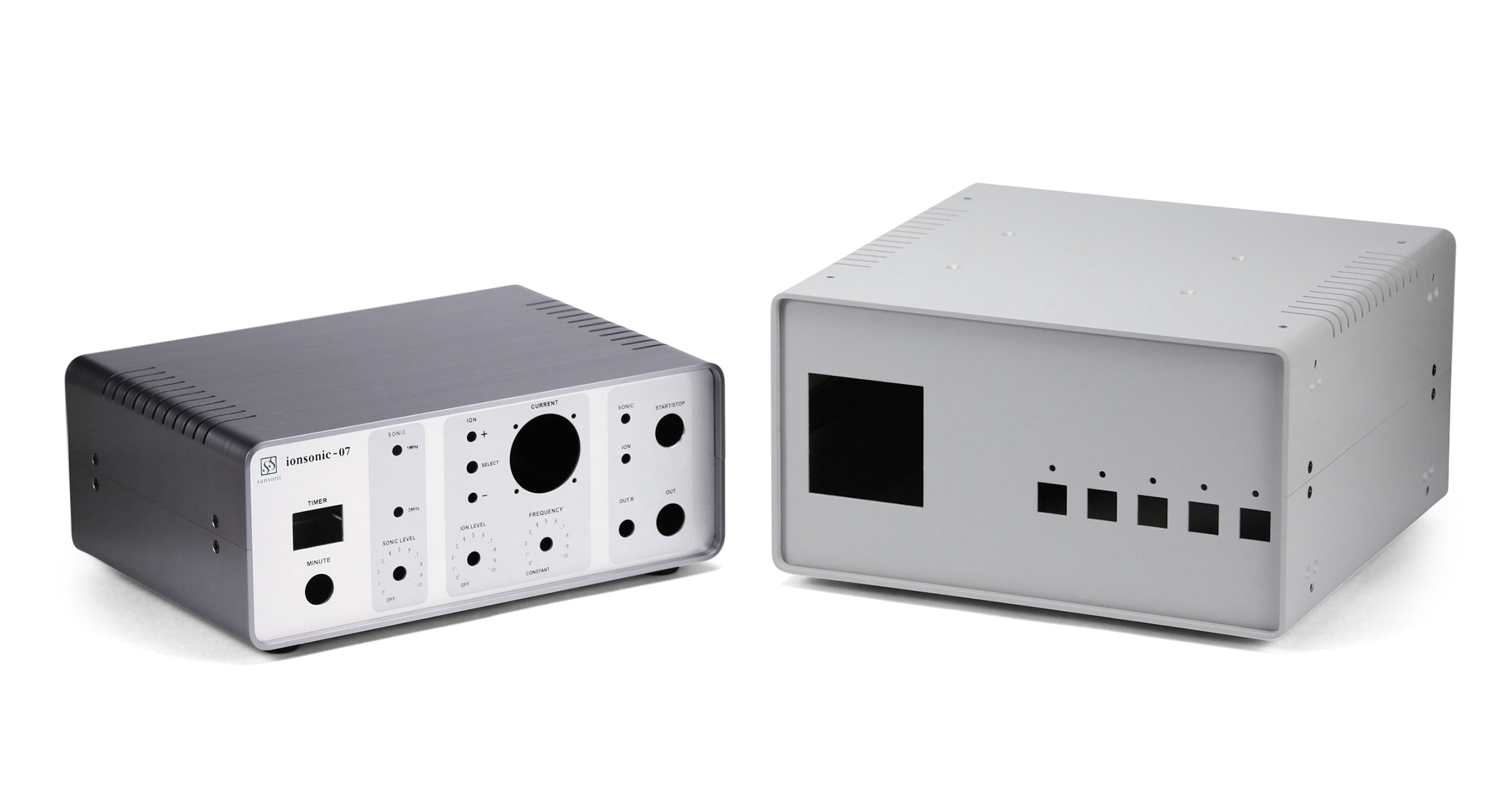

Simple and tough structure custom sized aluminum case.
Top / bottom cover made by bending extruded aluminum.

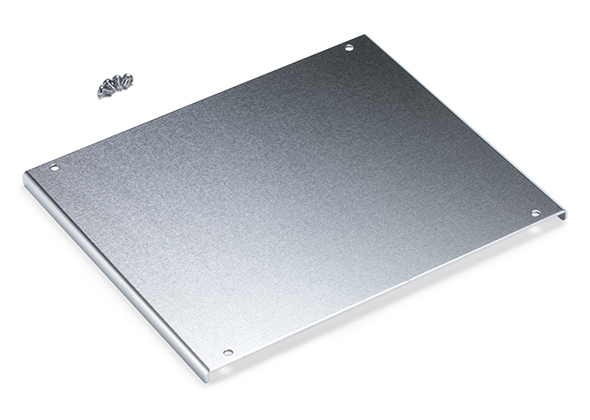

2 or 3 grooves available on top/bottom covers for adjusting front/rear panel positions or PCB insertion.
Selectable 13 different lengths (depths) and specified width from 100 to 450mm and height from 80 to 400mm by 1mm intervals.

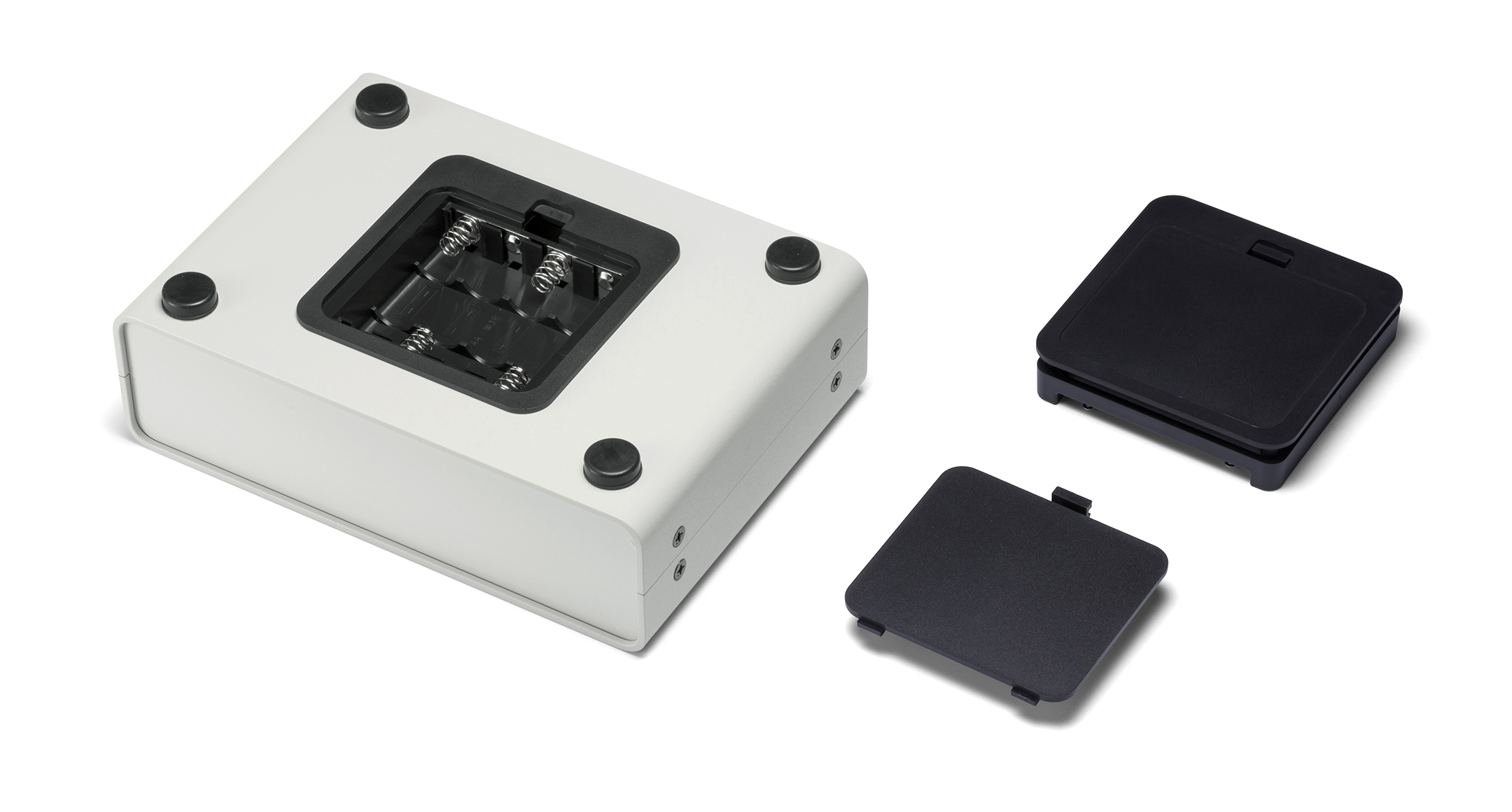

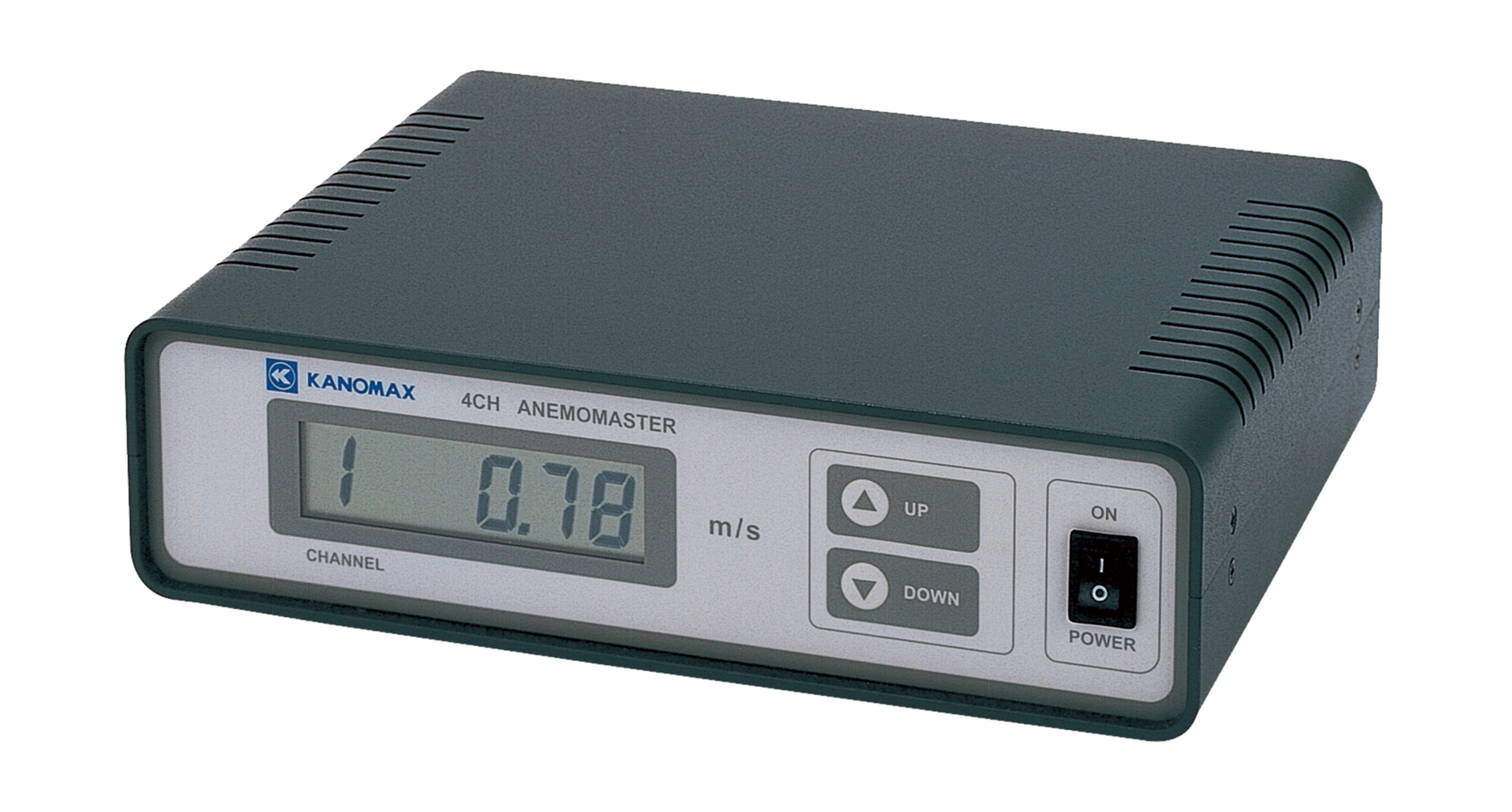

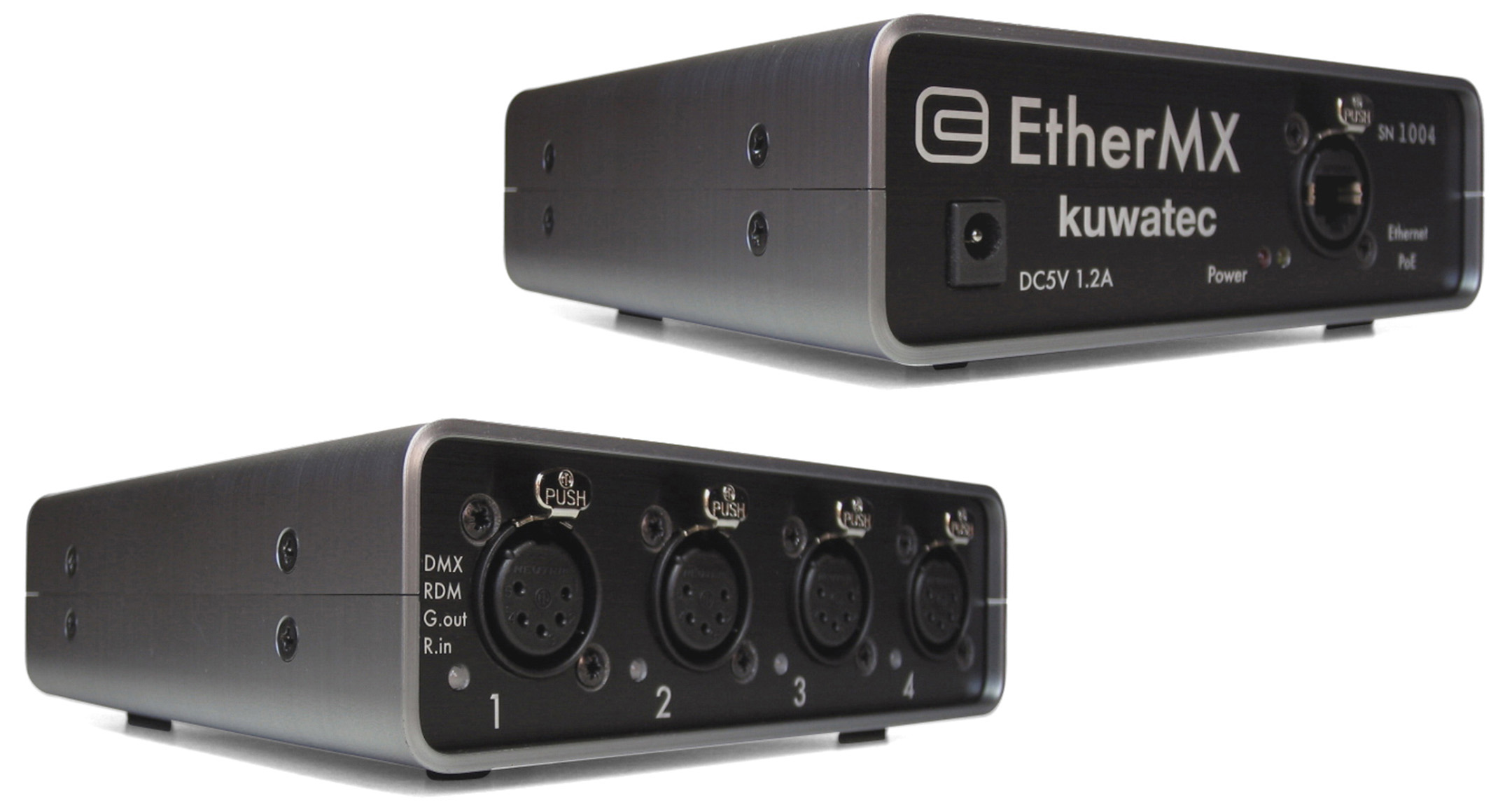

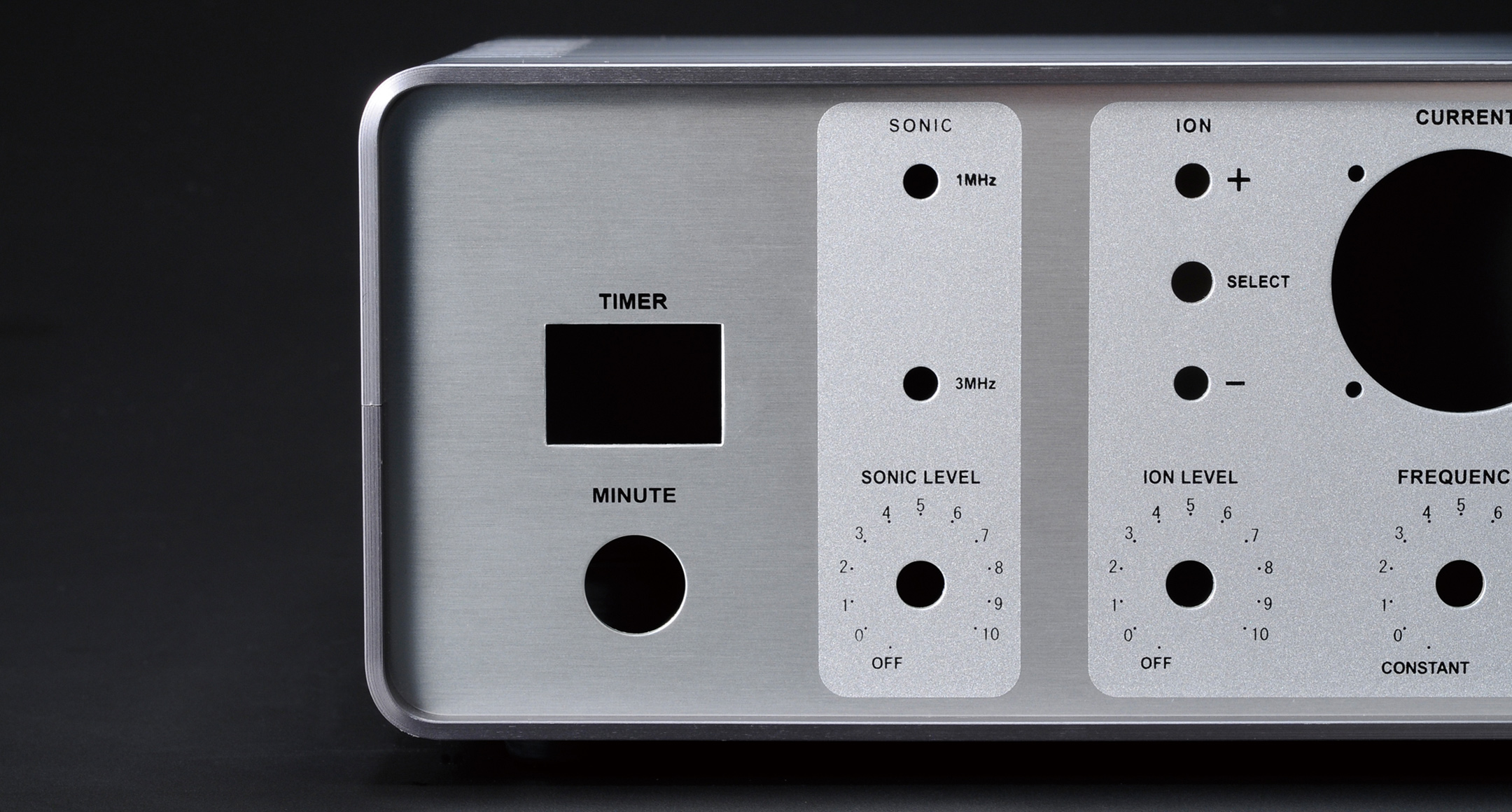

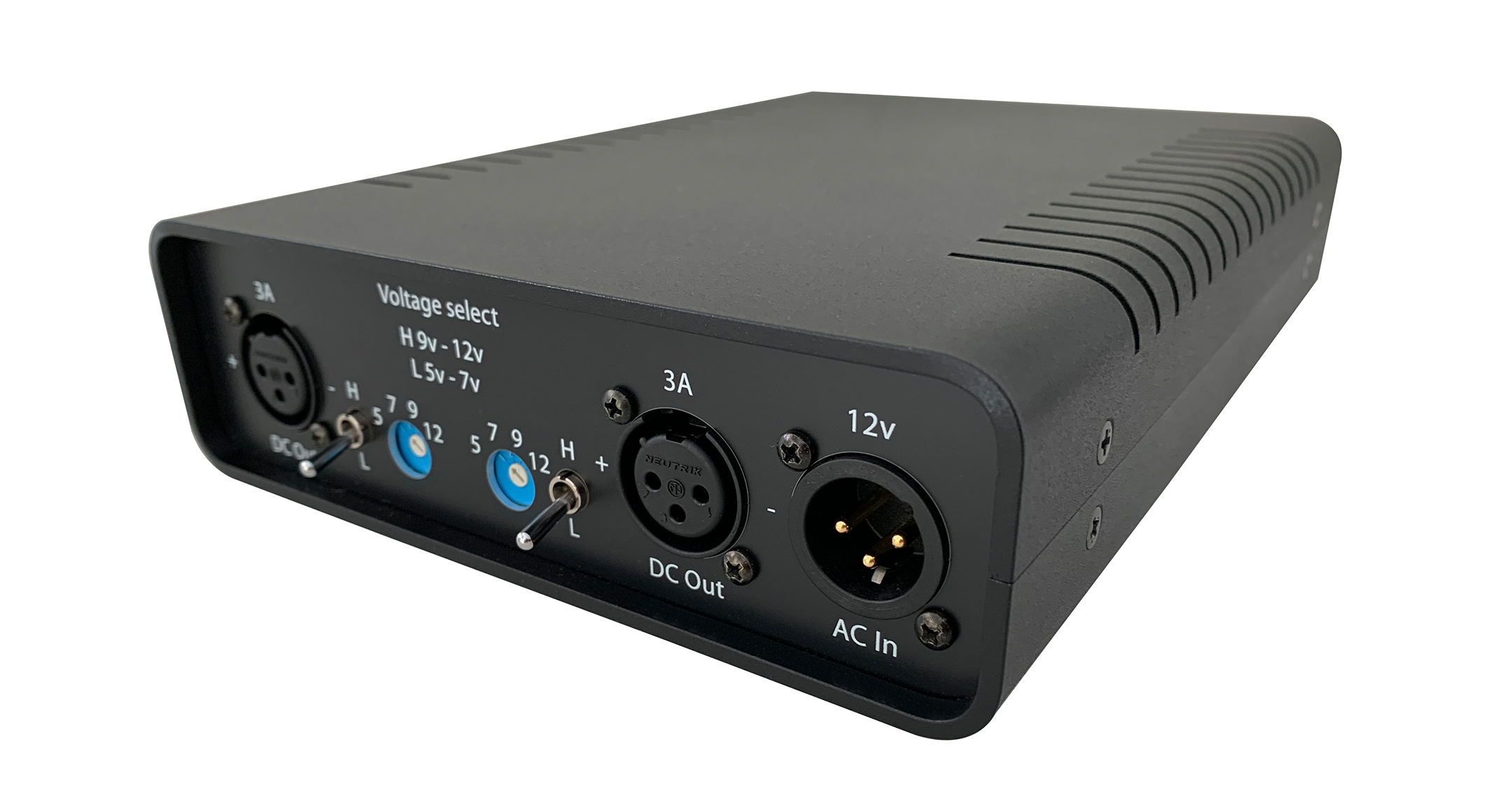

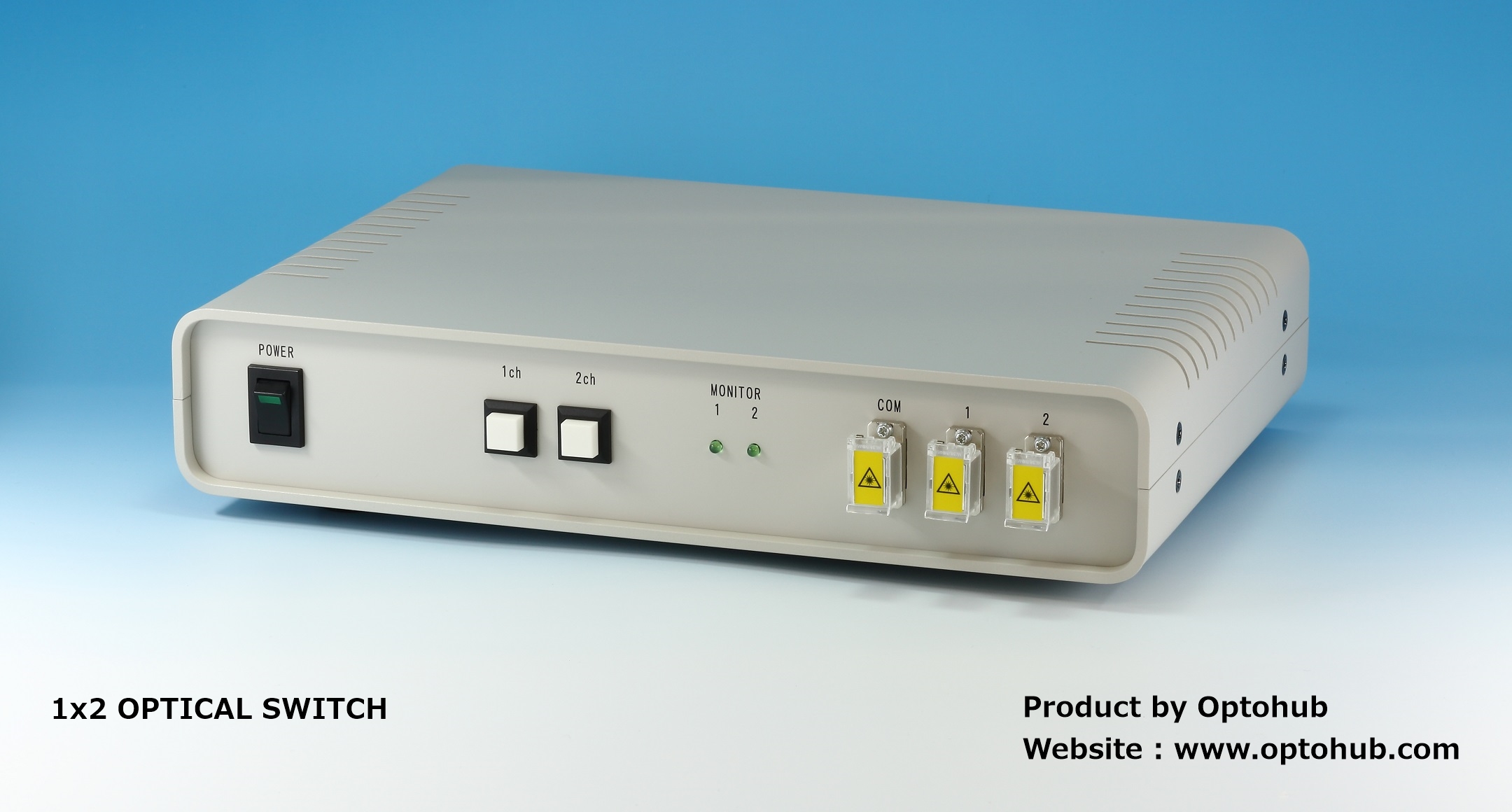

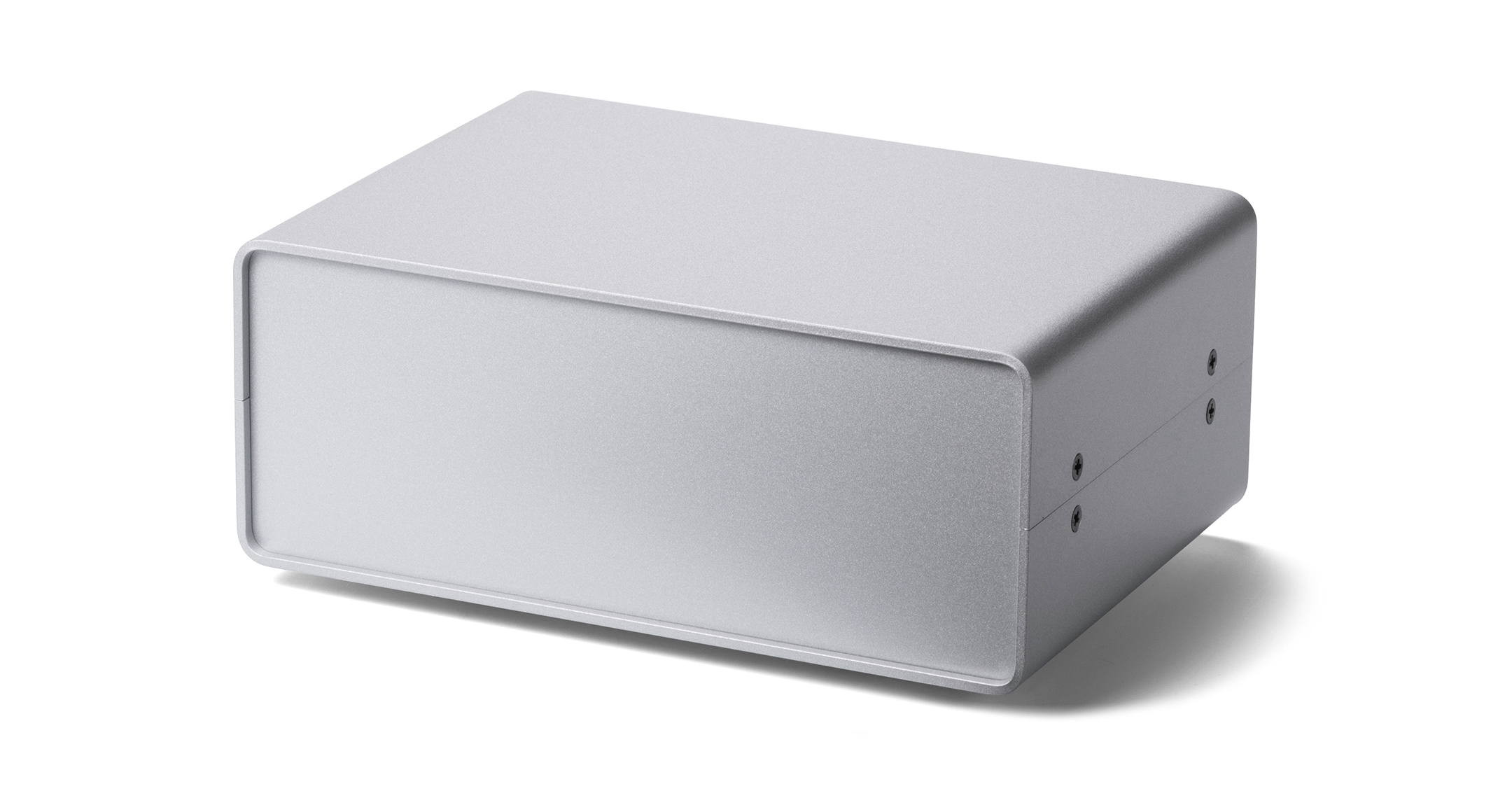

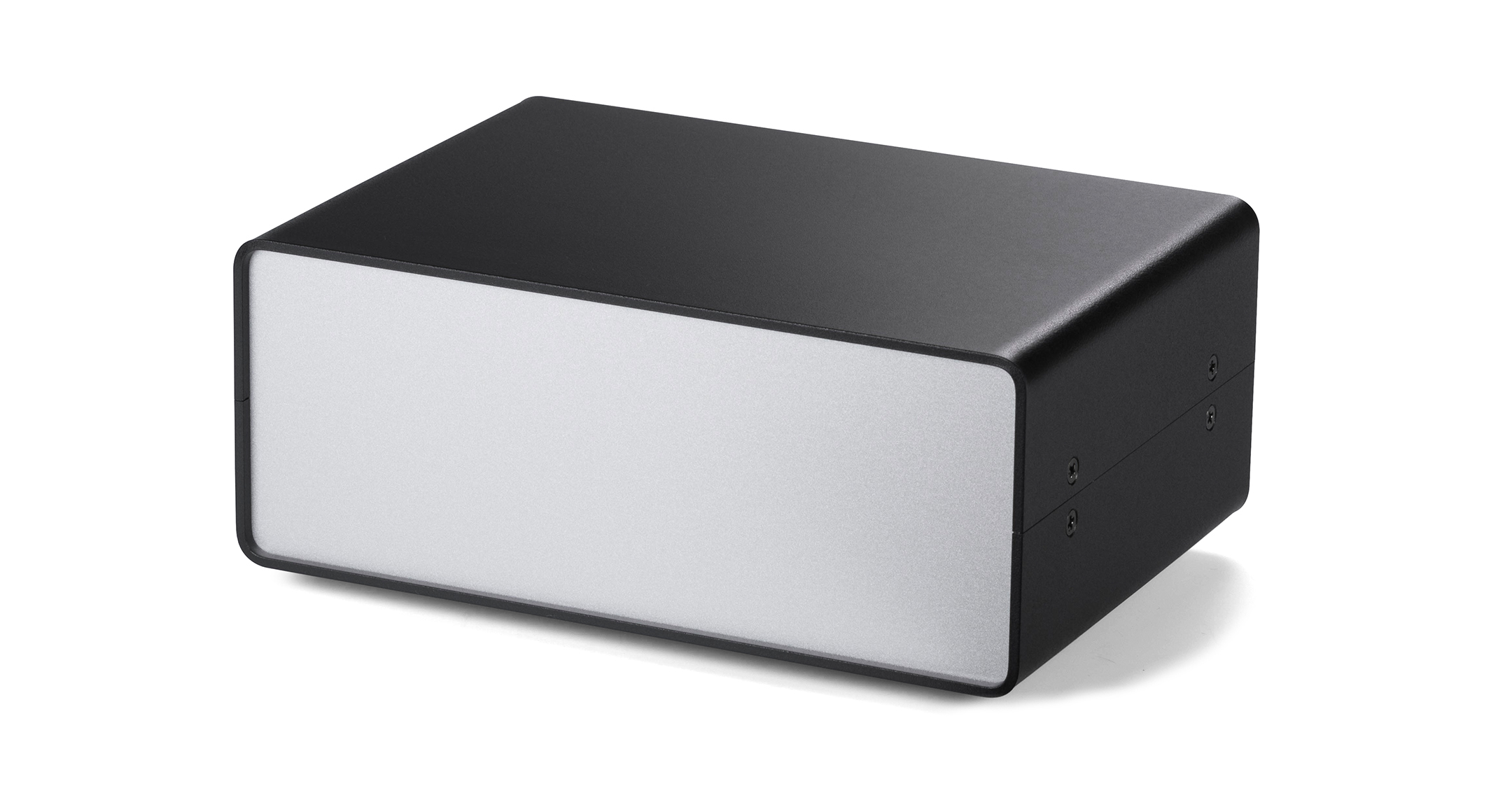

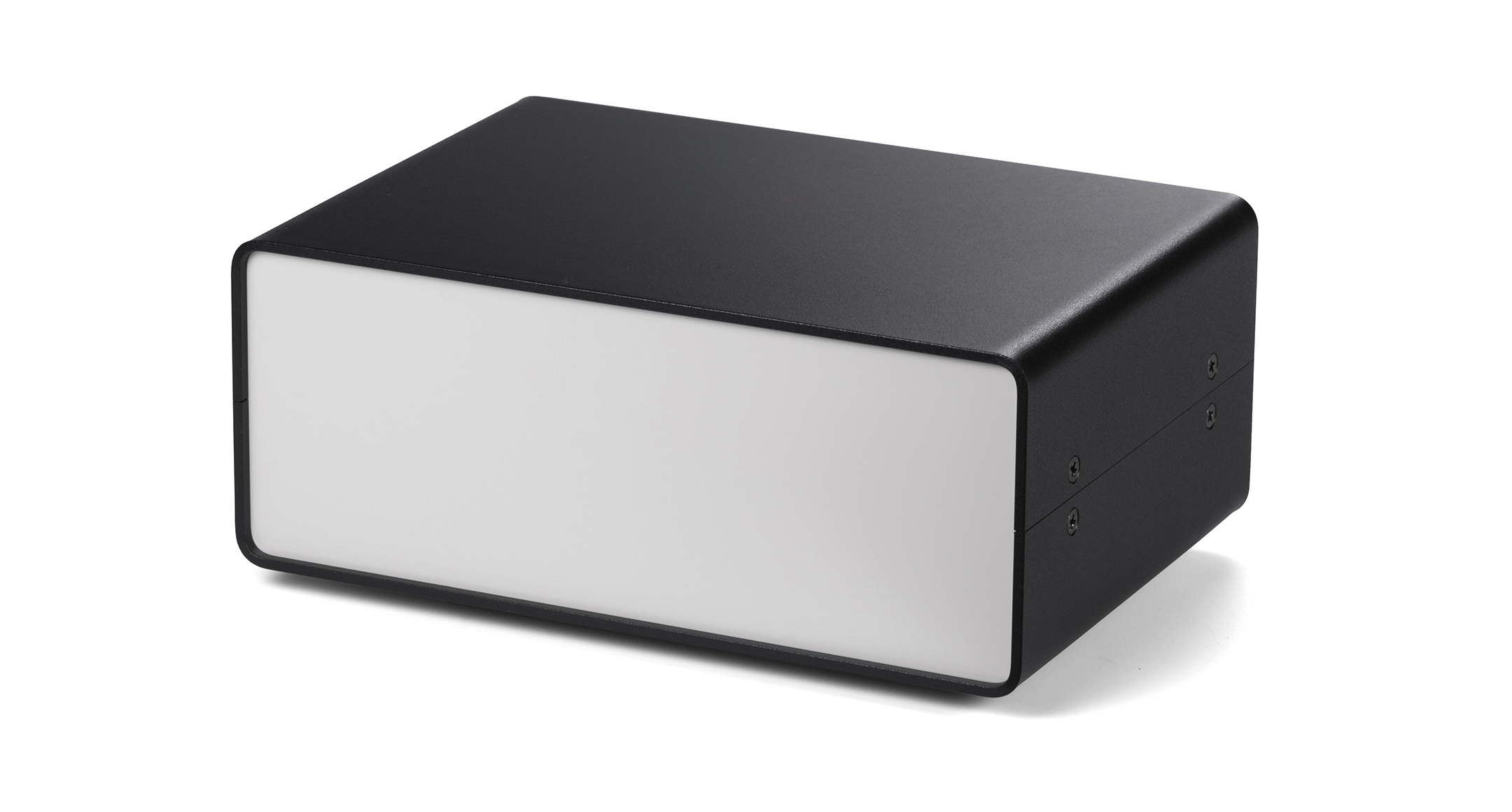

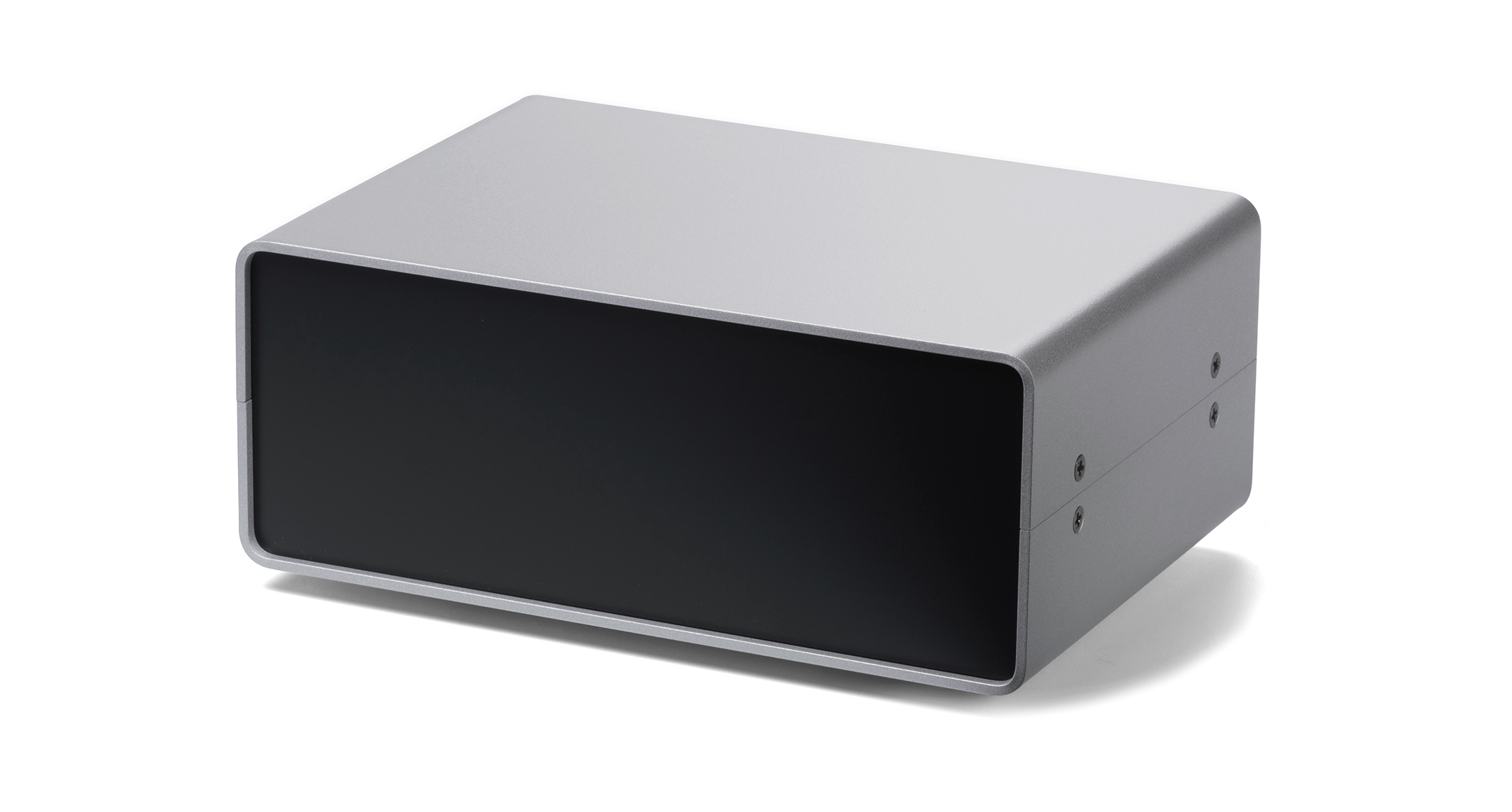

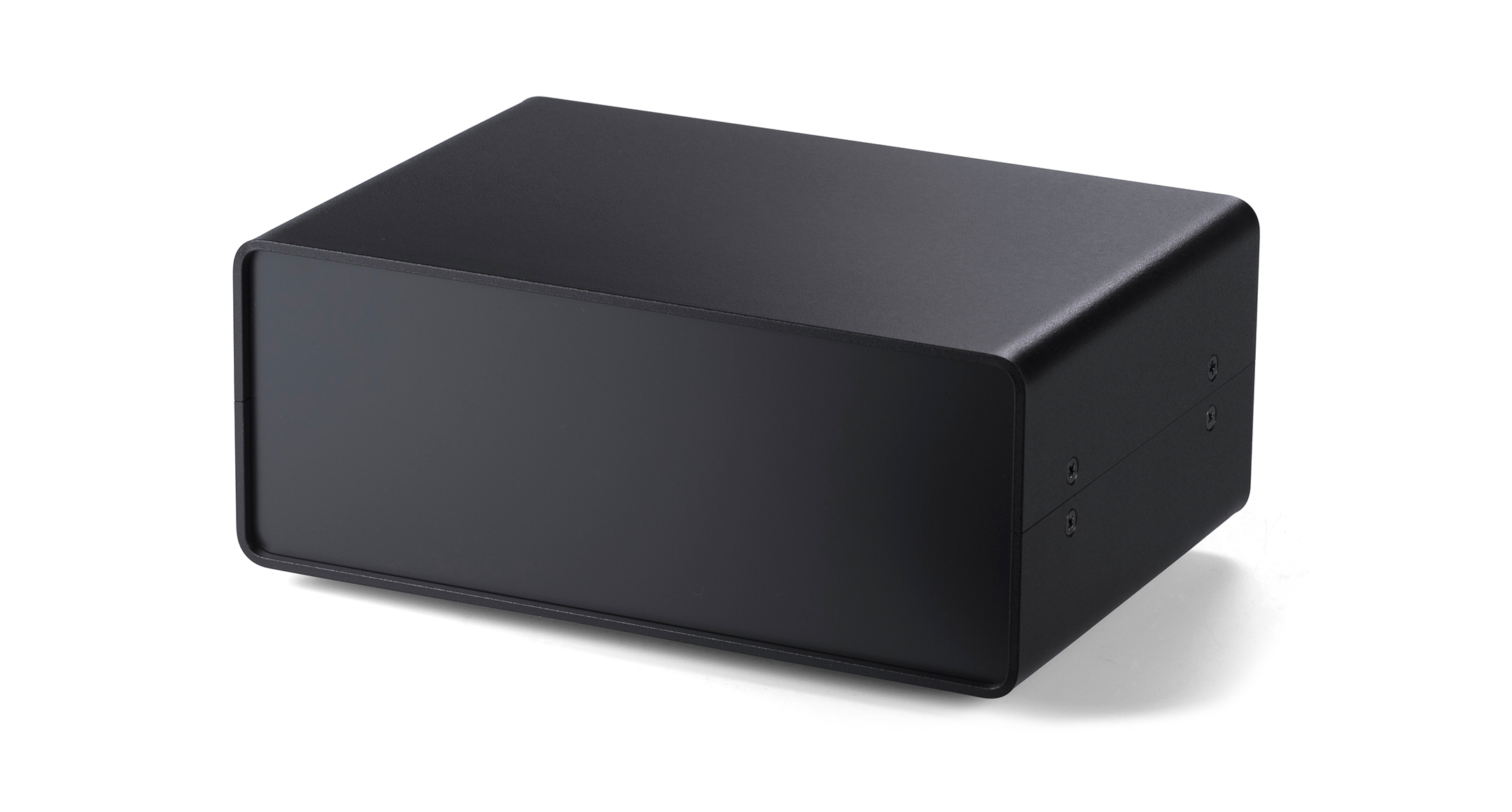

Selectable 7 different color patterns of 3 different case colors and 3 different panel colors.
Cover color: Black(Similar to Munsell N1) / Light gray(Munsell 5Y8/0.5) / Silver(No color code)
Top / bottom cover made by bending extruded aluminum.
2 or 3 grooves available on top/bottom covers for adjusting front/rear panel positions or PCB insertion.
Selectable 13 different lengths (depths) and specified width from 100 to 450mm and height from 80 to 400mm by 1mm intervals.
Selectable 7 different color patterns of 3 different case colors and 3 different panel colors.
Cover color: Black(Similar to Munsell N1) / Light gray(Munsell 5Y8/0.5) / Silver(No color code)
COLOR TYPE
PRODUCT NO. / DIMENSIONS
Product No. | External dimensions | Internal dimensions | Corner R | Ventilation slits | DXF | DWG | |||||
---|---|---|---|---|---|---|---|---|---|---|---|
W | H | D | w | h | d | ||||||
UCS〇-〇-60□3K | Available 100 to 450mm | Available 80 to 450mm | 60 | Wー10mm | Hー4mm | 52 | R3 | - | DXF | DWG | |
UCS〇-〇-60□5K | Available 100 to 450mm | Available 80 to 450mm | 60 | Wー14mm | Hー4mm | 52 | R5 | - | DXF | DWG | |
UCS〇-〇-60□8K | Available 100 to 450mm | Available 80 to 450mm | 60 | Wー20mm | Hー4mm | 52 | R8 | - | DXF | DWG | |
UCS〇-〇-80□3K | Available 100 to 450mm | Available 80 to 450mm | 80 | Wー10mm | Hー4mm | 72 | R3 | - | DXF | DWG | |
UCS〇-〇-80□5K | Available 100 to 450mm | Available 80 to 450mm | 80 | Wー14mm | Hー4mm | 72 | R5 | - | DXF | DWG | |
UCS〇-〇-80□8K | Available 100 to 450mm | Available 80 to 450mm | 80 | Wー20mm | Hー4mm | 72 | R8 | - | DXF | DWG | |
UCS〇-〇-100□3K | Available 100 to 450mm | Available 80 to 450mm | 100 | Wー10mm | Hー4mm | 92 | R3 | - | DXF | DWG | |
UCS〇-〇-100□5K | Available 100 to 450mm | Available 80 to 450mm | 100 | Wー14mm | Hー4mm | 92 | R5 | - | DXF | DWG | |
UCS〇-〇-100□8K | Available 100 to 450mm | Available 80 to 450mm | 100 | Wー20mm | Hー4mm | 92 | R8 | - | DXF | DWG | |
UCS〇-〇-120□3K | Available 100 to 450mm | Available 80 to 450mm | 120 | Wー11mm | Hー5mm | 112 | R3 | - | DXF | DWG | |
UCS〇-〇-120□3L | Available 100 to 450mm | Available 80 to 450mm | 120 | Wー11mm | Hー5mm | 112 | R3 | 2×30mm | DXF | DWG | |
UCS〇-〇-120□3M | Available 100 to 450mm | Available 80 to 450mm | 120 | Wー11mm | Hー5mm | 112 | R3 | 2×20mm | DXF | DWG | |
UCS〇-〇-120□5K | Available 100 to 450mm | Available 80 to 450mm | 120 | Wー15mm | Hー5mm | 112 | R5 | - | DXF | DWG | |
UCS〇-〇-120□5L | Available 100 to 450mm | Available 80 to 450mm | 120 | Wー15mm | Hー5mm | 112 | R5 | 2×30mm | DXF | DWG | |
UCS〇-〇-120□5M | Available 100 to 450mm | Available 80 to 450mm | 120 | Wー15mm | Hー5mm | 112 | R5 | 2×20mm | DXF | DWG | |
UCS〇-〇-120□8K | Available 100 to 450mm | Available 80 to 450mm | 120 | Wー21mm | Hー5mm | 112 | R8 | - | DXF | DWG | |
UCS〇-〇-120□8L | Available 100 to 450mm | Available 80 to 450mm | 120 | Wー21mm | Hー5mm | 112 | R8 | 2×30mm | DXF | DWG | |
UCS〇-〇-120□8M | Available 100 to 450mm | Available 80 to 450mm | 120 | Wー21mm | Hー5mm | 112 | R8 | 2×20mm | DXF | DWG | |
UCS〇-〇-140□3K | Available 100 to 450mm | Available 80 to 450mm | 140 | Wー11mm | Hー5mm | 130 | R3 | - | DXF | DWG | |
UCS〇-〇-140□3L | Available 100 to 450mm | Available 80 to 450mm | 140 | Wー11mm | Hー5mm | 130 | R3 | 2×30mm | DXF | DWG | |
UCS〇-〇-140□3M | Available 100 to 450mm | Available 80 to 450mm | 140 | Wー11mm | Hー5mm | 130 | R3 | 2×20mm | DXF | DWG | |
UCS〇-〇-140□5K | Available 100 to 450mm | Available 80 to 450mm | 140 | Wー15mm | Hー5mm | 130 | R5 | - | DXF | DWG | |
UCS〇-〇-140□5L | Available 100 to 450mm | Available 80 to 450mm | 140 | Wー15mm | Hー5mm | 130 | R5 | 2×30mm | DXF | DWG | |
UCS〇-〇-140□5M | Available 100 to 450mm | Available 80 to 450mm | 140 | Wー15mm | Hー5mm | 130 | R5 | 2×20mm | DXF | DWG | |
UCS〇-〇-140□8K | Available 100 to 450mm | Available 80 to 450mm | 140 | Wー21mm | Hー5mm | 130 | R8 | - | DXF | DWG | |
UCS〇-〇-140□8L | Available 100 to 450mm | Available 80 to 450mm | 140 | Wー21mm | Hー5mm | 130 | R8 | 2×30mm | DXF | DWG | |
UCS〇-〇-140□8M | Available 100 to 450mm | Available 80 to 450mm | 140 | Wー21mm | Hー5mm | 130 | R8 | 2×20mm | DXF | DWG | |
UCS〇-〇-160□5K | Available 100 to 450mm | Available 80 to 450mm | 160 | Wー16mm | Hー6mm | 146 | R5 | - | DXF | DWG | |
UCS〇-〇-160□5L | Available 100 to 450mm | Available 80 to 450mm | 160 | Wー16mm | Hー6mm | 146 | R5 | 2×30mm | DXF | DWG | |
UCS〇-〇-160□5M | Available 100 to 450mm | Available 80 to 450mm | 160 | Wー16mm | Hー6mm | 146 | R5 | 2×20mm | DXF | DWG | |
UCS〇-〇-160□8K | Available 100 to 450mm | Available 80 to 450mm | 160 | Wー22mm | Hー6mm | 146 | R8 | - | DXF | DWG | |
UCS〇-〇-160□8L | Available 100 to 450mm | Available 80 to 450mm | 160 | Wー22mm | Hー6mm | 146 | R8 | 2×30mm | DXF | DWG | |
UCS〇-〇-160□8M | Available 100 to 450mm | Available 80 to 450mm | 160 | Wー22mm | Hー6mm | 146 | R8 | 2×20mm | DXF | DWG | |
UCS〇-〇-180□5K | Available 100 to 450mm | Available 80 to 450mm | 180 | Wー16mm | Hー6mm | 166 | R5 | - | DXF | DWG | |
UCS〇-〇-180□5L | Available 100 to 450mm | Available 80 to 450mm | 180 | Wー16mm | Hー6mm | 166 | R5 | 2×30mm | DXF | DWG | |
UCS〇-〇-180□5M | Available 100 to 450mm | Available 80 to 450mm | 180 | Wー16mm | Hー6mm | 166 | R5 | 2×20mm | DXF | DWG | |
UCS〇-〇-180□8K | Available 100 to 450mm | Available 80 to 450mm | 180 | Wー22mm | Hー6mm | 166 | R8 | - | DXF | DWG | |
UCS〇-〇-180□8L | Available 100 to 450mm | Available 80 to 450mm | 180 | Wー22mm | Hー6mm | 166 | R8 | 2×30mm | DXF | DWG | |
UCS〇-〇-180□8M | Available 100 to 450mm | Available 80 to 450mm | 180 | Wー22mm | Hー6mm | 166 | R8 | 2×20mm | DXF | DWG | |
UCS〇-〇-200□5K | Available 100 to 450mm | Available 80 to 450mm | 200 | Wー16mm | Hー6mm | 186 | R5 | - | DXF | DWG | |
UCS〇-〇-200□5L | Available 100 to 450mm | Available 80 to 450mm | 200 | Wー16mm | Hー6mm | 186 | R5 | 2×30mm | DXF | DWG | |
UCS〇-〇-200□5M | Available 100 to 450mm | Available 80 to 450mm | 200 | Wー16mm | Hー6mm | 186 | R5 | 2×20mm | DXF | DWG | |
UCS〇-〇-200□8K | Available 100 to 450mm | Available 80 to 450mm | 200 | Wー22mm | Hー6mm | 186 | R8 | - | DXF | DWG | |
UCS〇-〇-200□8L | Available 100 to 450mm | Available 80 to 450mm | 200 | Wー22mm | Hー6mm | 186 | R8 | 2×30mm | DXF | DWG | |
UCS〇-〇-200□8M | Available 100 to 450mm | Available 80 to 450mm | 200 | Wー22mm | Hー6mm | 186 | R8 | 2×20mm | DXF | DWG | |
UCS〇-〇-220□5K | Available 100 to 450mm | Available 80 to 450mm | 220 | Wー16mm | Hー6mm | 206 | R5 | - | DXF | DWG | |
UCS〇-〇-220□5L | Available 100 to 450mm | Available 80 to 450mm | 220 | Wー16mm | Hー6mm | 206 | R5 | 2×30mm | DXF | DWG | |
UCS〇-〇-220□5M | Available 100 to 450mm | Available 80 to 450mm | 220 | Wー16mm | Hー6mm | 206 | R5 | 2×20mm | DXF | DWG | |
UCS〇-〇-220□8K | Available 100 to 450mm | Available 80 to 450mm | 220 | Wー22mm | Hー6mm | 206 | R8 | - | DXF | DWG | |
UCS〇-〇-220□8L | Available 100 to 450mm | Available 80 to 450mm | 220 | Wー22mm | Hー6mm | 206 | R8 | 2×30mm | DXF | DWG | |
UCS〇-〇-220□8M | Available 100 to 450mm | Available 80 to 450mm | 220 | Wー22mm | Hー6mm | 206 | R8 | 2×20mm | DXF | DWG | |
UCS〇-〇-240□5K | Available 100 to 450mm | Available 80 to 450mm | 240 | Wー16mm | Hー6mm | 226 | R5 | - | DXF | DWG | |
UCS〇-〇-240□5L | Available 100 to 450mm | Available 80 to 450mm | 240 | Wー16mm | Hー6mm | 226 | R5 | 2×30mm | DXF | DWG | |
UCS〇-〇-240□5M | Available 100 to 450mm | Available 80 to 450mm | 240 | Wー16mm | Hー6mm | 226 | R5 | 2×20mm | DXF | DWG | |
UCS〇-〇-240□8K | Available 100 to 450mm | Available 80 to 450mm | 240 | Wー22mm | Hー6mm | 226 | R8 | - | DXF | DWG | |
UCS〇-〇-240□8L | Available 100 to 450mm | Available 80 to 450mm | 240 | Wー22mm | Hー6mm | 226 | R8 | 2×30mm | DXF | DWG | |
UCS〇-〇-240□8M | Available 100 to 450mm | Available 80 to 450mm | 240 | Wー22mm | Hー6mm | 226 | R8 | 2×20mm | DXF | DWG | |
UCS〇-〇-260□5K | Available 100 to 450mm | Available 80 to 450mm | 260 | Wー16mm | Hー6mm | 246 | R5 | - | DXF | DWG | |
UCS〇-〇-260□5L | Available 100 to 450mm | Available 80 to 450mm | 260 | Wー16mm | Hー6mm | 246 | R5 | 2×30mm | DXF | DWG | |
UCS〇-〇-260□5M | Available 100 to 450mm | Available 80 to 450mm | 260 | Wー16mm | Hー6mm | 246 | R5 | 2×20mm | DXF | DWG | |
UCS〇-〇-260□8K | Available 100 to 450mm | Available 80 to 450mm | 260 | Wー22mm | Hー6mm | 246 | R8 | - | DXF | DWG | |
UCS〇-〇-260□8L | Available 100 to 450mm | Available 80 to 450mm | 260 | Wー22mm | Hー6mm | 246 | R8 | 2×30mm | DXF | DWG | |
UCS〇-〇-260□8M | Available 100 to 450mm | Available 80 to 450mm | 260 | Wー22mm | Hー6mm | 246 | R8 | 2×20mm | DXF | DWG | |
UCS〇-〇-280□5K | Available 100 to 450mm | Available 80 to 450mm | 280 | Wー16mm | Hー6mm | 266 | R5 | - | DXF | DWG | |
UCS〇-〇-280□5L | Available 100 to 450mm | Available 80 to 450mm | 280 | Wー16mm | Hー6mm | 266 | R5 | 2×30mm | DXF | DWG | |
UCS〇-〇-280□5M | Available 100 to 450mm | Available 80 to 450mm | 280 | Wー16mm | Hー6mm | 266 | R5 | 2×20mm | DXF | DWG | |
UCS〇-〇-280□8K | Available 100 to 450mm | Available 80 to 450mm | 280 | Wー22mm | Hー6mm | 266 | R8 | - | DXF | DWG | |
UCS〇-〇-280□8L | Available 100 to 450mm | Available 80 to 450mm | 280 | Wー22mm | Hー6mm | 266 | R8 | 2×30mm | DXF | DWG | |
UCS〇-〇-280□8M | Available 100 to 450mm | Available 80 to 450mm | 280 | Wー22mm | Hー6mm | 266 | R8 | 2×20mm | DXF | DWG | |
UCS〇-〇-340□5K | Available 100 to 450mm | Available 80 to 450mm | 340 | Wー16.4mm | Hー6.4mm | 326 | R5 | - | DXF | DWG | |
UCS〇-〇-340□5L | Available 100 to 450mm | Available 80 to 450mm | 340 | Wー16.4mm | Hー6.4mm | 326 | R5 | 2×30mm | DXF | DWG | |
UCS〇-〇-340□5M | Available 100 to 450mm | Available 80 to 450mm | 340 | Wー16.4mm | Hー6.4mm | 326 | R5 | 2×20mm | DXF | DWG | |
UCS〇-〇-340□8K | Available 100 to 450mm | Available 80 to 450mm | 340 | Wー22.4mm | Hー6.4mm | 326 | R8 | - | DXF | DWG | |
UCS〇-〇-340□8L | Available 100 to 450mm | Available 80 to 450mm | 340 | Wー22.4mm | Hー6.4mm | 326 | R8 | 2×30mm | DXF | DWG | |
UCS〇-〇-340□8M | Available 100 to 450mm | Available 80 to 450mm | 340 | Wー22.4mm | Hー6.4mm | 326 | R8 | 2×20mm | DXF | DWG |
