IP67 SLOPED PLASTIC ENCLOSURE - WSC series

TOP
>
PRODUCTS
>
SLOPED ENCLOSURES・DESKTOP CONSOLE ENCLOSURES
>
IP67 SLOPED PLASTIC ENCLOSURE - WSC series

IP67 SLOPED PLASTIC ENCLOSURE - WSC series

WSC Series -PDF

CATEGORY：Sloped front enclosure, Sloping enclosure, Desktop enclosure, Medical controller enclosure

IP67 SLOPED PLASTIC ENCLOSURE - WSC series

IP67 SLOPED PLASTIC ENCLOSURE - WSC series1

IP67 SLOPED PLASTIC ENCLOSURE - WSC series2

IP67 SLOPED PLASTIC ENCLOSURE - WSC series3

IP67 SLOPED PLASTIC ENCLOSURE - WSC series4

IP67 SLOPED PLASTIC ENCLOSURE - WSC series5

IP67 SLOPED PLASTIC ENCLOSURE - WSC series6

IP67 SLOPED PLASTIC ENCLOSURE - WSC series7

IP67 SLOPED PLASTIC ENCLOSURE - WSC series8

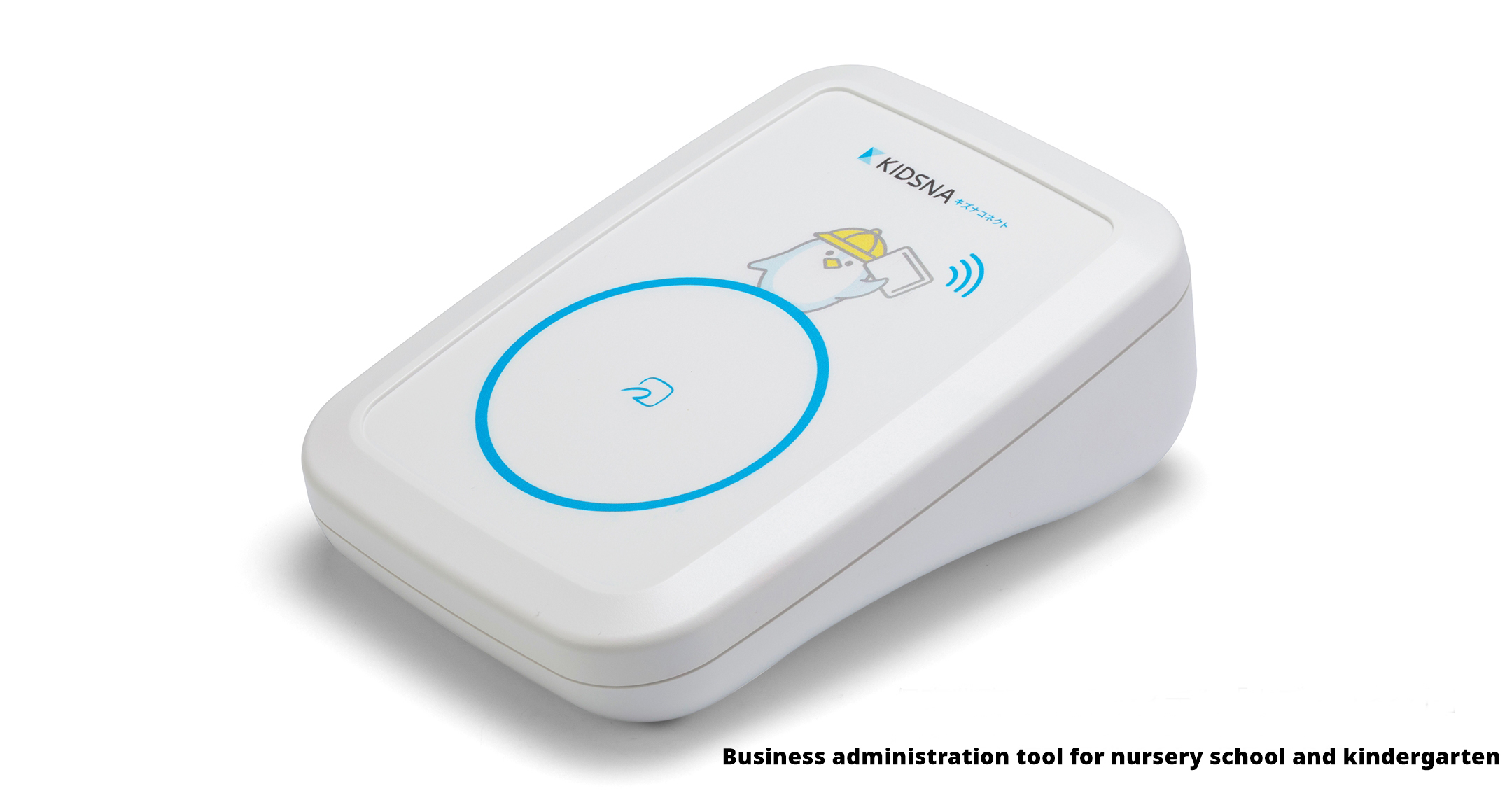

IP67 SLOPED PLASTIC ENCLOSURE - WSC series9

IP67 SLOPED PLASTIC ENCLOSURE - WSC series10

IP67 SLOPED PLASTIC ENCLOSURE - WSC series11

IP67 SLOPED PLASTIC ENCLOSURE - WSC series12

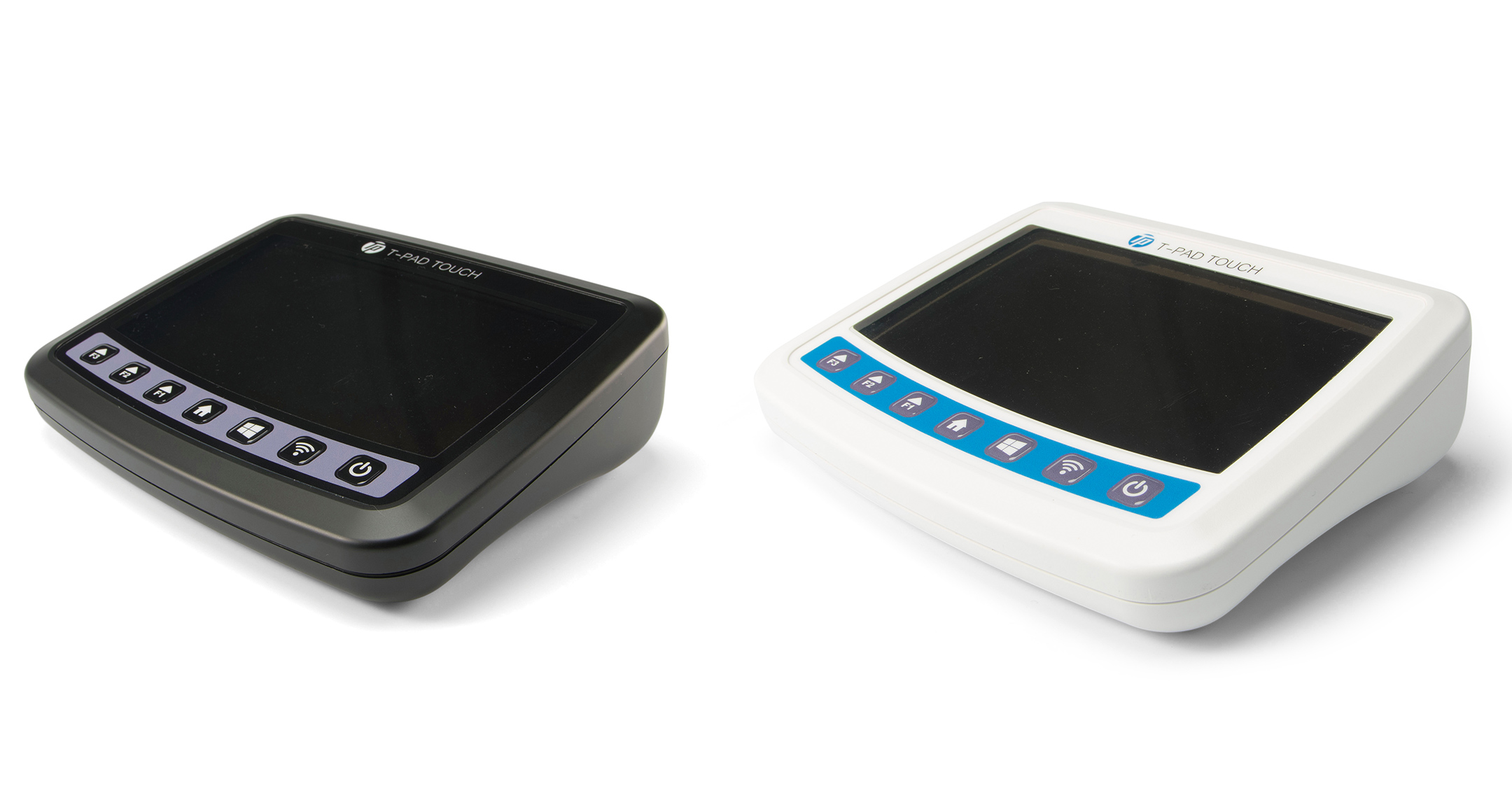

IP67 SLOPED PLASTIC ENCLOSURE - WSC series13

IP67 SLOPED PLASTIC ENCLOSURE - WSC series14

IP67 SLOPED PLASTIC ENCLOSURE - WSC series15

IP67 SLOPED PLASTIC ENCLOSURE - WSC series16

Stylish design sloped front plastic enclosure.

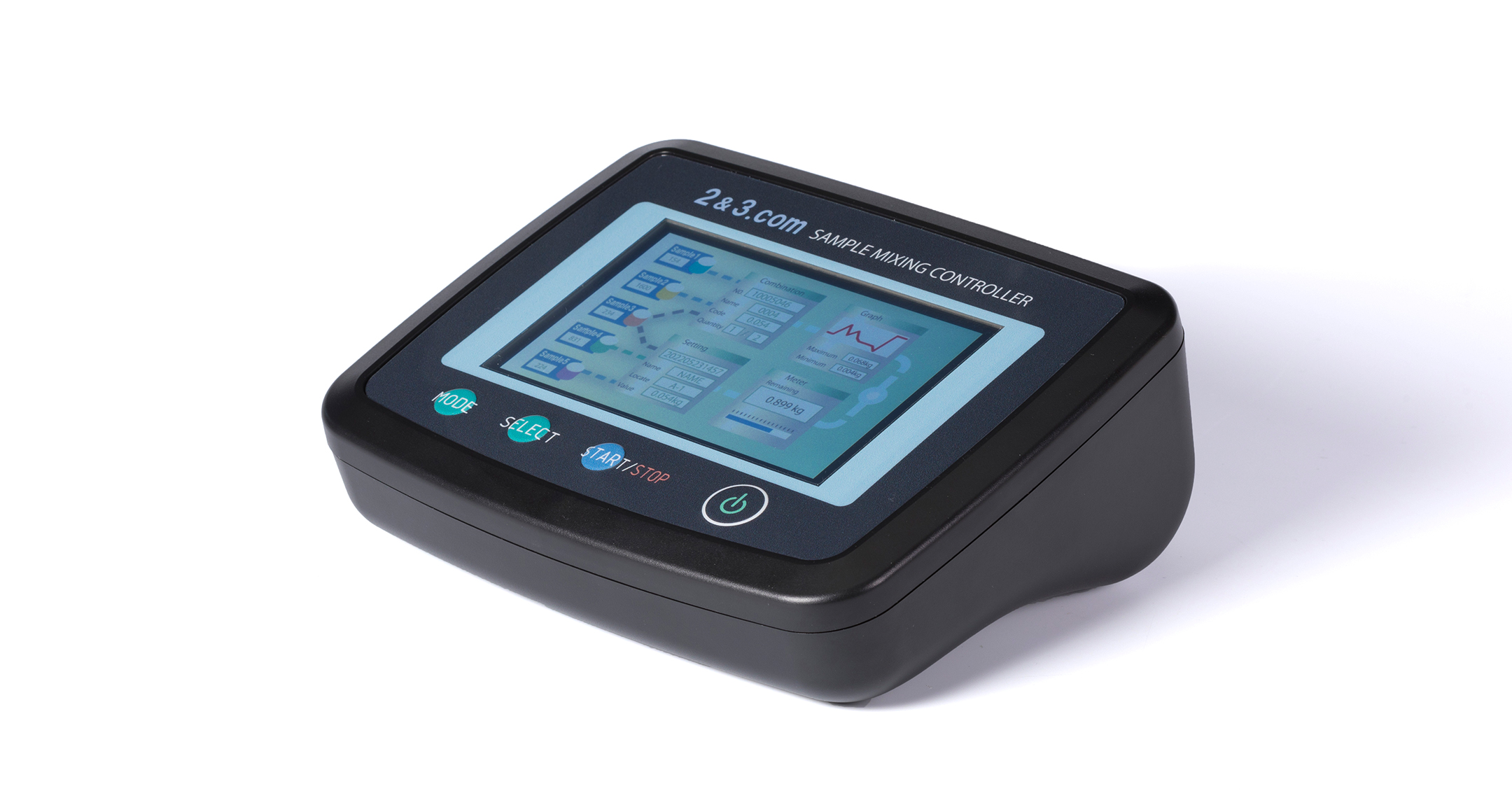

Suitable as a desktop controller or measurement instrument with its ergonomic design.
Best suited for desktop operation with its sloped surface.

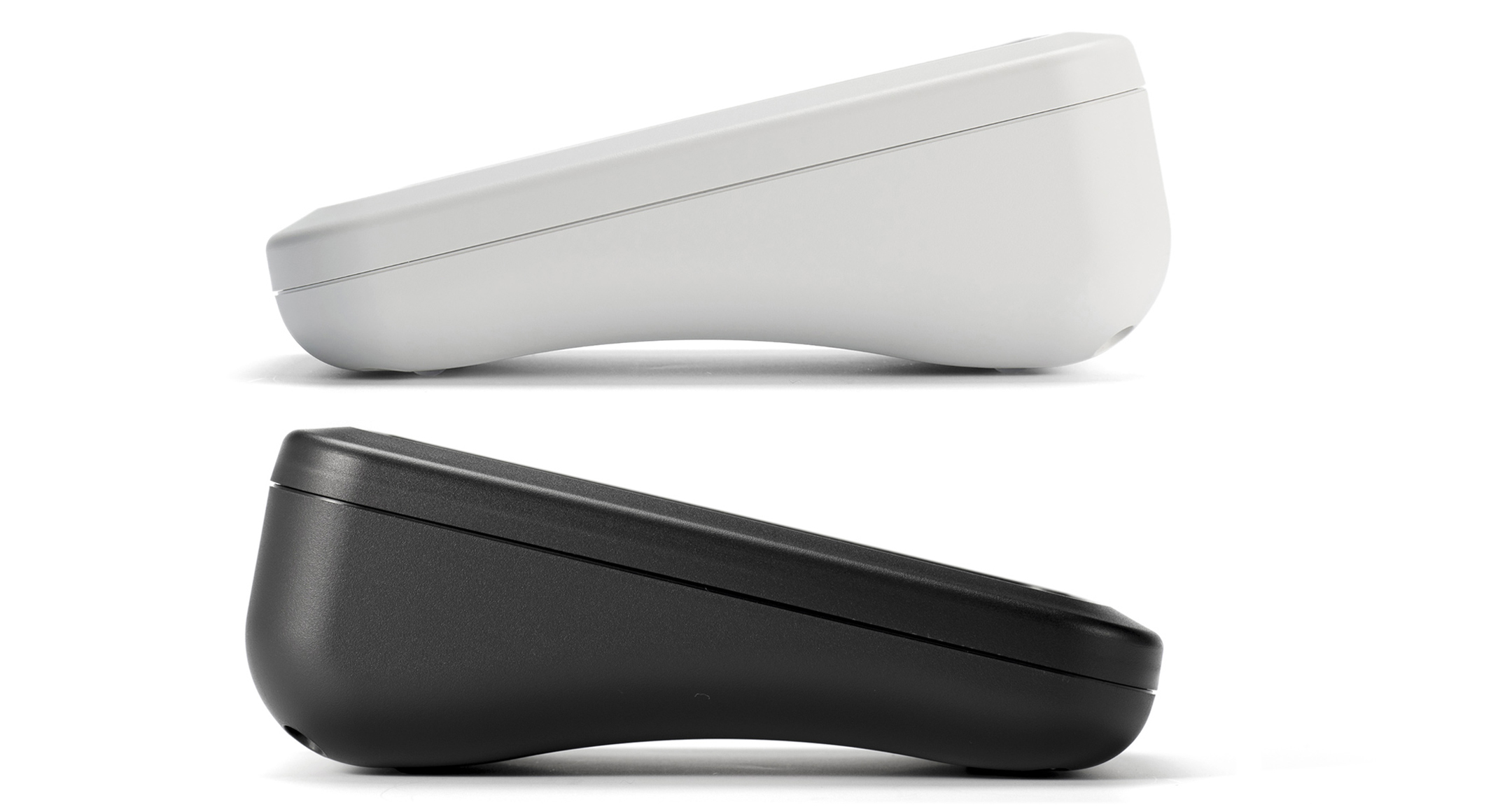

2 different inclined angles, 13° and 18° are available to select for various operating environments.
Streamlined shape enables the unit to be gripped better when used as a handheld instrument.

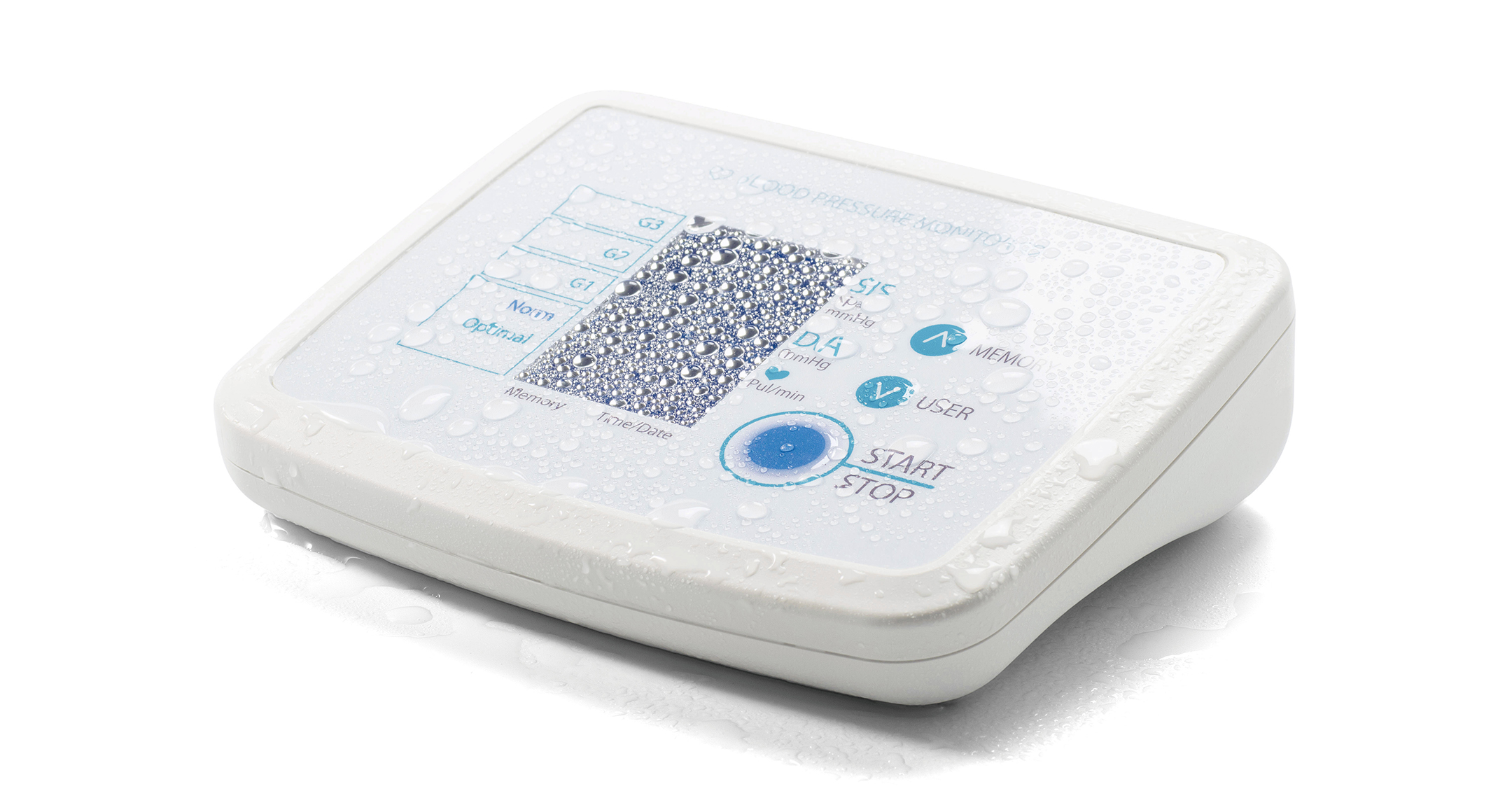

IP67 protection class allows the unit to be used outdoors or under environments with water splashes, such as medical, research or measurement equipment.

6 different sizes in off-white and black colors are available.

Protection class : IP67
Operating temperature : -10℃ ~ +60℃
Recommended torque : 0.2 ~ 0.3N・m

3D View - WSC10-14-5W 3D View - WSC10-14-7B 3D View - WSC14-14-5B 3D View - WSC14-14-7W 3D View - WSC18-14-5W 3D View - WSC18-14-7B Exploded view

PRODUCT NO. / DIMENSIONS

Product No.	External dimensions			Internal dimensions			Inclined angle	Color / Similar matching	Weight (g)	PDF	3D PDF	DXF	DWG	STP
Product No.	W	H	D	w	h	d	Inclined angle	Color / Similar matching	Weight (g)	PDF	3D PDF	DXF	DWG	STP
WSC10-14-5B	100	52	140	89	10	100	13°	Black / Munsell N1	143.4	PDF	3D PDF	DXF	DWG
WSC10-14-5W	100	52	140	89	10	100	13°	Off white / Munsell N8.75	147.1	PDF	3D PDF	DXF	DWG
WSC10-14-7B	100	72	140	89	22	100	18°	Black / Munsell N1	166.6	PDF	3D PDF	DXF	DWG
WSC10-14-7W	100	72	140	89	22	100	18°	Off white / Munsell N8.75	169.9	PDF	3D PDF	DXF	DWG
WSC14-14-5B	140	52	140	129	10	100	13°	Black / Munsell N1	188.2	PDF	3D PDF	DXF	DWG
WSC14-14-5W	140	52	140	129	10	100	13°	Off white / Munsell N8.75	191	PDF	3D PDF	DXF	DWG
WSC14-14-7B	140	72	140	129	22	100	18°	Black / Munsell N1	216.4	PDF	3D PDF	DXF	DWG
WSC14-14-7W	140	72	140	129	22	100	18°	Off white / Munsell N8.75	219.7	PDF	3D PDF	DXF	DWG
WSC18-14-5B	175	52	140	164	11.3	95	13°	Black / Munsell N1	231.1	PDF	3D PDF	DXF	DWG
WSC18-14-5W	175	52	140	164	11.3	95	13°	Off white / Munsell N8.75	236.4	PDF	3D PDF	DXF	DWG
WSC18-14-7B	175	72	140	164	23.7	95	18°	Black / Munsell N1	258.9	PDF	3D PDF	DXF	DWG
WSC18-14-7W	175	72	140	164	23.7	95	18°	Off white / Munsell N8.75	264.5	PDF	3D PDF	DXF	DWG
