IP68/IP67 CABLE GLANDS・WATERPROOF CABLE GLANDS

IP68/IP67 CABLE GLANDS・WATERPROOF CABLE GLANDS -PDF

CATEGORY： CABLE GLANDS・NYLON CABLE GLANDS・METAL CABLE GLANDS・STRAIN RELIEF CABLE GLAND・CONDUIT CONNECTOR

Cable glands are the parts used for fixing cables into enclosures and protecting water, oil, or dust.
Nylon cable glands, metal cable glands, EMC shielded cable glands and strain relief cable glands are available.
M thread and PG thread models are available.

WEATHERPROOF CABLE GLAND - RMW series
  • WEATHERPROOF CABLE GLAND - RMW series
  • Weatherproof cable glands for long-term outdoor use.
  • High degradation resistant silicone sealing insert and O-ring.
  • Protection class : IP67
  • Thread size M8 ~ M50, Cable range Φ1mm ~ Φ38 mm.
    DETAILS
    POLYAMIDE CABLE GLAND - RM series
    • POLYAMIDE CABLE GLAND - RM series
    • Low cost cable glands made from polyamide material.
    • Wide selection, for M8 ~ M63 and Φ1mm ~ Φ44 mm cable.
    • Protection class : IP67
    • High oil resistant NBR rubber sealing and O-ring.
      DETAILS
      MULTI-HOLE CABLE GLAND - RMH series
      • MULTI-HOLE CABLE GLAND - RMH series
      • Multi-hole cable gland with M type threads
      • Up to a maximum of 6 cables can be used with 1 cable gland
      • 5 thread sizes for M12・M16・M20・M25・M32
      • Cable range : φ1.5mm～φ11mm
      • NEW PRODUCT
      DETAILS

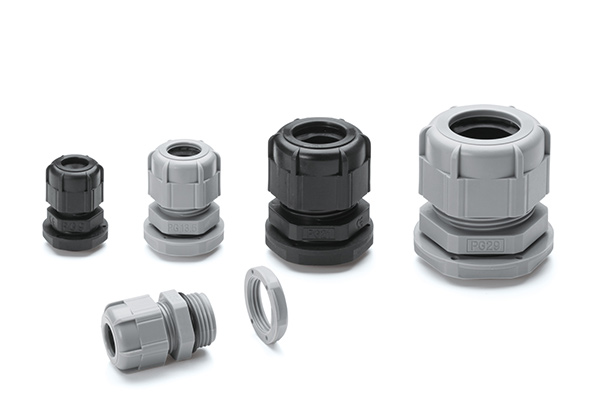

      PG CABLE GLAND - RPG series
      • PG CABLE GLAND - RPG series
      • Low cost PG thread cable glands.
      • High oil resistant NBR rubber sealing and O-ring.
      • Protection class : IP67
      • Thread size PG7 ~ PG29, Cable range Φ3mm ~ Φ25 mm.
        DETAILS
        IP68 WATER PROTECTION CABLE GLAND - AG series
        • IP68 WATER PROTECTION CABLE GLAND - AG series
        • High water protection IP68 cable gland.
        • Tough and heat resistant PA6FG material. (-20°C to +100°C)
        • Wide selection for M8 ~ M50 thread
        • Selectable in 15 sizes. (Φ2.5mm ~ Φ42 mm cable.)
          DETAILS
          SEALING WASHER FOR AG SERIES - AGP series
          • SEALING WASHER FOR AG SERIES - AGP series
          • Use in the case of installation on a rough or uneven surfaces.
          • Not necessary for installation on flat surfaces.
          • Made from oil resistant NBR material.
          • Selectable in 7 sizes (from M12 to M50).
            DETAILS
            STRAIN RELIEF CABLE GLAND - RSP series
            • STRAIN RELIEF CABLE GLAND - RSP series
            • Strain relief cable gland for protecting cables.
            • Protecting class : IP67
            • 6 sizes for M8・M10・M12・M16・M20・M25 in light gray / black
            • Cable range : φ1mm～φ16mm
            • NEW SIZE
            DETAILS
            STRAIN RELIEF CABLE GLAND - AGSP series
            • STRAIN RELIEF CABLE GLAND - AGSP series
            • Stain relief cable gland. (Spiral cable gland.)
            • Protection class : IP67
            • 4 sizes for M12・M16・M20. (φ3.5mm～φ12mm cable)
            • Available in light gray and black colors.
              DETAILS
              RIGHT ANGLED CABLE GLAND - REL series
              • RIGHT ANGLED CABLE GLAND - REL series
              • L-shape cable gland with M type threads
              • Allow wires to be routed vertically
              • 4 thread sizes for M16・M20・M25・M32
              • Cable range : φ3.5mm～φ16mm
              • NEW PRODUCT
              DETAILS
              IP68 METAL CABLE GLAND - AGM series
              • IP68 METAL CABLE GLAND - AGM series
              • High water protection IP68 metal cable gland.
              • Protection class: IP68 1bar / 30min
              • Wide selection, for M6 ~ M50 and PG7 ~ PG16.
              • Suitable in 19 sizes. (Φ2 mm ~ Φ42 mm cable)
                DETAILS
                EMC CABLE GLAND - AGE series
                • EMC CABLE GLAND - AGE series
                • Easy installation EMC shielding metal cable gland.
                • EMC spring provides for good contact of shielding cables.
                • Protection class : IP68 2bar / 30min, IP69K
                • 6 different sizes for cable range φ3.5mm ~ 25.0mm.
                  DETAILS
                  HEAT RESISTANT CABLE GLAND - AGH series
                  • HEAT RESISTANT CABLE GLAND - AGH series
                  • Heat resistant sealing insert made of FPM material.
                  • Operating temperature : -40℃ ~ +200℃
                  • Protection class : IP68 1bar / 30min
                  • 6 different sizes available for cable range φ4~φ25.5mm.
                    DETAILS
                    INTERCHANGEABLE HEAD TORQUE WRENCH - TWH series
                    • INTERCHANGEABLE HEAD TORQUE WRENCH - TWH series
                    • Torque wrench with interchangeable head.
                    • Suitable for the tightening of cable glands
                    • Open end interchangeable head (spanner head)
                    • TWE series available separately.
                    • NEW PRODUCT
                    DETAILS
                    SEALING PLUG - SP series
                    • SEALING PLUG - SP series
                    • Sealing plug for cable glands when not in use.
                    • 6 different sizes for M12 ～ M50 cable glands.
                      DETAILS
                      RUBBER STRAIN RELIEF CORD PROTECTOR CBS series
                      • RUBBER STRAIN RELIEF CORD PROTECTOR CBS series
                      • Strain relief cord protector help relief flex stress and damage.
                      • 2 types - round and flat - are available.
                      • Insert from the inner side of the case / panel of the enclosure.
                      • Made from high heat resistant silicone material.
                      • NEW PRODUCT
                      DETAILS
                      CABLE BUSHING - CP series
                      • CABLE BUSHING - CP series
                      • Cable bushing for protection against cord twists and breakage.
                      • Fixing with lock nut.
                      • Sold in 10 pcs pack.
                        DETAILS
                        STAINLESS STEEL HOSE CLAMP - SNB series
                        • STAINLESS STEEL HOSE CLAMP - SNB series
                        • Screw adjustable type stainless steel hose clamp.
                        • Clamp band for hoses for air, liquid, and oil.
                        • Belt material : SUS304
                        • Wide lineup of 23 sizes from 8 mm to 308 mm.
                        • NEW PRODUCT
                        DETAILS
                        HINGED INSPECTION WINDOW - IW series
                        • HINGED INSPECTION WINDOW - IW series
                        • IP64/54 water resistant see-through hinged inspection window
                        • Smartly designed window for protection of switches and
                        • displays, etc. Knurled thumb screws for easy securing.
                        • 10 different sizes available.
                        • NEW PRODUCT
                        DETAILS
