HANDHELD CASE with SILICONE COVER - LCS series

HANDHELD CASE with SILICONE COVER - LCS series

CATEGORY：Handheld enclosure with silicone cover, Plastic enclosure with protective silicone boot, Plastic enclosure with battery compartments

HANDHELD CASE with SILICONE COVER - LCS series1

HANDHELD CASE with SILICONE COVER - LCS series2

HANDHELD CASE with SILICONE COVER - LCS series3

HANDHELD CASE with SILICONE COVER - LCS series4

HANDHELD CASE with SILICONE COVER - LCS series5

HANDHELD CASE with SILICONE COVER - LCS series6

HANDHELD CASE with SILICONE COVER - LCS series7

HANDHELD CASE with SILICONE COVER - LCS series8

HANDHELD CASE with SILICONE COVER - LCS series9

HANDHELD CASE with SILICONE COVER - LCS series10

HANDHELD CASE with SILICONE COVER - LCS series11

HANDHELD CASE with SILICONE COVER - LCS series12

HANDHELD CASE with SILICONE COVER - LCS series13

HANDHELD CASE with SILICONE COVER - LCS series14

HANDHELD CASE with SILICONE COVER - LCS series15

HANDHELD CASE with SILICONE COVER - LCS series16

HANDHELD CASE with SILICONE COVER - LCS series17

HANDHELD CASE with SILICONE COVER - LCS series18

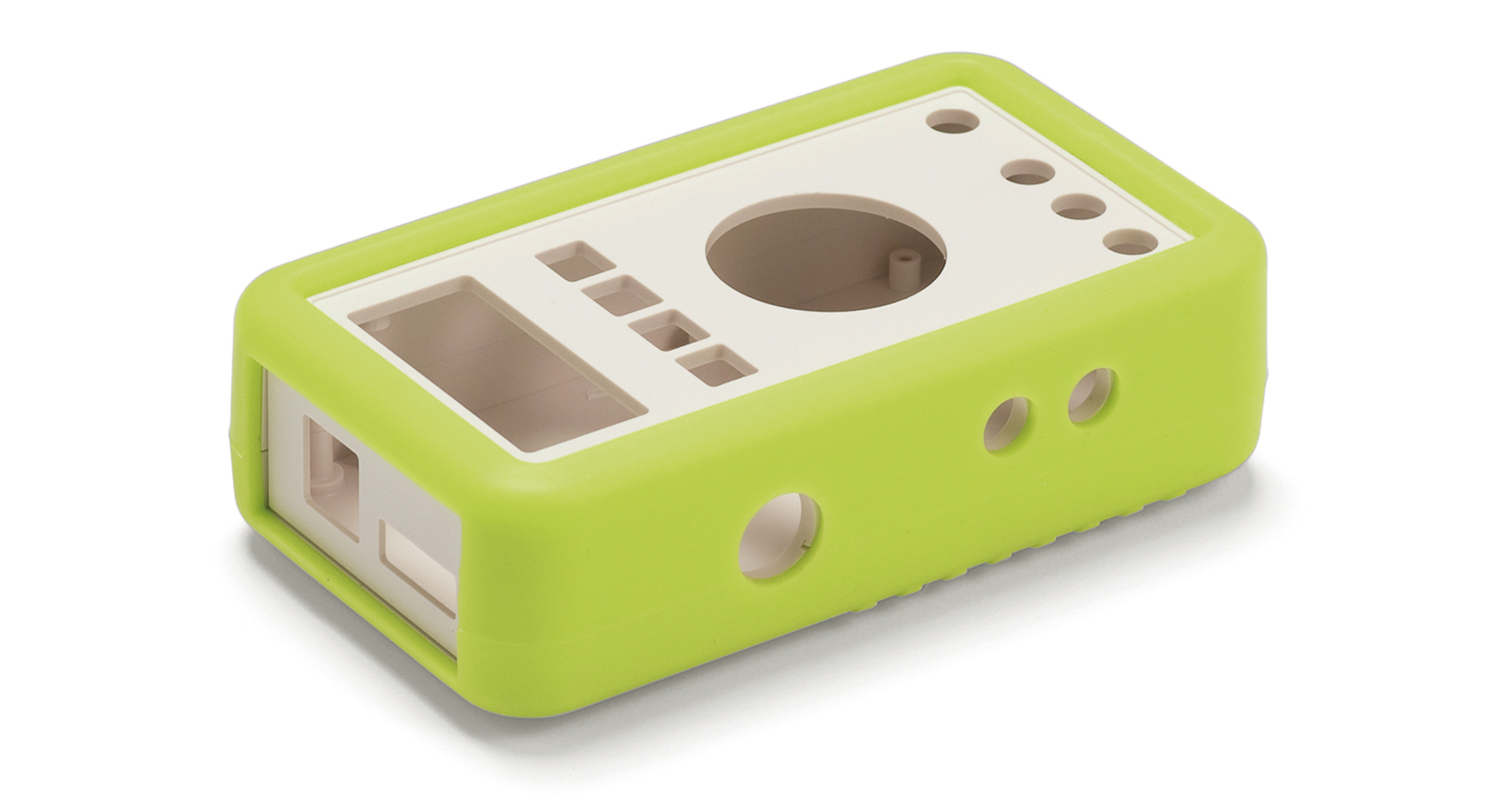

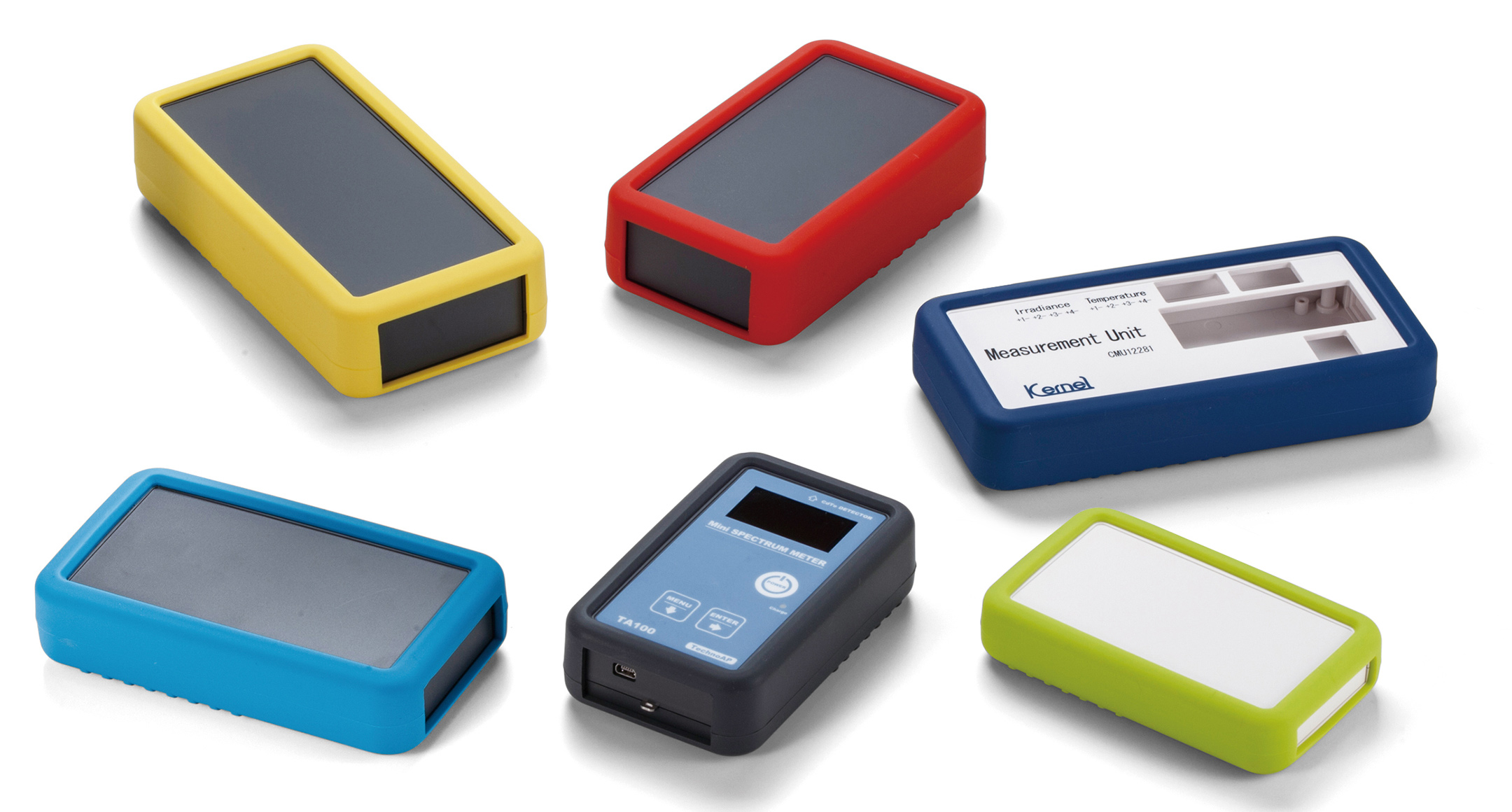

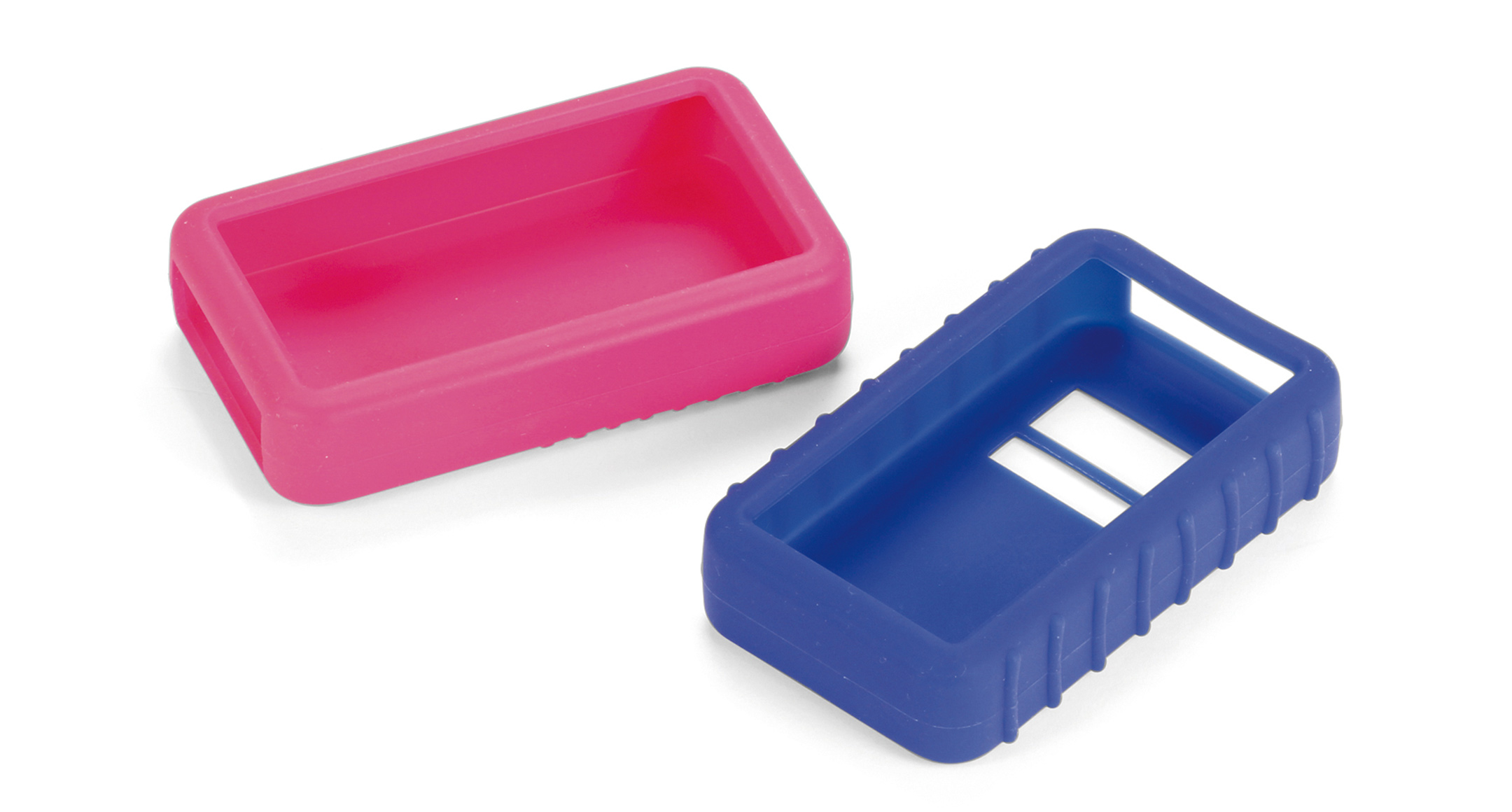

Plastic enclosure with silicone cover providing not only comfortable and anti-slip grip, but also protection from drop impact.
Manufactured from flame-resistant ABS UL94V-0.

Available in 9 different battery compartment types: AAx2, AAx3, AAx4, AAAx2, AAAx3, AAAx4, AAAx6, 9Vx1, and no battery compartment type.
Positive (+) / negative (-) pole mark are incused within each battery compartment.

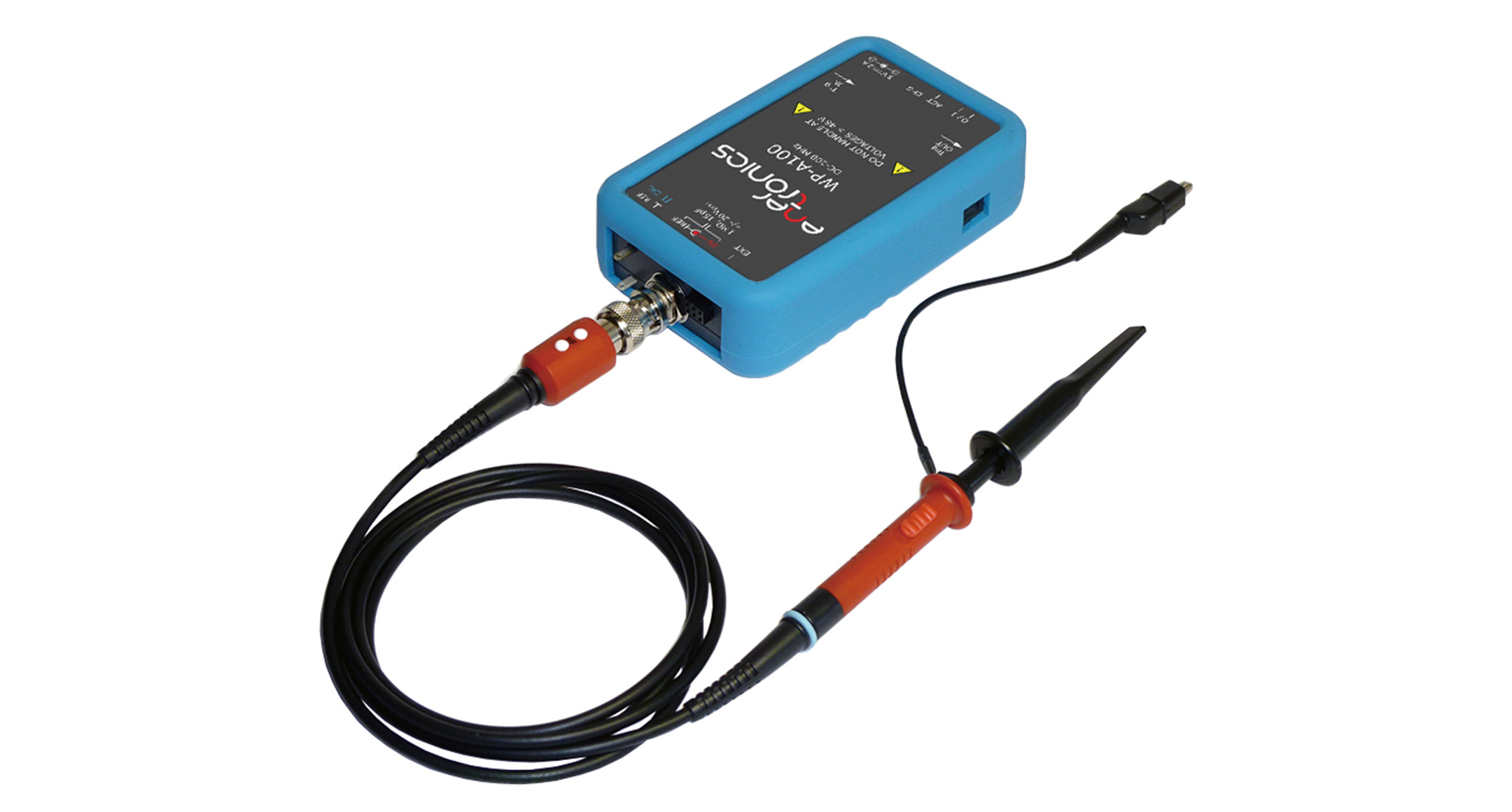

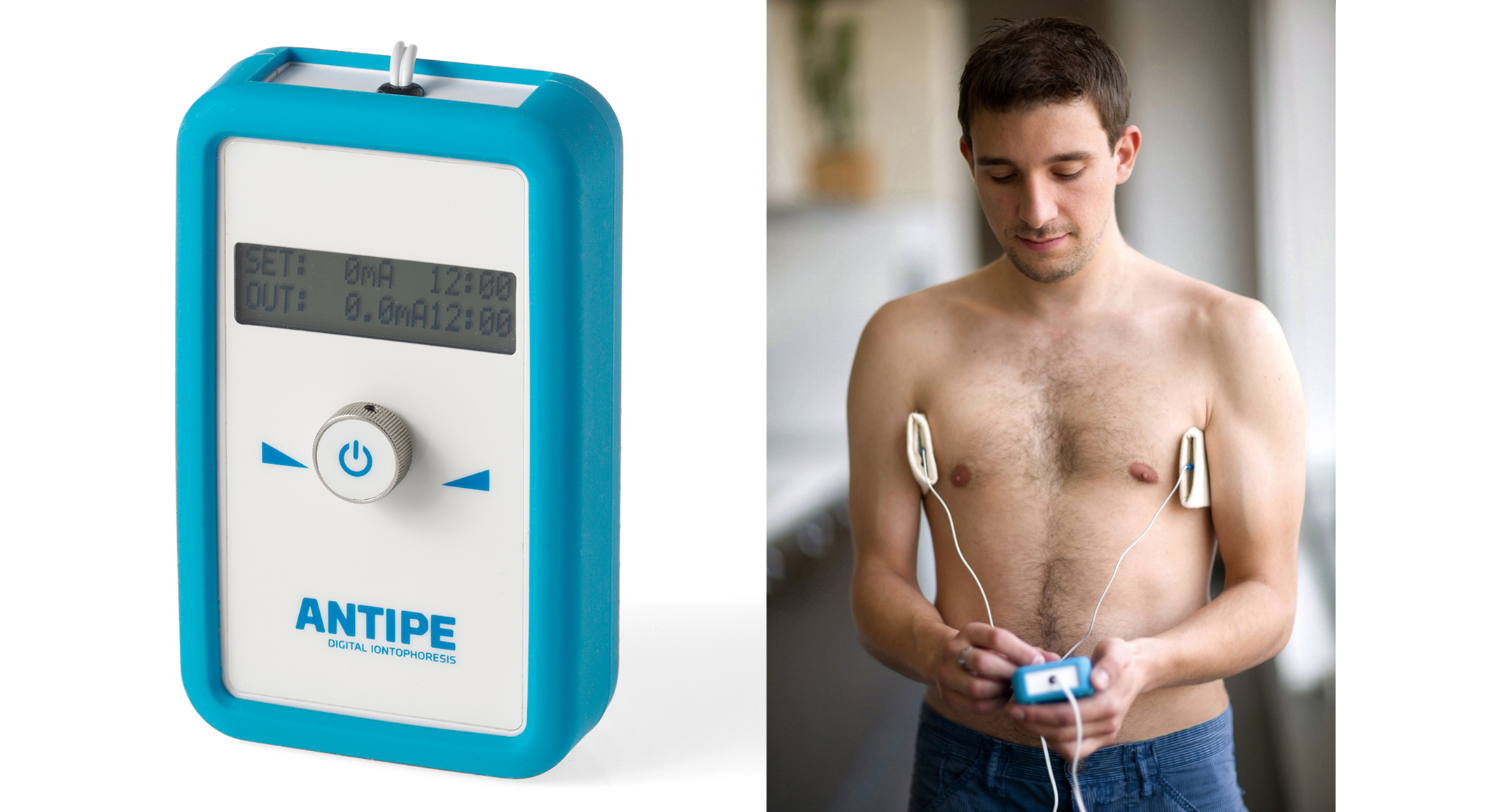

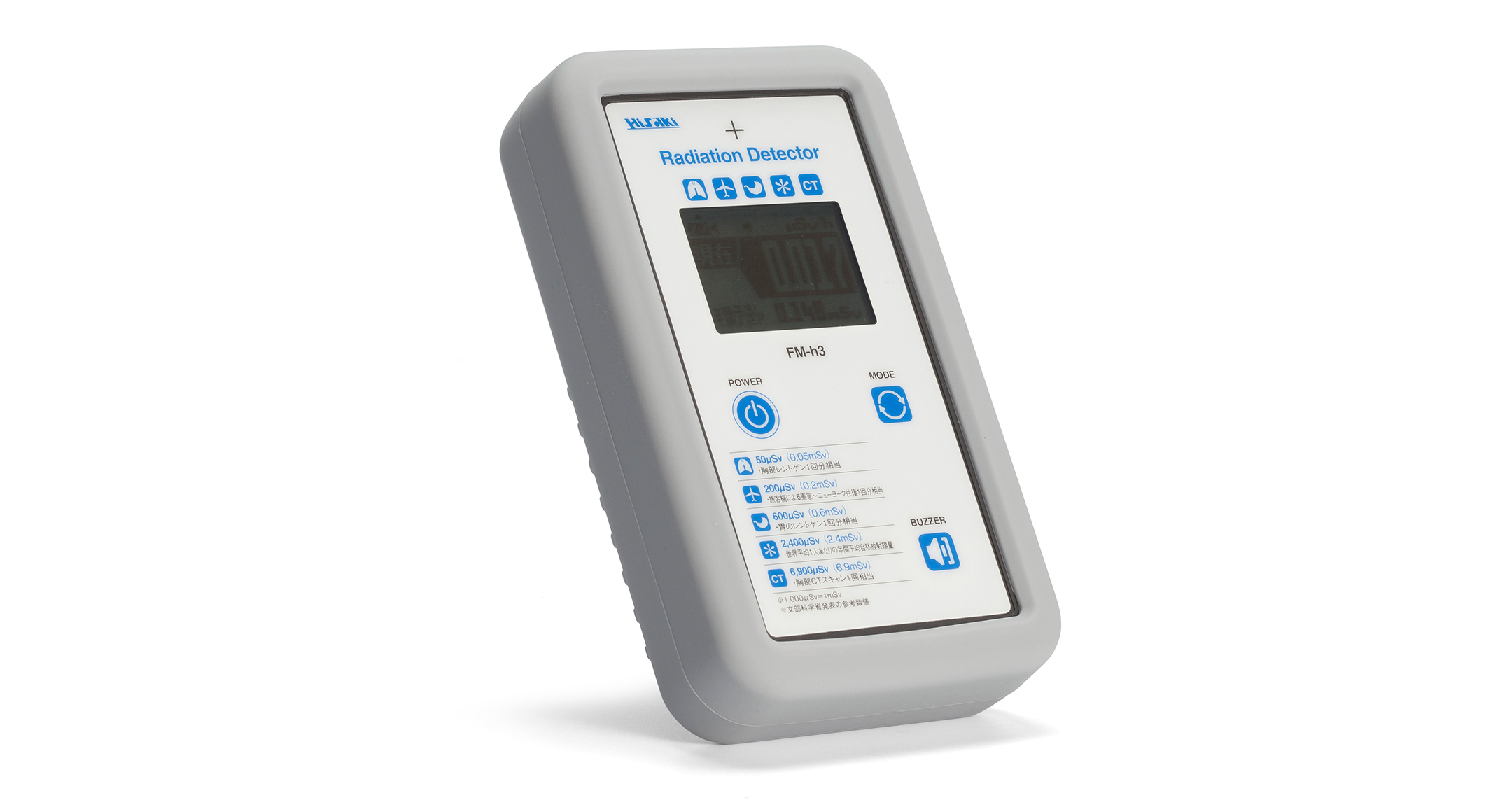

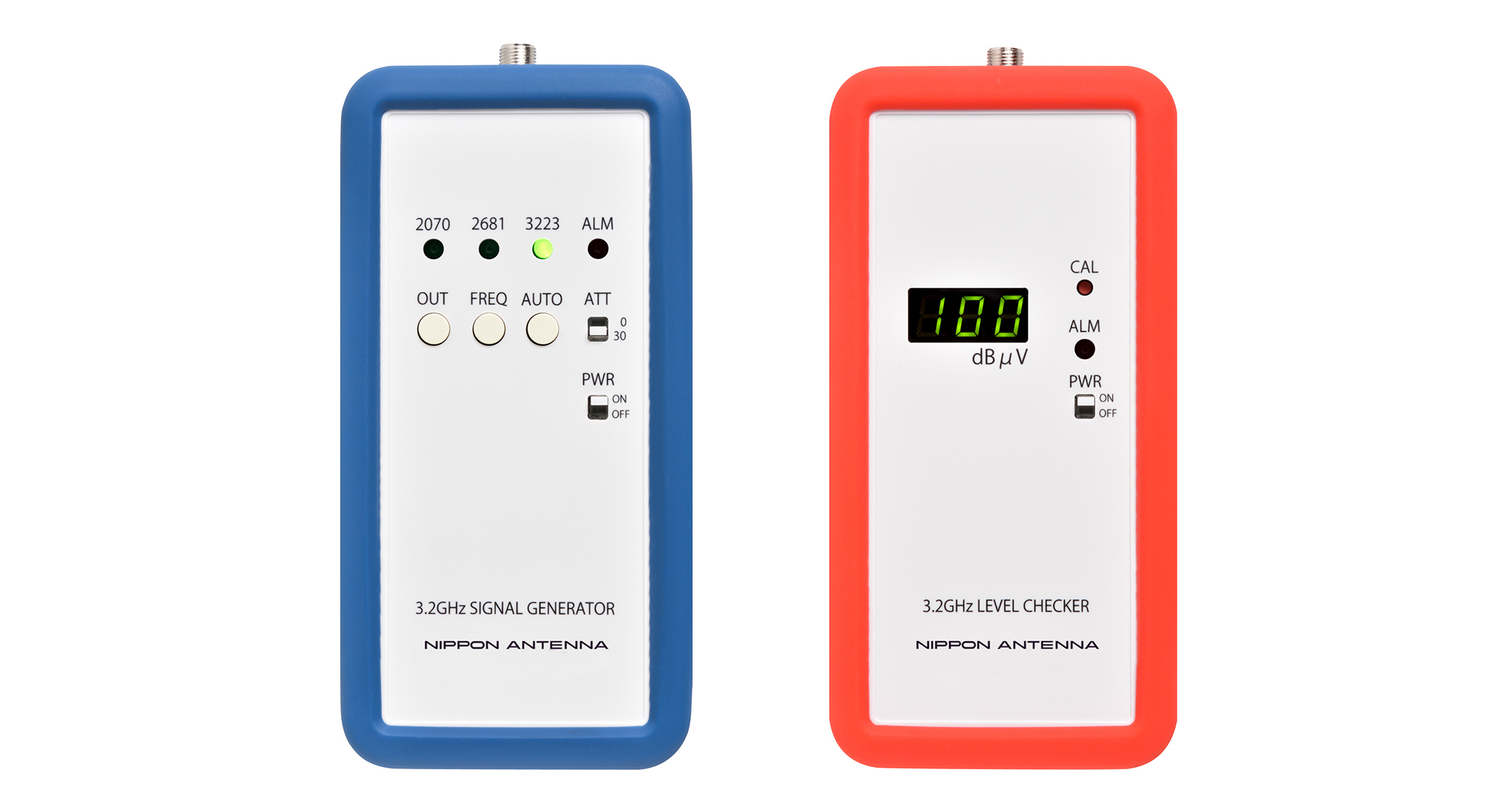

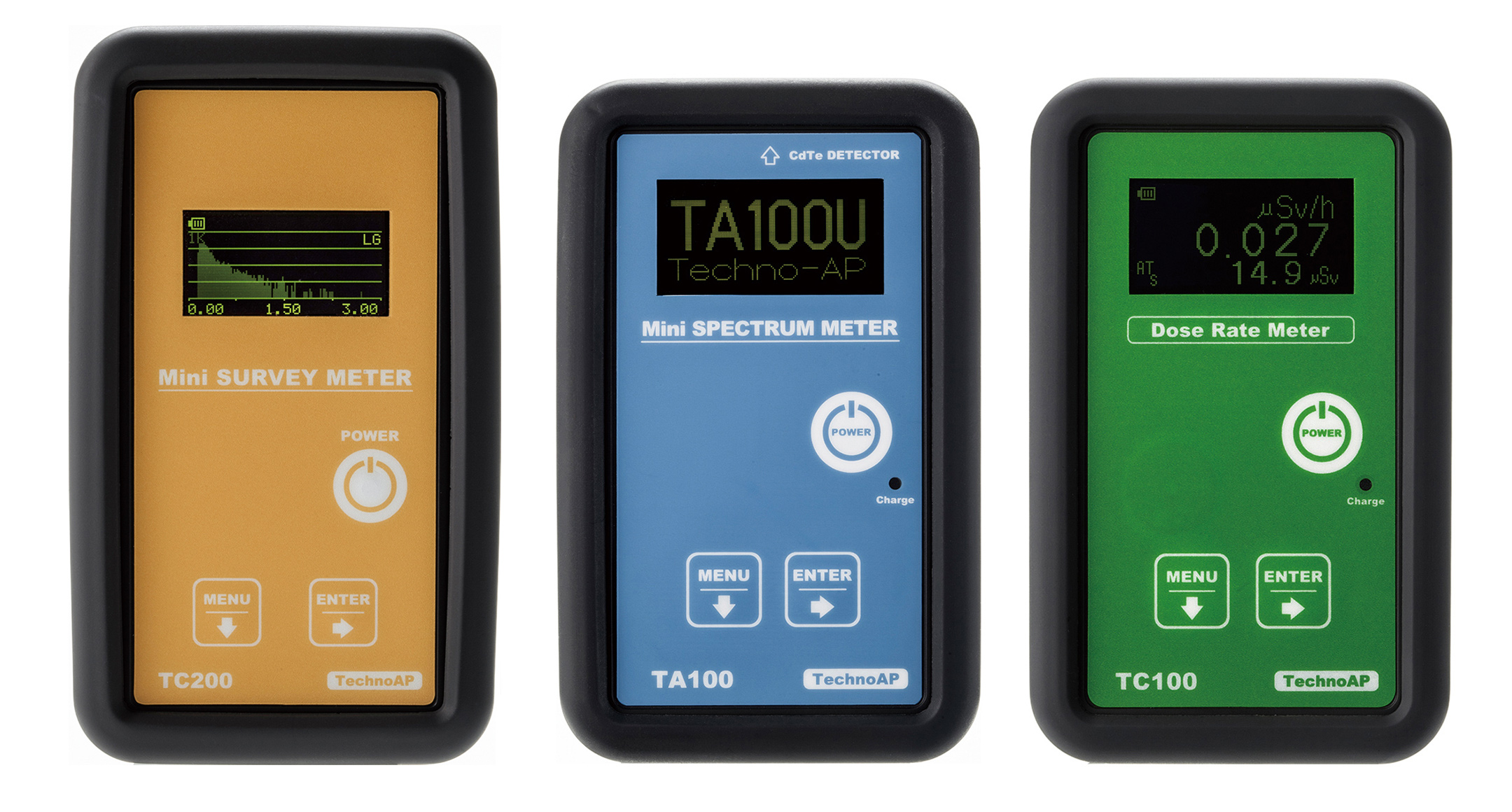

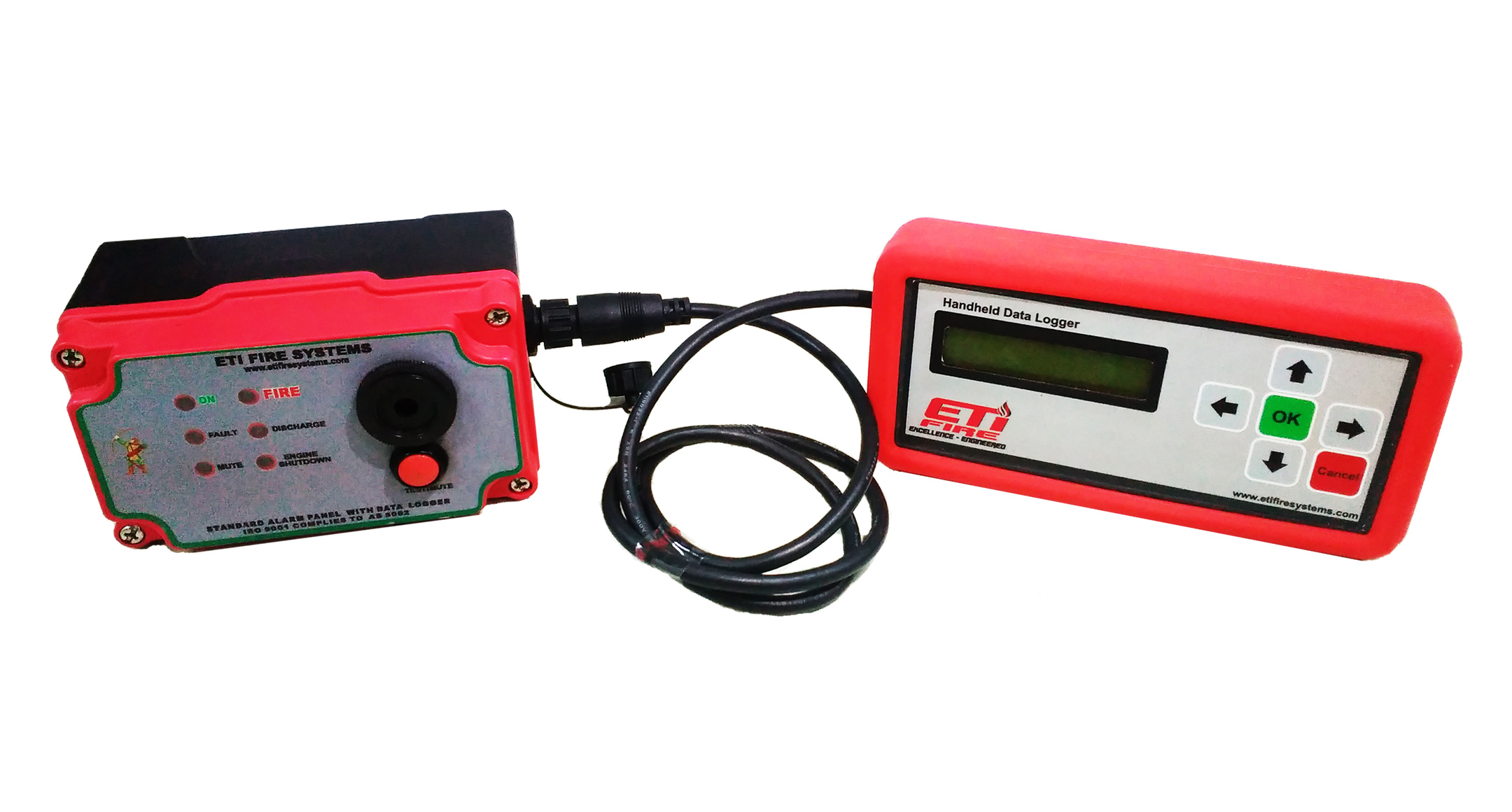

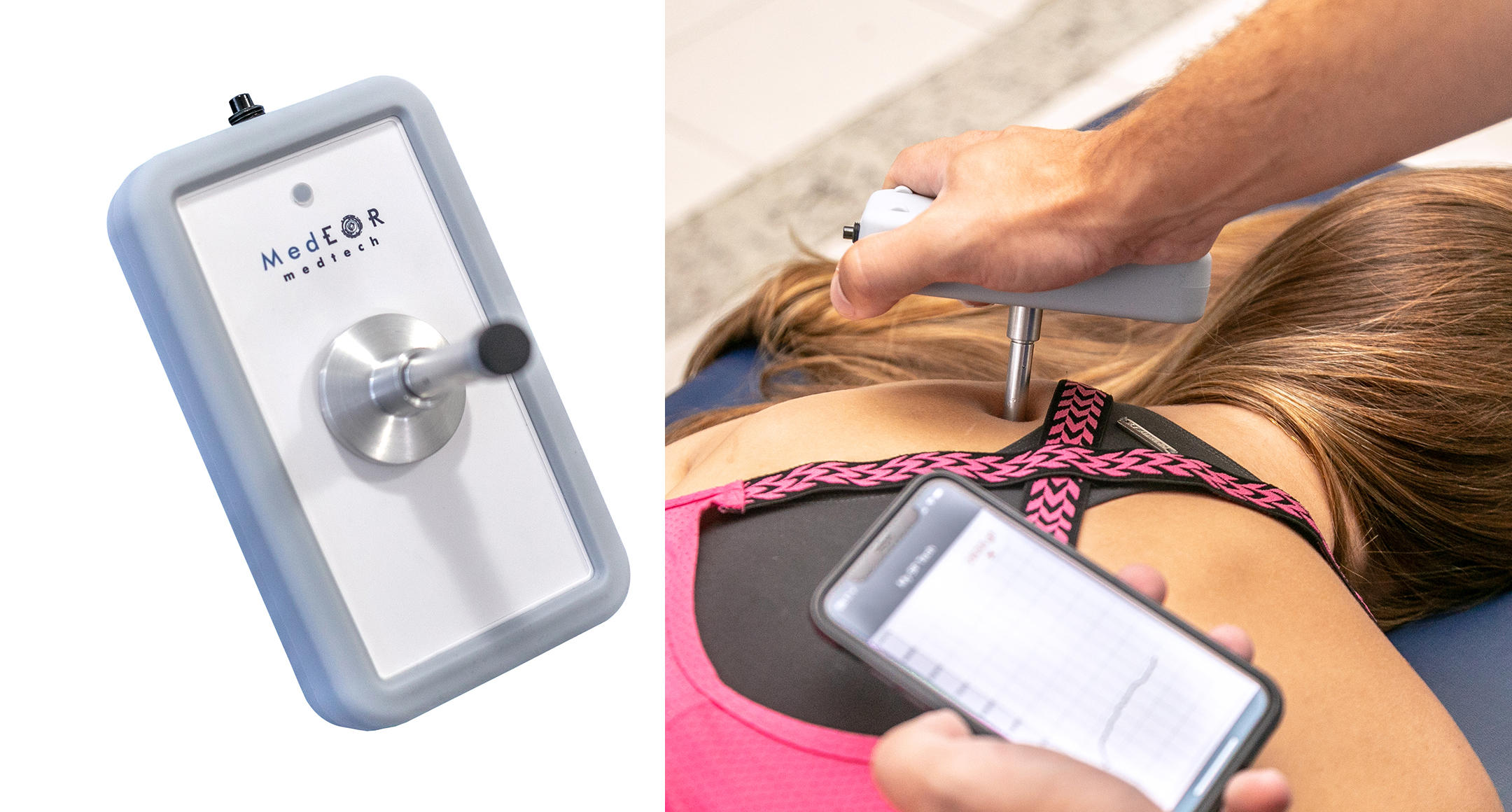

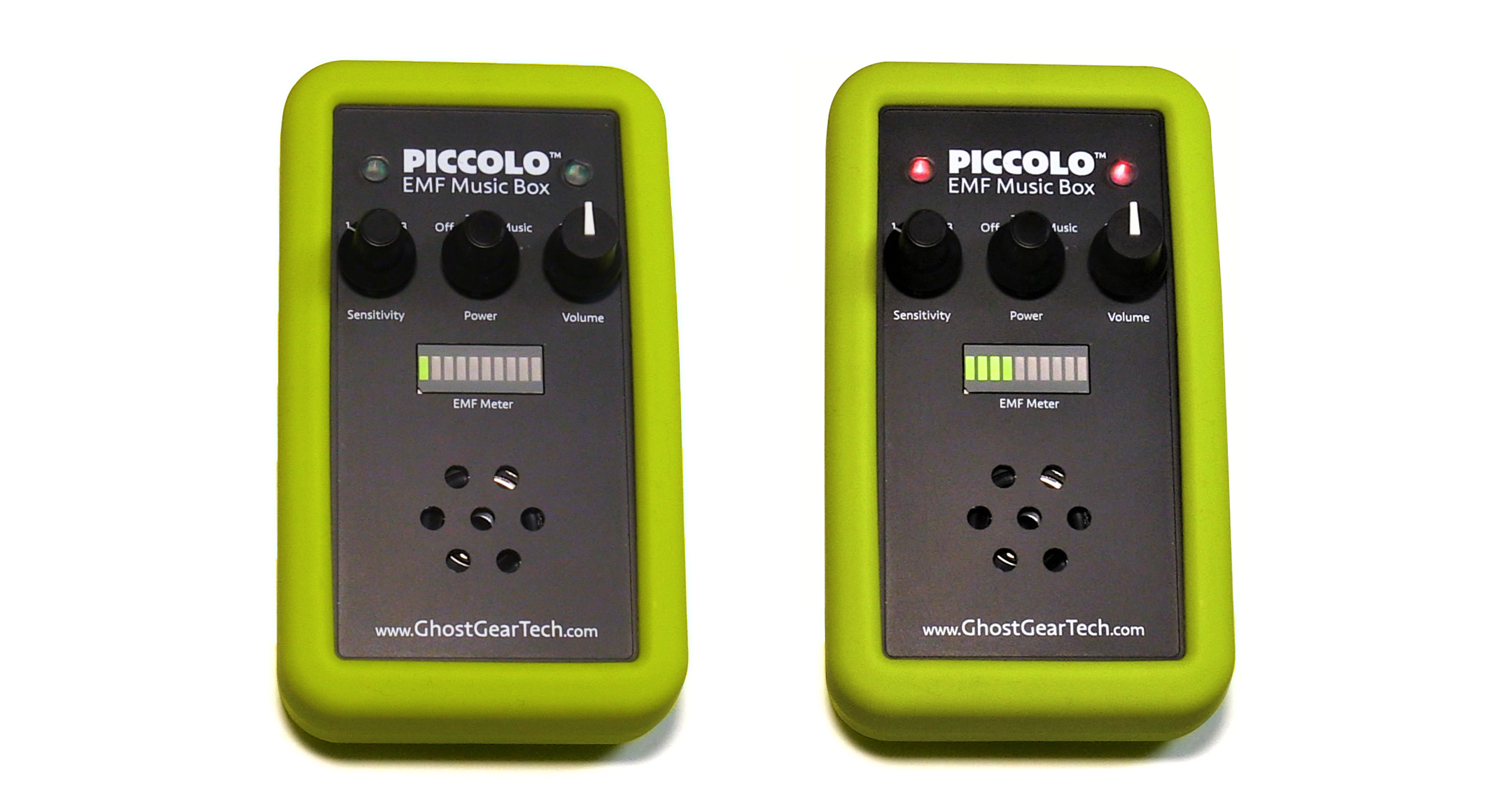

Suitable for measuring instruments, testing devices, industrial controller, wireless communication devices, medical devices and so on.

Protection class: IP40
Operating temperature: -10℃ ~ +60℃

9 different sizes in 10 color variations are available.

Custom silicone cover color is available from just 1 pc. For 500 pcs or more, manufacture costs will be similar to a standard color.
For custom color order, please specify PANTONE, RGB color number or provide your sample color.

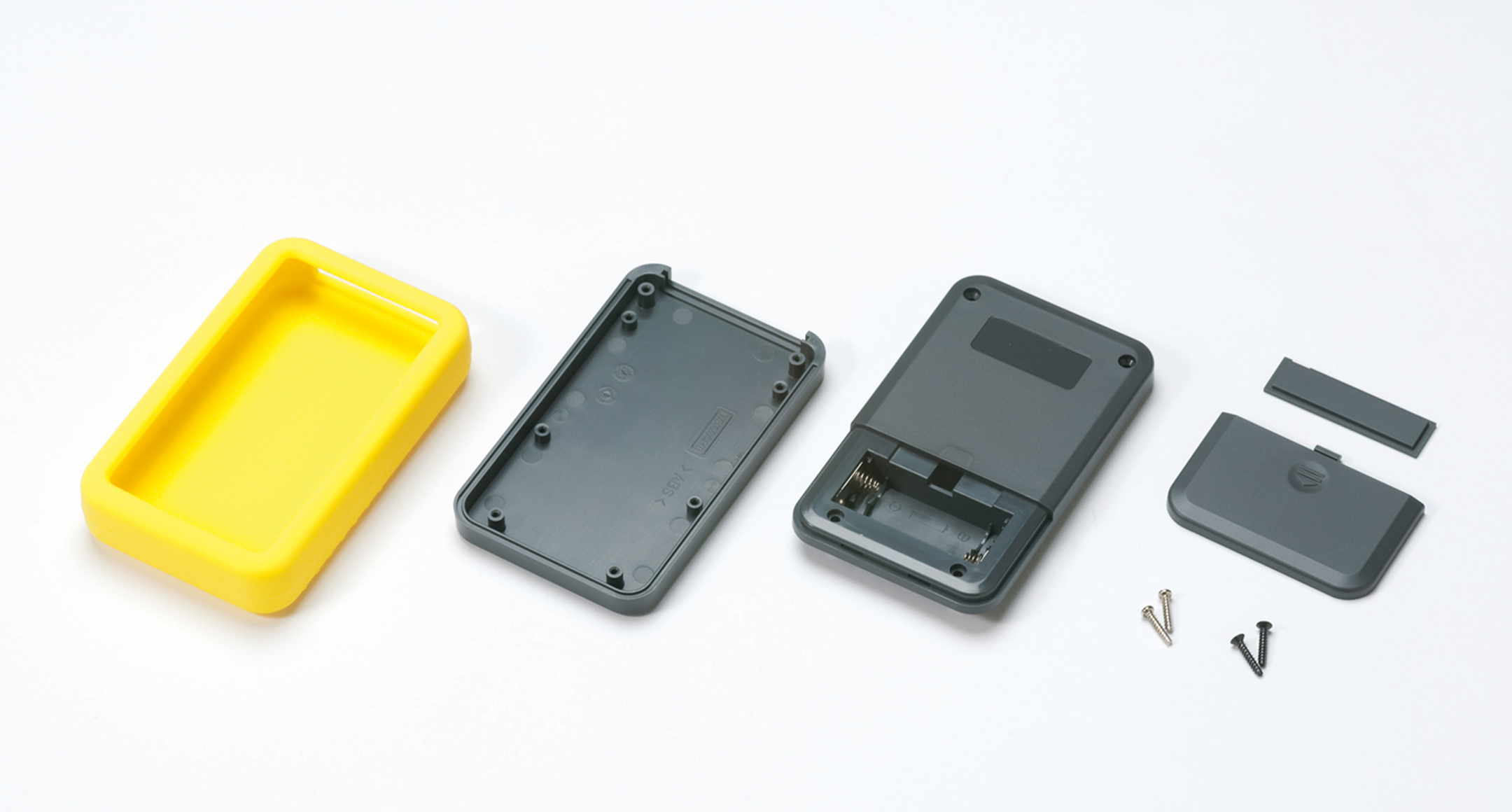

3D View - Dark gray/Yellow 3D View - White/Blue 3D View color variations Exploded View Color code

COLOR TYPE

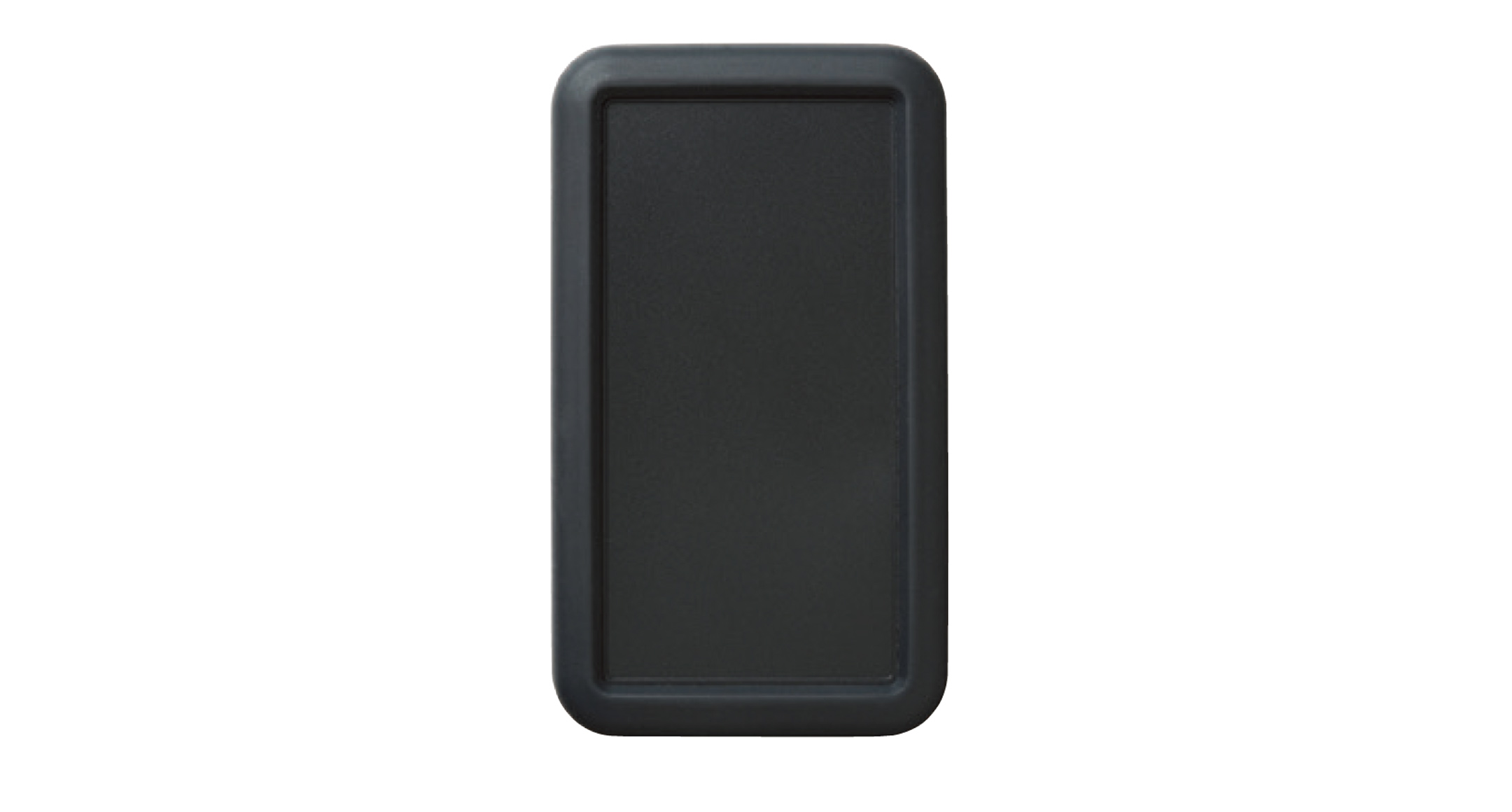

DDDark gray/Dark gray

HANDHELD CASE with SILICONE COVER - LCS series:Dark gray/Dark gray

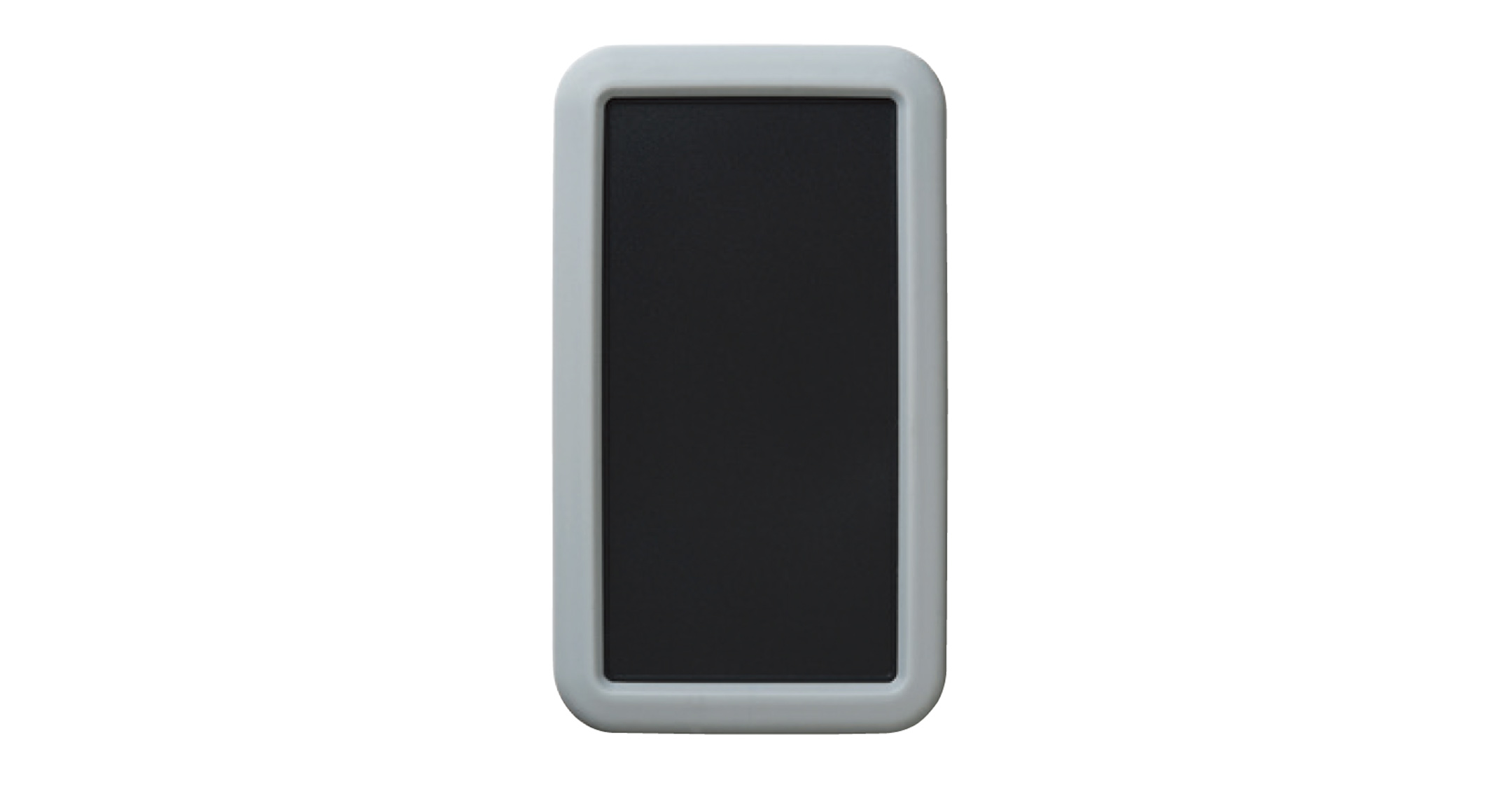

DLDark gray/Light gray

HANDHELD CASE with SILICONE COVER - LCS series:Dark gray/Light gray

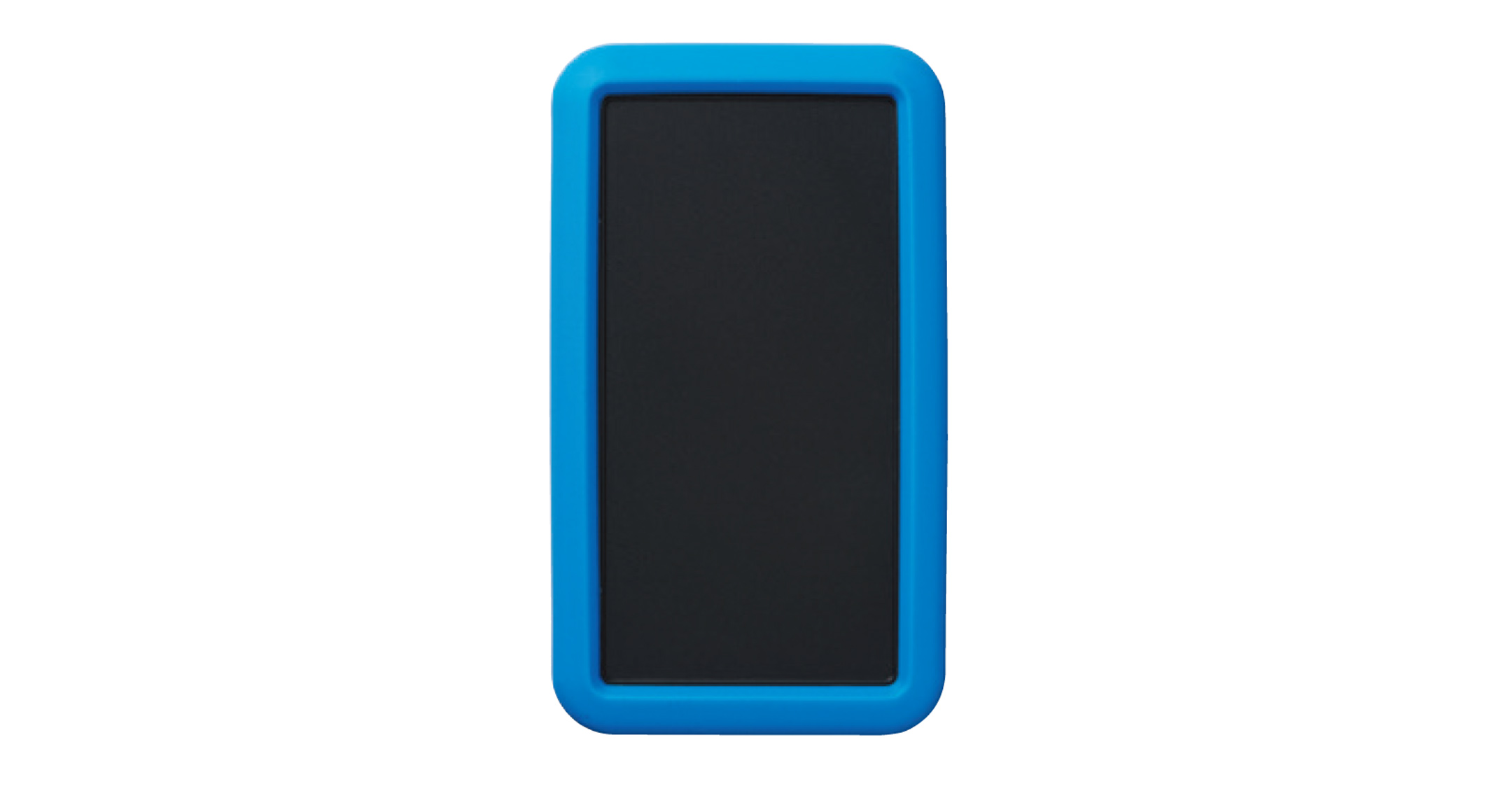

DBDark gray/Blue

HANDHELD CASE with SILICONE COVER - LCS series:Dark gray/Blue

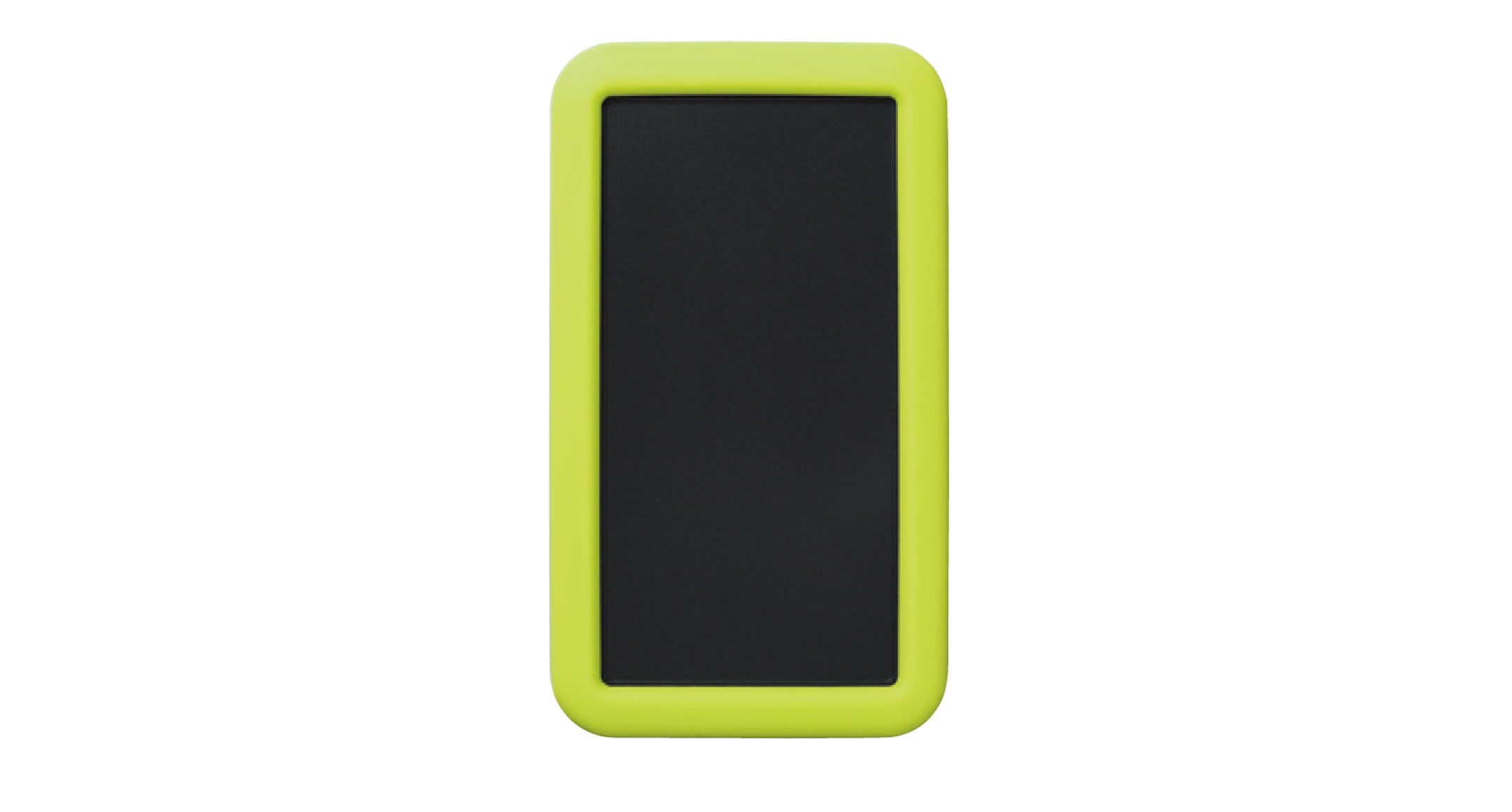

DGDark gray/Green

HANDHELD CASE with SILICONE COVER - LCS series:Dark gray/Green

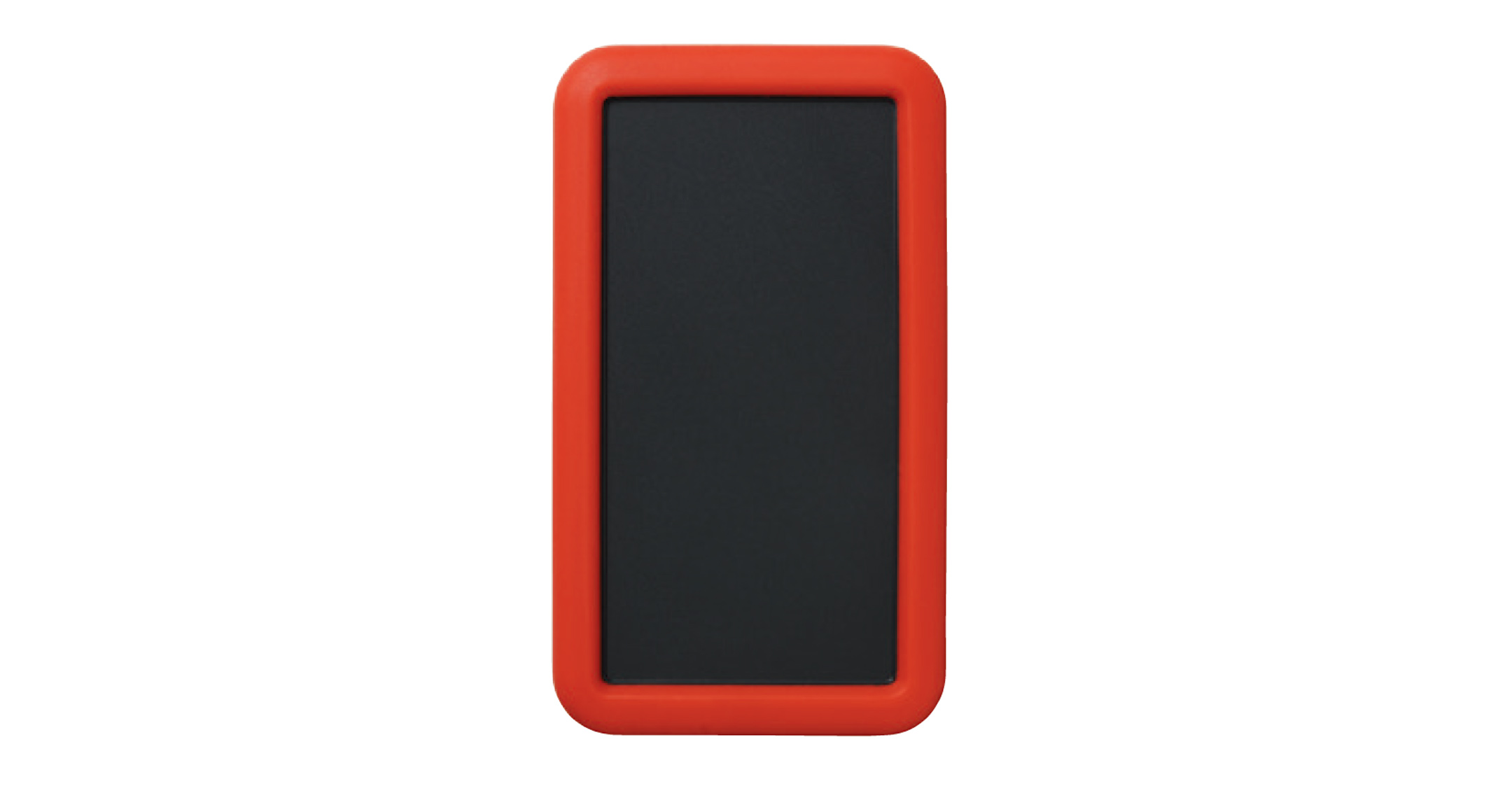

DRDark gray/Red

HANDHELD CASE with SILICONE COVER - LCS series:Dark gray/Red

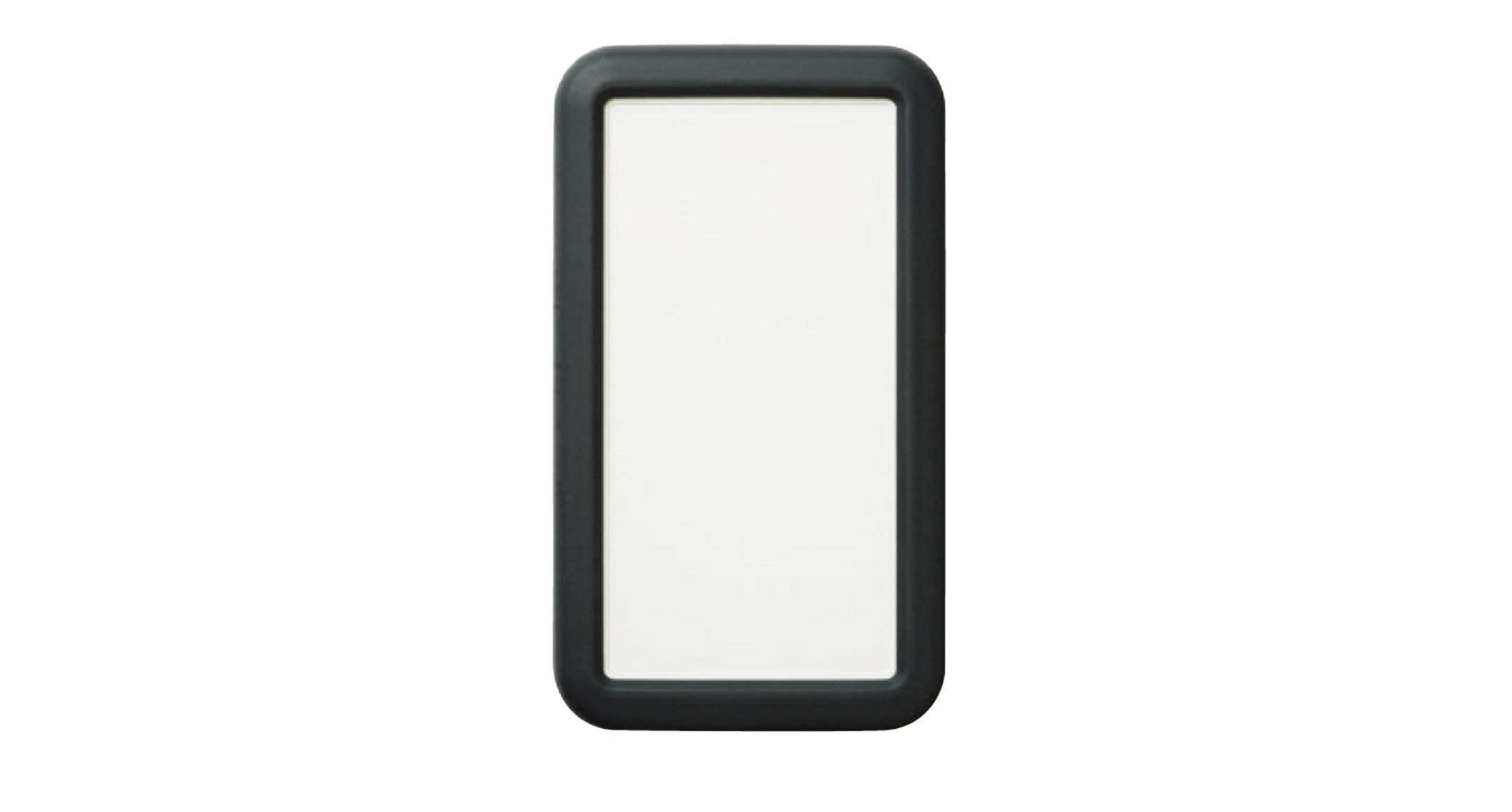

WDOff-white/Dark gray

HANDHELD CASE with SILICONE COVER - LCS series:Off-white/Dark gray

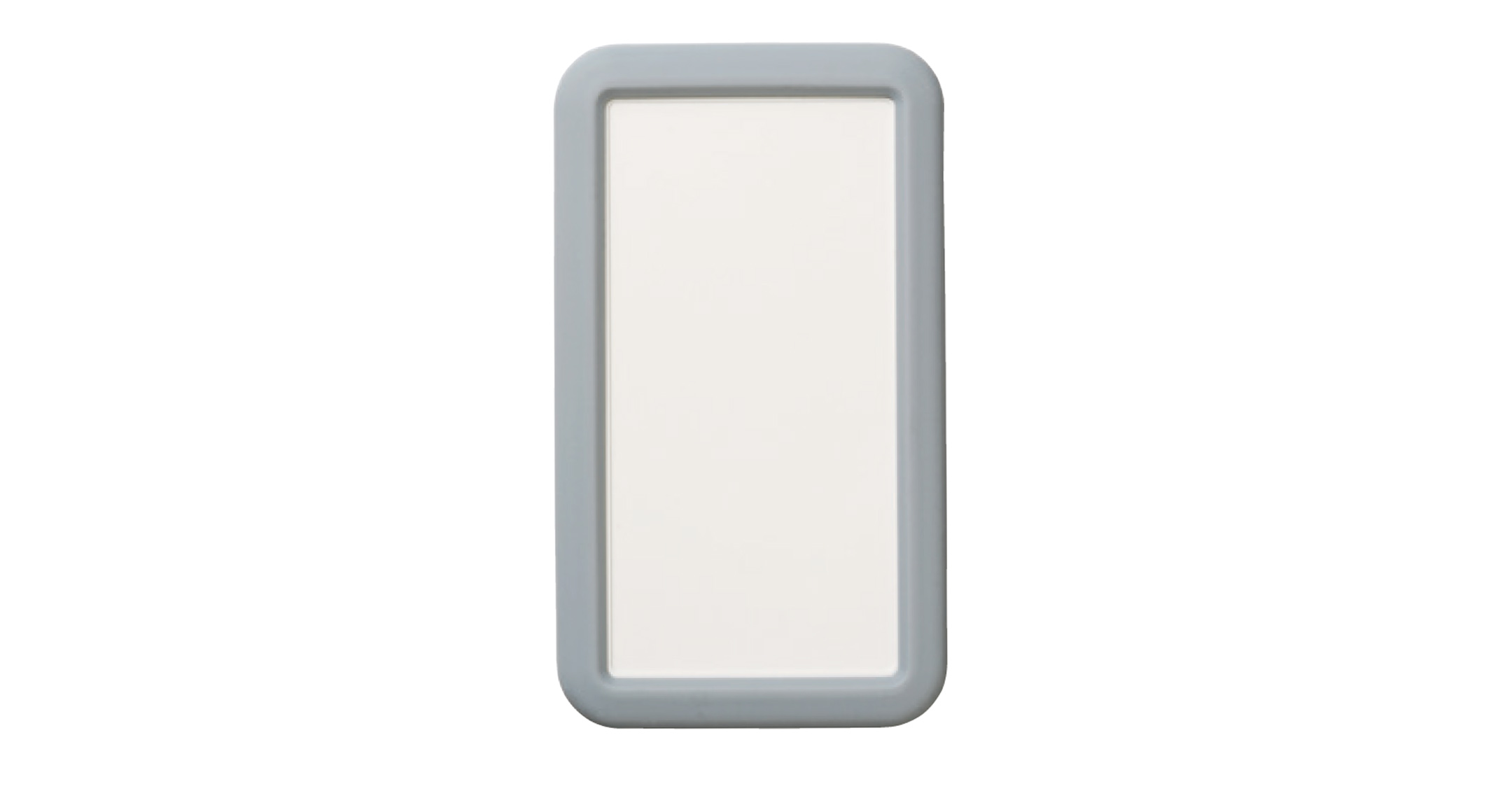

WLOff-white/Light gray

HANDHELD CASE with SILICONE COVER - LCS series:Off-white/Light gray

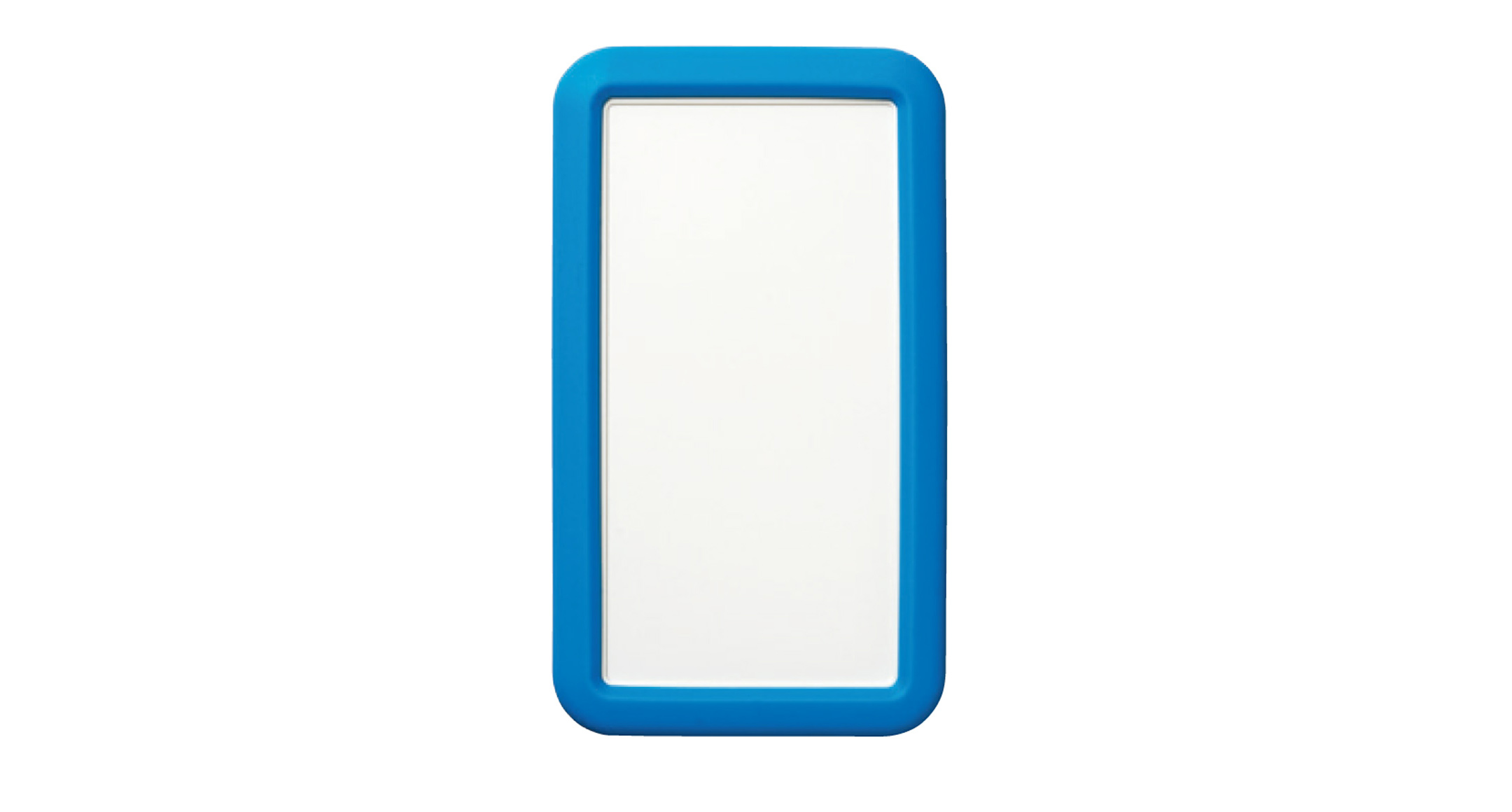

WBOff-white/Blue

HANDHELD CASE with SILICONE COVER - LCS series:Off-white/Blue

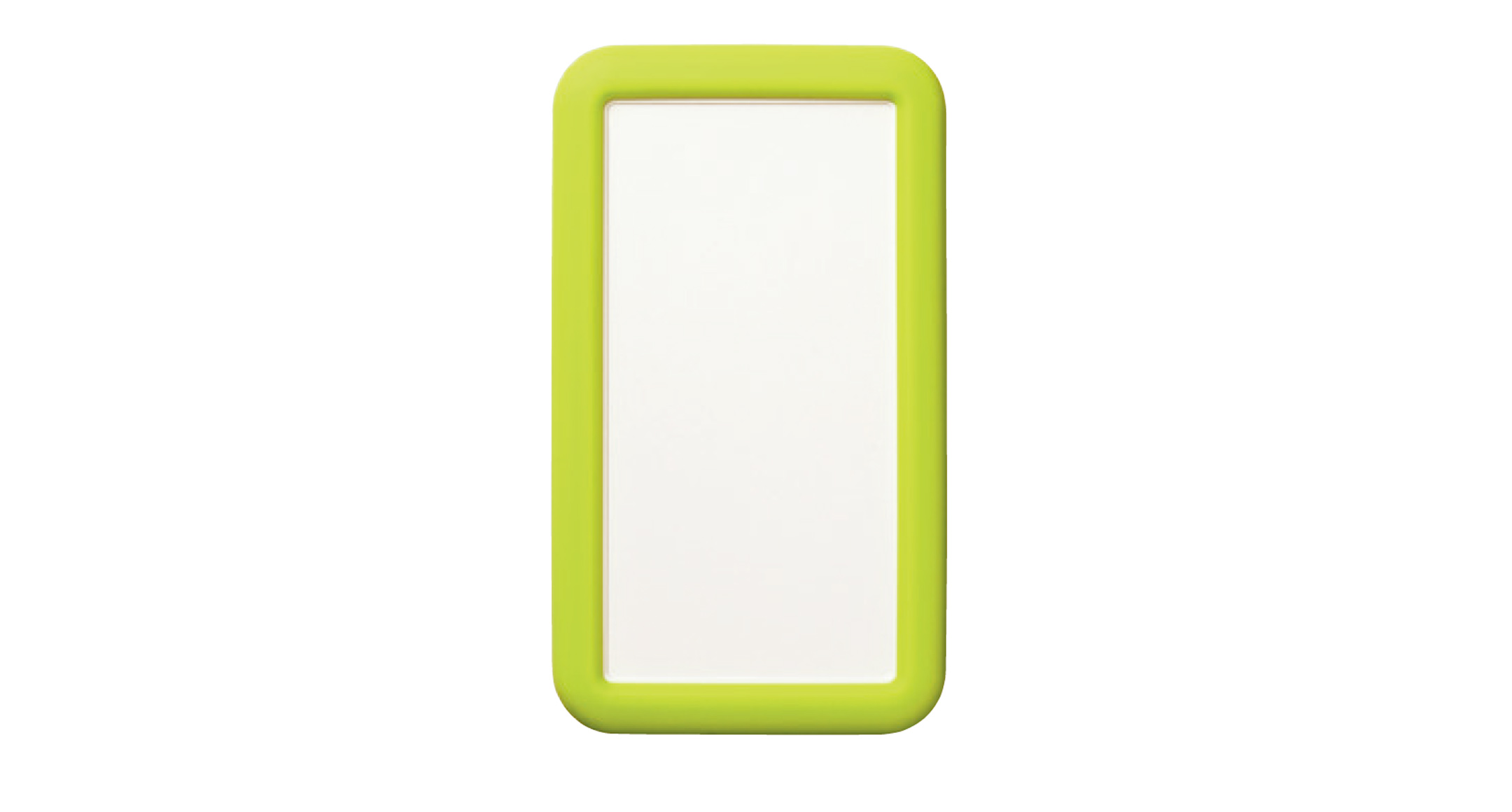

WGOff-white/Green

HANDHELD CASE with SILICONE COVER - LCS series:Off-white/Green

WROff-white/Red

HANDHELD CASE with SILICONE COVER - LCS series:Off-white/Red

PRODUCT NO. / DIMENSIONS

Product No.	External dimensions			Internal dimensions			Battery compartment	Weight (g)	Inventory status	PDF	DXF	DWG	STP
Product No.	W	H	D	w	h	d	Battery compartment	Weight (g)	Inventory status	PDF	DXF	DWG	STP
LCS115-N-□	74	24	120	61.5	9.5	86.5	None	113		PDF	DXF	DWG
LCS115-F2-□	74	24	120	61.5	9.5	63	AAA×2	117.5		PDF	DXF	DWG
LCS115-F3-□	74	24	120	61.5	9.5	52	AAA×3	119.5		PDF	DXF	DWG
LCS115H-N-□	74	32.5	120	60.9	18	86.5	None	130		PDF	DXF	DWG
LCS115H-F2-□	74	32.5	120	60.9	18	63	AAA×2	134.5		PDF	DXF	DWG
LCS115H-F3-□	74	32.5	120	60.9	18	52	AAA×3	136		PDF	DXF	DWG
LCS115H-M2-□	74	32.5	120	60.9	18	54.8	AA×2	138.5		PDF	DXF	DWG
LCS115H-9V-□	74	32.5	120	60.9	18	55.7	9V×1	138		PDF	DXF	DWG
LCS135-N-□	81	32	141	68.2	16	107	None	165		PDF	DXF	DWG
LCS135-F4-□	81	32	141	68.2	16	59.2	AAA×4	180		PDF	DXF	DWG
LCS135-M2-□	81	32	141	68.2	16	74.3	AA×2	178		PDF	DXF	DWG
LCS135-M3-□	81	32	141	68.2	16	59.2	AA×3	183.5		PDF	DXF	DWG
LCS135-9V-□	81	32	141	68.2	16	74.3	9V×1	181.5		PDF	DXF	DWG
LCS135H-N-□	81	40	141	67.7	24	107	None	183		PDF	DXF	DWG
LCS135H-F4-□	81	40	141	67.7	24	59.2	AAA×4	197.5		PDF	DXF	DWG
LCS135H-M2-□	81	40	141	67.7	24	74.3	AA×2	196.5		PDF	DXF	DWG
LCS135H-M3-□	81	40	141	67.7	24	59.2	AA×3	201.5		PDF	DXF	DWG
LCS135H-9V-□	81	40	141	67.7	24	74.3	9V×1	199		PDF	DXF	DWG
LCS145S-N-□	101	25	151	87.9	9.5	112.9	None	183.4	Discontinued - Sold out.	PDF	DXF	DWG
LCS145S-F6-□	101	25	151	88.1	9.5	67.8	AAA×6	203.4	Discontinued - Sold out.	PDF	DXF	DWG
LCS145-N-□	101	32	151	87.8	16.5	112.9	None	202		PDF	DXF	DWG
LCS145-F6-□	101	32	151	87.8	16.5	67.8	AAA×6	222		PDF	DXF	DWG
LCS145-M2-□	101	32	151	87.8	16.5	86.8	AA×2	216		PDF	DXF	DWG
LCS145-M4-□	101	32	151	87.8	16.5	63.4	AA×4	223		PDF	DXF	DWG
LCS145H-N-□	101	40	151	87.2	24.5	112.9	None	224		PDF	DXF	DWG
LCS145H-F6-□	101	40	151	87.2	24.5	67.8	AAA×6	244.5		PDF	DXF	DWG
LCS145H-M2-□	101	40	151	87.2	24.5	86.8	AA×2	238		PDF	DXF	DWG
LCS145H-M4-□	101	40	151	87.2	24.5	63.4	AA×4	245		PDF	DXF	DWG
LCS165-N-□	85	32	171	72.2	16	137	None	203		PDF	DXF	DWG
LCS165-M4-□	85	32	171	72.2	16	79	AA×4	222.5		PDF	DXF	DWG
LCS165H-N-□	85	40	171	71.7	24	137	None	220.5		PDF	DXF	DWG
LCS165H-M4-□	85	40	171	71.7	24	79	AA×4	239.5		PDF	DXF	DWG
