HANDHELD CASE with SHOCKPROOF COVER - LCT series

HANDHELD CASE with SHOCKPROOF COVER - LCT series

CATEGORY：Handheld enclosure with shockproof cover, Plastic enclosure with protective silicone boot, Rugged plastic enclosure, Plastic enclosure with battery compartments

HANDHELD CASE with SHOCKPROOF COVER - LCT series1

HANDHELD CASE with SHOCKPROOF COVER - LCT series2

HANDHELD CASE with SHOCKPROOF COVER - LCT series3

HANDHELD CASE with SHOCKPROOF COVER - LCT series4

HANDHELD CASE with SHOCKPROOF COVER - LCT series5

HANDHELD CASE with SHOCKPROOF COVER - LCT series6

HANDHELD CASE with SHOCKPROOF COVER - LCT series7

HANDHELD CASE with SHOCKPROOF COVER - LCT series8

HANDHELD CASE with SHOCKPROOF COVER - LCT series9

HANDHELD CASE with SHOCKPROOF COVER - LCT series10

HANDHELD CASE with SHOCKPROOF COVER - LCT series11

HANDHELD CASE with SHOCKPROOF COVER - LCT series12

HANDHELD CASE with SHOCKPROOF COVER - LCT series13

HANDHELD CASE with SHOCKPROOF COVER - LCT series14

HANDHELD CASE with SHOCKPROOF COVER - LCT series15

HANDHELD CASE with SHOCKPROOF COVER - LCT series16

HANDHELD CASE with SHOCKPROOF COVER - LCT series17

HANDHELD CASE with SHOCKPROOF COVER - LCT series18

HANDHELD CASE with SHOCKPROOF COVER - LCT series19

HANDHELD CASE with SHOCKPROOF COVER - LCT series20

HANDHELD CASE with SHOCKPROOF COVER - LCT series21

HANDHELD CASE with SHOCKPROOF COVER - LCT series22

HANDHELD CASE with SHOCKPROOF COVER - LCT series23

HANDHELD CASE with SHOCKPROOF COVER - LCT series24

HANDHELD CASE with SHOCKPROOF COVER - LCT series25

HANDHELD CASE with SHOCKPROOF COVER - LCT series26

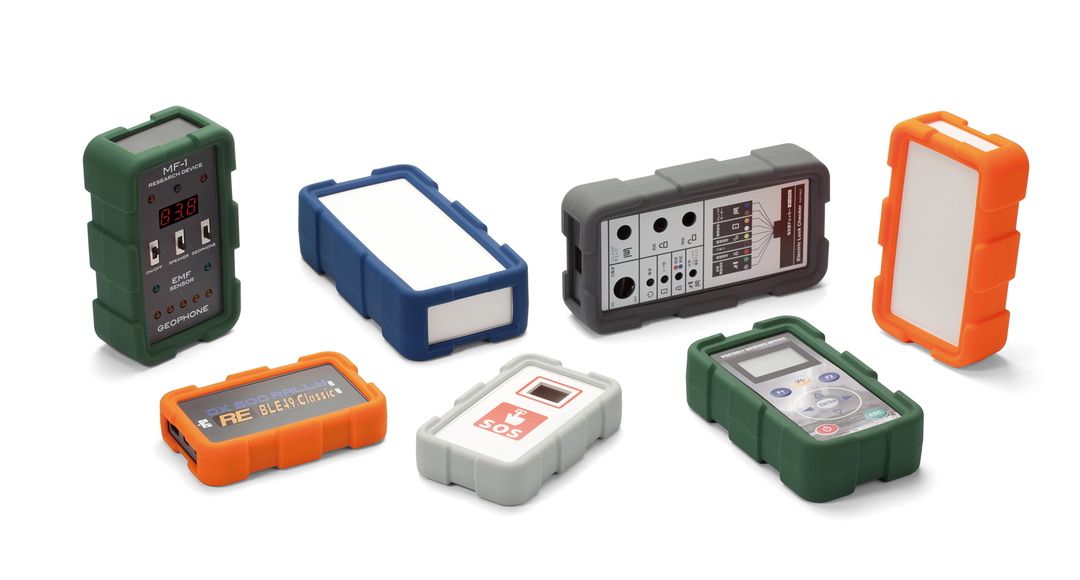

Plastic case with shockproof silicone cover.
Protects the device from various impact.
Manufactured from flame-resistant ABS UL94V-0.

Available in 9 different compartment types: AAx2, AAx3, AAx4, AAAx2, AAAx3, AAAx4, AAAx6, 9Vx1, and no battery compartment type.
Positive (+) / negative (-) pole mark are incused within each battery compartment.

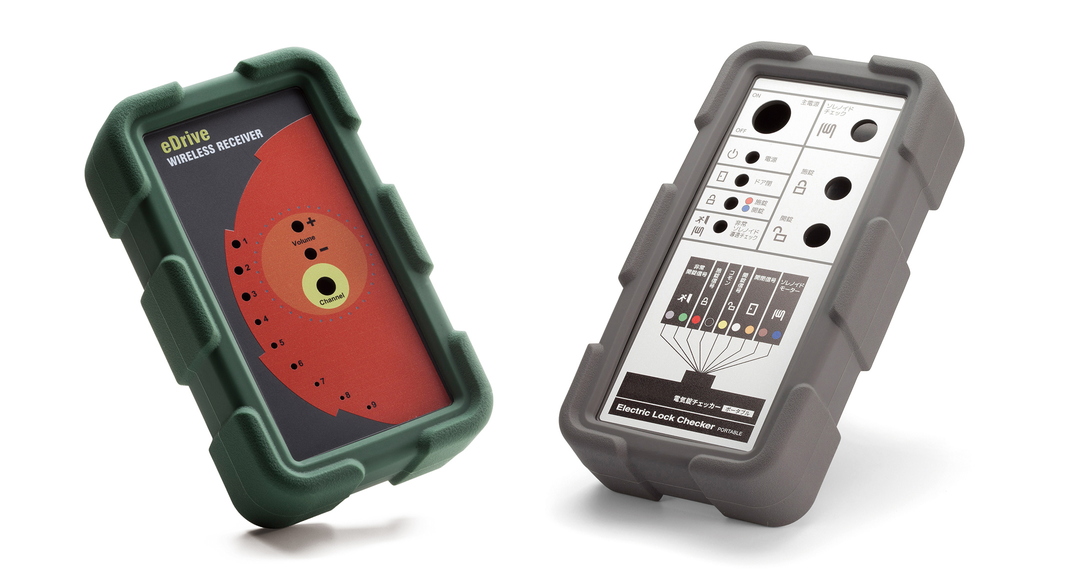

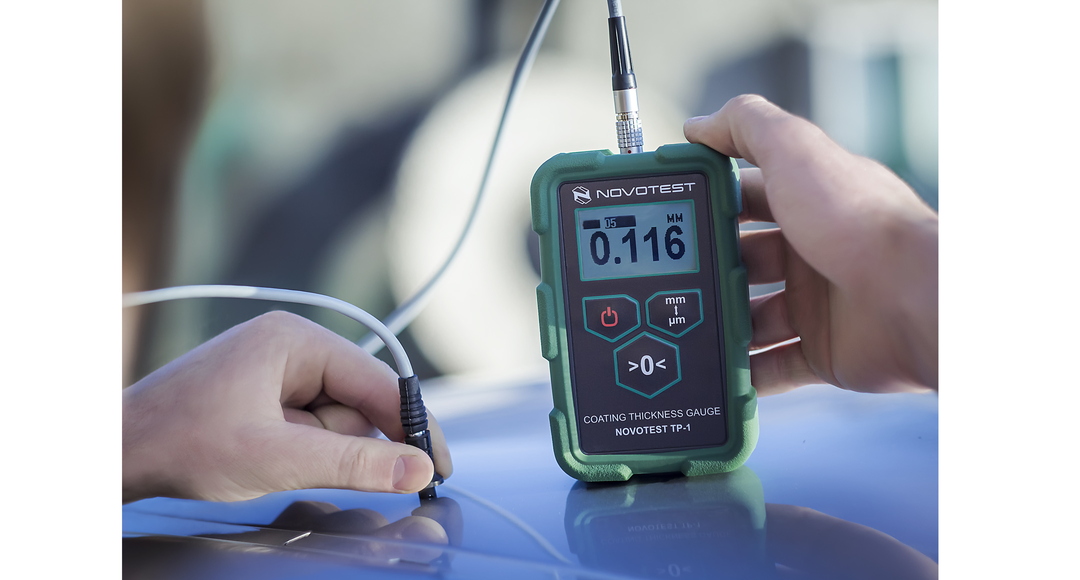

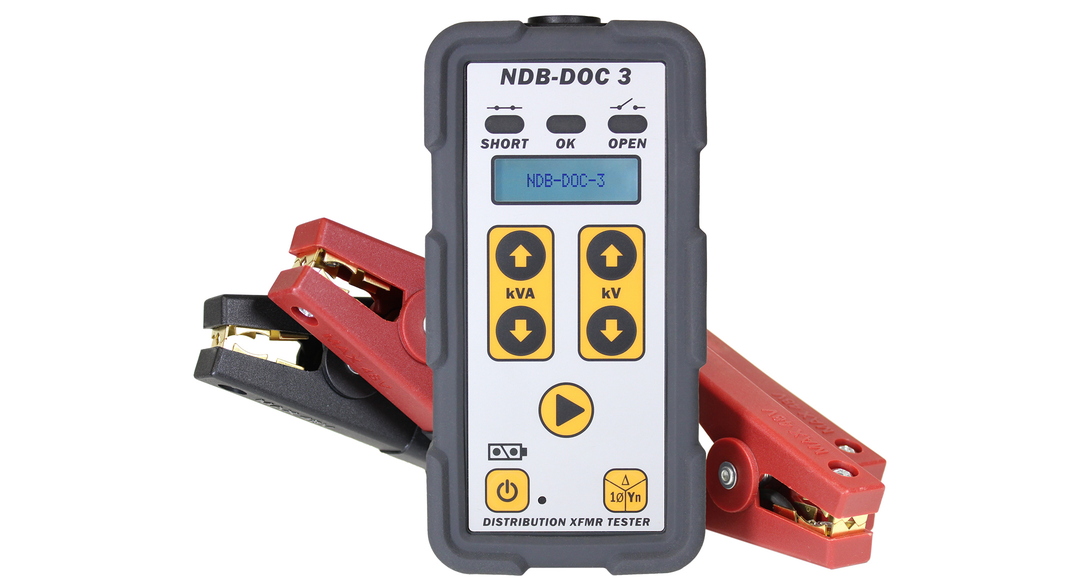

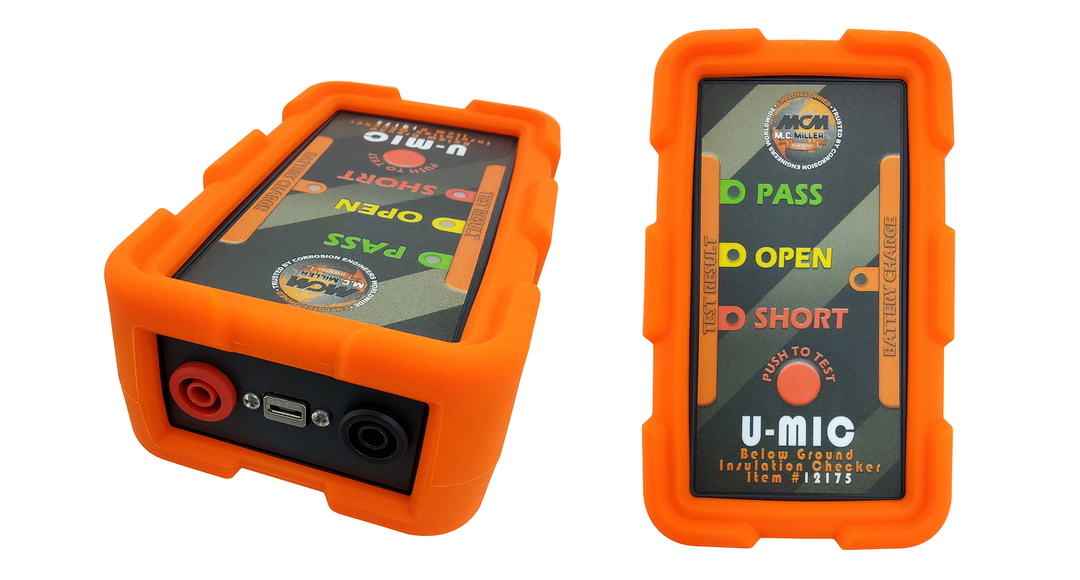

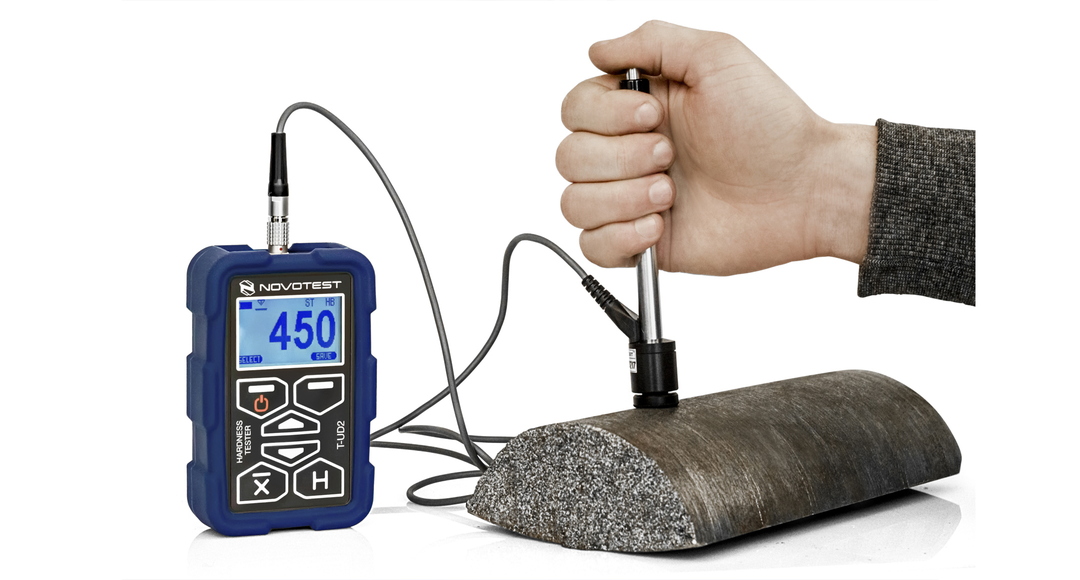

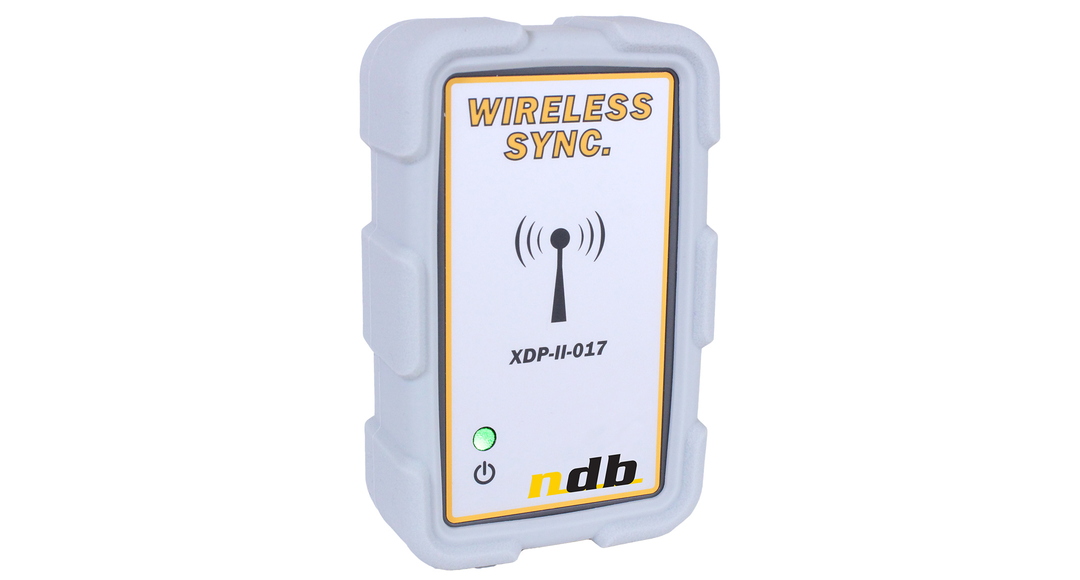

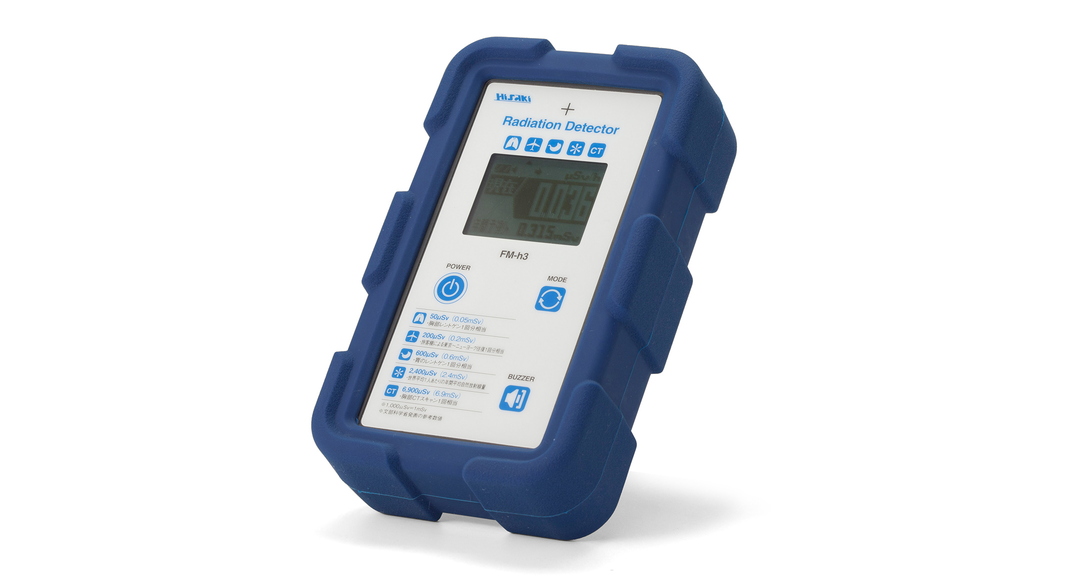

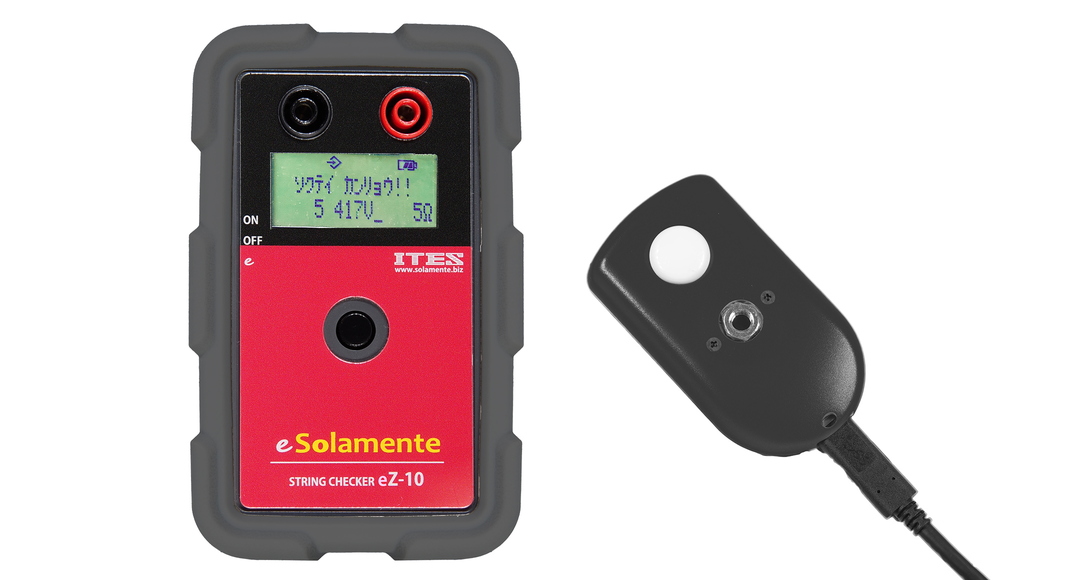

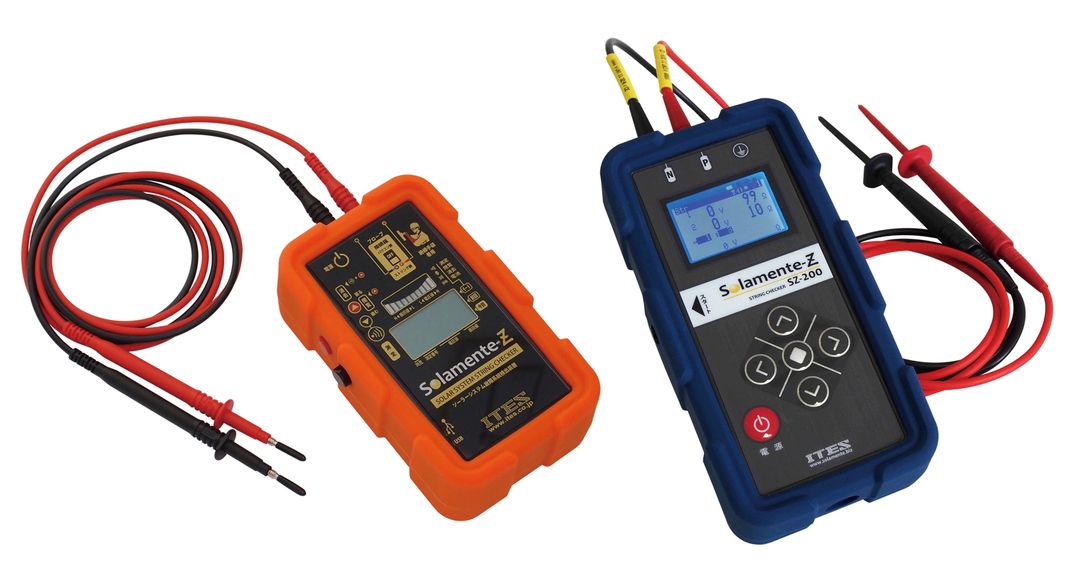

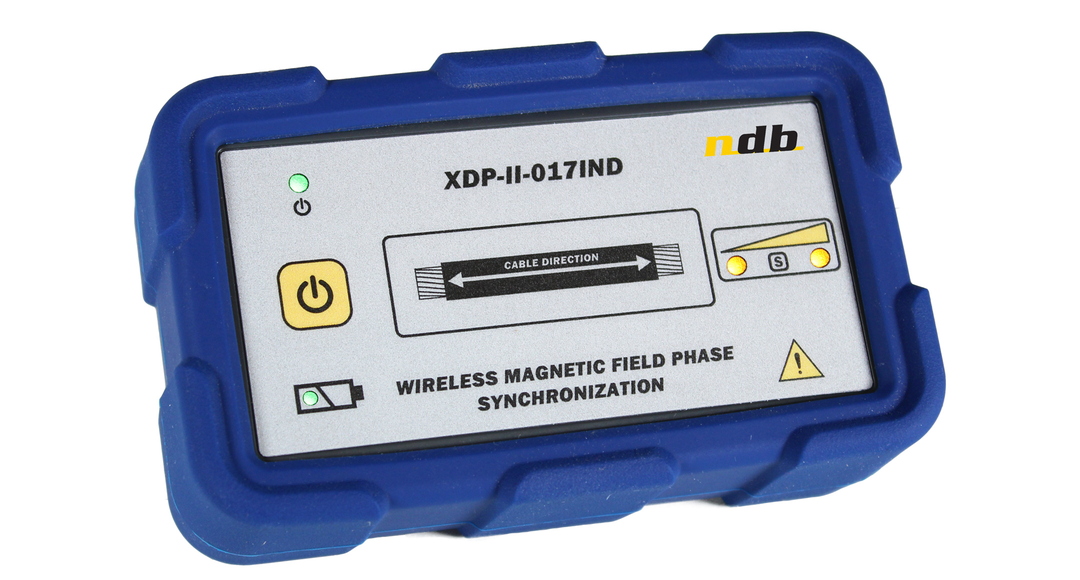

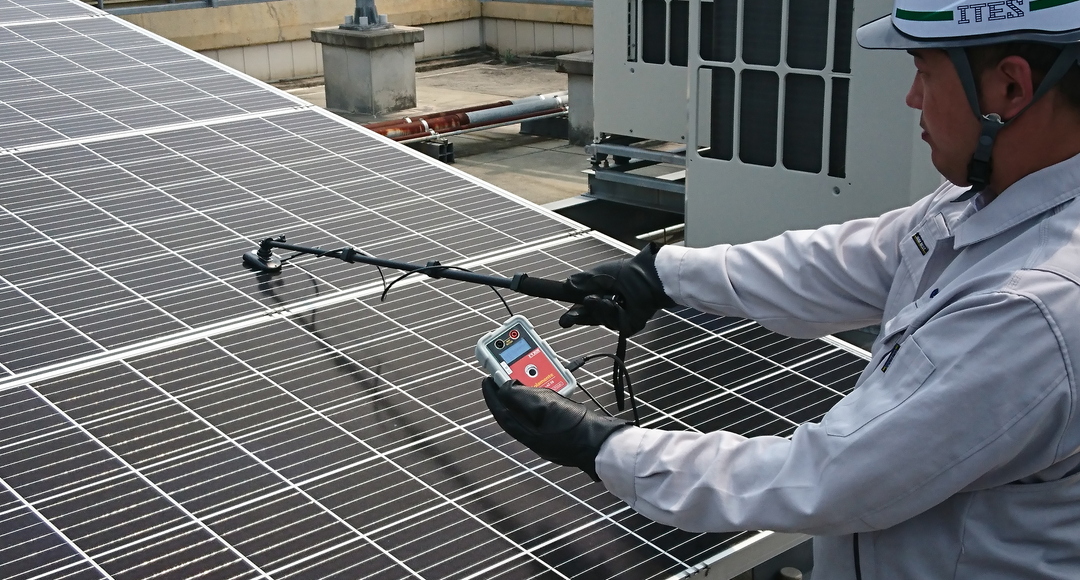

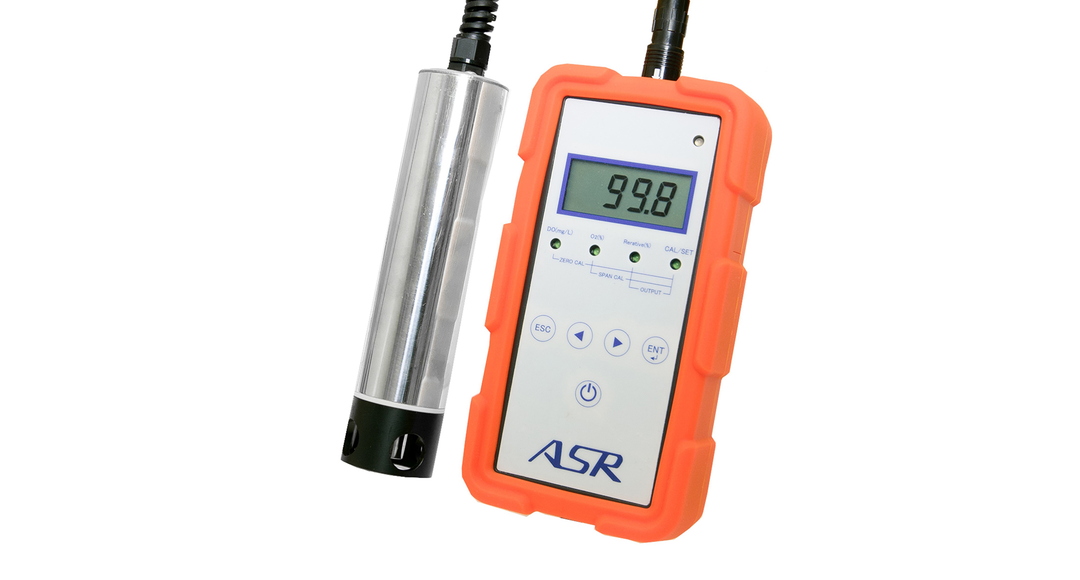

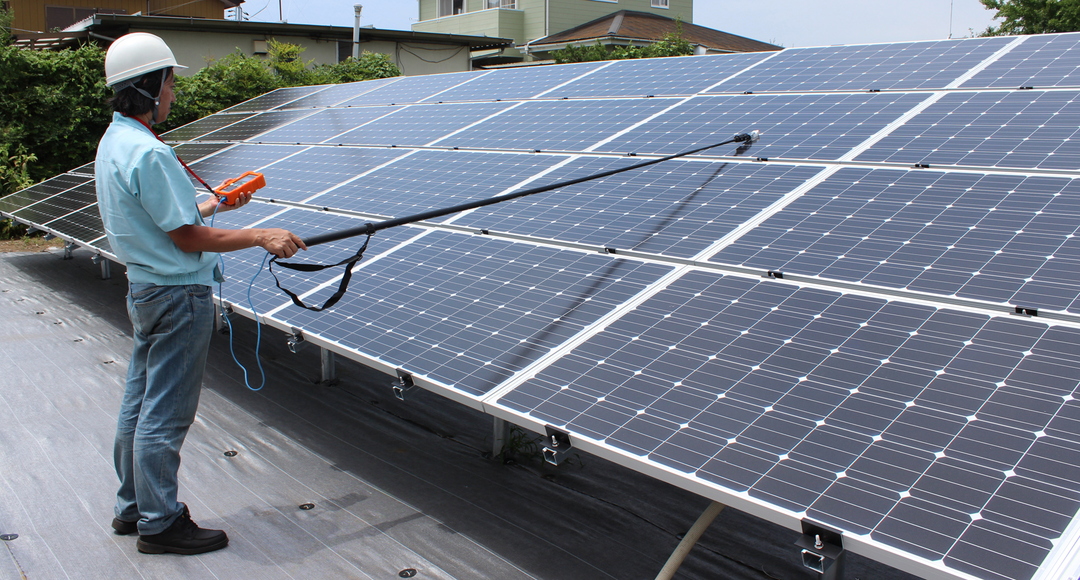

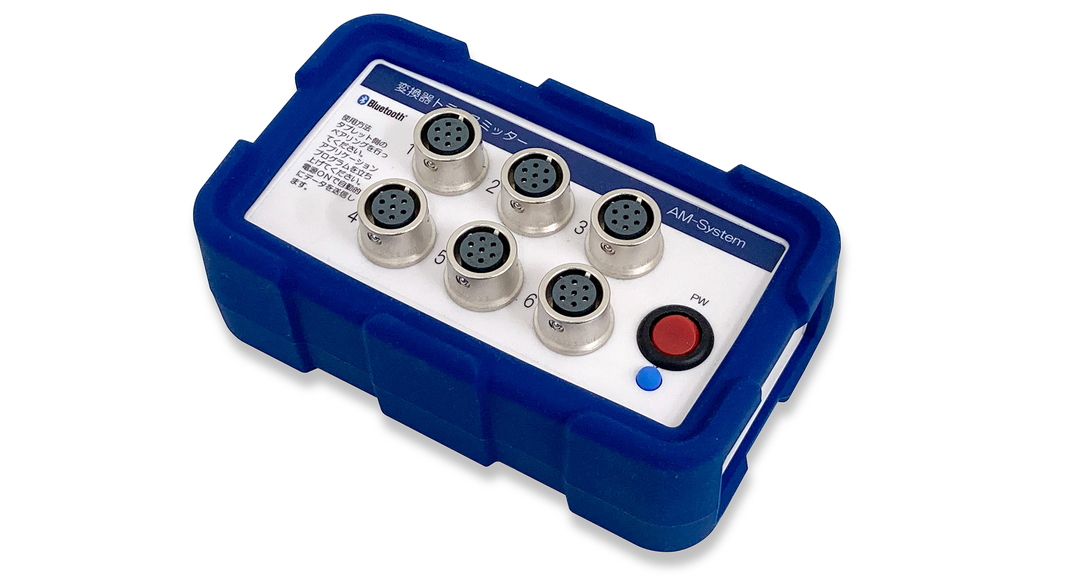

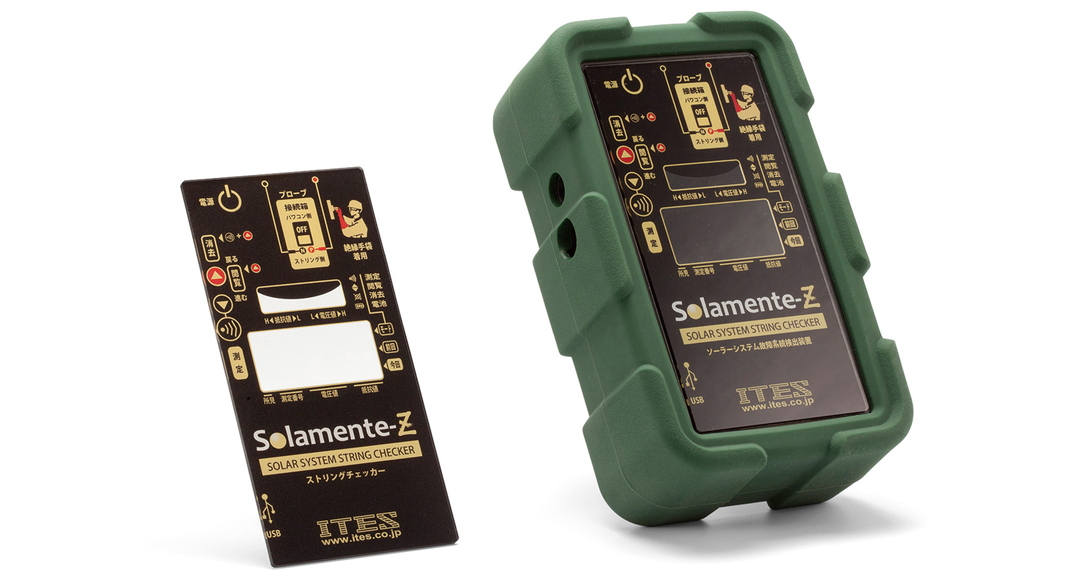

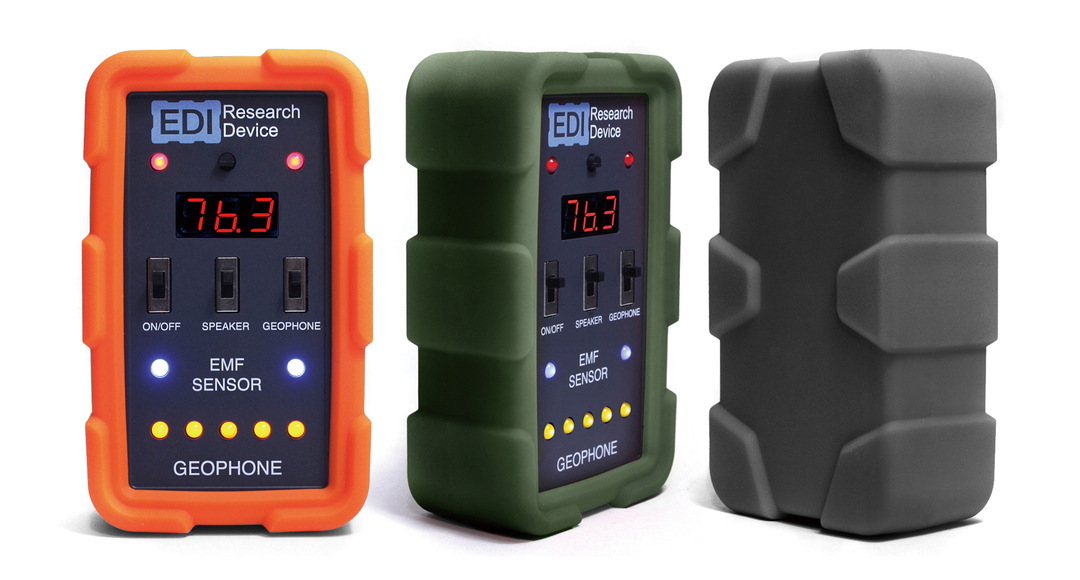

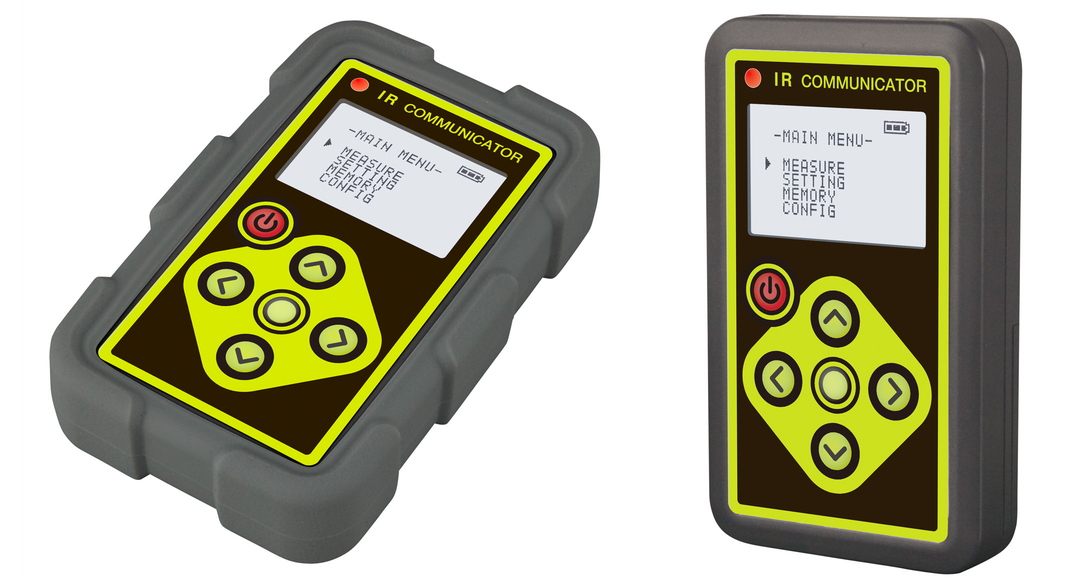

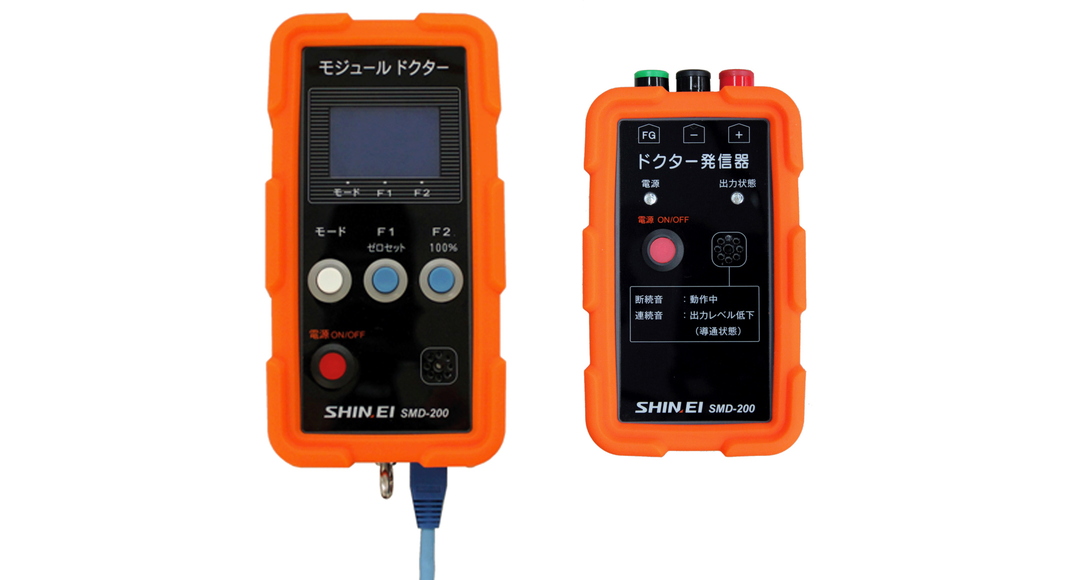

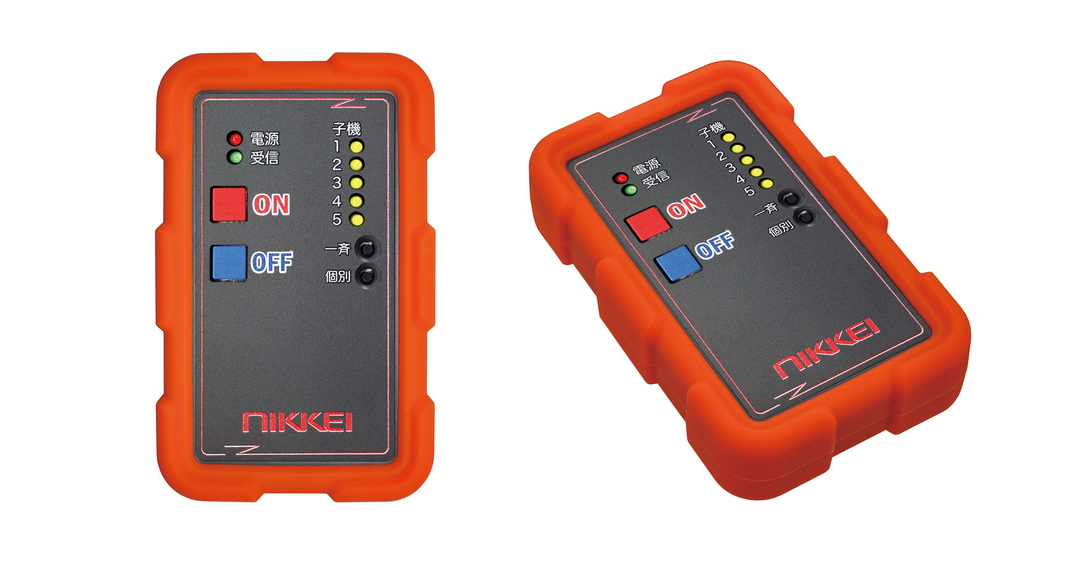

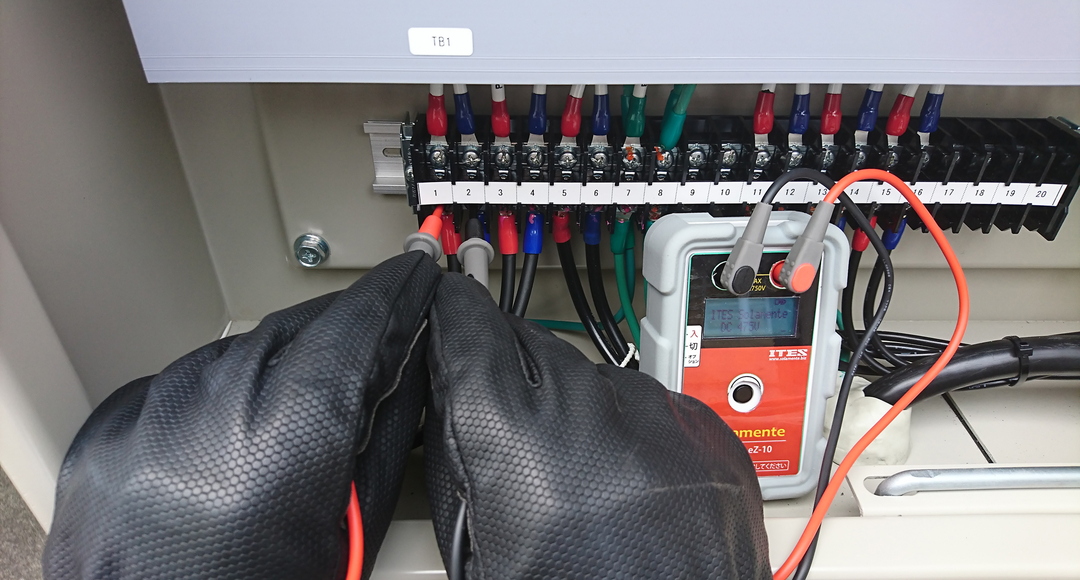

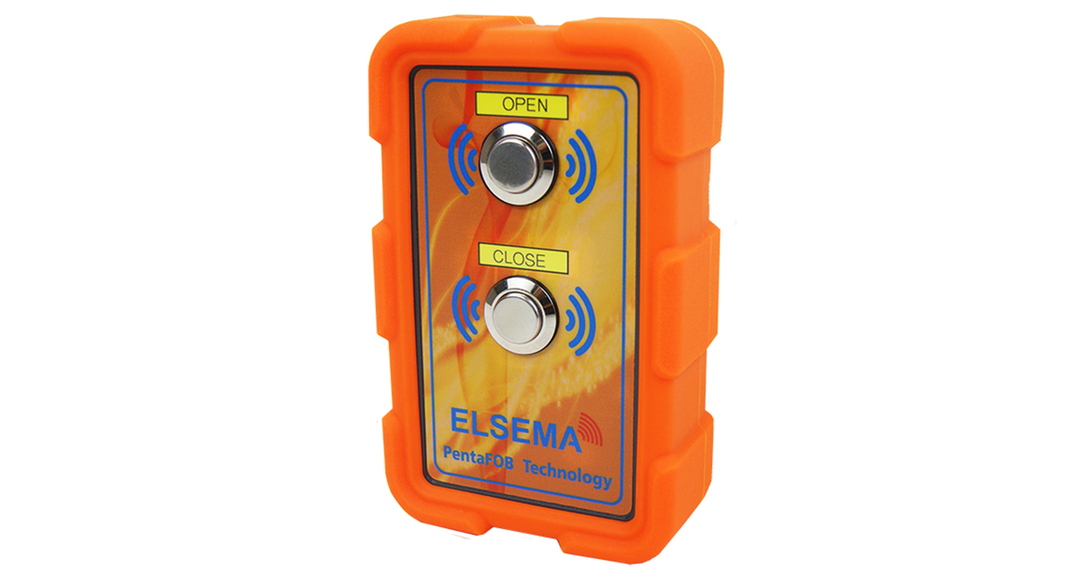

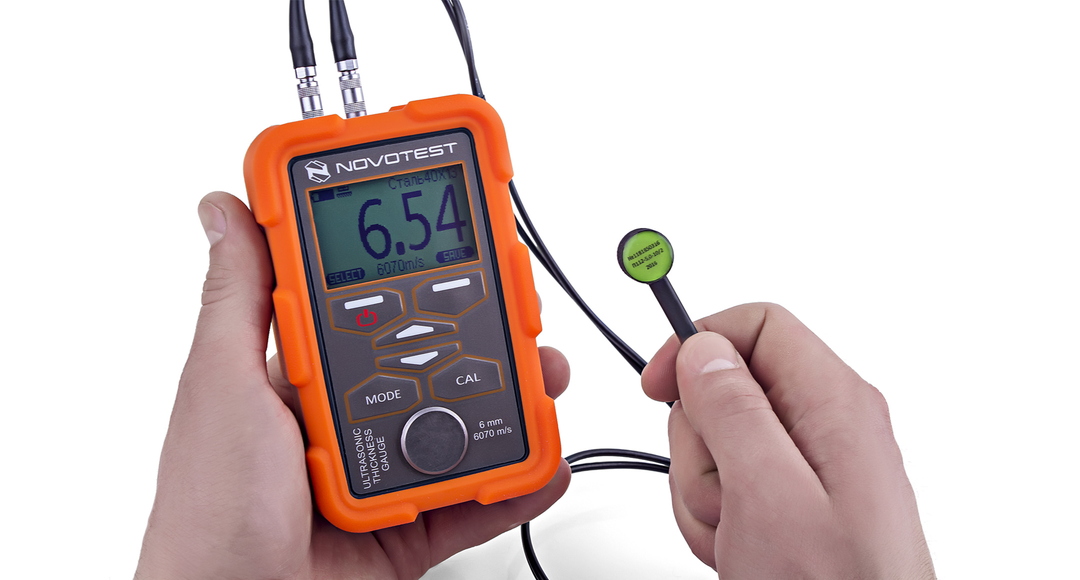

Suitable for measuring instruments, test devices, industrial controller, wireless communication devices, medical devices and so on.

Protection class: IP40
Operating temperature: -10℃ ~ +60℃

9 different sizes in 8 color variations are available.

Custom silicone cover color is available from just 1 pc. For 500 pcs or more, manufacture costs will be similar to a standard color.
For custom color order, please specify PANTONE, RGB color number or provide your sample color.

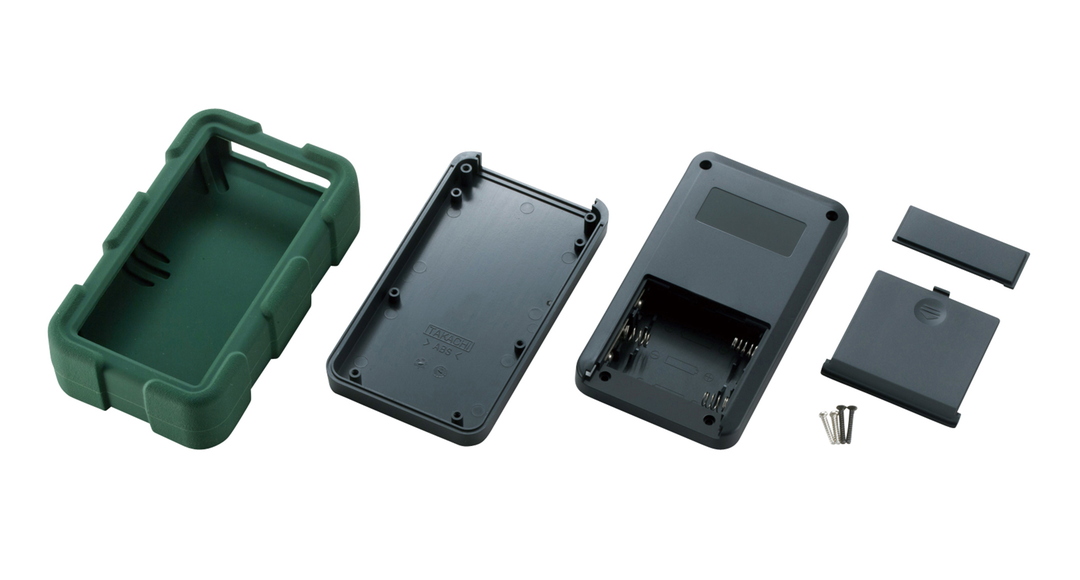

3D View - Dark gray / Green 3D View - White / Navy 3D View color variations Exploded View Color code

COLOR TYPE

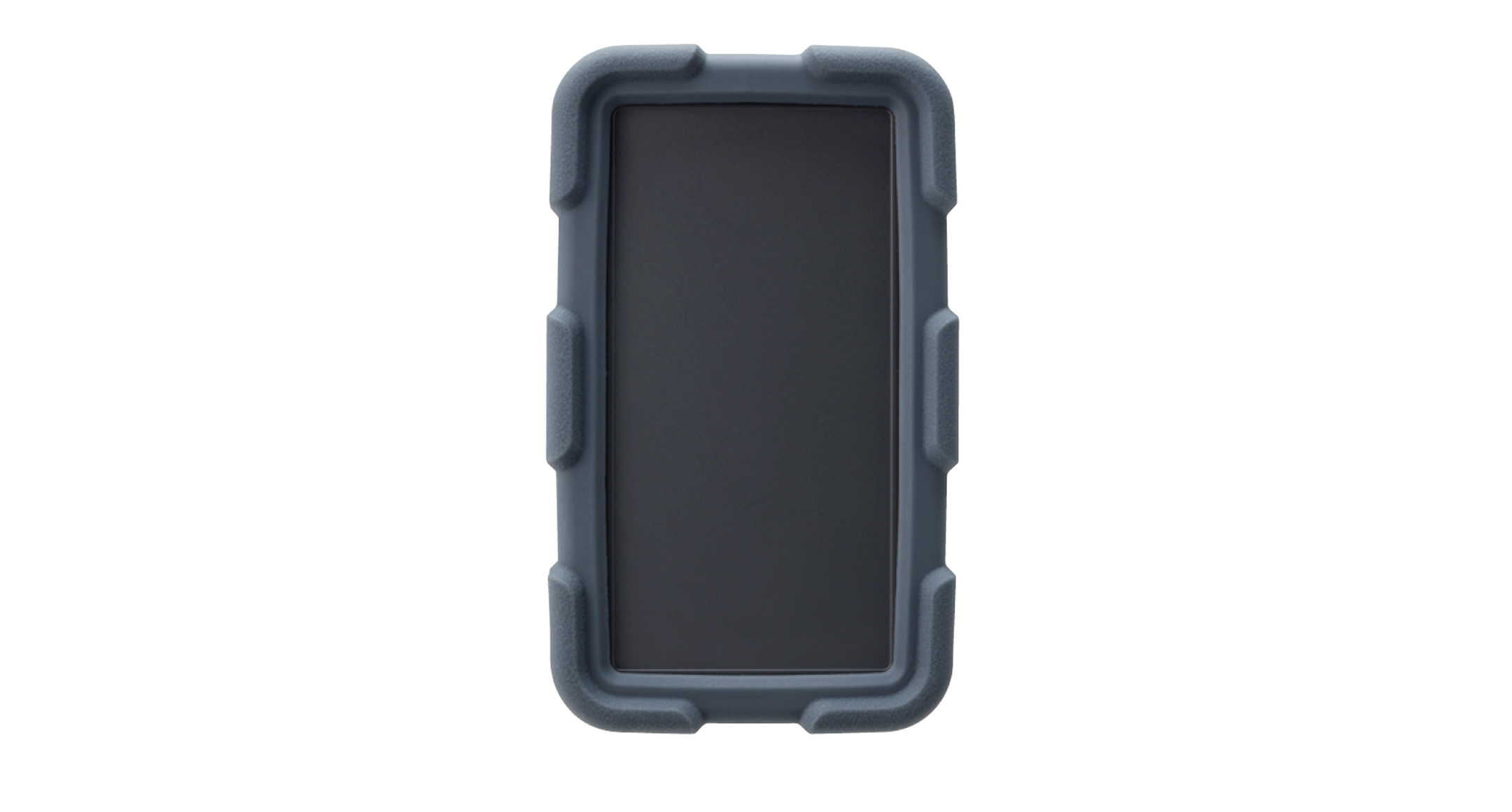

DDDark gray/Dark gray

HANDHELD CASE with SHOCKPROOF COVER - LCT series:Dark gray/Dark gray

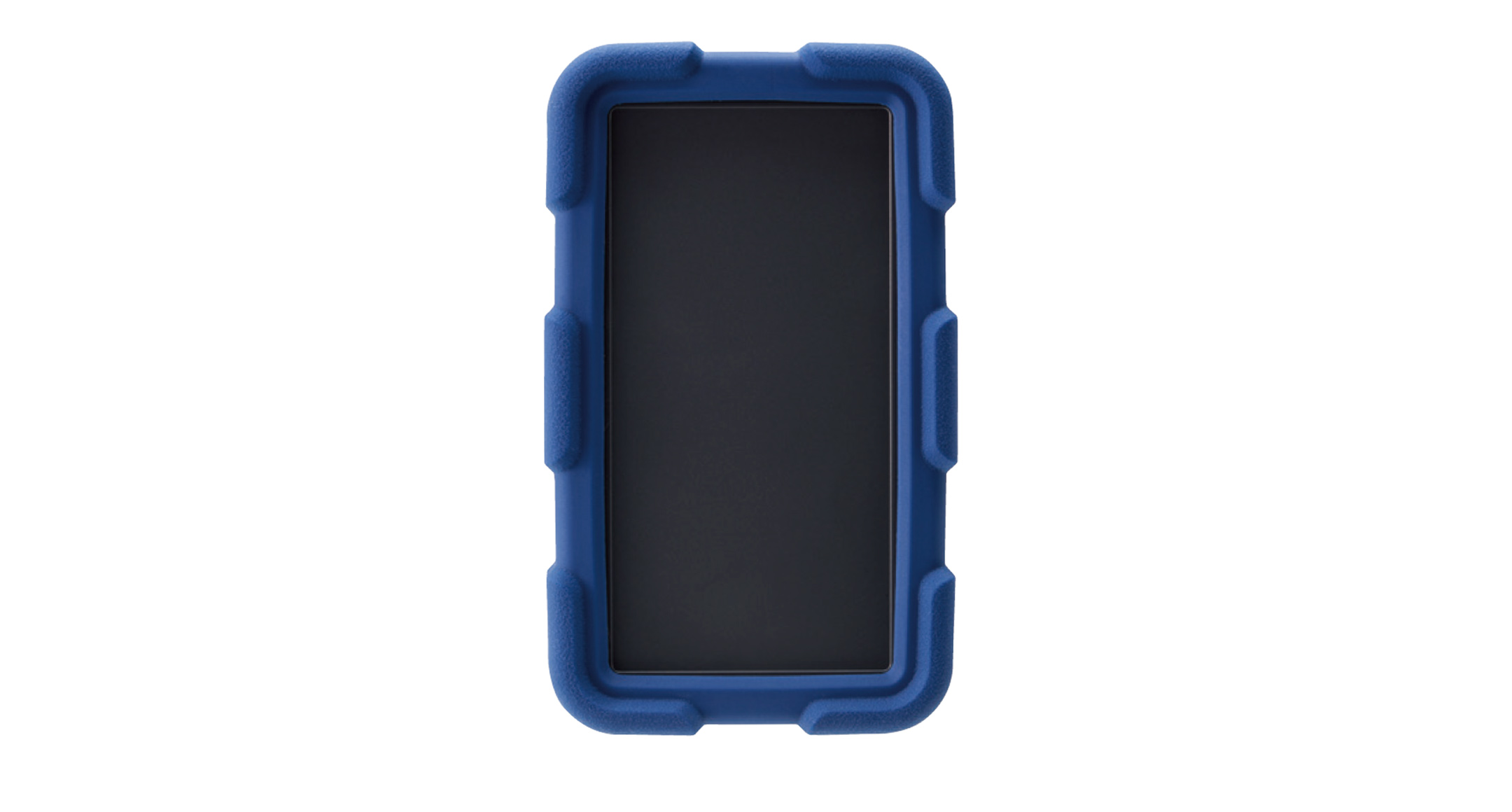

DNDark gray/Navy

HANDHELD CASE with SHOCKPROOF COVER - LCT series:Dark gray/Navy

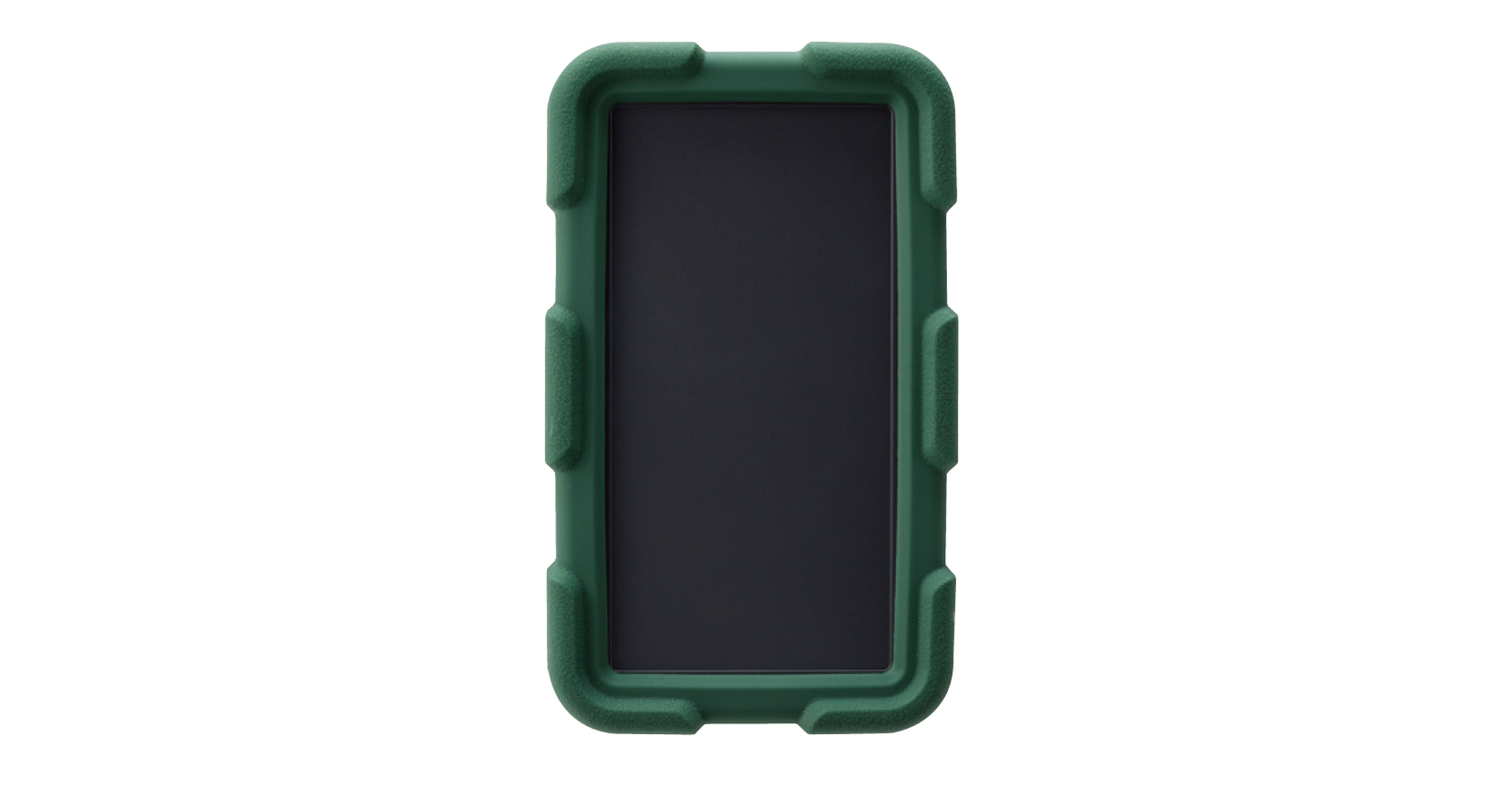

DGDark gray/Green

HANDHELD CASE with SHOCKPROOF COVER - LCT series:Dark gray/Green

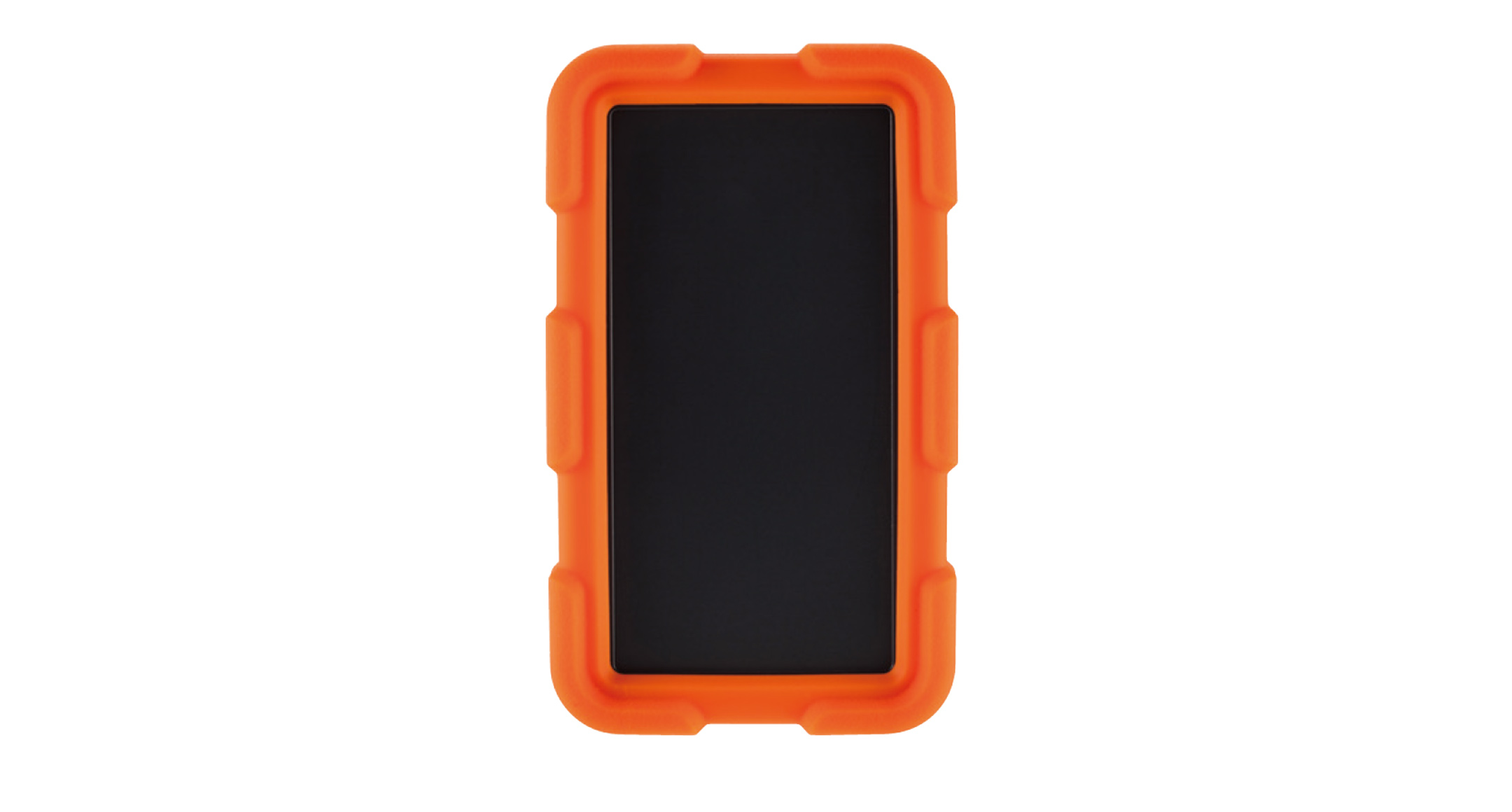

DODark gray/Orange

HANDHELD CASE with SHOCKPROOF COVER - LCT series:Dark gray/Orange

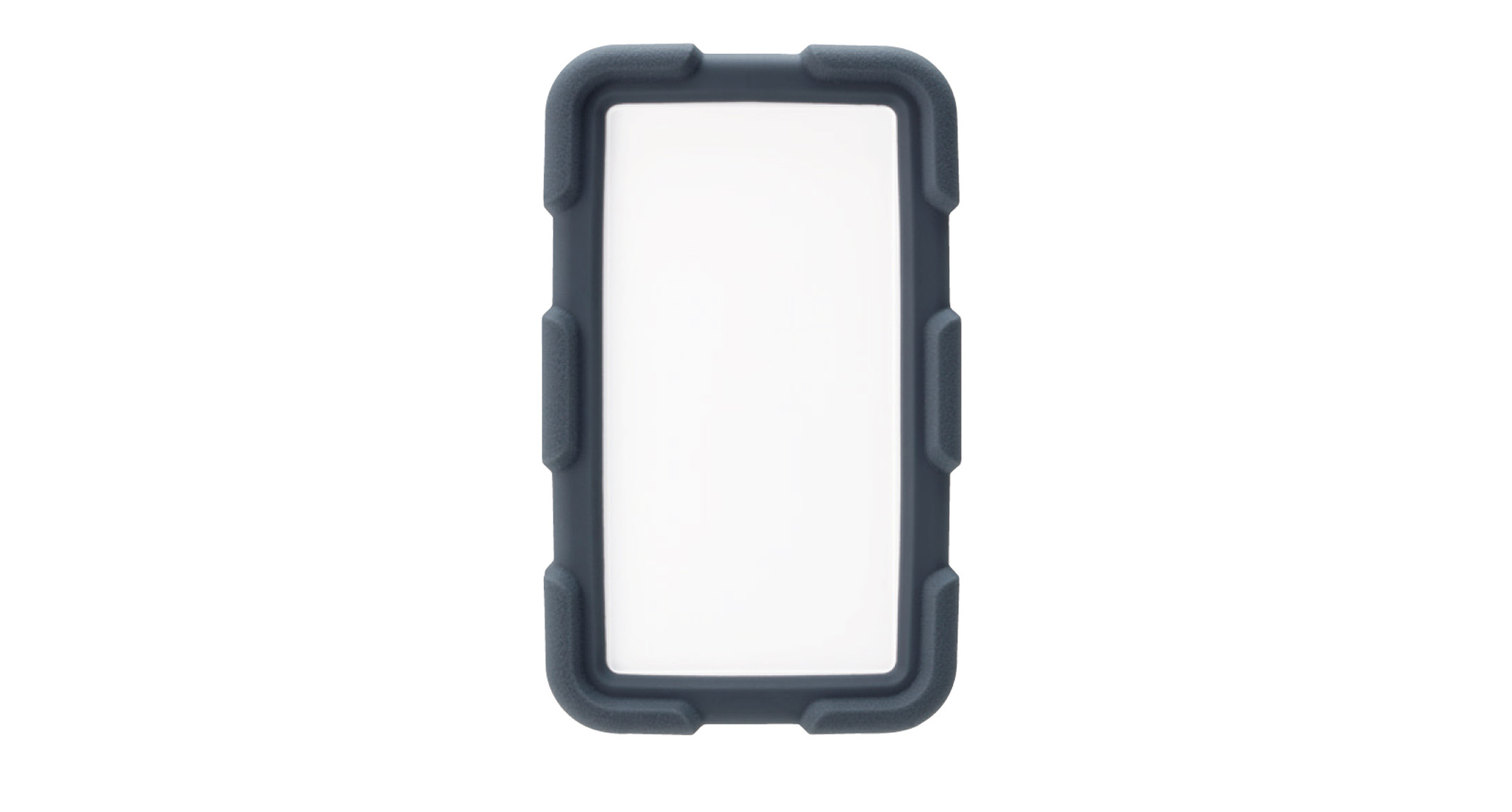

WDOff-white/Dark gray

HANDHELD CASE with SHOCKPROOF COVER - LCT series:Off-white/Dark gray

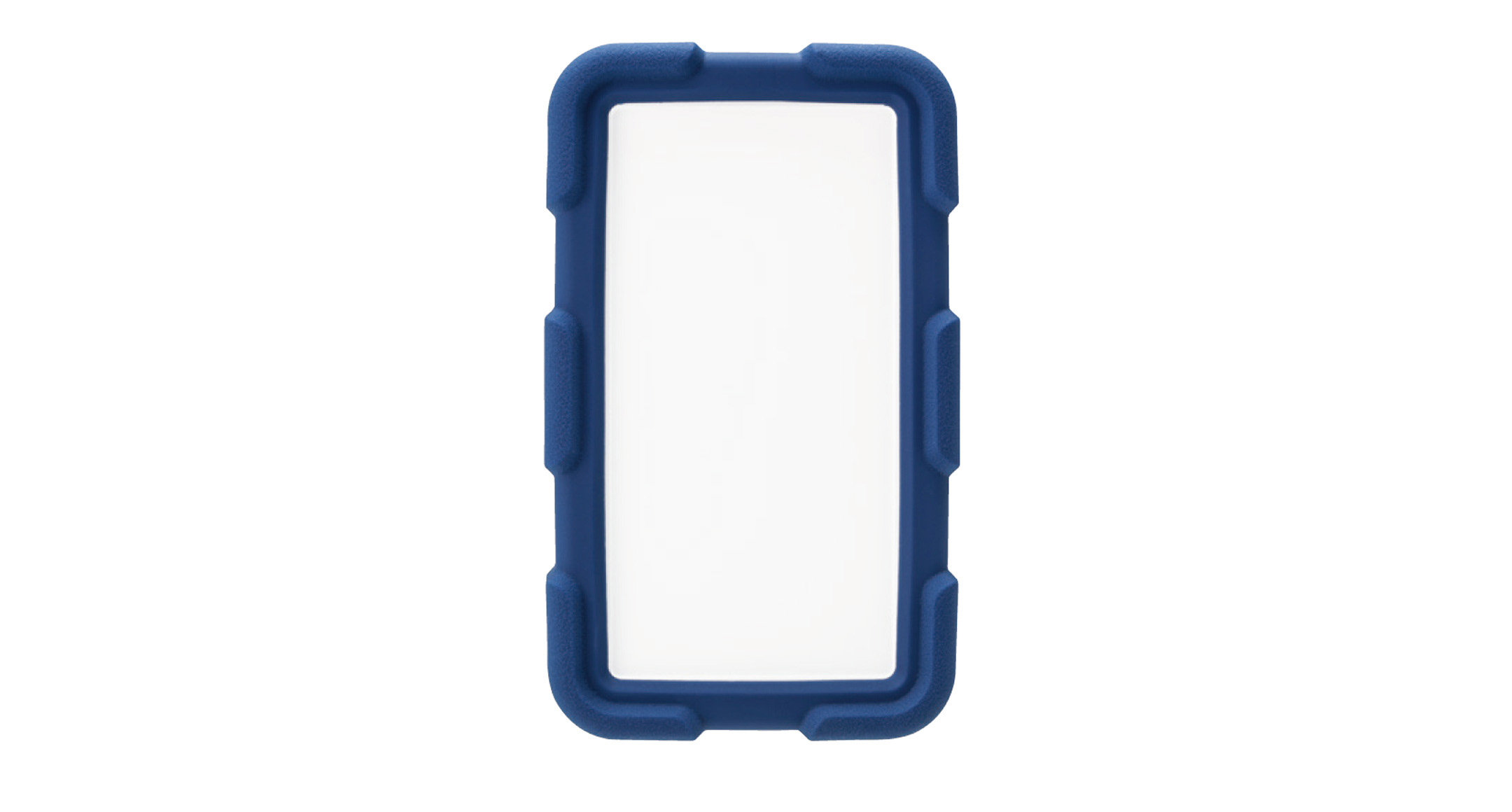

WNOff-white/Navy

HANDHELD CASE with SHOCKPROOF COVER - LCT series:Off-white/Navy

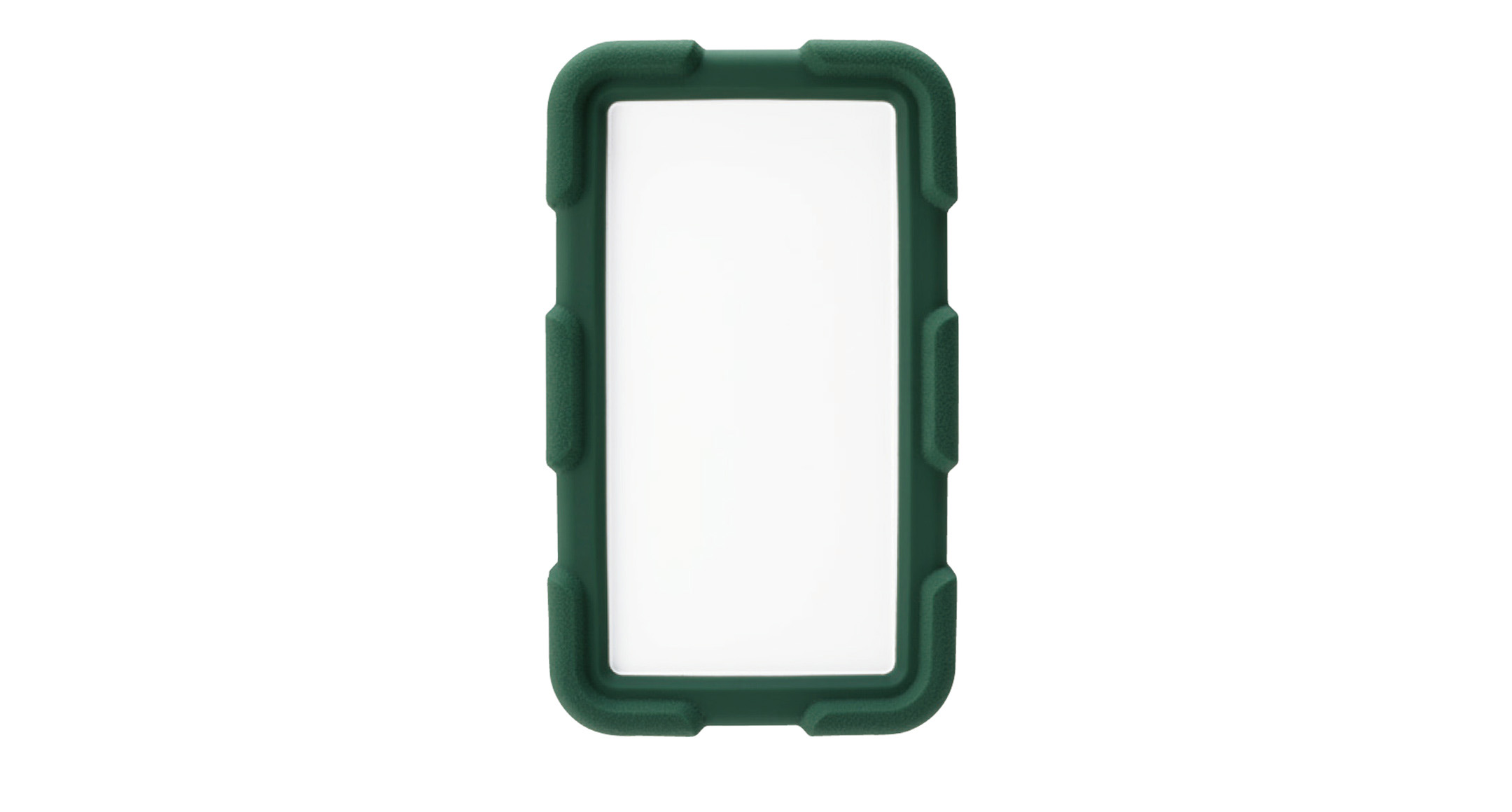

WGOff-white/Green

HANDHELD CASE with SHOCKPROOF COVER - LCT series:Off-white/Green

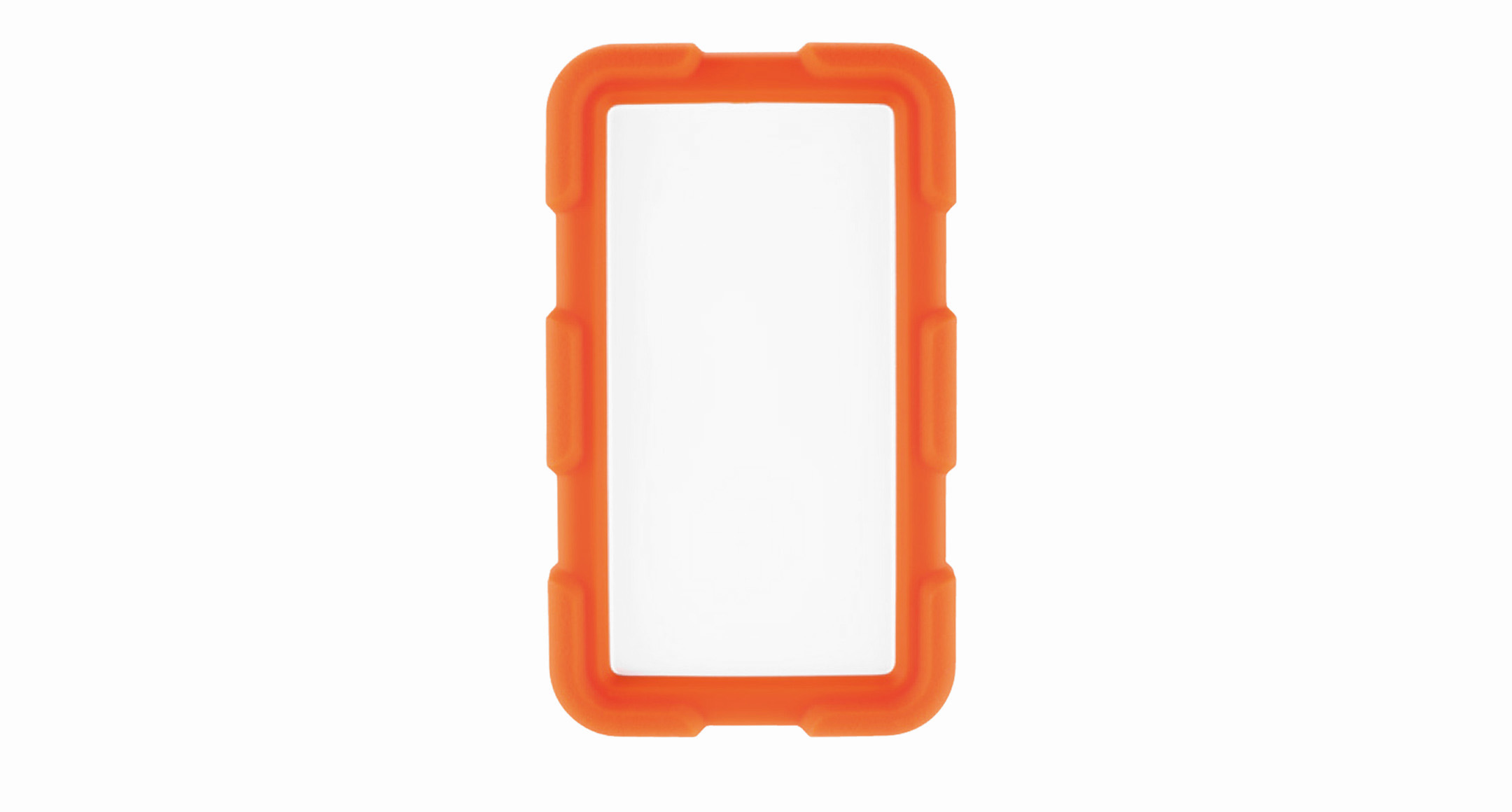

WOOff-white/Orange

HANDHELD CASE with SHOCKPROOF COVER - LCT series:Off-white/Orange

PRODUCT NO. / DIMENSIONS

Product No.	External dimensions			Internal dimensions			Battery compartment	Weight (g)	Inventory status	PDF	DXF	DWG	STP
Product No.	W	H	D	w	h	d	Battery compartment	Weight (g)	Inventory status	PDF	DXF	DWG	STP
LCT115-N-□	76	28	121.9	61.5	9.5	86.5	None	123.5		PDF	DXF	DWG
LCT115-F2-□	76	28	121.9	61.5	9.5	63	AAA×2	128		PDF	DXF	DWG
LCT115-F3-□	76	28	121.9	61.5	9.5	52	AAA×3	130		PDF	DXF	DWG
LCT115H-N-□	76	36.5	121.9	60.9	18	86.5	None	141		PDF	DXF	DWG
LCT115H-F2-□	76	36.5	121.9	60.9	18	63	AAA×2	145.5		PDF	DXF	DWG
LCT115H-F3-□	76	36.5	121.9	60.9	18	52	AAA×3	147		PDF	DXF	DWG
LCT115H-M2-□	76	36.5	121.9	60.9	18	54.8	AA×2	149.5		PDF	DXF	DWG
LCT115H-9V-□	76	36.5	121.9	60.9	18	55.7	9V×1	149		PDF	DXF	DWG
LCT135-N-□	85	40	143.9	68.2	16	107	None	210.5		PDF	DXF	DWG
LCT135-F4-□	85	40	143.9	68.2	16	59.2	AAA×4	225.5		PDF	DXF	DWG
LCT135-M2-□	85	40	143.9	68.2	16	74.3	AA×2	225.5		PDF	DXF	DWG
LCT135-M3-□	85	40	143.9	68.2	16	59.2	AA×3	229		PDF	DXF	DWG
LCT135-9V-□	85	40	143.9	68.2	16	74.3	9V×1	227		PDF	DXF	DWG
LCT135H-N-□	85	48	143.9	67.7	24	107	None	231.5		PDF	DXF	DWG
LCT135H-F4-□	85	48	143.9	67.7	24	59.2	AAA×4	246		PDF	DXF	DWG
LCT135H-M2-□	85	48	143.9	67.7	24	74.3	AA×2	245		PDF	DXF	DWG
LCT135H-M3-□	85	48	143.9	67.7	24	59.2	AA×3	250		PDF	DXF	DWG
LCT135H-9V-□	85	48	143.9	67.7	24	74.3	9V×1	247.5		PDF	DXF	DWG
LCT145S-N-□	105	33	153.9	87.9	9.5	112.9	None	239	Discontinued - Sold out.	PDF	DXF	DWG
LCT145S-F6-□	105	33	153.9	88.1	9.5	67.8	AAA×6	259	Discontinued - Sold out.	PDF	DXF	DWG
LCT145-N-□	105	40	153.9	87.8	16.5	112.9	None	258.5		PDF	DXF	DWG
LCT145-F6-□	105	40	153.9	87.8	16.5	67.8	AAA×6	278.5		PDF	DXF	DWG
LCT145-M2-□	105	40	153.9	87.8	16.5	86.8	AA×2	272.5		PDF	DXF	DWG
LCT145-M4-□	105	40	153.9	87.8	16.5	63.4	AA×4	279.5		PDF	DXF	DWG
LCT145H-N-□	105	48	153.9	87.2	24.5	112.9	None	282		PDF	DXF	DWG
LCT145H-F6-□	105	48	153.9	87.2	24.5	67.8	AAA×6	302.5		PDF	DXF	DWG
LCT145H-M2-□	105	48	153.9	87.2	24.5	86.8	AA×2	296		PDF	DXF	DWG
LCT145H-M4-□	105	48	153.9	87.2	24.5	63.4	AA×4	303		PDF	DXF	DWG
LCT165-N-□	89	40	173.9	72.2	16	137	None	263.5		PDF	DXF	DWG
LCT165-M4-□	89	40	173.9	72.2	16	79	AA×4	283		PDF	DXF	DWG
LCT165H-N-□	89	48	173.9	71.7	24	137	None	286		PDF	DXF	DWG
LCT165H-M4-□	89	48	173.9	71.7	24	79	AA×4	305		PDF	DXF	DWG
