CATEGORY：Snap-in plastic enclosure, Small PCB enclosure, Potting box, ABS enclosure, Plastic project box, Universal enclosure, Multi purpose enclosure, DIY plastic case
Low cost, general purpose small plastic project box.

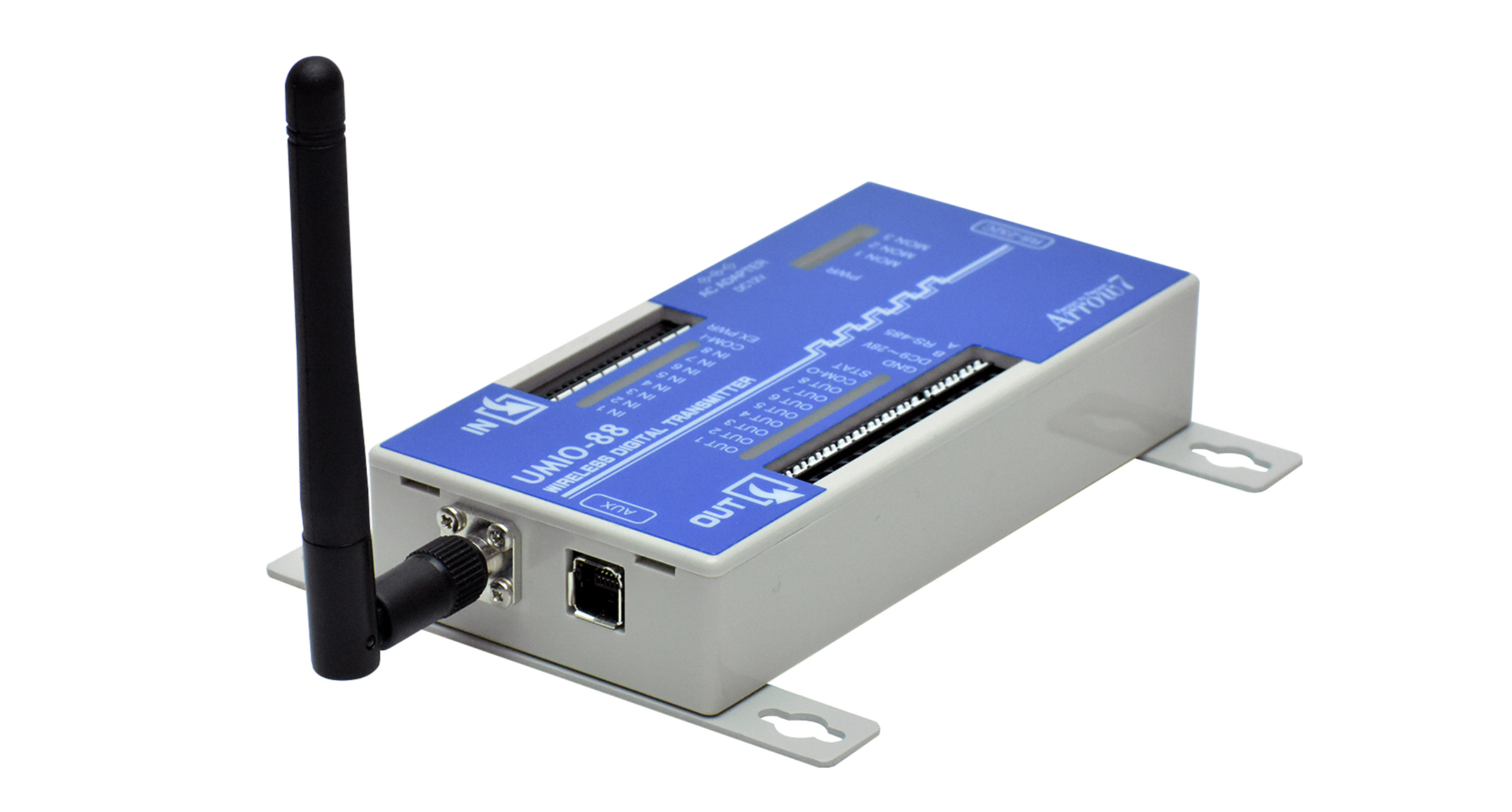

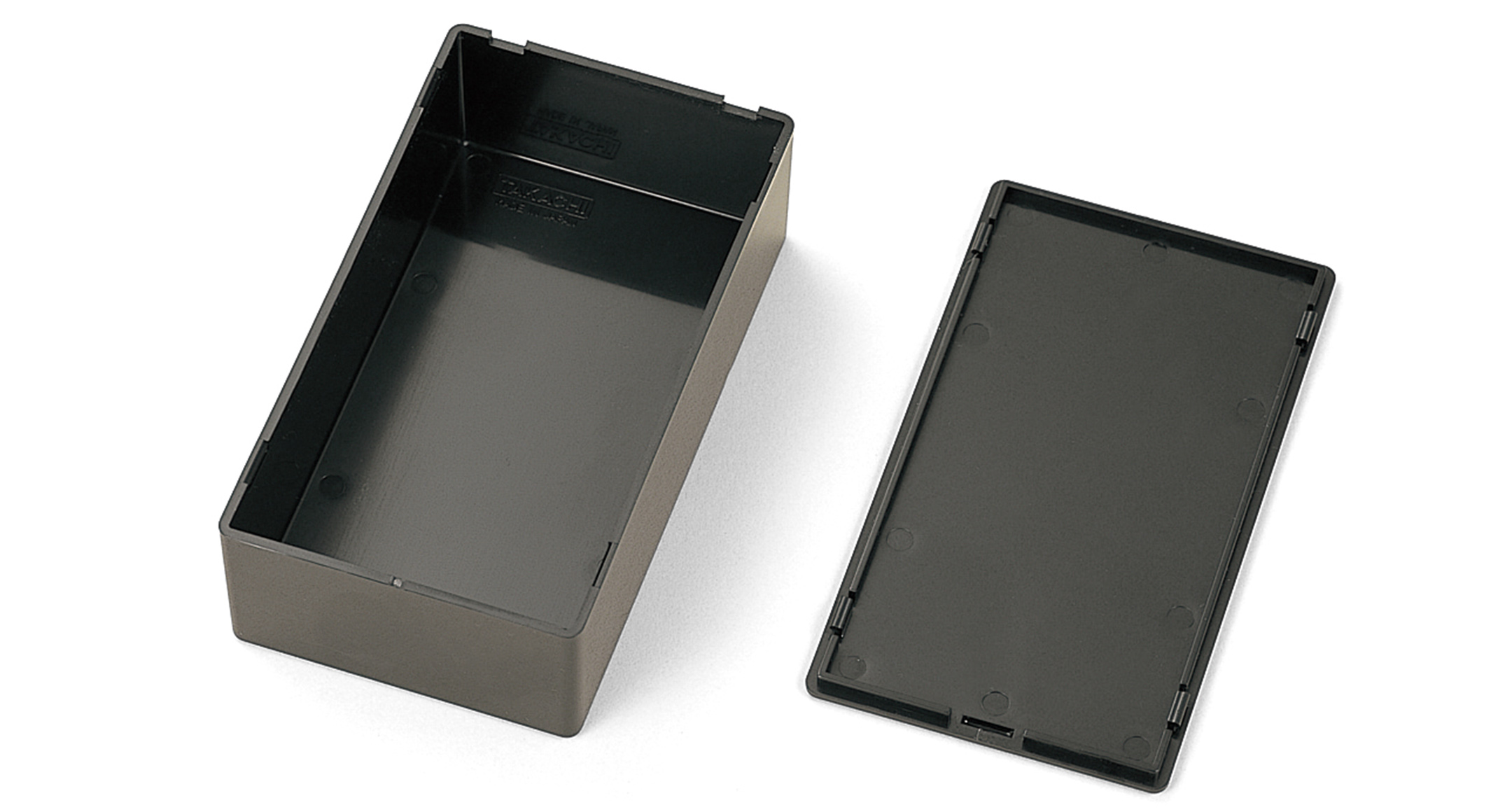

No screws required; simple snap-in cover.
Enable to be used as potting box.
Exclusive PCB(TNF series) is available.

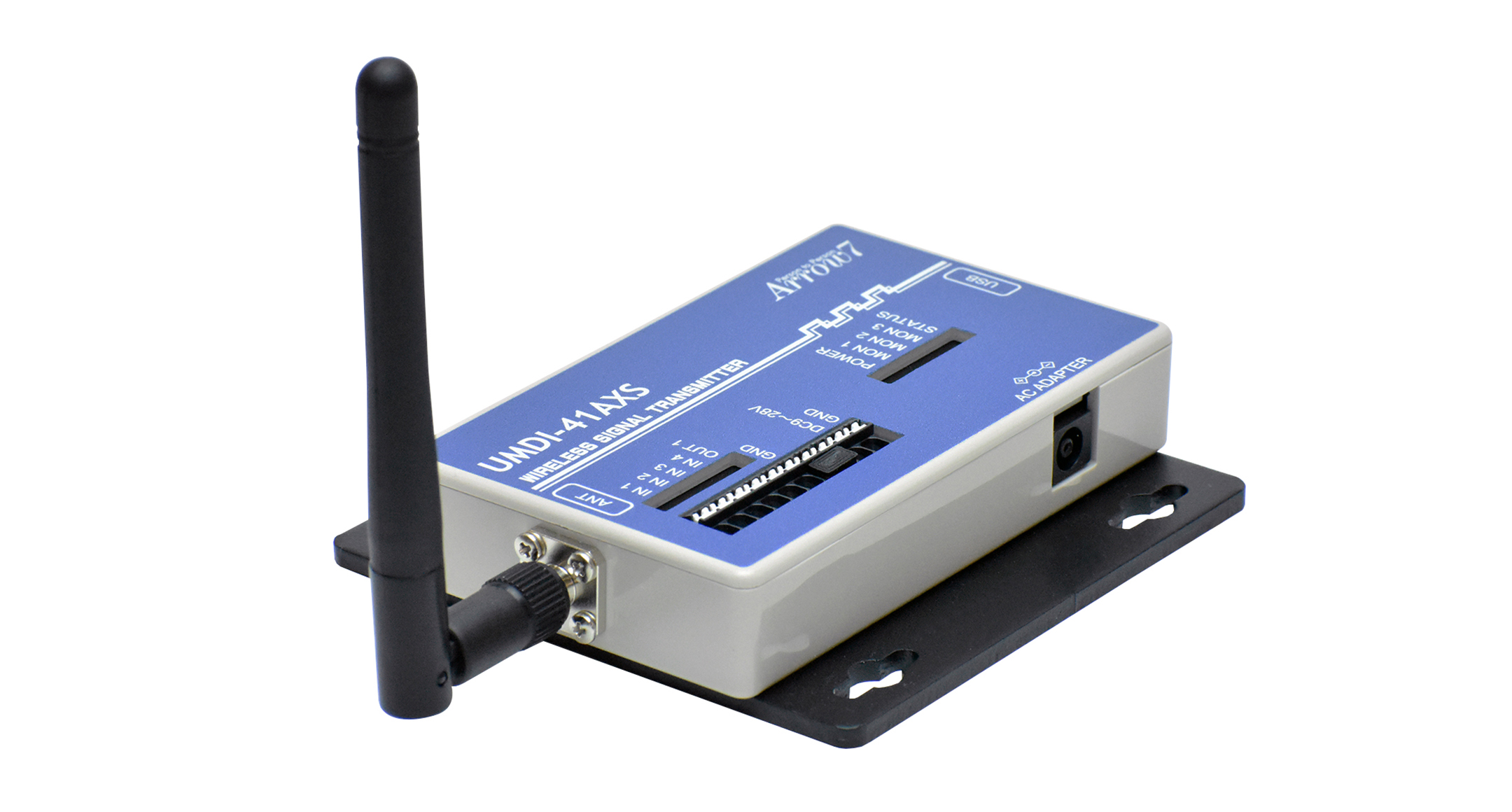

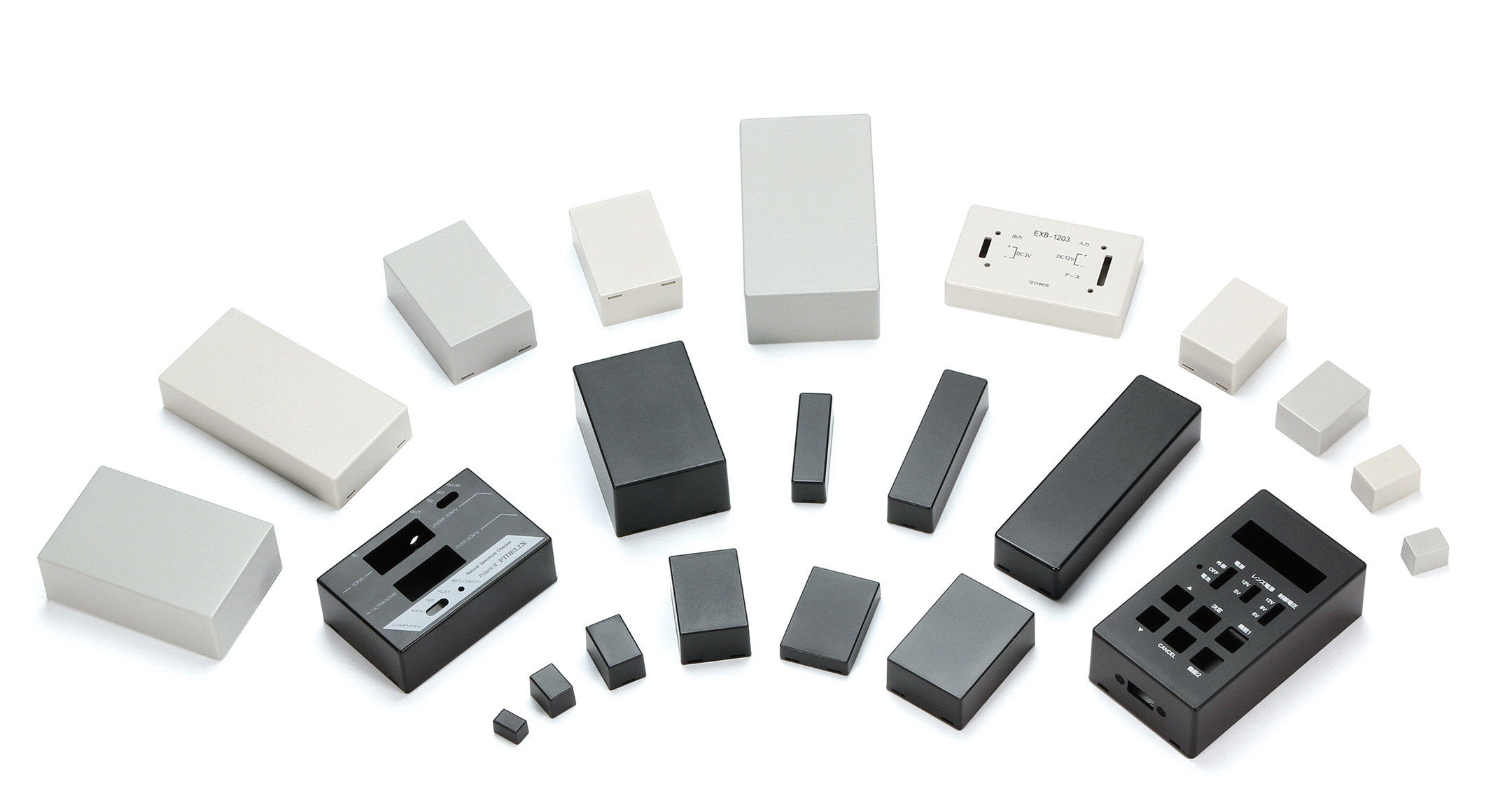

17 sizes, 3 different material types (standard, flame-resistant, and heat-resistant) are available.
Protection class: IP40
Operating temperature :
SW・SW-N series -10℃ ~ +60℃
SW-T series -10℃ ~ +100℃
No screws required; simple snap-in cover.
Enable to be used as potting box.
Exclusive PCB(TNF series) is available.
17 sizes, 3 different material types (standard, flame-resistant, and heat-resistant) are available.
Protection class: IP40
Operating temperature :
SW・SW-N series -10℃ ~ +60℃
SW-T series -10℃ ~ +100℃
PRODUCT NO. / DIMENSIONS
| Product No. | External dimensions | Internal dimensions | Material | Color / Similar matching | Weight (g) | Inventory status | DXF | DWG | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| W | H | D | w | h | d | ||||||||
| SW-15B | 10 | 10 | 15 | 6.2 | 5.3 | 11.2 | ABS（UL94HB） | Black / Munsell N1 | 1 | DXF | DWG | ||
| SW-15S | 10 | 10 | 15 | 6.2 | 6.3 | 11.2 | ABS（UL94HB） | Light gray / Munsell 5Y8/0.5 | 1 | DXF | DWG | ||
| SW-20B | 15 | 15 | 20 | 10.7 | 9 | 15.7 | ABS（UL94HB） | Black / Munsell N1 | 2 | DXF | DWG | ||
| SW-20S | 15 | 15 | 20 | 10.7 | 9 | 15.7 | ABS（UL94HB） | Light gray / Munsell 5Y8/0.5 | 2 | DXF | DWG | ||
| SW-30B | 20 | 18 | 30 | 15.1 | 12 | 25.1 | ABS（UL94HB） | Black / Munsell N1 | 4 | DXF | DWG | ||
| SW-30S | 20 | 18 | 30 | 15.1 | 12 | 25.1 | ABS（UL94HB） | Light gray / Munsell 5Y8/0.5 | 4 | DXF | DWG | ||
| SW-40B | 30 | 20 | 40 | 25.6 | 13.2 | 35.6 | ABS（UL94HB） | Black / Munsell N1 | 10 | DXF | DWG | ||
| SW-40S | 30 | 20 | 40 | 25.6 | 13.2 | 35.6 | ABS（UL94HB） | Light gray / Munsell 5Y8/0.5 | 10 | DXF | DWG | ||
| SW-50B | 35 | 25 | 50 | 29.2 | 17.7 | 44.8 | ABS（UL94HB） | Black / Munsell N1 | 14 | DXF | DWG | ||
| SW-50S | 35 | 25 | 50 | 29.2 | 17.7 | 44.8 | ABS（UL94HB） | Light gray / Munsell 5Y8/0.5 | 14 | DXF | DWG | ||
| SW-53B | 36 | 11 | 53 | 31 | 5.9 | 48 | ABS（UL94HB） | Black / Munsell N1 | 10 | DXF | DWG | ||
| SW-53S | 36 | 11 | 53 | 31 | 5.9 | 48 | ABS（UL94HB） | Light gray / Munsell 5Y8/0.5 | 10 | DXF | DWG | ||
| SW-55B | 40 | 20 | 55 | 35.2 | 13 | 50.2 | ABS（UL94HB） | Black / Munsell N1 | 17 | DXF | DWG | ||
| SW-55S | 40 | 20 | 55 | 35.2 | 13 | 50.2 | ABS（UL94HB） | Light gray / Munsell 5Y8/0.5 | 17 | DXF | DWG | ||
| SW-60B | 18 | 17 | 60 | 12.5 | 10 | 54.5 | ABS（UL94HB） | Black / Munsell N1 | 9 | DXF | DWG | ||
| SW-60S | 18 | 17 | 60 | 12.5 | 10 | 54.5 | ABS（UL94HB） | Light gray / Munsell 5Y8/0.5 | 9 | DXF | DWG | ||
| SW-65B | 45 | 25 | 65 | 39.6 | 18 | 59.4 | ABS（UL94HB） | Black / Munsell N1 | 21 | DXF | DWG | ||
| SW-65S | 45 | 25 | 65 | 39.6 | 18 | 59.4 | ABS（UL94HB） | Light gray / Munsell 5Y8/0.5 | 21 | DXF | DWG | ||
| SW-75B | 50 | 30 | 75 | 44.8 | 23 | 69.8 | ABS（UL94HB） | Black / Munsell N1 | 32 | DXF | DWG | ||
| SW-75S | 50 | 30 | 75 | 44.8 | 23 | 69.8 | ABS（UL94HB） | Light gray / Munsell 5Y8/0.5 | 32 | DXF | DWG | ||
| SW-85B | 60 | 40 | 85 | 53.7 | 32.7 | 78.7 | ABS（UL94HB） | Black / Munsell N1 | 43 | DXF | DWG | ||
| SW-85S | 60 | 40 | 85 | 53.7 | 32.7 | 78.7 | ABS（UL94HB） | Light gray / Munsell 5Y8/0.5 | 43 | DXF | DWG | ||
| SW-90B | 25 | 21 | 90 | 19.4 | 14 | 84.4 | ABS（UL94HB） | Black / Munsell N1 | 17 | DXF | DWG | ||
| SW-90S | 25 | 21 | 90 | 19.4 | 14 | 84.4 | ABS（UL94HB） | Light gray / Munsell 5Y8/0.5 | 17 | DXF | DWG | ||
| SW-95B | 58 | 18 | 95 | 52.7 | 11 | 89.7 | ABS（UL94HB） | Black / Munsell N1 | 34 | DXF | DWG | ||
| SW-95S | 58 | 18 | 95 | 52.7 | 11 | 89.7 | ABS（UL94HB） | Light gray / Munsell 5Y8/0.5 | 34 | DXF | DWG | ||
| SW-100B | 65 | 35 | 100 | 60.6 | 27.5 | 95.6 | ABS（UL94HB） | Black / Munsell N1 | 55 | DXF | DWG | ||
| SW-100S | 65 | 35 | 100 | 60.6 | 27.5 | 95.6 | ABS（UL94HB） | Light gray / Munsell 5Y8/0.5 | 55 | DXF | DWG | ||
| SW-120B | 60 | 24 | 120 | 55.6 | 16.5 | 115.6 | ABS（UL94HB） | Black / Munsell N1 | 50 | DXF | DWG | ||
| SW-120S | 60 | 24 | 120 | 55.6 | 16.5 | 115.6 | ABS（UL94HB） | Light gray / Munsell 5Y8/0.5 | 50 | DXF | DWG | ||
| SW-125B | 70 | 40 | 125 | 64 | 32 | 119 | ABS（UL94HB） | Black / Munsell N1 | 77 | DXF | DWG | ||
| SW-125S | 70 | 40 | 125 | 64 | 32 | 119 | ABS（UL94HB） | Light gray / Munsell 5Y8/0.5 | 77 | DXF | DWG | ||
| SW-130B | 40 | 25 | 130 | 35.5 | 17 | 125.5 | ABS（UL94HB） | Black / Munsell N1 | 43 | DXF | DWG | ||
| SW-130S | 40 | 25 | 130 | 35.5 | 17 | 125.5 | ABS（UL94HB） | Light gray / Munsell 5Y8/0.5 | 43 | DXF | DWG | ||
| SW-N20G | 15 | 15 | 20 | 10.7 | 9 | 15.7 | ABS（UL94V-0） | Gray / Munsell 5GY7/0.5 | 3 | Limited inventory. | DXF | DWG | |
| SW-N30G | 20 | 18 | 30 | 15.1 | 12 | 25.1 | ABS（UL94V-0） | Gray / Munsell 5GY7/0.5 | 5 | Limited inventory. | DXF | DWG | |
| SW-N40G | 30 | 20 | 40 | 25.6 | 13.2 | 35.6 | ABS（UL94V-0） | Gray / Munsell 5GY7/0.5 | 11 | Limited inventory. | DXF | DWG | |
| SW-N55G | 40 | 20 | 55 | 35.2 | 13 | 50.2 | ABS（UL94V-0） | Gray / Munsell 5GY7/0.5 | 19 | DXF | DWG | ||
| SW-N65G | 45 | 25 | 65 | 39.6 | 18 | 59.4 | ABS（UL94V-0） | Gray / Munsell 5GY7/0.5 | 23 | DXF | DWG | ||
| SW-N75G | 50 | 30 | 75 | 44.8 | 23 | 69.8 | ABS（UL94V-0） | Gray / Munsell 5GY7/0.5 | 35 | DXF | DWG | ||
| SW-N85G | 60 | 40 | 85 | 53.7 | 32.7 | 78.7 | ABS（UL94V-0） | Gray / Munsell 5GY7/0.5 | 50 | DXF | DWG | ||
| SW-N95G | 58 | 18 | 95 | 52.7 | 11 | 89.7 | ABS（UL94V-0） | Gray / Munsell 5GY7/0.5 | 37 | Limited inventory. | DXF | DWG | |
| SW-N120G | 60 | 24 | 120 | 55.6 | 16.5 | 115.6 | ABS（UL94V-0） | Gray / Munsell 5GY7/0.5 | 56 | Limited inventory. | DXF | DWG | |
| SW-N125G | 70 | 40 | 125 | 64 | 32 | 119 | ABS（UL94V-0） | Gray / Munsell 5GY7/0.5 | 85 | Limited inventory. | DXF | DWG | |
| SW-N130G | 40 | 25 | 130 | 35.5 | 17 | 125.5 | ABS（UL94V-0） | Gray / Munsell 5GY7/0.5 | 48 | Limited inventory. | DXF | DWG | |
| SW-T20B | 15 | 15 | 20 | 10.7 | 9 | 15.7 | ABS heat-resistant | Black / Munsell N1 | 2 | Limited inventory. | DXF | DWG | |
| SW-T40B | 30 | 20 | 40 | 25.6 | 13.2 | 35.6 | ABS heat-resistant | Black / Munsell N1 | 9 | DXF | DWG | ||
| SW-T55B | 40 | 20 | 55 | 35.2 | 13 | 50.2 | ABS heat-resistant | Black / Munsell N1 | 16 | DXF | DWG | ||
| SW-T75B | 50 | 30 | 75 | 44.8 | 23 | 69.8 | ABS heat-resistant | Black / Munsell N1 | 30 | DXF | DWG | ||
| SW-T95B | 58 | 18 | 95 | 52.7 | 11 | 89.7 | ABS heat-resistant | Black / Munsell N1 | 31 | DXF | DWG | ||
| SW-T100B | 65 | 35 | 100 | 60.6 | 27.5 | 95.6 | ABS heat-resistant | Black / Munsell N1 | 50 | DXF | DWG | ||
