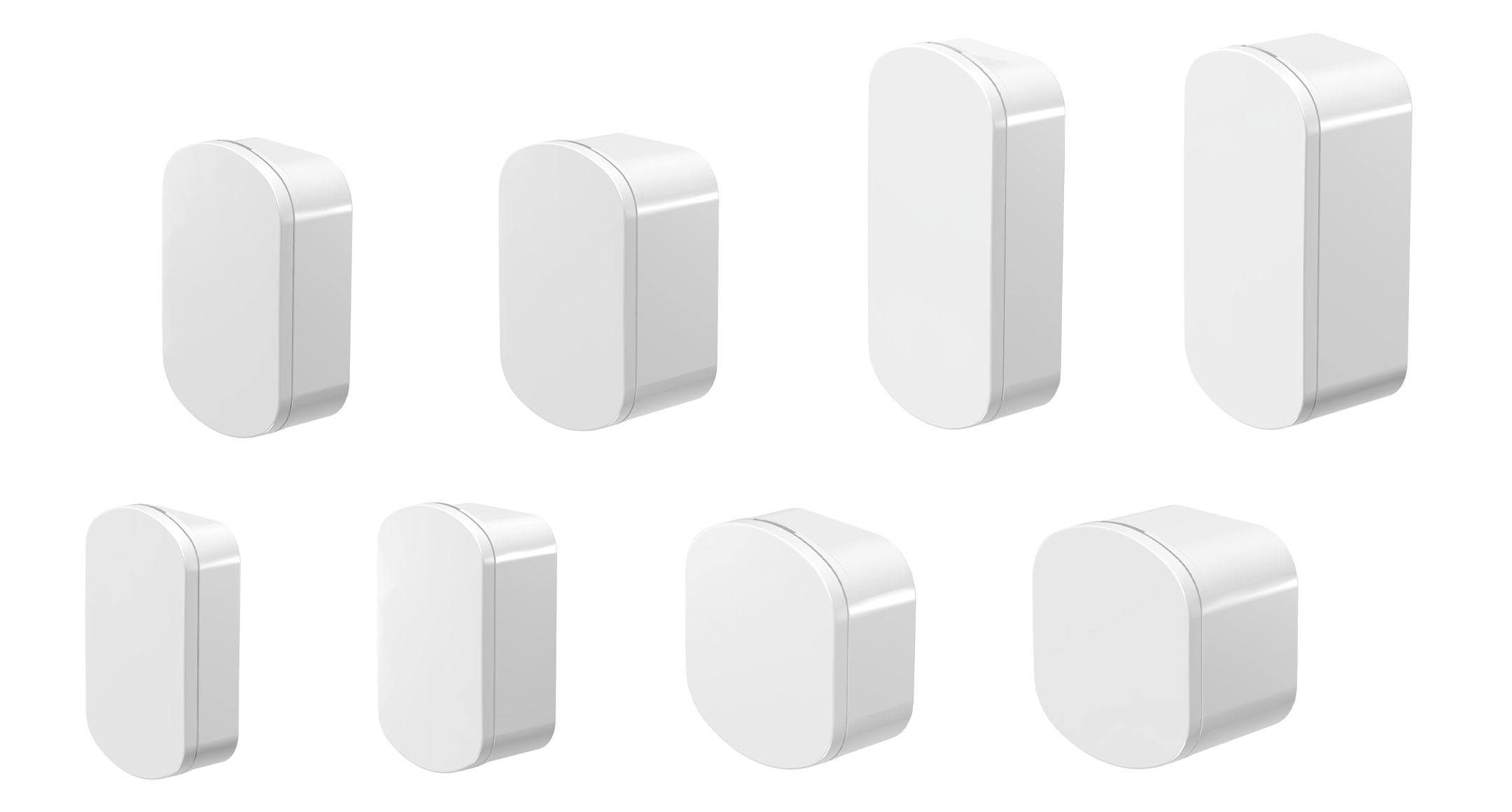

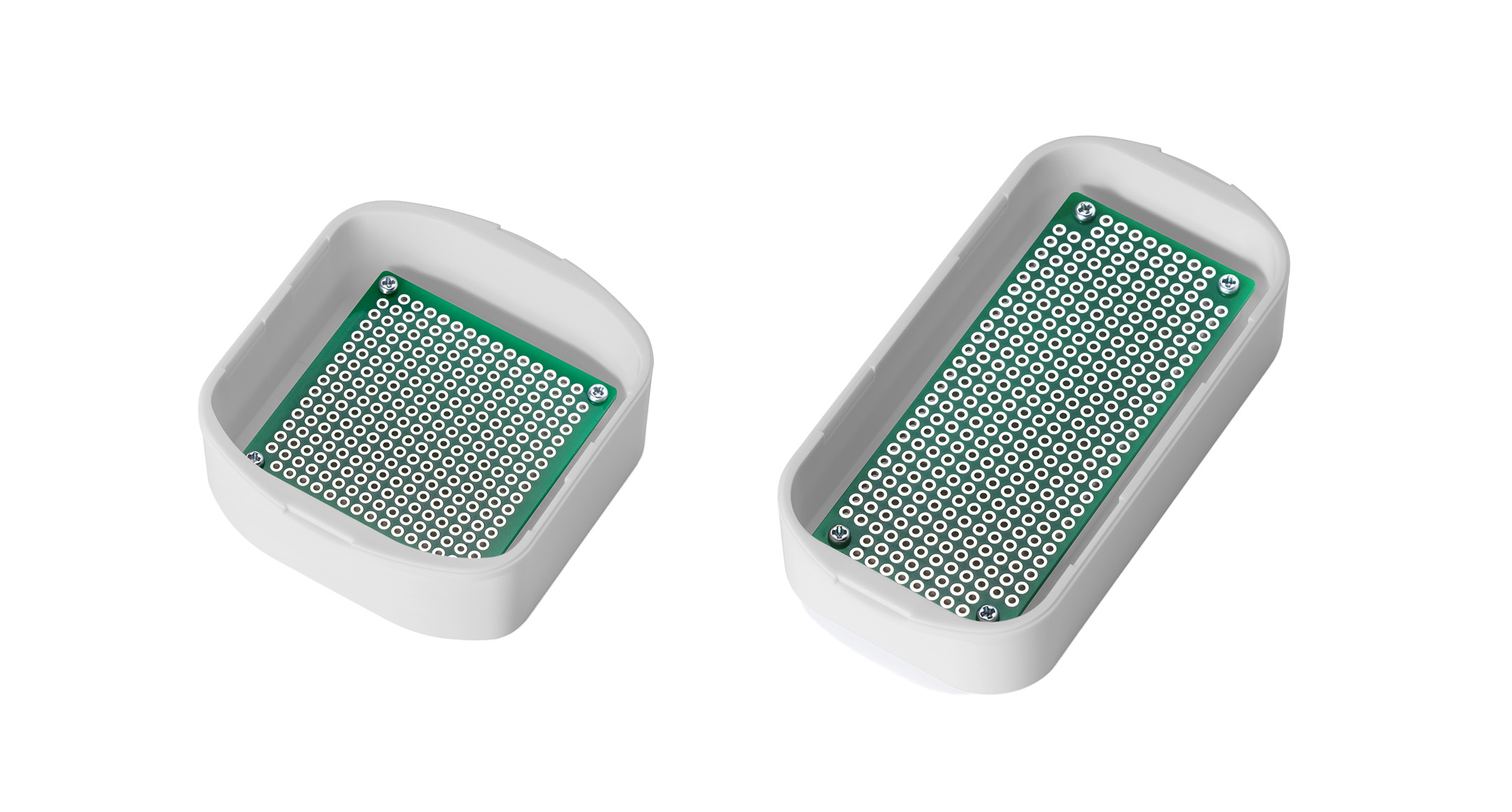

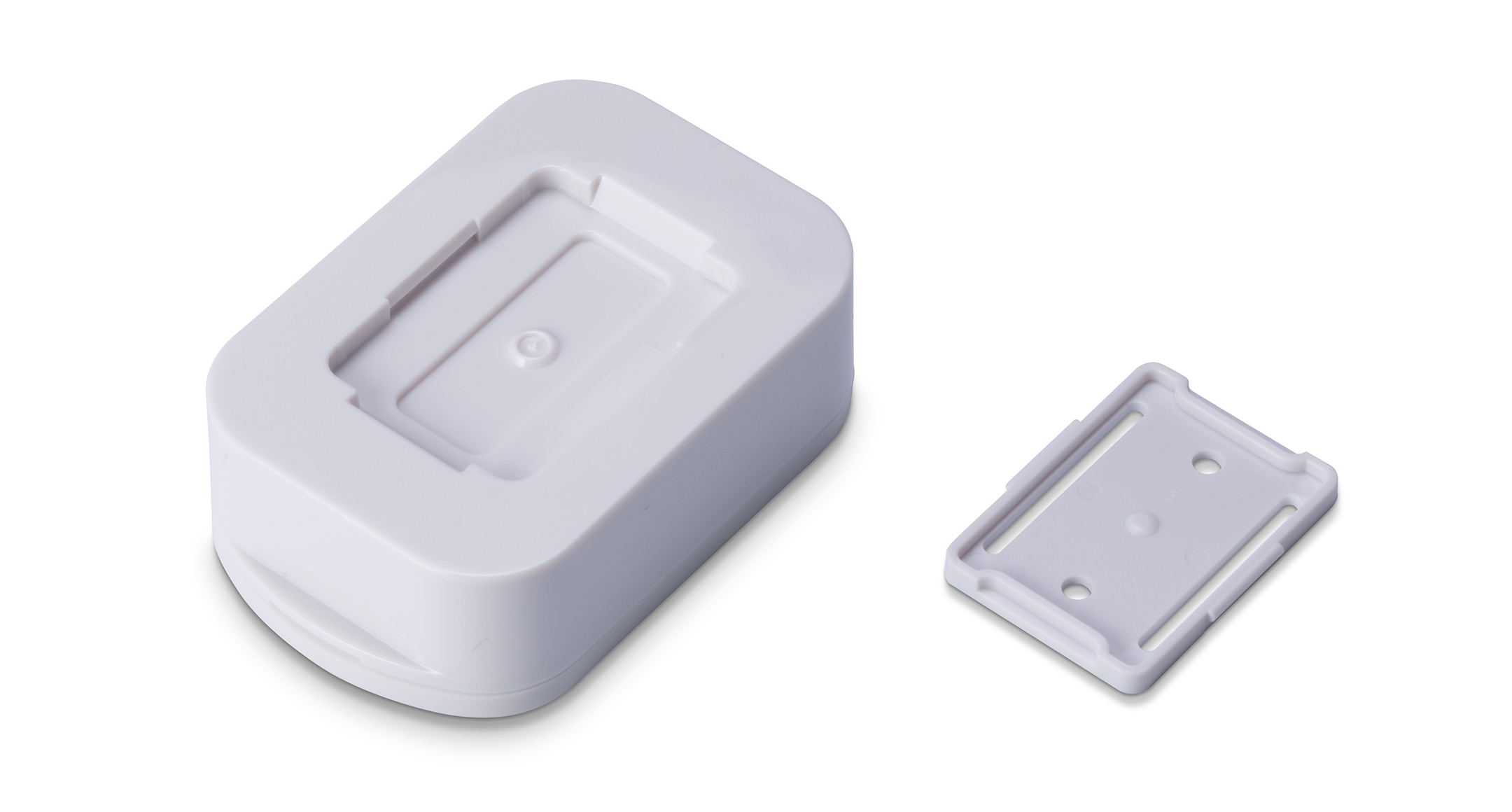

WALL MOUNT IoT SMALL PLASTIC ENCLOSURE - SIM series


SIM Series -PDF

CATEGORY:Wall mount enclosure, Small plastic enclosure, Network enclosure, IOT enclosure, Wireless router enclosure, LoRaWAN enclosure

WALL MOUNT IoT SMALL PLASTIC ENCLOSURE - SIM series
WALL MOUNT IoT SMALL PLASTIC ENCLOSURE - SIM series
WALL MOUNT IoT SMALL PLASTIC ENCLOSURE - SIM series
WALL MOUNT IoT SMALL PLASTIC ENCLOSURE - SIM series
WALL MOUNT IoT SMALL PLASTIC ENCLOSURE - SIM series
WALL MOUNT IoT SMALL PLASTIC ENCLOSURE - SIM series
WALL MOUNT IoT SMALL PLASTIC ENCLOSURE - SIM series1
WALL MOUNT IoT SMALL PLASTIC ENCLOSURE - SIM series2
WALL MOUNT IoT SMALL PLASTIC ENCLOSURE - SIM series3
WALL MOUNT IoT SMALL PLASTIC ENCLOSURE - SIM series4
WALL MOUNT IoT SMALL PLASTIC ENCLOSURE - SIM series5
WALL MOUNT IoT SMALL PLASTIC ENCLOSURE - SIM series6

PRODUCT NO. / DIMENSIONS

Product No. External dimensions Internal dimensions Weight (g) Color / Similar matching PDF DXF DWG STP
W H D w h d
SIM4-7-2W 38 17 65 32.7 6.4 53.2 17.8 White / Munsell N8.75 PDF DXF DWG
SIM4-7-3W 38 25 65 32.4 14.4 52.9 20.7 White / Munsell N8.75 PDF DXF DWG
SIM5-5-2W 45 23 50 39.4 10.9 38.5 17.8 White / Munsell N8.75 PDF DXF DWG
SIM5-5-3W 45 33 50 39 20.9 38.1 20.9 White / Munsell N8.75 PDF DXF DWG
SIM5-7-2W 45 22 70 39.4 10.9 58.4 22.8 White / Munsell N8.75 PDF DXF DWG
SIM5-7-3W 45 32 70 39.1 20.9 58 25.9 White / Munsell N8.75 PDF DXF DWG
SIM5-9-2W 45 22 90 39.4 10.9 78.4 27.7 White / Munsell N8.75 PDF DXF DWG
SIM5-9-3W 45 32 90 39.1 20.9 78 32.3 White / Munsell N8.75 PDF DXF DWG
SAMPLE REQUEST FORM

This product series is available as a free sample.

OPTIONAL PARTS

1
RUBBER STRAIN RELIEF CORD PROTECTOR CBS series
DETAILS
1

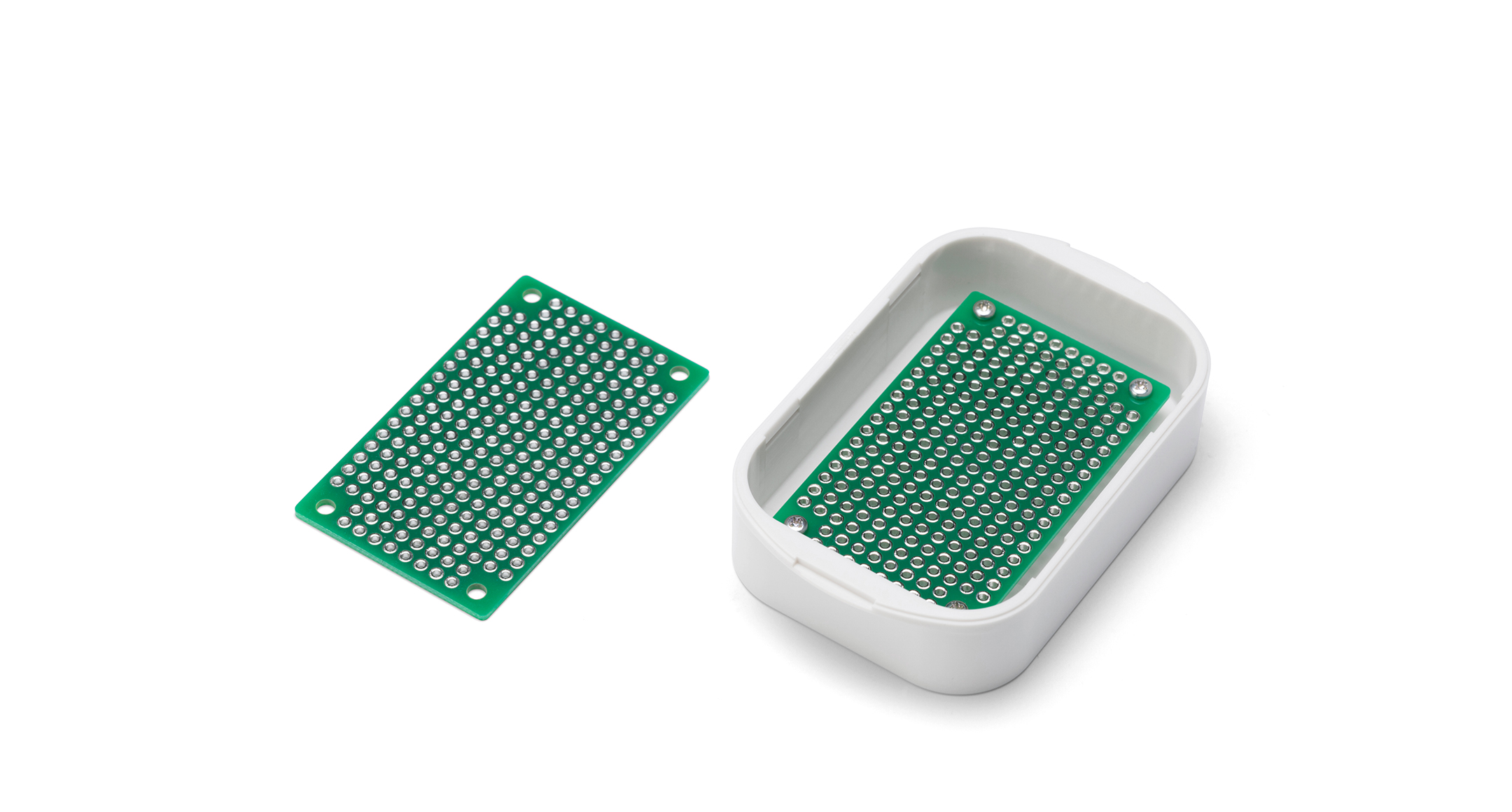

LOW COST UNIVERSAL PCB
