CATEGORY：IP65 Plastic enclosure, Waterproof plastic box, NEMA 4X plastic enclosure, Screwfix plastic enclosure, Electrical plastic enclosure, ABS enclosure

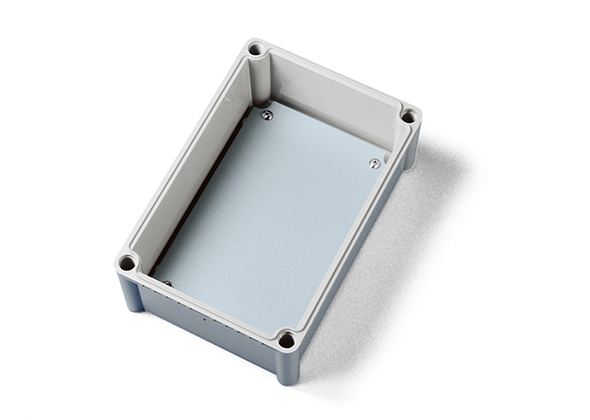

Large-sized frontal screw fastening waterproof ABS plastic enclosure.

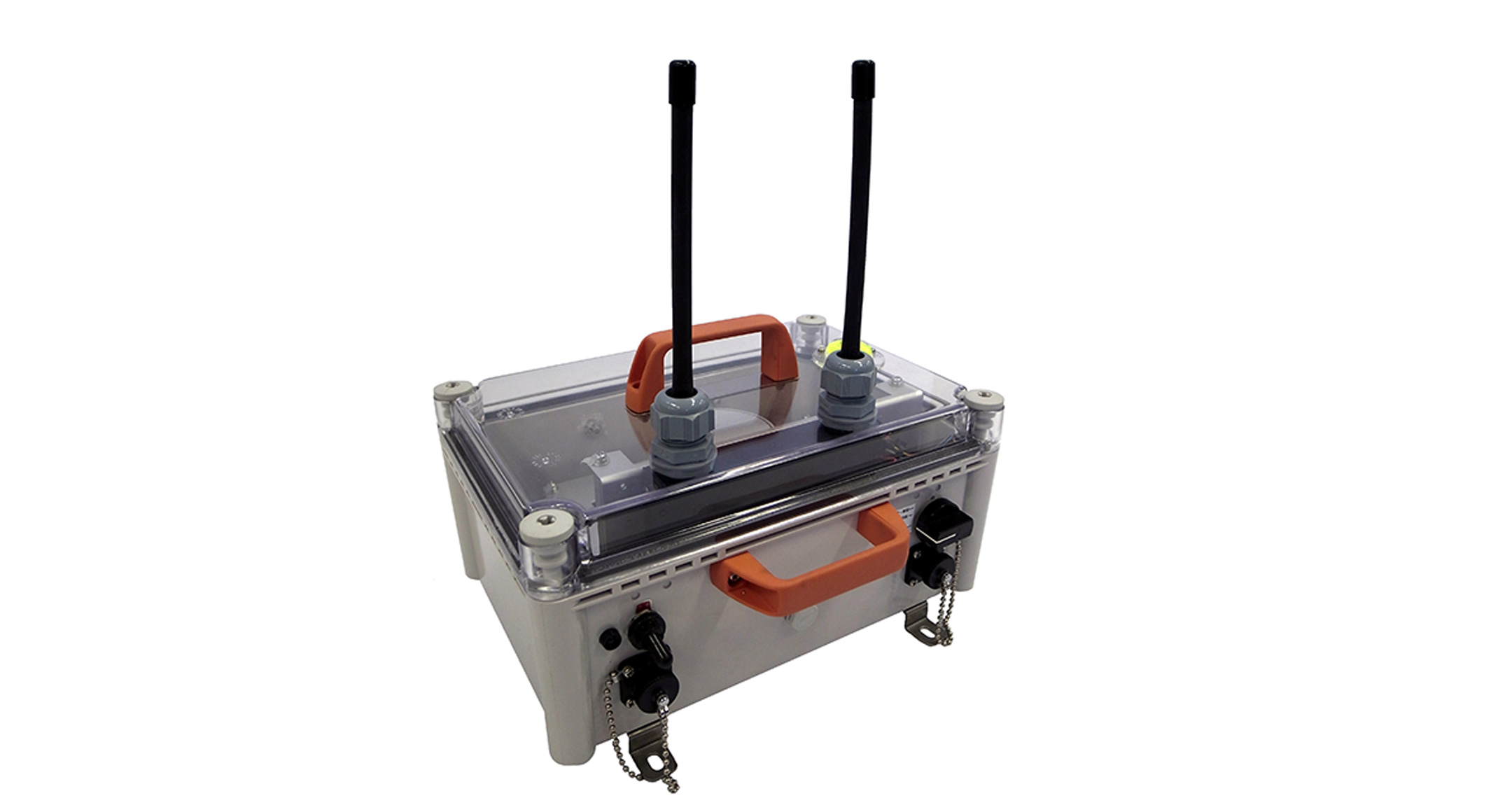

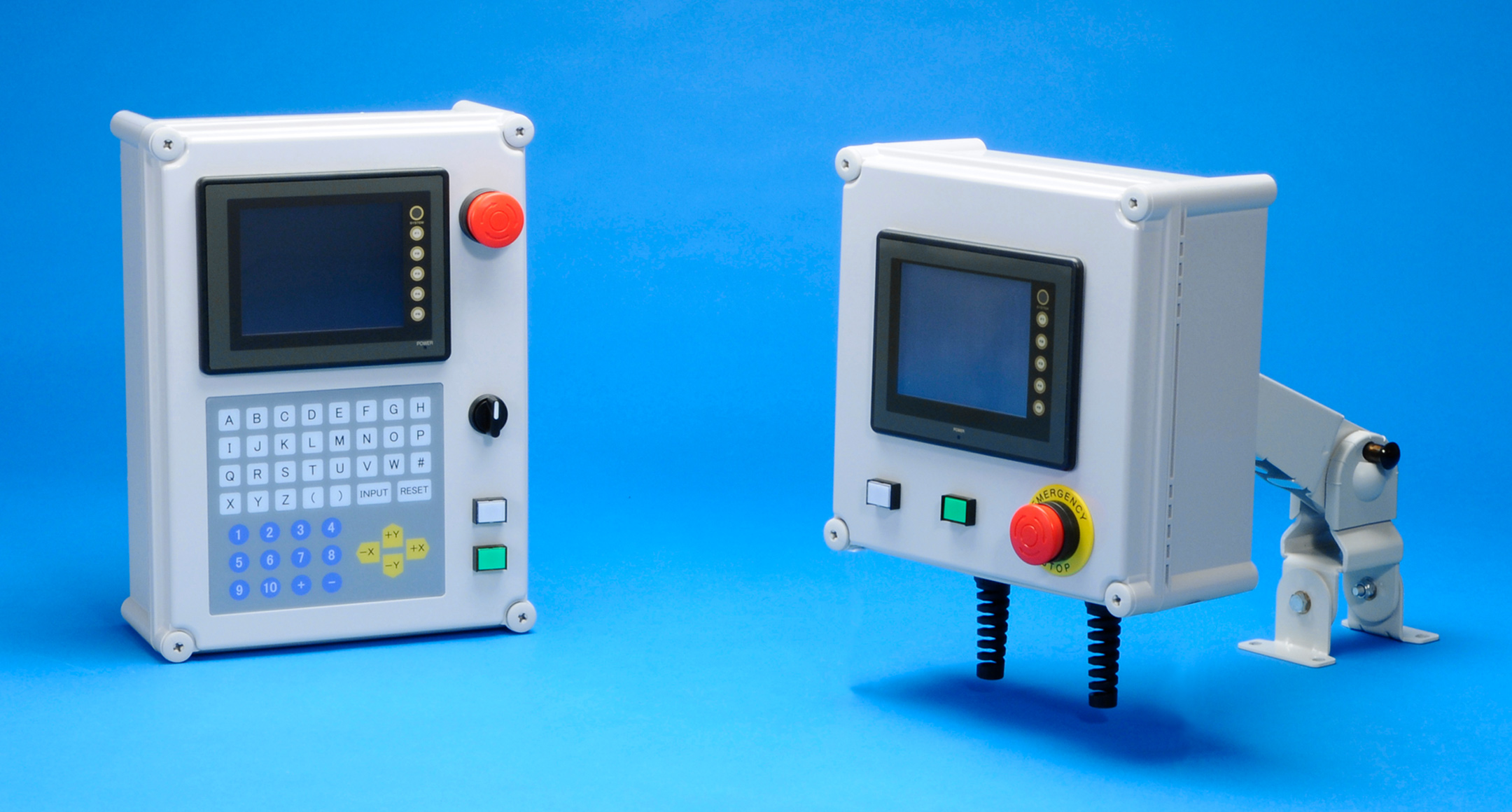

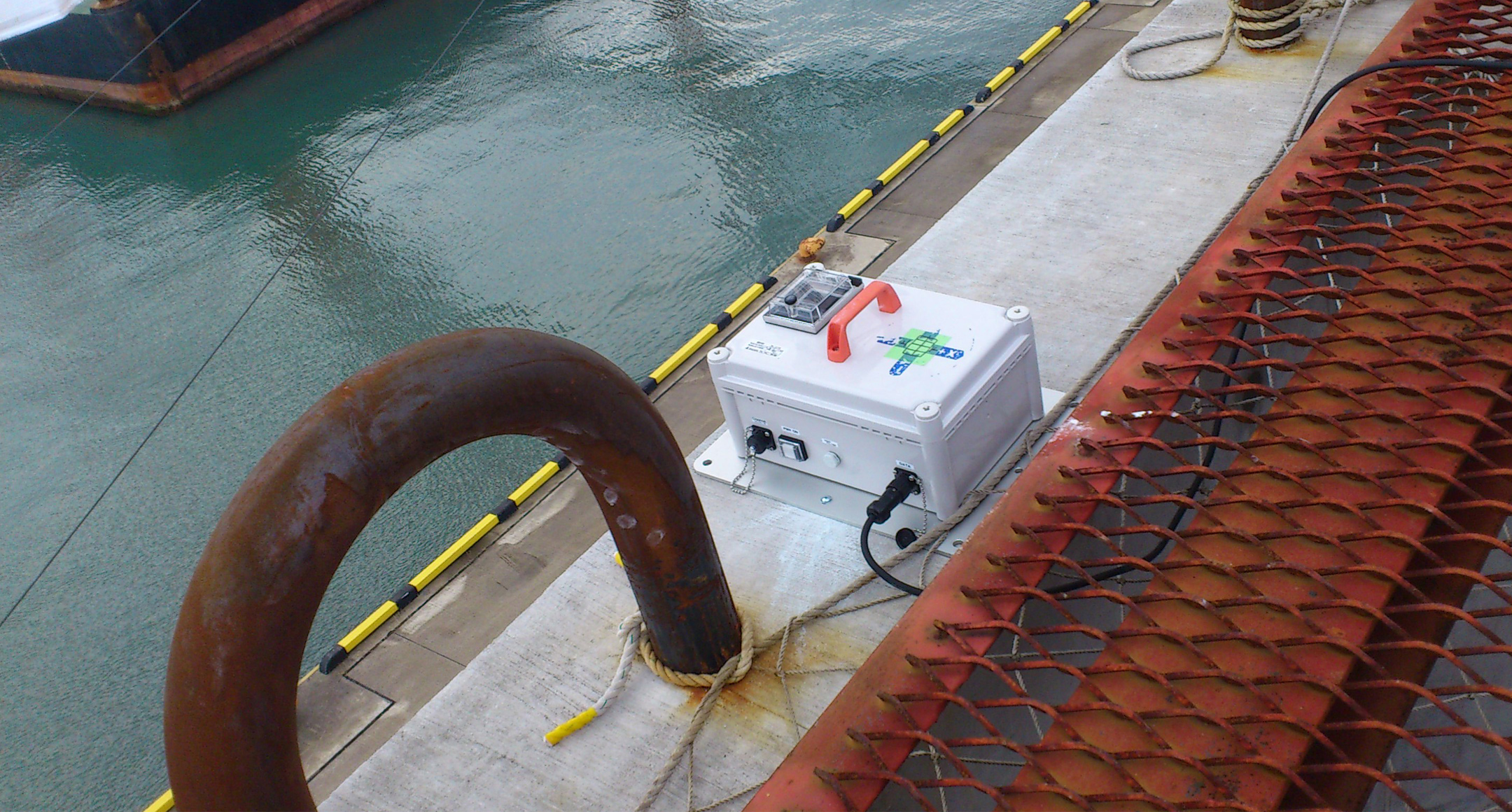

Applicable for uses in various fields such as FA, control box, network communication, and so on.
11 different sizes available.
2 different top cover models, ABS-White gray・Polycarbonate-Transparent, are available.

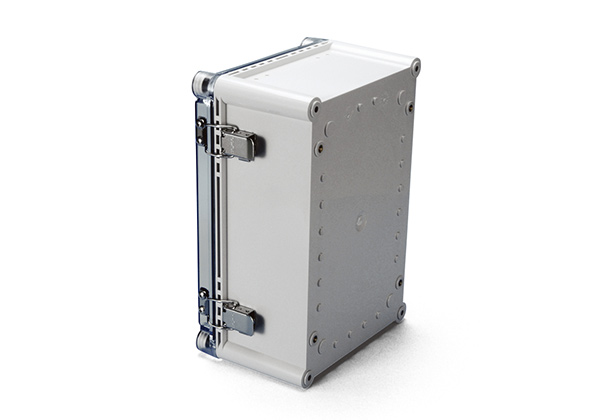

Guide markings are available for installation of optional latch/hinge parts.
Protection class : IP65 (equivalent to NEMA6 rating)
Operating temperature : -10℃ ~ +60℃
Recommended torque : 1N・ m ~ 1.5N・m
【Material】
Top cover (G color type)・Body : ABS UL94HB
Color / Similar matching：White gray / Munsell 5R8/0.5
Top cover (T color type) ：Polycarbonate / Transparent
Gasket ：Polyurethane
Cover screw : Nylon
Applicable for uses in various fields such as FA, control box, network communication, and so on.
11 different sizes available.
2 different top cover models, ABS-White gray・Polycarbonate-Transparent, are available.
Guide markings are available for installation of optional latch/hinge parts.
Protection class : IP65 (equivalent to NEMA6 rating)
Operating temperature : -10℃ ~ +60℃
Recommended torque : 1N・ m ~ 1.5N・m
【Material】
Top cover (G color type)・Body : ABS UL94HB
Color / Similar matching：White gray / Munsell 5R8/0.5
Top cover (T color type) ：Polycarbonate / Transparent
Gasket ：Polyurethane
Cover screw : Nylon
PRODUCT NO. / DIMENSIONS
| Product No. | External dimensions | Internal dimensions | Weight (g) | Color / Similar matching | DXF | DWG | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| W | D | H | w | d | h | ||||||
| BCAL191913G | 190 | 190 | 128 | 166.1 | 138.3 | 111.5 | 722 | White gray / Munsell 5R8/0.5 | DXF | DWG | |
| BCAL191913T | 190 | 190 | 128 | 166.1 | 138.3 | 111.5 | 722 | Transparent | DXF | DWG | |
| BCAL192813G | 190 | 280 | 128 | 166 | 229 | 111.5 | 896 | White gray / Munsell 5R8/0.5 | DXF | DWG | |
| BCAL192813T | 190 | 280 | 128 | 166 | 229 | 111.5 | 896 | Transparent | DXF | DWG | |
| BCAL192818G | 190 | 280 | 178 | 164 | 230 | 161.6 | 1009 | White gray / Munsell 5R8/0.5 | DXF | DWG | |
| BCAL192818T | 190 | 280 | 178 | 164 | 230 | 161.6 | 1009 | Transparent | DXF | DWG | |
| BCAL193813G | 190 | 380 | 128 | 167 | 329 | 111.5 | 1143 | White gray / Munsell 5R8/0.5 | DXF | DWG | |
| BCAL193813T | 190 | 380 | 128 | 167 | 329 | 111.5 | 1143 | Transparent | DXF | DWG | |
| BCAL193818G | 190 | 380 | 178 | 165 | 327.5 | 162 | 1258 | White gray / Munsell 5R8/0.5 | DXF | DWG | |
| BCAL193818T | 190 | 380 | 178 | 165 | 327.5 | 162 | 1258 | Transparent | DXF | DWG | |
| BCAL282813G | 280 | 280 | 128 | 255 | 229 | 111.3 | 1148 | White gray / Munsell 5R8/0.5 | DXF | DWG | |
| BCAL282813T | 280 | 280 | 128 | 255 | 229 | 111.3 | 1148 | Transparent | DXF | DWG | |
| BCAL283413G | 280 | 340 | 128 | 255.5 | 287 | 111.8 | 1441 | White gray / Munsell 5R8/0.5 | DXF | DWG | |
| BCAL283413T | 280 | 340 | 128 | 255.5 | 287 | 111.8 | 1441 | Transparent | DXF | DWG | |
| BCAL283813G | 280 | 380 | 128 | 256 | 329 | 111.5 | 1423 | White gray / Munsell 5R8/0.5 | DXF | DWG | |
| BCAL283813T | 280 | 380 | 128 | 256 | 329 | 111.5 | 1423 | Transparent | DXF | DWG | |
| BCAL283818G | 280 | 380 | 178 | 254 | 324 | 161.5 | 1745 | White gray / Munsell 5R8/0.5 | DXF | DWG | |
| BCAL283818T | 280 | 380 | 178 | 254 | 324 | 161.5 | 1745 | Transparent | DXF | DWG | |
| BCAL285613G | 280 | 560 | 128 | 255 | 507 | 111.4 | 2272 | White gray / Munsell 5R8/0.5 | DXF | DWG | |
| BCAL285613T | 280 | 560 | 128 | 255 | 507 | 111.4 | 2272 | Transparent | DXF | DWG | |
| BCAL385618G | 380 | 560 | 178 | 354 | 505 | 160.8 | 2948 | White gray / Munsell 5R8/0.5 | DXF | DWG | |
| BCAL385618T | 380 | 560 | 178 | 354 | 505 | 160.8 | 2948 | Transparent | DXF | DWG | |
OPTIONAL PARTS
