CATEGORY：IP68 waterproof enclosure, Solar power junction box, Weatherproof plastic enclosure, Outdoor IoT network enclosure, Watertight enclosure, Outdoor communication device enclosure, Wireless device enclosure, Access point enclosure, LoRaWAN enclosure, Outdoor gateway enclosure, Sensor enclosure
IP68 high performance plastic box protected from immersion as long as 24 hours at 1m depth.
PC/ASA material provides superior heat resistance and flame retardancy.

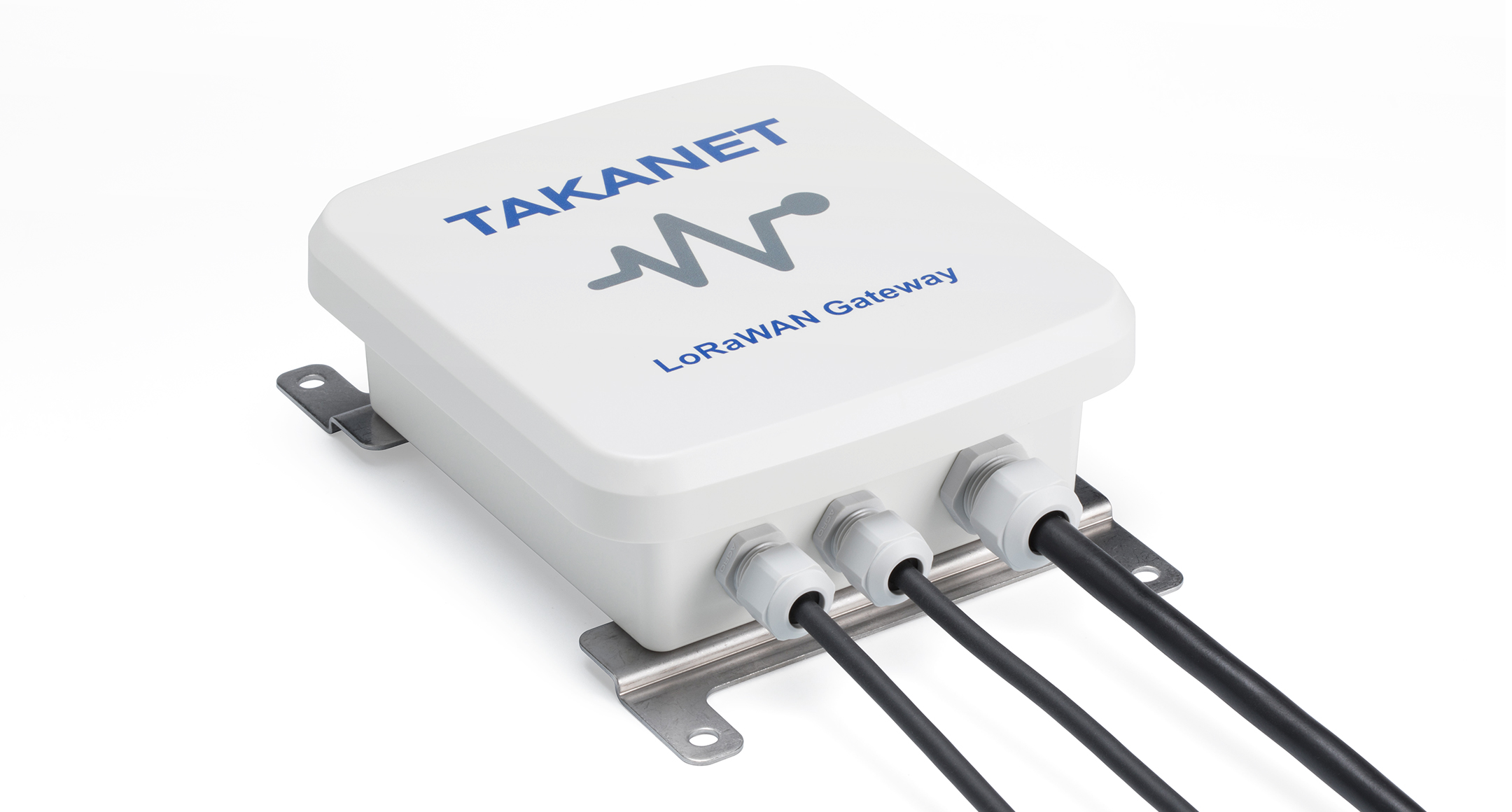

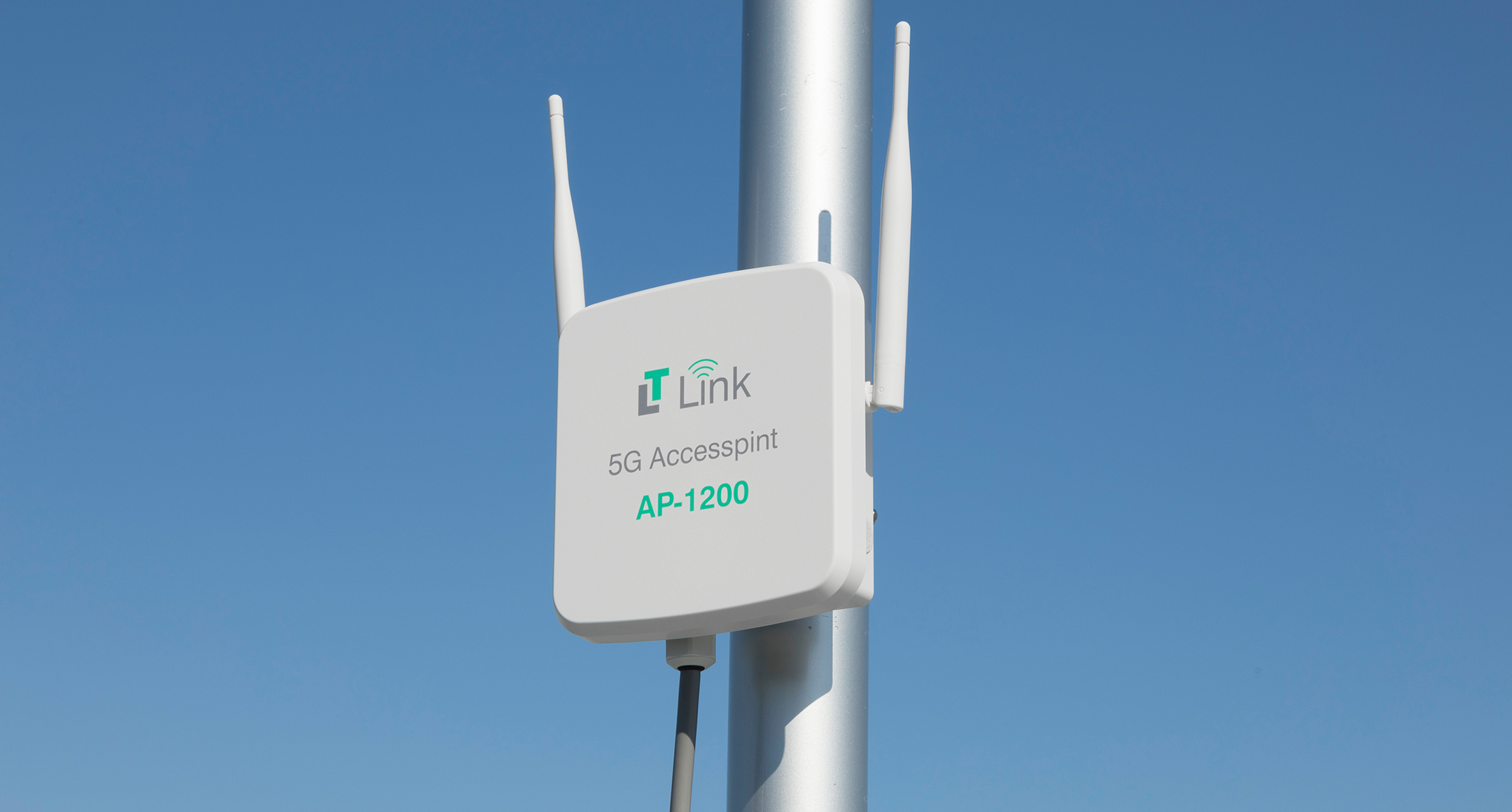

Perfect for use as outdoor communication or network devices.
Self-tapping captive screws which are able to lock into a pre-drilled hole and provide a secure hold for fastening the cover. Please drive the self-tapping captive screws for cutting a thread into the holes at first so that the cover and body can be secured together properly.
Protection class : IP68 (24-hours/1m-depth)
Operating temperature : -30°C ~ +75°C
Color : Light gray / Similar to PANTONE427C (Color book 2025)
PC/ASA material provides superior heat resistance and flame retardancy.
Perfect for use as outdoor communication or network devices.
Self-tapping captive screws which are able to lock into a pre-drilled hole and provide a secure hold for fastening the cover. Please drive the self-tapping captive screws for cutting a thread into the holes at first so that the cover and body can be secured together properly.
Protection class : IP68 (24-hours/1m-depth)
Operating temperature : -30°C ~ +75°C
Color : Light gray / Similar to PANTONE427C (Color book 2025)
3D View - WGPC10-15-6G
3D View - WGPC10-15-8G
3D View - WGPC15-16-6G
3D View - WGPC15-16-8G
3D View - WGPC15-21-6G
3D View - WGPC15-21-9G
3D View - WGPC17-25-8G
3D View - WGPC17-25-11G
3D View - WGPC23-25-8G
3D View - WGPC23-25-11G
3D View - WGPC25-33-9G
3D View - WGPC25-33-12G
3D View - WGPC28-40-10G
3D View - WGPC28-40-15G
3D View - WGPC30-33-9G
3D View - WGPC30-33-13G
Exploded view

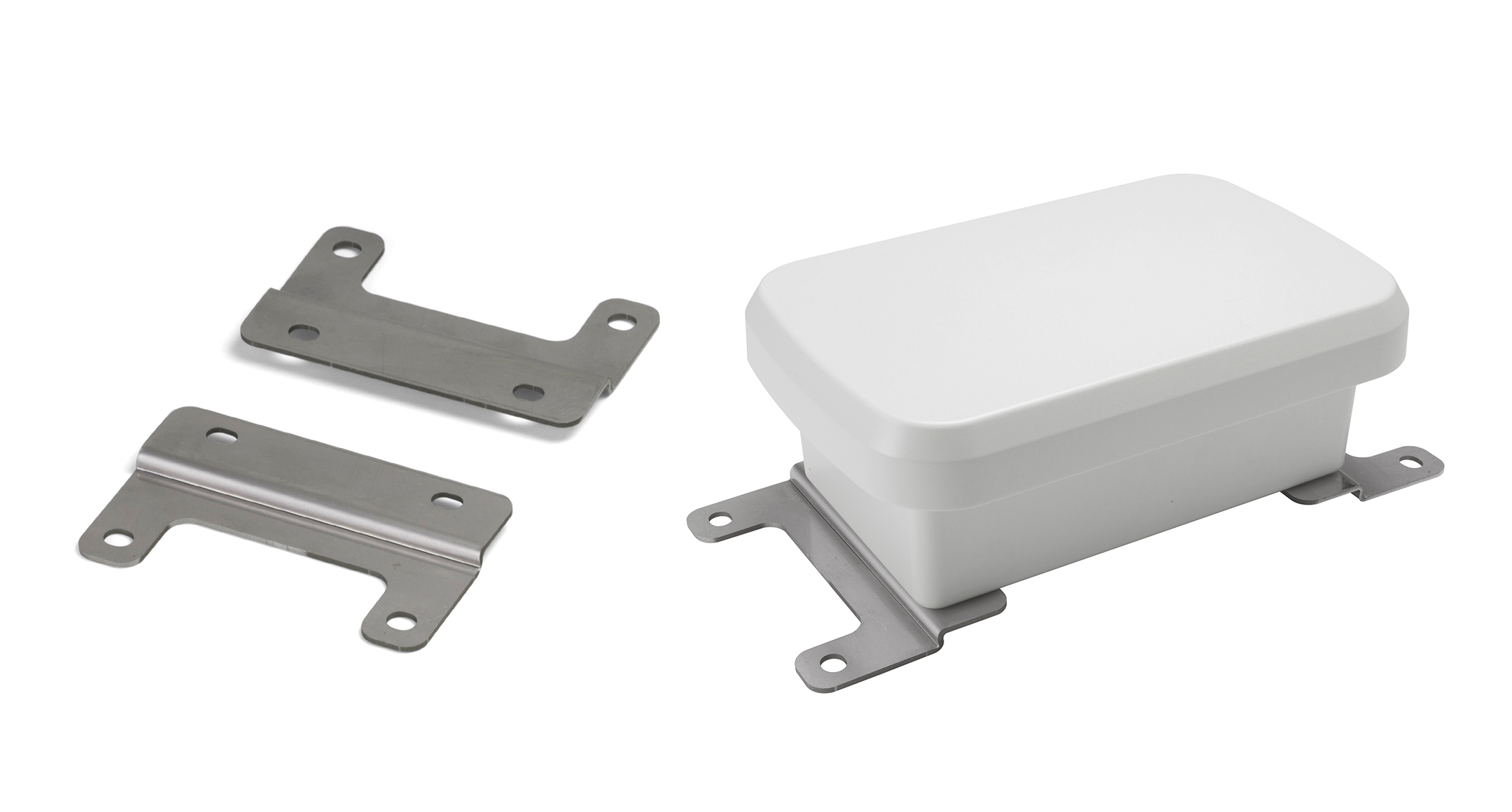

Bracket assembly view
3D View - with Wallmount bracket

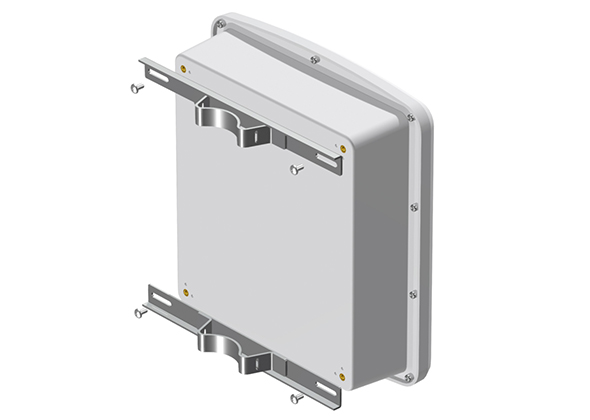

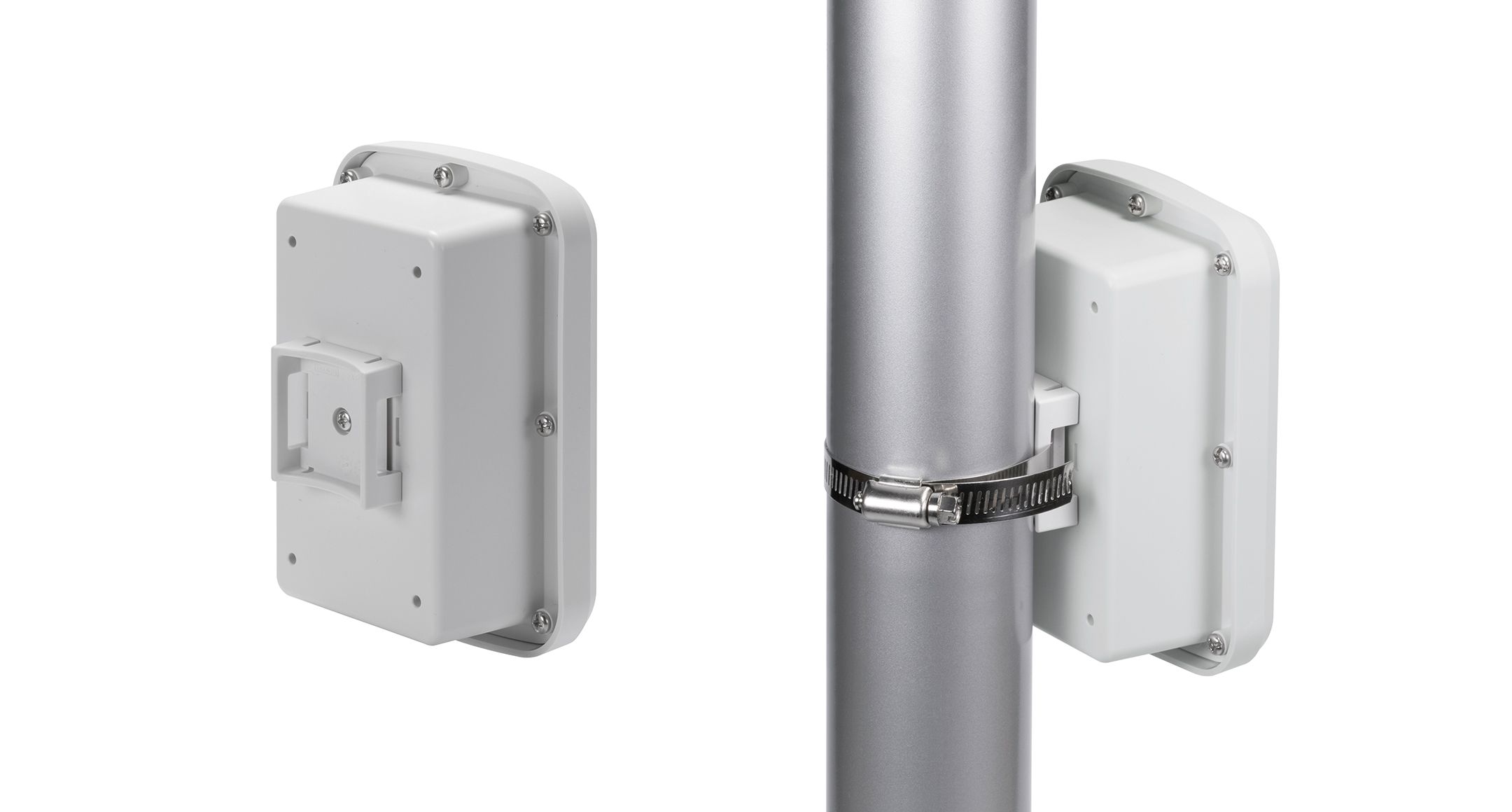

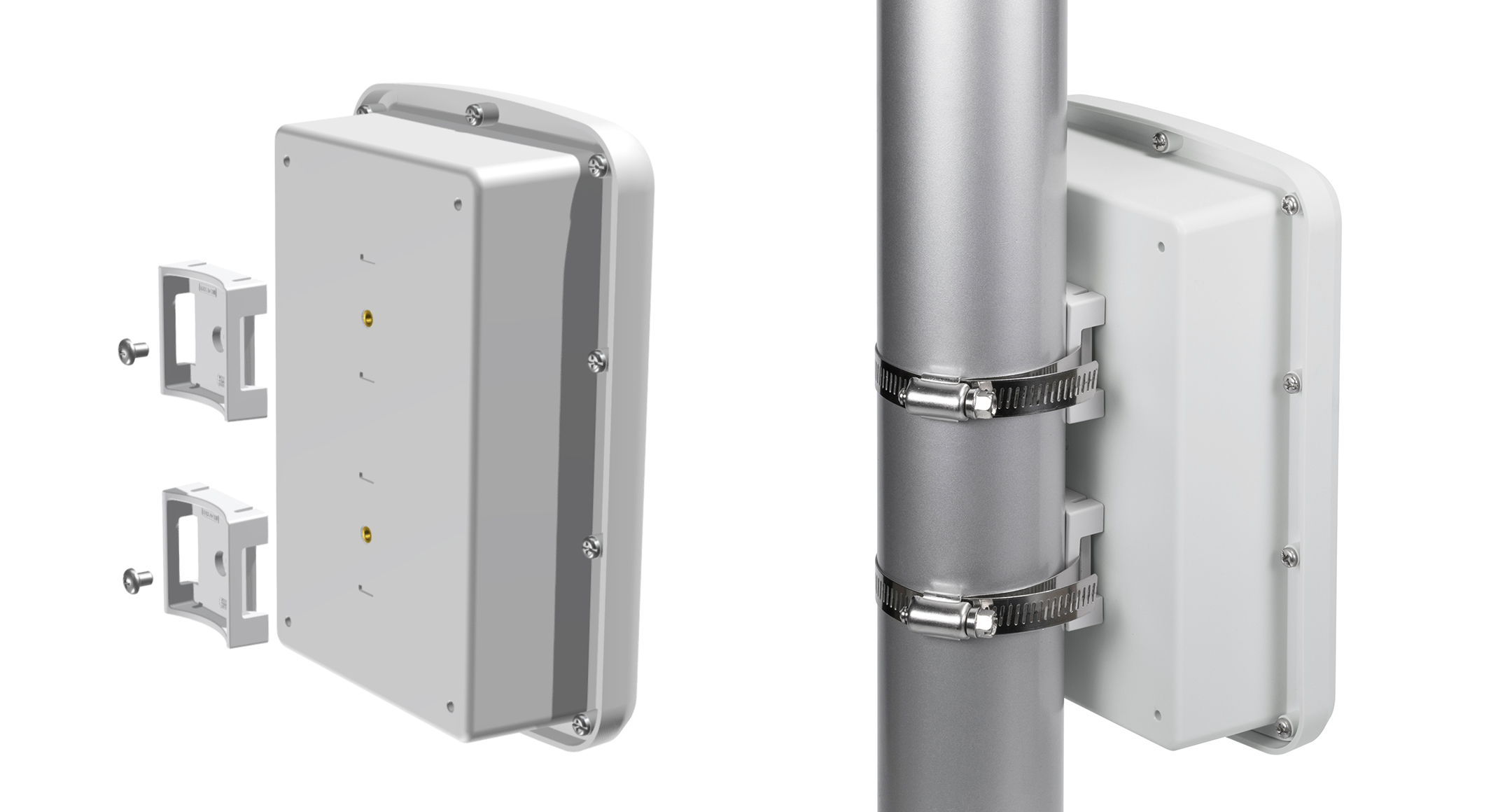

Polemount bracket assembly view 1
Polemount bracket assembly view 2
PRODUCT NO. / DIMENSIONS
| Product No. | External dimensions | Internal dimensions | Weight (g) | DXF | DWG | STP | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| W | D | H | w | d | h | ||||||
| WGPC10-15-6G | 100 | 150 | 55 | 63 | 115 | 43 | 188.5 | DXF | DWG | ||
| WGPC10-15-8G | 100 | 150 | 75 | 62 | 114 | 63 | 213.5 | DXF | DWG | ||
| WGPC15-16-6G | 145 | 155 | 55 | 107 | 120 | 43 | 258 | DXF | DWG | ||
| WGPC15-16-8G | 145 | 155 | 80 | 105 | 118 | 68 | 296.5 | DXF | DWG | ||
| WGPC15-21-6G | 145 | 210 | 60 | 107 | 174 | 48 | 349.5 | DXF | DWG | ||
| WGPC15-21-9G | 145 | 210 | 90 | 105 | 172 | 78 | 408.5 | DXF | DWG | ||
| WGPC17-25-8G | 170 | 250 | 80 | 128 | 209 | 67.5 | 523 | DXF | DWG | ||
| WGPC17-25-11G | 170 | 250 | 110 | 125 | 206 | 97.5 | 594 | DXF | DWG | ||
| WGPC23-25-8G | 225 | 245 | 80 | 183 | 194 | 67.5 | 634 | DXF | DWG | ||
| WGPC23-25-11G | 225 | 245 | 110 | 180 | 191 | 97.5 | 717.5 | DXF | DWG | ||
| WGPC25-33-9G | 245 | 325 | 90 | 192 | 268 | 74 | 1073.5 | DXF | DWG | ||
| WGPC25-33-12G | 245 | 325 | 120 | 189 | 265 | 104 | 1193.5 | DXF | DWG | ||
| WGPC30-33-9G | 300 | 325 | 90 | 247 | 268 | 74 | 1280 | DXF | DWG | ||
| WGPC30-33-13G | 300 | 325 | 130 | 243 | 264 | 114 | 1430 | DXF | DWG | ||
| WGPC28-40-10G | 280 | 400 | 100 | 226 | 338 | 84 | 1482 | DXF | DWG | ||
| WGPC28-40-15G | 280 | 400 | 150 | 220 | 332 | 134 | 1701 | DXF | DWG | ||
SAMPLE REQUEST FORM
This product series is available as a free sample.
