CATEGORY：IP68 waterproof plastic enclosure, Weatherproof enclosure, UV-protect enclosure, Pole mount enclosure, Access point enclosure, IOT gateway enclosure, LoRaWAN enclosure
IP68 high performance plastic enclosure protected from immersion as long as 24 hours at 1m depth.
ASA material is resistant to deterioration and discoloration from ultraviolet rays.

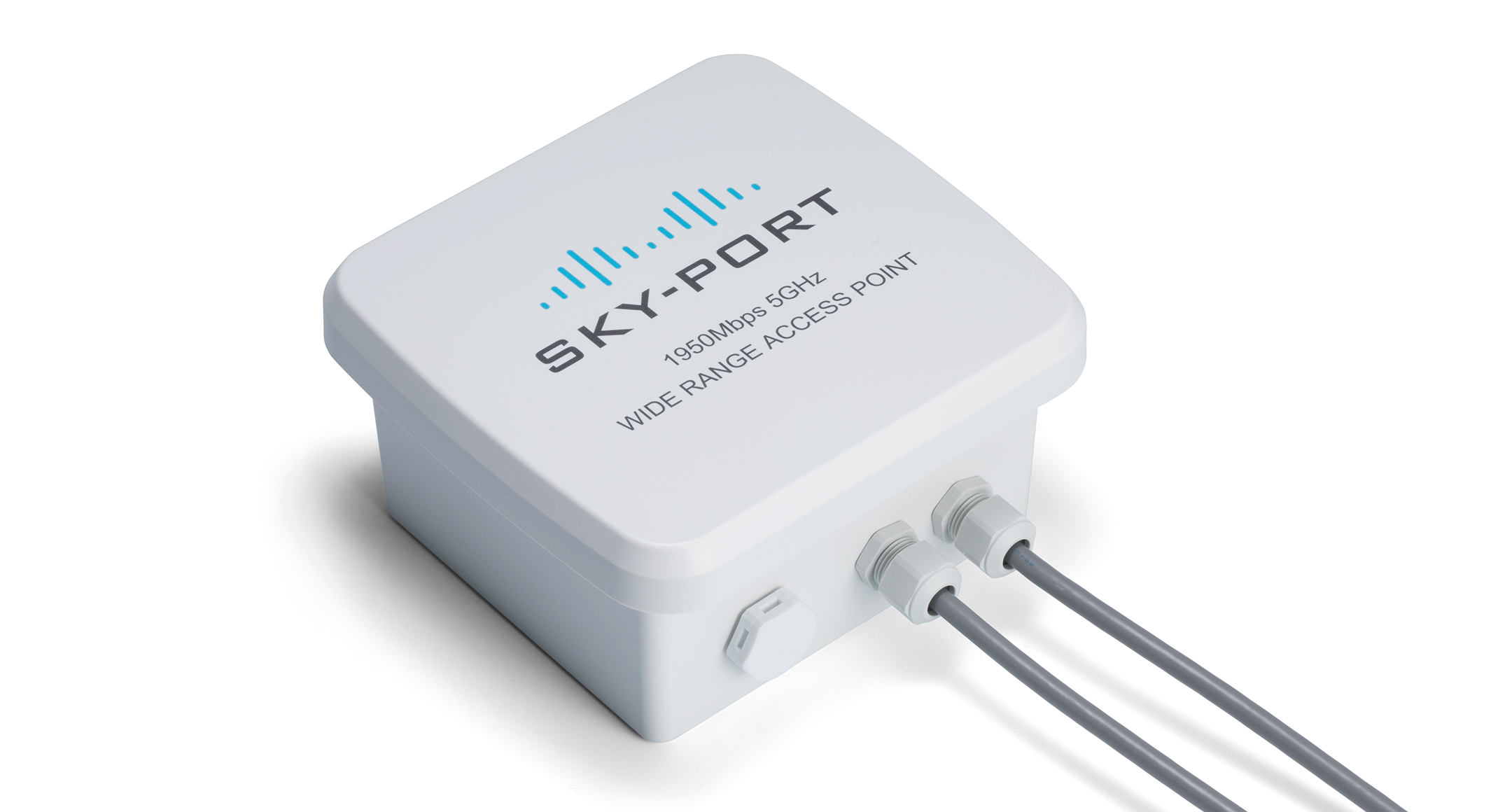

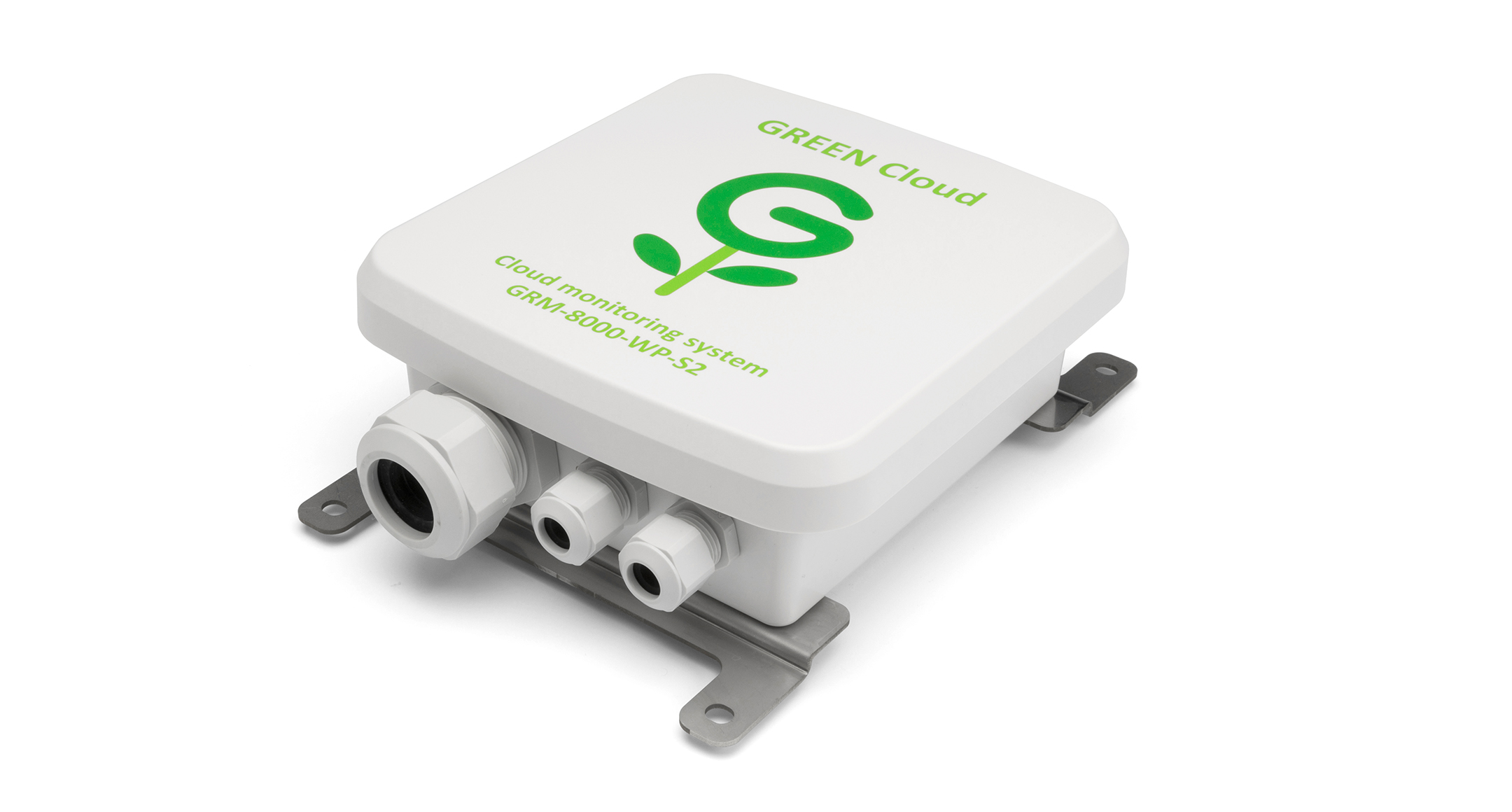

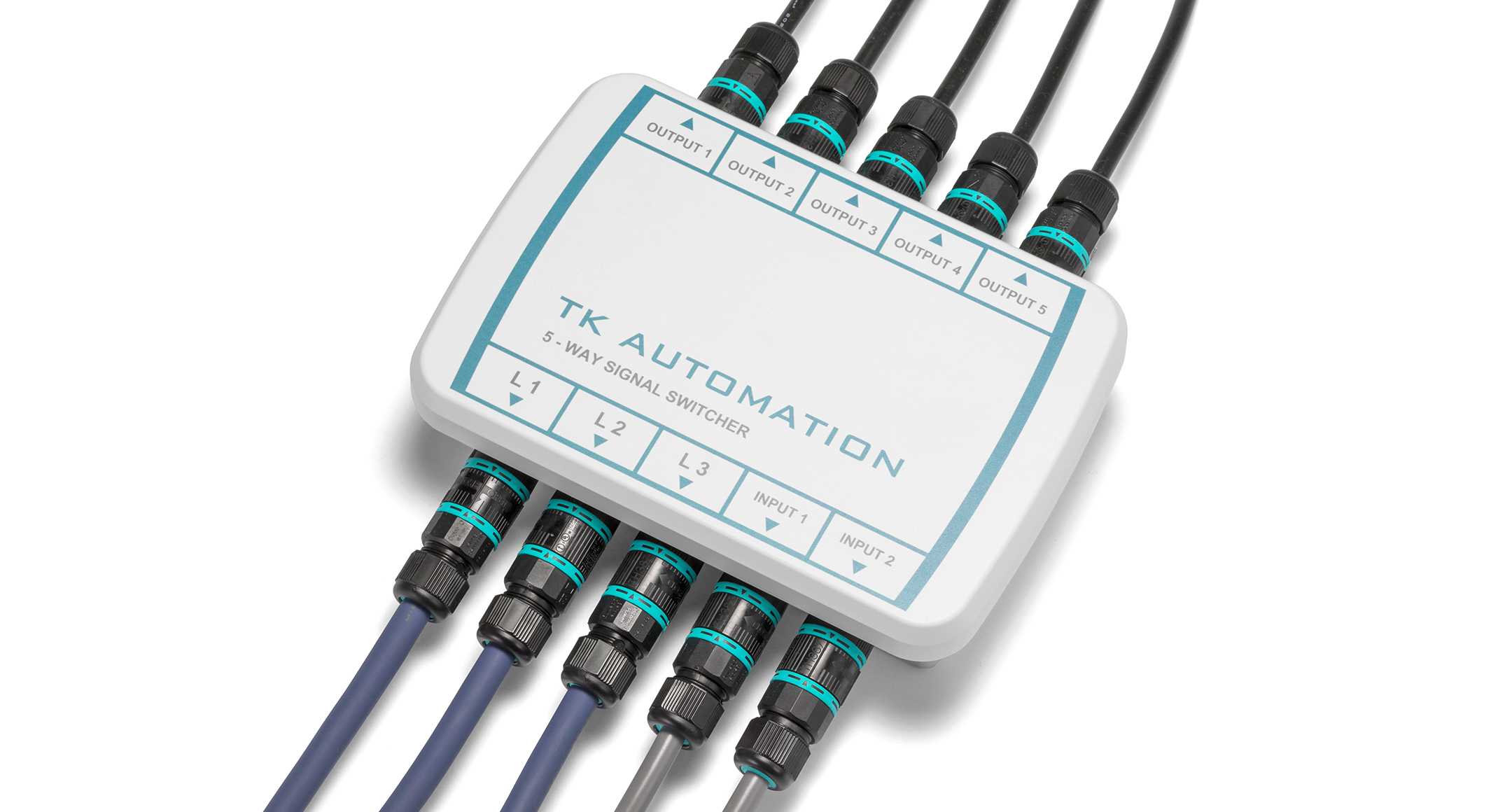

Perfect for use as outdoor communication or network devices
With a silicone waterproof gasket, and supported by multiple enclosing screws from the rear side, it allows the enclosure to maintain a stable high waterproofing capability.
Self-tapping captive screws which are able to lock into a pre-drilled hole and provide a secure and hold for fastening the top-cover.
Please drive the self-tapping captive screws for cutting a thread into the holes at first so that securing the cover and body together properly.

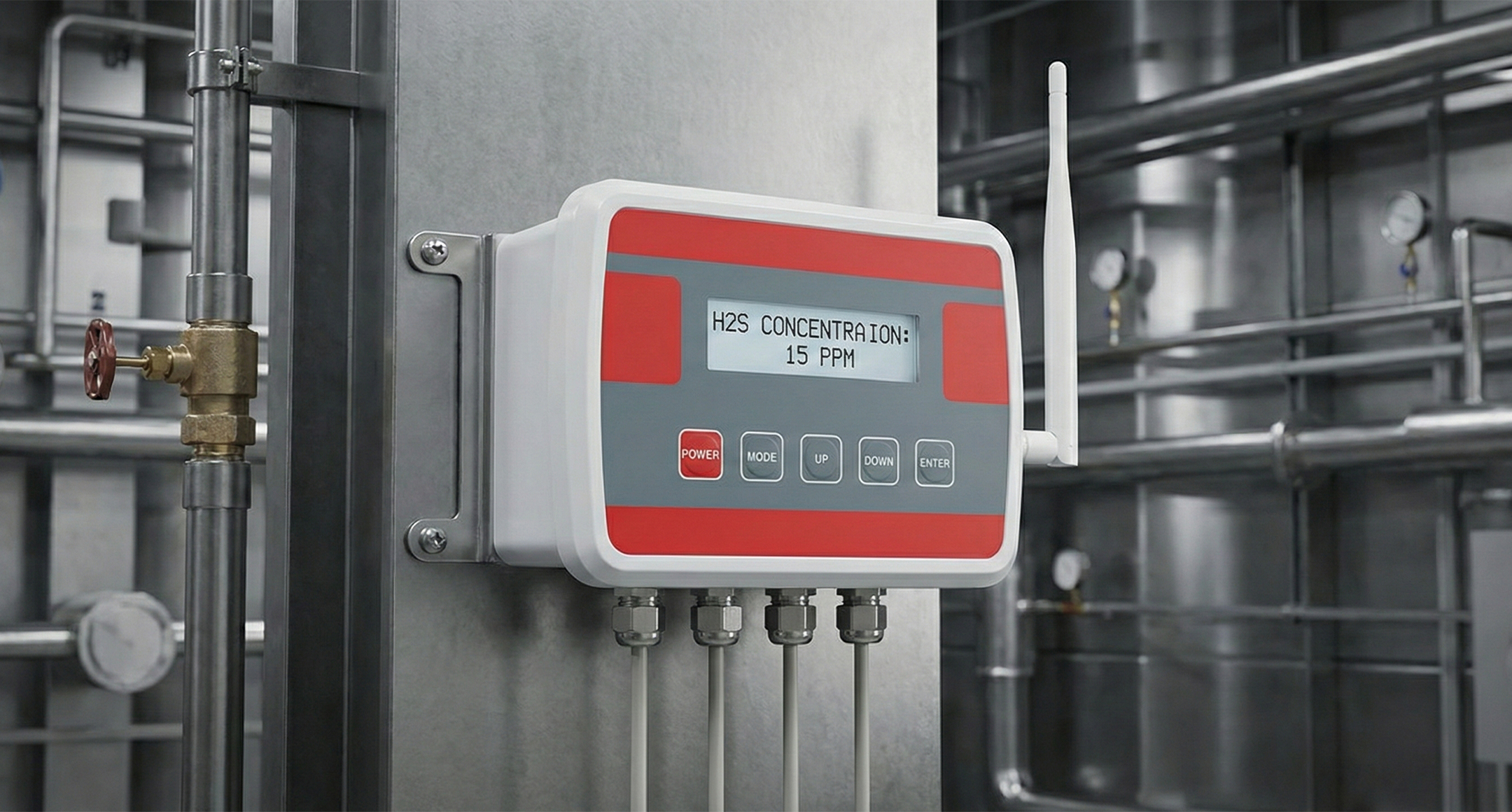

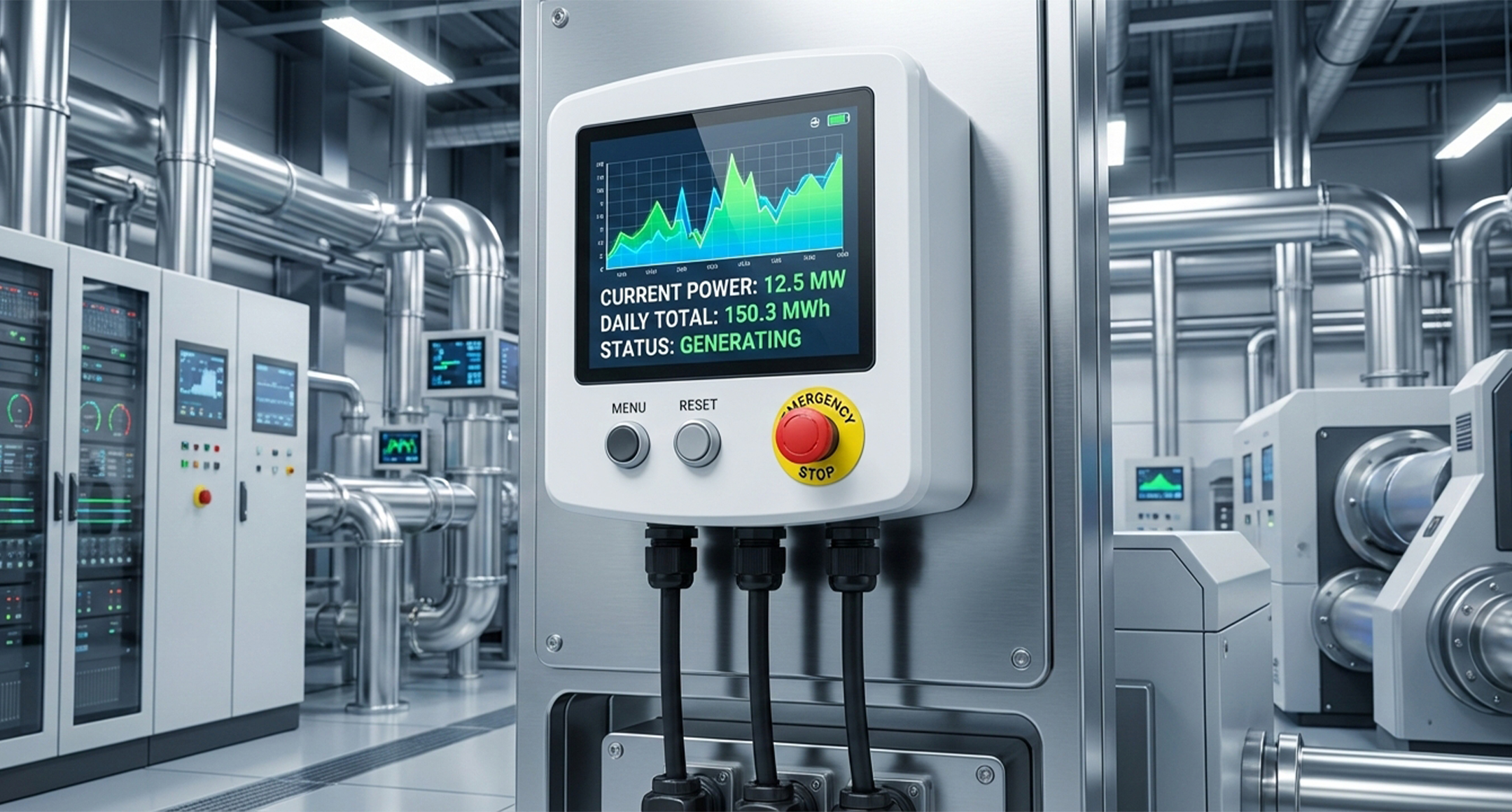

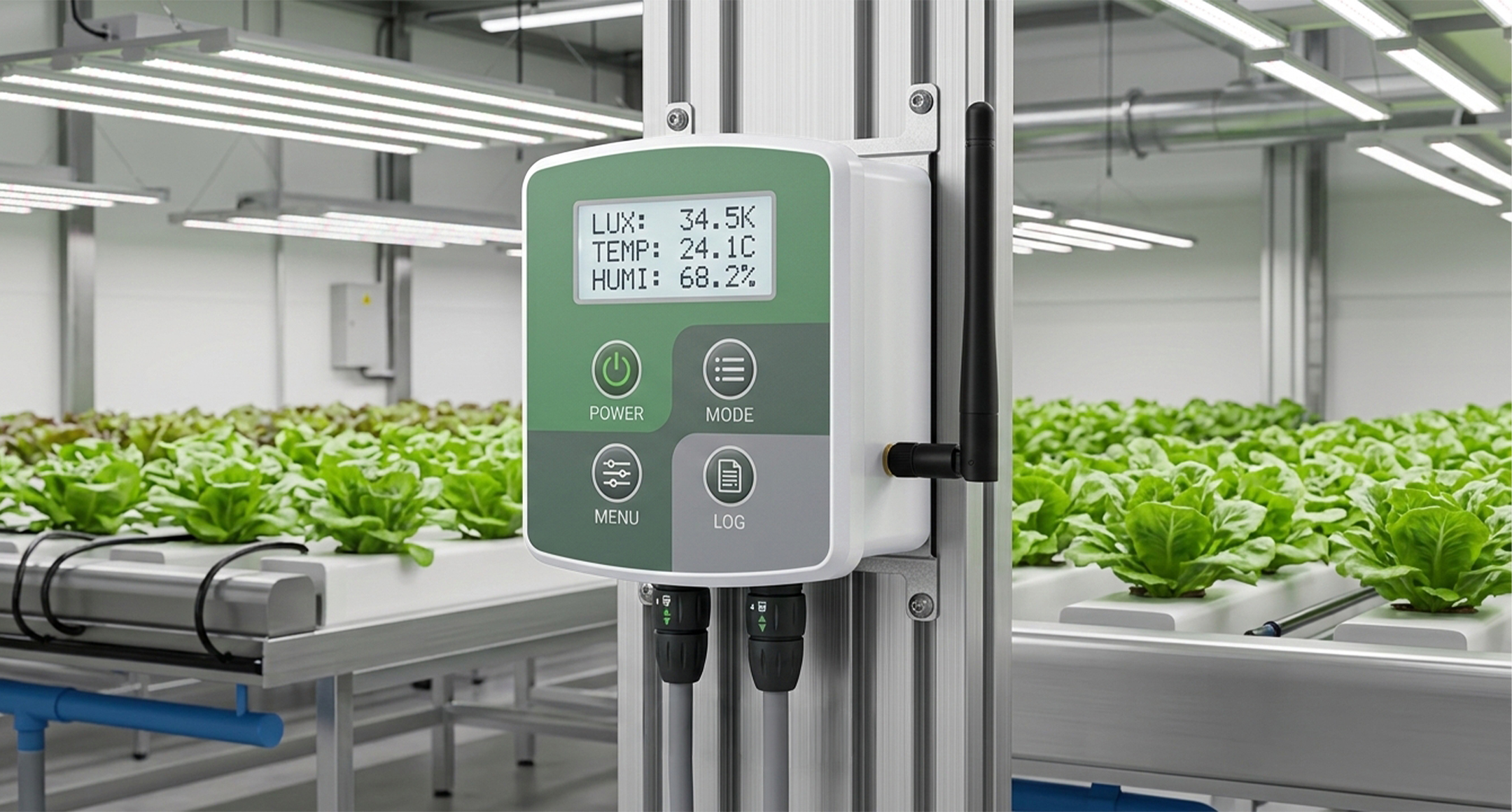

By using the optional mounting accessories, it can be installed on walls and poles with ease.

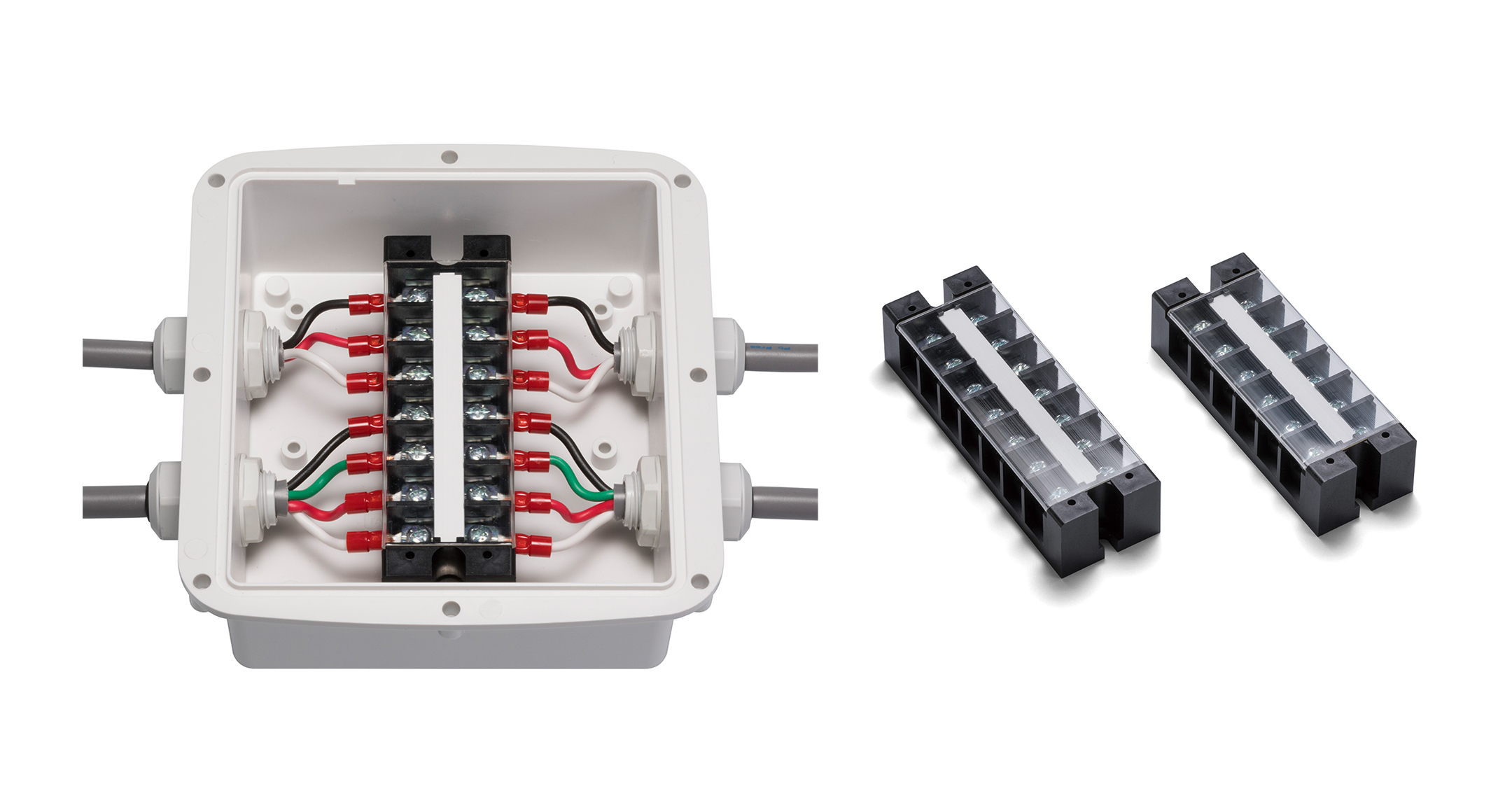

Optional terminal blocks, WTB series can be installed onto the existing bosses inside the WG series box without additional processing or customization, hence can also function as a terminal junction box.
Protection class : IP68 (24 hours / 1m depth)
Operating temperature : -30°C ~ +60°C
Material：UV-resistant ASA UL94HB
Color : Off white / similar to Munsell N8.75
ASA material is resistant to deterioration and discoloration from ultraviolet rays.
Perfect for use as outdoor communication or network devices
With a silicone waterproof gasket, and supported by multiple enclosing screws from the rear side, it allows the enclosure to maintain a stable high waterproofing capability.
Self-tapping captive screws which are able to lock into a pre-drilled hole and provide a secure and hold for fastening the top-cover.
Please drive the self-tapping captive screws for cutting a thread into the holes at first so that securing the cover and body together properly.
By using the optional mounting accessories, it can be installed on walls and poles with ease.
Optional terminal blocks, WTB series can be installed onto the existing bosses inside the WG series box without additional processing or customization, hence can also function as a terminal junction box.
Protection class : IP68 (24 hours / 1m depth)
Operating temperature : -30°C ~ +60°C
Material：UV-resistant ASA UL94HB
Color : Off white / similar to Munsell N8.75
3D View - WG10-15-6
3D View - WG10-15-8
3D View - WG15-16-6
3D View - WG15-16-8
3D View - WG15-21-6
3D View - WG15-21-9W
3D View - WG17-25-8
3D View - WG17-25-11
3D View - WG23-25-8
3D View - WG23-25-11
Exploded view
Bracket assembly view

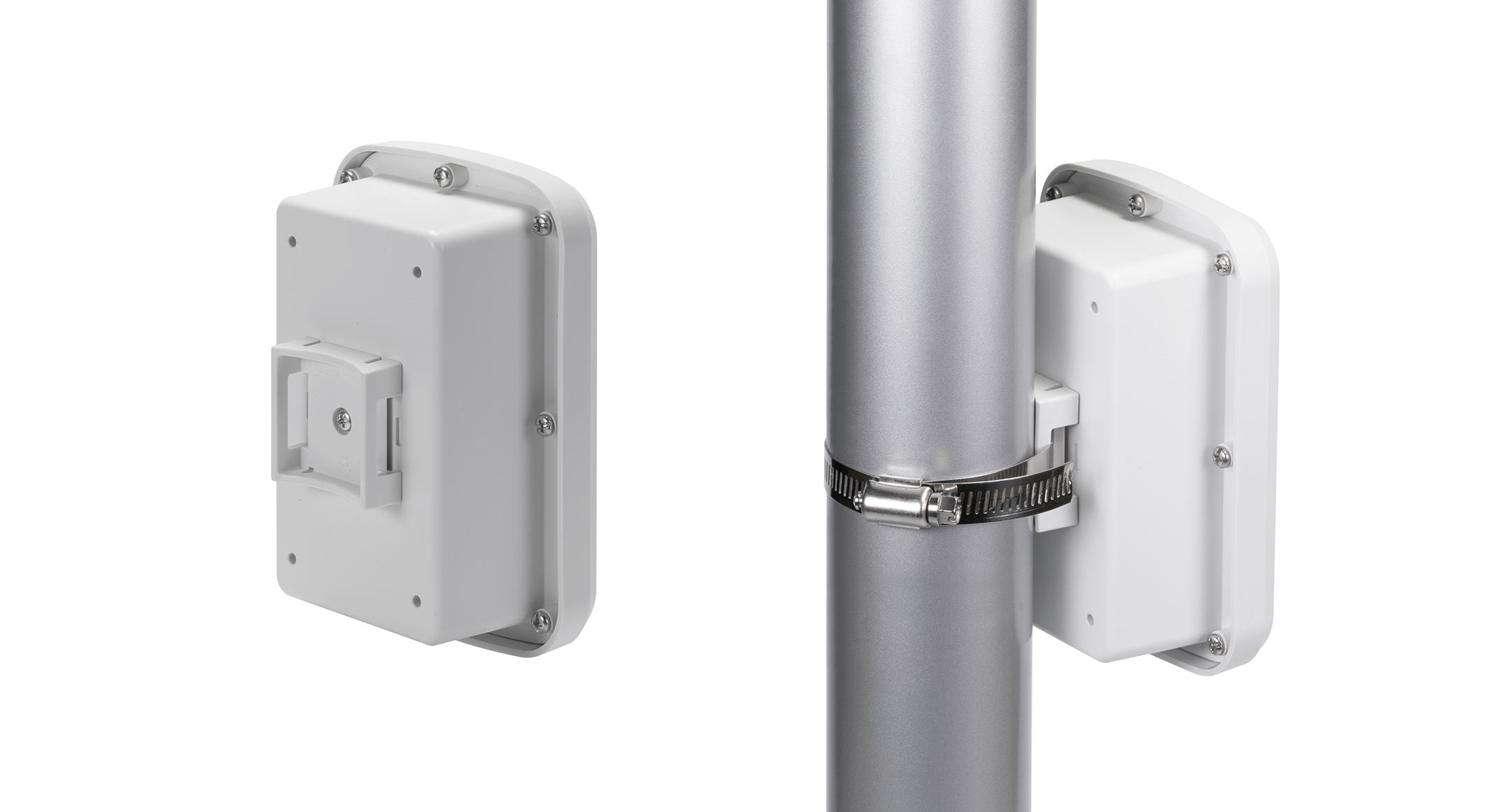

3D View - with Wallmount bracket

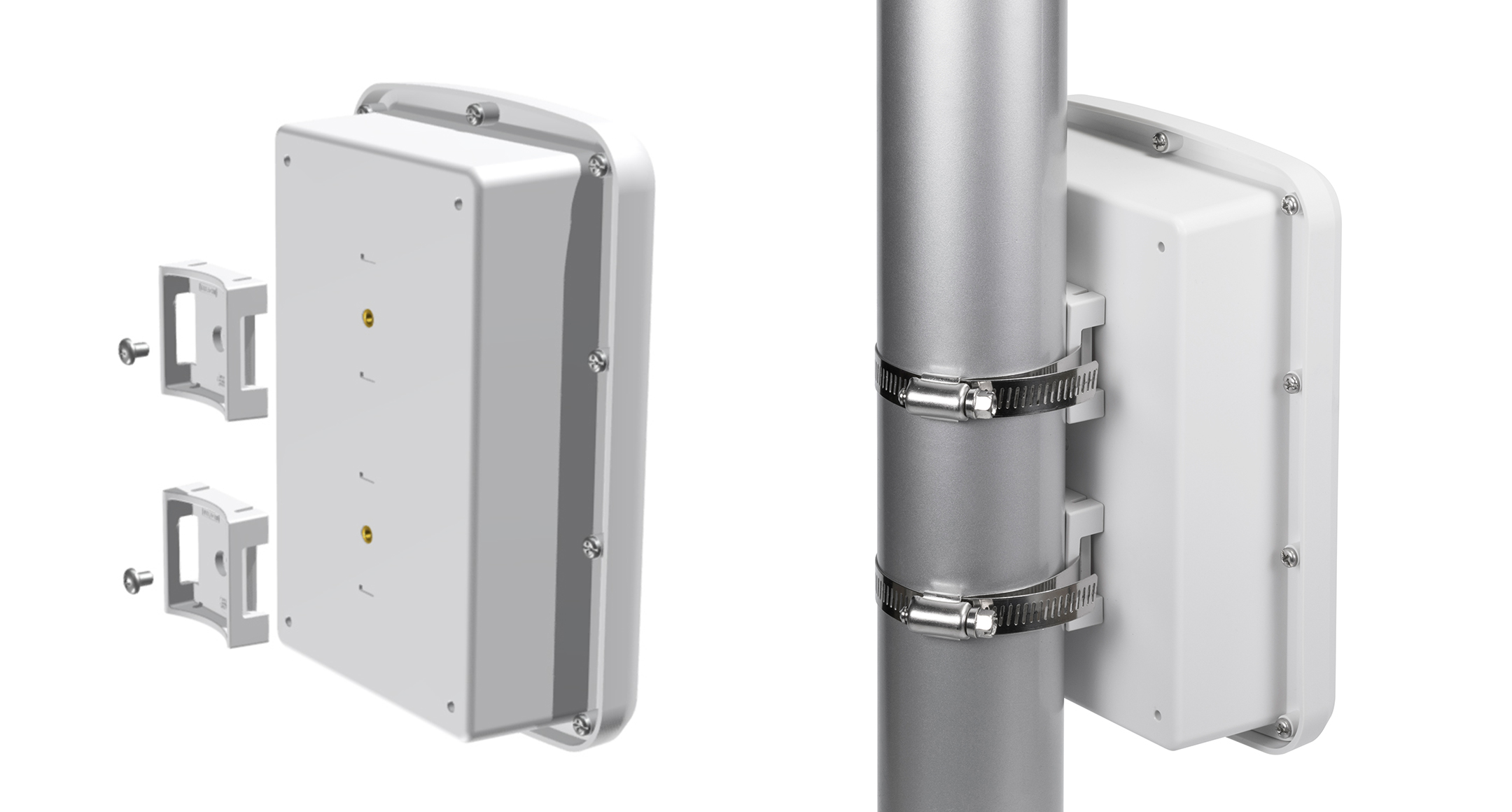

Polemount bracket assembly view
IP68 Test Certificate
PRODUCT NO. / DIMENSIONS
| Product No. | External dimensions | Internal dimensions | Weight (g) | DXF | DWG | STP | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| W | D | H | w | d | h | ||||||
| WG10-15-6W | 100 | 150 | 55 | 63 | 115 | 43 | 169.5 | DXF | DWG | ||
| WG10-15-8W | 100 | 150 | 75 | 62 | 114 | 63 | 192 | DXF | DWG | ||
| WG15-16-6W | 145 | 155 | 55 | 107 | 120 | 43 | 232 | DXF | DWG | ||
| WG15-16-8W | 145 | 155 | 80 | 105 | 118 | 68 | 266.5 | DXF | DWG | ||
| WG15-21-6W | 145 | 210 | 60 | 107 | 174 | 48 | 314 | DXF | DWG | ||
| WG15-21-9W | 145 | 210 | 90 | 105 | 172 | 78 | 367 | DXF | DWG | ||
| WG17-25-8W | 170 | 250 | 80 | 128 | 209 | 67.5 | 470 | DXF | DWG | ||
| WG17-25-11W | 170 | 250 | 110 | 125 | 206 | 97.5 | 534 | DXF | DWG | ||
| WG23-25-8W | 225 | 245 | 80 | 183 | 194 | 67.5 | 570 | DXF | DWG | ||
| WG23-25-11W | 225 | 245 | 110 | 180 | 191 | 97.5 | 645 | DXF | DWG | ||
SAMPLE REQUEST FORM
This product series is available as a free sample.
