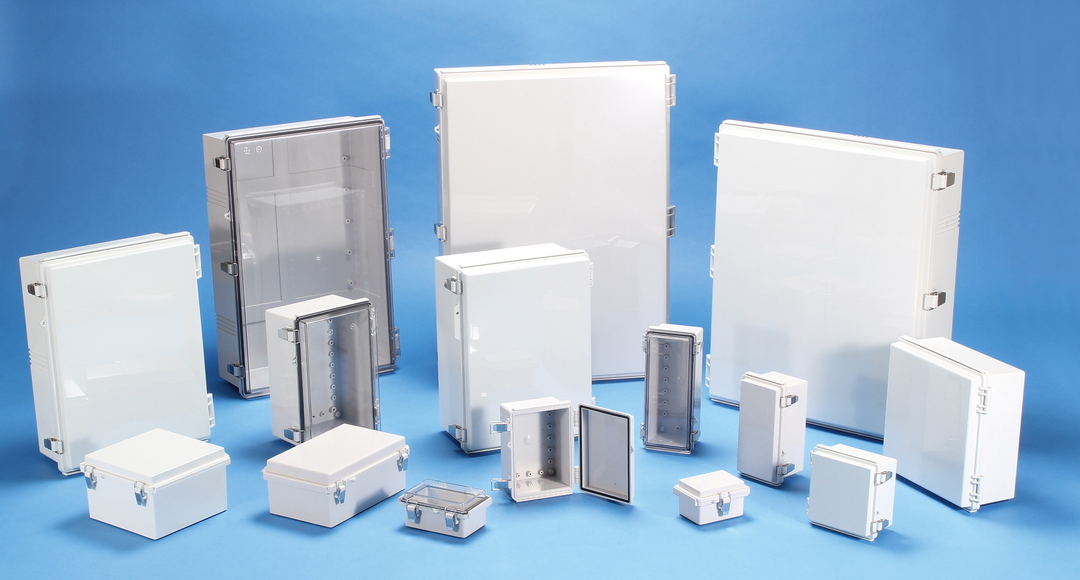

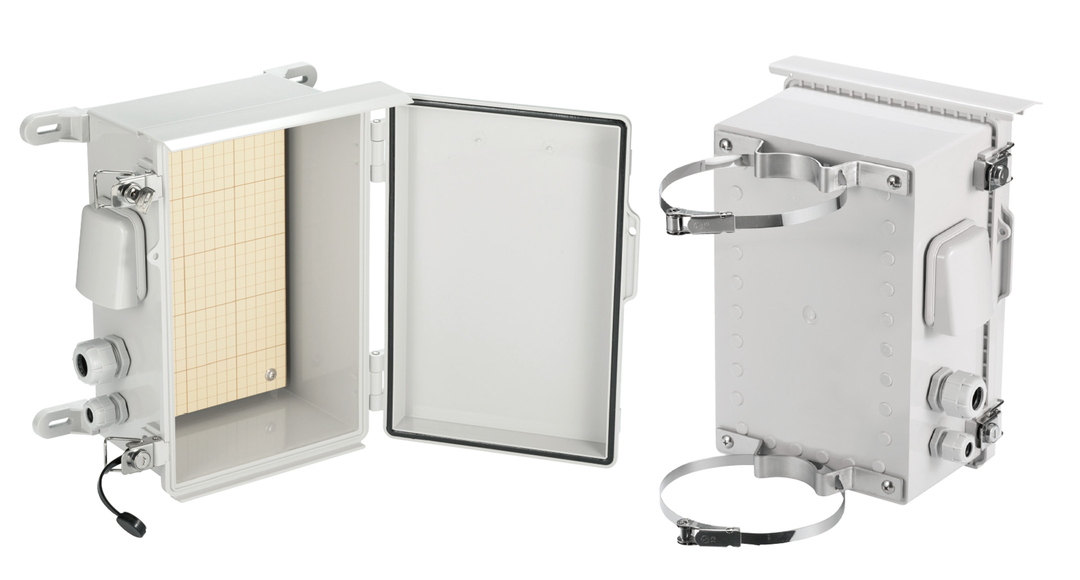

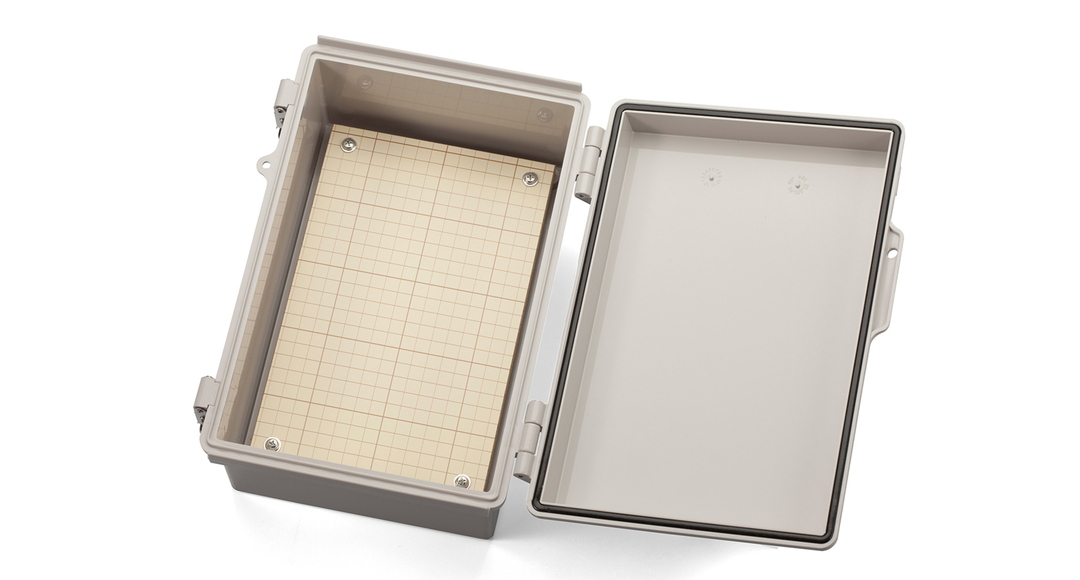

IP65 waterproof ABS plastic enclosure with latch/hinged cover.

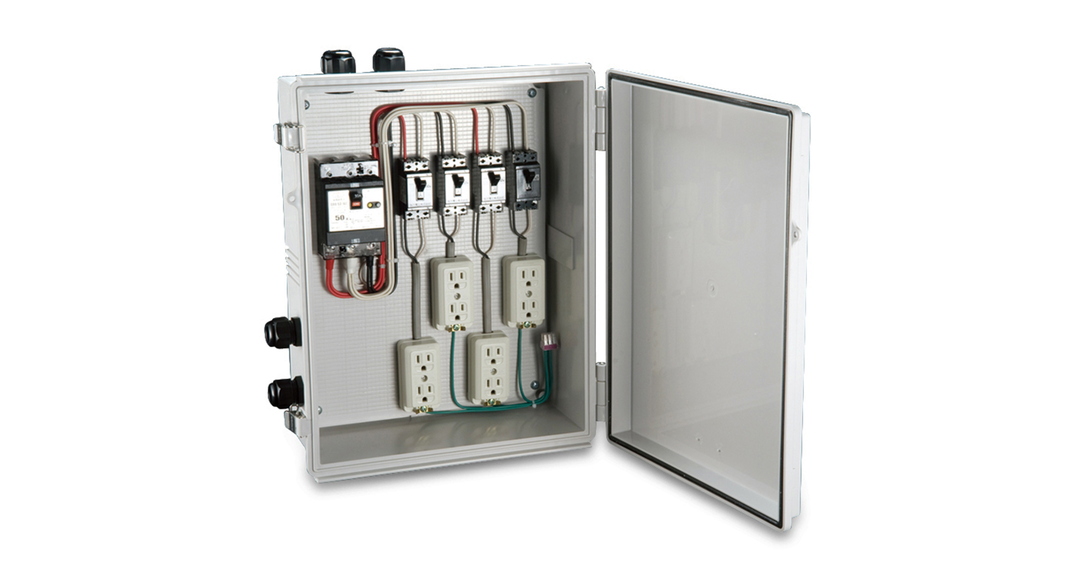

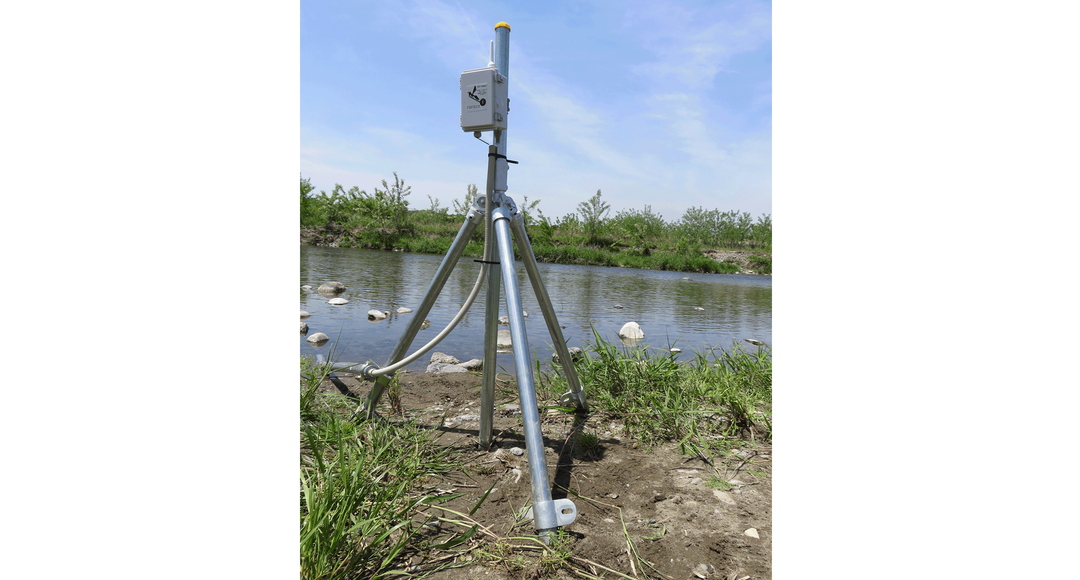

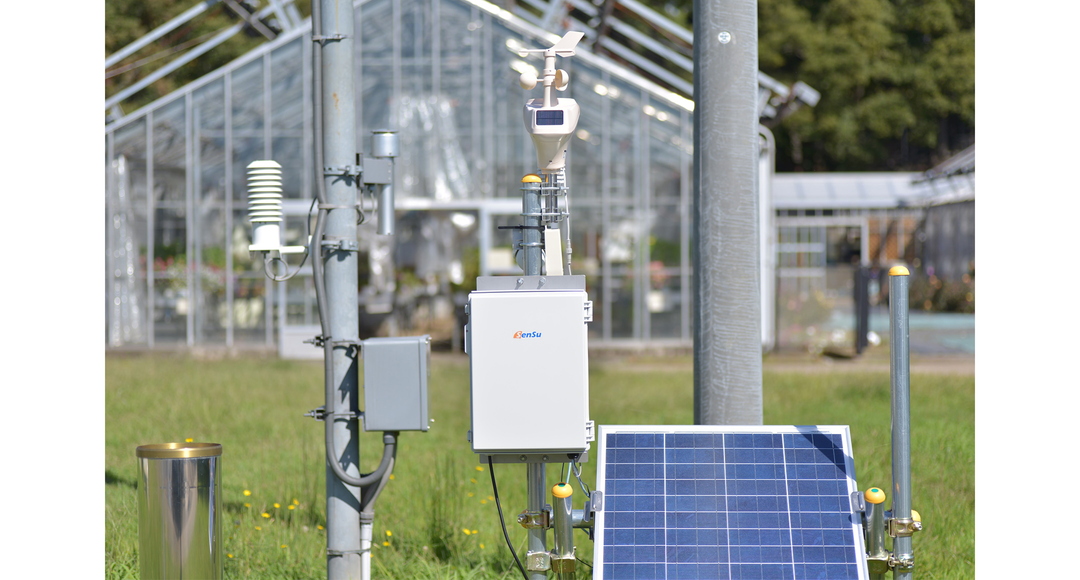

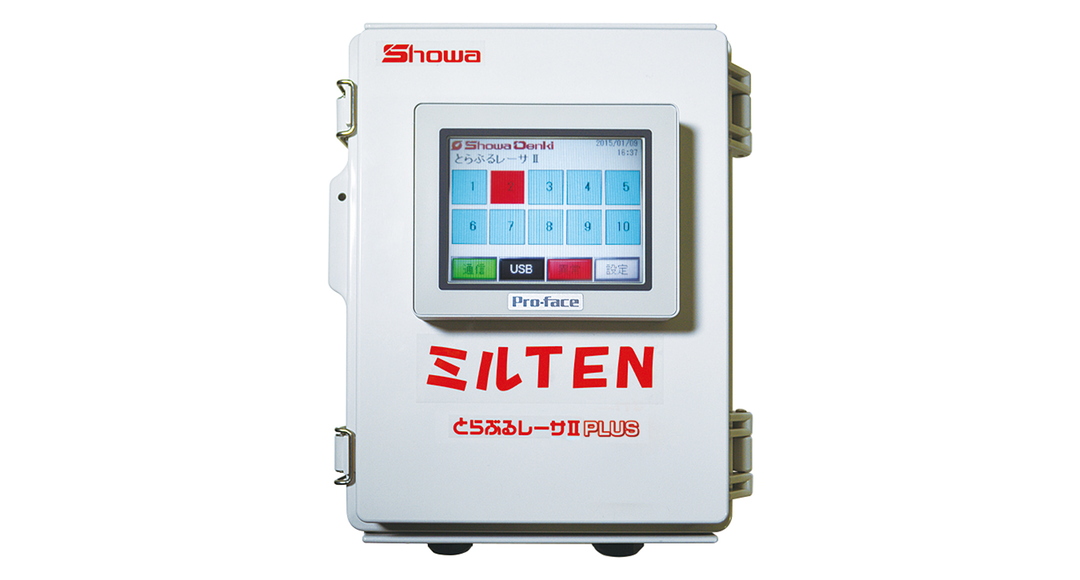

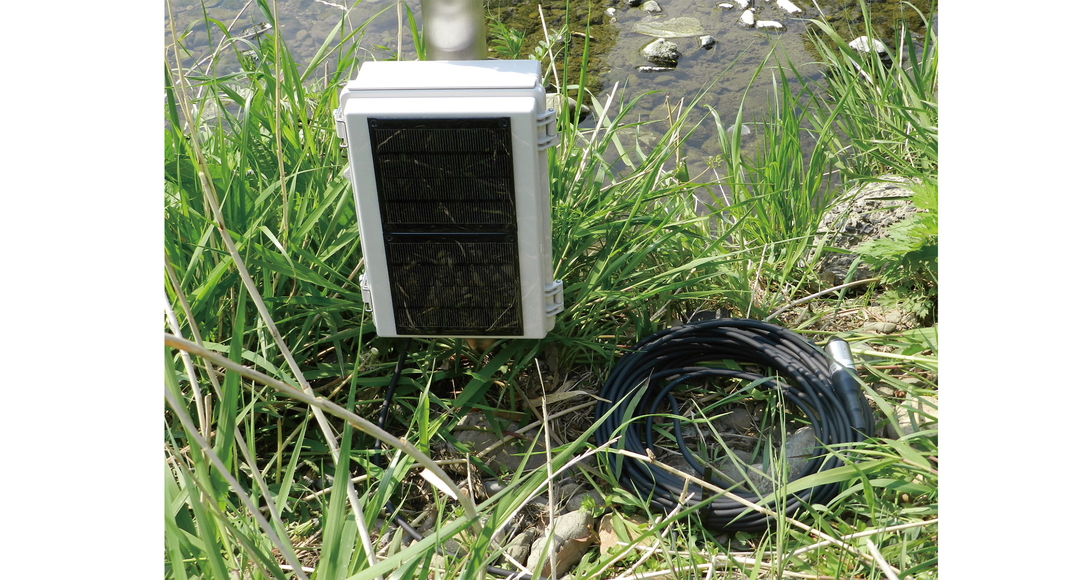

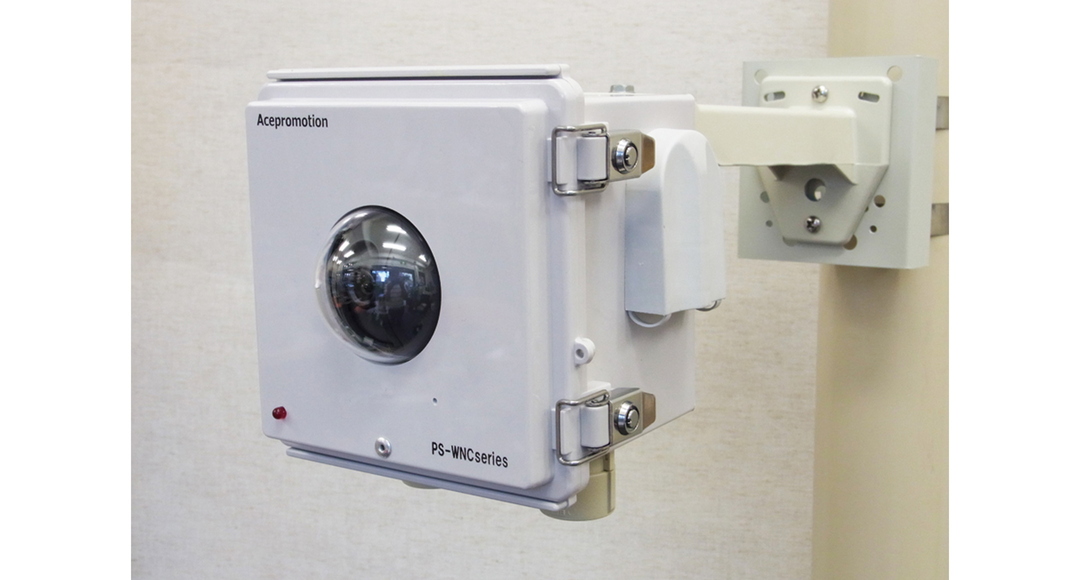

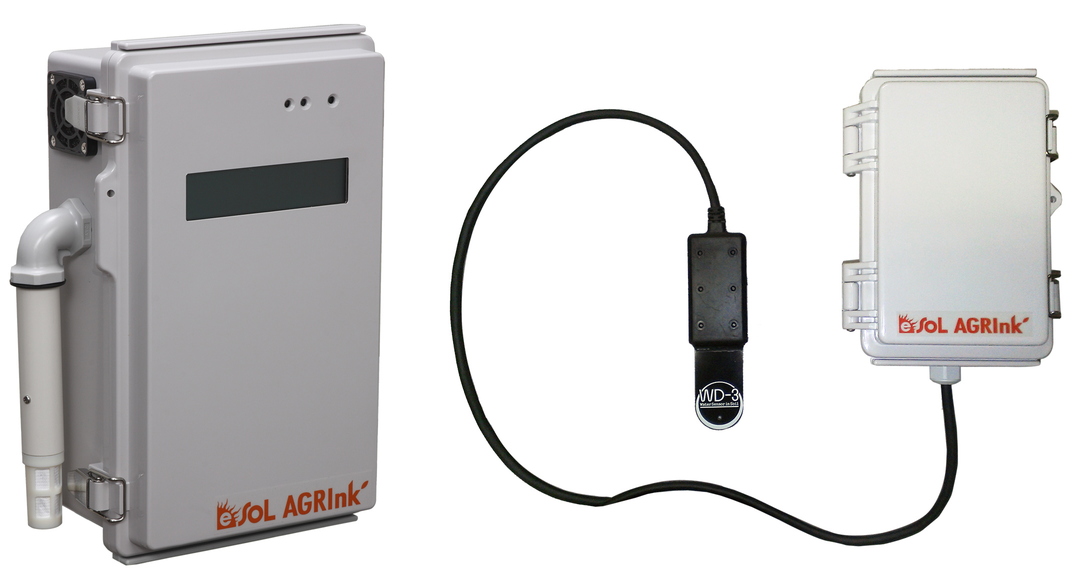

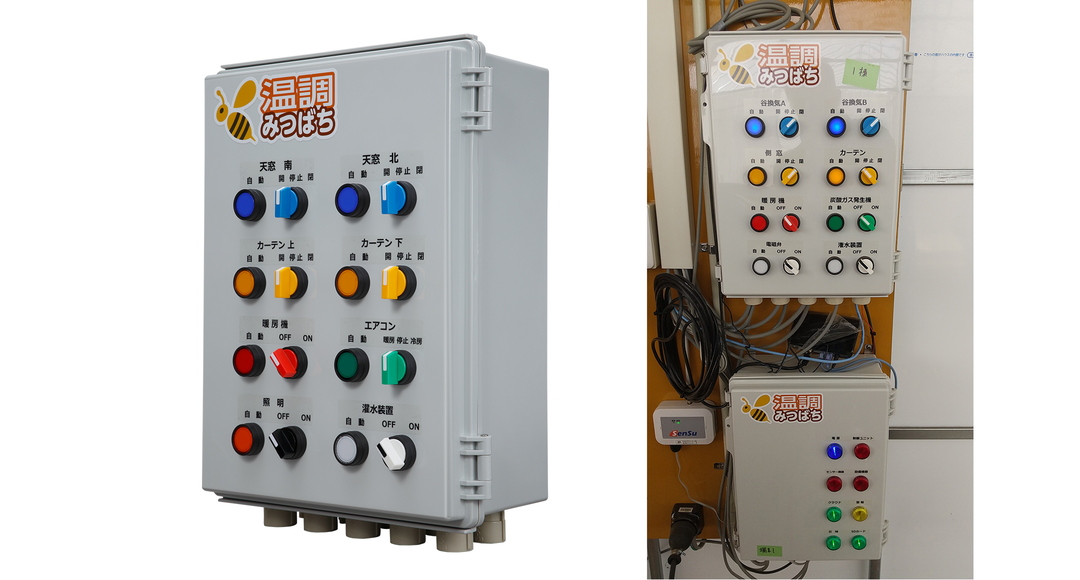

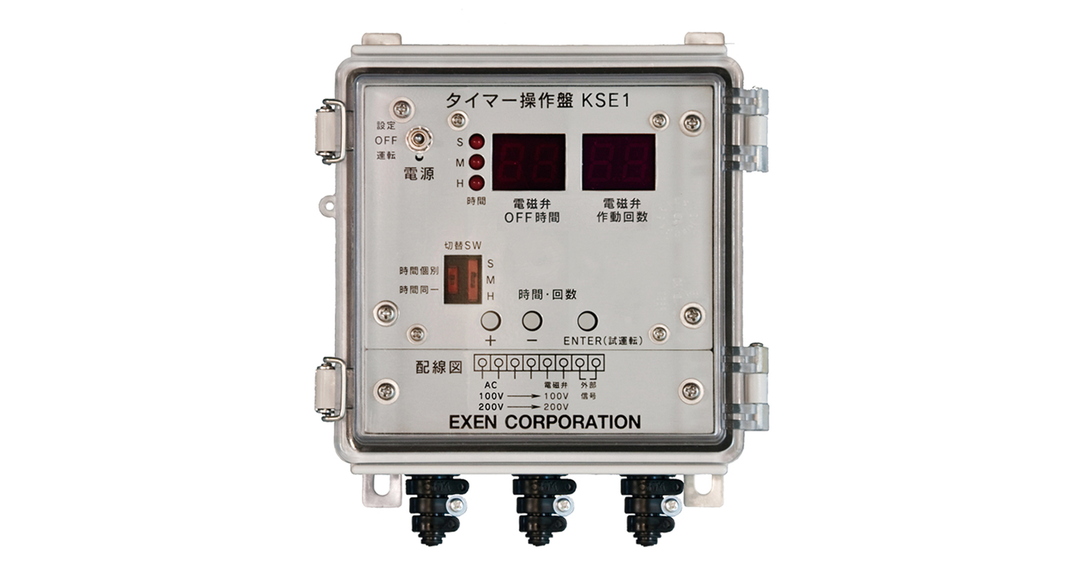

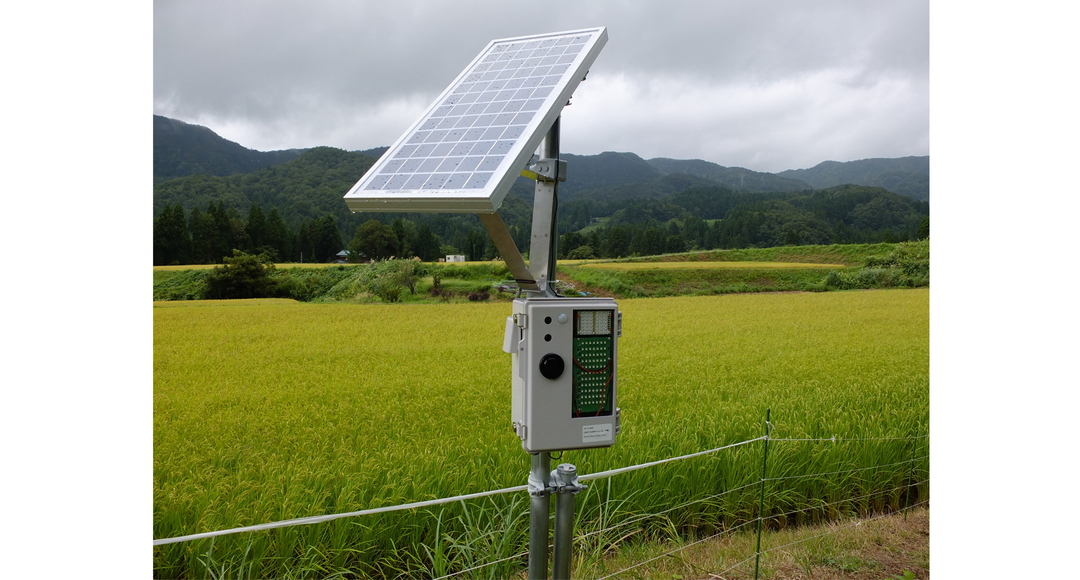

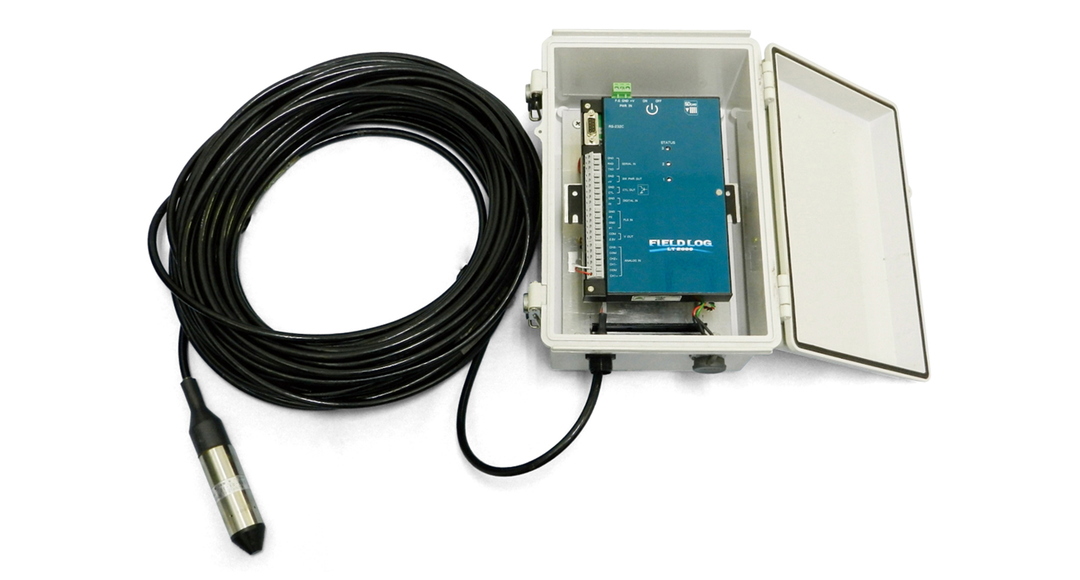

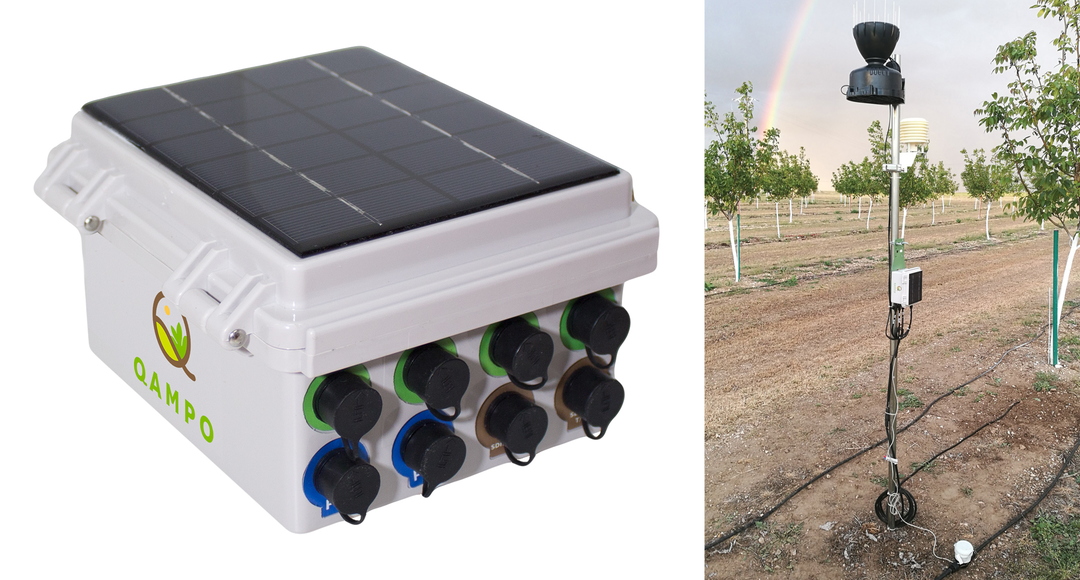

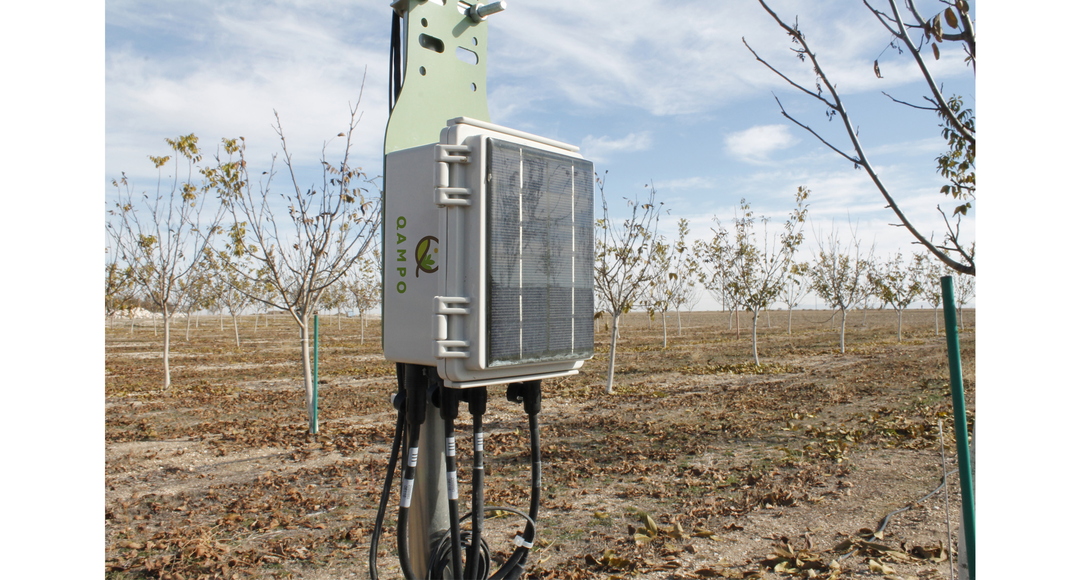

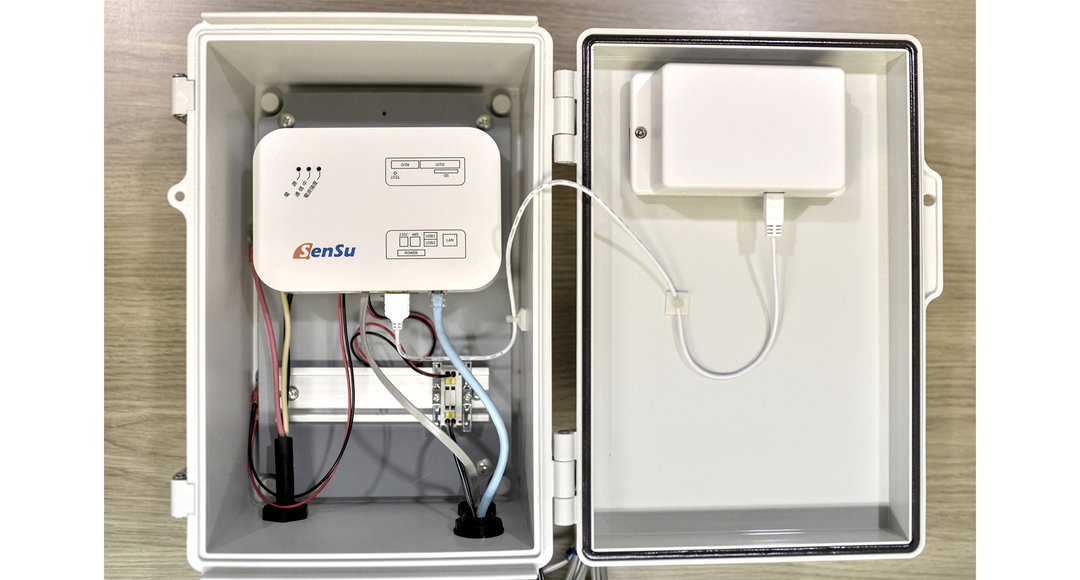

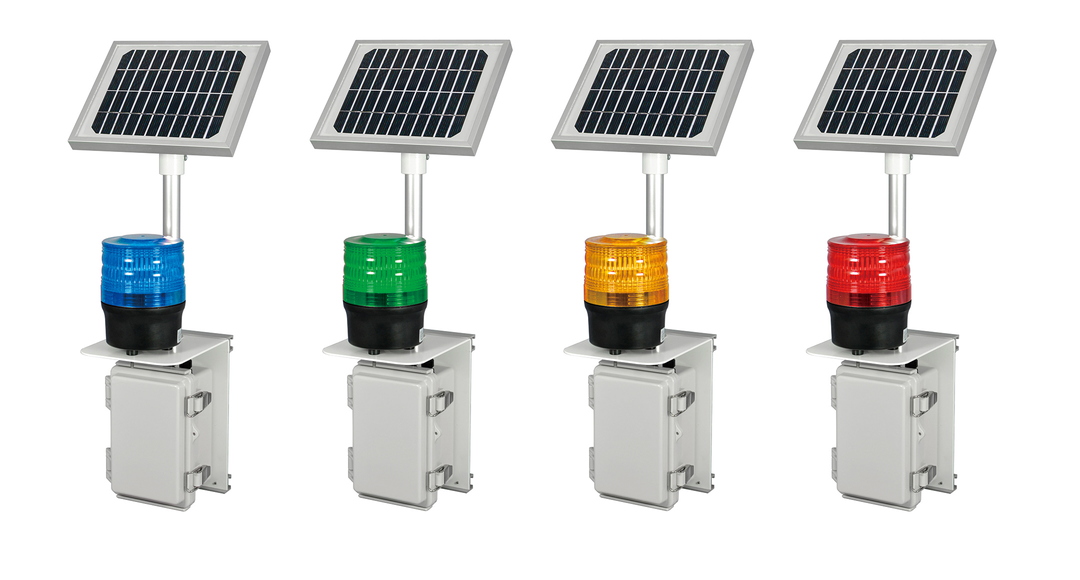

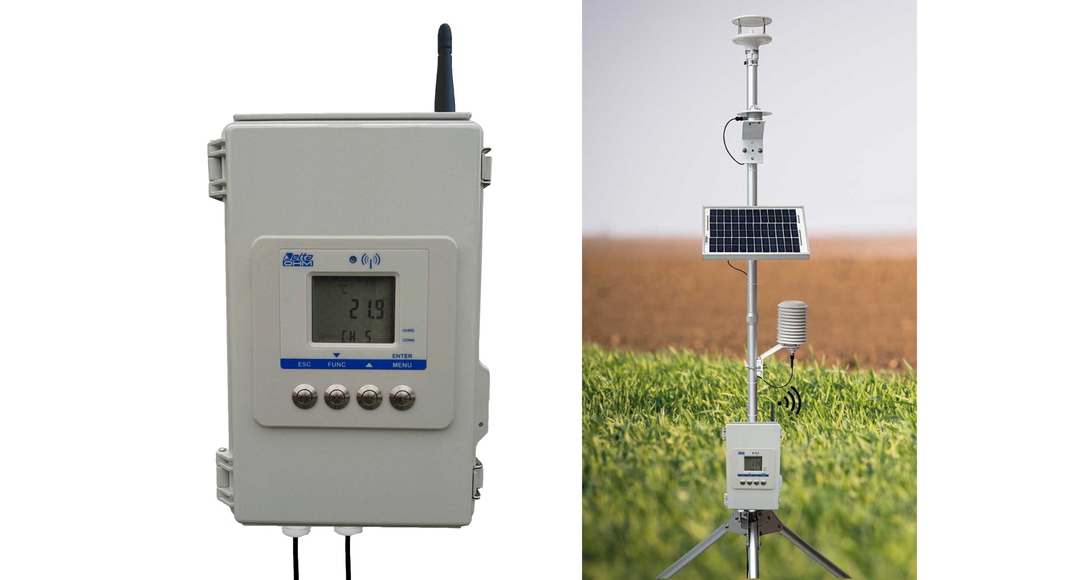

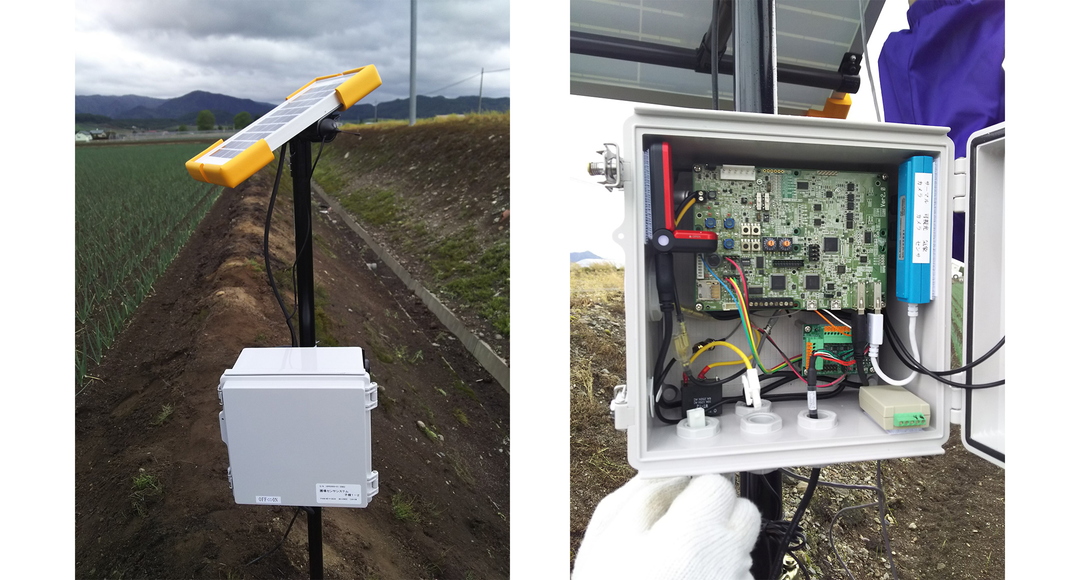

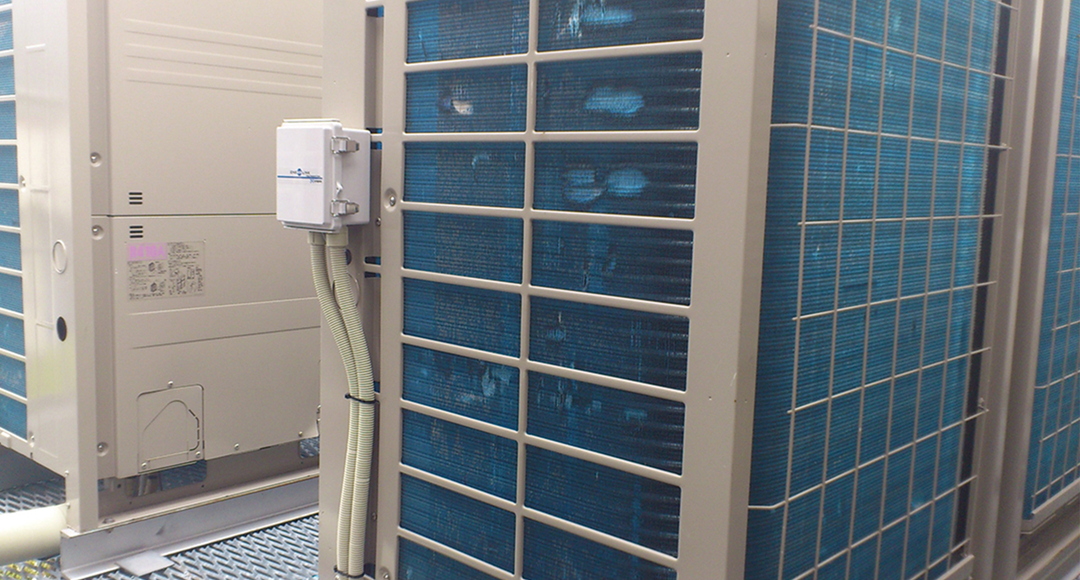

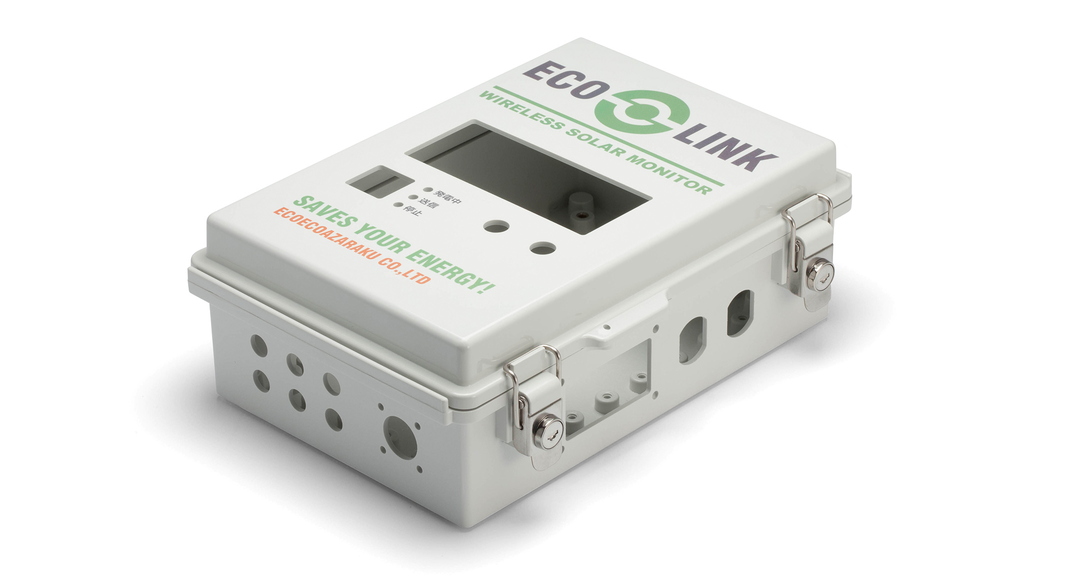

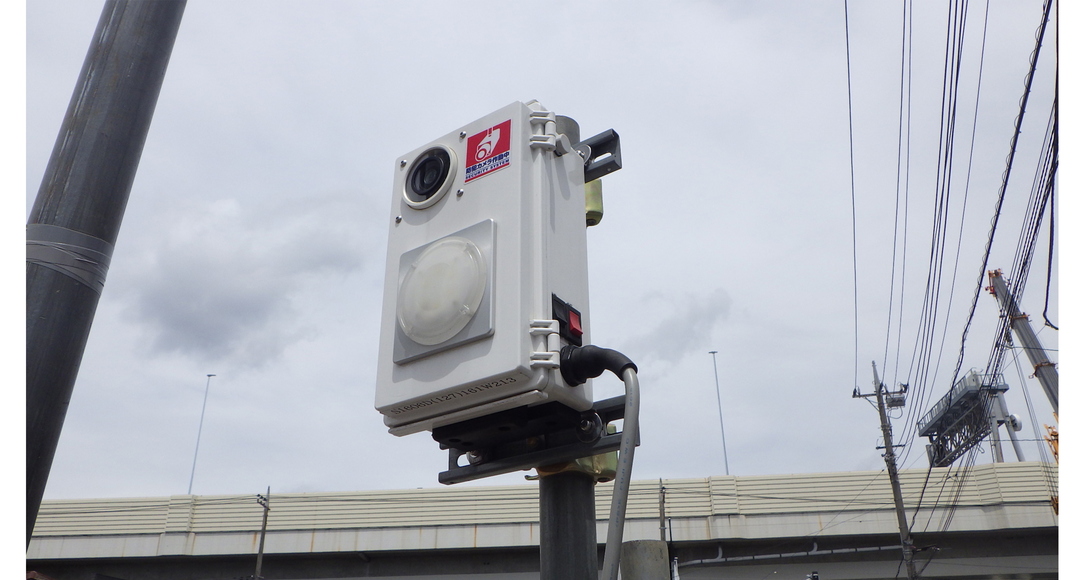

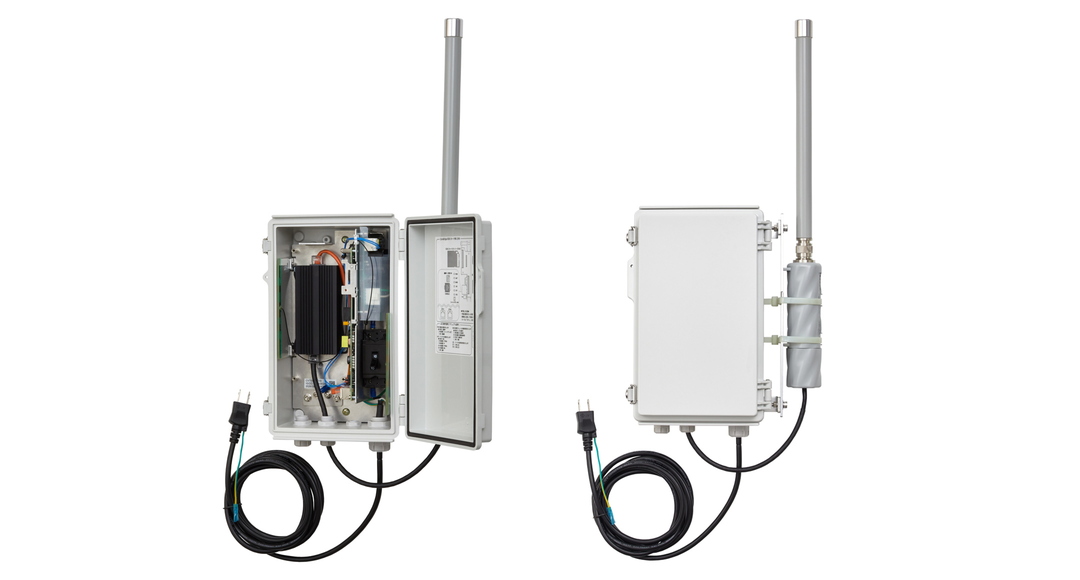

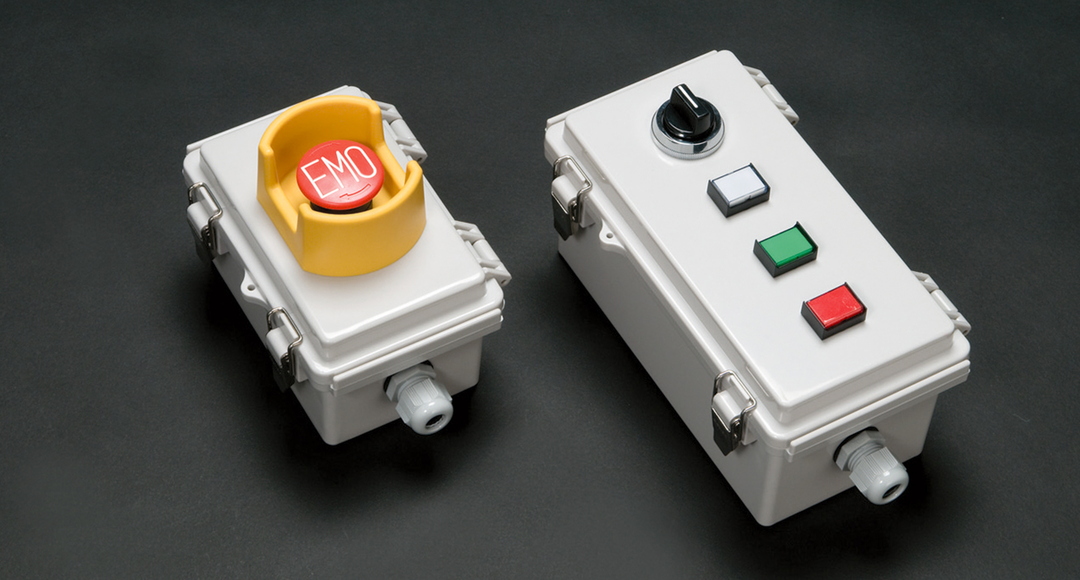

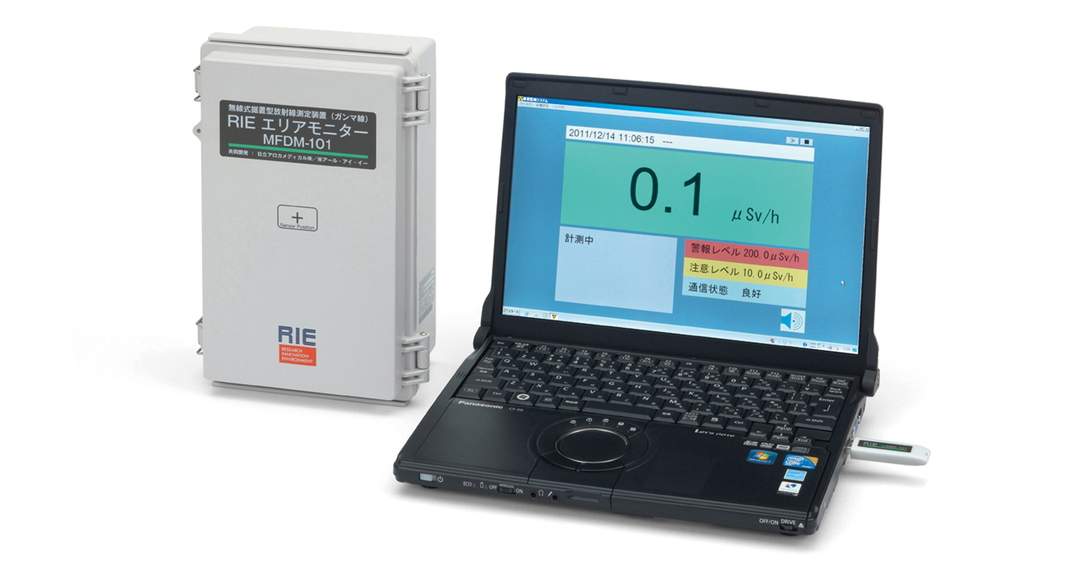

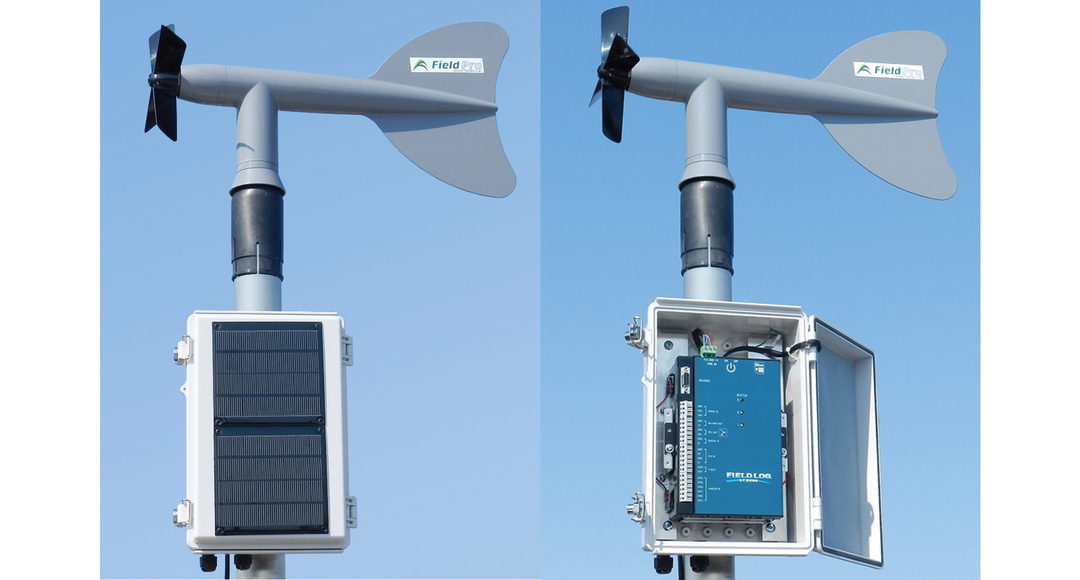

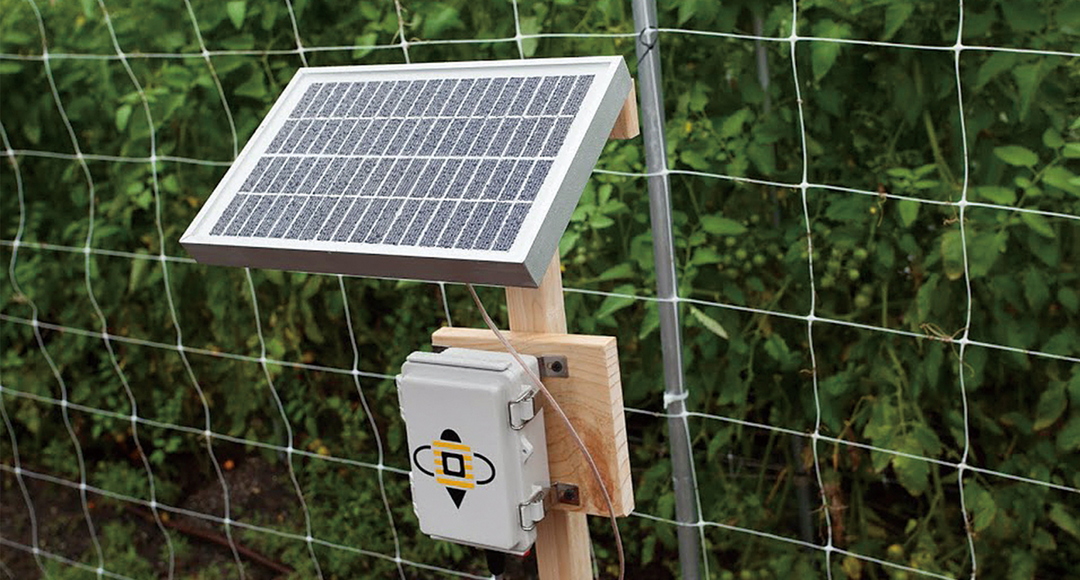

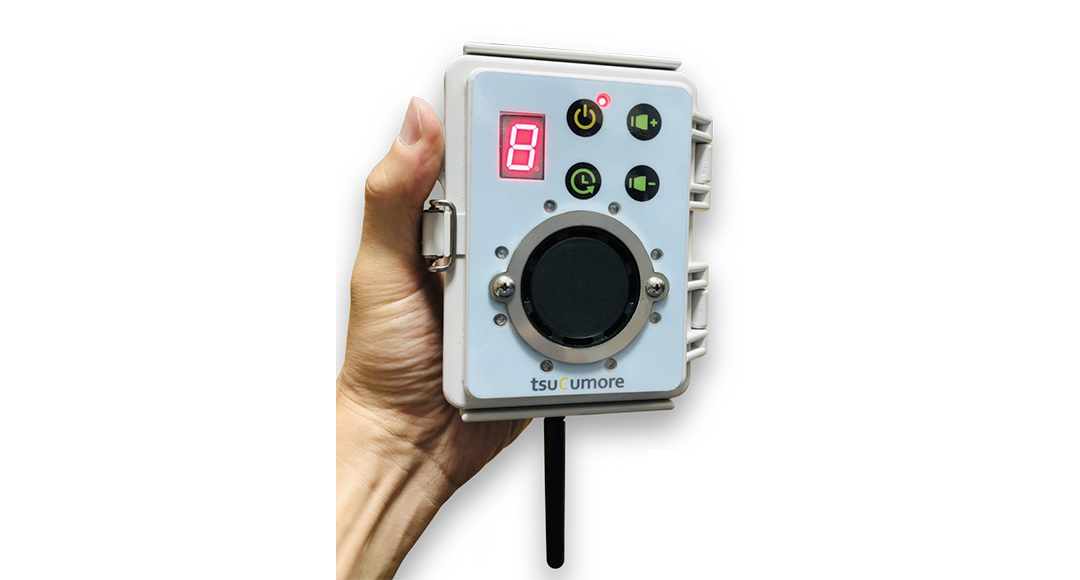

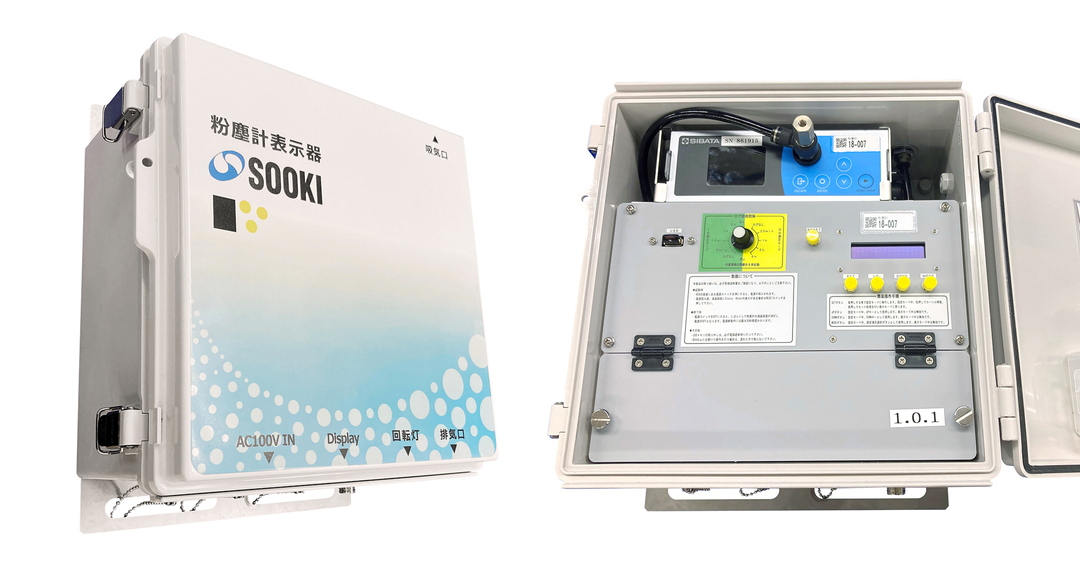

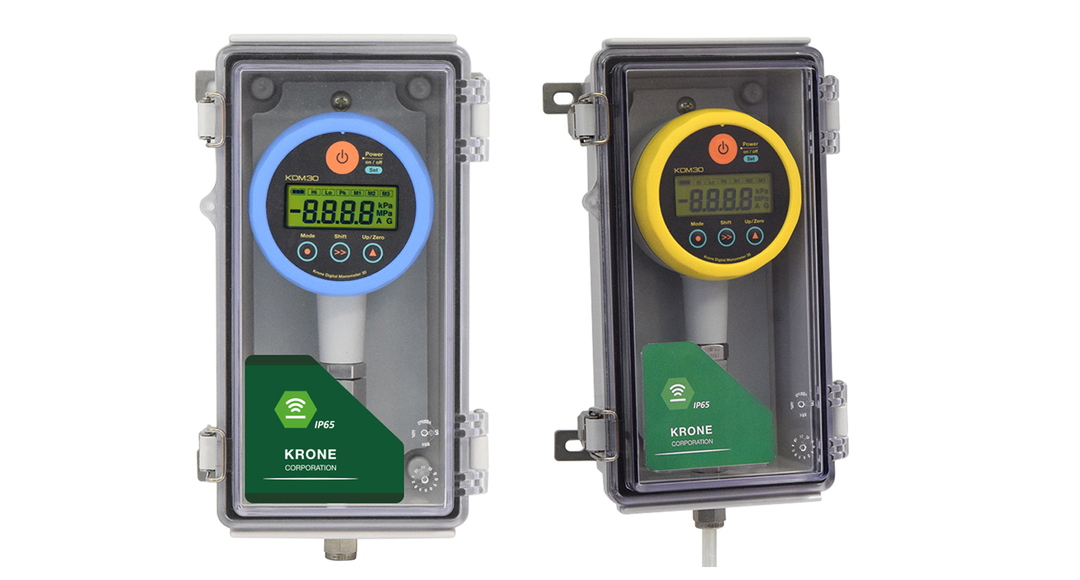

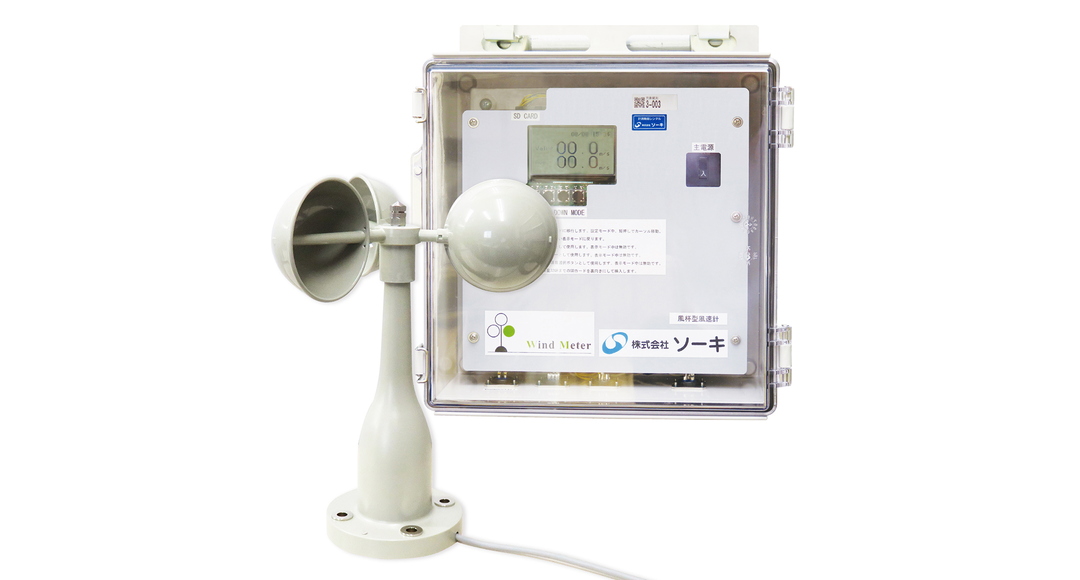

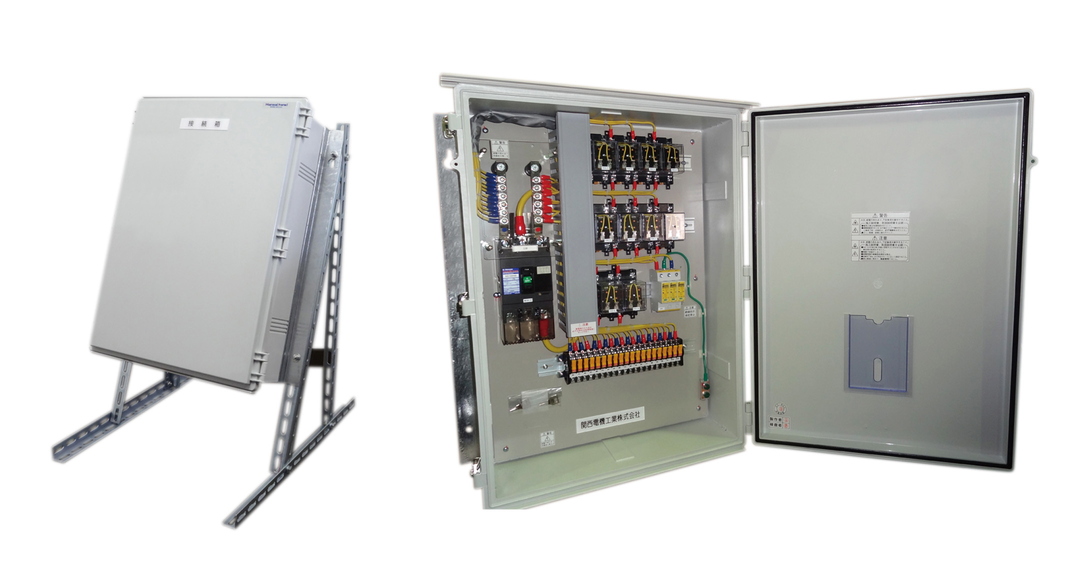

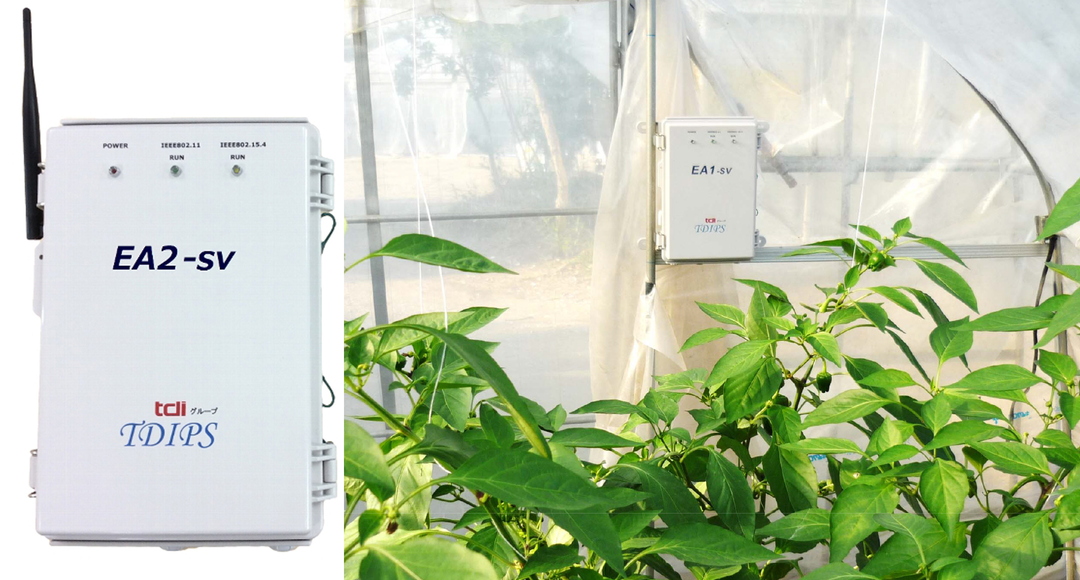

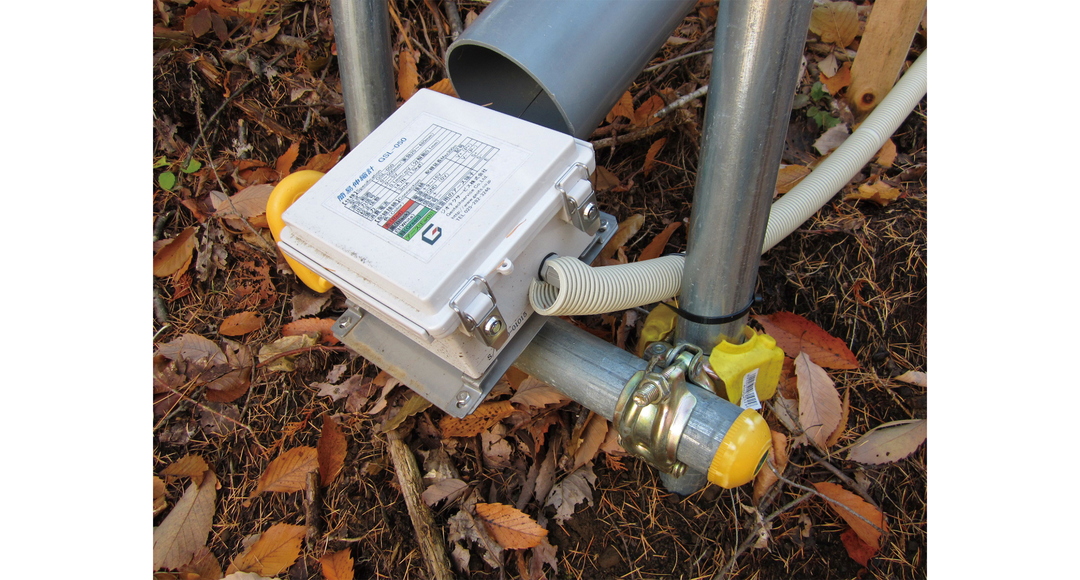

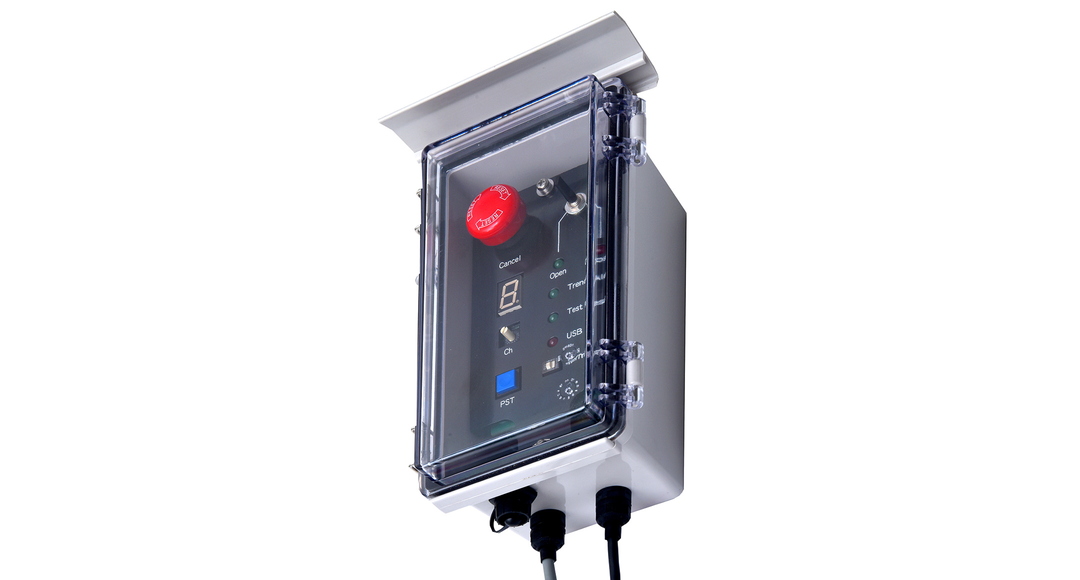

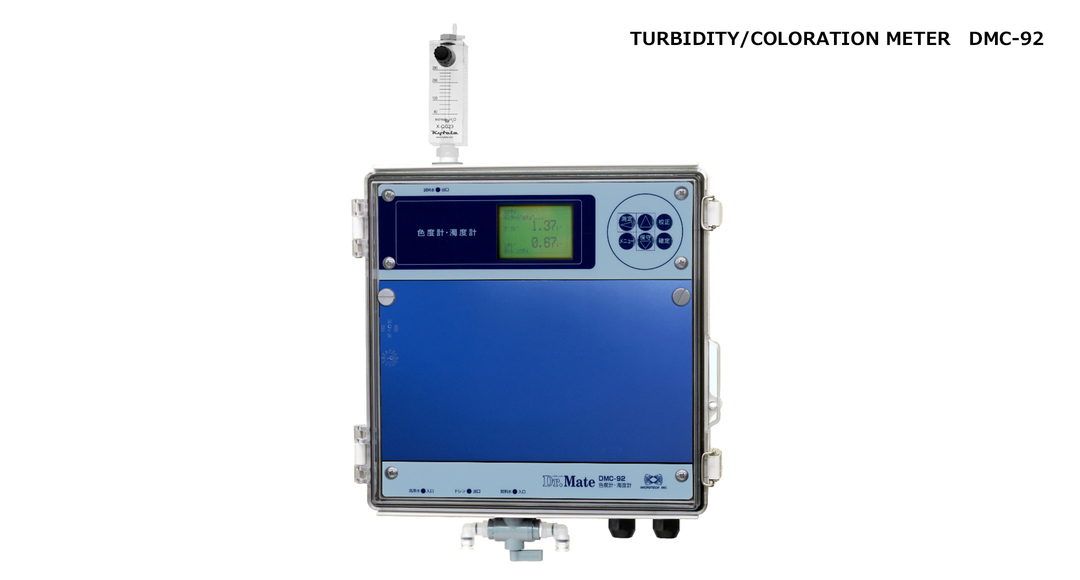

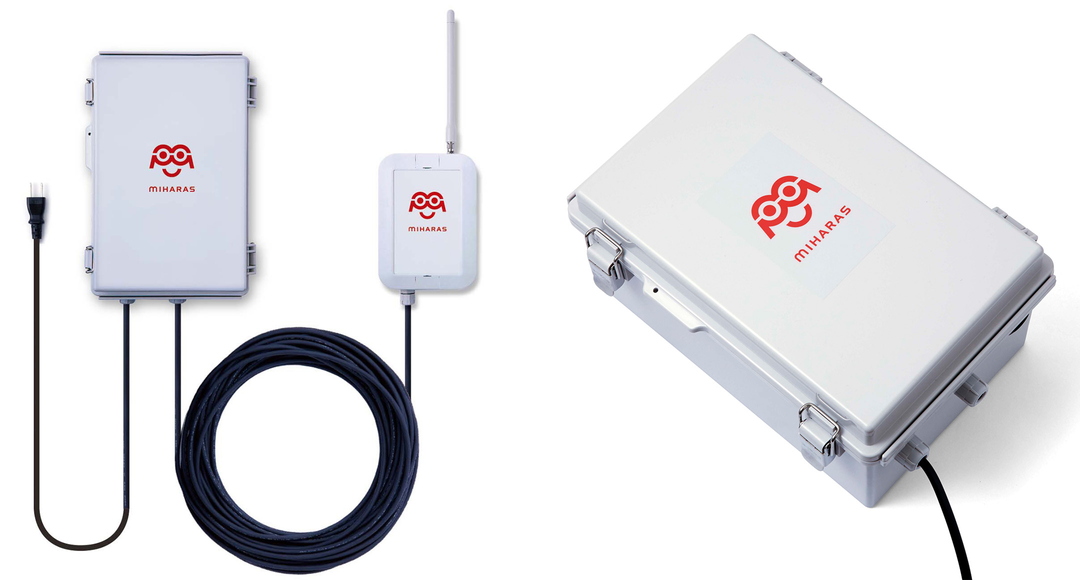

Applicable for various uses in fields such as FA, network communication, power switch controls and more.

【Line-up】
White gray ABS cover types : 50 different sizes
Transparent polycarbonate cover types : 46 different sizes

Protection class : IP65
Operating Temperature : -10℃～+60℃

【Material】
Top cover (G color type) ・ Base : ABS UL94HB
Color / Similar matching : White gray / Munsell 5R8/0.5
Top cover (T color type) : Polycarbonate / Transparent
Gasket : Polyurethane
Latch : Stainless steel

PRODUCT NO. / DIMENSIONS

Product No. External dimensions Internal dimensions Weight (g) Cover color PDF DXF DWG
W D H w d h
BCAP091207G 90 120 70 66 96 56.6 196 White gray PDF DXF DWG
BCAP091207T 90 120 70 66 96 56.6 204 Transparent PDF DXF DWG
BCAP091208G 90 120 85 66 96 71.6 212 White gray PDF DXF DWG
BCAP091208T 90 120 85 66 96 71.6 221 Transparent PDF DXF DWG
BCAP101507G 100 150 70 76 126 56.6 272 White gray PDF DXF DWG
BCAP101507T 100 150 70 76 126 56.6 281 Transparent PDF DXF DWG
BCAP101508G 100 150 85 75.5 125.5 71.6 291 White gray PDF DXF DWG
BCAP101508T 100 150 85 75.5 125.5 71.6 300 Transparent PDF DXF DWG
BCAP112107G 110 210 75 85.8 185.8 61.6 359 White gray PDF DXF DWG
BCAP112107T 110 210 75 85.8 185.8 61.6 378 Transparent PDF DXF DWG
BCAP112110G 110 210 100 84.9 184.9 86.6 422 White gray PDF DXF DWG
BCAP112110T 110 210 100 84.9 184.9 86.6 420 Transparent PDF DXF DWG
BCAP112607G 110 260 75 85.8 235.8 61.6 431 White gray PDF DXF DWG
BCAP112607T 110 260 75 85.8 235.8 61.6 446 Transparent PDF DXF DWG
BCAP112610G 110 260 100.5 85.1 234.9 86.5 484 White gray PDF DXF DWG
BCAP112610T 110 260 100.5 85.1 234.9 86.5 500 Transparent PDF DXF DWG
BCAP131508G 135 155 85 110.4 130.4 71.5 356 White gray PDF DXF DWG
BCAP131508T 135 155 85 110.4 130.4 71.5 357 Transparent PDF DXF DWG
BCAP131808G 135 185 85.5 110.4 160.4 72.1 381 White gray PDF DXF DWG
BCAP131808T 135 185 85.5 110.4 160.4 72.1 410 Transparent PDF DXF DWG
BCAP131810G 135 185 100.5 110.4 160.4 87.1 396 White gray PDF DXF DWG
BCAP131810T 135 185 100.5 110.4 160.4 87.1 402 Transparent PDF DXF DWG
BCAP151509G 150 150 90 125.7 125.7 75.6 343 White gray PDF DXF DWG
BCAP151509T 150 150 90 125.7 125.7 75.6 353 Transparent PDF DXF DWG
BCAP151512G 150 150 120.5 124 124 106.1 411 White gray PDF DXF DWG
BCAP151512T 150 150 120.5 124 124 106.1 425 Transparent PDF DXF DWG
BCAP162110G 160 210 100 134 184 86.6 468 White gray PDF DXF DWG
BCAP162110T 160 210 100 134 184 86.6 486 Transparent PDF DXF DWG
BCAP162113G 160 210 130 134 184 116.6 517 White gray PDF DXF DWG
BCAP162113T 160 210 130 134 184 116.6 537 Transparent PDF DXF DWG
BCAP162610G 160 260 100 135.1 235.1 86.6 577 White gray PDF DXF DWG
BCAP162610T 160 260 100 135.1 235.1 86.6 601 Transparent PDF DXF DWG
BCAP162613G 160 260 130 134 234 116.6 673 White gray PDF DXF DWG
BCAP162613T 160 260 130 134 234 116.6 701 Transparent PDF DXF DWG
BCAP172210G 170 220 105 144.9 194.9 90.8 545 White gray PDF DXF DWG
BCAP172210T 170 220 105 144.9 194.9 90.8 581 Transparent PDF DXF DWG
BCAP172711G 170 270 110.5 144.9 244.9 96.1 670 White gray PDF DXF DWG
BCAP172711T 170 270 110.5 144.9 244.9 96.1 680 Transparent PDF DXF DWG
BCAP192810G 190 280 100.5 165.3 255.3 84.1 722 White gray PDF DXF DWG
BCAP192810T 190 280 100.5 165.3 255.3 84.1 746 Transparent PDF DXF DWG
BCAP192814G 190 280 141 164.2 254.2 124.6 877 White gray PDF DXF DWG
BCAP192814T 190 280 141 164.2 254.2 124.6 901 Transparent PDF DXF DWG
BCAP203013GN 200 300 130 173.2 273.2 114 921 White gray PDF DXF DWG
BCAP203013TN 200 300 130 173.2 273.2 114 954 Transparent PDF DXF DWG
BCAP203015GN 200 300 150 173.5 273.5 133.8 989 White gray PDF DXF DWG
BCAP203015TN 200 300 150 173.5 273.5 133.8 1022 Transparent PDF DXF DWG
BCAP203018GN 200 300 180 172.5 272.5 163.8 1140 White gray PDF DXF DWG
BCAP203018TN 200 300 180 172.5 272.5 163.8 1143 Transparent PDF DXF DWG
BCAP212110G 210 210 100 185.1 185.1 86.6 630 White gray PDF DXF DWG
BCAP212110T 210 210 100 185.1 185.1 86.6 656 Transparent PDF DXF DWG
BCAP212113G 210 210 130 184 184 116.6 704 White gray PDF DXF DWG
BCAP212113T 210 210 130 184 184 116.6 726 Transparent PDF DXF DWG
BCAP253515GN 250 350 150 222.1 322.3 134 1278 White gray PDF DXF DWG
BCAP253515TN 250 350 150 222.1 322.3 134 1320 Transparent PDF DXF DWG
BCAP253518GN 250 350 180 222.5 322.5 163.8 1415 White gray PDF DXF DWG
BCAP253518TN 250 350 180 222.5 322.5 163.8 1456 Transparent PDF DXF DWG
BCAP282813G 280 280 130.5 253.9 253.9 113.6 1167 White gray PDF DXF DWG
BCAP282813T 280 280 130.5 253.9 253.9 113.6 1200 Transparent PDF DXF DWG
BCAP283813G 280 380 130 253.9 353.9 113.6 1455 White gray PDF DXF DWG
BCAP283813T 280 380 130 253.9 353.9 113.6 1512 Transparent PDF DXF DWG
BCAP303015G 300 300 151 272.9 272.9 134.3 1339 White gray PDF DXF DWG
BCAP303015T 300 300 151 272.9 272.9 134.3 1418 Transparent PDF DXF DWG
BCAP303018G 300 300 181 272.5 272.5 164.3 1495 White gray PDF DXF DWG
BCAP303018T 300 300 181 272.5 272.5 164.3 1576 Transparent PDF DXF DWG
BCAP304012G 300 400 120 274.1 374.5 104.5 1508 White gray PDF DXF DWG
BCAP304012T 300 400 120 274.1 374.5 104.5 1575 Transparent PDF DXF DWG
BCAP304015G 300 400 150 273.5 373.5 133.6 1563 White gray PDF DXF DWG
BCAP304015T 300 400 150 273.5 373.5 133.6 1675 Transparent PDF DXF DWG
BCAP304018G 300 400 181 272.5 372.5 164.6 1719 White gray PDF DXF DWG
BCAP304018T 300 400 181 272.5 372.5 164.6 1853 Transparent PDF DXF DWG
BCAP353515G 350 350 150 323.5 323.5 133.6 1693 White gray PDF DXF DWG
BCAP353515T 350 350 150 323.5 323.5 133.6 1764 Transparent PDF DXF DWG
BCAP353518G 350 350 181 322.5 322.5 164.6 1845 White gray PDF DXF DWG
BCAP353518T 350 350 181 322.5 322.5 164.6 1906 Transparent PDF DXF DWG
BCAP354512G 350 450 120 316.7 416.7 103.5 2068 White gray PDF DXF DWG
BCAP354512T 350 450 120 316.7 416.7 103.5 2167 Transparent PDF DXF DWG
BCAP354516G 350 450 160 308.7 414.7 142.6 2382 White gray PDF DXF DWG
BCAP354516T 350 450 160 308.7 414.7 142.6 2514 Transparent PDF DXF DWG
BCAP354520G 350 450 201 309.3 412.8 183.6 2646 White gray PDF DXF DWG
BCAP354520T 350 450 201 309.3 412.8 183.6 2794 Transparent PDF DXF DWG
BCAP405016G 400 500 160 360.4 466.6 144 2660 White gray PDF DXF DWG
BCAP405016T 400 500 160 360.4 466.6 144 2839 Transparent PDF DXF DWG
BCAP405020G 400 500 201 359.4 465.5 184 3119 White gray PDF DXF DWG
BCAP405020T 400 500 201 359.4 465.5 184 3232 Transparent PDF DXF DWG
BCAP406018G 400 600 181 358.6 565.9 163.8 3542 White gray PDF DXF DWG
BCAP406018T 400 600 181 358.6 565.9 163.8 3652 Transparent PDF DXF DWG
BCAP406023G 400 600 231 356.9 564.1 213.8 3870 White gray PDF DXF DWG
BCAP406023T 400 600 231 356.9 564.1 213.8 4044 Transparent PDF DXF DWG
BCAP506018G 530 630 185 476.8 576.8 163.6 5438 White gray PDF DXF DWG
BCAP506018T 530 630 185 476.8 576.8 163.6 5611 Transparent PDF DXF DWG
BCAP506025G 530 630 255 474.6 574.6 233.6 6078 White gray PDF DXF DWG
BCAP506025T 530 630 255 474.6 574.6 233.6 6273 Transparent PDF DXF DWG
BCAP507018G 530 730 188 477 677 166.1 6241 White gray PDF DXF DWG
BCAP507025G 530 730 258 475 676.2 236 6911 White gray PDF DXF DWG
BCAP608018G 630 830 188 575 777 165.6 8131 White gray PDF DXF DWG
BCAP608028G 630 830 288 573.5 773.5 265.8 9570 White gray PDF DXF DWG

OPTIONAL PARTS

１
MOUNTING PLATE for HINGED PLASTIC BOX - BMP series
DETAILS
１
PLASTIC MOUNTING BRACKET - BFL series
DETAILS
１
STAINLESS STEEL BRACKET for HINGED BOX - CK series
DETAILS
１

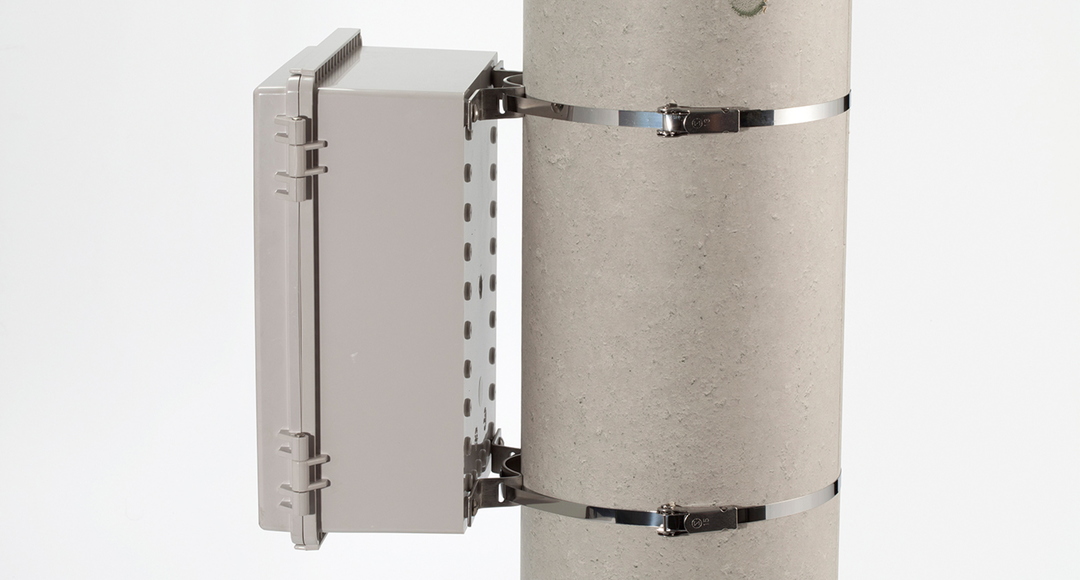

POLE MOUNT BRACKET for HINGED PLASTIC BOX
DETAILS
１
OUTDOOR ROOF
DETAILS
１
HINGED INSPECTION WINDOW - IW series
DETAILS
１
PROTECTIVE VENT - PMF series
DETAILS
１
VENTILATION LOUVER - V series
DETAILS
１
POLYAMIDE CABLE GLAND - RM series
DETAILS
１
WEATHERPROOF CABLE GLAND - RMW series
DETAILS
１
IP68 WATER PROTECTION CABLE GLAND - AG series
DETAILS
１
STRAIN RELIEF CABLE GLAND - RSP series
DETAILS
１
DIN RAIL for BCAP・BCAR・BCPC・BCPK・BCPR series
DETAILS
１
PCB MOUNTING SCREW for HINGED PLASTIC BOX - MT4-8T・MT5-8T
DETAILS
１
TAPPING STANDOFF - TPS series
DETAILS
１
INSERT NUT ADHESIVE STANDOFF - AST series
DETAILS
１
VENTILATION PLUG - CVP series
DETAILS

SIMILAR PRODUCT

１
IP68 POLYCARBONATE HINGED ENCLOSURE - UPC series
DETAILS
１
IP68 WATERPROOF BOX - WG・WGPC series
DETAILS
１
IP68 WATERPROOF PC+ASA BOX - WGPC series
DETAILS
１
IP65 LATCH-HINGED POLYCARBONATE PLASTIC BOX - BCPC series
DETAILS
１
IP65 POLYCARBONATE PLASTIC BOX with LOCK - BCPK series
DETAILS
１
IP65 PLASTIC BOX with OUTDOOR ROOF - BCAR series
DETAILS
１
IP65 POLYCARBONATE PLASTIC BOX with OUTDOOR ROOF - BCPR series
DETAILS
１
IP65 HINGED STAINLESS STEEL BOX - SSM series
DETAILS
１
ALUMINIUM CONTROL BOX - AUH series
DETAILS
１
OPEN-CLOSING CONTROL BOX - FCW series
DETAILS
１
WATERPROOF PROTECTOR CASE - NK series
DETAILS

CUSTOMIZATION VIDEO / PRODUCT INTRODUCTION VIDEO

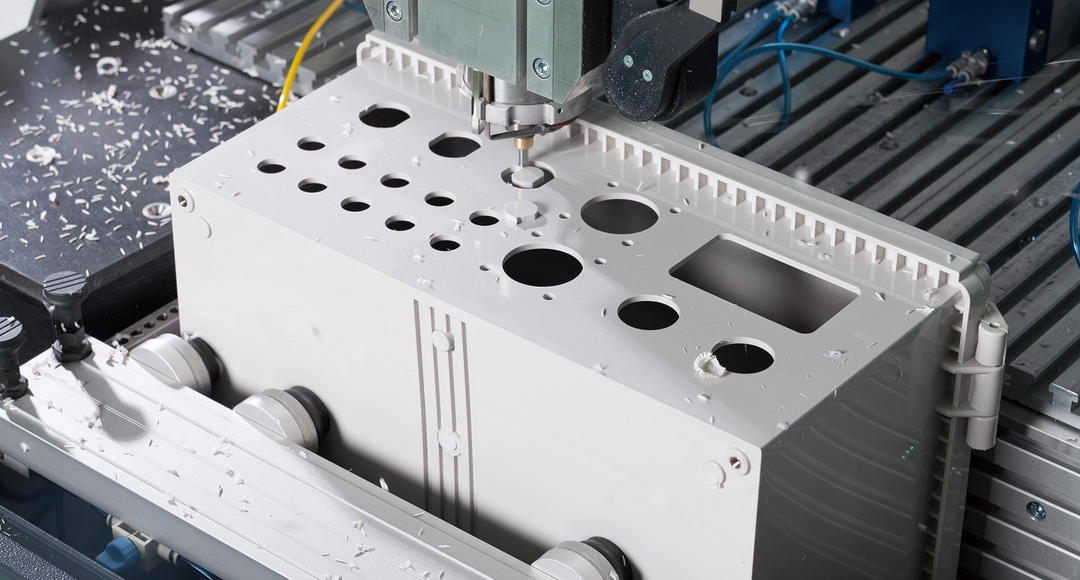

High speed CNC milling

DETAILS

Laser marking

DETAILS

Digital inkjet printing

DETAILS
