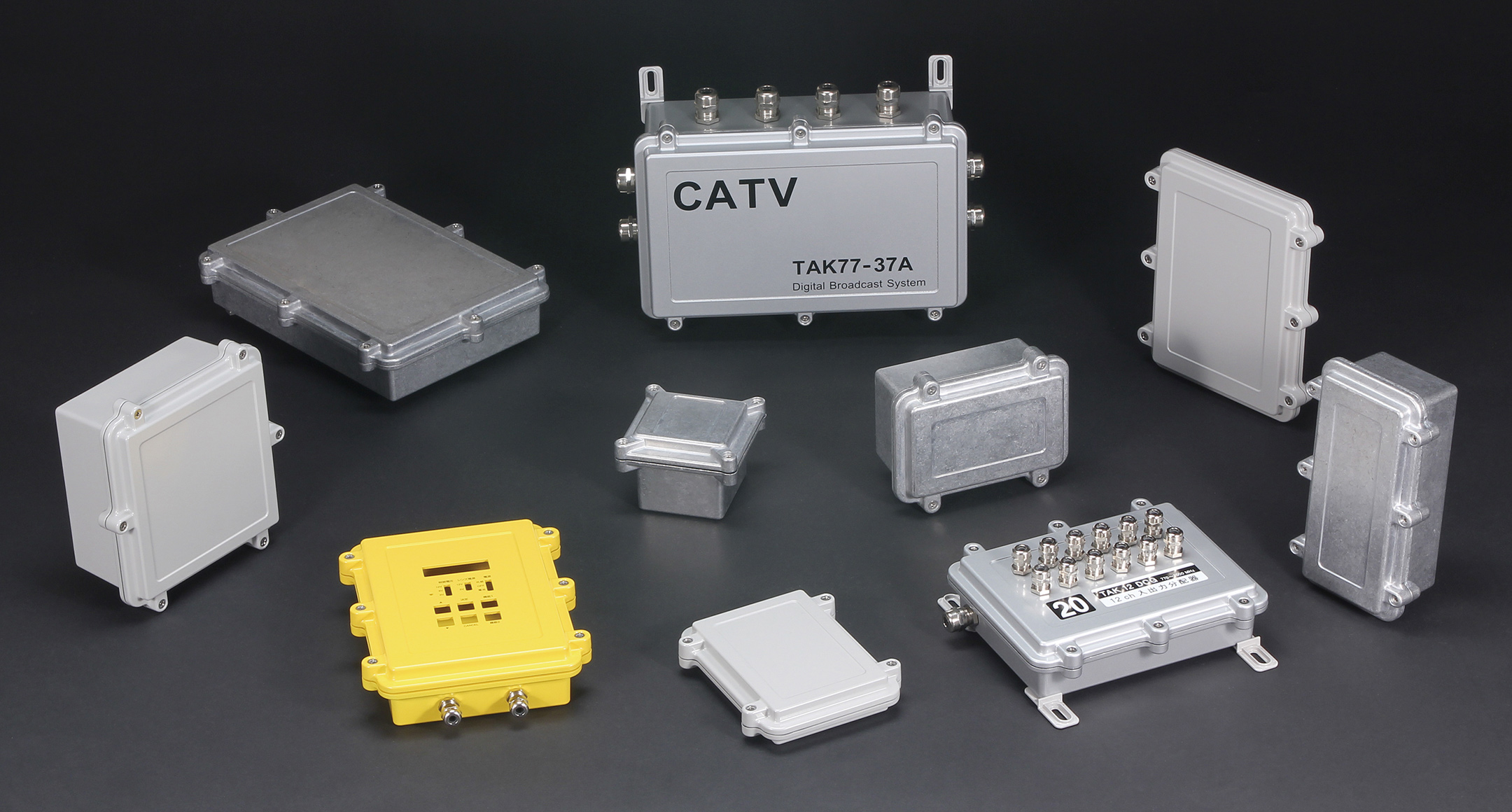

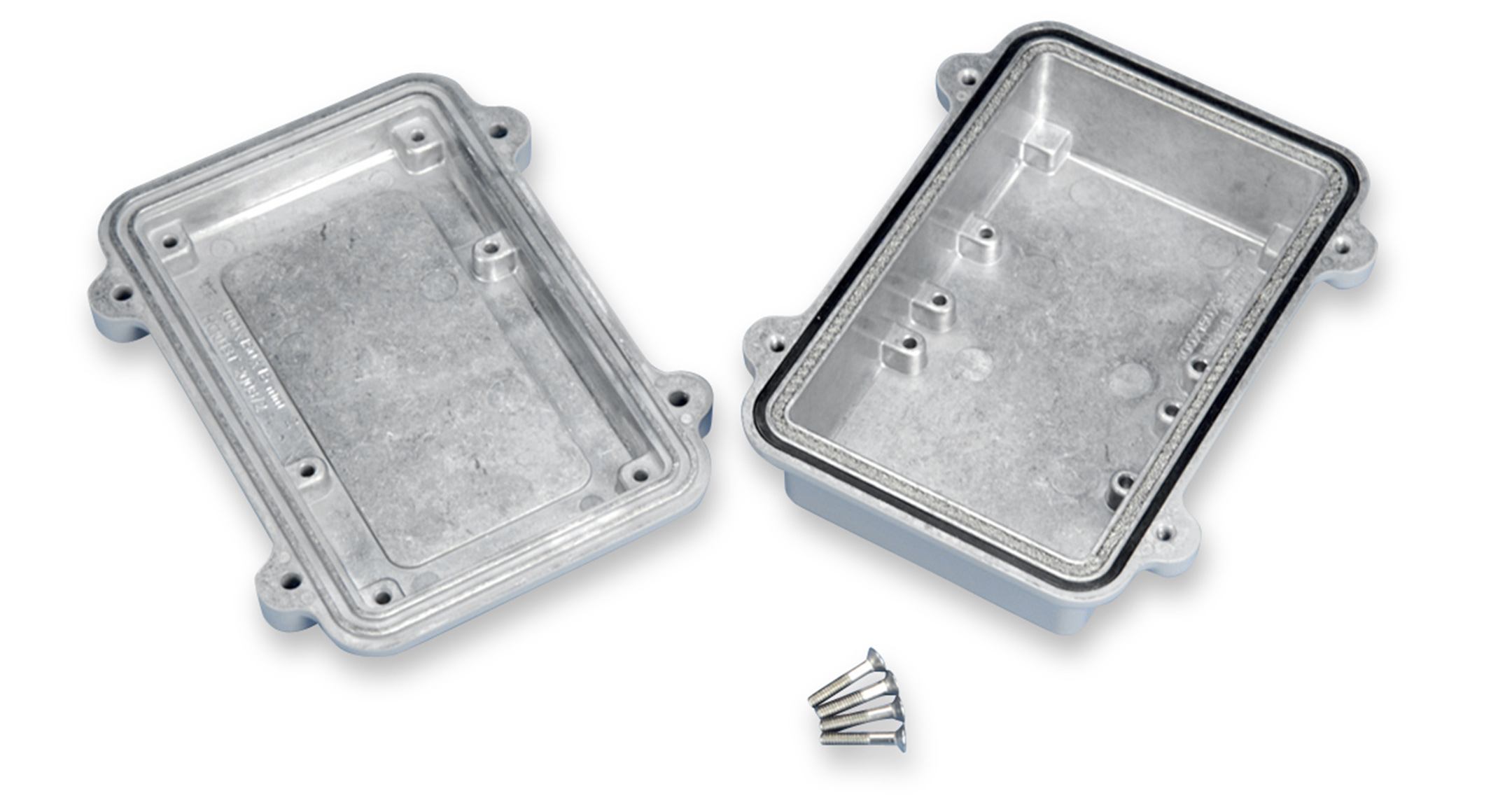

IP67 EMC SHIELDED DIECAST ALUMINUM BOX - HQ series


HQ Series -PDF

CATEGORY：IP67 Diecast aluminum enclosure, EMC Shielding enclosure, EMI/RFI enclosure, Waterproof diecast aluminum box, CATV amplifier aluminum enclosure

IP67 EMC SHIELDED DIECAST ALUMINUM BOX - HQ series
IP67 EMC SHIELDED DIECAST ALUMINUM BOX - HQ series
IP67 EMC SHIELDED DIECAST ALUMINUM BOX - HQ series
IP67 EMC SHIELDED DIECAST ALUMINUM BOX - HQ series
IP67 EMC SHIELDED DIECAST ALUMINUM BOX - HQ series
IP67 EMC SHIELDED DIECAST ALUMINUM BOX - HQ series
IP67 EMC SHIELDED DIECAST ALUMINUM BOX - HQ series
IP67 EMC SHIELDED DIECAST ALUMINUM BOX - HQ series1
IP67 EMC SHIELDED DIECAST ALUMINUM BOX - HQ series2
IP67 EMC SHIELDED DIECAST ALUMINUM BOX - HQ series3
IP67 EMC SHIELDED DIECAST ALUMINUM BOX - HQ series4
IP67 EMC SHIELDED DIECAST ALUMINUM BOX - HQ series5
IP67 EMC SHIELDED DIECAST ALUMINUM BOX - HQ series6
IP67 EMC SHIELDED DIECAST ALUMINUM BOX - HQ series7

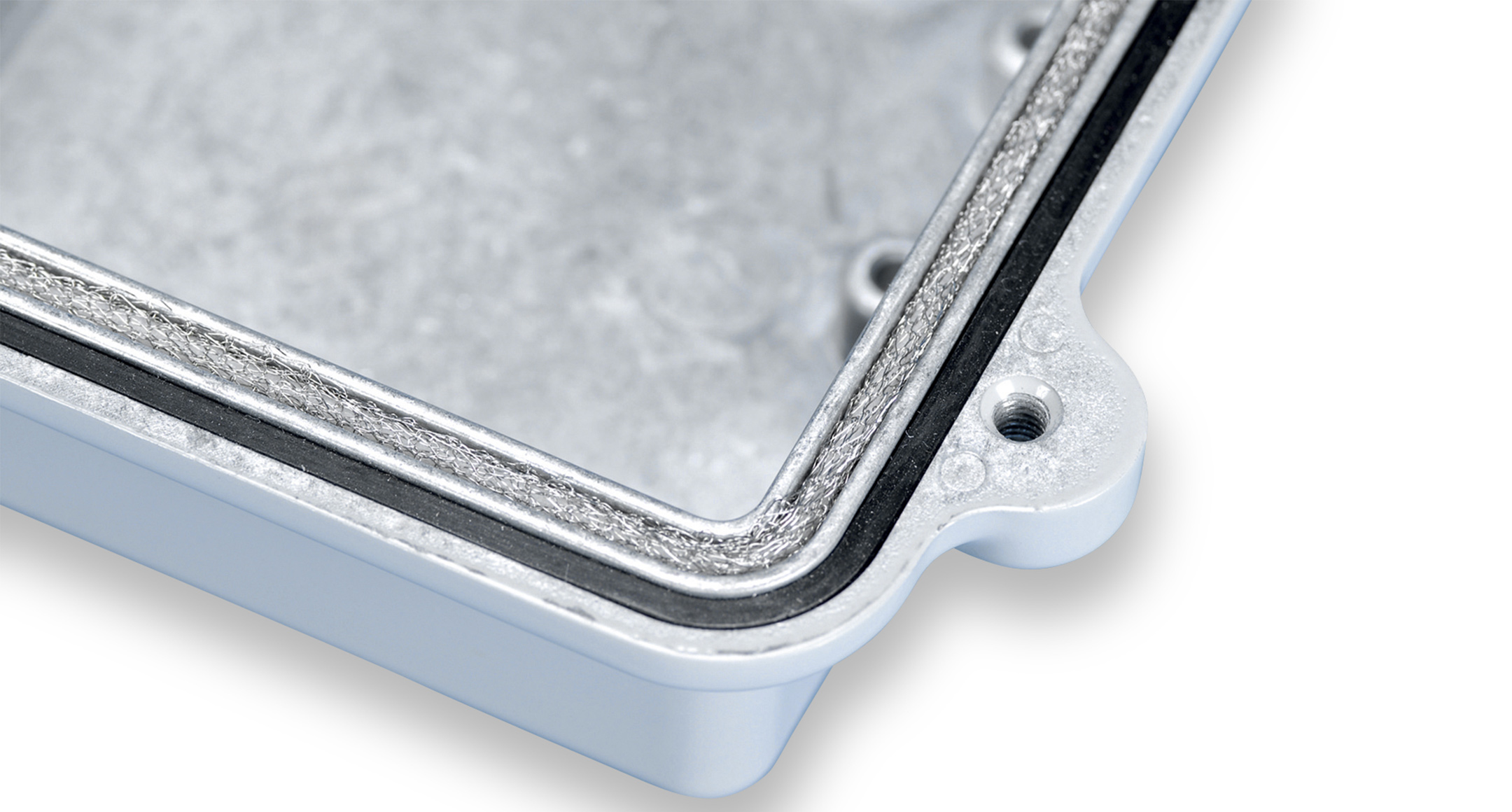

A double gasket construction allows both IP67 protection and EMC shielding to be possible.

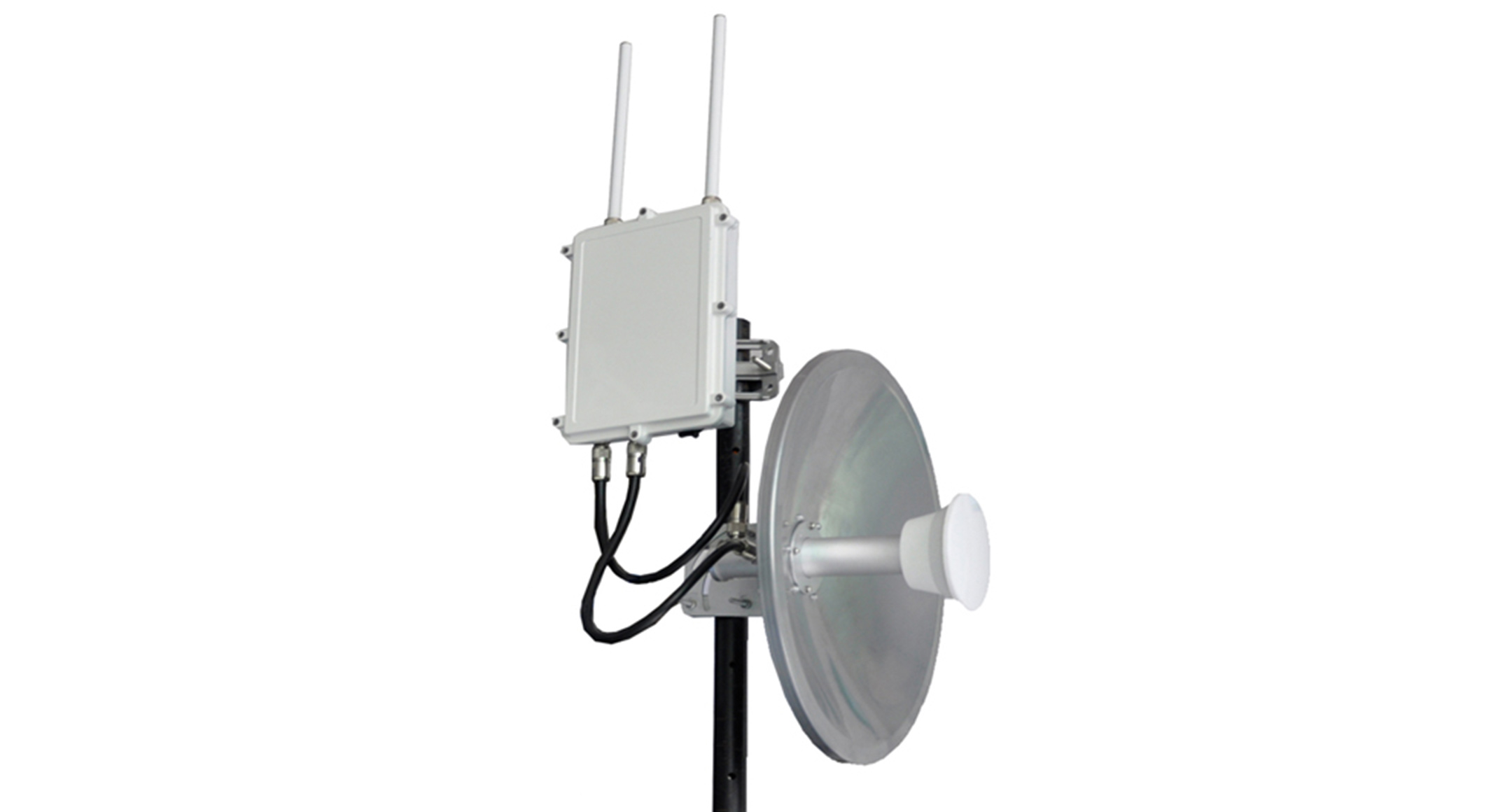

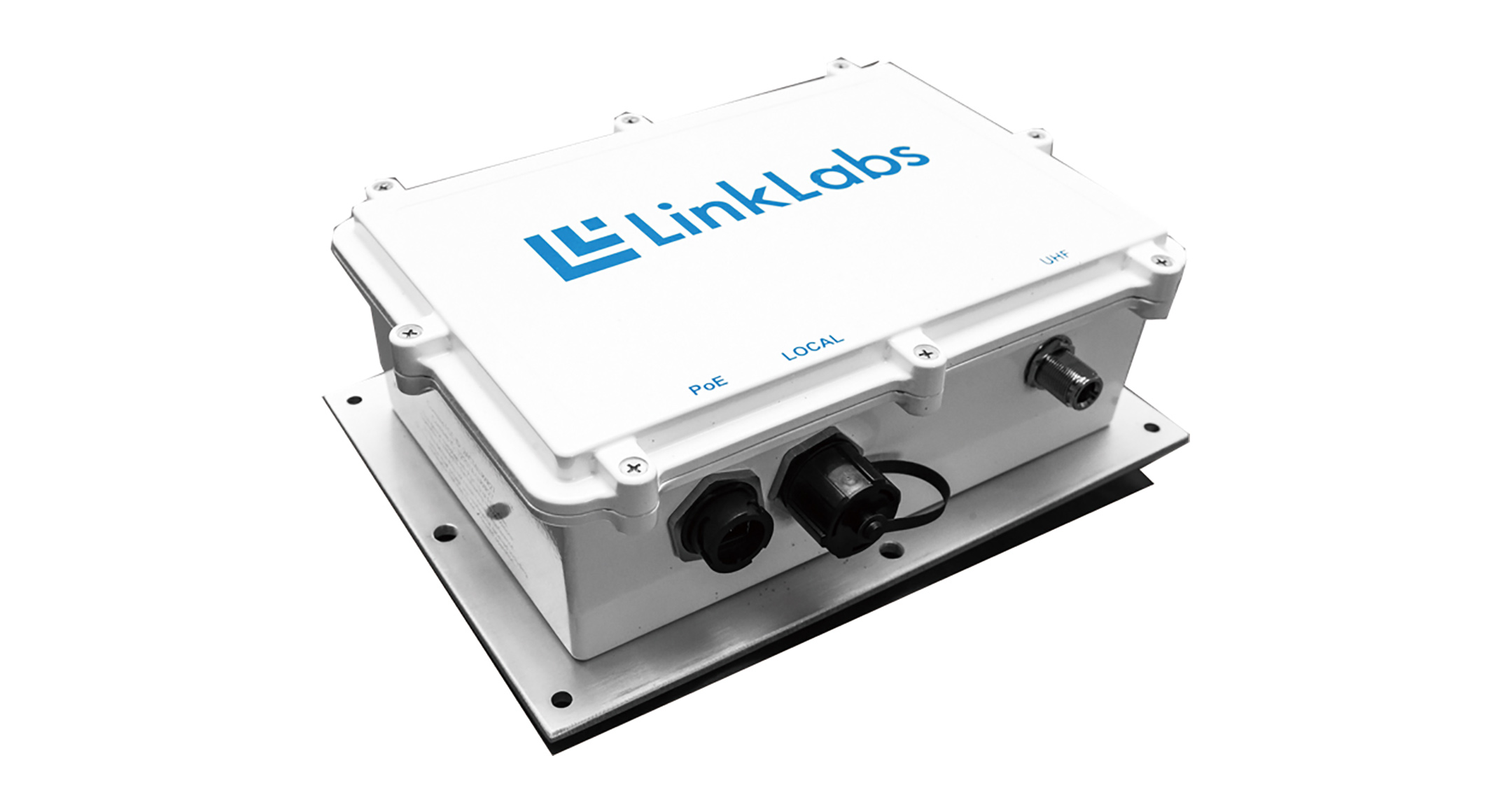

Suitable for CATV terminal, Fiber optic transmitter, Access point, FA controller, and so on.

13 different sizes available in powder coated and unfinished models.

Protection class : IP67 (equivalent to NEMA6P rating)
Operating temperature : -40°C ~ +105°C
Recommended torque : 1N・m

PRODUCT NO. / DIMENSIONS

Product No. External dimensions Internal dimensions Weight (g) Color / Finish Inventory status PDF DXF DWG
W H D w h d
HQ15-10-5G 150 50 100 125.5 35.9 75.5 442 Light gray /Powder coated Discontinued - Sold out. PDF DXF DWG
HQ15-10-5N 150 50 100 125.5 35.9 75.5 442 Unfinished Discontinued - Sold out. PDF DXF DWG
HQ15-10-8G 150 75 99.5 123.7 60.9 73.7 494 Light gray /Powder coated PDF DXF DWG
HQ15-10-8N 150 75 99.5 123.7 60.9 73.7 494 Unfinished PDF DXF DWG
HQ16-16-8G 162 162 80 132.7 67 129.66 715 Light gray /Powder coated PDF DXF DWG
HQ16-16-8N 162 162 80 132.7 67 129.66 715 Unfinished PDF DXF DWG
HQ20-15-5G 200 50 150 175.5 35.9 125.5 753 Light gray /Powder coated PDF DXF DWG
HQ20-15-5N 200 50 150 175.5 35.9 125.5 753 Unfinished PDF DXF DWG
HQ20-15-8G 200 75 150 173.7 60.9 123.7 849 Light gray /Powder coated PDF DXF DWG
HQ20-15-8N 200 75 150 173.7 60.9 123.7 849 Unfinished PDF DXF DWG
HQ26-18-6G 262 55 181.5 234.4 42 154.4 961 Light gray /Powder coated PDF DXF DWG
HQ26-18-6N 262 55 181.5 234.4 42 154.4 961 Unfinished PDF DXF DWG
HQ27-17-7G 274.2 66 173.2 249 51.9 148 1129 Light gray /Powder coated PDF DXF DWG
HQ27-17-7N 274.2 66 173.2 249 51.9 148 1129 Unfinished PDF DXF DWG
HQ27-17-10G 274.2 100 172.7 249 85.9 148 1287 Light gray /Powder coated PDF DXF DWG
HQ27-17-10N 274.2 100 172.7 249 85.9 148 1287 Unfinished PDF DXF DWG
Mounting plate (Option) PDF DXF DWG
HQP15-10 PDF DXF DWG
HQP15-10 PDF DXF DWG
HQP15-10 PDF DXF DWG
HQP15-10 PDF DXF DWG
HQP16-16 PDF DXF DWG
HQP16-16 PDF DXF DWG
HQP20-15 PDF DXF DWG
HQP20-15 PDF DXF DWG
HQP20-15 PDF DXF DWG
HQP20-15 PDF DXF DWG
HQP26-18 PDF DXF DWG
HQP26-18 PDF DXF DWG
HQP27-17 PDF DXF DWG
HQP27-17 PDF DXF DWG
HQP27-17 PDF DXF DWG
HQP27-17 PDF DXF DWG

OPTIONAL PARTS

１

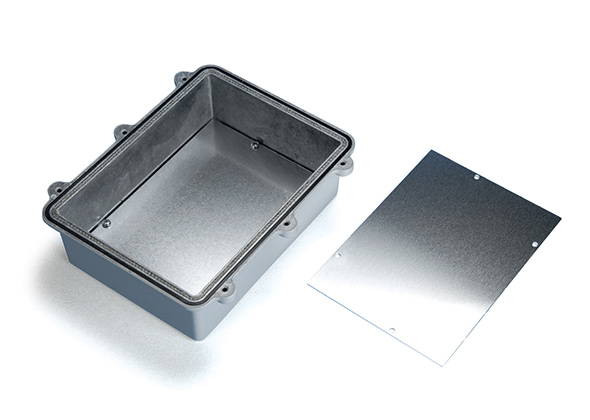

MOUNTING PLATE for HQ - HQP series
DETAILS
１

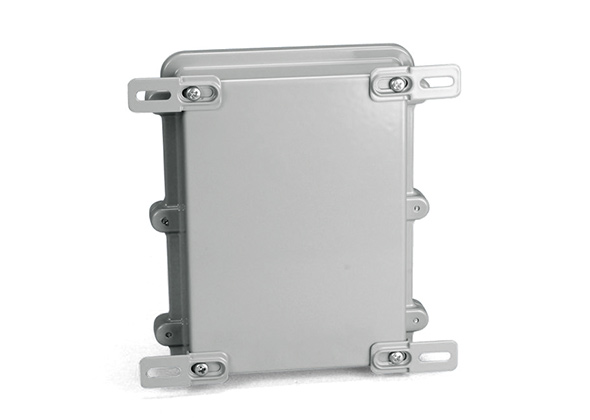

MOUNTING BRACKET for HQ - HQF series
