CATEGORY：Outdoor plastic box, NEMA 6P plastic enclosure, Waterproof plastic enclosure, Hinged plastic enclosure, Electrical plastic enclosure, ABS enclosure

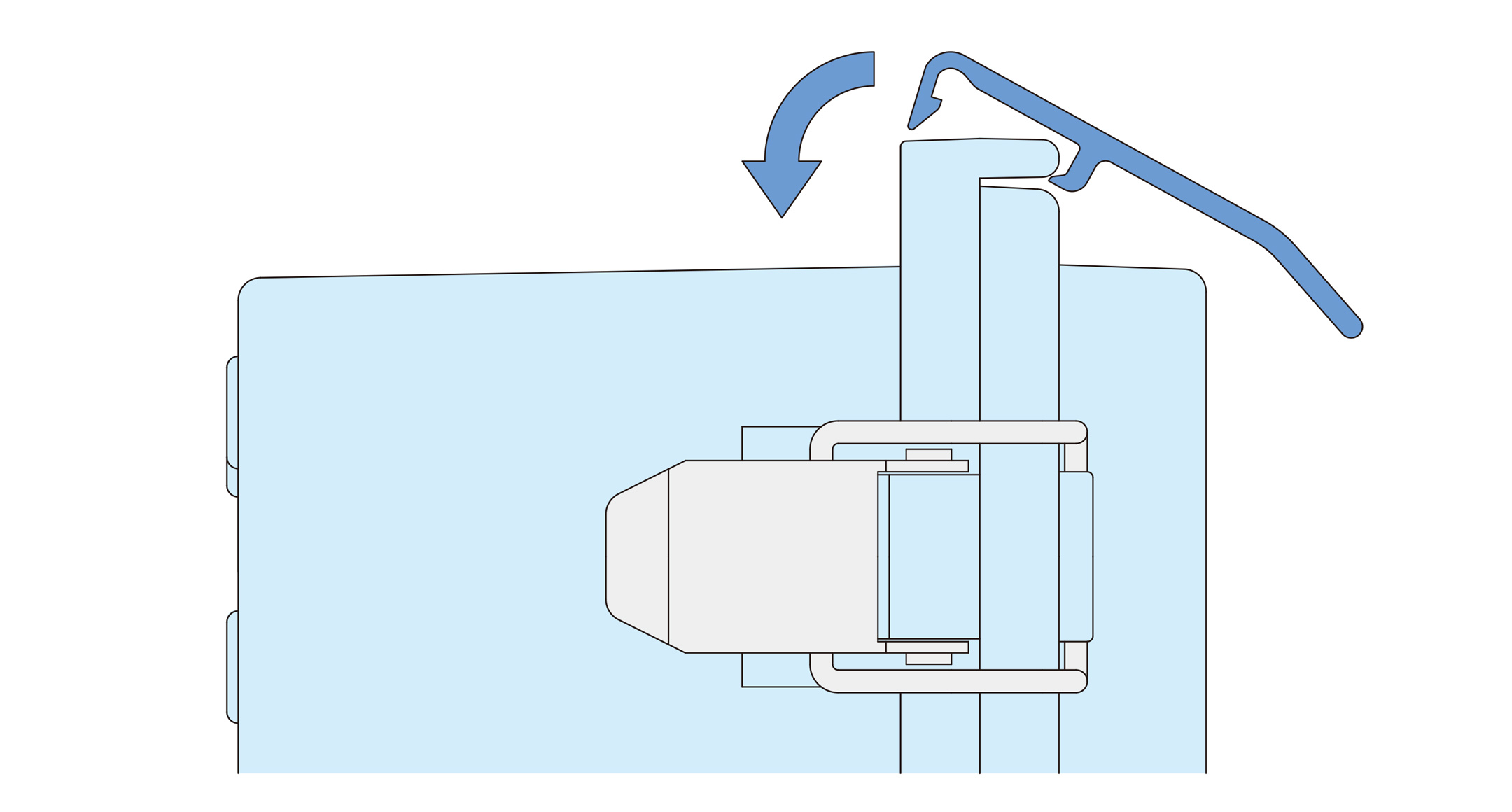

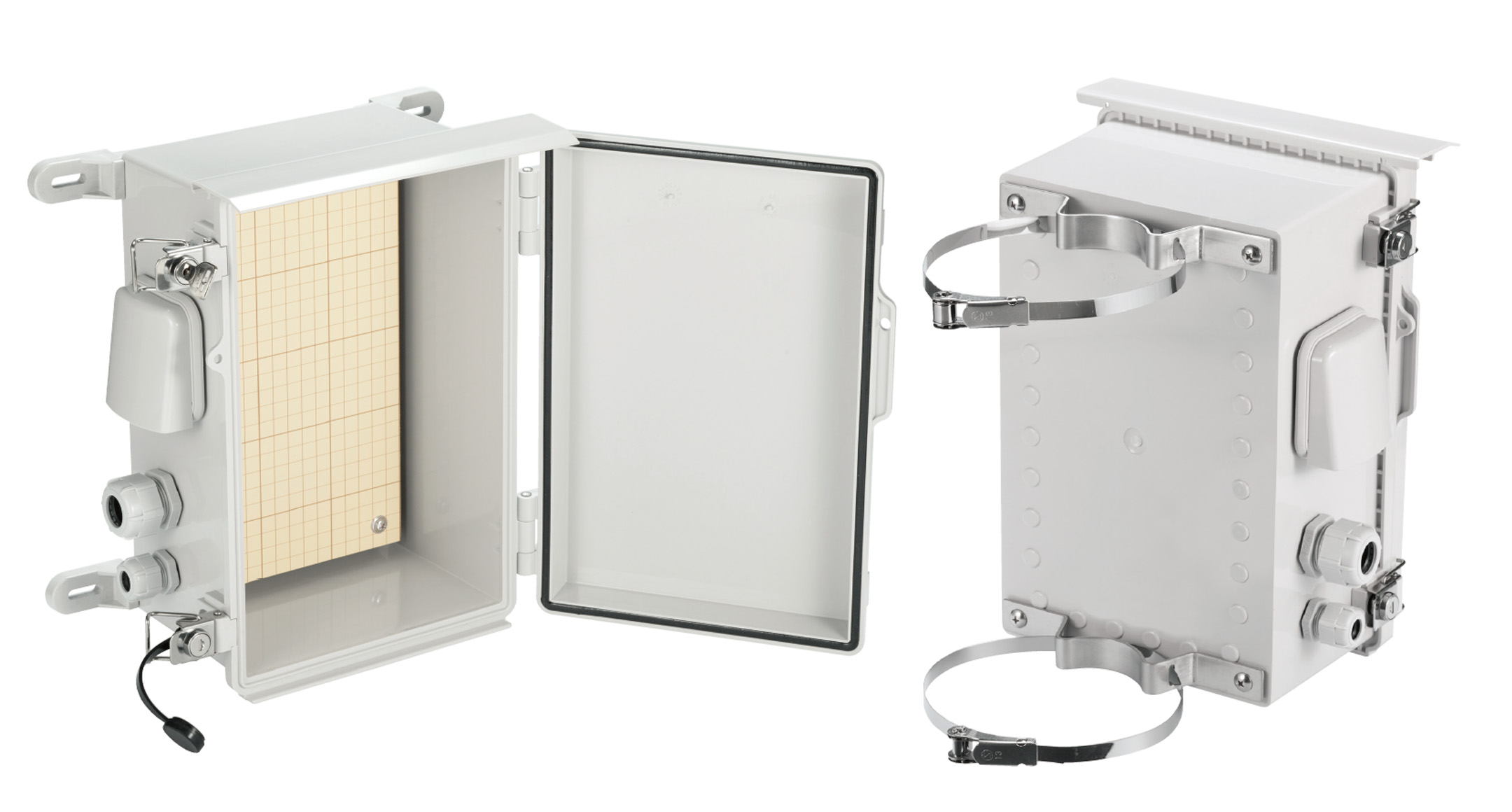

IP65 open/closing type ABS plastic box equipped with latch/hinge system and an easy snap-on roof attachment.

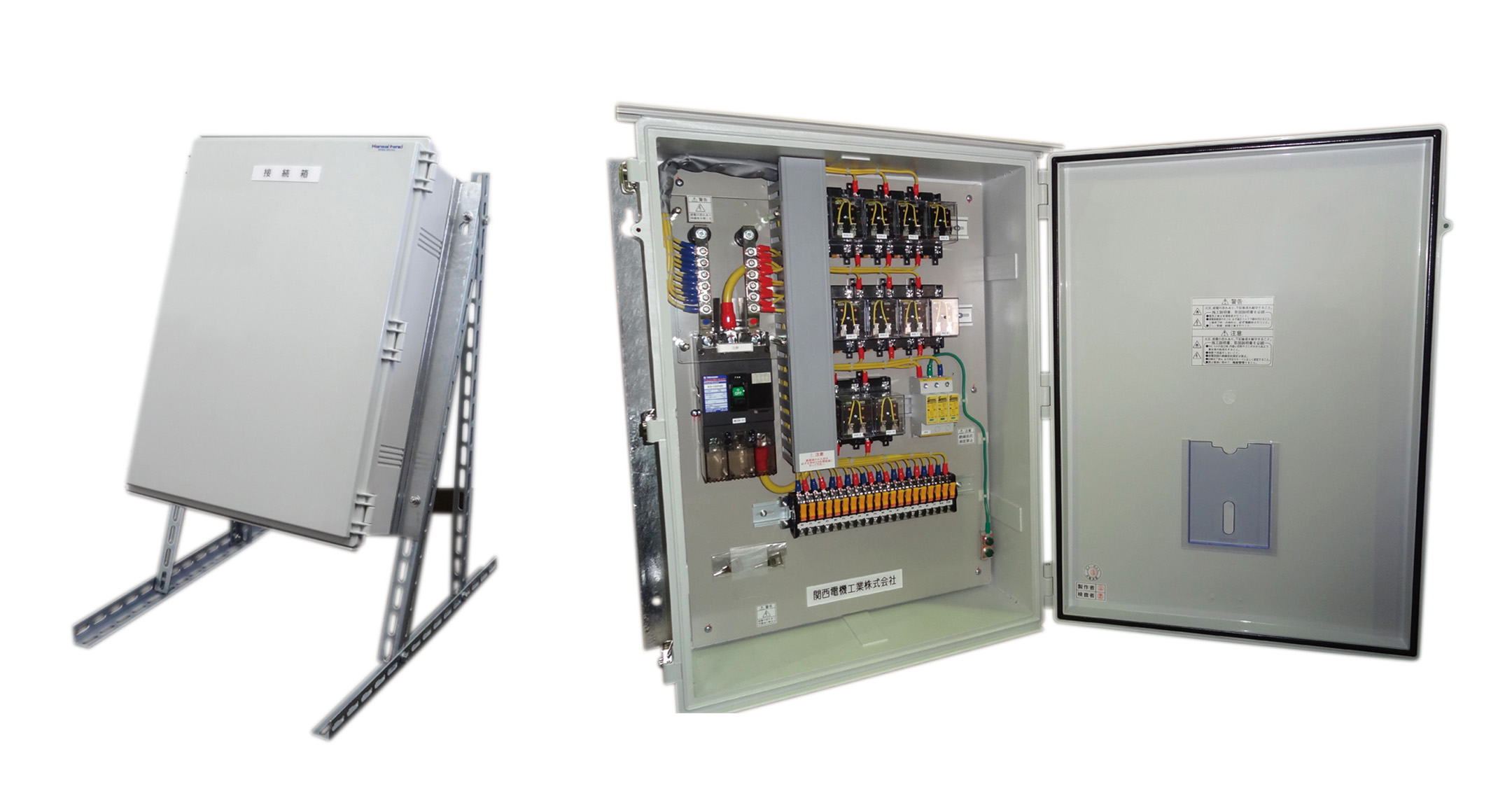

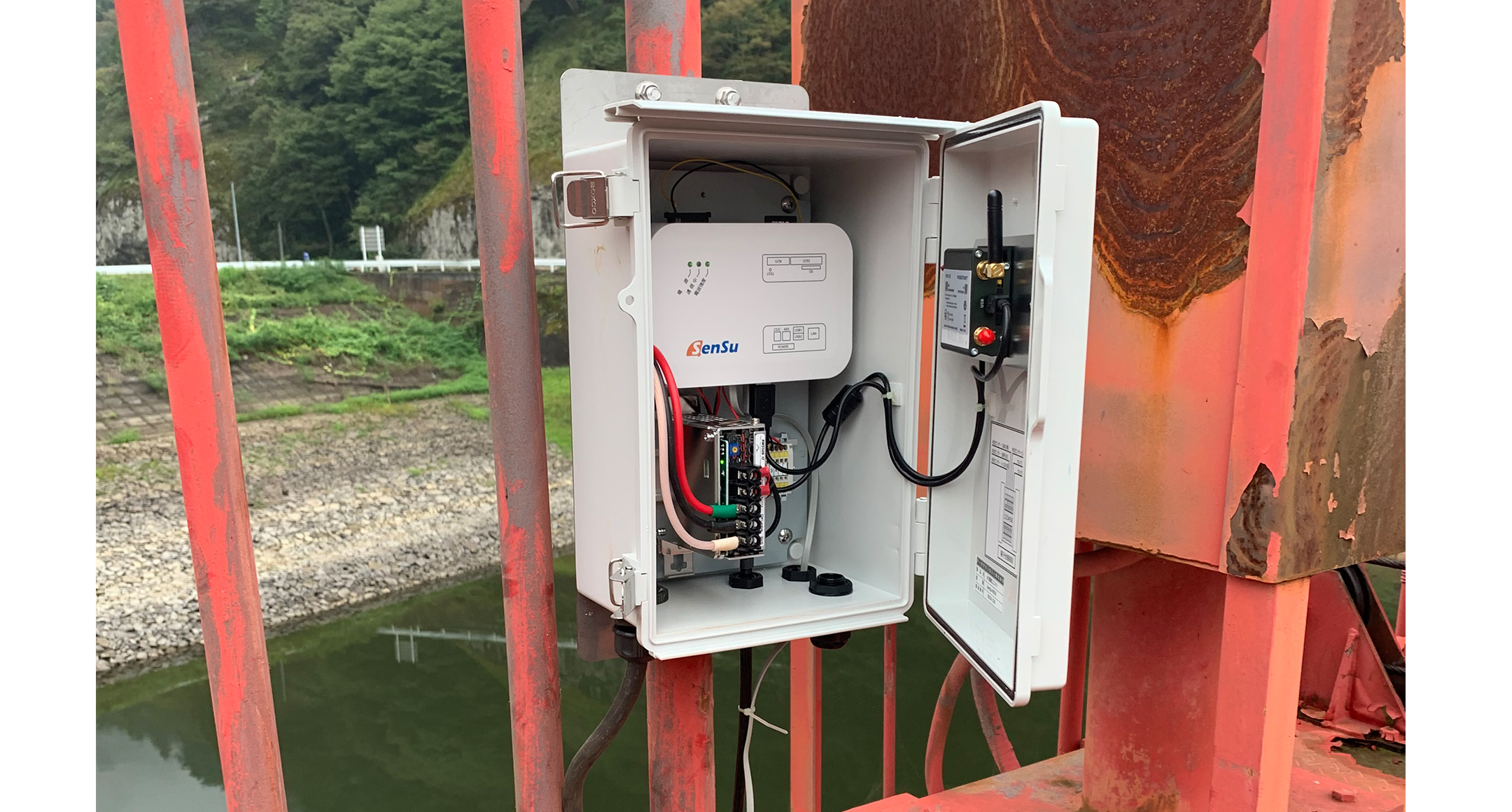

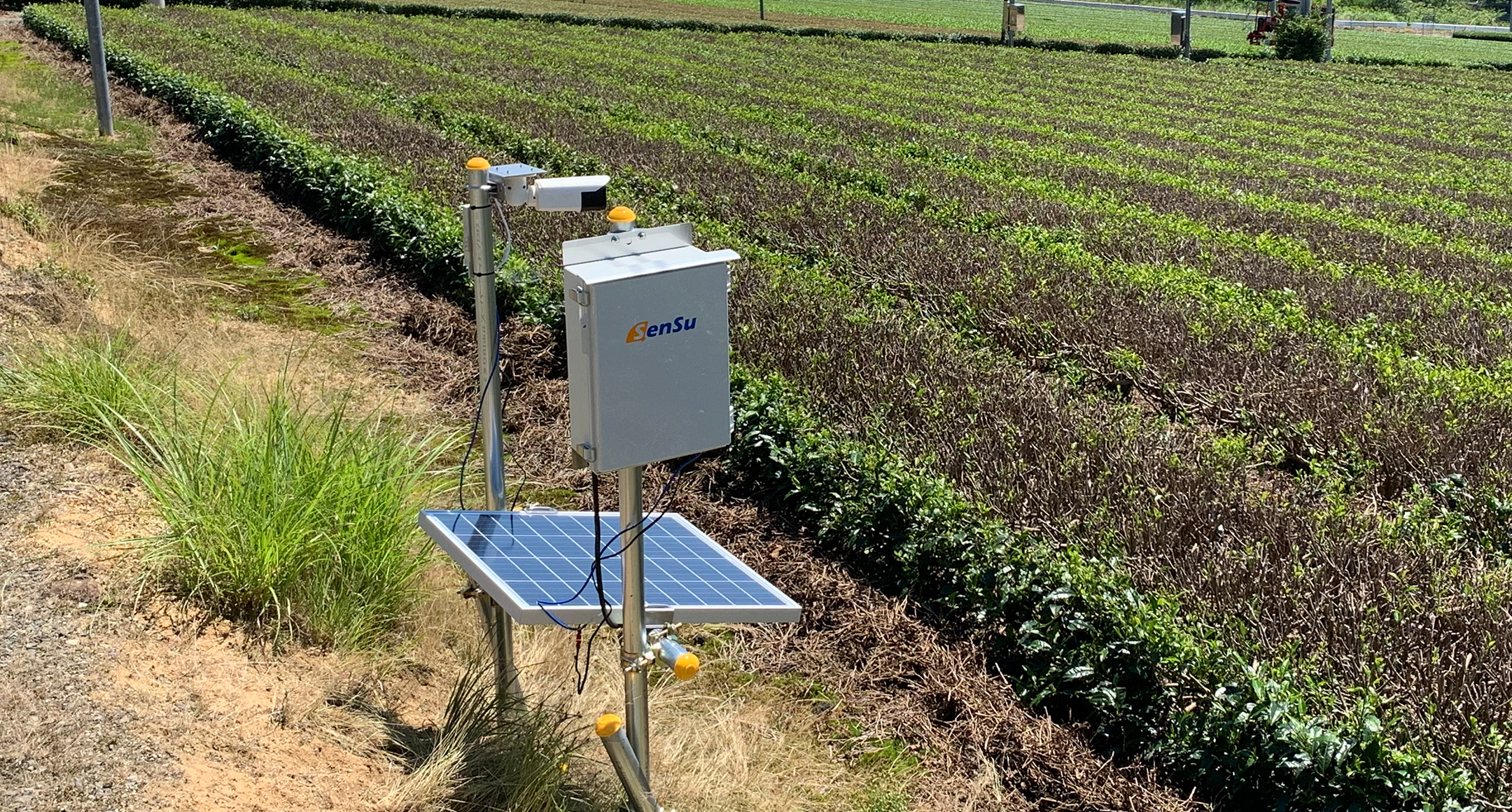

Applicable for various uses in fields such as FA, network communication, power switchbox controls and so on.
【Line-up】

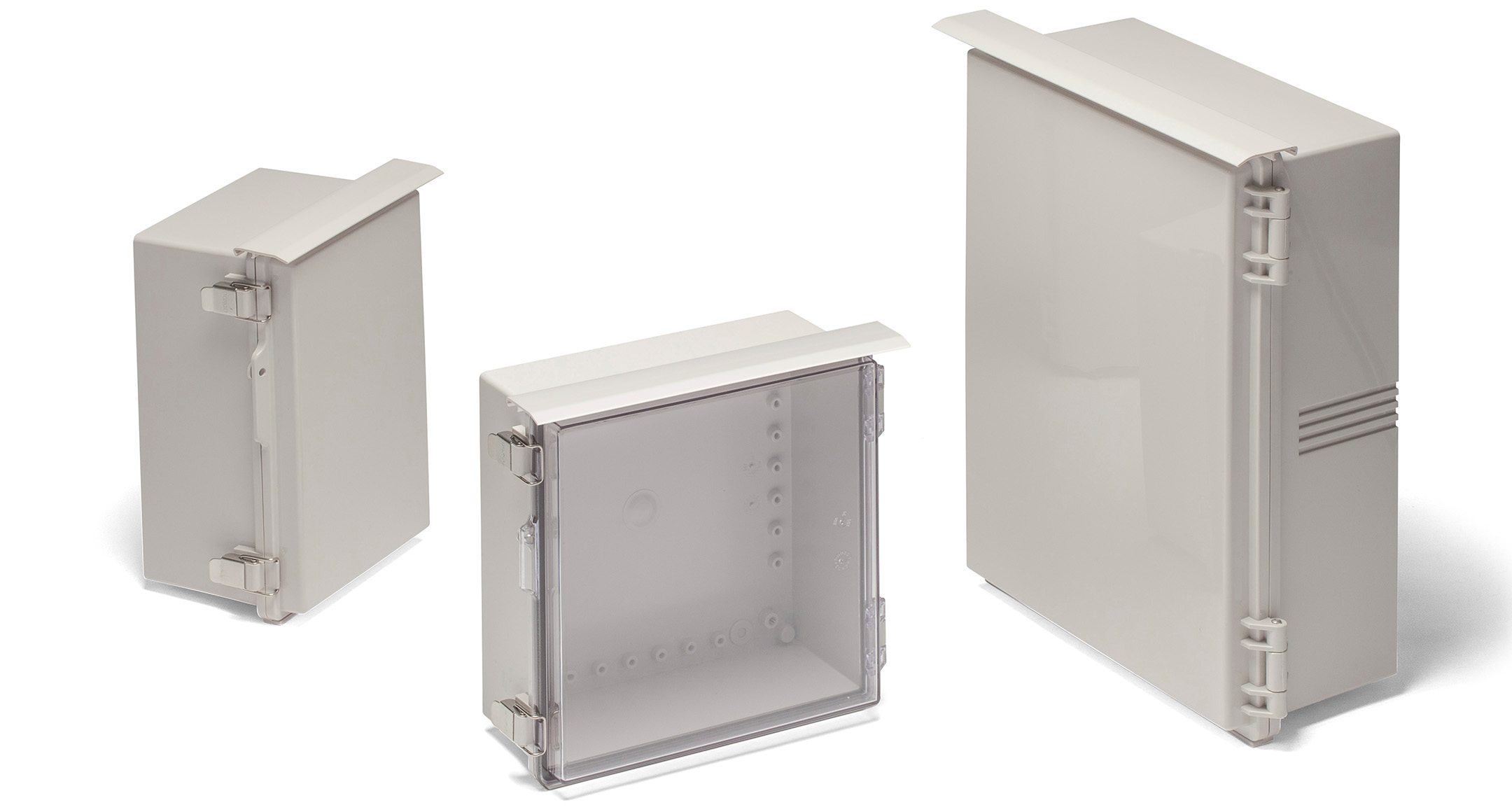

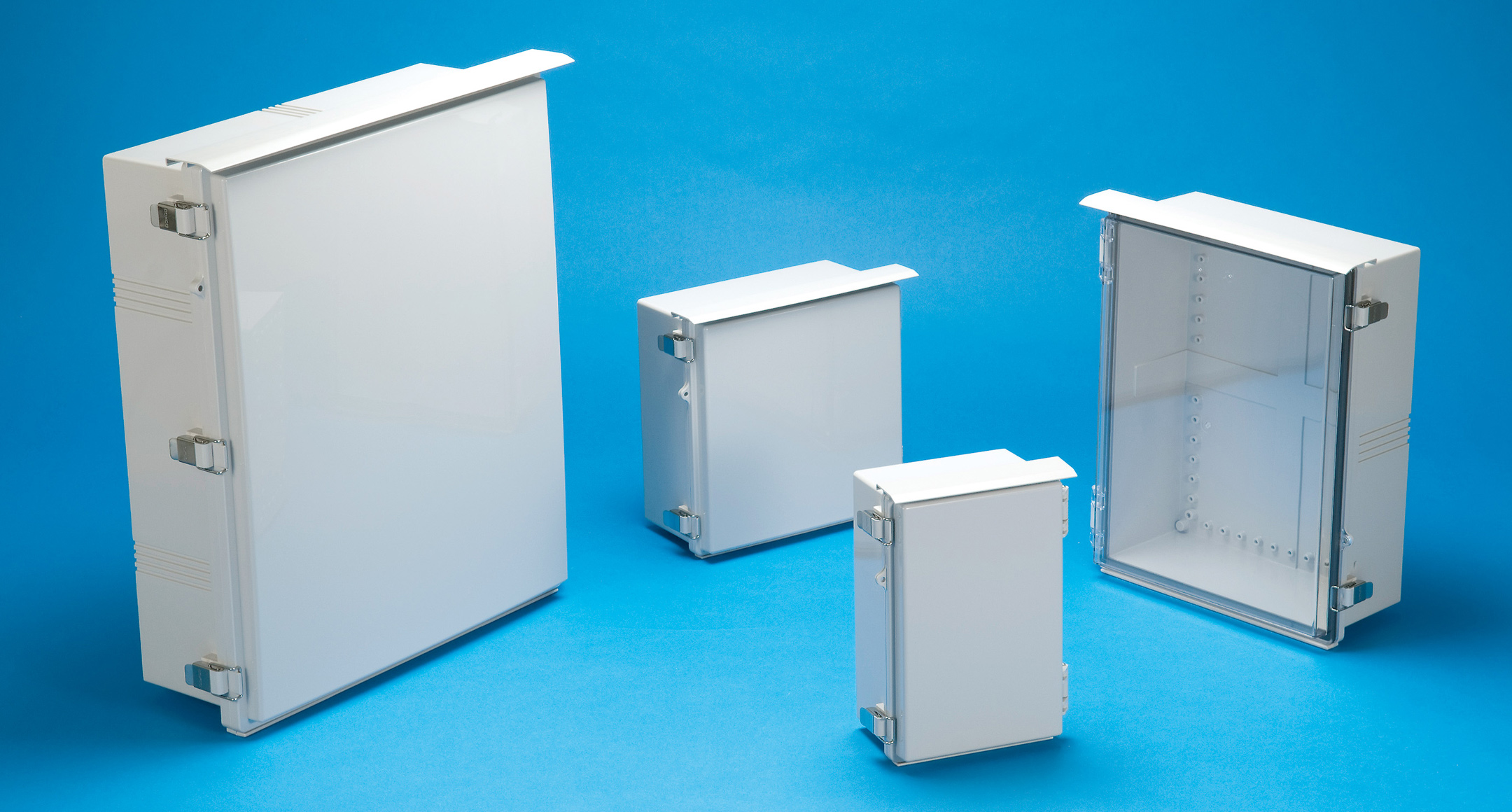

White gray ABS cover types : 50 different sizes

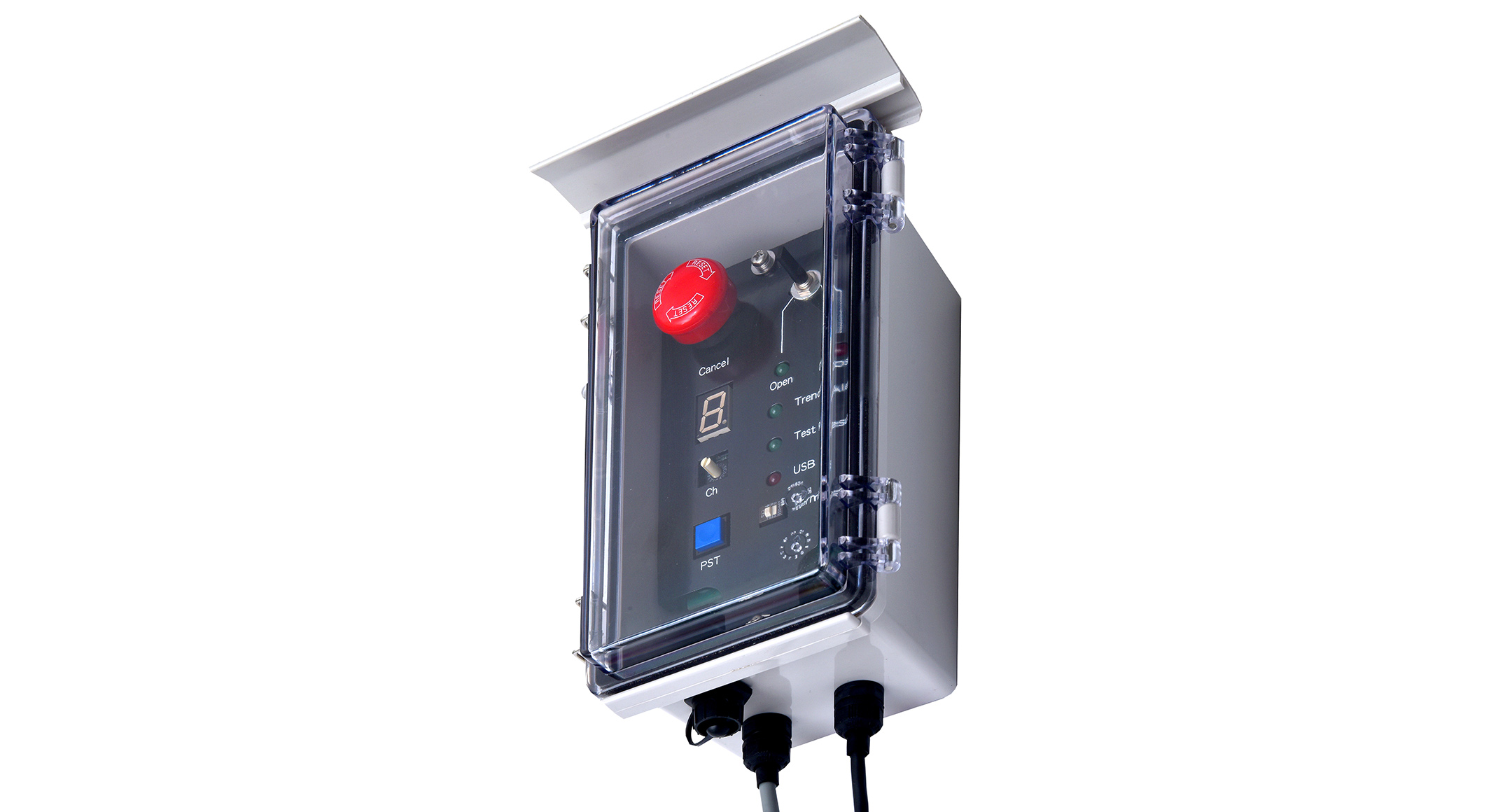

Transparent polycarbonate cover types : 46 different sizes
Protection class: IP65 (equivalent to NEMA6 rating)
Operating Temperature：-10℃～+60℃
【Material】
Top cover (G color type)・Base : ABS UL94HB
Roof : PVC
Color / Similar matching：White gray / Munsell 5R8/0.5
Top cover (T color type) ：Polycarbonate / Transparent
Gasket ：Polyurethane
Latch：Stainless steel
Applicable for various uses in fields such as FA, network communication, power switchbox controls and so on.
【Line-up】
White gray ABS cover types : 50 different sizes
Transparent polycarbonate cover types : 46 different sizes
Protection class: IP65 (equivalent to NEMA6 rating)
Operating Temperature：-10℃～+60℃
【Material】
Top cover (G color type)・Base : ABS UL94HB
Roof : PVC
Color / Similar matching：White gray / Munsell 5R8/0.5
Top cover (T color type) ：Polycarbonate / Transparent
Gasket ：Polyurethane
Latch：Stainless steel
PRODUCT NO. / DIMENSIONS
| Product No. | External dimensions | Internal dimensions | Weight (g) | Color / Similar matching | Inventory status | DXF | DWG | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| W | H | D | w | h | d | |||||||
| BCAR091207G | 90 | 70 | 120 | 66 | 56.6 | 96 | 213 | White gray / Munsell 5R8/0.5 | DXF | DWG | ||
| BCAR091207T | 90 | 70 | 120 | 66 | 56.6 | 96 | 220 | Transparent | DXF | DWG | ||
| BCAR091208G | 90 | 85 | 120 | 66 | 71.6 | 96 | 228 | White gray / Munsell 5R8/0.5 | DXF | DWG | ||
| BCAR091208T | 90 | 85 | 120 | 66 | 71.6 | 96 | 237 | Transparent | DXF | DWG | ||
| BCAR101507G | 100 | 70 | 150 | 76 | 56.6 | 126 | 291 | White gray / Munsell 5R8/0.5 | DXF | DWG | ||
| BCAR101507T | 100 | 70 | 150 | 76 | 56.6 | 126 | 300 | Transparent | DXF | DWG | ||
| BCAR101508G | 100 | 85 | 150 | 75.5 | 71.6 | 125.5 | 309 | White gray / Munsell 5R8/0.5 | DXF | DWG | ||
| BCAR101508T | 100 | 85 | 150 | 75.5 | 71.6 | 125.5 | 318 | Transparent | DXF | DWG | ||
| BCAR112107G | 110 | 75 | 210 | 85.8 | 61.6 | 185.8 | 379 | White gray / Munsell 5R8/0.5 | DXF | DWG | ||
| BCAR112107T | 110 | 75 | 210 | 85.8 | 61.6 | 185.8 | 398 | Transparent | DXF | DWG | ||
| BCAR112110G | 110 | 100 | 210 | 84.9 | 86.6 | 184.9 | 442 | White gray / Munsell 5R8/0.5 | DXF | DWG | ||
| BCAR112110T | 110 | 100 | 210 | 84.9 | 86.6 | 184.9 | 440 | Transparent | DXF | DWG | ||
| BCAR112607G | 110 | 75 | 260 | 85.8 | 61.6 | 235.8 | 451 | White gray / Munsell 5R8/0.5 | DXF | DWG | ||
| BCAR112607T | 110 | 75 | 260 | 85.8 | 61.6 | 235.8 | 466 | Transparent | DXF | DWG | ||
| BCAR112610G | 110 | 100.5 | 260 | 85.1 | 86.5 | 234.9 | 504 | White gray / Munsell 5R8/0.5 | DXF | DWG | ||
| BCAR112610T | 110 | 100.5 | 260 | 85.1 | 86.5 | 234.9 | 519 | Transparent | DXF | DWG | ||
| BCAR131508G | 135 | 85 | 155 | 110.4 | 71.5 | 130.4 | 379 | White gray / Munsell 5R8/0.5 | DXF | DWG | ||
| BCAR131508T | 135 | 85 | 155 | 110.4 | 71.5 | 130.4 | 381 | Transparent | DXF | DWG | ||
| BCAR131808G | 135 | 85.5 | 185 | 110.4 | 72.1 | 160.4 | 404 | White gray / Munsell 5R8/0.5 | DXF | DWG | ||
| BCAR131808T | 135 | 85.5 | 185 | 110.4 | 72.1 | 160.4 | 434 | Transparent | DXF | DWG | ||
| BCAR131810G | 135 | 100.5 | 185 | 110.4 | 87.1 | 160.4 | 420 | White gray / Munsell 5R8/0.5 | DXF | DWG | ||
| BCAR131810T | 135 | 100.5 | 185 | 110.4 | 87.1 | 160.4 | 426 | Transparent | DXF | DWG | ||
| BCAR162110G | 160 | 100 | 210 | 134 | 86.6 | 184 | 495 | White gray / Munsell 5R8/0.5 | DXF | DWG | ||
| BCAR162110T | 160 | 100 | 210 | 134 | 86.6 | 184 | 513 | Transparent | DXF | DWG | ||
| BCAR162113G | 160 | 130 | 210 | 134 | 116.6 | 184 | 544 | White gray / Munsell 5R8/0.5 | DXF | DWG | ||
| BCAR162113T | 160 | 130 | 210 | 134 | 116.6 | 184 | 564 | Transparent | DXF | DWG | ||
| BCAR162610G | 160 | 100 | 260 | 135.1 | 86.6 | 235.1 | 605 | White gray / Munsell 5R8/0.5 | DXF | DWG | ||
| BCAR162610T | 160 | 100 | 260 | 135.1 | 86.6 | 235.1 | 629 | Transparent | DXF | DWG | ||
| BCAR162613G | 160 | 130 | 260 | 134 | 116.6 | 234 | 701 | White gray / Munsell 5R8/0.5 | DXF | DWG | ||
| BCAR162613T | 160 | 130 | 260 | 134 | 116.6 | 234 | 729 | Transparent | DXF | DWG | ||
| BCAR172210G | 170 | 105 | 220 | 144.9 | 90.8 | 194.9 | 560 | White gray / Munsell 5R8/0.5 | DXF | DWG | ||
| BCAR172210T | 170 | 110.5 | 220 | 144.9 | 90.8 | 194.9 | 586 | Transparent | DXF | DWG | ||
| BCAR172711G | 170 | 110.5 | 270 | 144.9 | 96.1 | 244.9 | 700 | White gray / Munsell 5R8/0.5 | DXF | DWG | ||
| BCAR172711T | 170 | 110.5 | 270 | 144.9 | 96.1 | 244.9 | 710 | Transparent | DXF | DWG | ||
| BCAR192810G | 190 | 100.5 | 280 | 165.3 | 84.1 | 255.3 | 755 | White gray / Munsell 5R8/0.5 | DXF | DWG | ||
| BCAR192810T | 190 | 100.5 | 280 | 165.3 | 84.1 | 255.3 | 778 | Transparent | DXF | DWG | ||
| BCAR192814G | 190 | 141 | 280 | 164.2 | 124.6 | 254.2 | 909 | White gray / Munsell 5R8/0.5 | DXF | DWG | ||
| BCAR192814T | 190 | 141 | 280 | 164.2 | 124.6 | 254.2 | 933 | Transparent | DXF | DWG | ||
| BCAR203013G | 200 | 130 | 300 | 173.5 | 113.6 | 273.6 | 957 | White gray / Munsell 5R8/0.5 | Discontinued - Sold out. | DXF | DWG | |
| BCAR203013T | 200 | 130 | 300 | 173.5 | 113.6 | 273.6 | 989 | Transparent | Discontinued - Sold out. | DXF | DWG | |
| BCAR203013GN | 200 | 130 | 300 | 173.2 | 114 | 273.2 | - | White gray / Munsell 5R8/0.5 | DXF | DWG | ||
| BCAR203013TN | 200 | 130 | 300 | 173.2 | 114 | 273.2 | - | Transparent | DXF | DWG | ||
| BCAR203015G | 200 | 150 | 300 | 173.5 | 133.6 | 273.5 | 995 | White gray / Munsell 5R8/0.5 | Discontinued - Sold out. | DXF | DWG | |
| BCAR203015T | 200 | 150 | 300 | 173.5 | 133.6 | 273.5 | 1022 | Transparent | Discontinued - Sold out. | DXF | DWG | |
| BCAR203015GN | 200 | 150 | 300 | 173.5 | 133.8 | 273.5 | 1027 | White gray / Munsell 5R8/0.5 | DXF | DWG | ||
| BCAR203015TN | 200 | 150 | 300 | 173.5 | 133.8 | 273.5 | 1060 | Transparent | DXF | DWG | ||
| BCAR203018G | 200 | 180.5 | 300 | 172.4 | 164.1 | 273.5 | 1104 | White gray / Munsell 5R8/0.5 | Discontinued - Sold out. | DXF | DWG | |
| BCAR203018T | 200 | 180.5 | 300 | 172.4 | 164.1 | 273.5 | 1122 | Transparent | Discontinued - Sold out. | DXF | DWG | |
| BCAR203018GN | 200 | 180 | 300 | 172.5 | 163.8 | 272.5 | - | White gray / Munsell 5R8/0.5 | DXF | DWG | ||
| BCAR203018TN | 200 | 180 | 300 | 172.5 | 163.8 | 272.5 | - | Transparent | DXF | DWG | ||
| BCAR212110G | 210 | 100 | 210 | 185.1 | 86.6 | 185.1 | 666 | White gray / Munsell 5R8/0.5 | DXF | DWG | ||
| BCAR212110T | 210 | 100 | 210 | 185.1 | 86.6 | 185.1 | 692 | Transparent | DXF | DWG | ||
| BCAR212113G | 210 | 130 | 210 | 184 | 116.6 | 184 | 740 | White gray / Munsell 5R8/0.5 | DXF | DWG | ||
| BCAR212113T | 210 | 130 | 210 | 184 | 116.6 | 184 | 762 | Transparent | DXF | DWG | ||
| BCAR253515G | 250 | 150 | 350 | 222.5 | 135.3 | 322.5 | 1307 | White gray / Munsell 5R8/0.5 | Discontinued - Sold out. | DXF | DWG | |
| BCAR253515T | 250 | 150 | 350 | 222.5 | 135.3 | 322.5 | 1378 | Transparent | Discontinued - Sold out. | DXF | DWG | |
| BCAR253515GN | 250 | 150 | 350 | 222.1 | 134 | 322.3 | 1324 | White gray / Munsell 5R8/0.5 | DXF | DWG | ||
| BCAR253515TN | 250 | 150 | 350 | 222.1 | 137 | 322.3 | 1366 | Transparent | DXF | DWG | ||
| BCAR253518G | 250 | 181.5 | 350 | 222.5 | 165.8 | 322.5 | 1443 | White gray / Munsell 5R8/0.5 | Discontinued - Sold out. | DXF | DWG | |
| BCAR253518T | 250 | 181.5 | 350 | 222.5 | 165.8 | 322.5 | 1510 | Transparent | Discontinued - Sold out. | DXF | DWG | |
| BCAR253518GN | 250 | 180 | 350 | 222.5 | 163.8 | 322.5 | 1461 | White gray / Munsell 5R8/0.5 | DXF | DWG | ||
| BCAR253518TN | 250 | 180 | 350 | 222.5 | 163.8 | 322.5 | 1503 | Transparent | DXF | DWG | ||
| BCAR282813G | 280 | 130.5 | 280 | 253.9 | 113.6 | 253.9 | 1218 | White gray / Munsell 5R8/0.5 | DXF | DWG | ||
| BCAR282813T | 280 | 130.5 | 280 | 253.9 | 113.6 | 253.9 | 1251 | Transparent | DXF | DWG | ||
| BCAR283813G | 280 | 130 | 380 | 253.9 | 113.6 | 353.9 | 1506 | White gray / Munsell 5R8/0.5 | DXF | DWG | ||
| BCAR283813T | 280 | 130 | 380 | 253.9 | 113.6 | 353.9 | 1563 | Transparent | DXF | DWG | ||
| BCAR303015G | 300 | 151 | 300 | 272.9 | 134.3 | 272.9 | 1393 | White gray / Munsell 5R8/0.5 | DXF | DWG | ||
| BCAR303015T | 300 | 151 | 300 | 272.9 | 134.3 | 272.9 | 1472 | Transparent | DXF | DWG | ||
| BCAR303018G | 300 | 181 | 300 | 272.5 | 164.3 | 272.5 | 1549 | White gray / Munsell 5R8/0.5 | DXF | DWG | ||
| BCAR303018T | 300 | 181 | 300 | 272.5 | 164.3 | 272.5 | 1630 | Transparent | DXF | DWG | ||
| BCAR304012G | 300 | 120 | 400 | 274.1 | 104.5 | 374.5 | 1562 | White gray / Munsell 5R8/0.5 | DXF | DWG | ||
| BCAR304012T | 300 | 120 | 400 | 274.1 | 104.5 | 374.5 | 1629 | Transparent | DXF | DWG | ||
| BCAR304015G | 300 | 150 | 400 | 273.5 | 133.6 | 373.5 | 1617 | White gray / Munsell 5R8/0.5 | DXF | DWG | ||
| BCAR304015T | 300 | 150 | 400 | 273.5 | 133.6 | 373.5 | 1729 | Transparent | DXF | DWG | ||
| BCAR304018G | 300 | 181 | 400 | 272.5 | 164.6 | 372.5 | 1773 | White gray / Munsell 5R8/0.5 | DXF | DWG | ||
| BCAR304018T | 300 | 181 | 400 | 272.5 | 164.6 | 372.5 | 1907 | Transparent | DXF | DWG | ||
| BCAR353515G | 350 | 150 | 350 | 323.5 | 133.6 | 323.5 | 1757 | White gray / Munsell 5R8/0.5 | DXF | DWG | ||
| BCAR353515T | 350 | 150 | 350 | 323.5 | 133.6 | 323.5 | 1827 | Transparent | DXF | DWG | ||
| BCAR353518G | 350 | 181 | 350 | 322.5 | 164.6 | 322.5 | 1908 | White gray / Munsell 5R8/0.5 | DXF | DWG | ||
| BCAR353518T | 350 | 181 | 350 | 322.5 | 164.6 | 322.5 | 1970 | Transparent | DXF | DWG | ||
| BCAR354512G | 350 | 120 | 450 | 316.7 | 103.5 | 416.7 | 2140 | White gray / Munsell 5R8/0.5 | DXF | DWG | ||
| BCAR354512T | 350 | 120 | 450 | 316.7 | 103.5 | 416.7 | 2239 | Transparent | DXF | DWG | ||
| BCAR354516G | 350 | 160 | 450 | 308.7 | 142.6 | 414.7 | 2454 | White gray / Munsell 5R8/0.5 | DXF | DWG | ||
| BCAR354516T | 350 | 160 | 450 | 308.7 | 142.6 | 414.7 | 2586 | Transparent | DXF | DWG | ||
| BCAR354520G | 350 | 201 | 450 | 309.3 | 183.6 | 412.8 | 2718 | White gray / Munsell 5R8/0.5 | DXF | DWG | ||
| BCAR354520T | 350 | 201 | 450 | 309.3 | 183.6 | 412.8 | 2866 | Transparent | DXF | DWG | ||
| BCAR506018G | 530 | 185 | 630 | 476.8 | 163.6 | 576.8 | 5564 | White gray / Munsell 5R8/0.5 | DXF | DWG | ||
| BCAR506018T | 530 | 185 | 630 | 476.8 | 163.6 | 576.8 | 5737 | Transparent | DXF | DWG | ||
| BCAR506025G | 530 | 255 | 630 | 474.6 | 233.6 | 574.6 | 6203 | White gray / Munsell 5R8/0.5 | DXF | DWG | ||
| BCAR506025T | 530 | 255 | 630 | 474.6 | 233.6 | 574.6 | 6399 | Transparent | DXF | DWG | ||
| BCAR507018G | 530 | 185 | 730 | 477 | 166.1 | 677 | 6366 | White gray / Munsell 5R8/0.5 | DXF | DWG | ||
| BCAR507025G | 530 | 258 | 730 | 475 | 236 | 676.2 | 7037 | Transparent | DXF | DWG | ||
| BCAR608018G | 630 | 185 | 830 | 575 | 165.6 | 777 | 8279 | White gray / Munsell 5R8/0.5 | DXF | DWG | ||
| BCAR608028G | 630 | 285 | 830 | 573.5 | 265.8 | 773.5 | 9719 | Transparent | DXF | DWG | ||
