IP65 WALLMOUNT HINGED STAINLESS STEEL BOX - SLM series


SLM Series -PDF

CATEGORY：IP65 hinged stainless steel enclosure, NEMA 4X stainless steel enclosure, Wallmount enclosure, SUS304 stainless steel box, Electrical box

IP65 WALLMOUNT HINGED STAINLESS STEEL BOX - SLM series
IP65 WALLMOUNT HINGED STAINLESS STEEL BOX - SLM series
IP65 WALLMOUNT HINGED STAINLESS STEEL BOX - SLM series
IP65 WALLMOUNT HINGED STAINLESS STEEL BOX - SLM series
IP65 WALLMOUNT HINGED STAINLESS STEEL BOX - SLM series
IP65 WALLMOUNT HINGED STAINLESS STEEL BOX - SLM series1
IP65 WALLMOUNT HINGED STAINLESS STEEL BOX - SLM series2
IP65 WALLMOUNT HINGED STAINLESS STEEL BOX - SLM series3
IP65 WALLMOUNT HINGED STAINLESS STEEL BOX - SLM series4
IP65 WALLMOUNT HINGED STAINLESS STEEL BOX - SLM series5

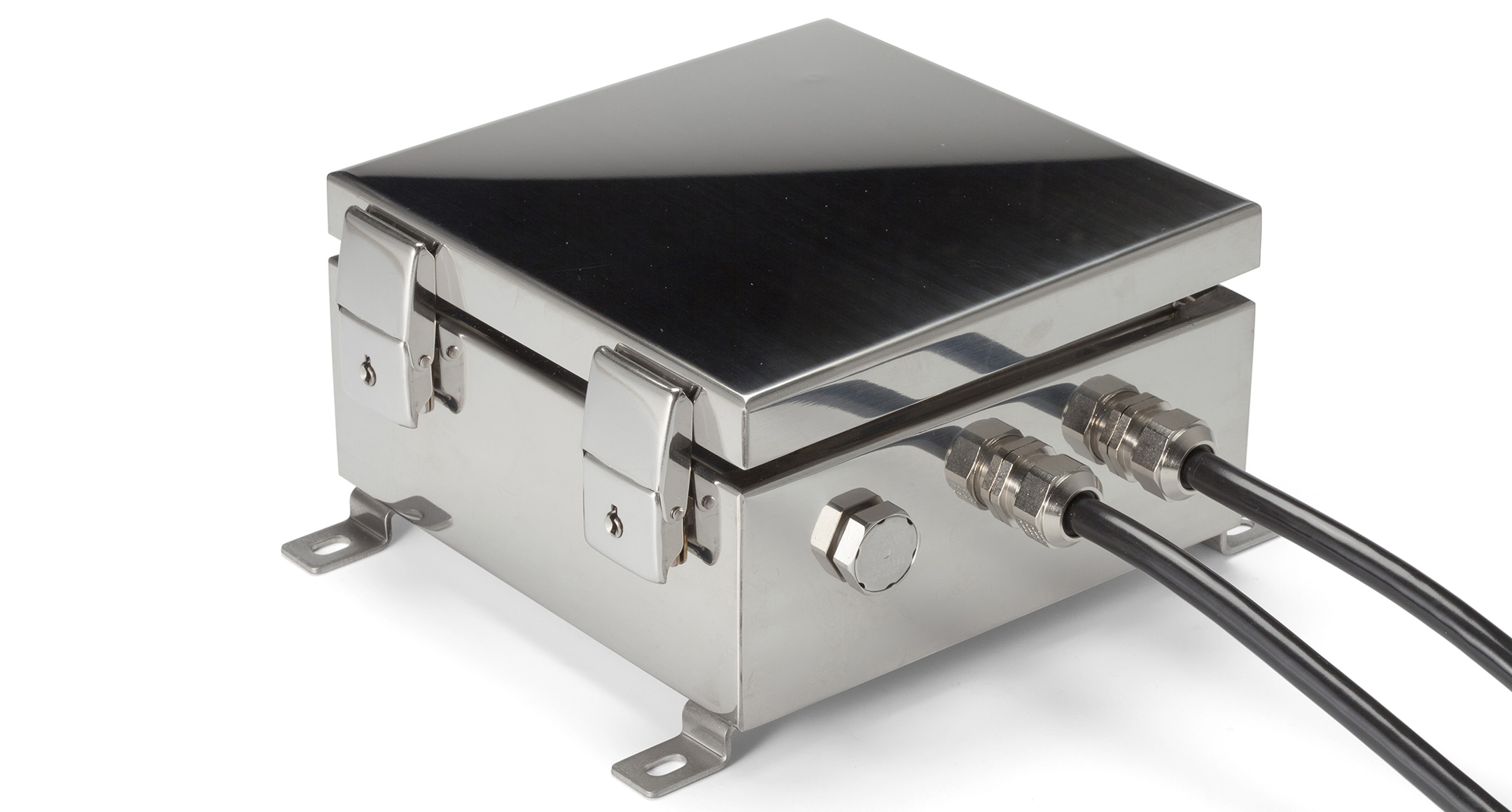

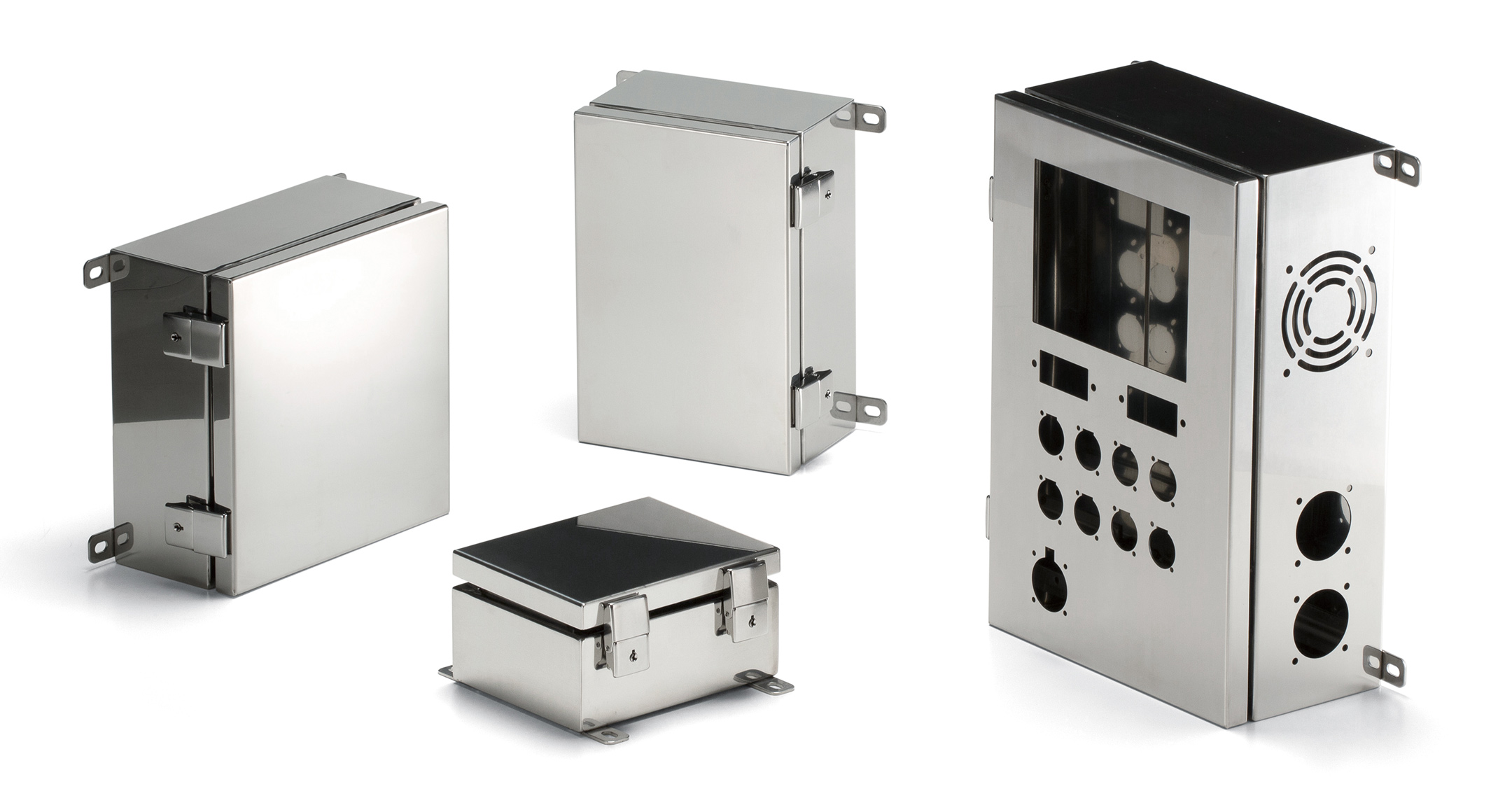

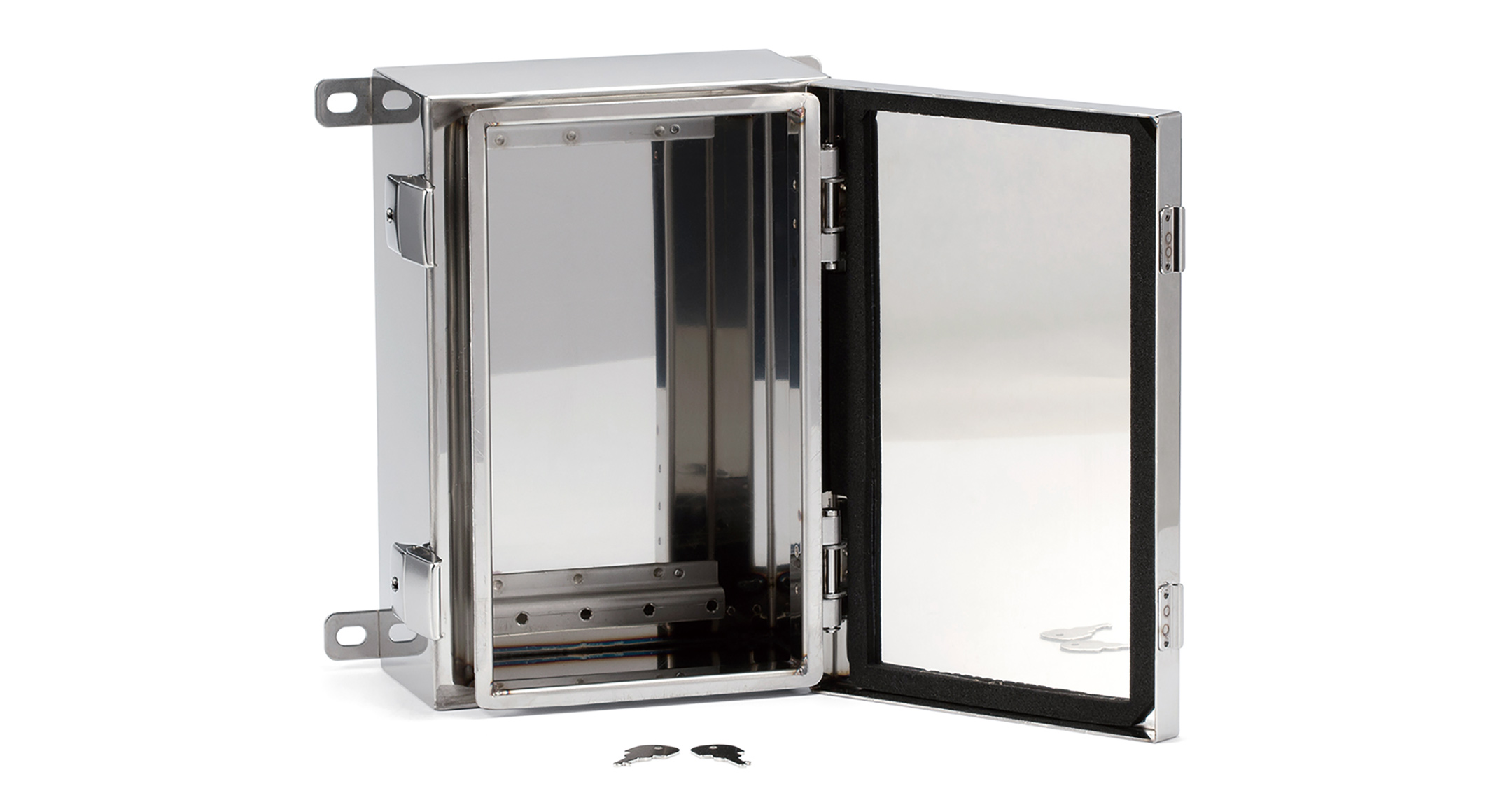

IP65 hinged stainless steel enclosure with key lock latch.
Equipped with wall mounting brackets.
Made of SUS304 stainless steel for superior weather and corrosion resistance.
Conductive box for EMC shielding.

9 different sizes are available.

Surface finish : Polished finish
Protection class : IP65 (equivalent to NEMA6 rating)
Operating temperature : -40℃ ~ +90℃
3D View  Exploded view 

PRODUCT NO. / DIMENSIONS

Product No. External dimensions Internal dimensions Weight (g) PDF DXF DWG STP
W H D w h d
SLM121508 120 80.5 150 84 68.1 130.5 1000 PDF DXF DWG
SLM151508 150 80.5 150 114 68.1 130.5 1200 PDF DXF DWG
SLM152206 150 60.5 220 114 51.6 200.5 1400 PDF DXF DWG
SLM152210 150 100.5 220 114 88.1 200.5 1700 PDF DXF DWG
SLM202010 200 100.5 200 164 88.1 180.5 1900 PDF DXF DWG
SLM202806 200 60.5 280 164 51.6 260.5 2000 PDF DXF DWG
SLM202812 200 120.5 280 164 108.1 260.5 2600 PDF DXF DWG
SLM223312 220 120.5 330 184 108.1 310.5 3100 PDF DXF DWG
SLM304015 300 150.5 400 264 138.1 380.5 4900 PDF DXF DWG
Mounting plate (Option) PDF DXF DWG
SSC1215 PDF DXF DWG
SSC1515 PDF DXF DWG
SSC1522 PDF DXF DWG
SSC1522 PDF DXF DWG
SSC2020 PDF DXF DWG
SSC2028 PDF DXF DWG
SSC2028 PDF DXF DWG
SSC2233 PDF DXF DWG
SSC3040 PDF DXF DWG

OPTIONAL PARTS

１

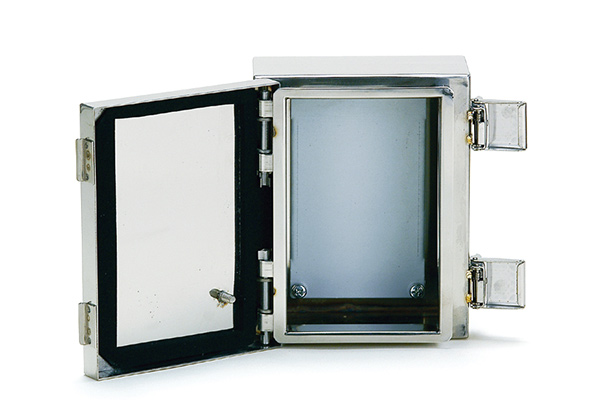

MOUNTNG PLATE for STAINLESS STEEL BOX - SSC series
DETAILS
１
DIN RAIL for STAINLESS STEEL BOXES
DETAILS
１
LOW-COST METAL VENTILATION PLUG - CVP-M series
DETAILS
１
STAINLESS STEEL PROTECTIVE VENT - PMF-12M
DETAILS
１
IP68 METAL CABLE GLAND - AGM series
DETAILS
１
EMC CABLE GLAND - AGE series
DETAILS
１
IP68 WATER PROTECTION CABLE GLAND - AG series
DETAILS
１
WEATHERPROOF CABLE GLAND - RMW series
DETAILS

SIMILAR PRODUCT

１
IP65 WALL MOUNT STAINLESS STEEL BOX - SLB series
DETAILS
１
IP65 HINGED STAINLESS STEEL BOX - SSM series
DETAILS
１
IP65 LATCH-HINGED POLYCARBONATE BOX - BCPC series
DETAILS
１
IP65 POLYCARBONATE BOX with KEY LOCK - BCPK series
DETAILS
１
ALUMINIUM BOX WITH HINGED DOOR - FCW series
DETAILS

CUSTOMIZATION VIDEO / PRODUCT INTRODUCTION VIDEO

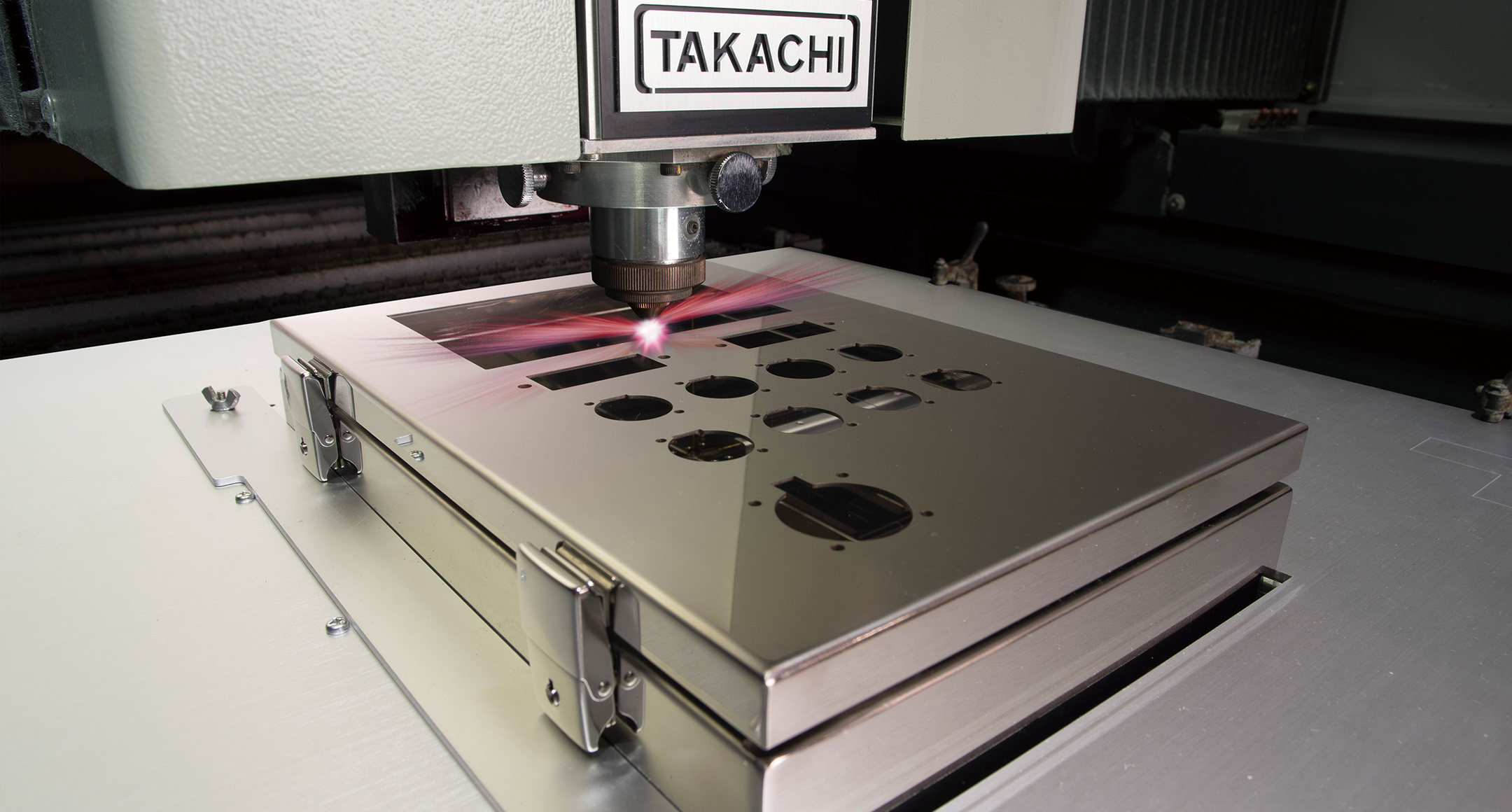

laser_cutting
