CUSTOM SIZED WALLMOUNT EXTRUDED ALUMINUM ENCLOSURE - EXFS series
CUSTOM SIZED WALLMOUNT EXTRUDED ALUMINUM ENCLOSURE - EXFS series
CUSTOM SIZED WALLMOUNT EXTRUDED ALUMINUM ENCLOSURE - EXFS series
CUSTOM SIZED WALLMOUNT EXTRUDED ALUMINUM ENCLOSURE - EXFS series
CUSTOM SIZED WALLMOUNT EXTRUDED ALUMINUM ENCLOSURE - EXFS series
CUSTOM SIZED WALLMOUNT EXTRUDED ALUMINUM ENCLOSURE - EXFS series
CUSTOM SIZED WALLMOUNT EXTRUDED ALUMINUM ENCLOSURE - EXFS series
CUSTOM SIZED WALLMOUNT EXTRUDED ALUMINUM ENCLOSURE - EXFS series
CUSTOM SIZED WALLMOUNT EXTRUDED ALUMINUM ENCLOSURE - EXFS series
CUSTOM SIZED WALLMOUNT EXTRUDED ALUMINUM ENCLOSURE - EXFS series
CUSTOM SIZED WALLMOUNT EXTRUDED ALUMINUM ENCLOSURE - EXFS series
CUSTOM SIZED WALLMOUNT EXTRUDED ALUMINUM ENCLOSURE - EXFS series1
CUSTOM SIZED WALLMOUNT EXTRUDED ALUMINUM ENCLOSURE - EXFS series2
CUSTOM SIZED WALLMOUNT EXTRUDED ALUMINUM ENCLOSURE - EXFS series3
CUSTOM SIZED WALLMOUNT EXTRUDED ALUMINUM ENCLOSURE - EXFS series4
CUSTOM SIZED WALLMOUNT EXTRUDED ALUMINUM ENCLOSURE - EXFS series5
CUSTOM SIZED WALLMOUNT EXTRUDED ALUMINUM ENCLOSURE - EXFS series6
CUSTOM SIZED WALLMOUNT EXTRUDED ALUMINUM ENCLOSURE - EXFS series7
CUSTOM SIZED WALLMOUNT EXTRUDED ALUMINUM ENCLOSURE - EXFS series8
CUSTOM SIZED WALLMOUNT EXTRUDED ALUMINUM ENCLOSURE - EXFS series9
CUSTOM SIZED WALLMOUNT EXTRUDED ALUMINUM ENCLOSURE - EXFS series10
CUSTOM SIZED WALLMOUNT EXTRUDED ALUMINUM ENCLOSURE - EXFS series11

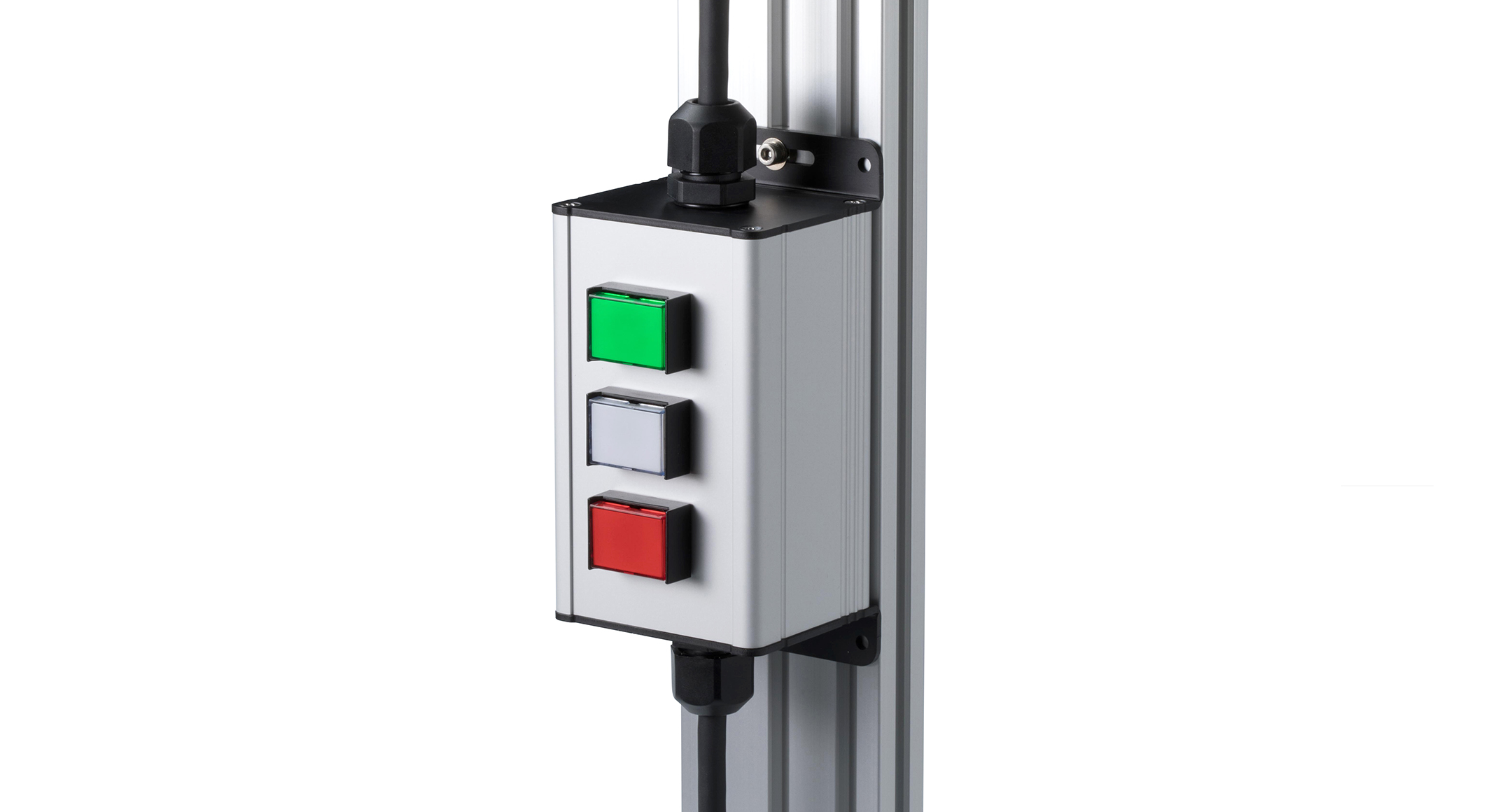

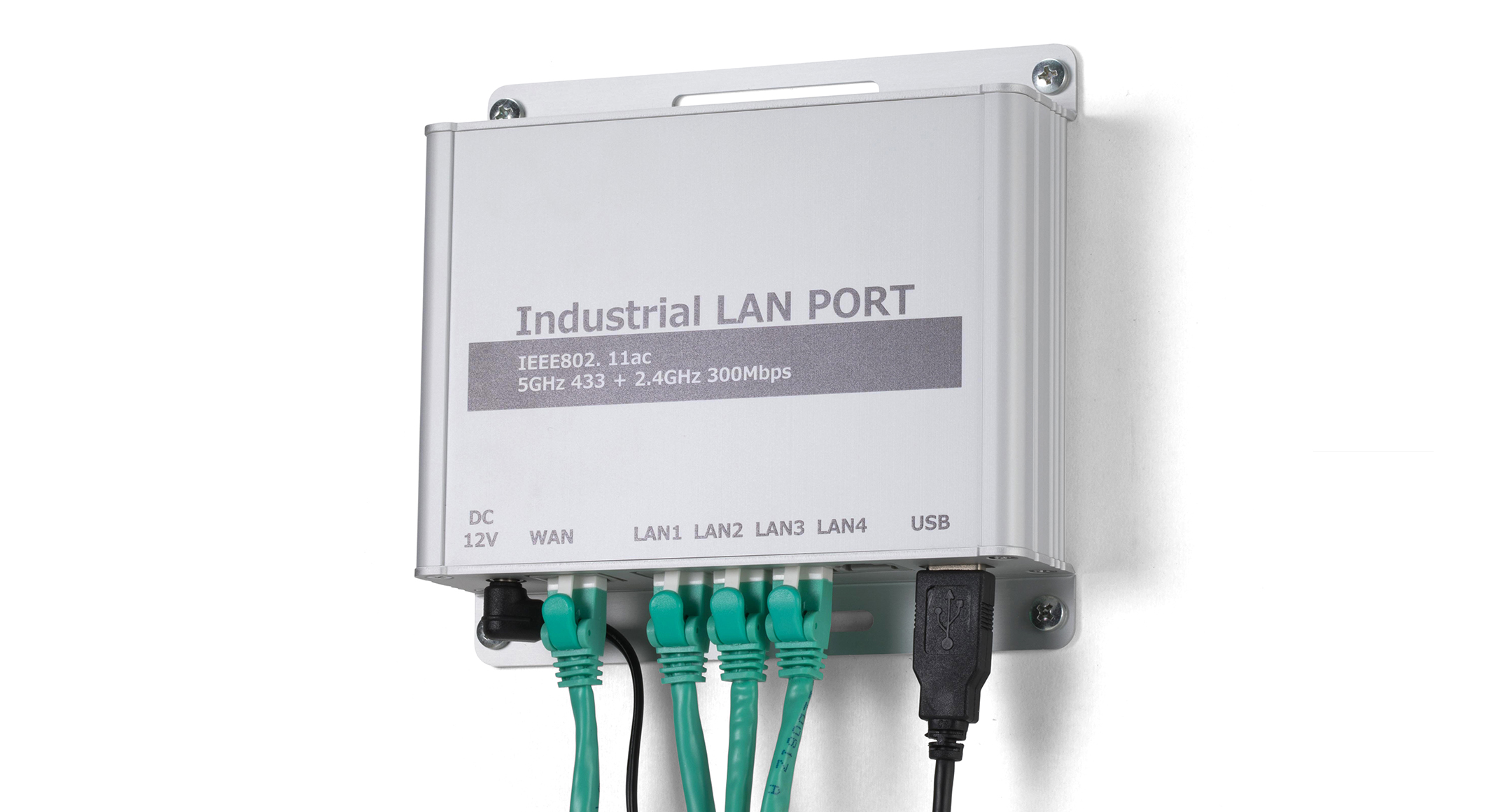

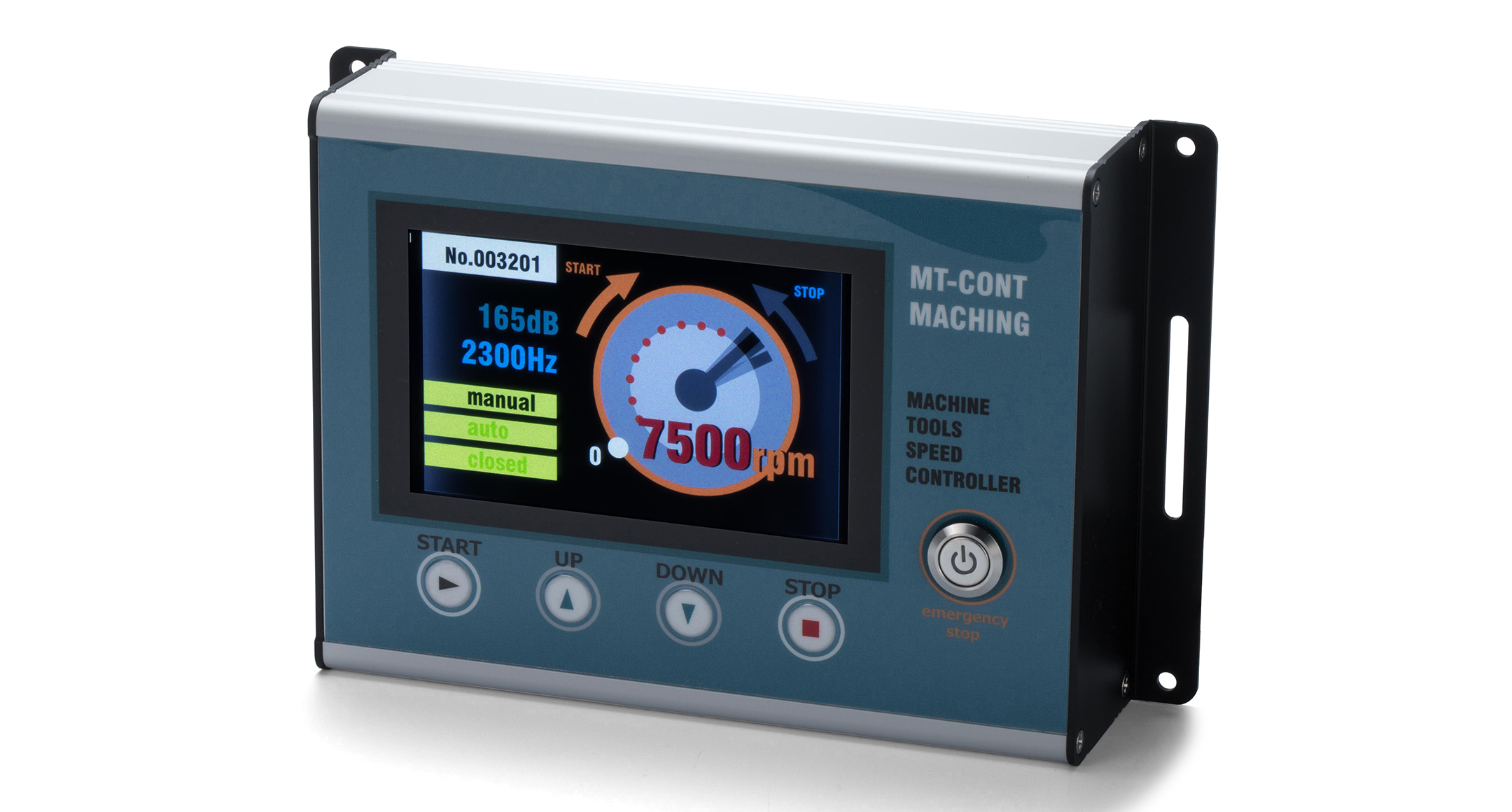

Flanged panel type or flanged bracket type extruded aluminium enclosure.
Equipped with flanged panel or bracket for easy wall mounting.

Custom length (depth) from 40～500mm* in 1mm intervals.

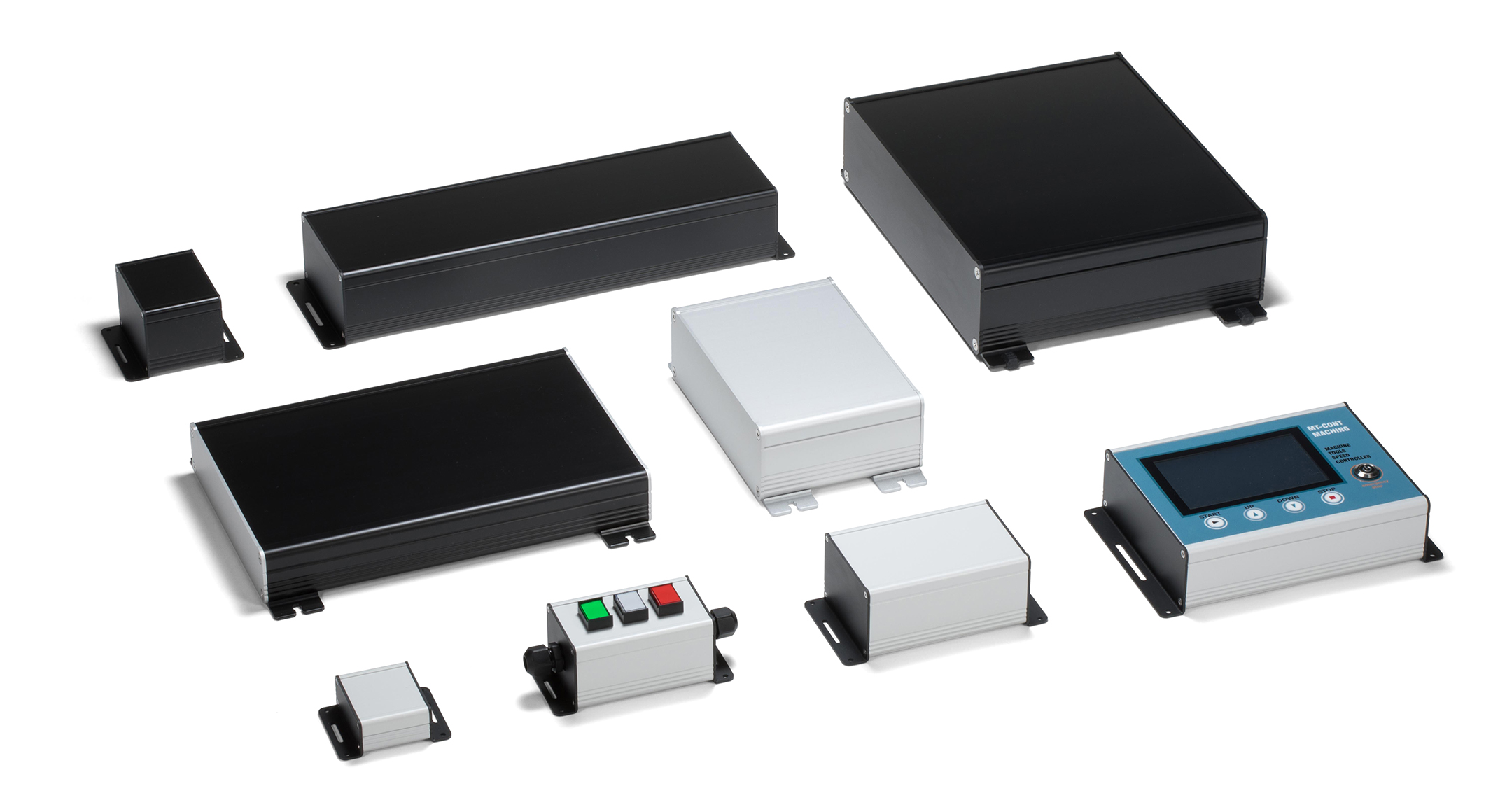

Selectable from 22 different width/height combinations and 4 different color combinations :

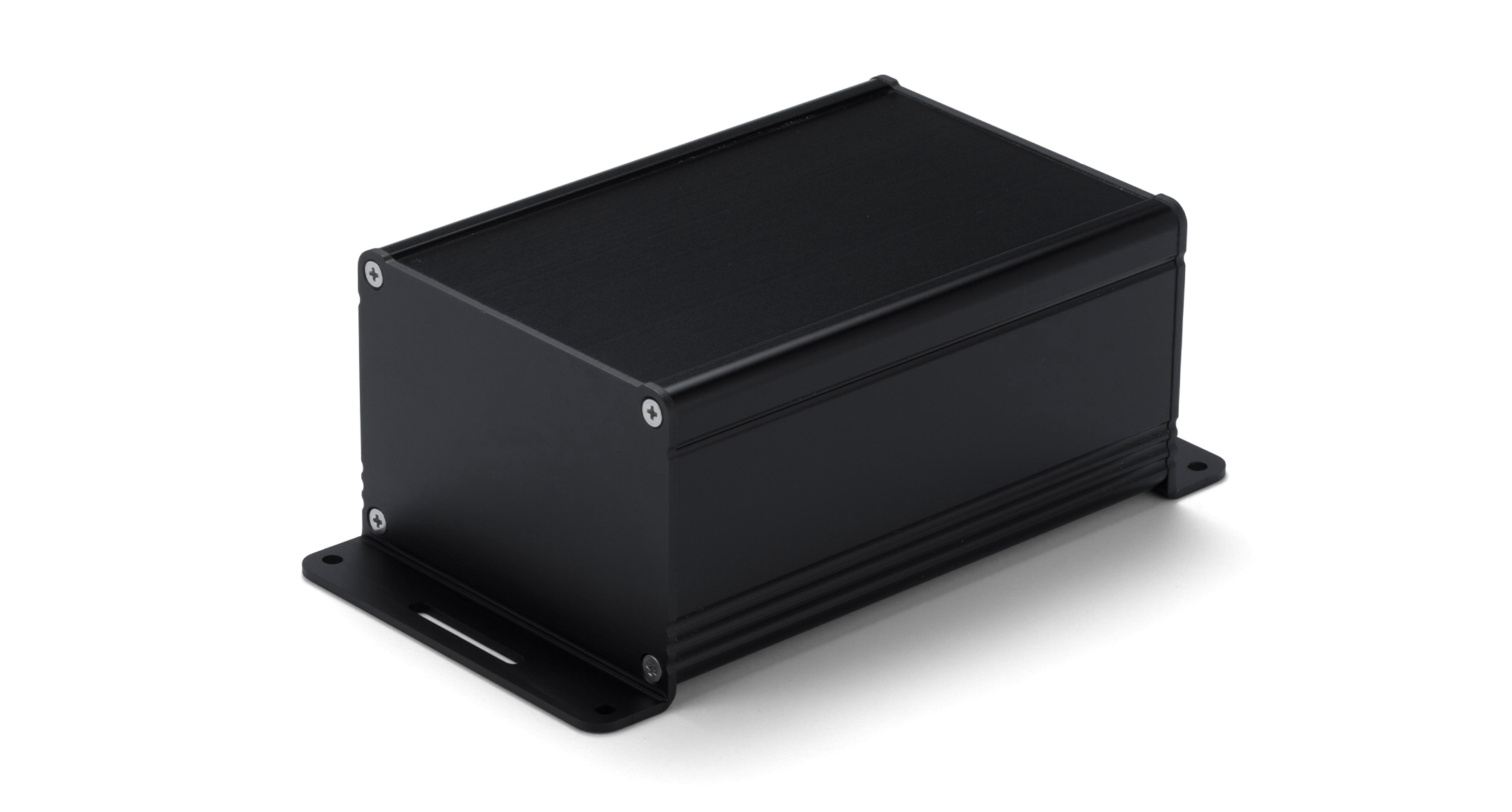

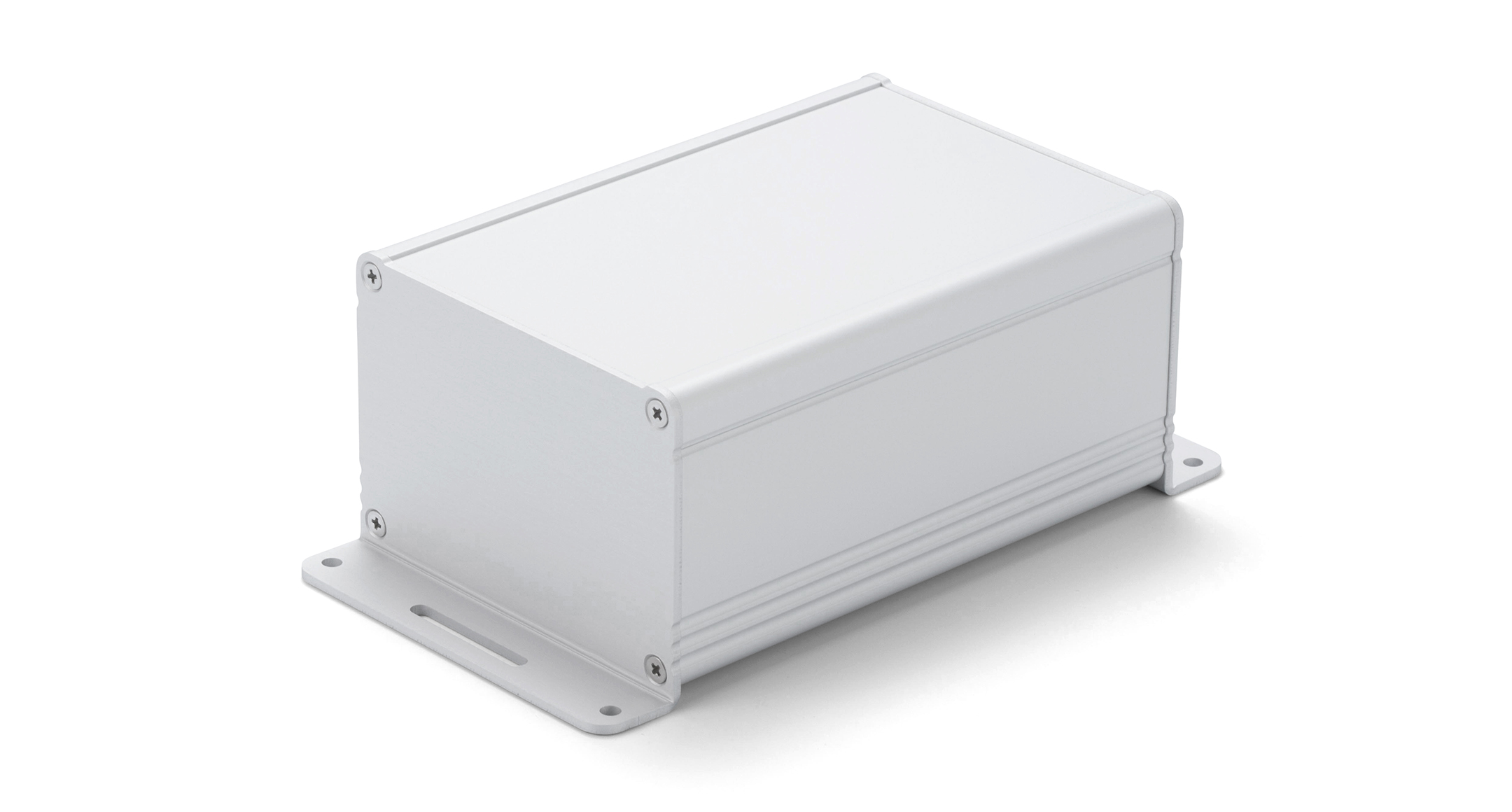

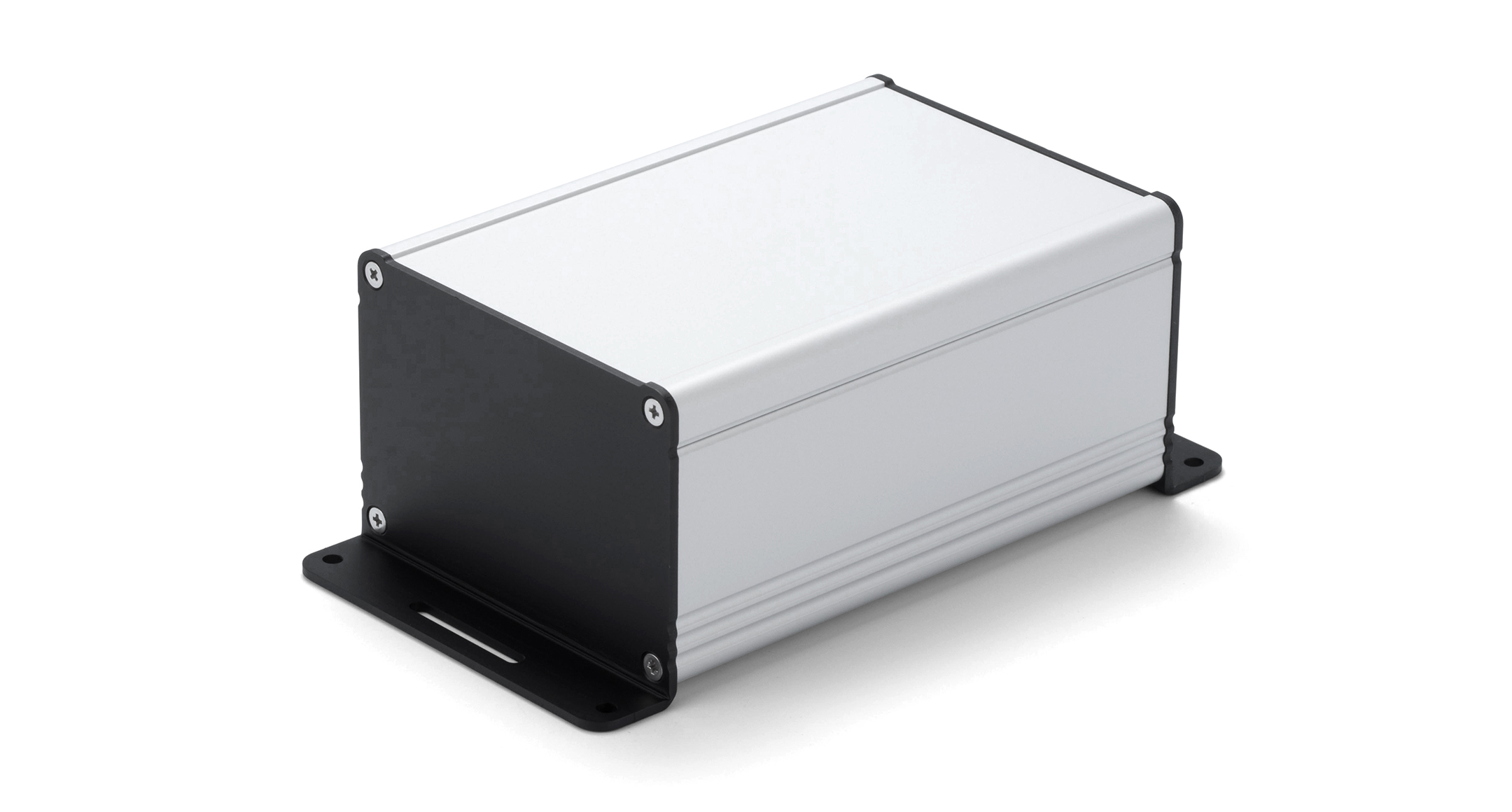

Silver / Silver (SS), Silver / Black(SB), Black / Silver(BS), Black / Black(BB)

*80～500mm for models of width (W) 187mm or more.

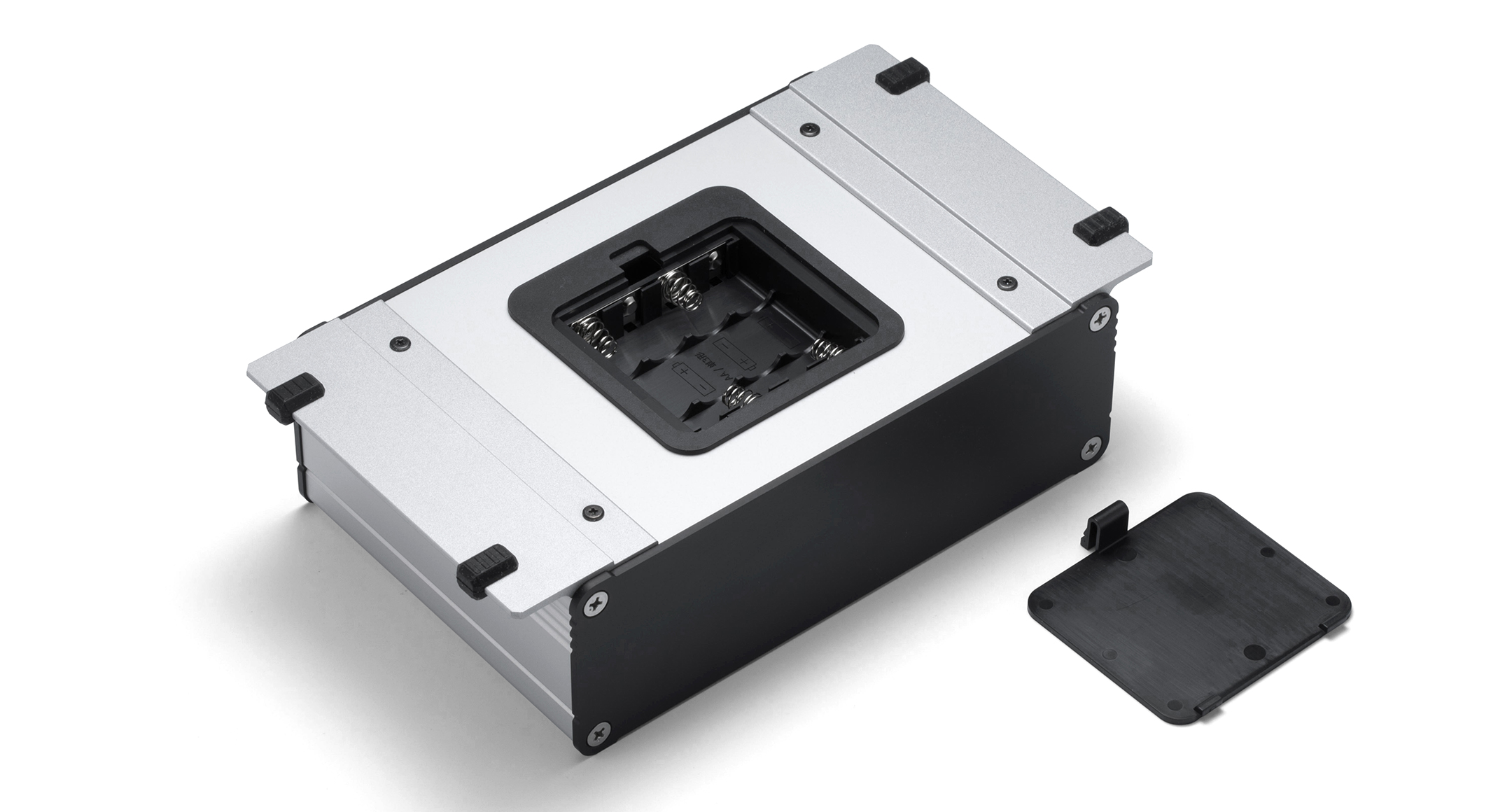

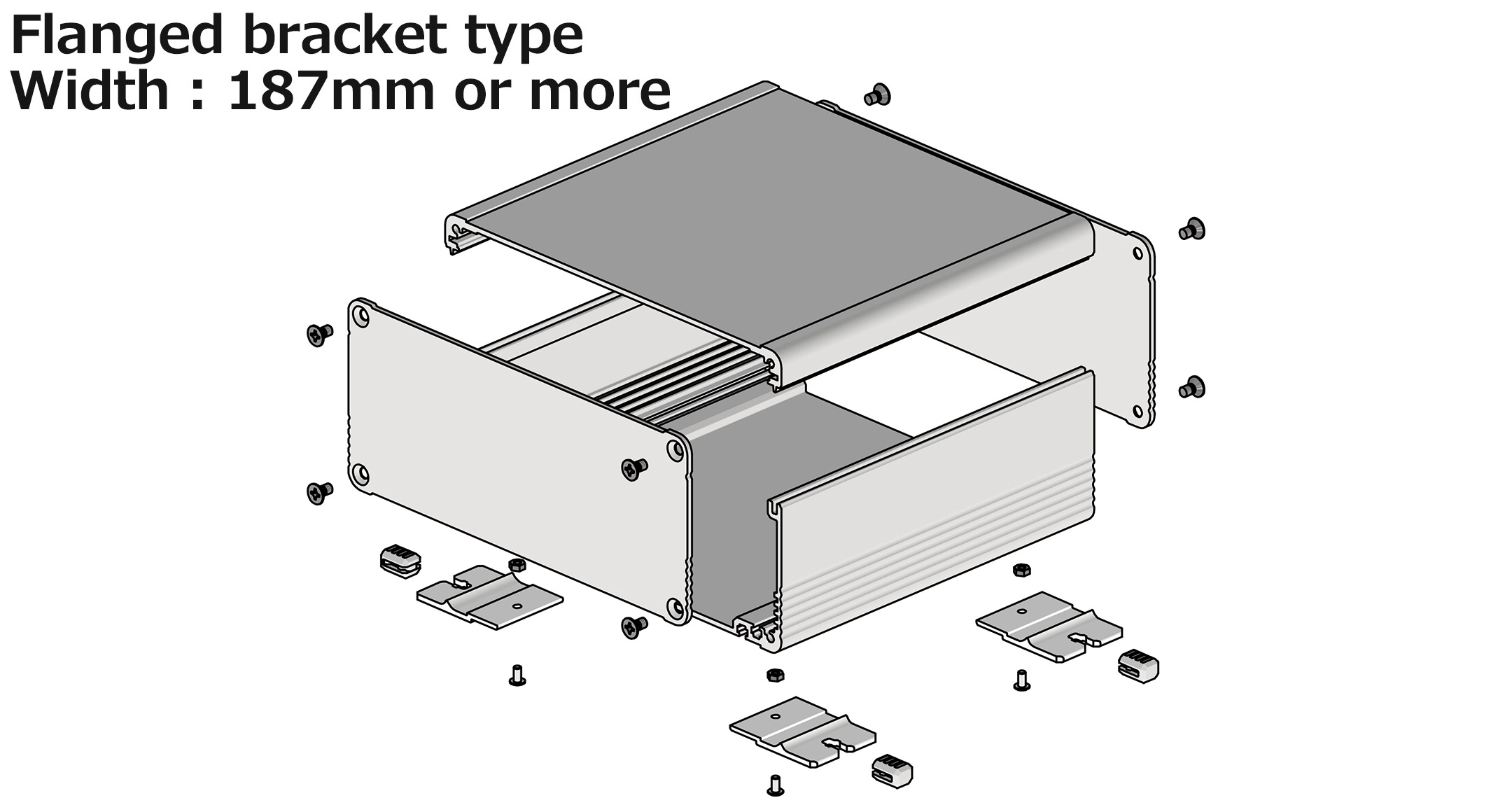

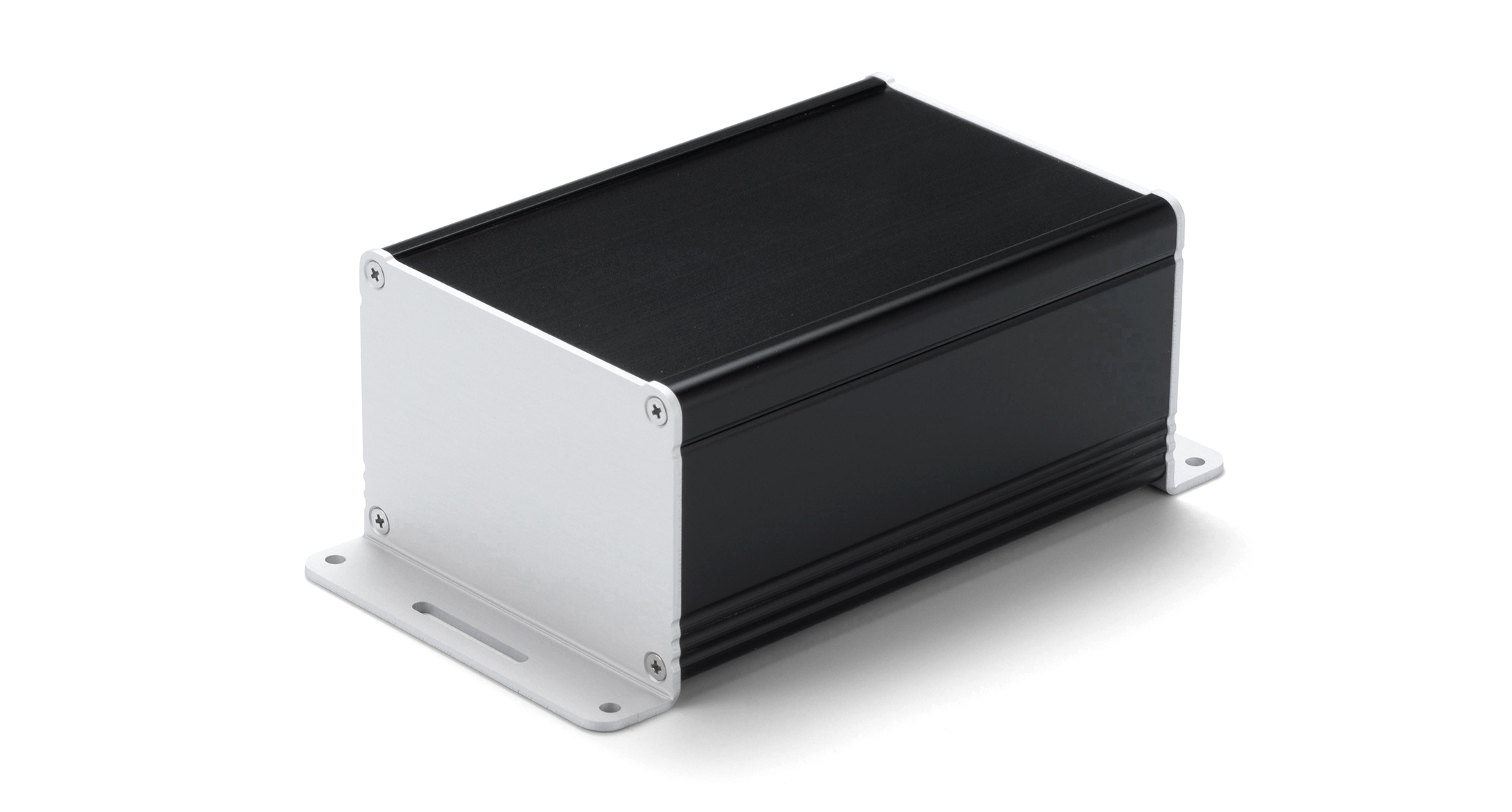

3D View - EXFS81-43-120SS  3D view - 4 color types  Exploded view - Flanged panel type  Exploded view - Flanged bracket type 

PRODUCT NO. / DIMENSIONS

Product No. External dimensions Internal dimensions PDF DXF DWG
W H D w h d
EXFS61-28-□□ 60.6 27.6 Can be specified from 40 to 500mm by 1mm intervals 46 19.6 D length－4mm
EXFS61-38-□□ 60.6 37.6 Can be specified from 40 to 500mm by 1mm intervals 46 29.6 D length－4mm
EXFS61-53-□□ 60.6 52.6 Can be specified from 40 to 500mm by 1mm intervals 46 44.6 D length－4mm
EXFS81-33-□□ 80.6 32.6 Can be specified from 40 to 500mm by 1mm intervals 66 24.6 D length－4mm
EXFS81-43-□□ 80.6 42.6 Can be specified from 40 to 500mm by 1mm intervals 66 34.6 D length－4mm
EXFS81-58-□□ 80.6 57.6 Can be specified from 40 to 500mm by 1mm intervals 66 49.6 D length－4mm
EXFS106-33-□□ 106 33 Can be specified from 40 to 500mm by 1mm intervals 88 24 D length－4mm
EXFS106-48-□□ 106 48 Can be specified from 40 to 500mm by 1mm intervals 88 39 D length－4mm
EXFS106-63-□□ 106 63 Can be specified from 40 to 500mm by 1mm intervals 88 54 D length－4mm
EXFS141-38-□□ 141 38 Can be specified from 40 to 500mm by 1mm intervals 106.8 29 D length－4mm
EXFS141-53-□□ 141 53 Can be specified from 40 to 500mm by 1mm intervals 106.8 44 D length－4mm
EXFS141-73-□□ 141 73 Can be specified from 40 to 500mm by 1mm intervals 106.8 64 D length－4mm
EXFS141-93-□□ 141 93 Can be specified from 40 to 500mm by 1mm intervals 106.8 84 D length－4mm
EXFS187-44-□□ 186.5 45.25 Can be specified from 80 to 500mm by 1mm intervals 131 35 D length－5mm
EXFS187-62-□□ 186.5 63.25 Can be specified from 80 to 500mm by 1mm intervals 131 53 D length－5mm
EXFS187-82-□□ 186.5 83.25 Can be specified from 80 to 500mm by 1mm intervals 131 73 D length－5mm
EXFS187-107-□□ 186.5 108.25 Can be specified from 80 to 500mm by 1mm intervals 131 98 D length－5mm
EXFS232-52-□□ 232 53.5 Can be specified from 80 to 500mm by 1mm intervals 176 43 D length－6mm
EXFS232-77-□□ 232 78.5 Can be specified from 80 to 500mm by 1mm intervals 176 68 D length－6mm
EXFS232-102-□□ 232 103.5 Can be specified from 80 to 500mm by 1mm intervals 176 93 D length－6mm
EXFS288-78-□□ 287.5 78.75 Can be specified from 80 to 500mm by 1mm intervals 230 68 D length－6mm
EXFS288-128-□□ 287.5 128.75 Can be specified from 80 to 500mm by 1mm intervals 230 118 D length－6mm
