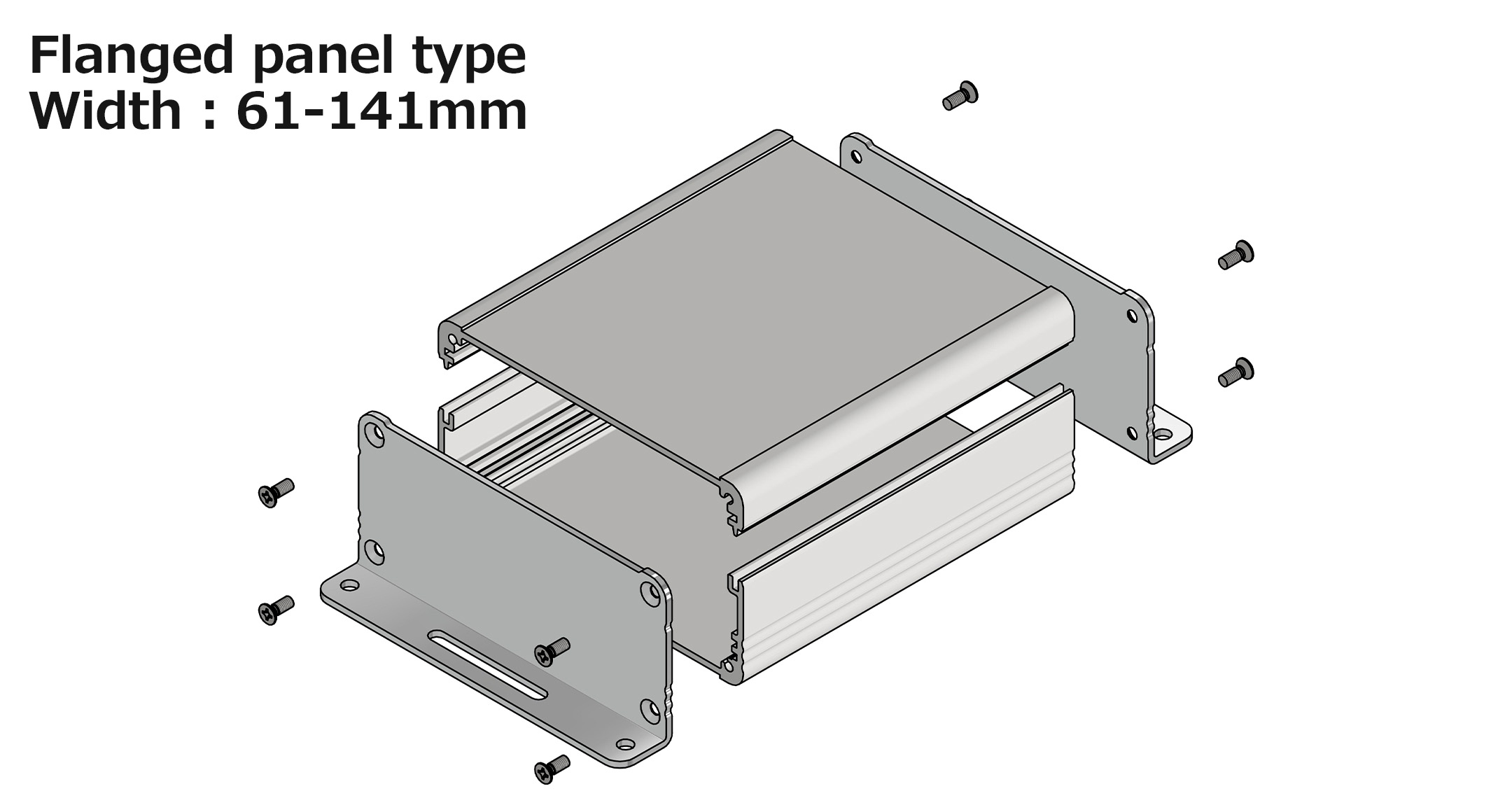

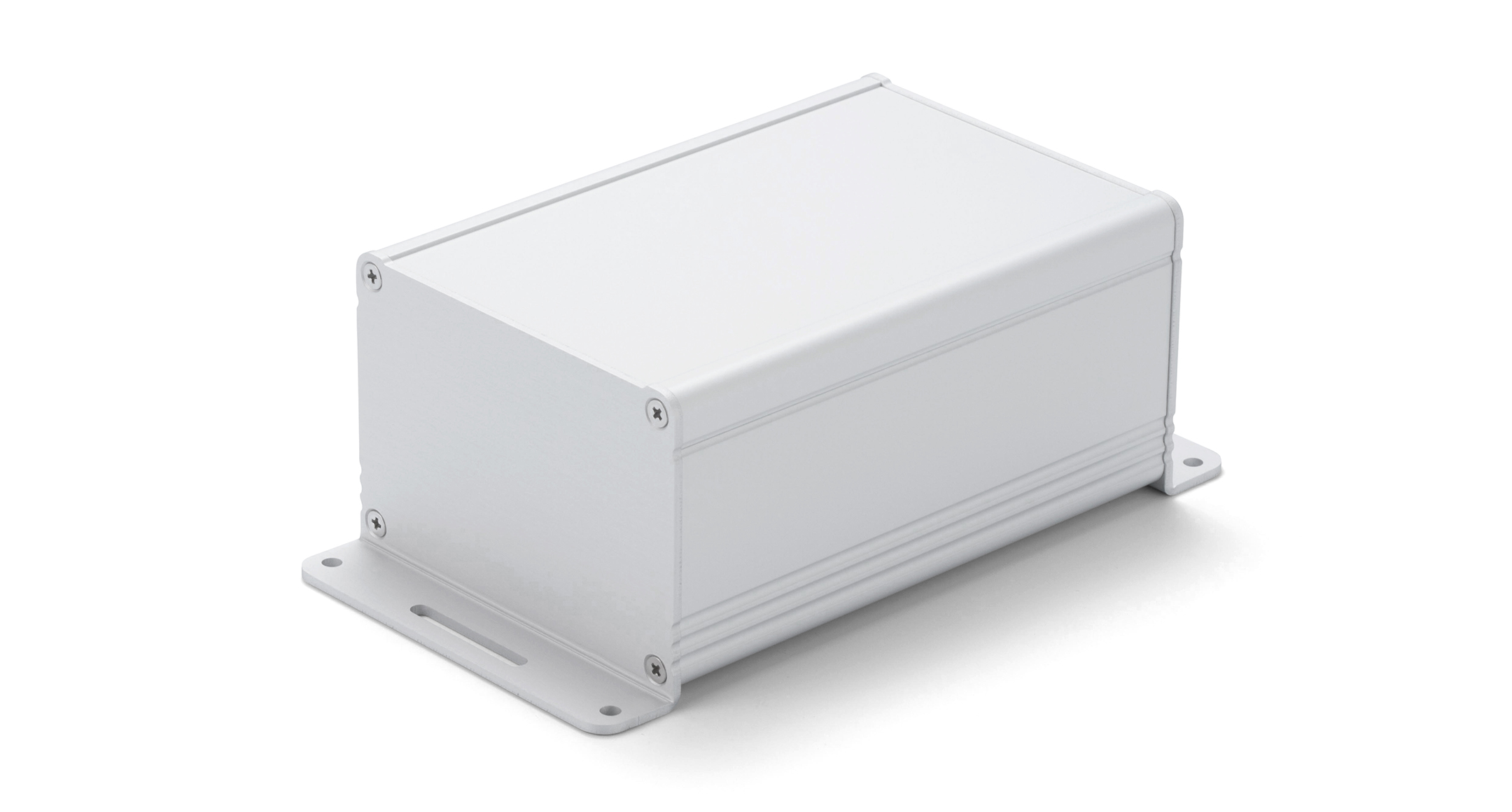

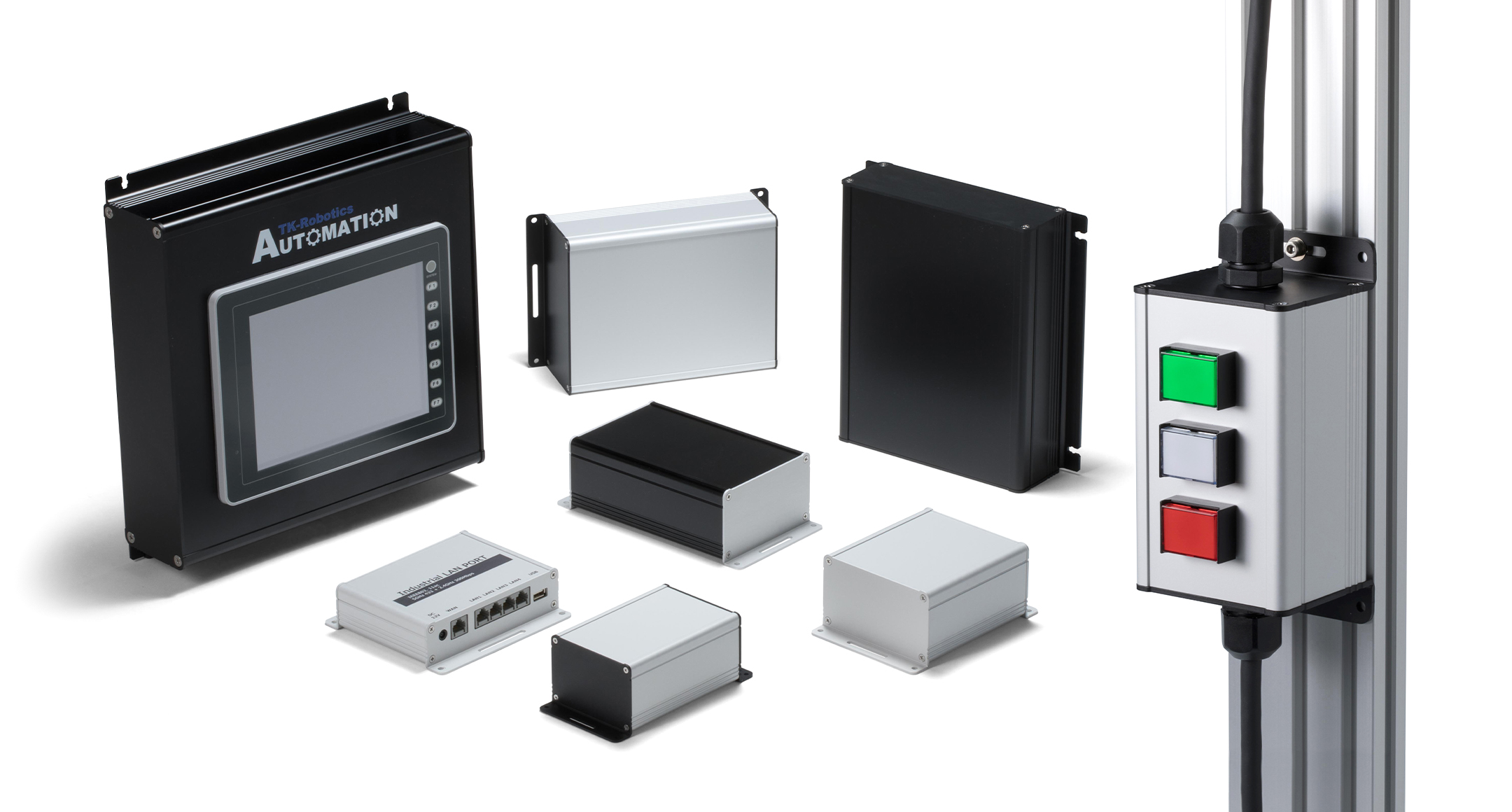

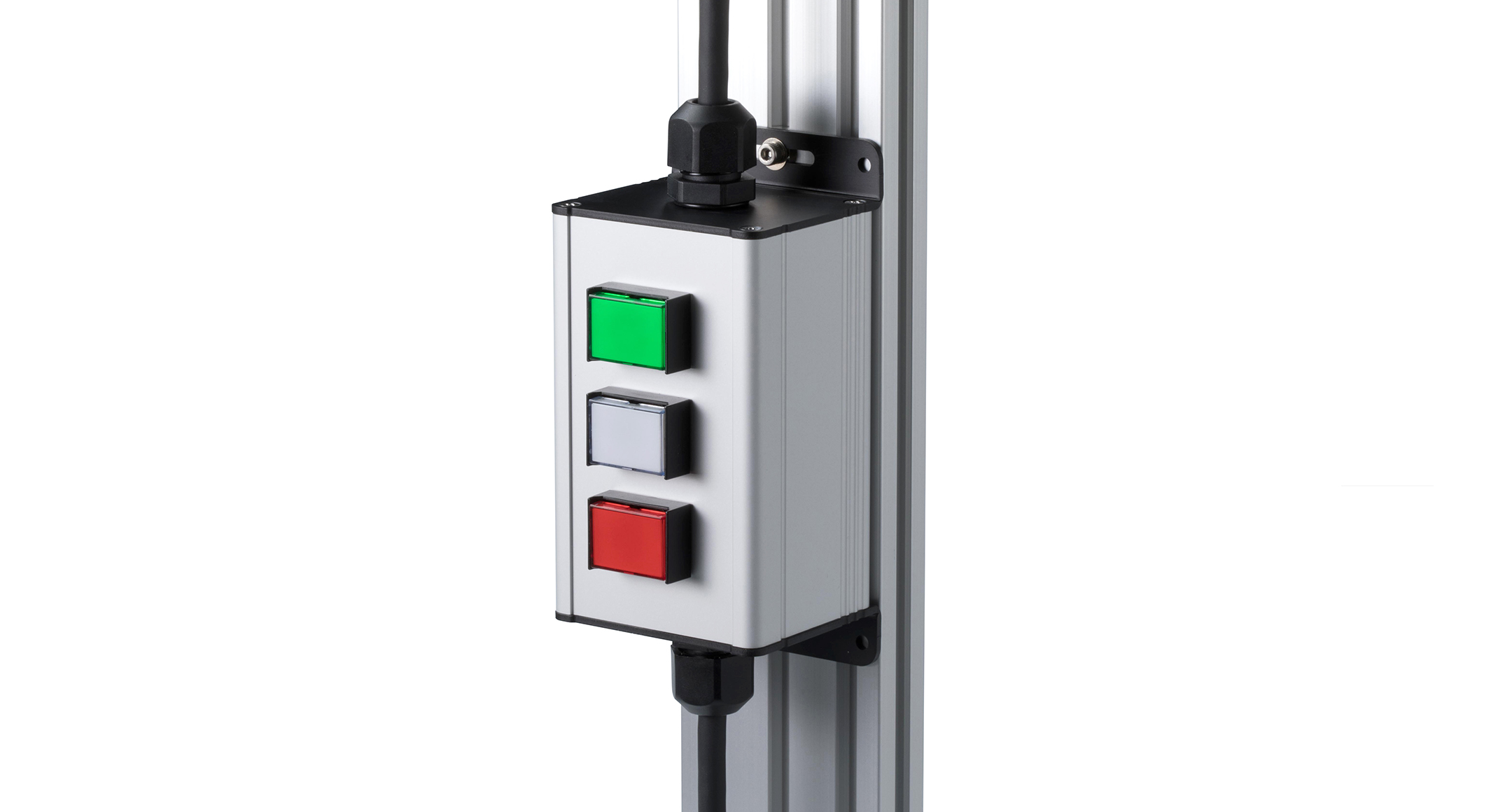

Flanged panel type or flanged bracket type extruded aluminium enclosure.

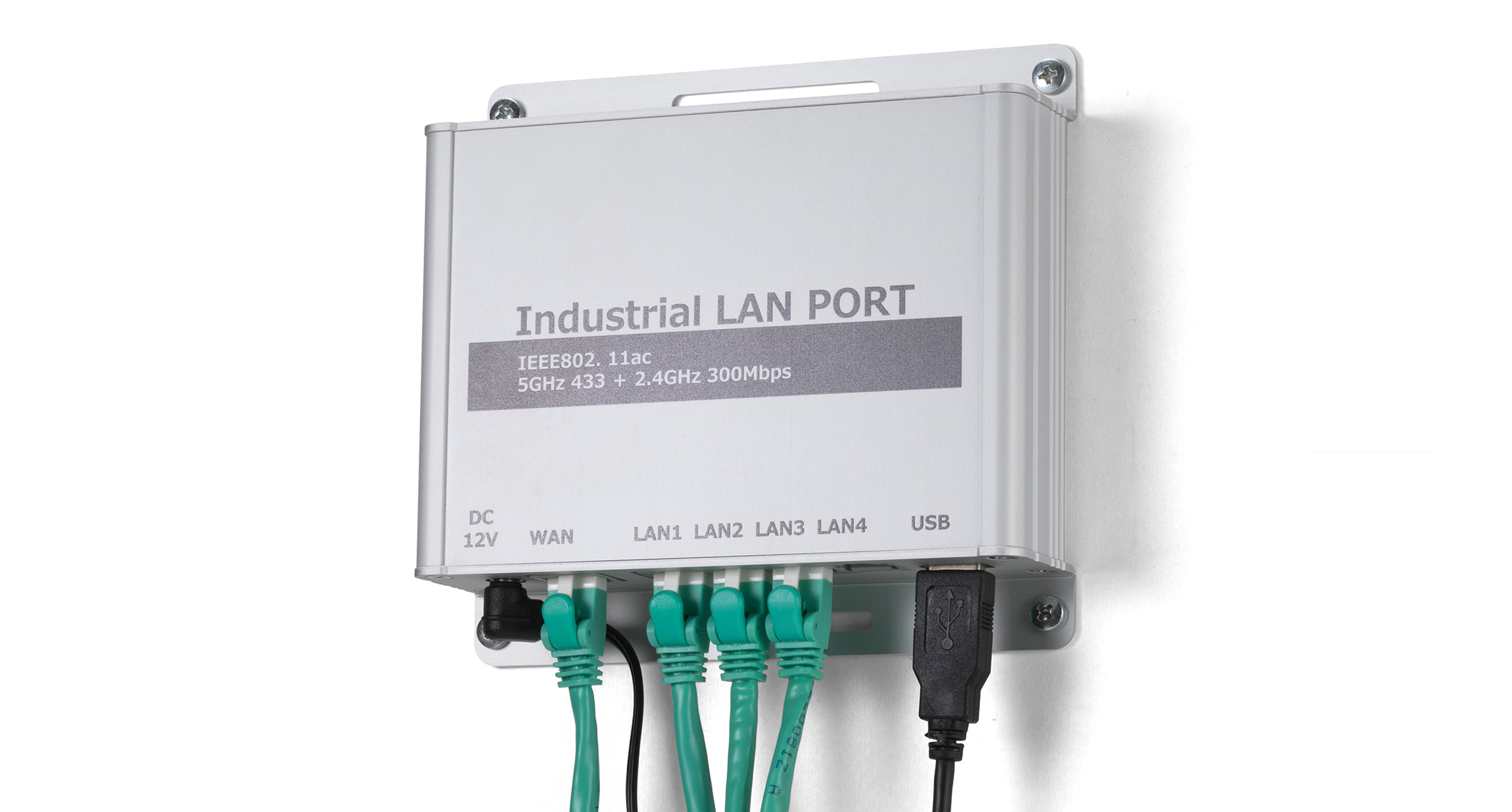

Equipped with flanged panel or bracket for easy wall mounting.
Anodized finish with clear coating (except for flanged bracket).
Available in 73 sizes and selectable in 4 different color combinations :

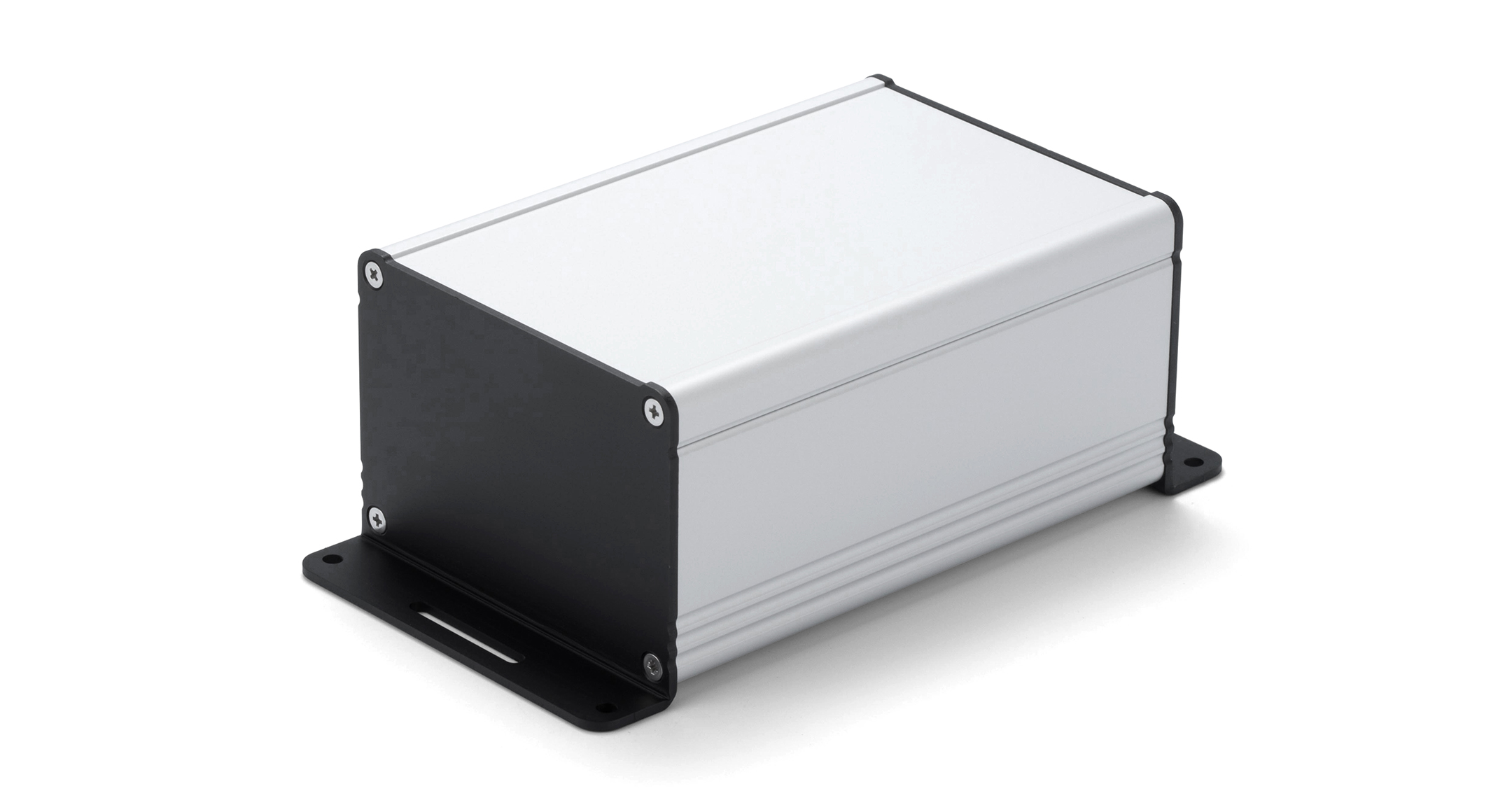

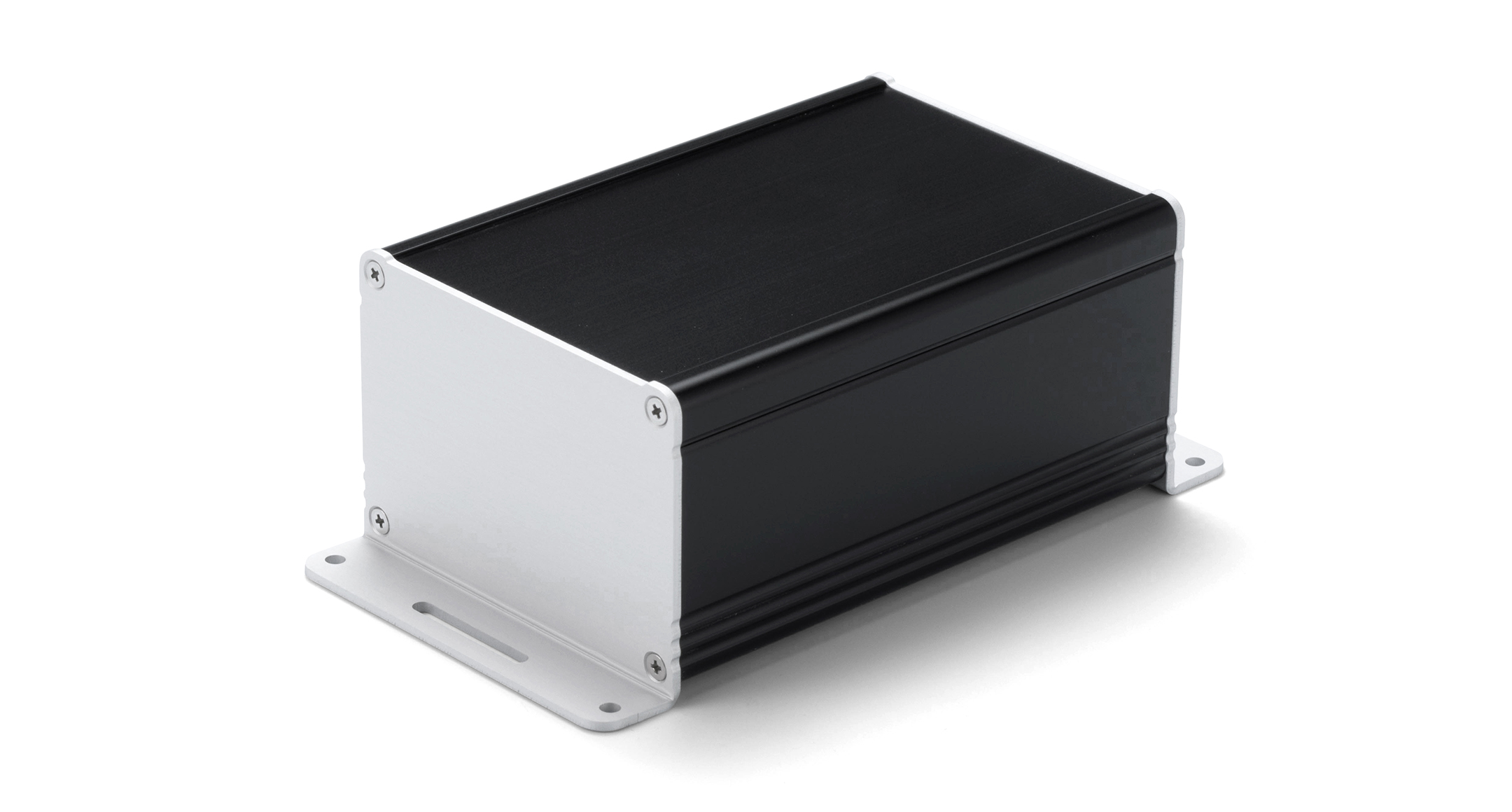

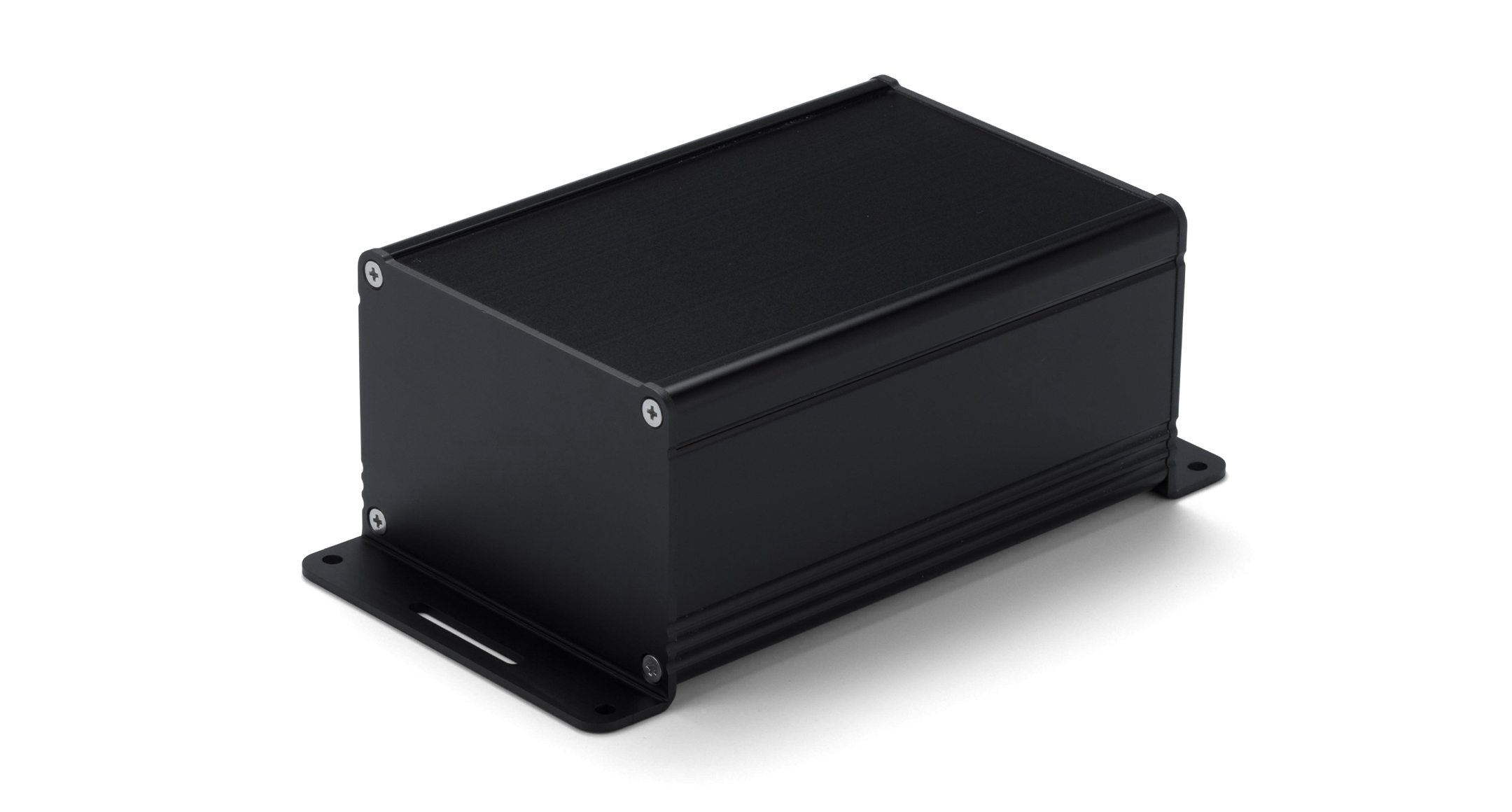

Silver / Silver (SS), Silver / Black(SB), Black / Silver(BS), Black / Black(BB)

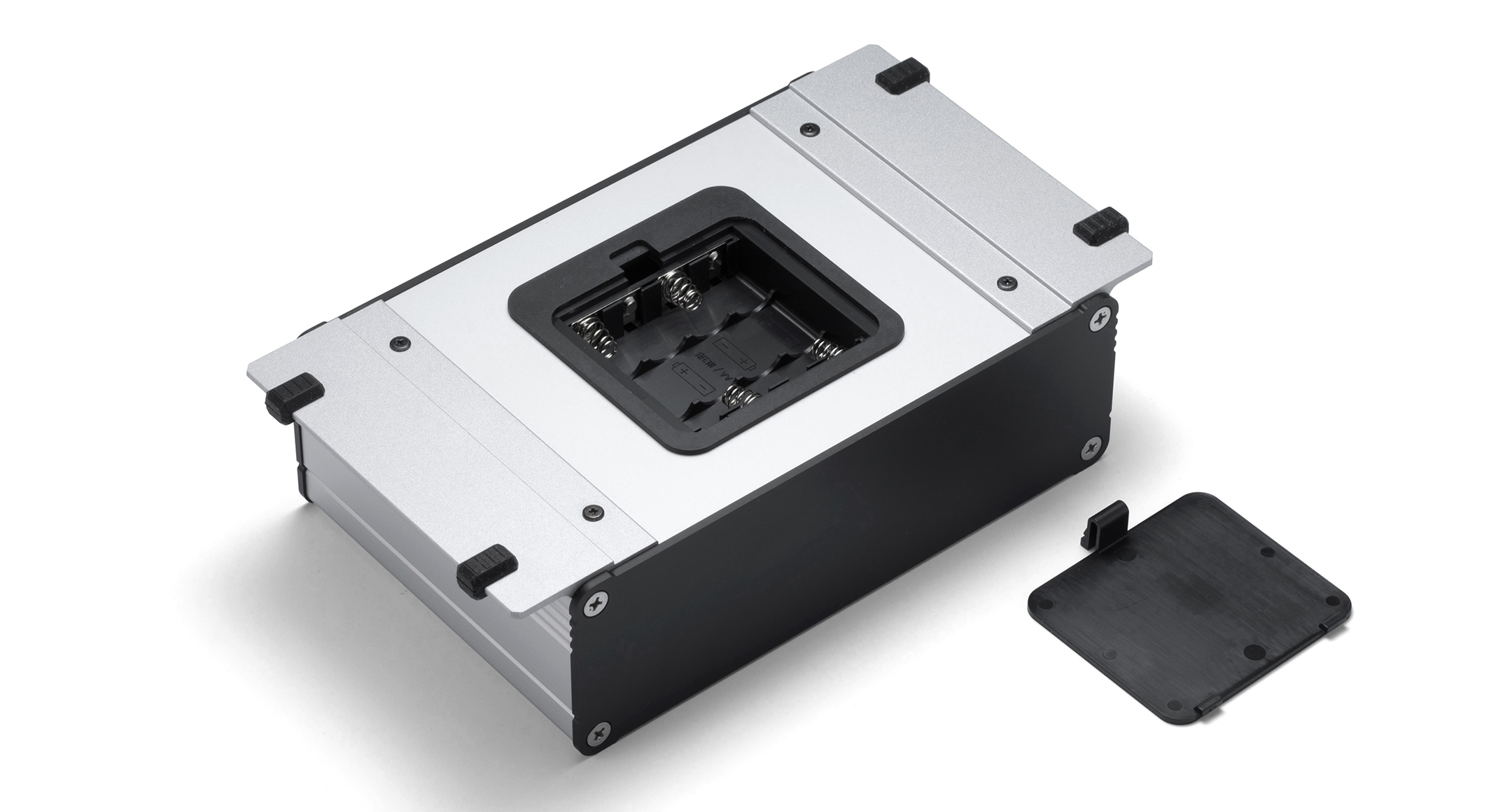

*Flanged panel type EXF6-□, 8-□, 11-□ and 14-□

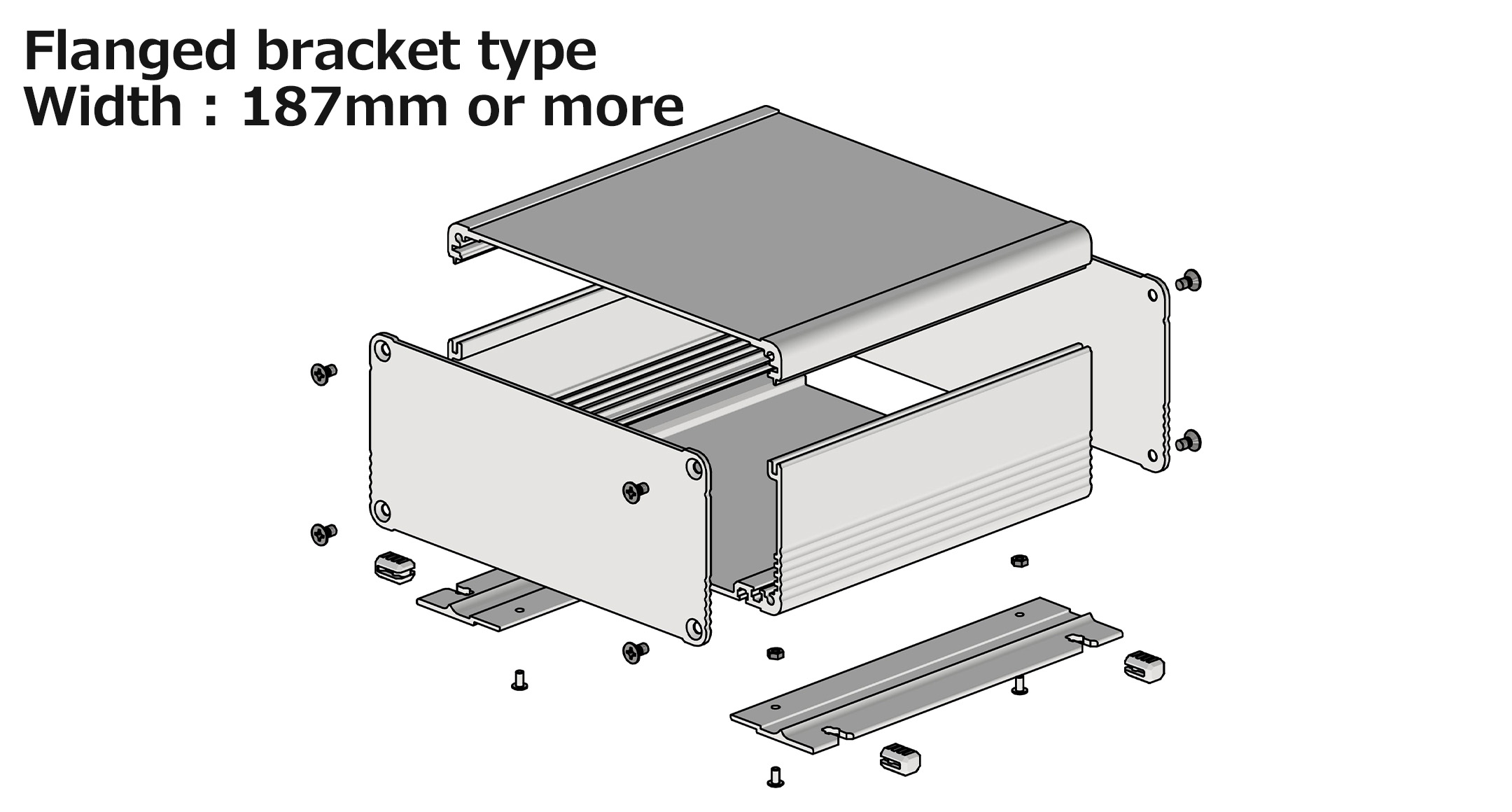

Flanged bracket type EXF19-□, 23-□ and 29-□
Custom length is available.
Go EXFS series page for the custom length (depth) order from 40～500mm by 1mm intervals.
Equipped with flanged panel or bracket for easy wall mounting.
Anodized finish with clear coating (except for flanged bracket).
Available in 73 sizes and selectable in 4 different color combinations :
Silver / Silver (SS), Silver / Black(SB), Black / Silver(BS), Black / Black(BB)
*Flanged panel type EXF6-□, 8-□, 11-□ and 14-□
Flanged bracket type EXF19-□, 23-□ and 29-□
Custom length is available.
Go EXFS series page for the custom length (depth) order from 40～500mm by 1mm intervals.
COLOR TYPE
SSSilver/Silver
SBSilver/Black
BSBlack/Silver
BBBlack/Black
PRODUCT NO. / DIMENSIONS
| Product No. | External dimensions | Internal dimensions | Weight (g) | DXF | DWG | STP | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| W | H | D | w | h | d | ||||||
| EXF6-3-5□□ | 60.6 | 27.6 | 50 | 46 | 19.6 | 46 | 63 | DXF | DWG | ||
| EXF6-3-8□□ | 60.6 | 27.6 | 77 | 46 | 19.6 | 73 | 85 | DXF | DWG | ||
| EXF6-3-10□□ | 60.6 | 27.6 | 100 | 46 | 19.6 | 96 | 105 | DXF | DWG | ||
| EXF6-4-5□□ | 60.6 | 37.6 | 50 | 46 | 29.6 | 46 | 75 | DXF | DWG | ||
| EXF6-4-8□□ | 60.6 | 37.6 | 77 | 46 | 29.6 | 73 | 101 | DXF | DWG | ||
| EXF6-4-10□□ | 60.6 | 37.6 | 100 | 46 | 29.6 | 96 | 124 | DXF | DWG | ||
| EXF6-5-5□□ | 60.6 | 52.6 | 50 | 46 | 44.6 | 46 | 92 | DXF | DWG | ||
| EXF6-5-8□□ | 60.6 | 52.6 | 77 | 46 | 44.6 | 73 | 122 | DXF | DWG | ||
| EXF6-5-10□□ | 60.6 | 52.6 | 100 | 46 | 44.6 | 96 | 148 | DXF | DWG | ||
| EXF8-3-6□□ | 80.6 | 32.6 | 60 | 66 | 24.6 | 56 | 106 | DXF | DWG | ||
| EXF8-3-9□□ | 80.6 | 32.6 | 90 | 66 | 24.6 | 86 | 143 | DXF | DWG | ||
| EXF8-3-12□□ | 80.6 | 32.6 | 120 | 66 | 24.6 | 116 | 180 | DXF | DWG | ||
| EXF8-4-6□□ | 80.6 | 42.6 | 60 | 66 | 34.6 | 56 | 122 | DXF | DWG | ||
| EXF8-4-9□□ | 80.6 | 42.6 | 90 | 66 | 34.6 | 86 | 162 | DXF | DWG | ||
| EXF8-4-12□□ | 80.6 | 42.6 | 120 | 66 | 34.6 | 116 | 203 | DXF | DWG | ||
| EXF8-6-6□□ | 80.6 | 57.6 | 60 | 66 | 49.6 | 56 | 145 | DXF | DWG | ||
| EXF8-6-9□□ | 80.6 | 57.6 | 90 | 66 | 49.6 | 86 | 189 | DXF | DWG | ||
| EXF8-6-12□□ | 80.6 | 57.6 | 120 | 66 | 49.6 | 116 | 234 | DXF | DWG | ||
| EXF11-3-8□□ | 106 | 33 | 78 | 88 | 24 | 74 | 177 | DXF | DWG | ||
| EXF11-3-12□□ | 106 | 33 | 118 | 88 | 24 | 114 | 244 | DXF | DWG | ||
| EXF11-3-16□□ | 106 | 33 | 164 | 88 | 24 | 160 | 322 | DXF | DWG | ||
| EXF11-5-8□□ | 106 | 48 | 78 | 88 | 39 | 74 | 206 | DXF | DWG | ||
| EXF11-5-12□□ | 106 | 48 | 118 | 88 | 39 | 114 | 279 | DXF | DWG | ||
| EXF11-5-16□□ | 106 | 48 | 164 | 88 | 39 | 160 | 364 | DXF | DWG | ||
| EXF11-6-8□□ | 106 | 63 | 78 | 88 | 54 | 74 | 238 | DXF | DWG | ||
| EXF11-6-12□□ | 106 | 63 | 118 | 88 | 54 | 114 | 319 | DXF | DWG | ||
| EXF11-6-16□□ | 106 | 63 | 164 | 88 | 54 | 160 | 412 | DXF | DWG | ||
| EXF14-4-10□□ | 141 | 38 | 97 | 106.8 | 29 | 93 | 287 | DXF | DWG | ||
| EXF14-4-14□□ | 141 | 38 | 137 | 106.8 | 29 | 133 | 377 | DXF | DWG | ||
| EXF14-4-19□□ | 141 | 38 | 187 | 106.8 | 29 | 183 | 491 | DXF | DWG | ||
| EXF14-5-10□□ | 141 | 53 | 97 | 106.8 | 44 | 93 | 325 | DXF | DWG | ||
| EXF14-5-14□□ | 141 | 53 | 137 | 106.8 | 44 | 133 | 422 | DXF | DWG | ||
| EXF14-5-19□□ | 141 | 53 | 187 | 106.8 | 44 | 183 | 544 | DXF | DWG | ||
| EXF14-7-10□□ | 141 | 73 | 97 | 106.8 | 64 | 93 | 371 | DXF | DWG | ||
| EXF14-7-14□□ | 141 | 73 | 137 | 106.8 | 64 | 133 | 475 | DXF | DWG | ||
| EXF14-7-19□□ | 141 | 73 | 187 | 106.8 | 64 | 183 | 606 | DXF | DWG | ||
| EXF14-9-10□□ | 141 | 93 | 97 | 106.8 | 84 | 93 | 422 | DXF | DWG | ||
| EXF14-9-14□□ | 141 | 93 | 137 | 106.8 | 84 | 133 | 536 | DXF | DWG | ||
| EXF14-9-19□□ | 141 | 93 | 187 | 106.8 | 84 | 183 | 679 | DXF | DWG | ||
| EXF19-4-13□□ | 186.5 | 45.25 | 125 | 131 | 35 | 120 | 652 | DXF | DWG | ||
| EXF19-4-18□□ | 186.5 | 45.25 | 177 | 131 | 35 | 172 | 875 | DXF | DWG | ||
| EXF19-4-23□□ | 186.5 | 45.25 | 230 | 131 | 35 | 225 | 1101 | DXF | DWG | ||
| EXF19-4-29□□ | 186.5 | 45.25 | 285 | 131 | 35 | 280 | 1333 | DXF | DWG | ||
| EXF19-6-13□□ | 186.5 | 63.25 | 125 | 131 | 53 | 120 | 722 | DXF | DWG | ||
| EXF19-6-18□□ | 186.5 | 63.25 | 177 | 131 | 53 | 172 | 959 | DXF | DWG | ||
| EXF19-6-23□□ | 186.5 | 63.25 | 230 | 131 | 53 | 225 | 1195 | DXF | DWG | ||
| EXF19-6-29□□ | 186.5 | 63.25 | 285 | 131 | 53 | 280 | 1444 | DXF | DWG | ||
| EXF19-8-13□□ | 186.5 | 83.25 | 125 | 131 | 73 | 120 | 802 | DXF | DWG | ||
| EXF19-8-18□□ | 186.5 | 83.25 | 177 | 131 | 73 | 172 | 1059 | DXF | DWG | ||
| EXF19-8-23□□ | 186.5 | 83.25 | 230 | 131 | 73 | 225 | 1311 | DXF | DWG | ||
| EXF19-8-29□□ | 186.5 | 83.25 | 285 | 131 | 73 | 280 | 1576 | DXF | DWG | ||
| EXF19-11-13□□ | 186.5 | 108.25 | 125 | 131 | 98 | 120 | 926 | DXF | DWG | ||
| EXF19-11-18□□ | 186.5 | 108.25 | 177 | 131 | 98 | 172 | 1184 | DXF | DWG | ||
| EXF19-11-23□□ | 186.5 | 108.25 | 230 | 131 | 98 | 225 | 1463 | DXF | DWG | ||
| EXF19-11-29□□ | 186.5 | 108.25 | 285 | 131 | 98 | 280 | 1739 | DXF | DWG | ||
| EXF23-5-15□□ | 232 | 53.5 | 153 | 176 | 43 | 147 | 1024 | DXF | DWG | ||
| EXF23-5-21□□ | 232 | 53.5 | 213 | 176 | 43 | 207 | 1350 | DXF | DWG | ||
| EXF23-5-27□□ | 232 | 53.5 | 273 | 176 | 43 | 267 | 1682 | DXF | DWG | ||
| EXF23-5-33□□ | 232 | 53.5 | 333 | 176 | 43 | 327 | 2012 | DXF | DWG | ||
| EXF23-8-15□□ | 232 | 78.5 | 153 | 176 | 68 | 147 | 1164 | DXF | DWG | ||
| EXF23-8-21□□ | 232 | 78.5 | 213 | 176 | 68 | 207 | 1509 | DXF | DWG | ||
| EXF23-8-27□□ | 232 | 78.5 | 273 | 176 | 68 | 267 | 1854 | DXF | DWG | ||
| EXF23-8-33□□ | 232 | 78.5 | 333 | 176 | 68 | 327 | 2225 | DXF | DWG | ||
| EXF23-10-15□□ | 232 | 103.5 | 153 | 176 | 93 | 147 | 1303 | DXF | DWG | ||
| EXF23-10-21□□ | 232 | 103.5 | 213 | 176 | 93 | 207 | 1682 | DXF | DWG | ||
| EXF23-10-27□□ | 232 | 103.5 | 273 | 176 | 93 | 267 | 2060 | DXF | DWG | ||
| EXF23-10-33□□ | 232 | 103.5 | 333 | 176 | 93 | 327 | 2455 | DXF | DWG | ||
| EXF29-8-23□□ | 287.5 | 78.75 | 234 | 230 | 68 | 228 | 1893 | DXF | DWG | ||
| EXF29-8-30□□ | 287.5 | 78.75 | 304 | 230 | 68 | 298 | 2361 | DXF | DWG | ||
| EXF29-8-38□□ | 287.5 | 78.75 | 384 | 230 | 68 | 378 | 2896 | DXF | DWG | ||
| EXF29-13-23□□ | 287.5 | 128.75 | 234 | 230 | 118 | 228 | 2305 | DXF | DWG | ||
| EXF29-13-30□□ | 287.5 | 128.75 | 304 | 230 | 118 | 298 | 2832 | DXF | DWG | ||
| EXF29-13-38□□ | 287.5 | 128.75 | 384 | 230 | 118 | 378 | 3433 | DXF | DWG | ||
