IP68 / IP67 waterproof & weatherproof plastic enclosure.

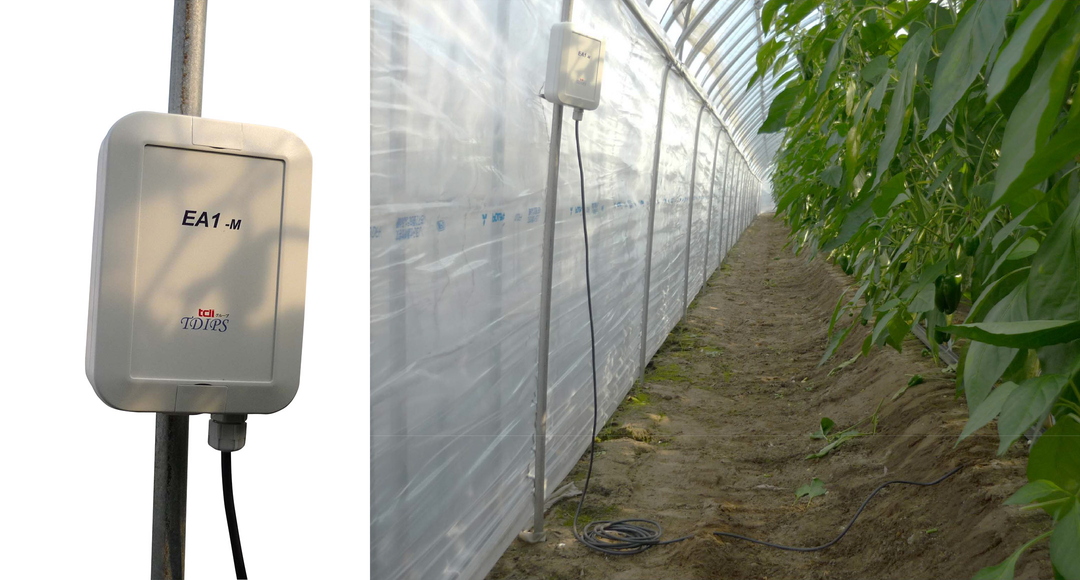

IP68 / IP67 protection class allows the unit to be used outdoors while protecting the internal components from dust and water.

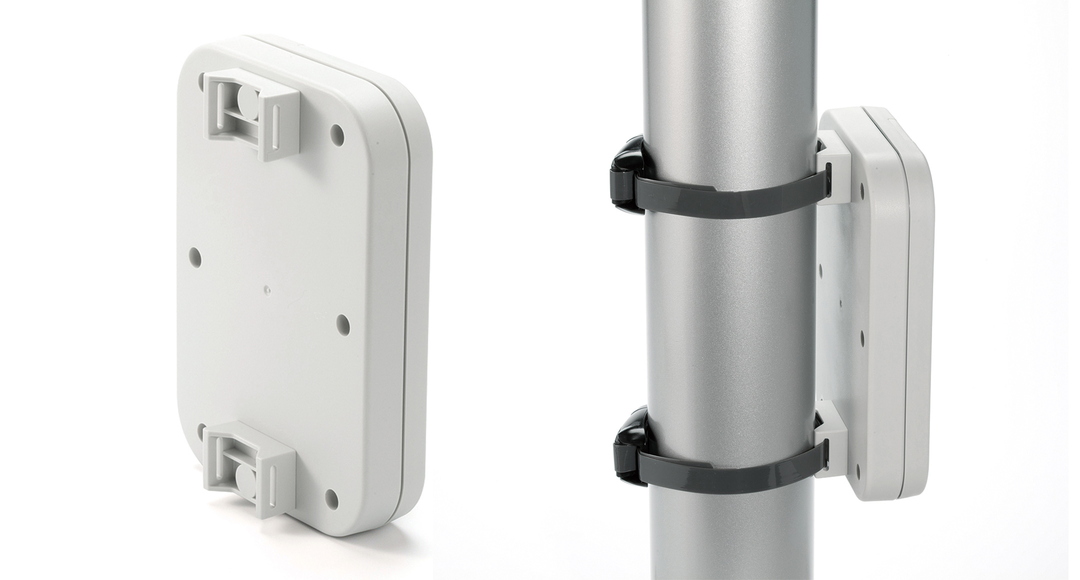

Pole mounting is possible via an optional pole mounting bracket accessory.

【Available in 2 types】
White gray color : UV-resistant ASA plastic
Charcoal gray color : Flame-resistant ABS plastic (UL94V-0)

24 different selectable sizes are available. Mount on walls or brackets by simply opening the blind lids.

Protection class : IP68 - 22 sizes / IP67 - 2 sizes
Operating temperature :
Models = 5-7-□ ～ 20-20-□
ASA -20℃ ~ +60℃ ・ Flame-resistant ABS -10℃ ~ +50℃
Models = 20-28-□
ASA -20℃ ~ +55℃ ・ Flame-resistant ABS -10℃ ~ +45℃

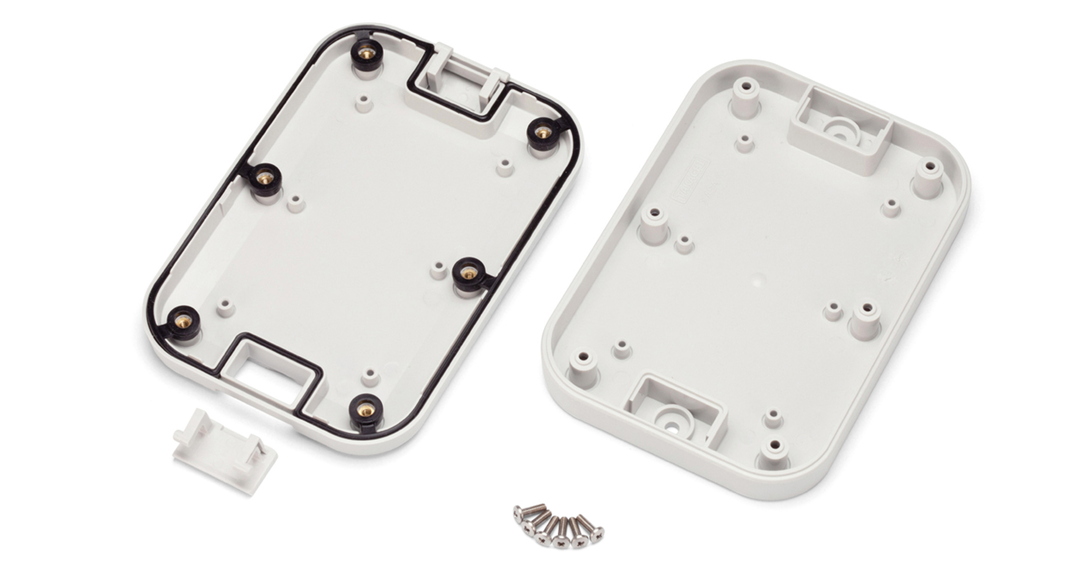

3D View - Small size (White) 3D View - (Dark Gray) 3D View - Square size (White) 3D View - Large size (White) Exploded view (Small size) Exploded view (Large size) IP68 Test Certificate IP67 Test Certificate

PRODUCT NO. / DIMENSIONS

Product No.	External dimensions			Internal dimensions			material	Color	Weight (g)	IP code	PDF	3D PDF	DXF	DWG	STP
Product No.	W	H	D	w	h	d	material	Color	Weight (g)	IP code	PDF	3D PDF	DXF	DWG	STP
WP5-7-2 C	52	18	65	46	13	37	ABS（UL94V-0）	Charcoal gray	31.5	IP68	PDF	3D PDF	DXF	DWG
WP5-7-2 G	52	18	65	46	13	37	ASA（UL94HB）	White gray	31.5	IP68	PDF	3D PDF	DXF	DWG
WP5-7-3 C	52	27	65	45	22	36.5	ABS（UL94V-0）	Charcoal gray	39.5	IP68	PDF	3D PDF	DXF	DWG
WP5-7-3 G	52	27	65	45	22	36.5	ASA（UL94HB）	White gray	39.5	IP68	PDF	3D PDF	DXF	DWG
WP6-8-2 C	60	20	80	53.5	14.7	52	ABS（UL94V-0）	Charcoal gray	41.5	IP68	PDF	3D PDF	DXF	DWG
WP6-8-2 G	60	20	80	53.5	14.7	52	ASA（UL94HB）	White gray	41.5	IP68	PDF	3D PDF	DXF	DWG
WP6-8-3 C	60	30	80	53	24.7	51	ABS（UL94V-0）	Charcoal gray	49	IP68	PDF	3D PDF	DXF	DWG
WP6-8-3 G	60	30	80	53	24.7	51	ASA（UL94HB）	White gray	49	IP68	PDF	3D PDF	DXF	DWG
WP8-8-2 C	75	22	75	67	16.4	42	ABS（UL94V-0）	Charcoal gray	57.5	IP68	PDF	3D PDF	DXF	DWG
WP8-8-2 G	75	22	75	67	16.4	42	ASA（UL94HB）	White gray	57.5	IP68	PDF	3D PDF	DXF	DWG
WP8-8-4 C	75	35	75	66	29.4	42	ABS（UL94V-0）	Charcoal gray	88.5	IP68	PDF	3D PDF	DXF	DWG
WP8-8-4 G	75	35	75	66	29.4	42	ASA（UL94HB）	White gray	88.5	IP68	PDF	3D PDF	DXF	DWG
WP8-10-2 C	75	22	100	67	16	67	ABS（UL94V-0）	Charcoal gray	74	IP68	PDF	3D PDF	DXF	DWG
WP8-10-2 G	75	22	100	67	16	67	ASA（UL94HB）	White gray	74	IP68	PDF	3D PDF	DXF	DWG
WP8-10-4 C	75	35	100	66	29	67	ABS（UL94V-0）	Charcoal gray	95	IP68	PDF	3D PDF	DXF	DWG
WP8-10-4 G	75	35	100	66	29	67	ASA（UL94HB）	White gray	95	IP68	PDF	3D PDF	DXF	DWG
WP9-13-3 C	90	25	130	81	18	91	ABS（UL94V-0）	Charcoal gray	113	IP68	PDF	3D PDF	DXF	DWG
WP9-13-3 G	90	25	130	81	18	91	ASA（UL94HB）	White gray	113	IP68	PDF	3D PDF	DXF	DWG
WP9-13-4 C	90	40	130	81	33	91	ABS（UL94V-0）	Charcoal gray	141	IP68	PDF	3D PDF	DXF	DWG
WP9-13-4 G	90	40	130	81	33	91	ASA（UL94HB）	White gray	141	IP68	PDF	3D PDF	DXF	DWG
WP10-10-3 C	100	25	100	90	18	61	ABS（UL94V-0）	Charcoal gray	96	IP68	PDF	3D PDF	DXF	DWG
WP10-10-3 G	100	25	100	90	18	61	ASA（UL94HB）	White gray	96	IP68	PDF	3D PDF	DXF	DWG
WP10-10-4 C	100	40	100	90	33	61	ABS（UL94V-0）	Charcoal gray	121	IP68	PDF	3D PDF	DXF	DWG
WP10-10-4 G	100	40	100	90	33	61	ASA（UL94HB）	White gray	121	IP68	PDF	3D PDF	DXF	DWG
WP11-15-3 C	110	27	150	100	20	110	ABS（UL94V-0）	Charcoal gray	153	IP68	PDF	3D PDF	DXF	DWG
WP11-15-3 G	110	27	150	100	20	110	ASA（UL94HB）	White gray	153	IP68	PDF	3D PDF	DXF	DWG
WP11-15-4 C	110	40	150	100	33	110	ABS（UL94V-0）	Charcoal gray	181	IP68	PDF	3D PDF	DXF	DWG
WP11-15-4 G	110	40	150	100	33	110	ASA（UL94HB）	White gray	181	IP68	PDF	3D PDF	DXF	DWG
WP13-18-3 C	130	30	175	120	23	135	ABS（UL94V-0）	Charcoal gray	225	IP68	PDF	3D PDF	DXF	DWG
WP13-18-3 G	130	30	175	120	23	135	ASA（UL94HB）	White gray	225	IP68	PDF	3D PDF	DXF	DWG
WP13-18-5 C	130	45	175	120	38	135	ABS（UL94V-0）	Charcoal gray	266	IP68	PDF	3D PDF	DXF	DWG
WP13-18-5 G	130	45	175	120	38	135	ASA（UL94HB）	White gray	266	IP68	PDF	3D PDF	DXF	DWG
WP15-15-4 C	150	40	150	141	33.5	100	ABS（UL94V-0）	Charcoal gray	239	IP68	PDF	3D PDF	DXF	DWG
WP15-15-4 G	150	40	150	141	33.5	100	ASA（UL94HB）	White gray	239	IP68	PDF	3D PDF	DXF	DWG
WP15-15-6 C	150	55	150	140	48.5	100	ABS（UL94V-0）	Charcoal gray	282.5	IP68	PDF	3D PDF	DXF	DWG
WP15-15-6 G	150	55	150	140	48.5	100	ASA（UL94HB）	White gray	282.5	IP68	PDF	3D PDF	DXF	DWG
WP15-21-4 C	150	40	210	141	33.5	160	ABS（UL94V-0）	Charcoal gray	323	IP68	PDF	3D PDF	DXF	DWG
WP15-21-4 G	150	40	210	141	33.5	160	ASA（UL94HB）	White gray	323	IP68	PDF	3D PDF	DXF	DWG
WP15-21-6 C	150	55	210	140	48.5	160	ABS（UL94V-0）	Charcoal gray	367.5	IP68	PDF	3D PDF	DXF	DWG
WP15-21-6 G	150	55	210	140	48.5	160	ASA（UL94HB）	White gray	367.5	IP68	PDF	3D PDF	DXF	DWG
WP20-20-5 C	200	45	200	190	38.5	150	ABS（UL94V-0）	Charcoal gray	434	IP68	PDF	3D PDF	DXF	DWG
WP20-20-5 G	200	45	200	190	38.5	150	ASA（UL94HB）	White gray	434	IP68	PDF	3D PDF	DXF	DWG
WP20-20-7 C	200	65	200	189	58.5	149	ABS（UL94V-0）	Charcoal gray	505	IP68	PDF	3D PDF	DXF	DWG
WP20-20-7 G	200	65	200	189	58.5	149	ASA（UL94HB）	White gray	505	IP68	PDF	3D PDF	DXF	DWG
WP20-28-5 C	200	45	280	190	38.5	230	ABS（UL94V-0）	Charcoal gray	557.5	IP67	PDF	3D PDF	DXF	DWG
WP20-28-5 G	200	45	280	190	38.5	230	ASA（UL94HB）	White gray	557.5	IP67	PDF	3D PDF	DXF	DWG
WP20-28-7 C	200	65	280	189	58.5	229	ABS（UL94V-0）	Charcoal gray	646	IP67	PDF	3D PDF	DXF	DWG
WP20-28-7 G	200	65	280	189	58.5	229	ASA（UL94HB）	White gray	646	IP67	PDF	3D PDF	DXF	DWG
