CATEGORY：IP68 Aluminum enclosure, Waterproof aluminum enclosure, IP67 Power supply enclosure, Heatsink enclosure, Rugged aluminum enclosure

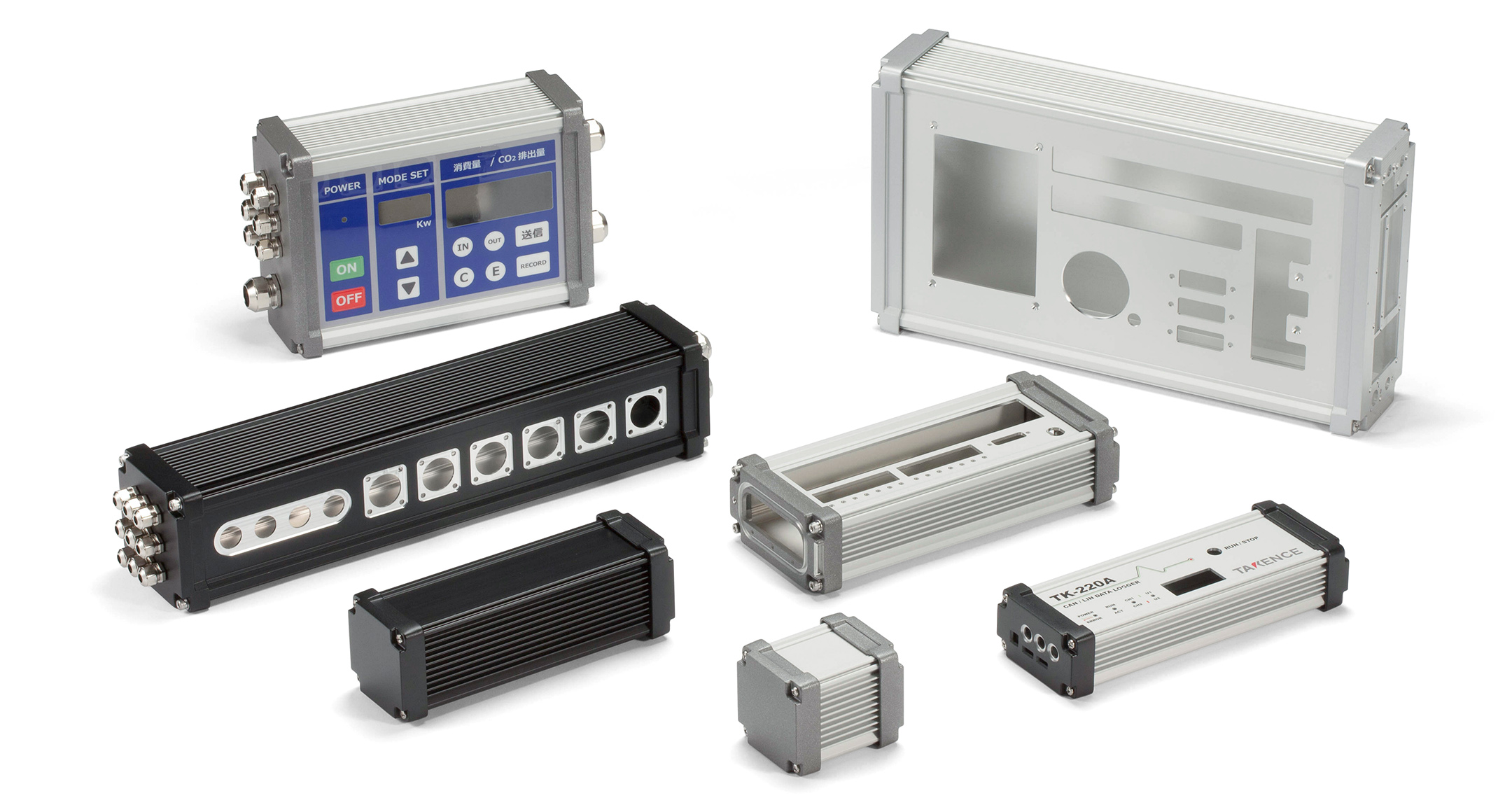

Custom sized IP68 waterproof and heat dissipation extruded aluminum enclosure.

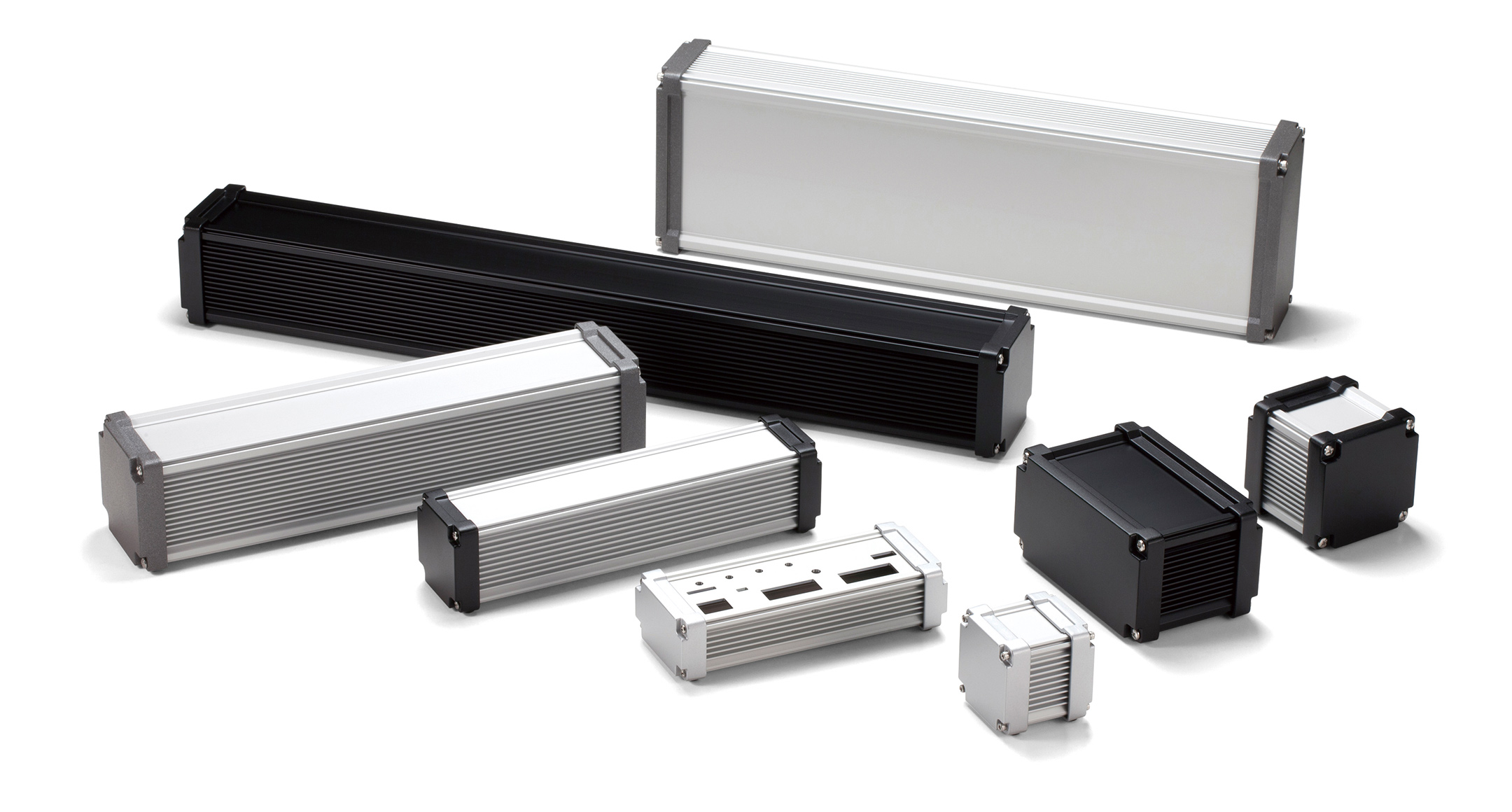

Selectable 8 different Width/Height profiles and specified length (depth) from 50 to 700mm by 1mm intervals.

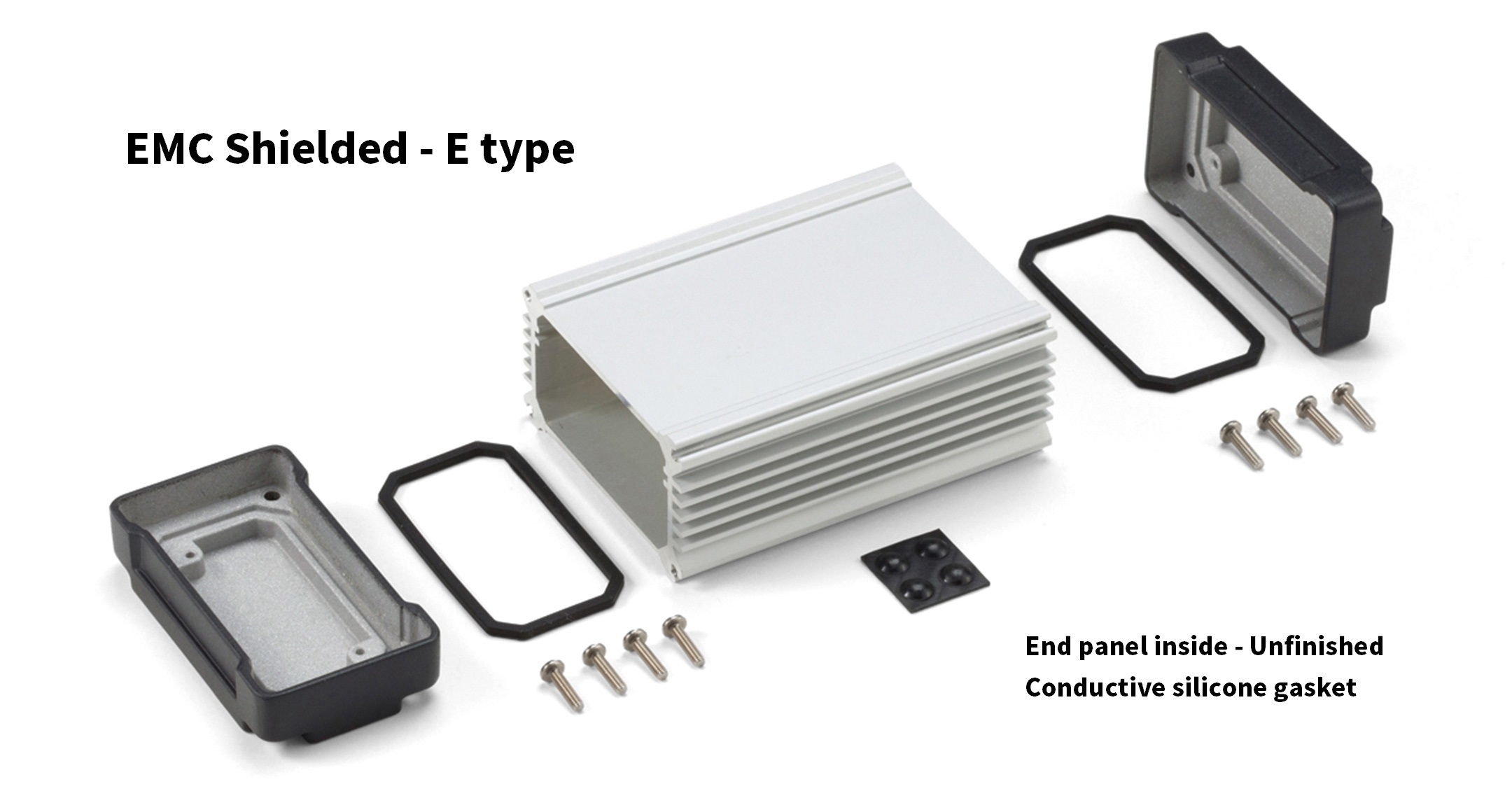

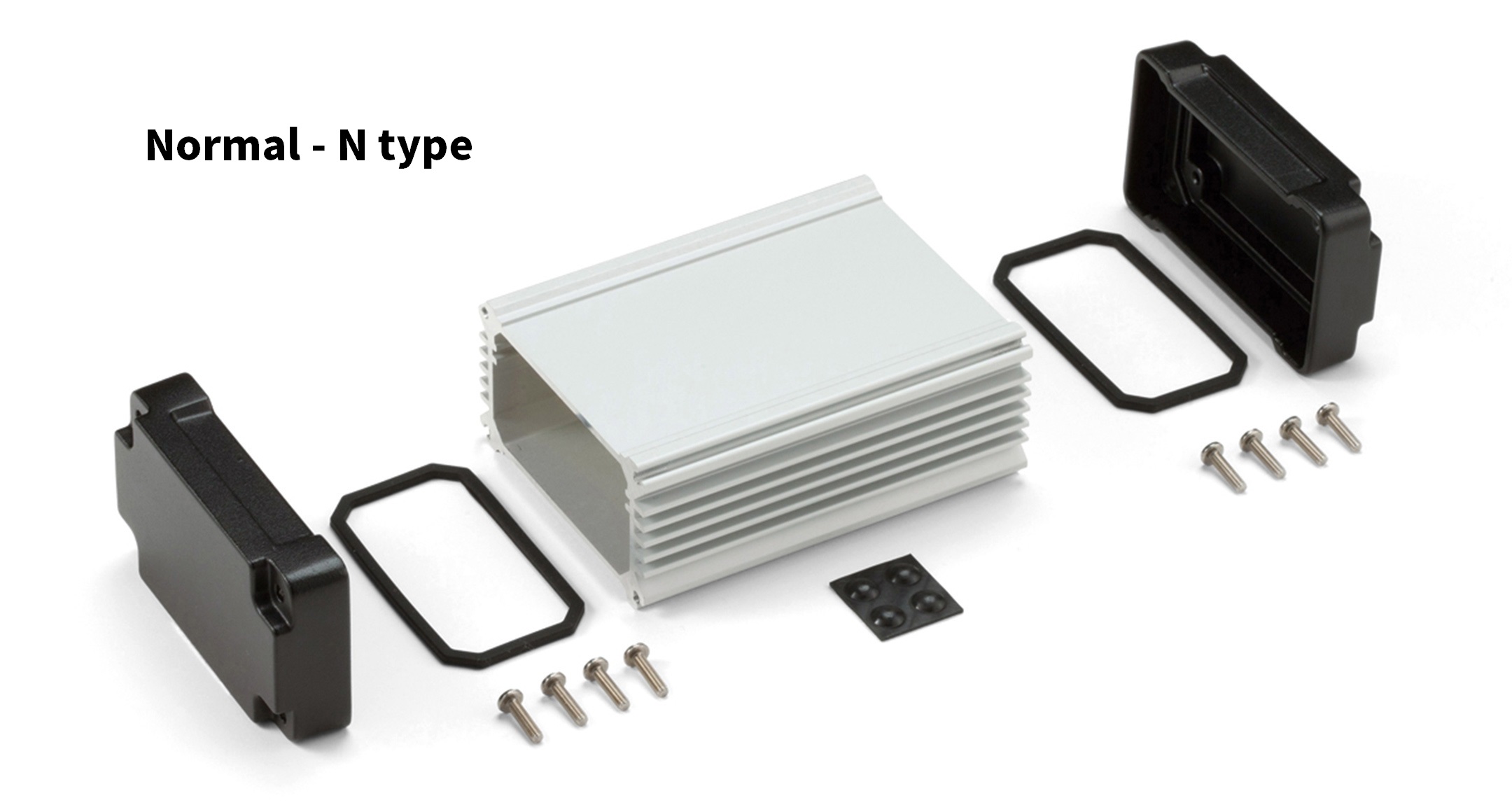

Selectable in both Normal or EMC Shielded type.

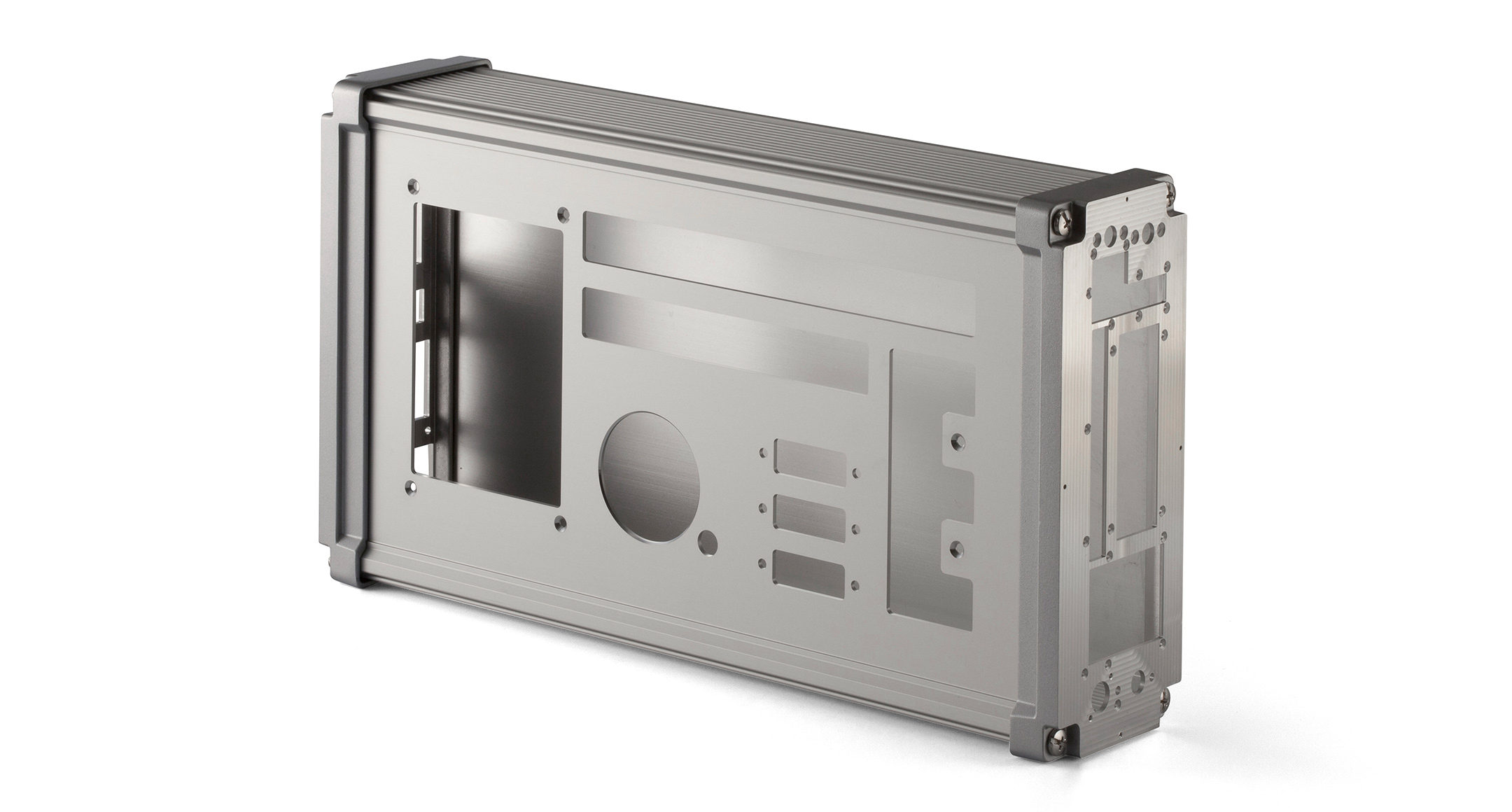

The extruded aluminum frame and diecast aluminum panels makes it extremely suitable to be used in harsh environments where waterproofing and heat dissipation is essential.
PCB or mounting plate can be mounted by sliding it horizontally into inner-grooved body frame.

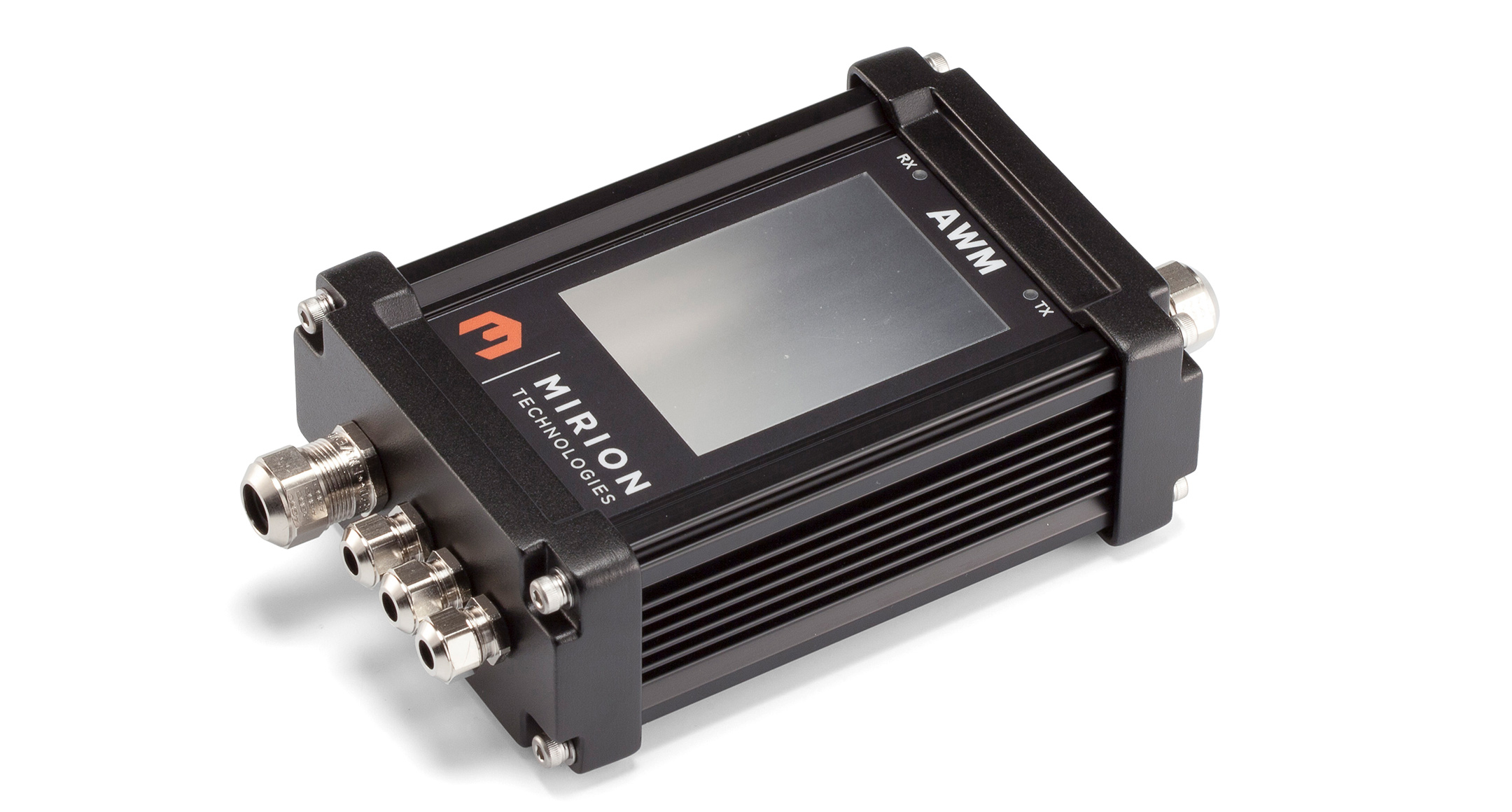

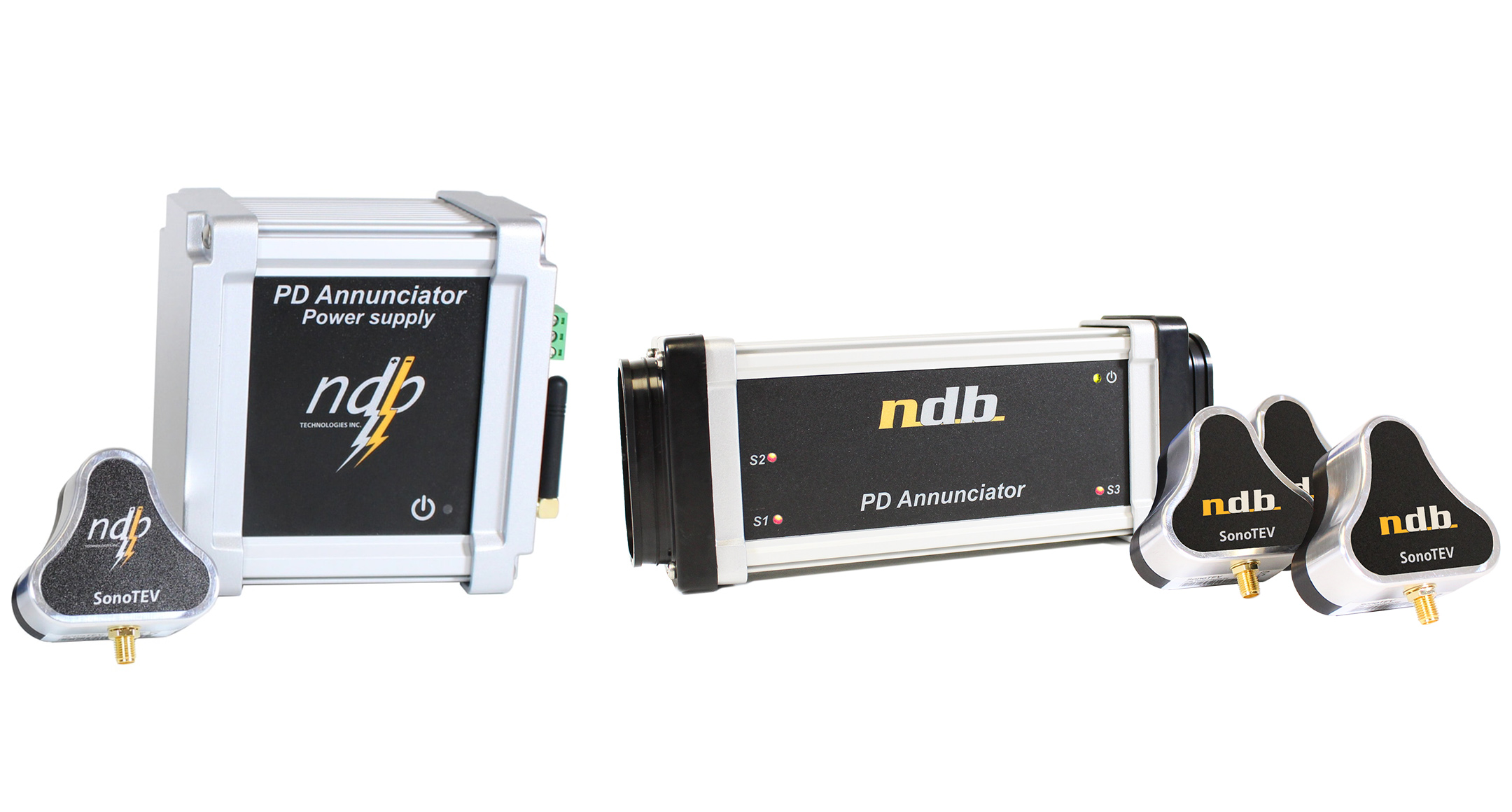

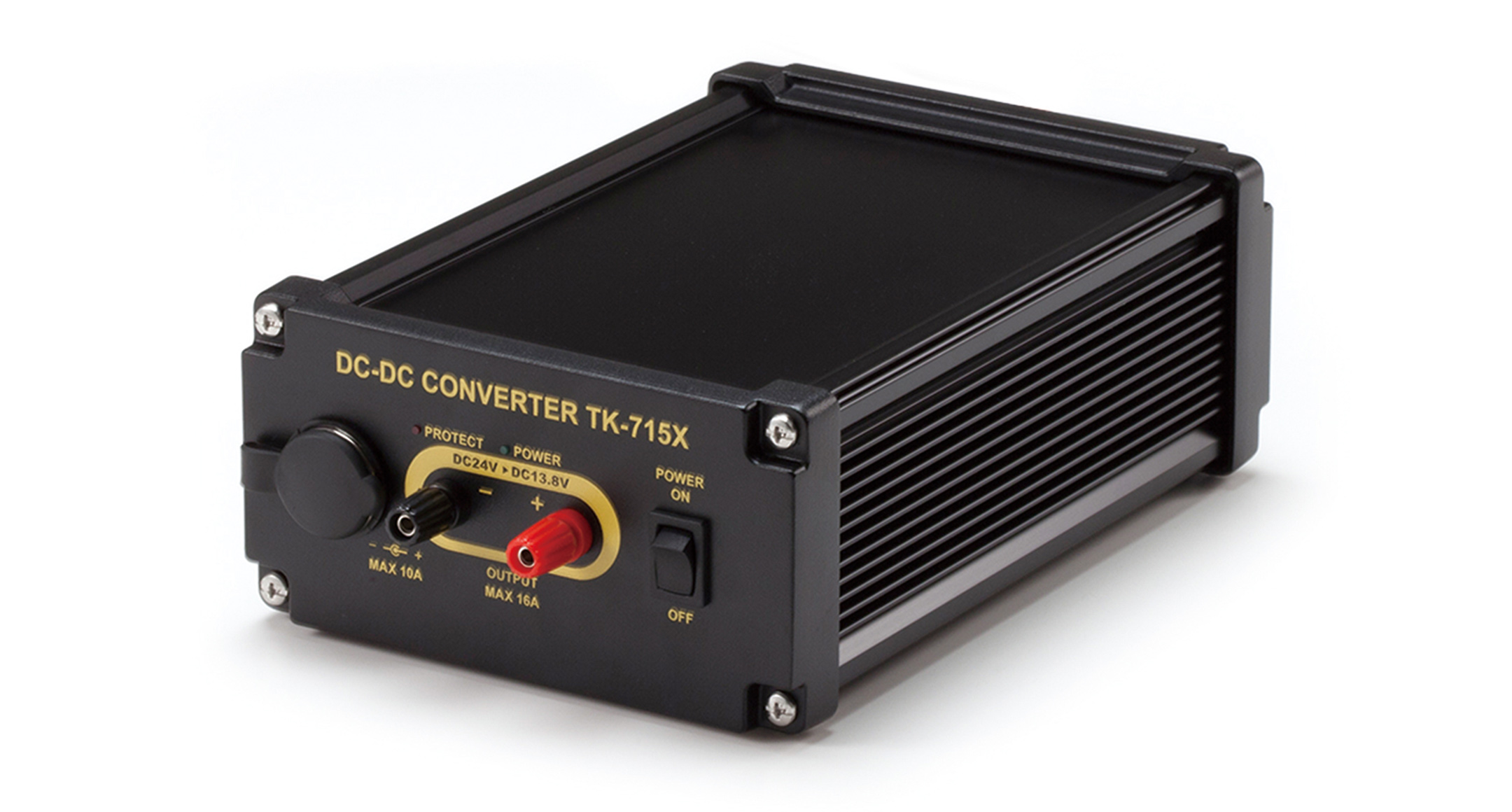

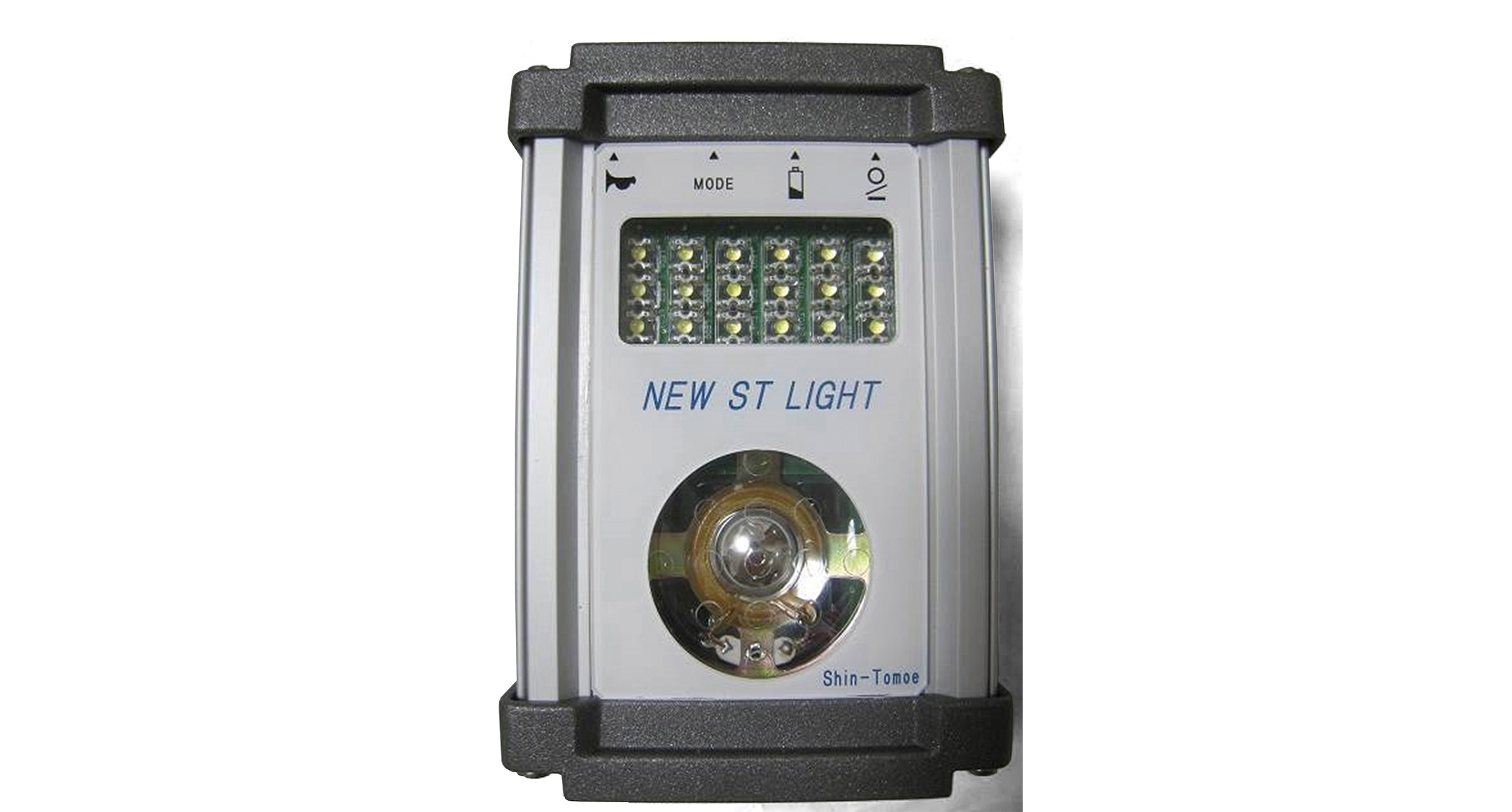

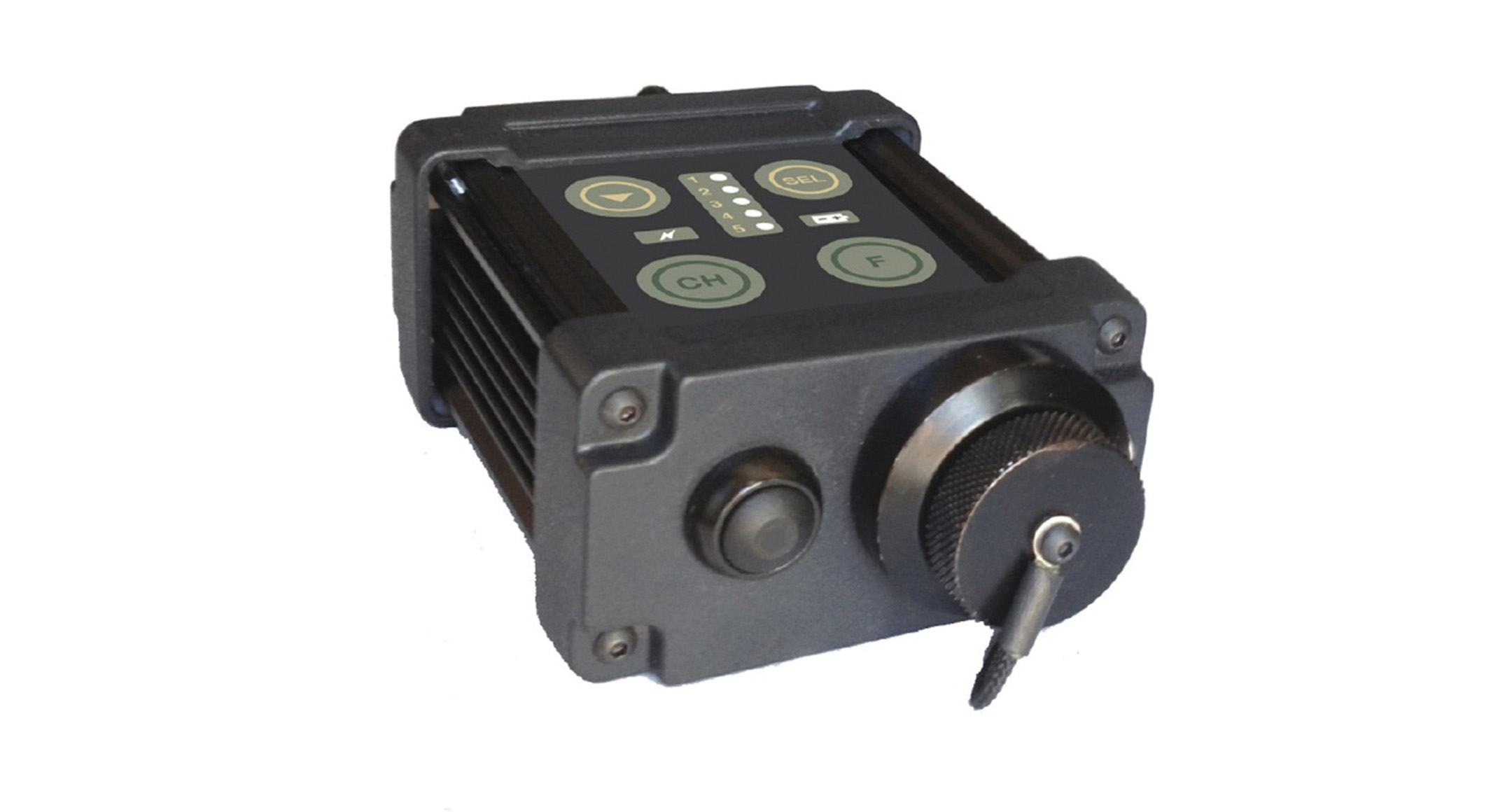

Suitable for measuring instruments, industrial control box, and industrial camera housing, among others.
Protection class: IP68 (24 hours / 1m depth - equivalent to NEMA6P rating)
Operating temperature: -40℃ ~ +105℃

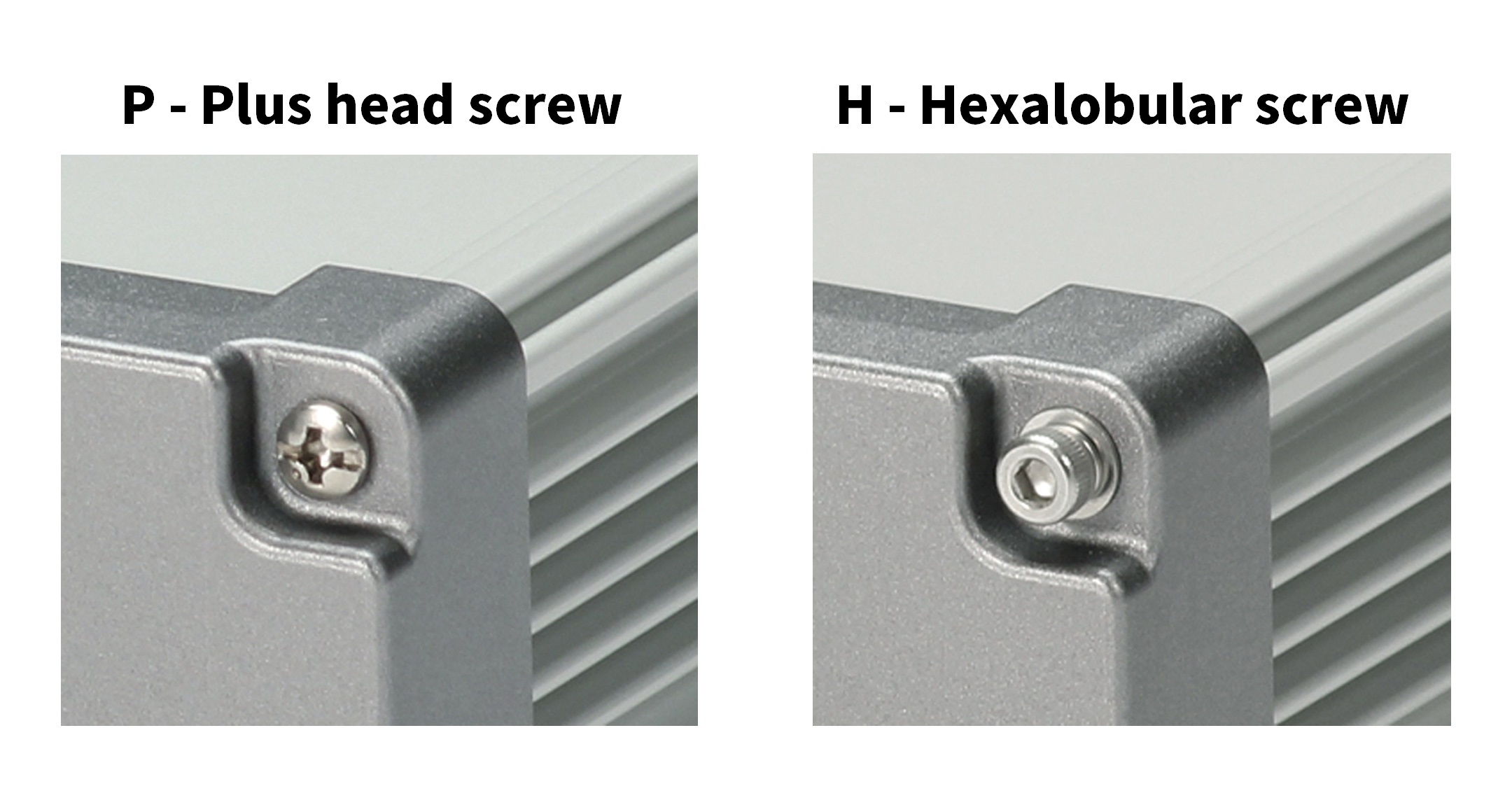

Recommended torque: 1.0N・m (10kgf・cm)
Custom length is available.
↓Go AWNS series page for the custom length (depth) order from 50～700mm by 1mm intervals.
Selectable 8 different Width/Height profiles and specified length (depth) from 50 to 700mm by 1mm intervals.
Selectable in both Normal or EMC Shielded type.
The extruded aluminum frame and diecast aluminum panels makes it extremely suitable to be used in harsh environments where waterproofing and heat dissipation is essential.
PCB or mounting plate can be mounted by sliding it horizontally into inner-grooved body frame.
Suitable for measuring instruments, industrial control box, and industrial camera housing, among others.
Protection class: IP68 (24 hours / 1m depth - equivalent to NEMA6P rating)
Operating temperature: -40℃ ~ +105℃
Recommended torque: 1.0N・m (10kgf・cm)
Custom length is available.
↓Go AWNS series page for the custom length (depth) order from 50～700mm by 1mm intervals.
COLOR TYPE
GSMetallic gray/Silver
SSSilver/Silver
BSBlack/Silver
BBBlack/Black
PRODUCT NO. / DIMENSIONS
| Product No. | External dimensions | Internal dimensions | Type | DXF | DWG | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| W | H | D | w | h | d | |||||
| AWNS55-35-〇 N□ | 55 | 35 | Can be specified from 50 to 700mm | 31.2 | 14.7 | D dimension－15.8mm | Normal | DXF | DWG | |
| AWNS66-66-〇 N□ | 66 | 66 | Can be specified from 50 to 700mm | 40.8 | 30.8 | D dimension－16mm | Normal | DXF | DWG | |
| AWNS81-46-〇 N□ | 81 | 46 | Can be specified from 50 to 700mm | 41.8 | 24.8 | D dimension－16mm | Normal | DXF | DWG | |
| AWNS86-86-〇 N□ | 86 | 86 | Can be specified from 50 to 700mm | 44.8 | 59.4 | D dimension－19mm | Normal | DXF | DWG | |
| AWNS106-56-〇 N□ | 106 | 56 | Can be specified from 50 to 700mm | 64.3 | 28.7 | D dimension－19.4mm | Normal | DXF | DWG | |
| AWNS120-71-〇 N□ | 120 | 71 | Can be specified from 50 to 700mm | 77.9 | 43.7 | D dimension－19.4mm | Normal | DXF | DWG | |
| AWNS156-81-〇 N□ | 156 | 81 | Can be specified from 50 to 700mm | 114.8 | 54.4 | D dimension－19.4mm | Normal | DXF | DWG | |
| AWNS206-81-〇 N□ | 206 | 81 | Can be specified from 50 to 700mm | 164.7 | 54.4 | D dimension－22.2mm | Normal | DXF | DWG | |
| AWNS55-35-〇 E□ | 55 | 35 | Can be specified from 50 to 700mm | 31.2 | 14.7 | D dimension－15.8mm | EMC Shielded | DXF | DWG | |
| AWNS66-66-〇 E□ | 66 | 66 | Can be specified from 50 to 700mm | 40.8 | 30.8 | D dimension－16mm | EMC Shielded | DXF | DWG | |
| AWNS81-46-〇 E□ | 81 | 46 | Can be specified from 50 to 700mm | 41.8 | 24.8 | D dimension－16mm | EMC Shielded | DXF | DWG | |
| AWNS86-86-〇 E□ | 86 | 86 | Can be specified from 50 to 700mm | 44.8 | 59.4 | D dimension－19mm | EMC Shielded | DXF | DWG | |
| AWNS106-56-〇 E□ | 106 | 56 | Can be specified from 50 to 700mm | 64.3 | 28.7 | D dimension－19.4mm | EMC Shielded | DXF | DWG | |
| AWNS120-71-〇 E□ | 120 | 71 | Can be specified from 50 to 700mm | 77.9 | 43.7 | D dimension－19.4mm | EMC Shielded | DXF | DWG | |
| AWNS156-81-〇 E□ | 156 | 81 | Can be specified from 50 to 700mm | 114.8 | 54.4 | D dimension－19.4mm | EMC Shielded | DXF | DWG | |
| AWNS206-81-〇 E□ | 206 | 81 | Can be specified from 50 to 700mm | 164.7 | 54.4 | D dimension－22.2mm | EMC Shielded | DXF | DWG | |
